3" Brass Ball Valve FNPT Full Port 400 CWP Apollo 94A-100-01

3" Brass Ball Valve FNPT Full Port 400 CWP Apollo 94A-100-01

Apollo 94A Series 3 Inch FNPT Forged Brass Ball Valve - 400 PSI CWP, Full Port

Forged Brass Body, Chrome Plated Ball, PTFE Seats, CSA / FM / UL Listed

Product image 1
1 / 12
Thumbnail 1
Thumbnail 2
Thumbnail 3
Thumbnail 4
Thumbnail 5
Thumbnail 6
Thumbnail 7
Thumbnail 8
Thumbnail 9
Thumbnail 10
Thumbnail 11
Thumbnail 12
Thumbnail 12
+12
Thumbnail 1
Thumbnail 2
Thumbnail 3
Thumbnail 4
Thumbnail 5
Thumbnail 6
Thumbnail 7
Thumbnail 8
Thumbnail 9
Thumbnail 10
Thumbnail 11
Thumbnail 12
Thumbnail 12
+12
Product image 1
1 / 12
DescriptionDetails
Available Quantity59
Model94A-100-01
ConditionNew
ManufacturerApollo
Asset NumberKSC1230 / 84
Guarantee or ASIS1. HIGH CONFIDENCE ITEM: We will offer a 100% 14 Day money back less S&H.

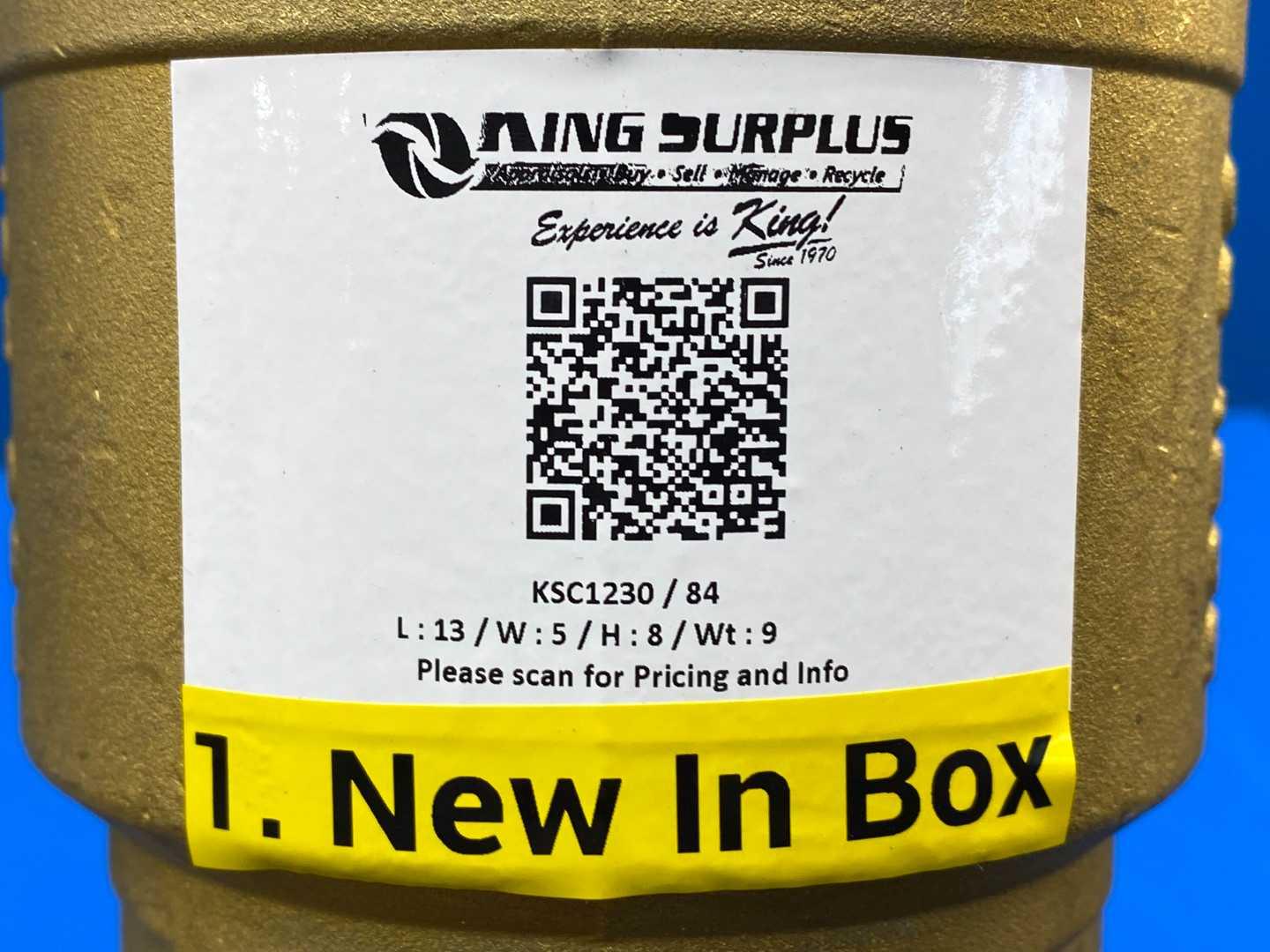

Inspections - Yellow Tag1. New in Box
Packaging Cost1.6 6x10 CH $3.00
Available Qty: 59
Free Shipping
$219.00
Call UsText UsEmail Us
$219.00
Free Shipping
Call Us

Asset #

KSC1230 / 84

Available Quantity

59

Inspections - Yellow Tag

1. New in Box

Condition

New

Guarantee or ASIS

1. HIGH CONFIDENCE ITEM: We will offer a 100% 14 Day money back less S&H.

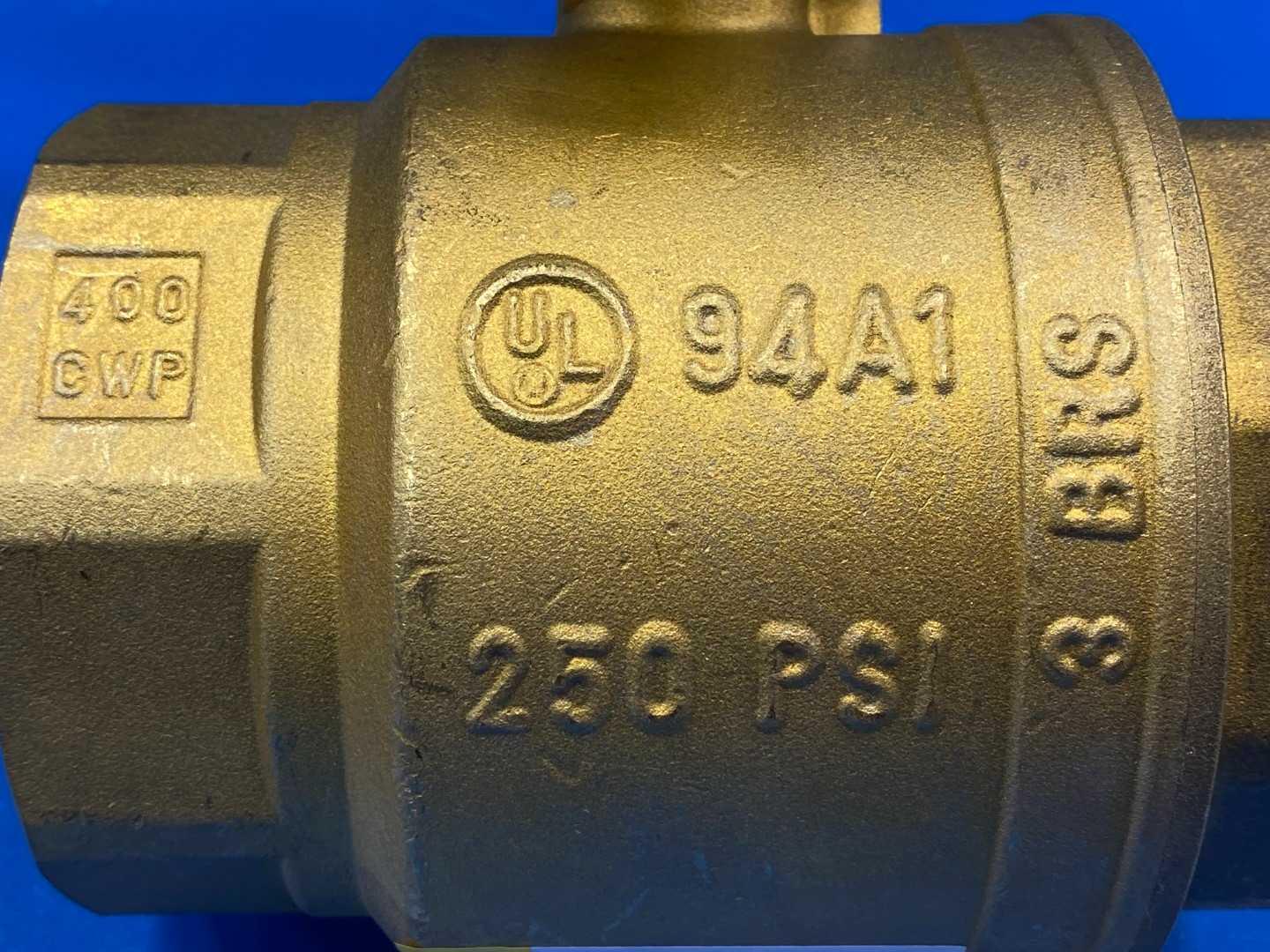

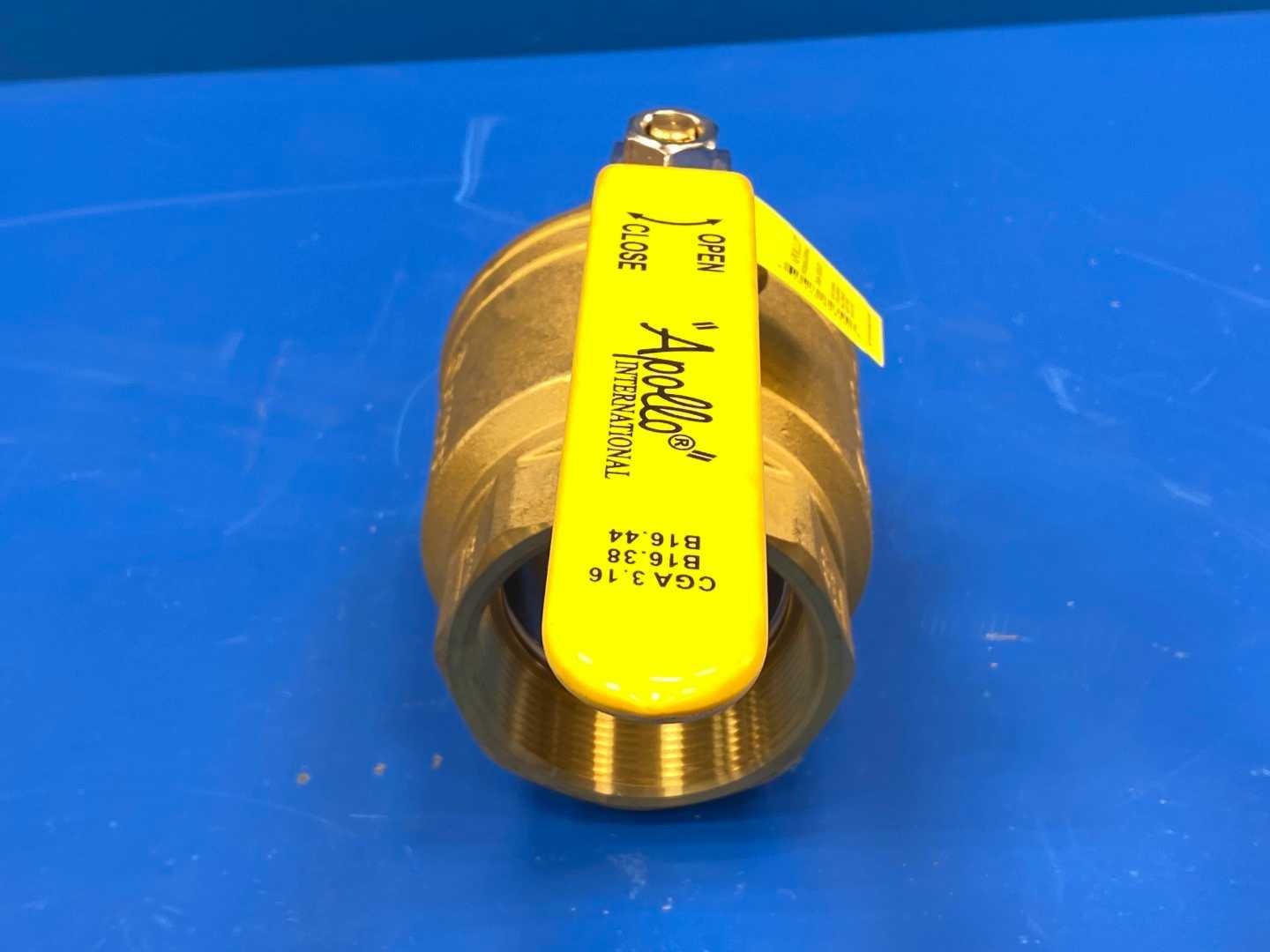

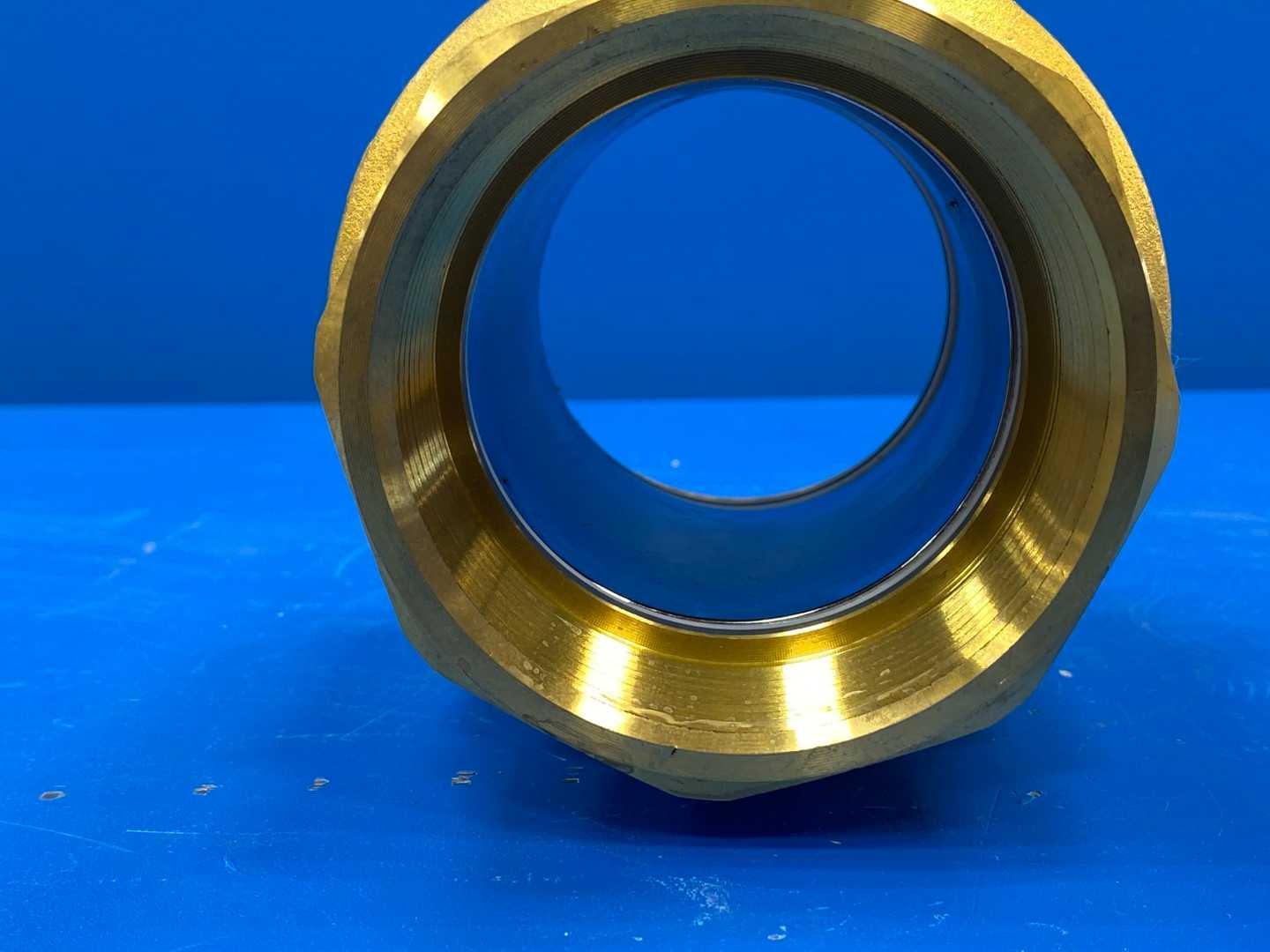

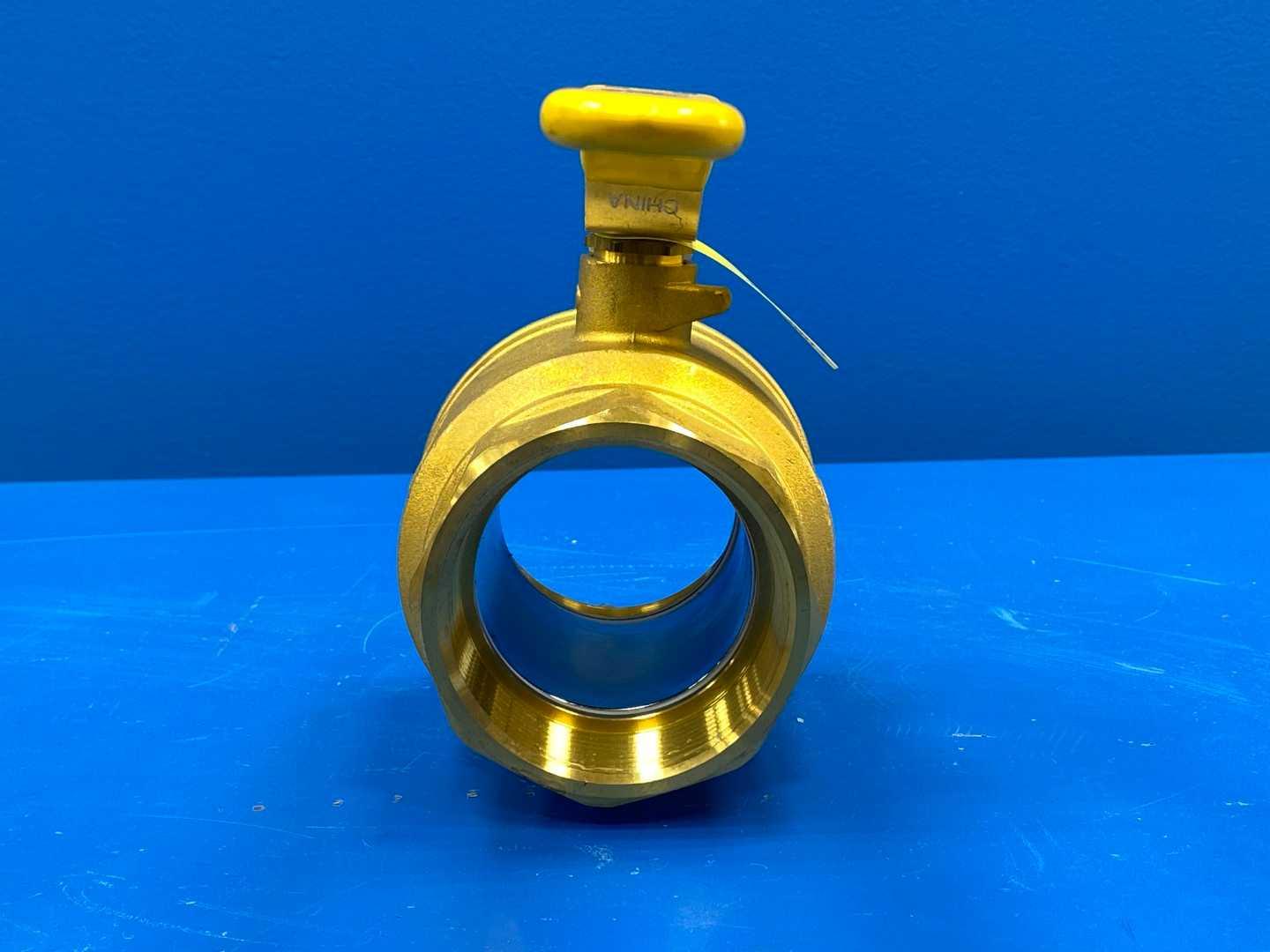

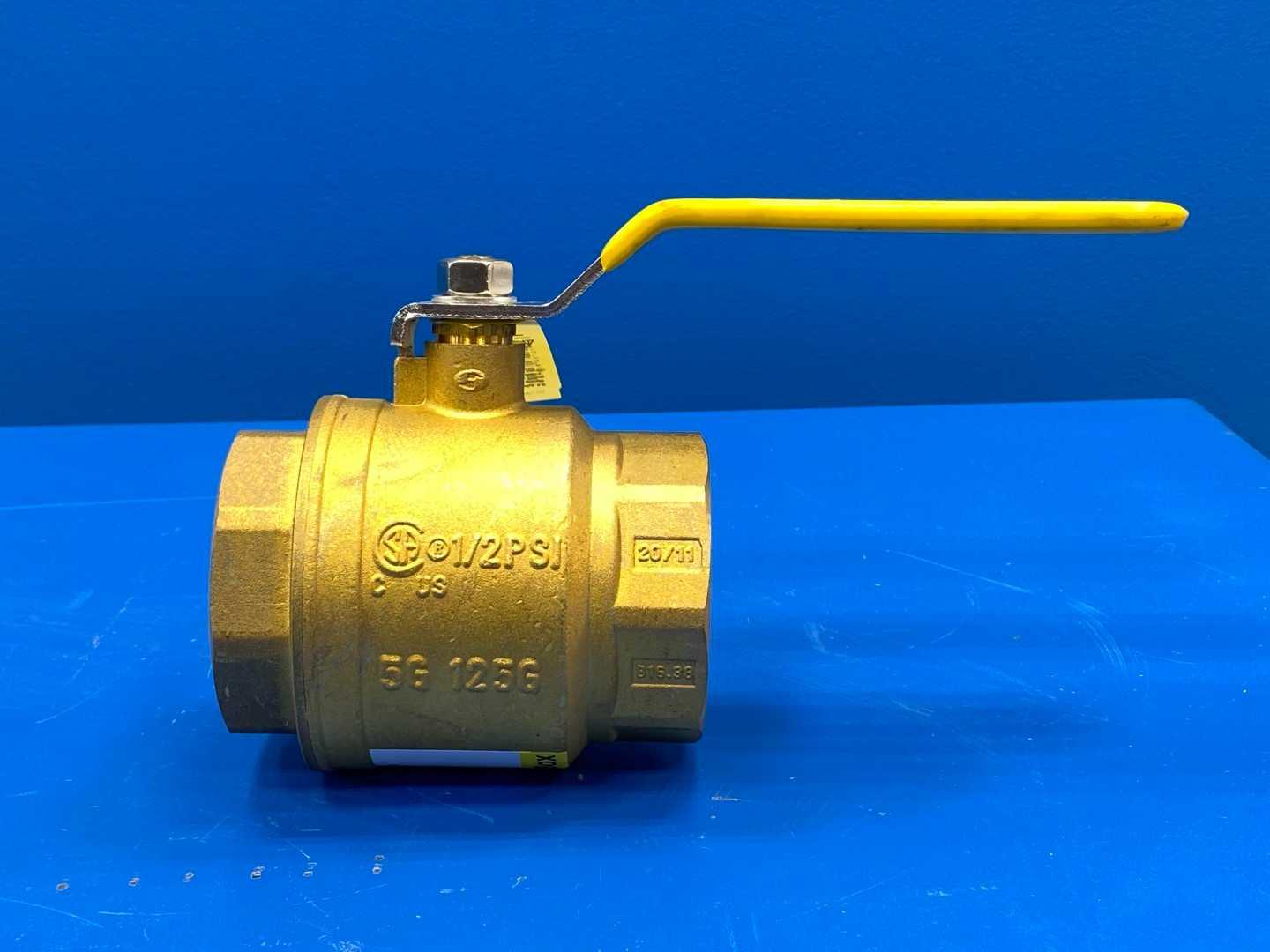

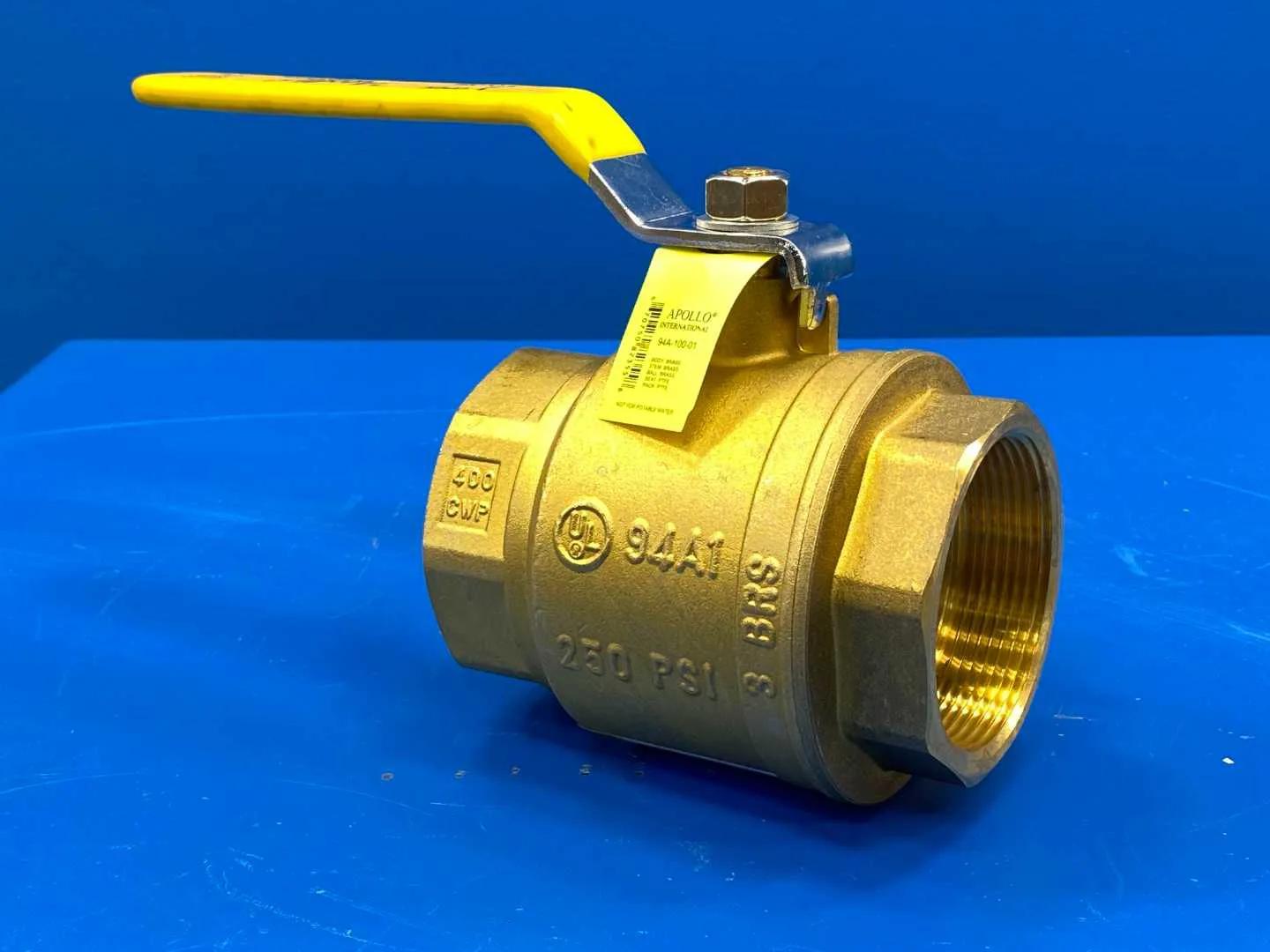

The Apollo 94A-100-01 is a 3 inch forged brass, two-piece, full-port ball valve with female NPT (FNPT) connections on both ends. It is rated for 400 PSI cold working pressure and a service temperature range of 0 F to 400 F, making it suitable for HVAC, fuel gas, fire protection trim and drain, compressed air, oil, and general industrial flow control. The valve uses a chrome-plated brass ball and stem with PTFE seats and an EPDM body seal. The blowout-proof stem and adjustable packing nut allow long service life with minimal maintenance. The forged brass body provides higher pressure ratings than cast equivalents. Approvals include CSA, FM 1140, and UL. This unit is new in original packaging and ships from Del Rio, Texas. Apollo (Conbraco / Aalberts Integrated Piping Systems) is the recognized North American brand standard for forged brass industrial ball valves. Note: this valve is not approved for potable water use in the United States.

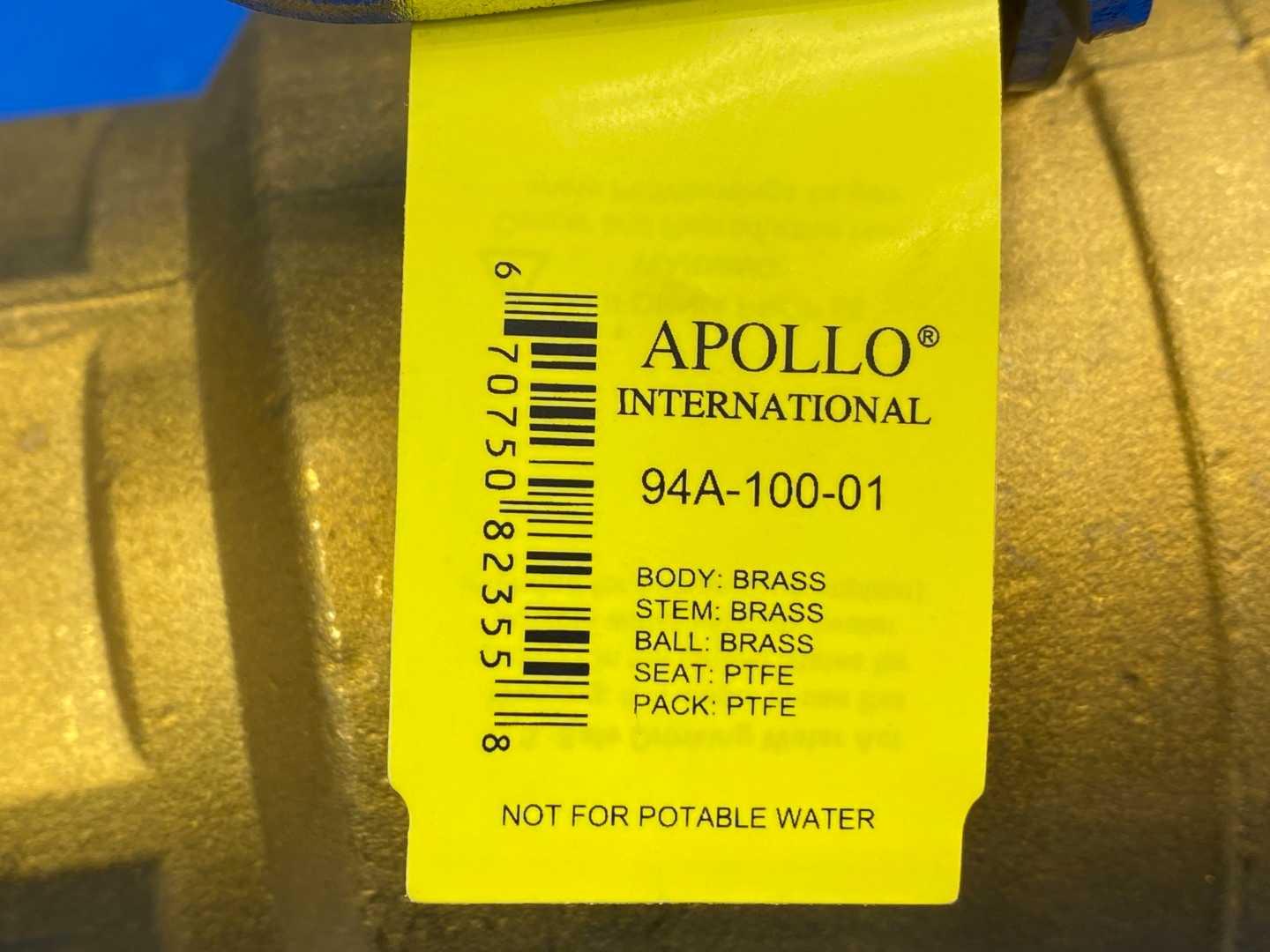

Manufacturer: Apollo (Conbraco / Aalberts Integrated Piping Systems) Model: 94A-100-01 MPN: 94A10001 UPC: 670750823558 Series: 94A Forged Brass Size: 3 in. FNPT (female NPT, both ends) Design: 2-Piece, Full Port Pressure Rating: 400 PSI CWP Temperature Range: 0 F to 400 F Cv: 1018 Body: Forged Brass (Cu >57%) Ball: Chrome Plated Brass Stem: Chrome Plated Brass, Blowout-Proof Seats: PTFE Seal: EPDM Handle: Plated Steel with PVC grip Approvals: CSA, FM 1140, UL Inlet to Outlet Length: 6.039 in Top to Inlet Center: 5.079 in Notes: Not for potable water use in the United States.
Manufacturer

Apollo

Model

94A-100-01

Serial

7075082355

Year

N/A

HP / AMP / KW / KVA

N/A

Amps

N/A

Length (Inches)

13

Width (Inches)

5

Height (Inches)

8

Phase

N/A

Estimated Packaging Weight

0

Estimated Total Weight

9

Asset Number

KSC1230 / 84

Packaging Cost

1.6 6x10 CH $3.00

Appraised Value

$219.00

Payment Methods

Payment Types Accepted : Visa, Mastercard, Check (14 Day Hold Before Release), Cash

Similar Items You Might Be Interested In

New Arrival
Asco 8262H001
Asco 8262H001

$34.99

Available Quantity : 2
New Arrival
Watts 174A-M1 Water Pressure Safety Relief Valve, 1-1/4 inch, 150 PSI, 6,340,000 BTU/hr
Watts 174A-M1 Water Pressure Safety Relief Valve, 1-1/4 inch, 150 PSI, 6,340,000 BTU/hr

$145.50

Available Quantity : 1
New Arrival
Essex SX482B COMBINATION PILOT VALVE 482-302683-10 120v
Essex SX482B COMBINATION PILOT VALVE 482-302683-10 120v

$19.00

Available Quantity : 63
New Arrival
Numatics L23BB652B018D61 5/2 Valve, 1/4" NPT, Pneumatic Control, Dual Solenoid
Numatics L23BB652B018D61 5/2 Valve, 1/4" NPT, Pneumatic Control, Dual Solenoid

$139.95

Available Quantity : 2
New Arrival
Johnson Controls V248GE1-001C 1-1/4" NTP 3-Way Water Regulating Valve 200-400PSIG, 1/4"SAE Male
Johnson Controls V248GE1-001C 1-1/4" NTP 3-Way Water Regulating Valve 200-400PSIG, 1/4"SAE Male

$399.00

Available Quantity : 54
New Arrival

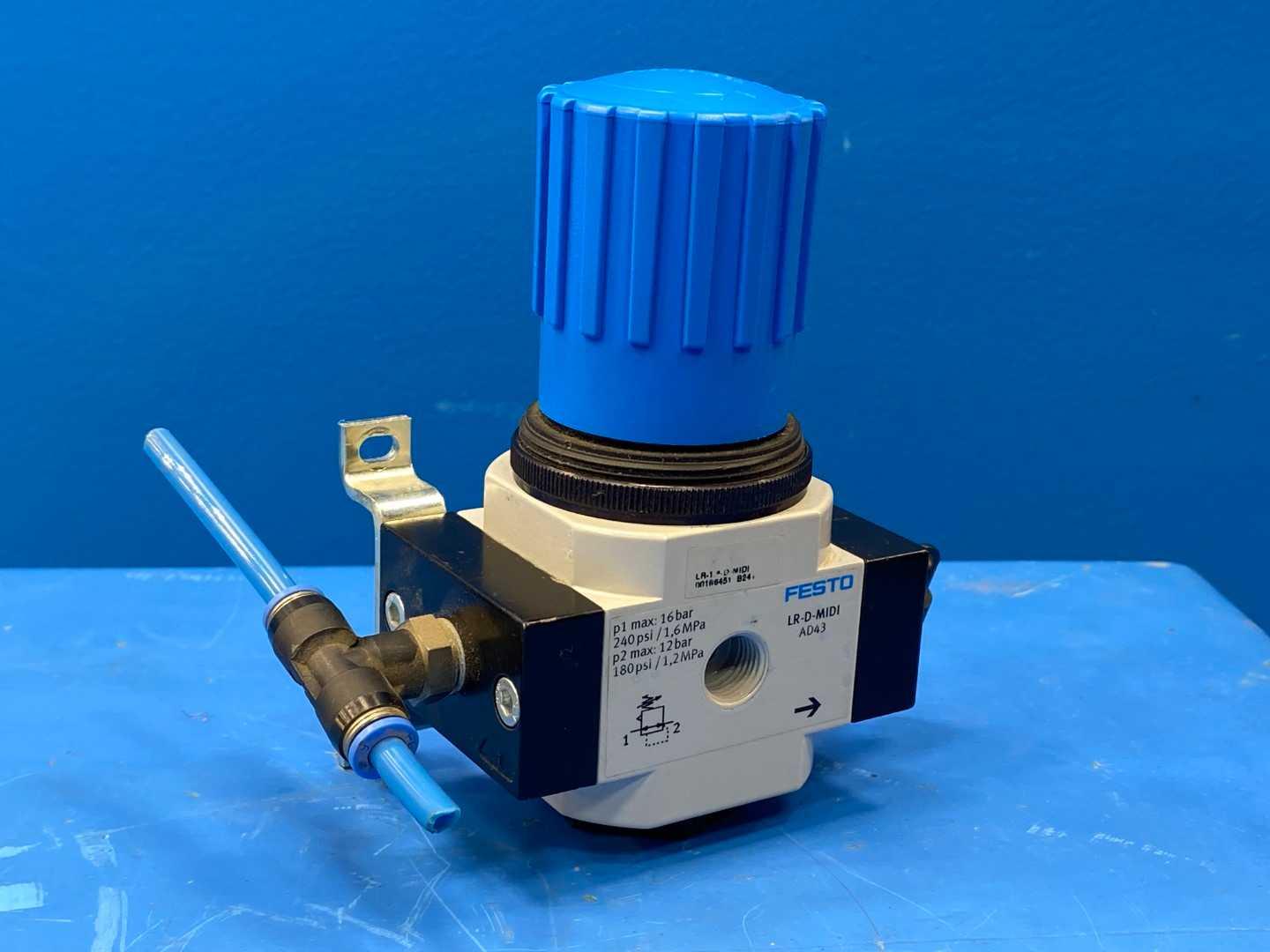

Festo LR-D-MIDI Regulator
