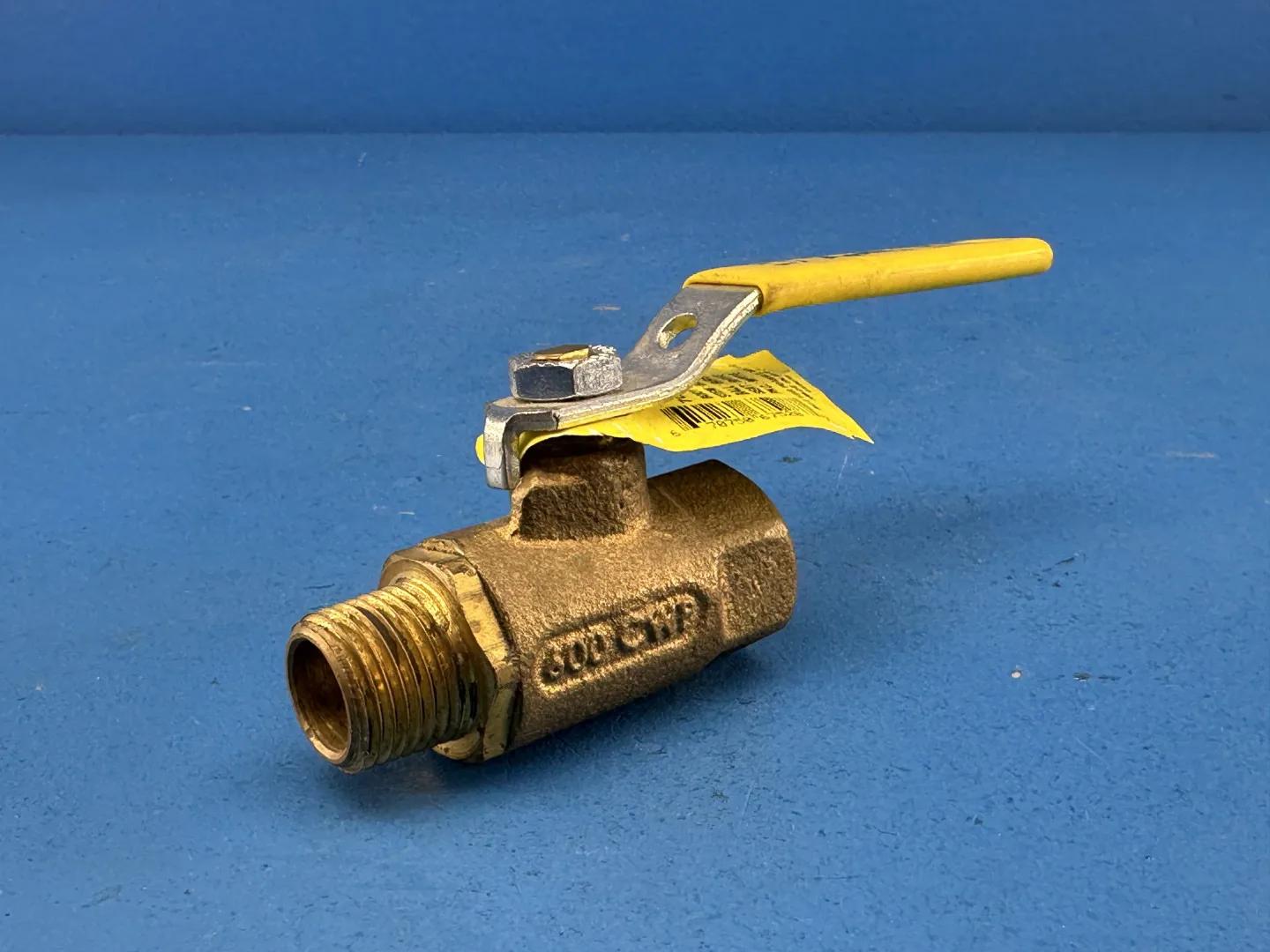

Apollo 70-803-01 1/2" Bronze Standard Port Ball Valve
70-803-01 Valve Specifications: Size, Pressure Rating & Body Material
Service Applications & Connection Fitment for Apollo 70-803-01
1 / 8
+8
+8
1 / 8
| Description | Details |
|---|---|
| Available Quantity | 13 |
| Model | 70-803-01 |
| Condition | New |
| Manufacturer | Apollo |
| Asset Number | KSC1230 / 1139 |
| Guarantee or ASIS | 2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return |
| Inspections - Yellow Tag | 1.1 Appears Unused no box |
| Packaging Cost | 1.6 6x10 CH $3.00 |
Available Qty: 13
$14.95
Basic Information
Asset #
KSC1230 / 1139
Available Quantity
13
Inspections - Yellow Tag
1.1 Appears Unused no box
Condition
New
Guarantee or ASIS
2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return
Item Description
N/A
Factory Information
- Manufacturer: Apollo Valves (Aalberts Integrated Piping Systems)
- Model: 70-803-01
- Series: 70-800, two-piece ball valve
- Nominal Size: 1/2 in
- End Connections: Male NPT x Female NPT
- Port: Standard (regular) port

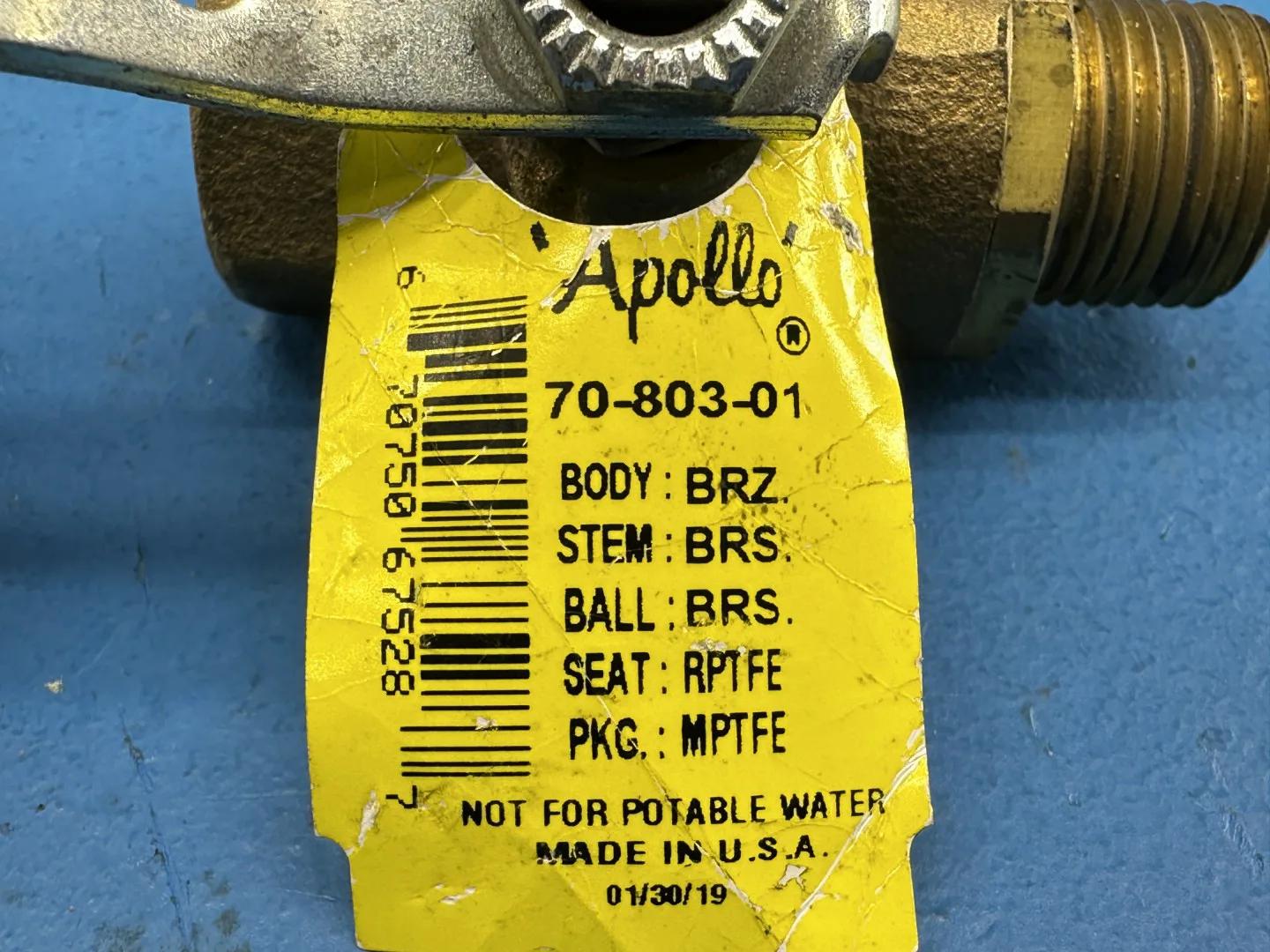

- Body Material: Bronze
- Ball: Chrome-plated brass
- Stem: Brass, blowout-proof
- Seats / Softgoods: RPTFE / MPTFE

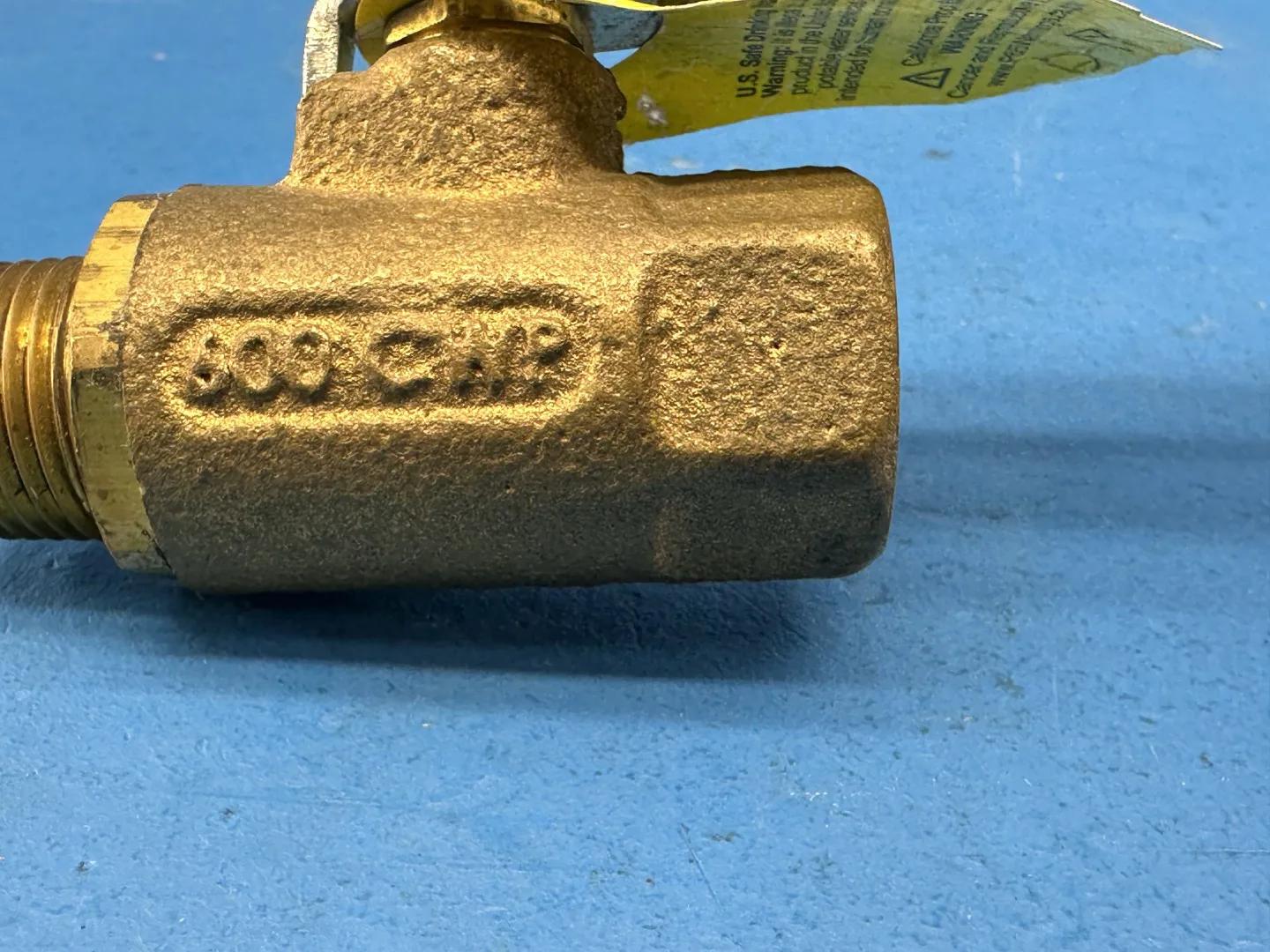

- Pressure Rating: 600 psig CWP (cold working pressure)
- Maximum Temperature: 425 F
- Packing: Adjustable packing gland
- Operator: Lever handle
- Dimensions: 1.68 in inlet to outlet; 1.81 in top to inlet centerline
- Country of Origin: Domestic (United States)
- Application Note: Male x female configuration eliminates the need for an extra nipple when connecting to a female connection
- Spec Basis: Apollo Valves published 70-800 series two-piece bronze ball valve catalogue data
Specifications
Manufacturer
Apollo
Model
70-803-01
Serial
N/A
Year
01/30/2019
HP / AMP / KW / KVA
N/A
Amps
N/A
Length (Inches)
3
Width (Inches)
6
Height (Inches)
2
Phase
N/A
Estimated Packaging Weight
2
Estimated Total Weight
3
Asset Number
KSC1230 / 1139
Packaging fees
Packaging Cost
1.6 6x10 CH $3.00
