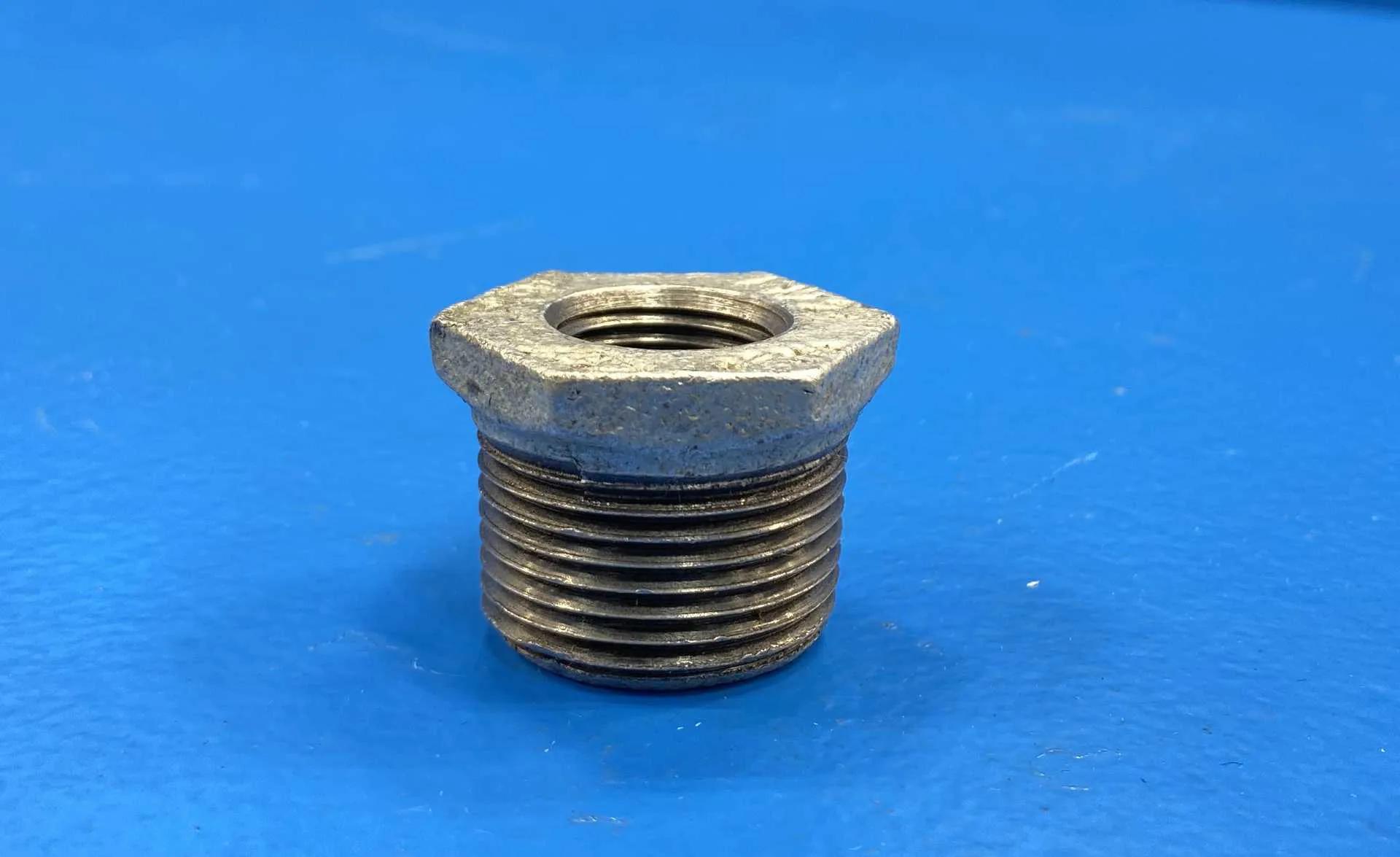

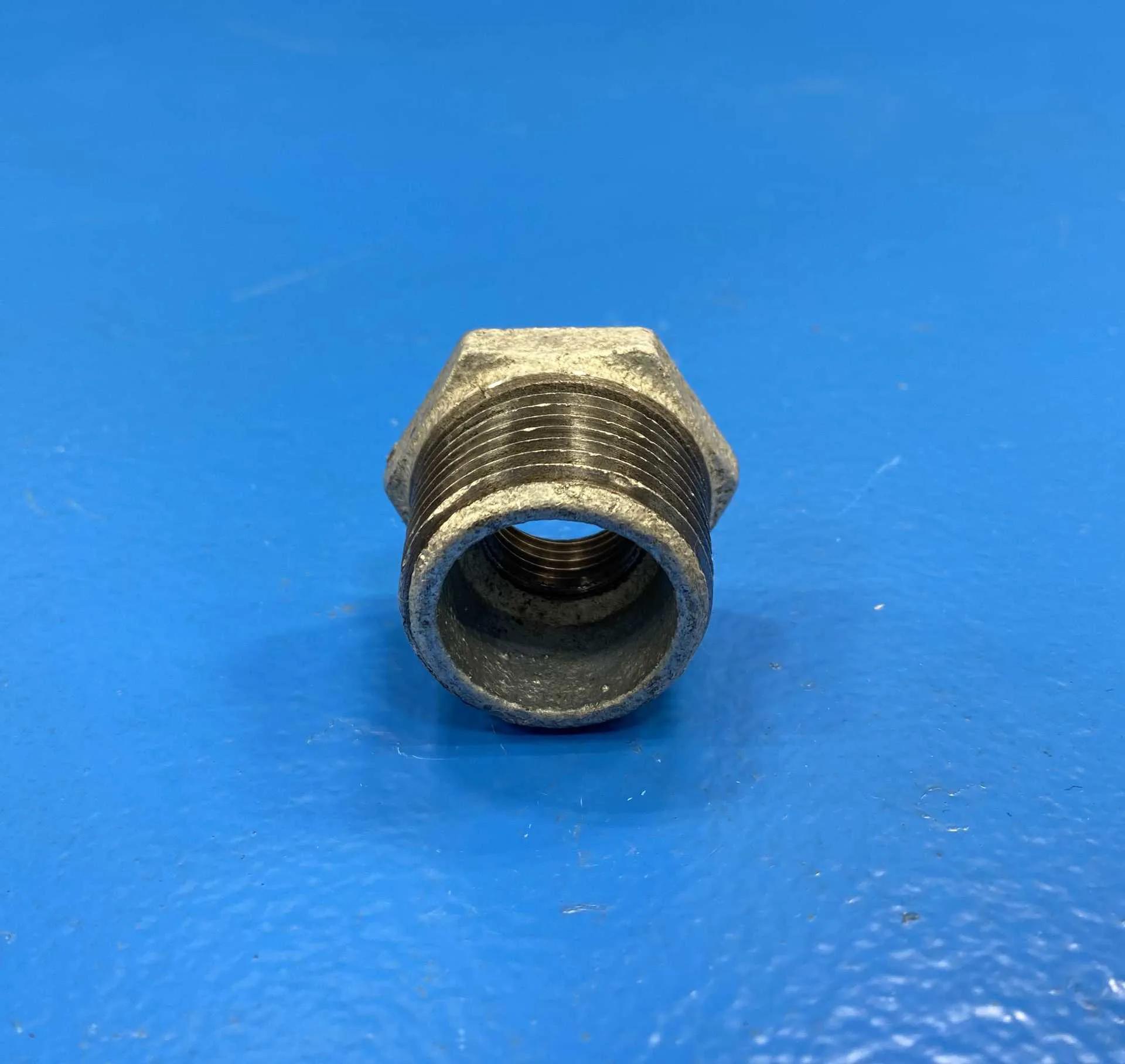

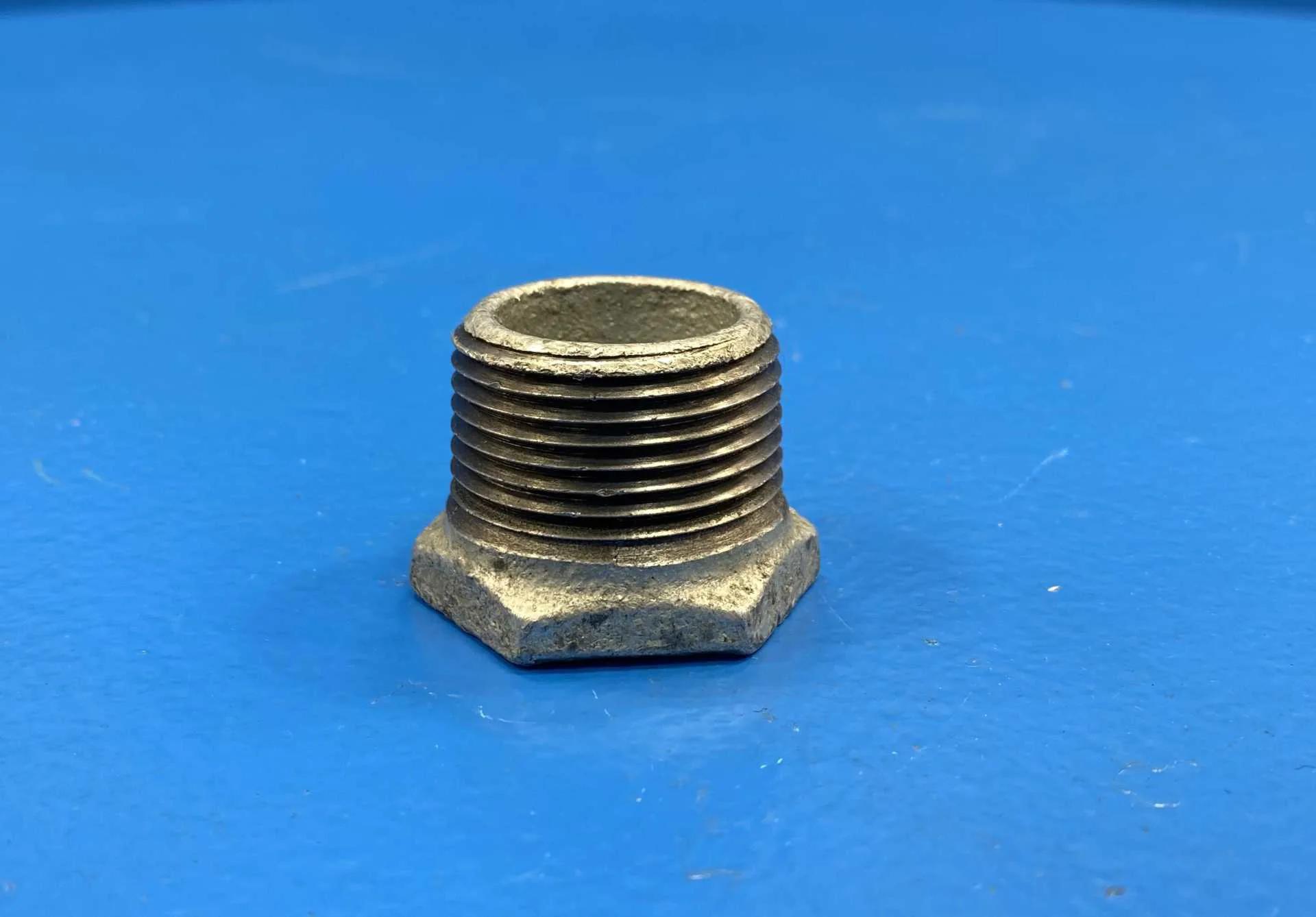

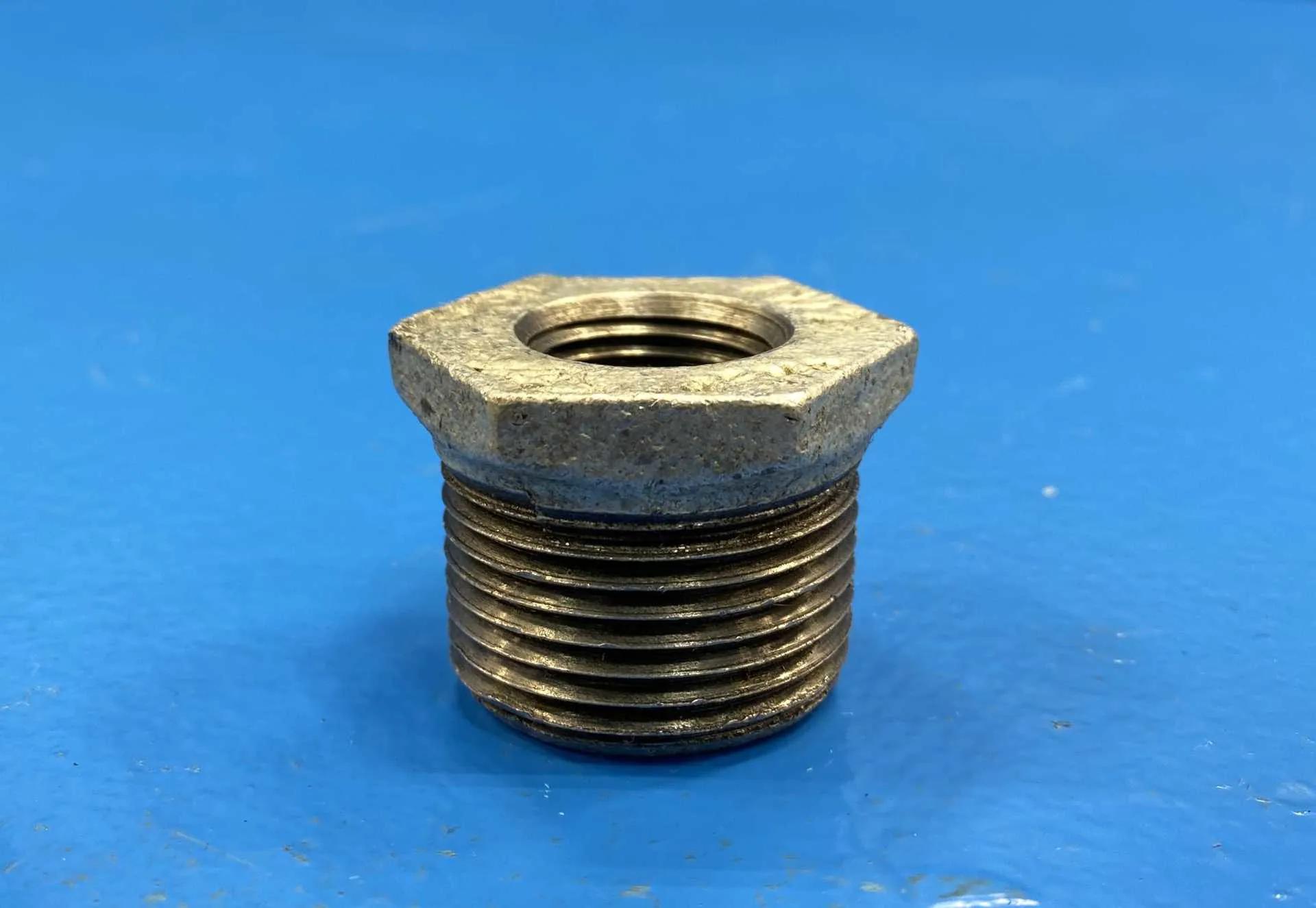

Mueller Comercial 511-953L Galvanized Malleable Iron Hex Reducing Bushing 1" Male x 1/2" Female NPT

This is a B&K (Mueller Industries family) 511 series galvanized malleable iron hex bushing that reduces a 1 inch female pipe opening down to a 1/2 inch female thread. The 1 inch male NPT end threads into a fitting, valve or tapped port, and the 1/2 inch female NPT end accepts smaller pipe or a nipple, making it a compact alternative to a coupling and nipple combination.

In the B&K numbering, the 511 prefix identifies the galvanized malleable iron line and 953 identifies the 1 in x 1/2 in size; retail packaging for the same fitting carries the suffix HN. The fitting is a 150 lb class malleable part made to ASME B16.3 dimensions with NPT threads to ANSI/ASME B1.20.1, and distributors list it at 300 psi from -20 to 150 deg F.

Plumbers, pipefitters and maintenance crews use galvanized bushings on water, compressed air and low pressure steam lines, in equipment hookups, and anywhere a threaded port needs to be stepped down to a smaller line size.

Available from King Surplus inventory in Del Rio, Texas.

• Fitting Type: Hex head reducing bushing
• Series: B&K 511 galvanized malleable iron
• Nominal Size: 1 in x 1/2 in
• Connections: 1 in MIP (male) x 1/2 in FIP (female)
• Thread Standard: NPT, ANSI/ASME B1.20.1
• Material: Malleable iron
• Finish: Galvanized (zinc coated)
• Pressure Class: 150 lb
• Pressure Rating: 300 psi
• Temperature Rating: -20 to 150 deg F
• Standards: ASME B16.3 / B16.14, ASTM A153
• Application: Water, air and steam installations

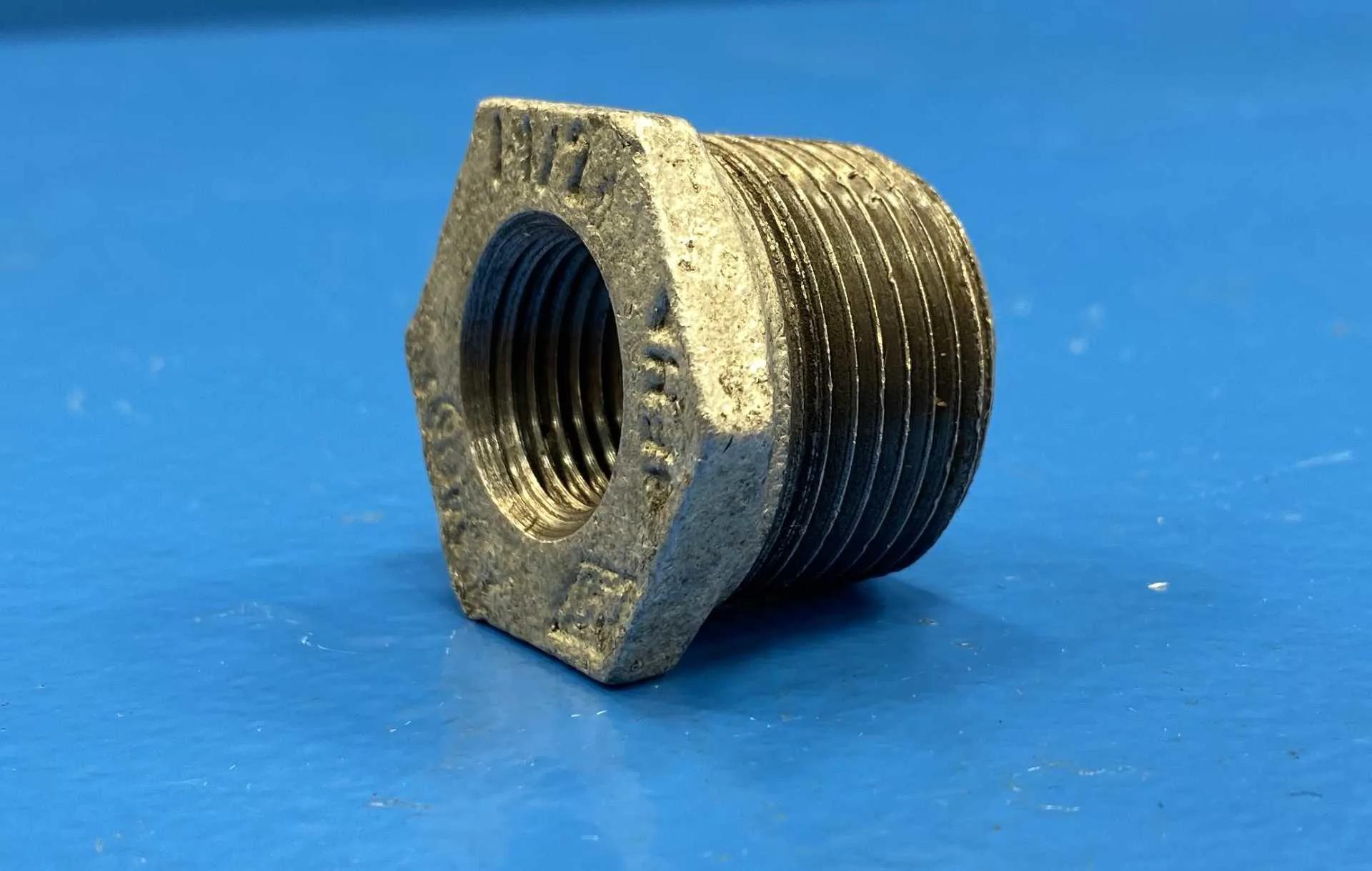

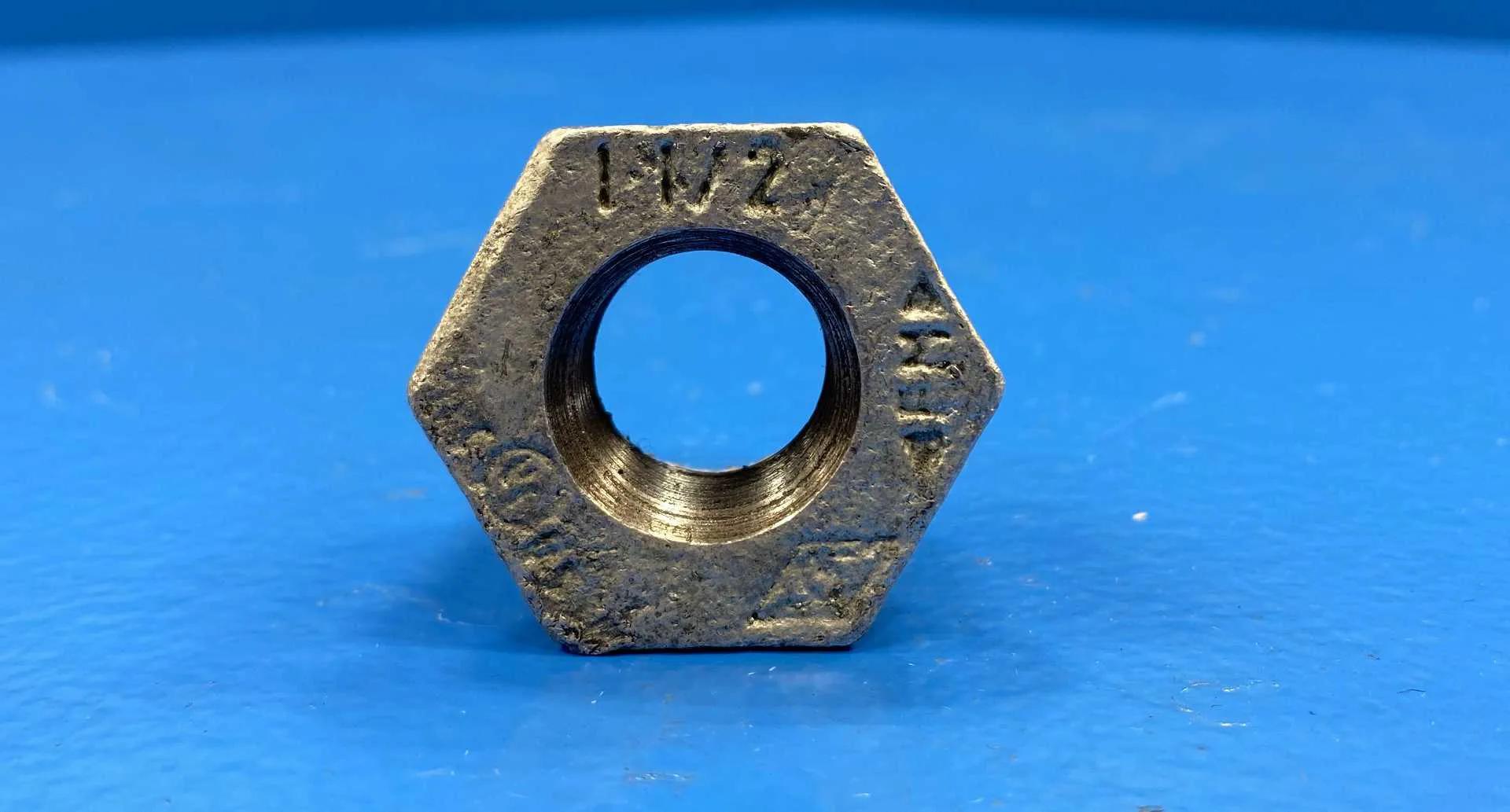

• Spec Basis: Locke Supply B&K 511-953 listing (https://www.lockesupply.com/Products/Item?prod=F0210); BK Products 511-953HN page (https://bkproducts.com/1-in-mip-x-1-2-in-fip-galvanized-hex-bushing-511-953hn); record title. Photos show a stamped mark read as "1 1/2" only; no maker name or part number legible on the part.
