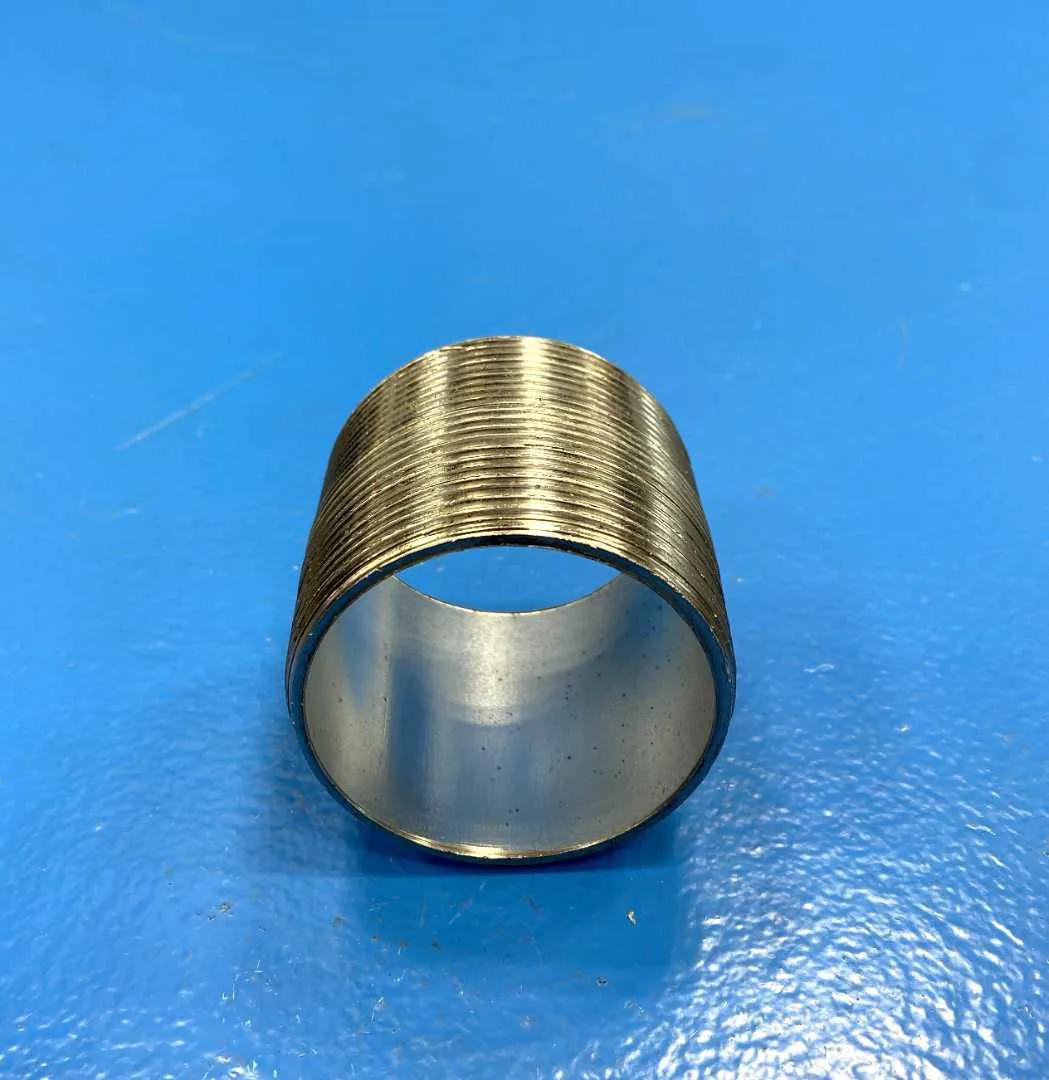

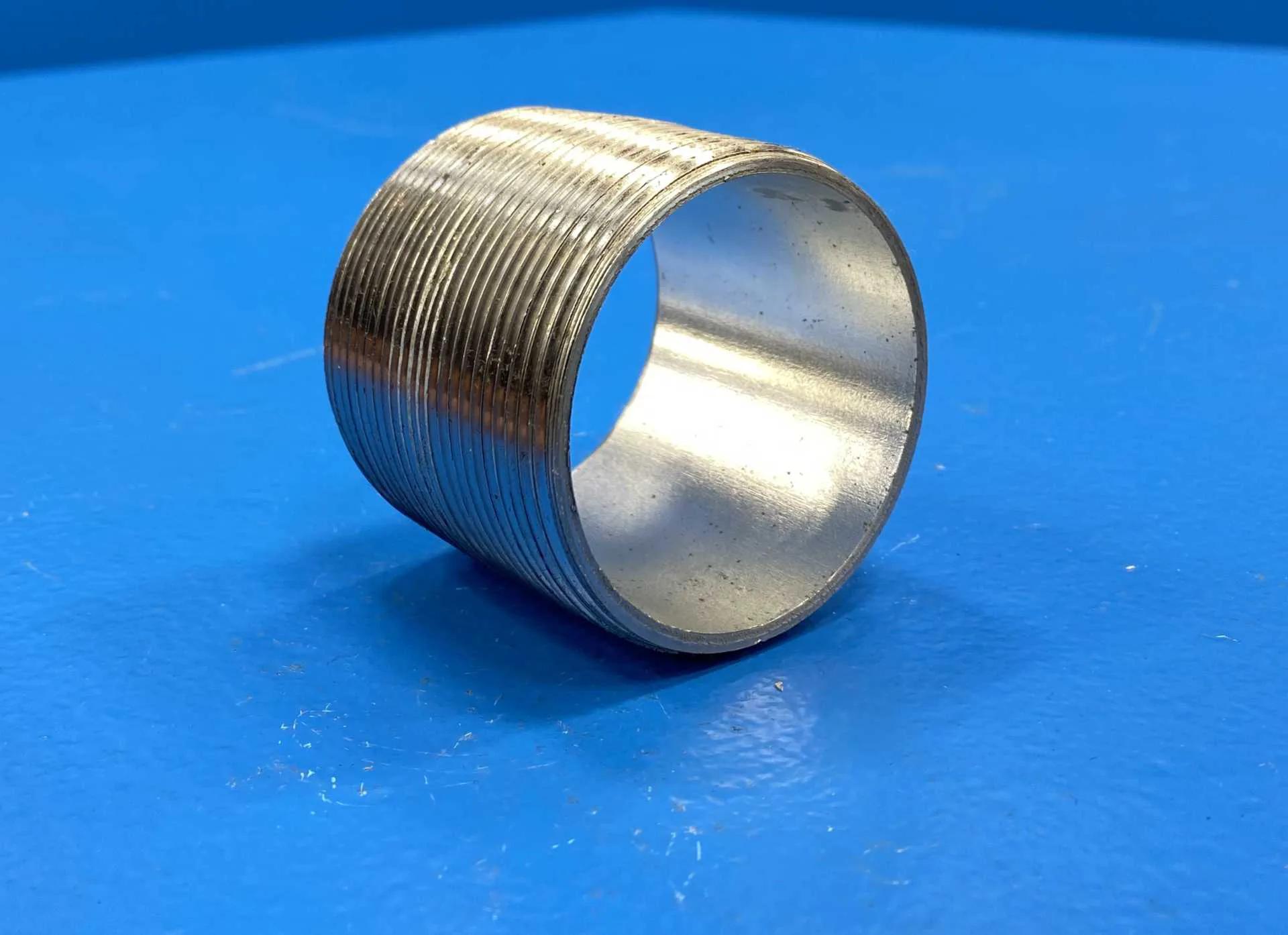

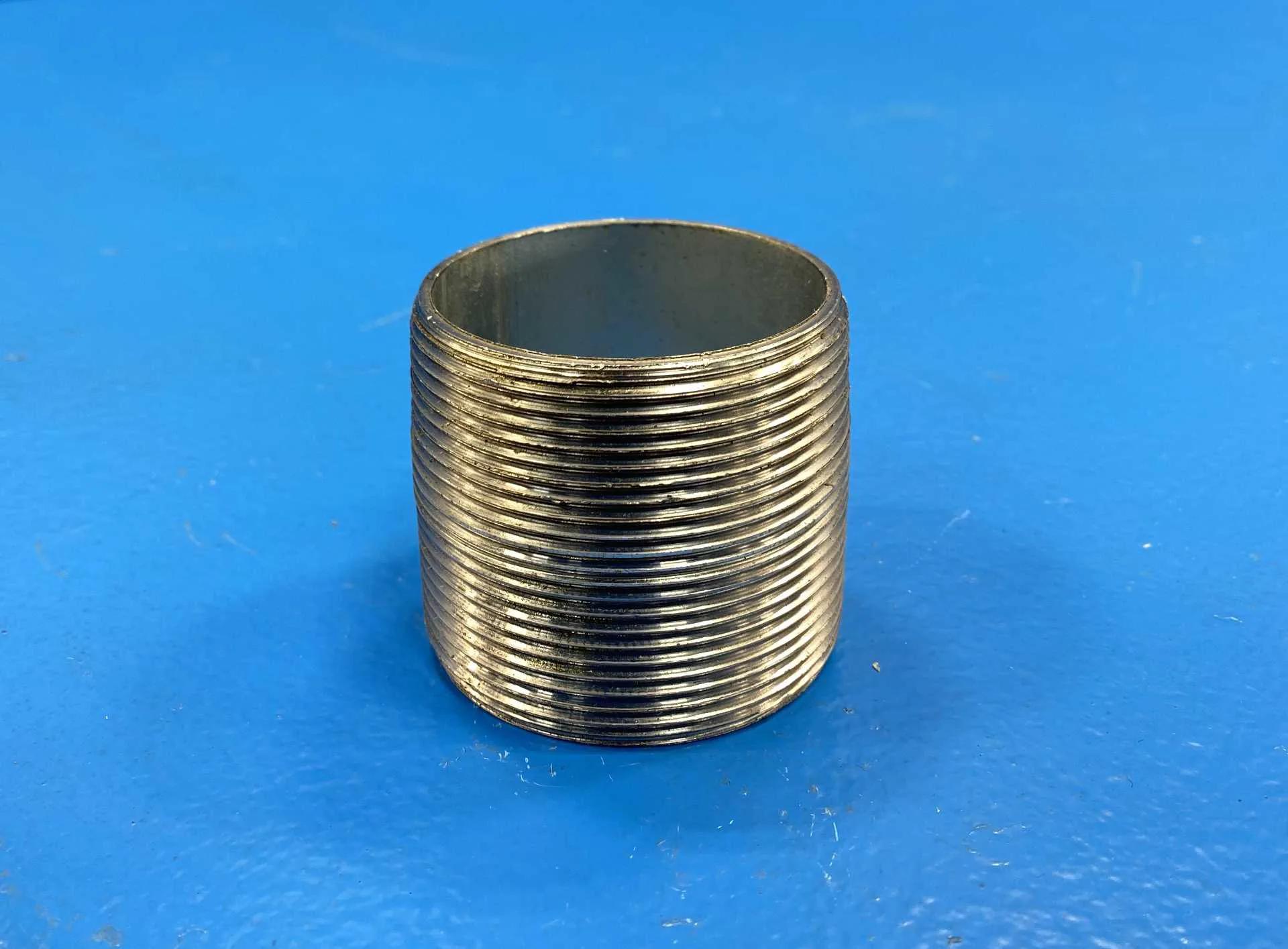

Southland 568-001NI 2" x Close Galvanized Steel Pipe Nipple, Schedule 40 Welded NPT

This is a Southland 2 inch by close galvanized steel pipe nipple, part of the 568 series of Schedule 40 galvanized nipples sold under the Southland brand by BK Products. A close nipple is the shortest standard nipple for a given pipe size, threaded along nearly its full length, and is used to join two female threaded fittings with the least possible spacing between them.

The nipple has 2 inch male pipe threads on both ends, cut to ANSI/ASME B1.20.1, so it mates with standard NPT fittings, valves and pipe of the same size. The zinc galvanized finish gives the steel corrosion resistance.

Galvanized nipples of this size are used by plumbers, facility maintenance crews and contractors on water lines, compressed air lines, irrigation and general utility piping. In the 568 series part number, 568 identifies the 2 inch galvanized nipple line and 001 identifies the close length; retail packaging codes are added as a suffix.

Available from King Surplus inventory in Del Rio, Texas.

• Nominal pipe size: 2 inch
• Length: close (2.00 inches)
• Material: steel, galvanized zinc coating
• Schedule: 40
• End connections: 2 inch male iron pipe (MIP) both ends
• Threads: ANSI/ASME B1.20.1
• Pressure rating: 150 PSI working, 300 PSI maximum
• Temperature: 77 F working, 224 F maximum
• Standards: meets ASTM and ASME standards
• Spec Basis: BK Products (Southland) item 568-001HN page, https://bkproducts.com/2-in-x-close-galvanized-steel-schedule-40-nipple-568-001hn; Home Depot listing 568-001HN. No markings on the part in photos; record suffix NI vs published HN.
