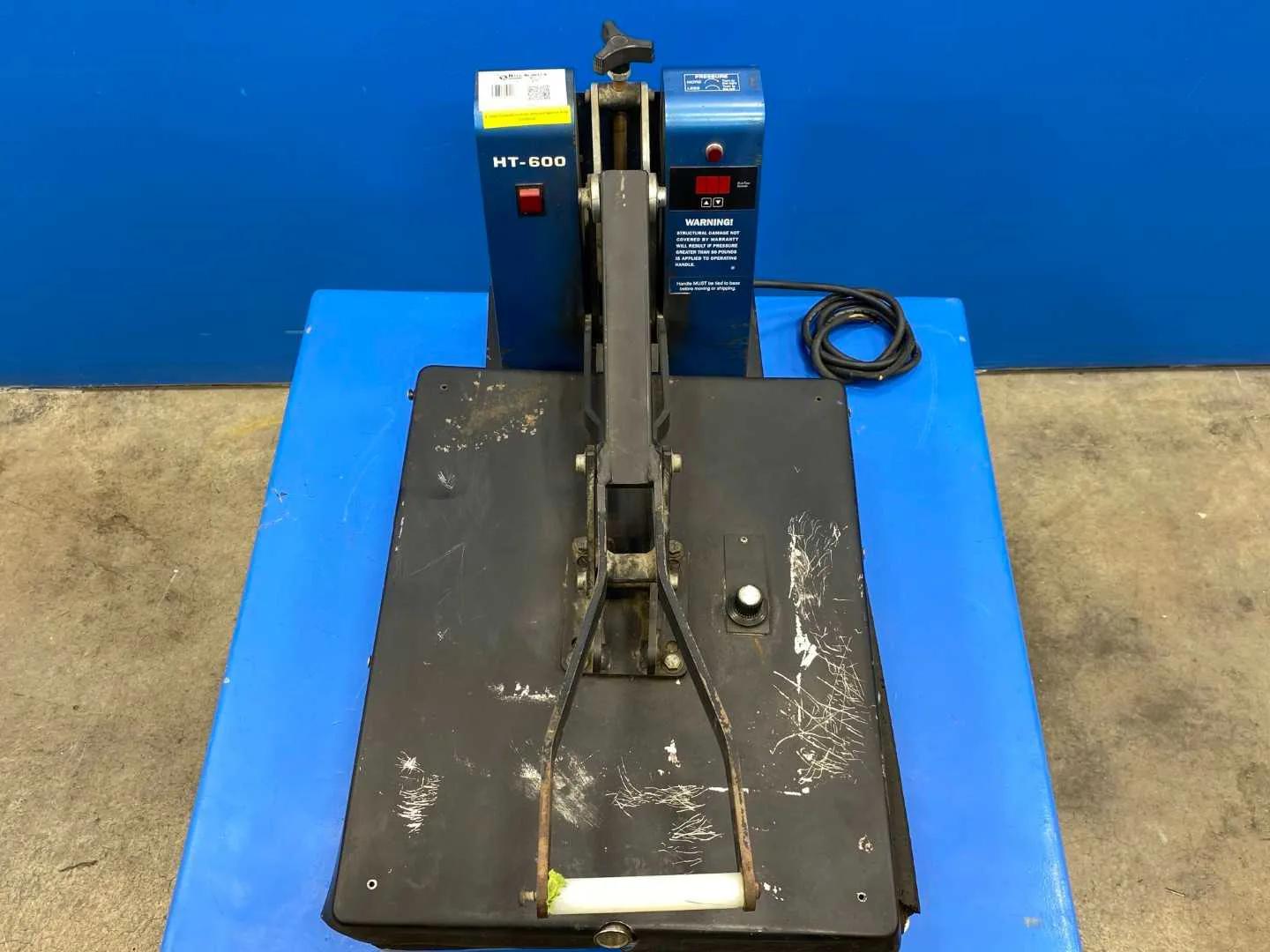

HIX HT-600 blue Manual Clamshell Heat Press
HIX HT-600 Heat Press Specifications: Pressure & Platen
Condition & What's Included
1 / 27
+27
+27
1 / 27
| Description | Details |
|---|---|
| Available Quantity | 1 |
| Model | HT-600 |
| Condition | Used |
| Manufacturer | HIX |
| Asset Number | KSC798 / 013 |
| Guarantee or ASIS | 1. HIGH CONFIDENCE ITEM: We will offer a 100% 14 Day money back less S&H. |
| Inspections - Yellow Tag | 4. Used: Powered up in our shop and appears to be functional |
| Packaging Cost | 1.4 Cardboard $25 |
Available Qty: 1
Free Shipping
$875.00
Basic Information
Asset #
KSC798 / 013
Available Quantity
1
Inspections - Yellow Tag
4. Used: Powered up in our shop and appears to be functional
Condition
Used
Guarantee or ASIS
1. HIGH CONFIDENCE ITEM: We will offer a 100% 14 Day money back less S&H.
Item Description

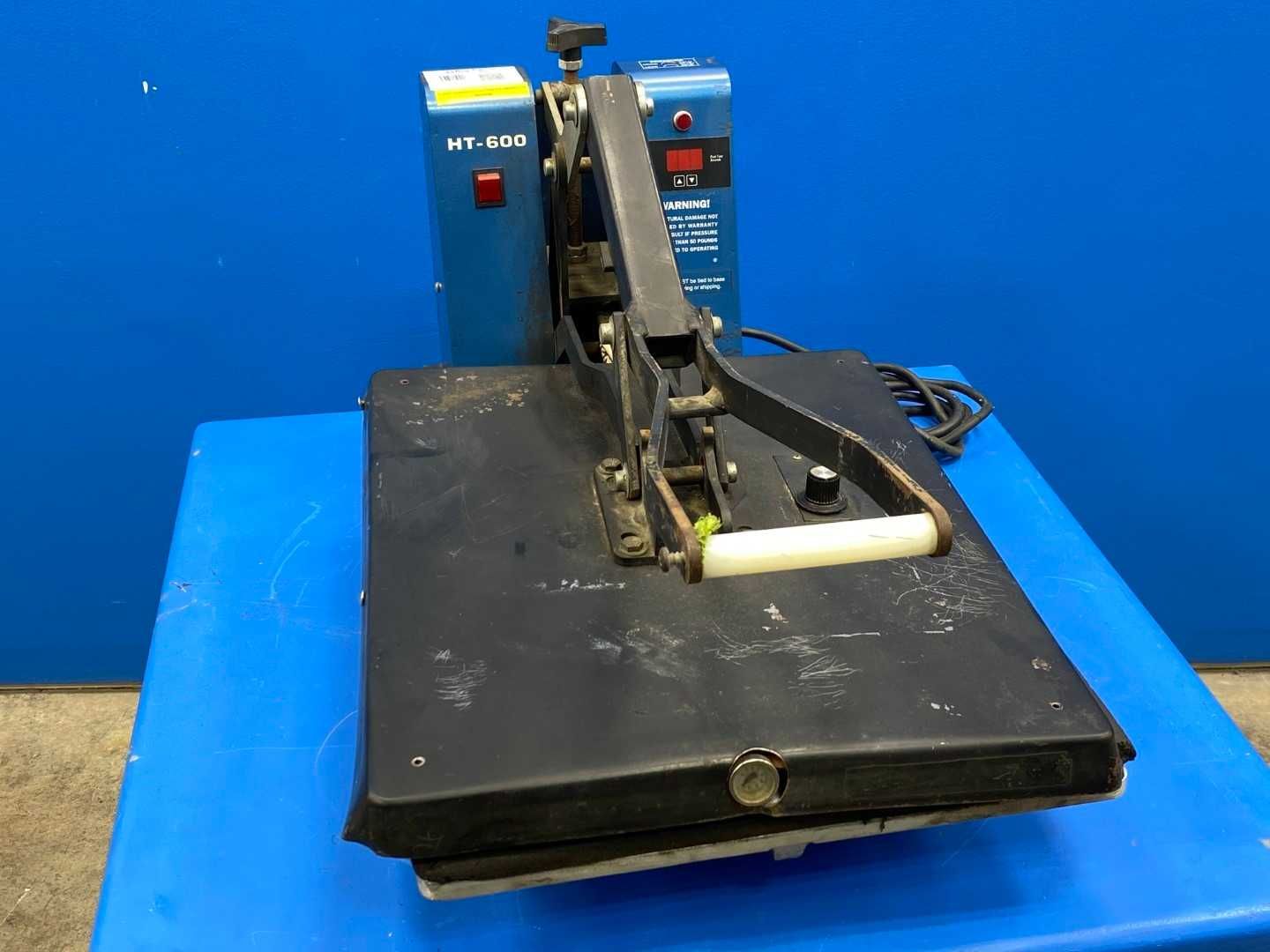

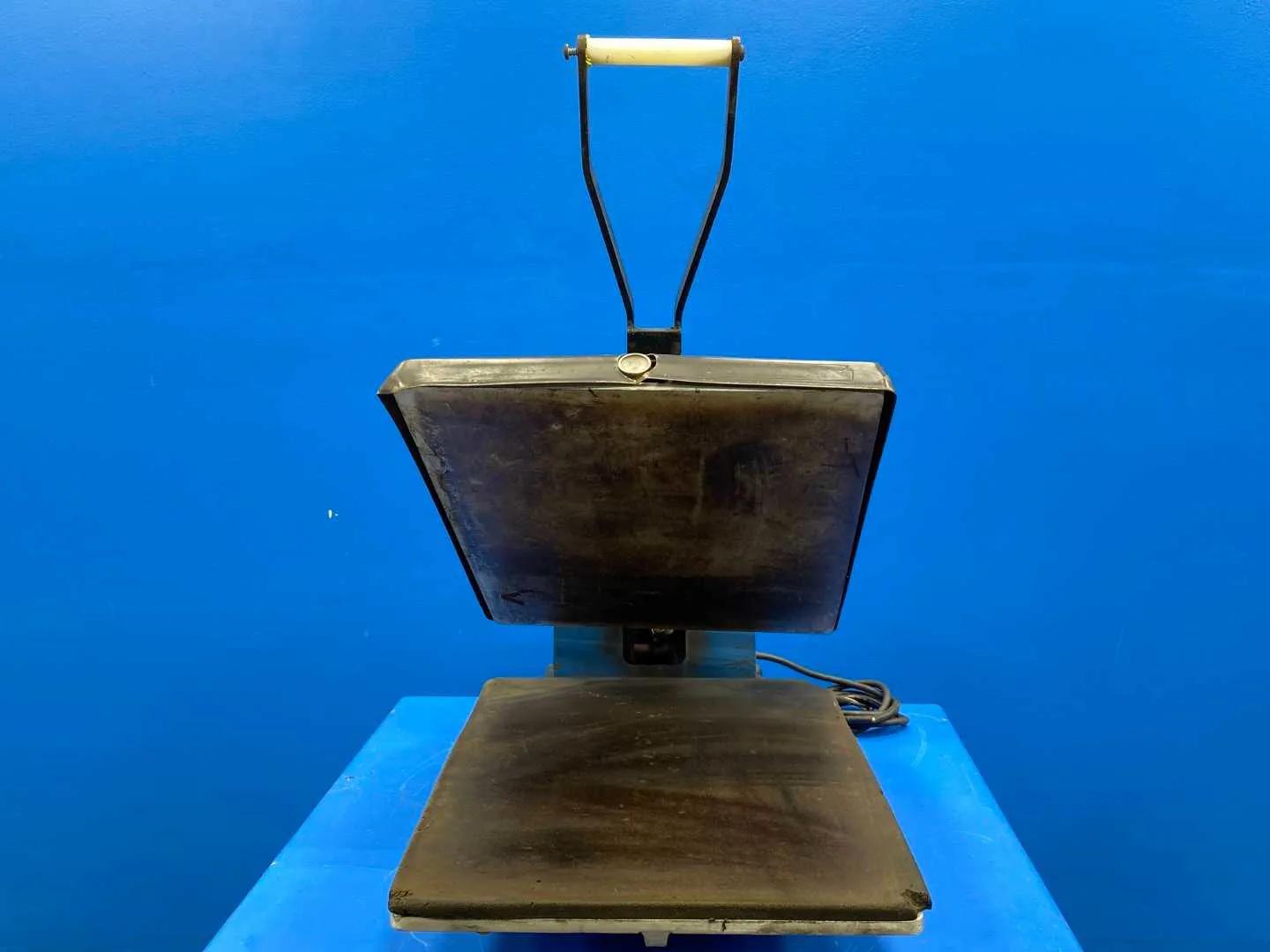

The HIX HT-600 blue Manual Clamshell Heat Press is designed for the garment decoration industry, particularly for transferring designs onto t-shirts, fabrics, and other materials using heat. HIX has a rich history dating back several decades, positioning itself as a prominent manufacturer of high-quality heat press machines.
The HT-600 model is known for its reliability and user-friendly operation, making it a preferred choice among professionals and hobbyists alike. Its clamshell design allows for easy access to the heating element, facilitating efficient production cycles.
This heat press features adjustable temperature and time settings, enabling users to achieve the desired results for a wide range of materials. It is particularly well-suited for sublimation, vinyl, and heat transfer applications.
Unique features of the HIX HT-600 include its durable construction, allowing for heavy usage without compromising performance. The machine's precision pressure adjustment further enhances the transfer quality, ensuring even application of heat across the substrate. The blue color not only gives it an aesthetic appeal but also represents HIX's commitment to quality and innovation in heat transfer technology.
Factory Information

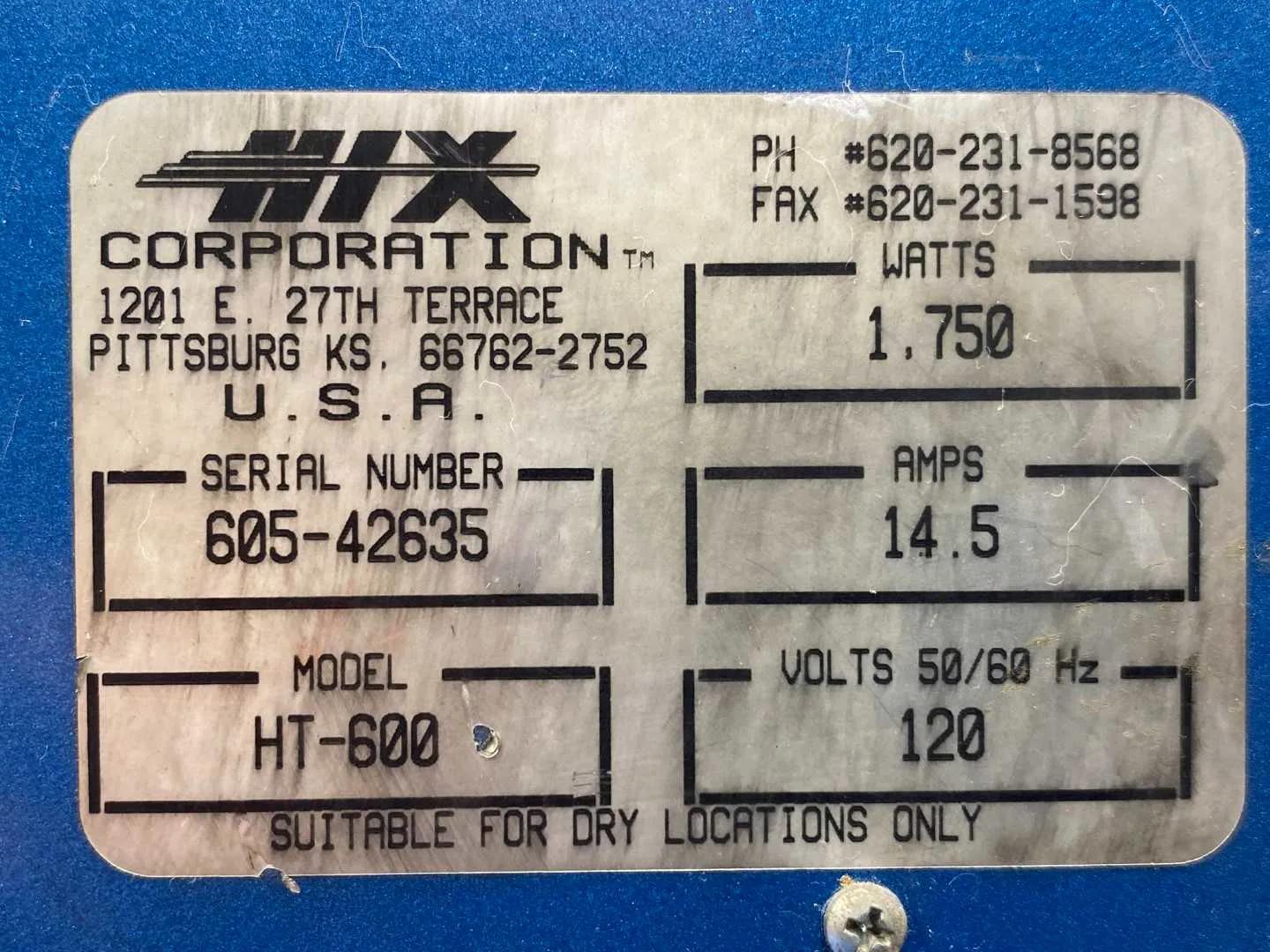

- Manufacturer: HIX Corporation, 1201 E. 27th Terrace, Pittsburg, KS 66762-2752, U.S.A.

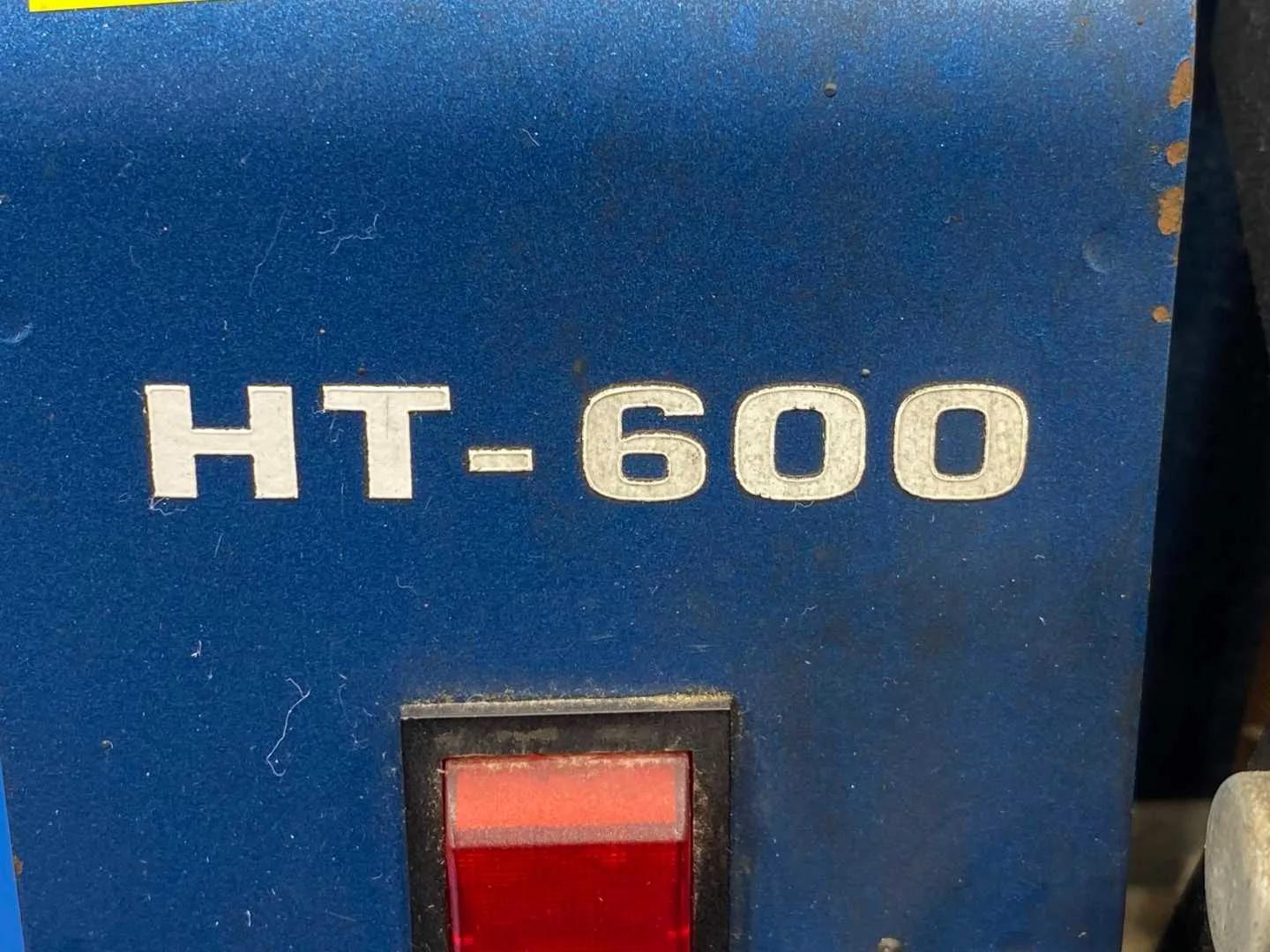

- Model: HT-600
- Serial: 605-42635

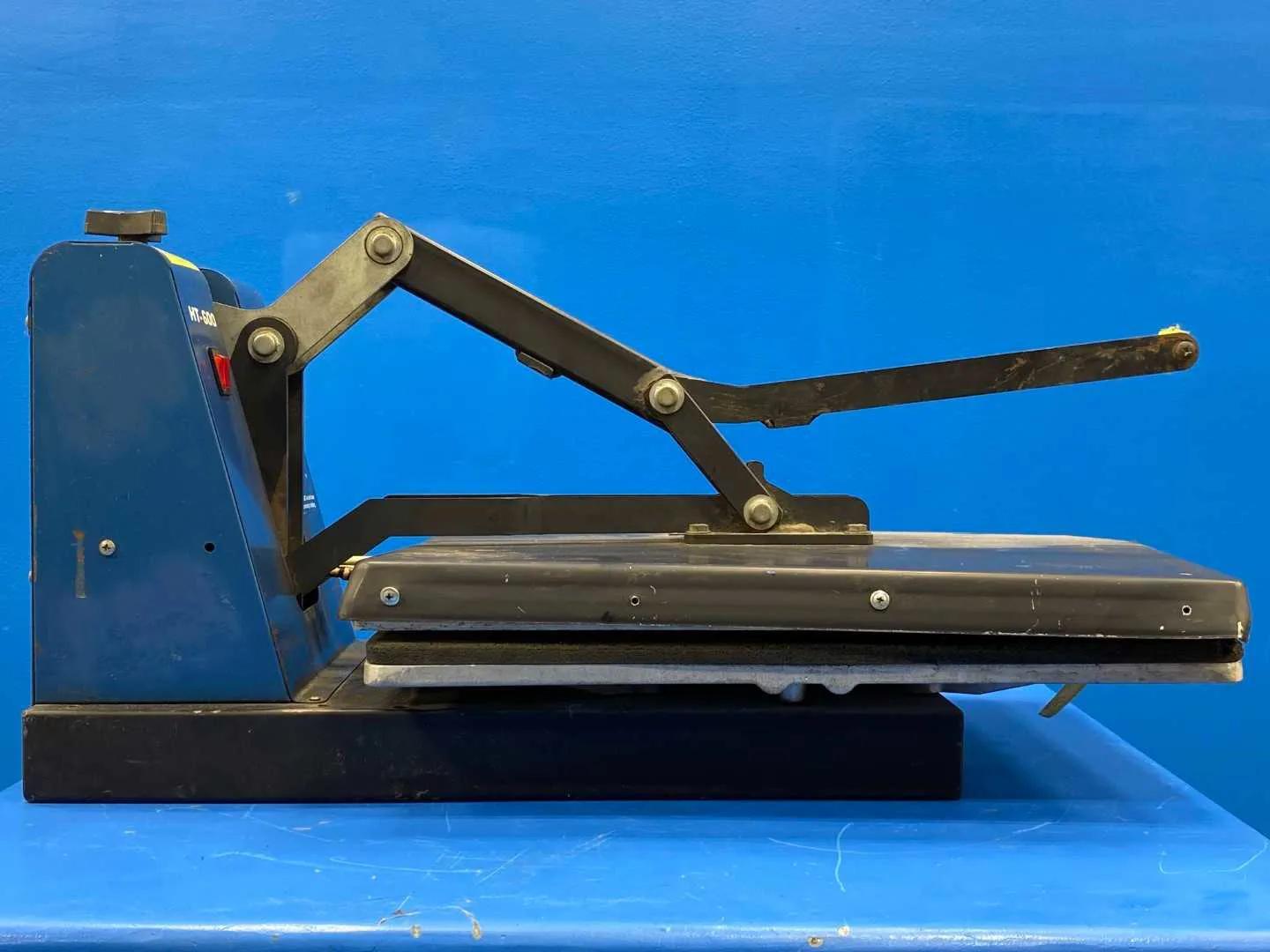

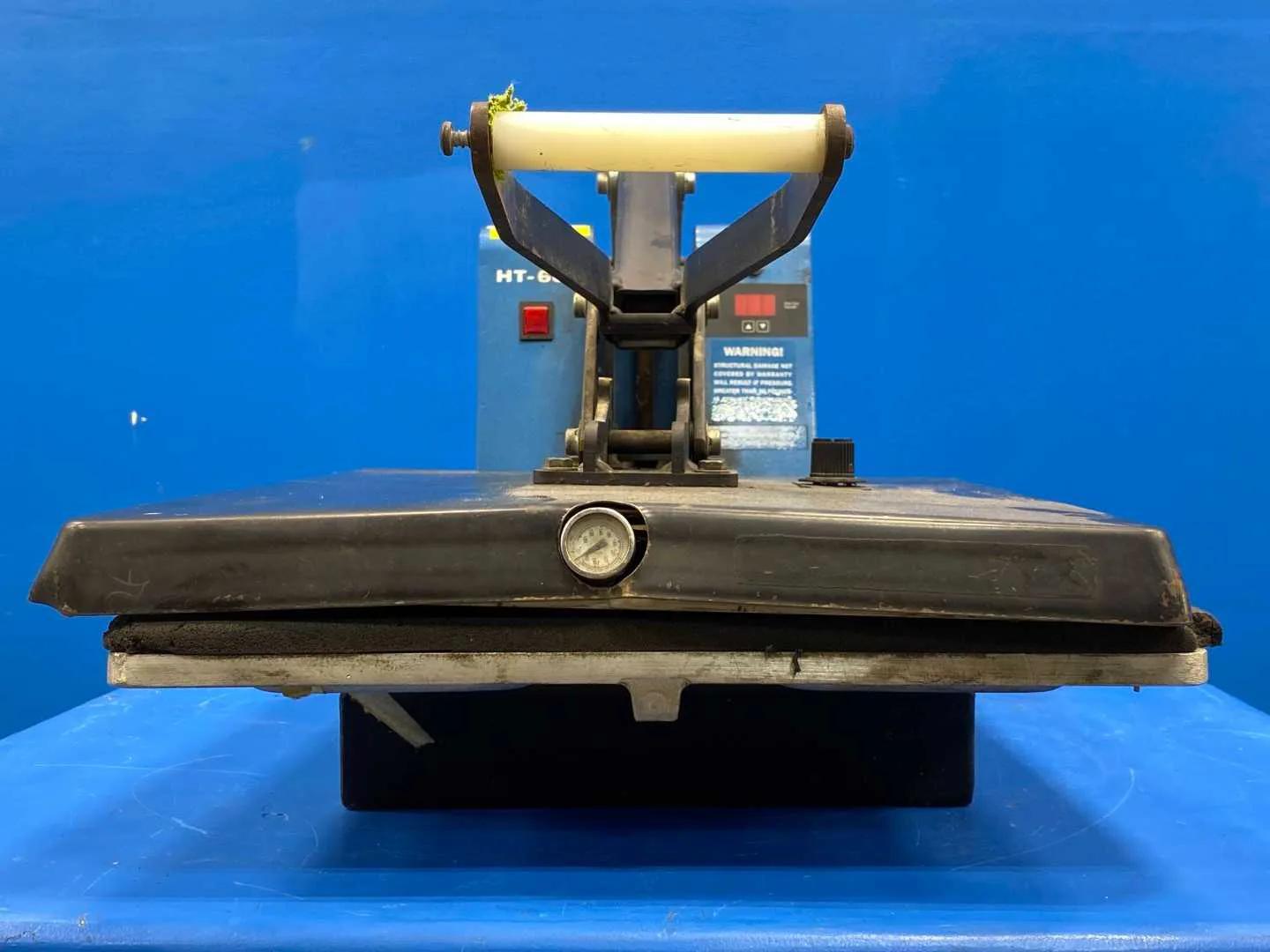

- Type: Manual clamshell heat transfer press

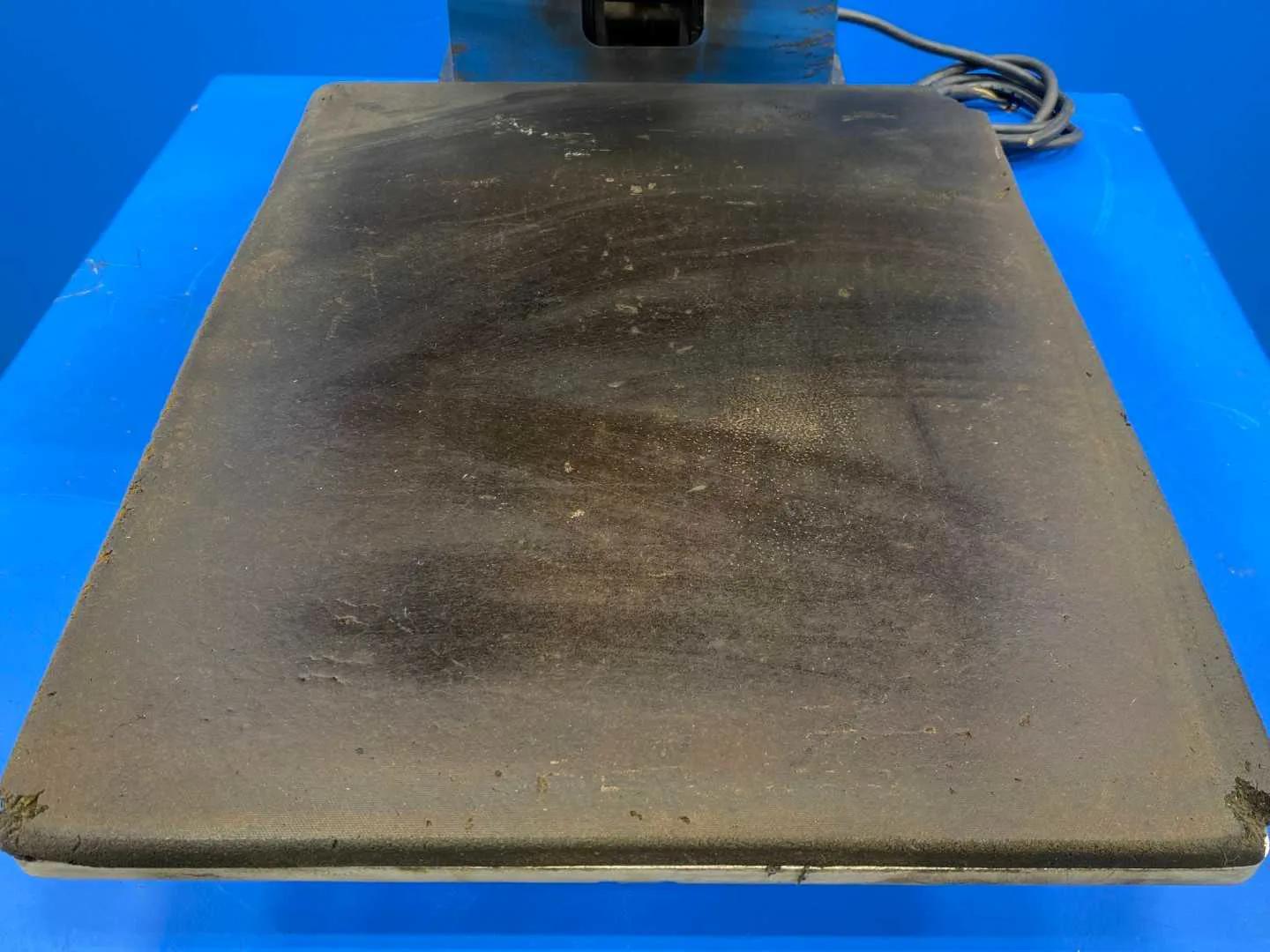

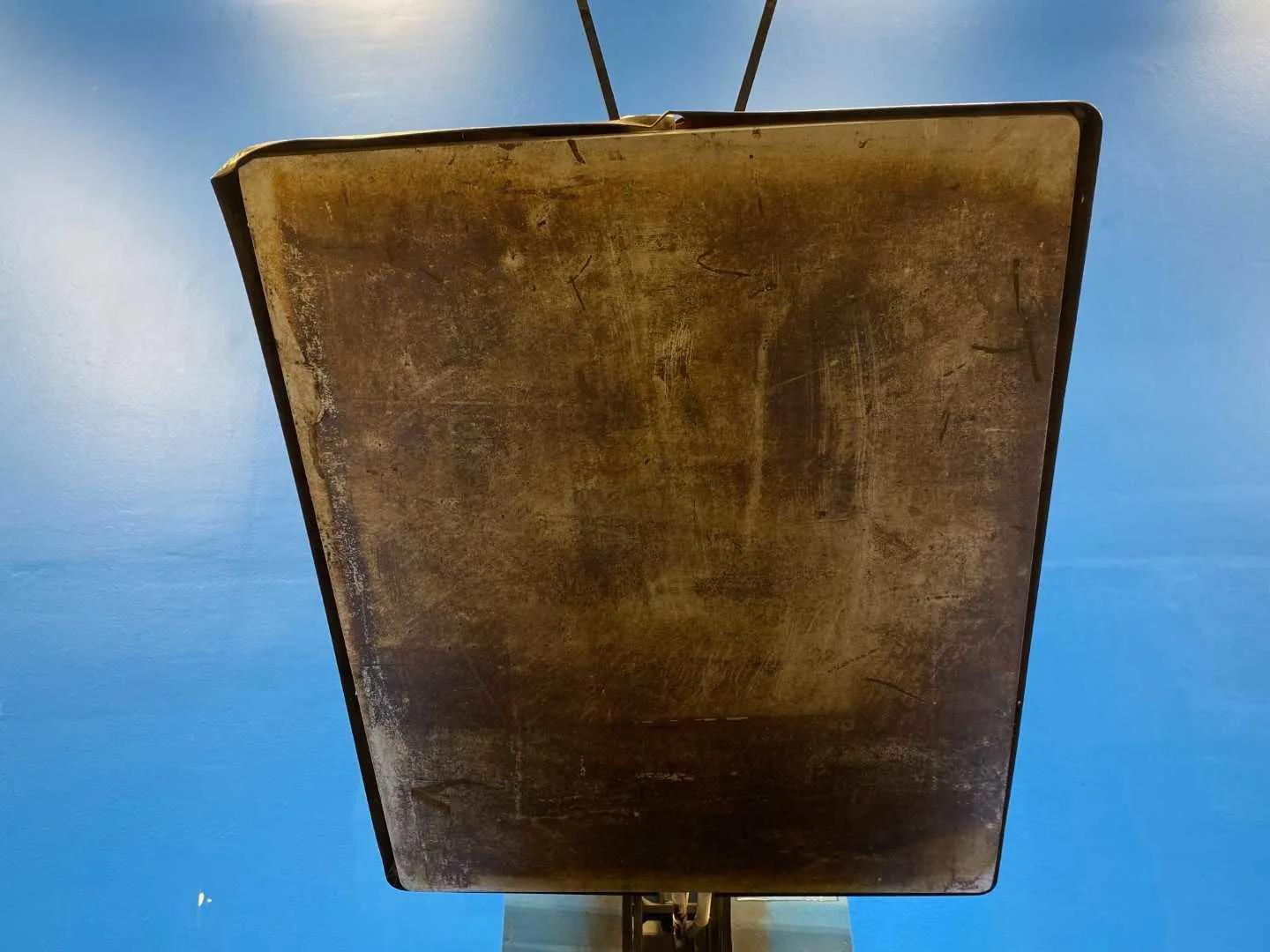

- Heat Platen: 16 in x 20 in

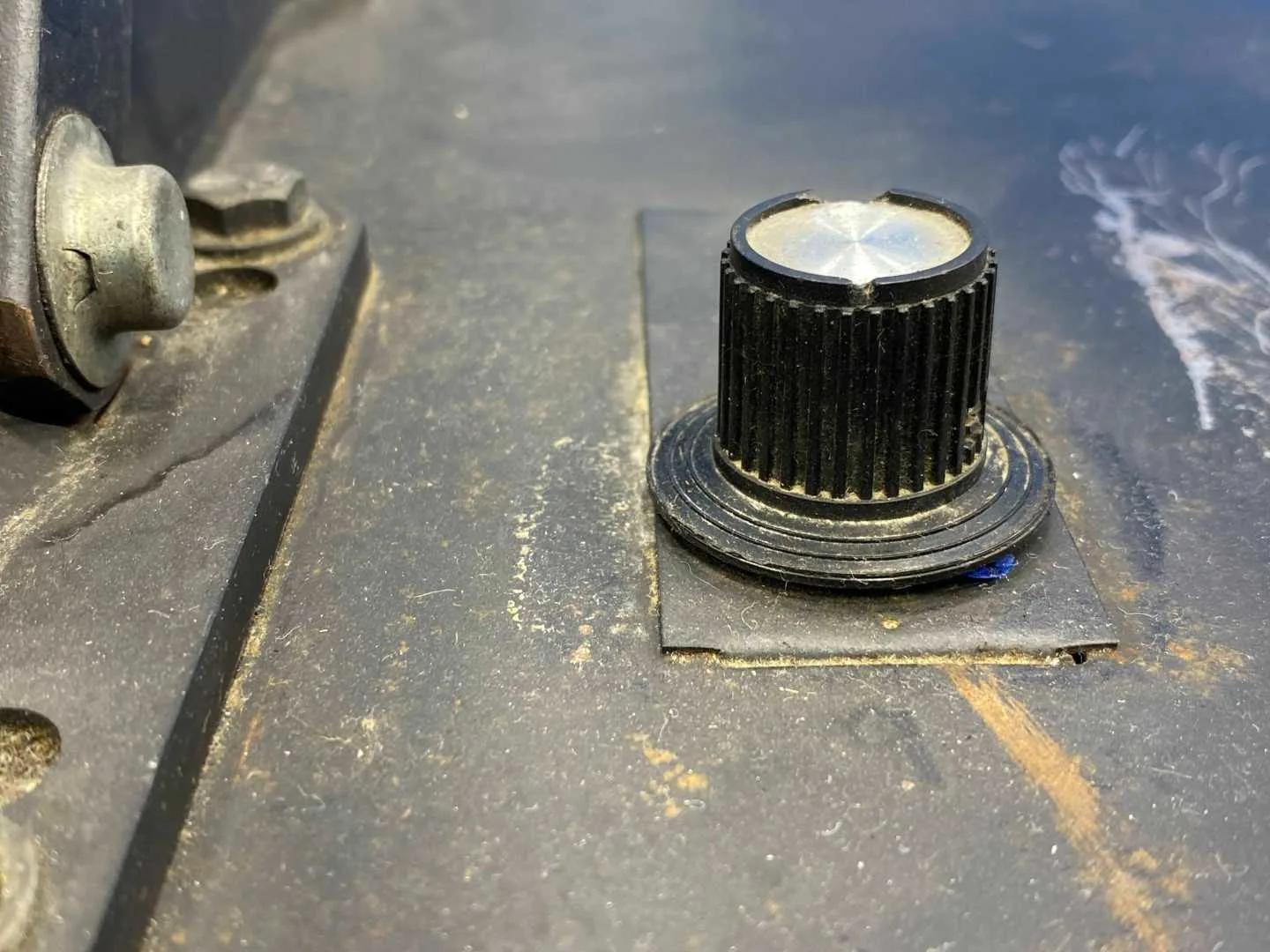

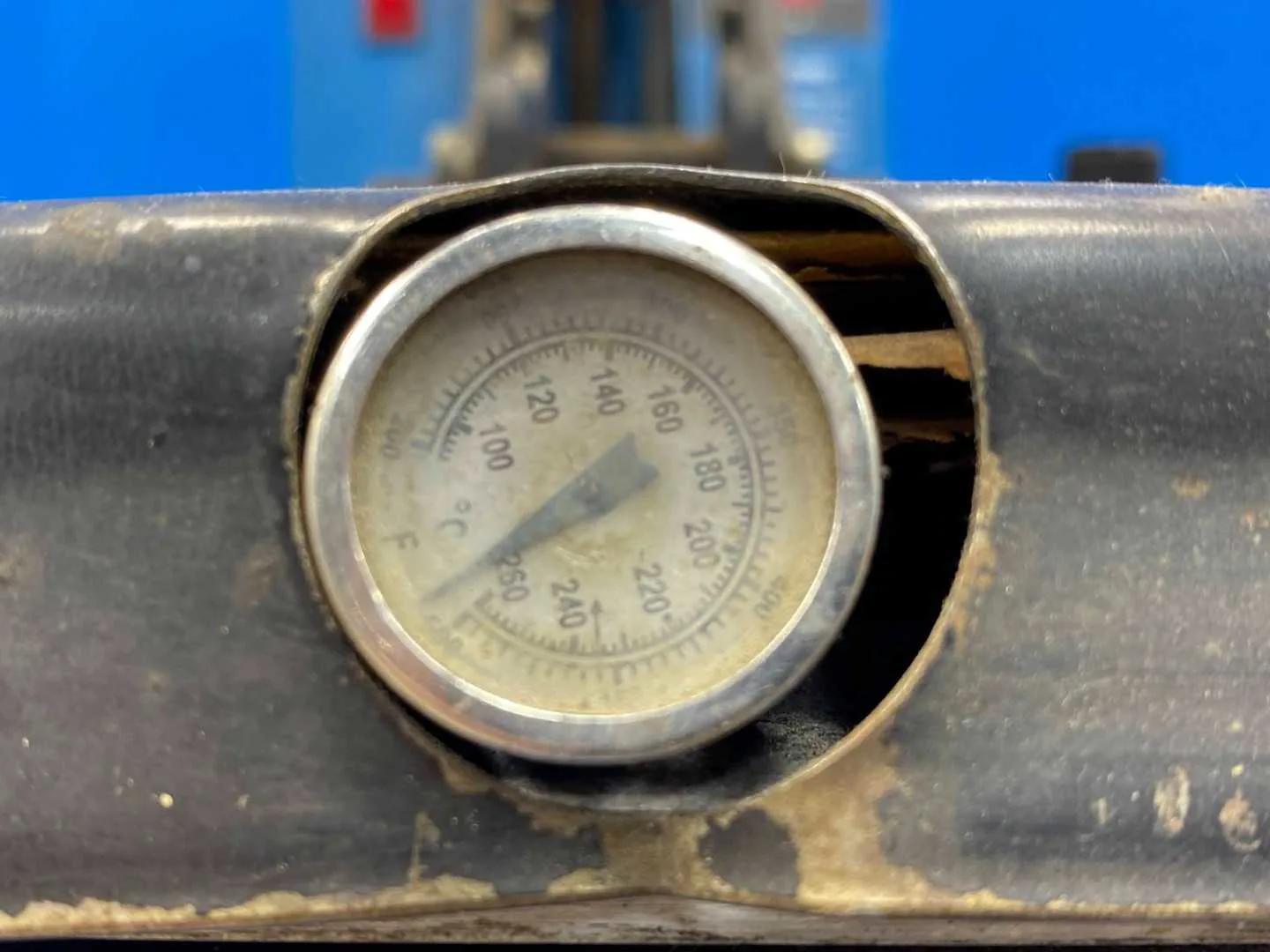

- Temperature Range: Off to 450 F (232 C), upper platen
- Timer: Adjustable digital timer
- Voltage: 120 V, 50/60 Hz (nameplate); HIX also builds the HT-600 in a 220 V / 60 Hz version
- Current: 14.5 A
- Power: 1,750 W
- 220 V Version Ratings (for reference, not this unit): 2,000 W, 10 A

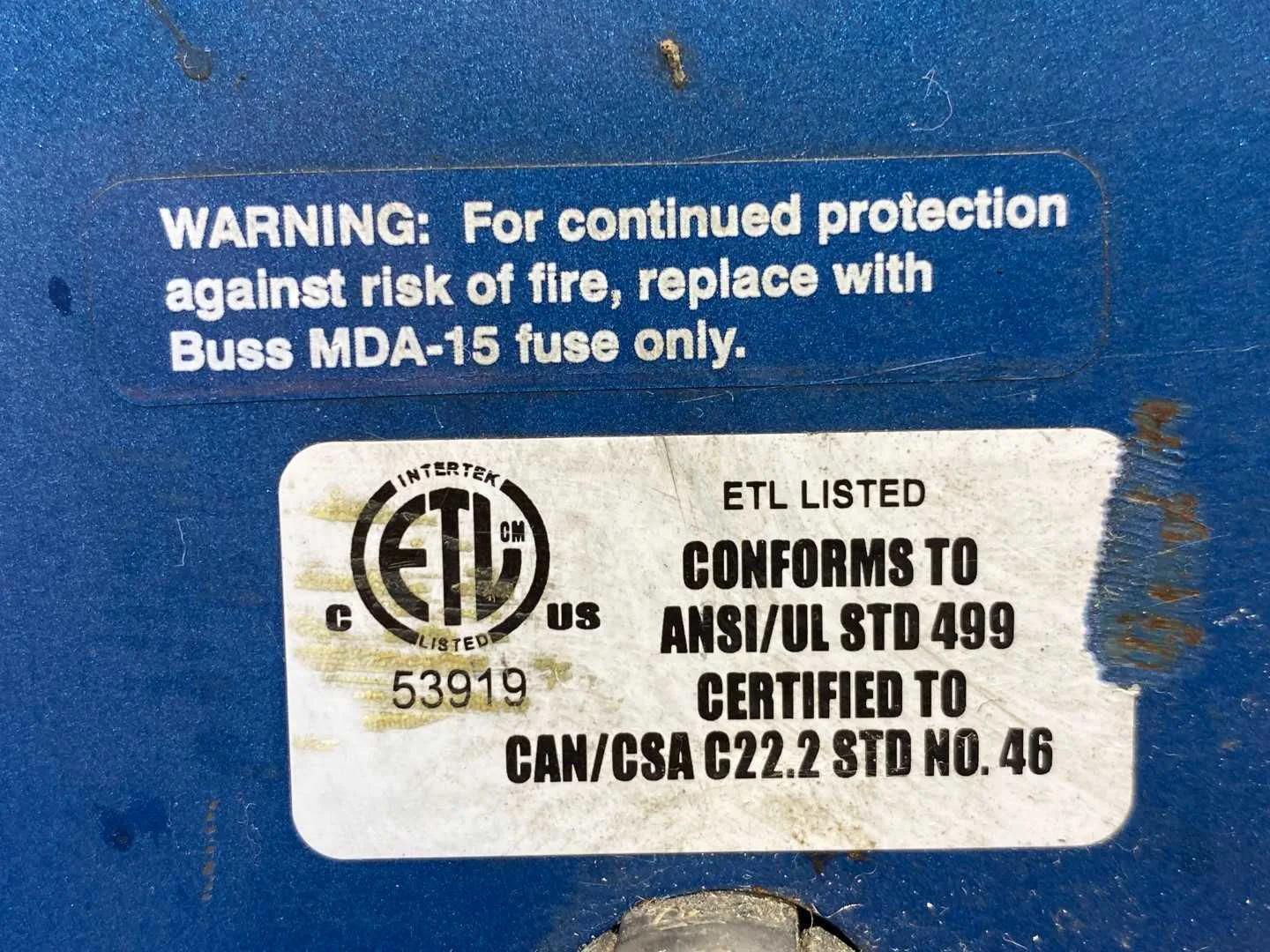

- Fuse: Buss MDA-15 only (nameplate warning: for continued protection against risk of fire, replace with Buss MDA-15 fuse only)
- Dimensions (press): 17 in W x 31 in H (handle up) x 29 in D
- Weight (press only): 88 lb
- Shipping Dimensions: 23 in W x 21 in H x 34 in D
- Shipping Weight: 104 lb

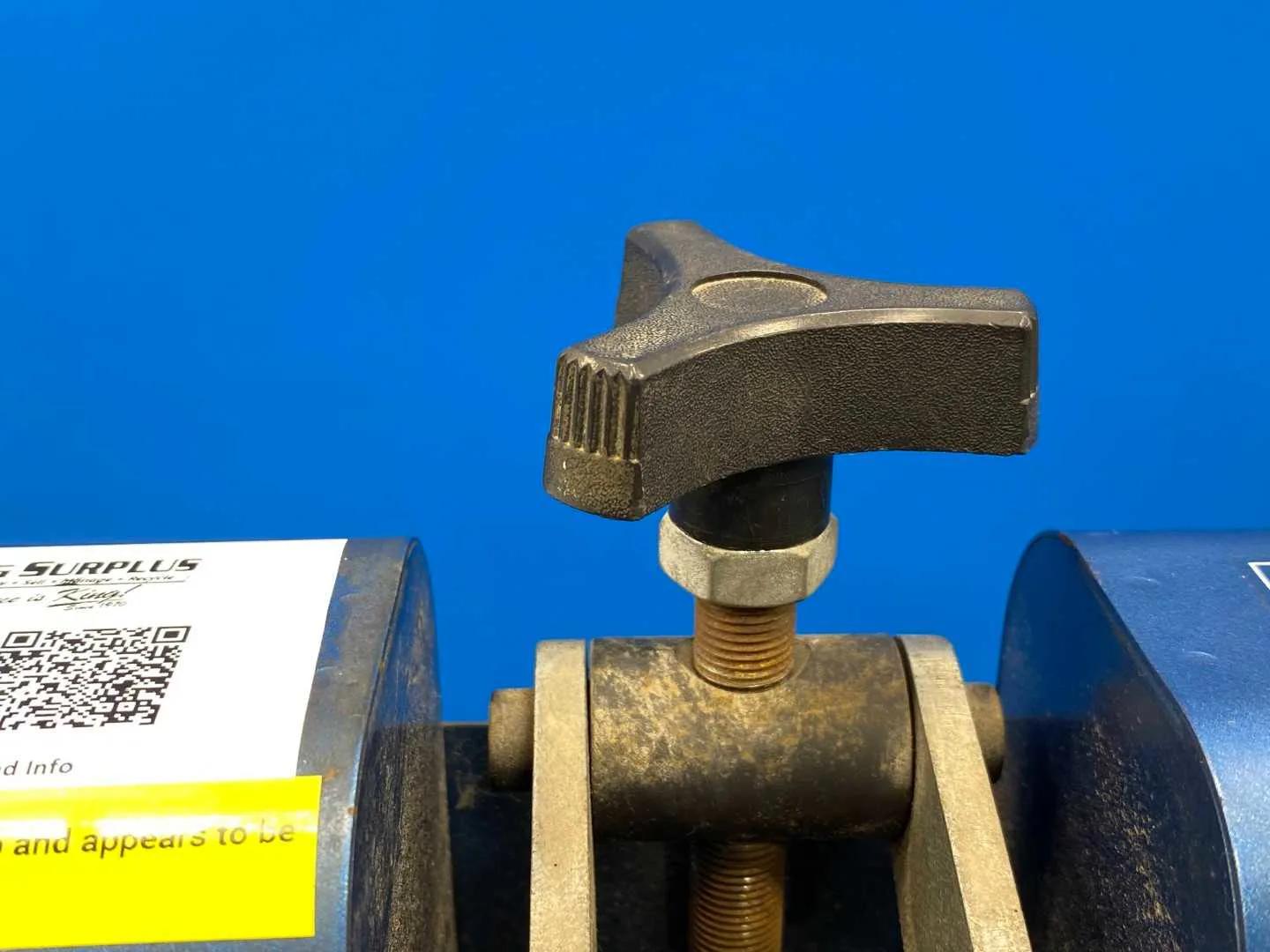

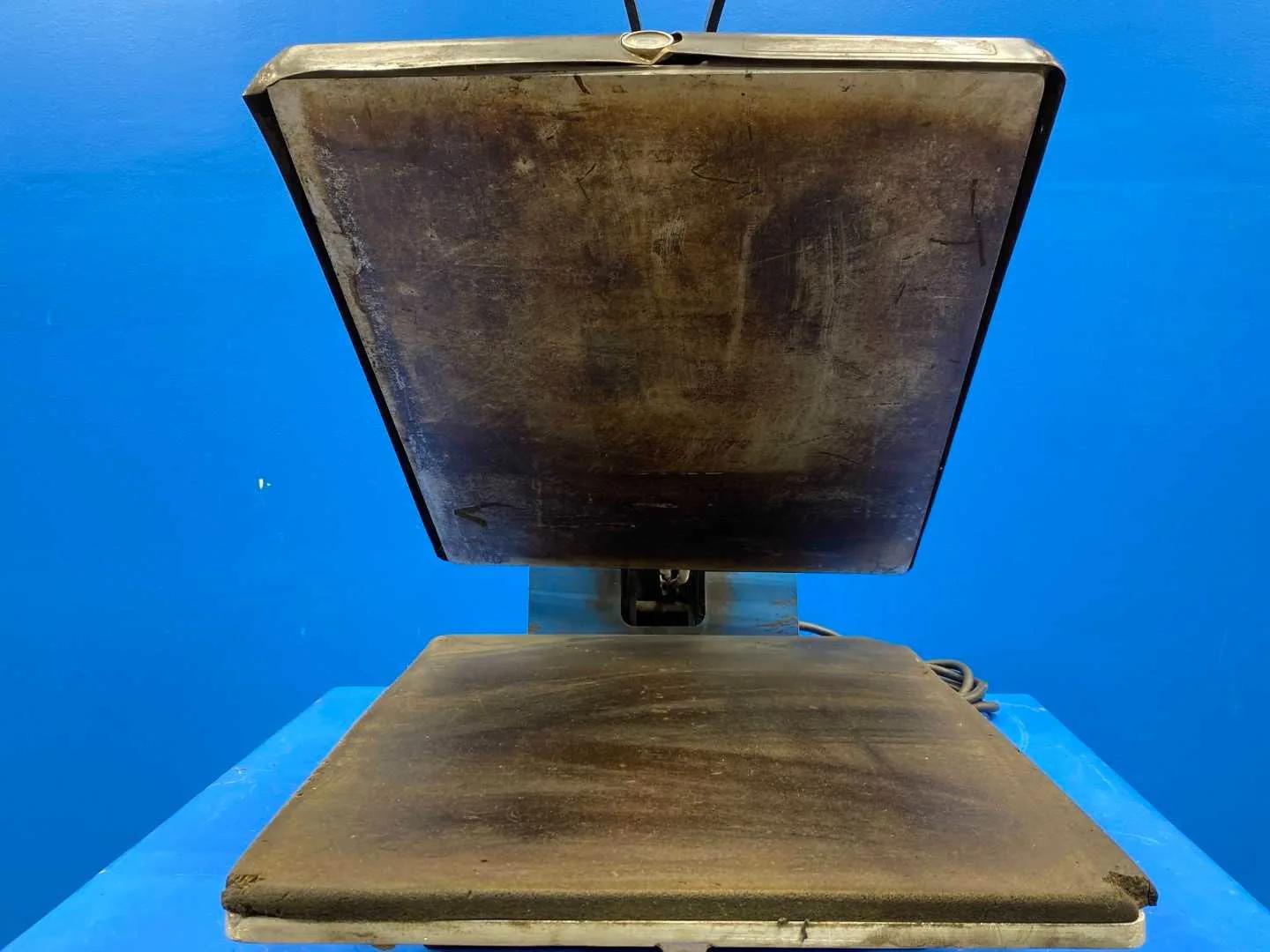

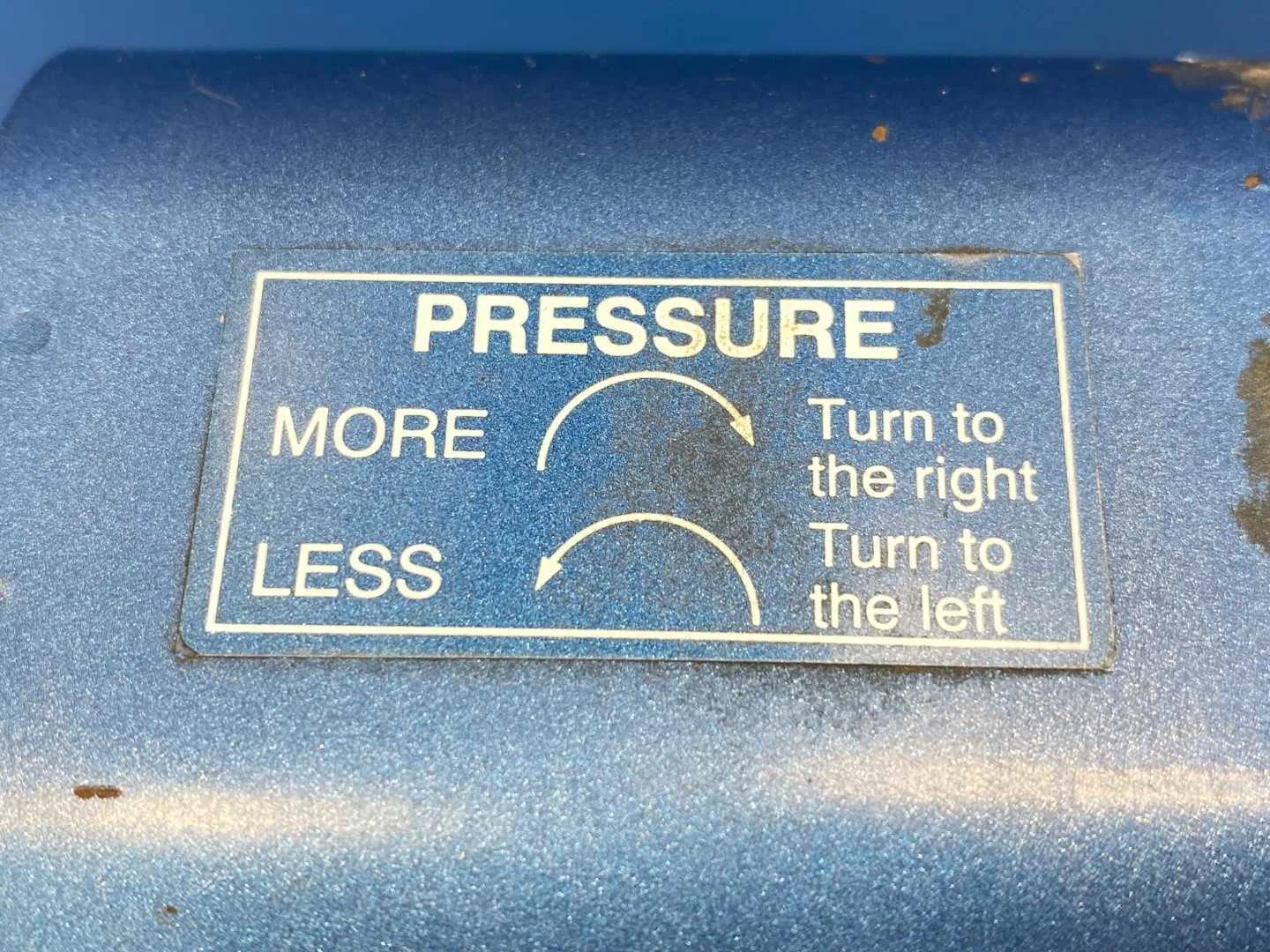

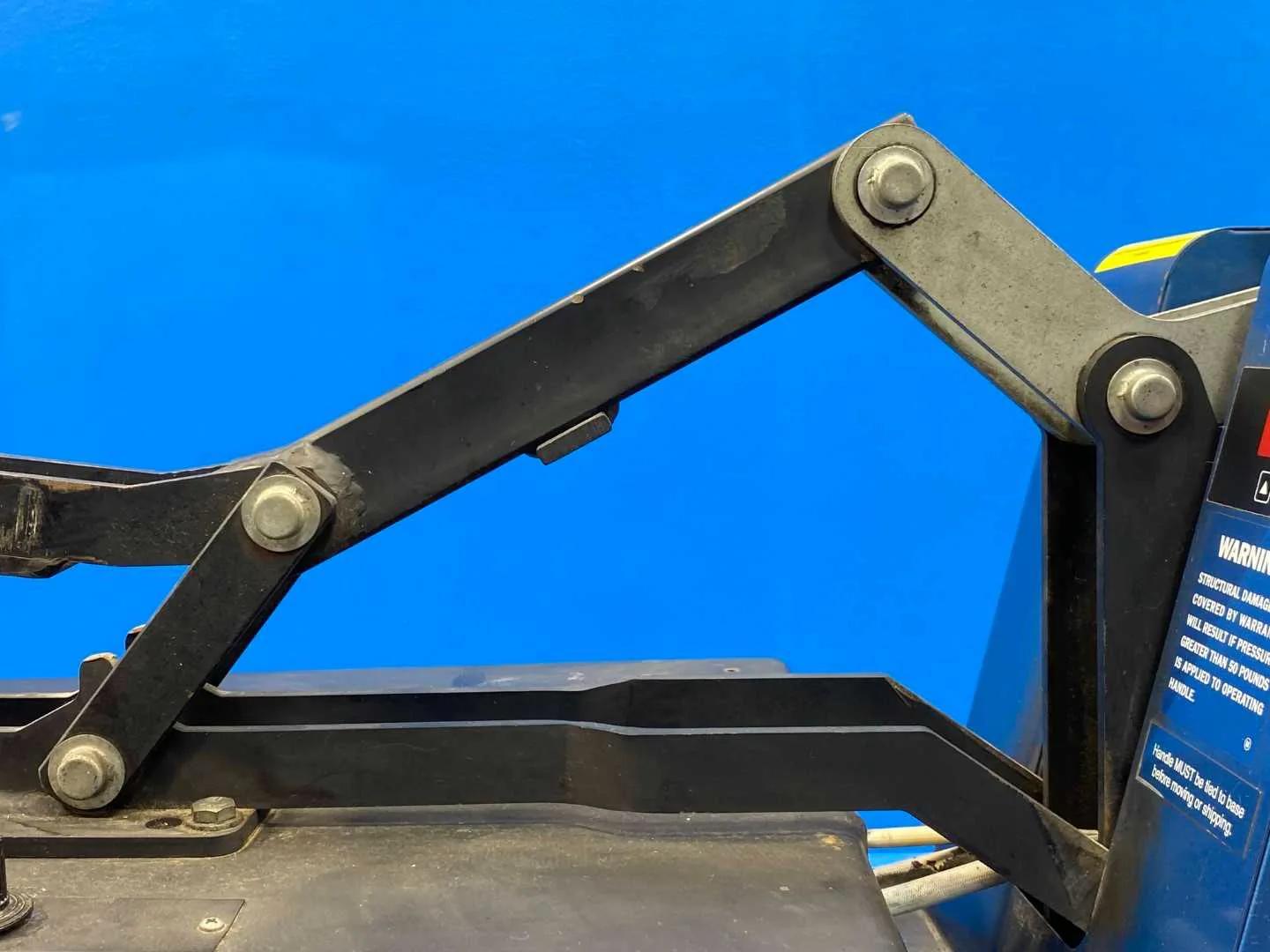

- Construction: All-metal; floating lower platen for even edge-to-edge pressure; pressure plate on the top platen in place of a single adjusting screw
- Location Rating: Suitable for dry locations only
- Certifications: Intertek ETL Listed 53919; conforms to ANSI/UL Std 499; certified to CAN/CSA C22.2 Std No. 46; CE

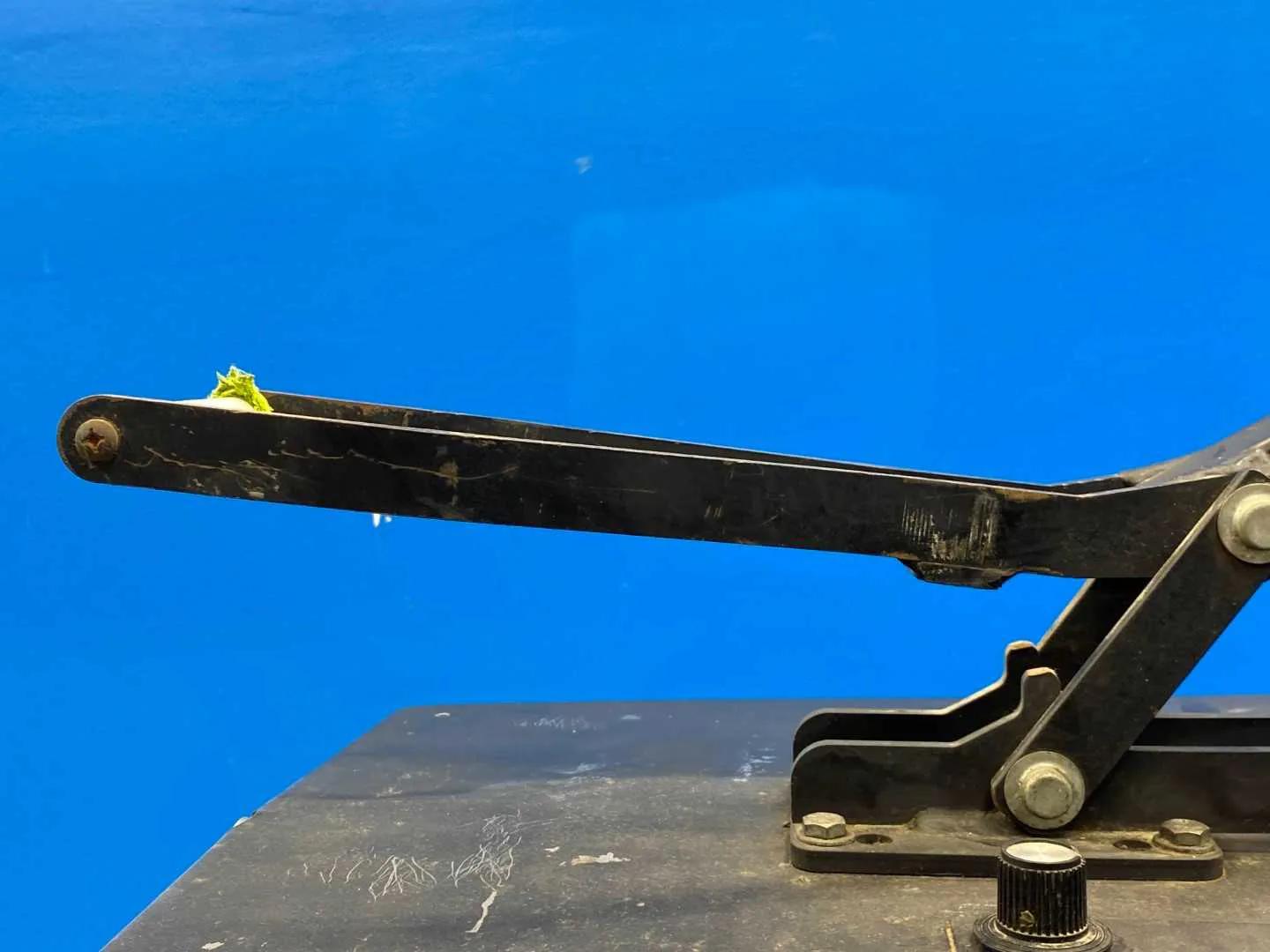

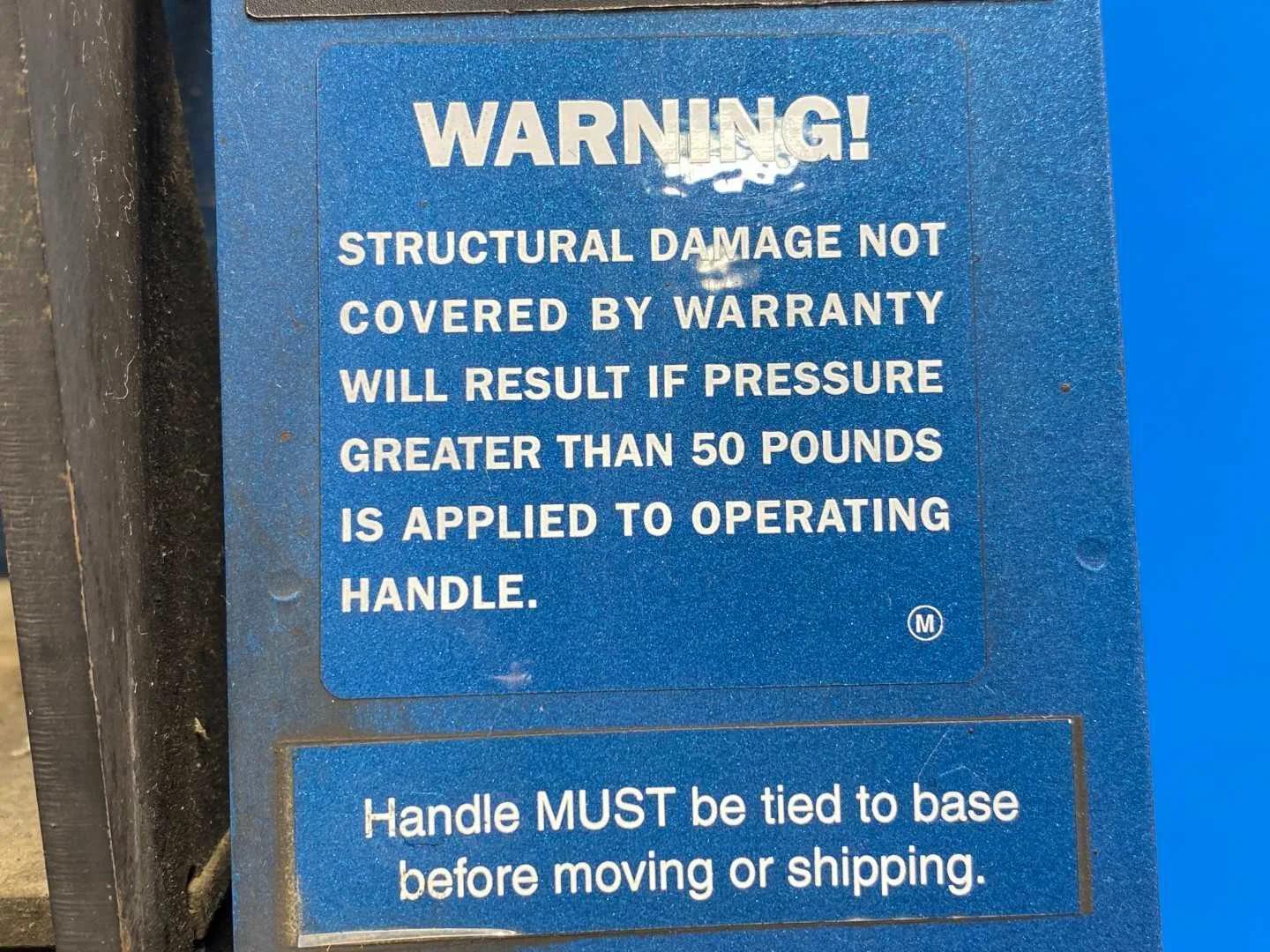

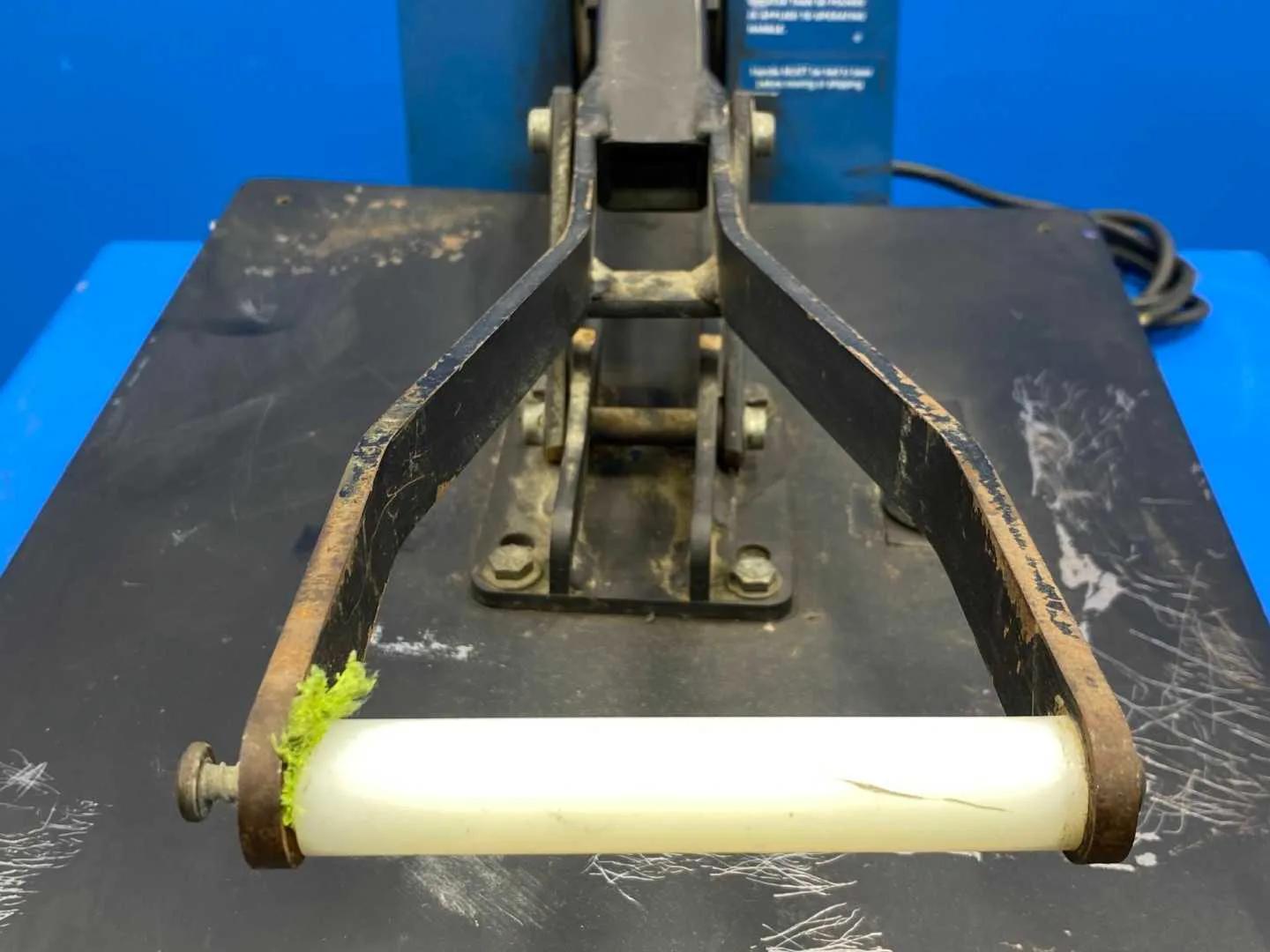

- Handling Warning (nameplate): structural damage not covered by warranty will result if pressure greater than 50 lb is applied to the operating handle; handle must be tied to the base before moving or shipping
- Model Distinction: the 15 in x 15 in platen belongs to the HIX HT-400, not to the HT-600

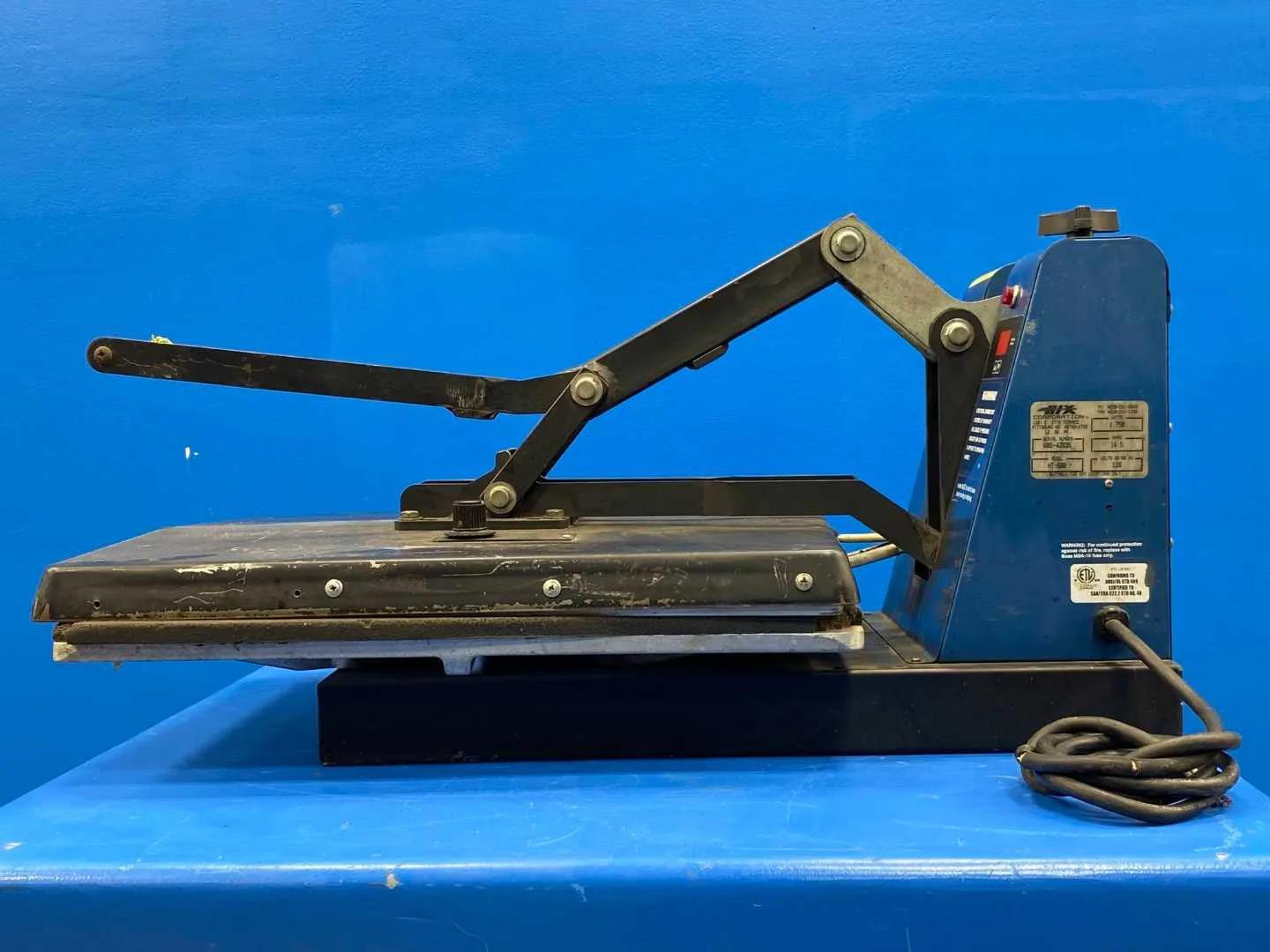

- Spec Basis: nameplate photographs on this record, corroborated by the HIX Corporation HT Series manual heat transfer machine specification sheet
Specifications
Manufacturer
HIX
Model
HT-600
Serial
605-42635
Year
N/A
HP / AMP / KW / KVA
14.5AMPS
Amps
14.5
Length (Inches)
28
Width (Inches)
16
Height (Inches)
16
Phase
1
Estimated Packaging Weight
6
Estimated Total Weight
84
Asset Number
KSC798 / 013
Packaging fees
Packaging Cost
1.4 Cardboard $25
