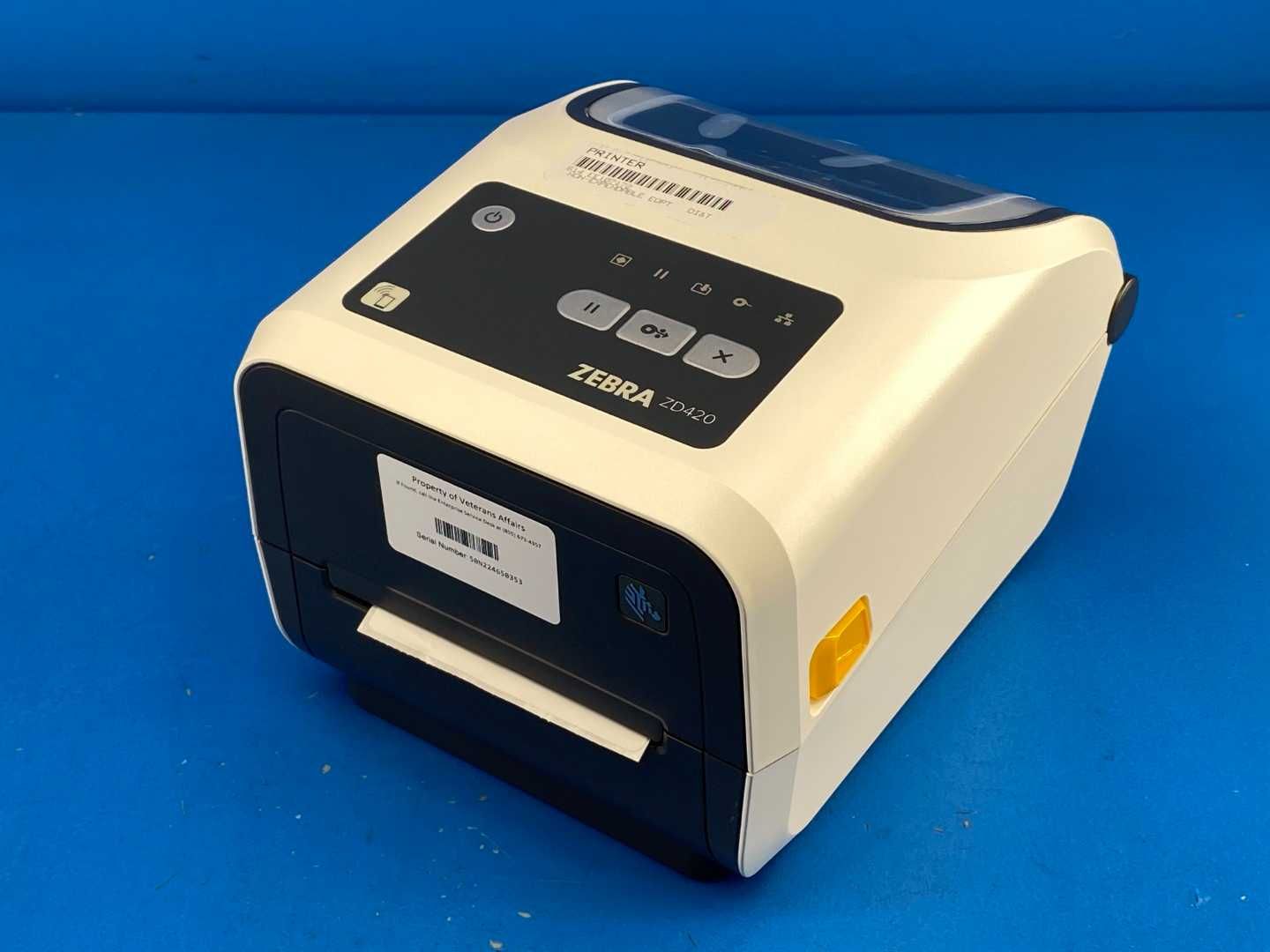

Zebra ZD420 Thermal Transfer Printer

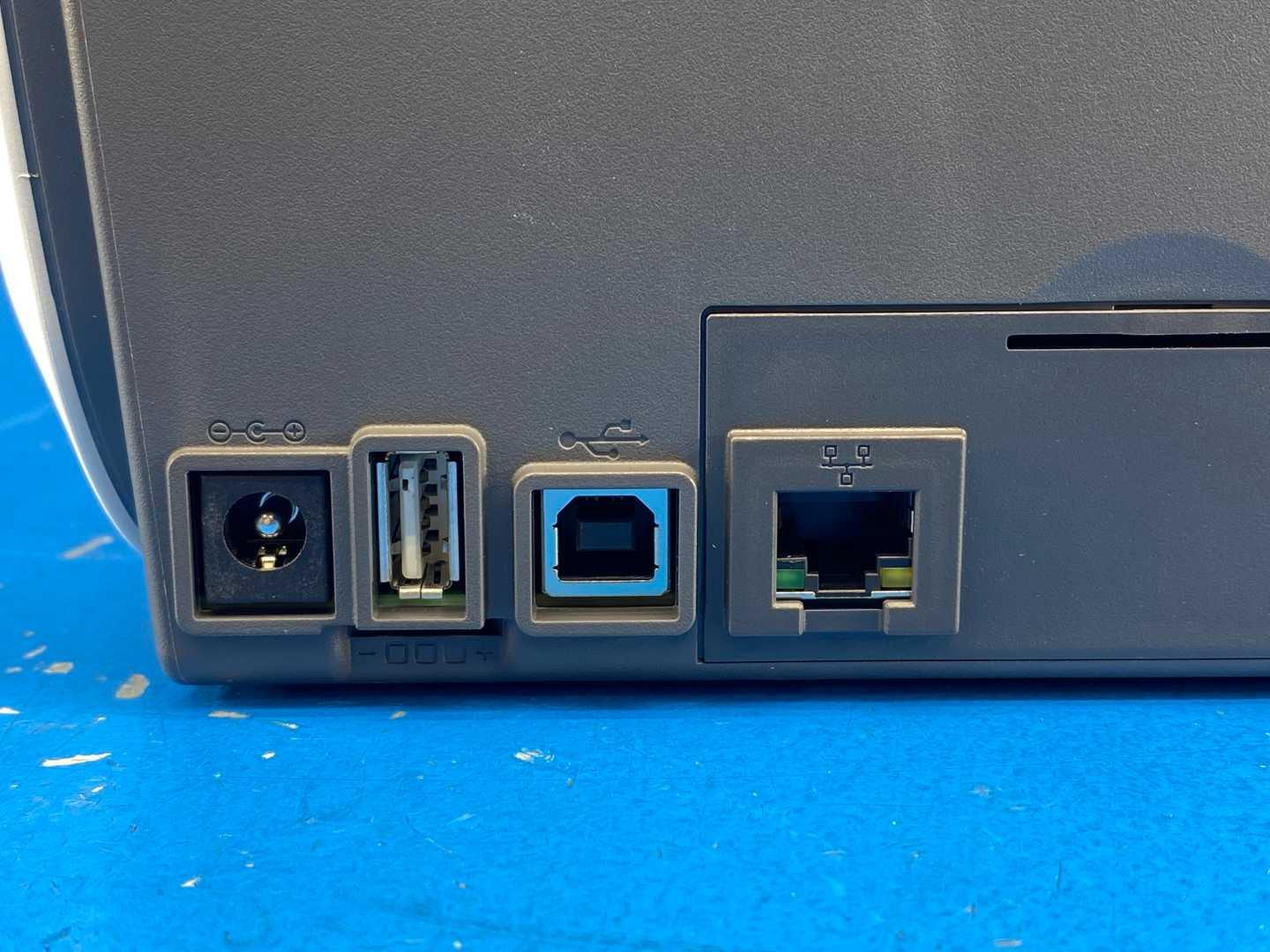

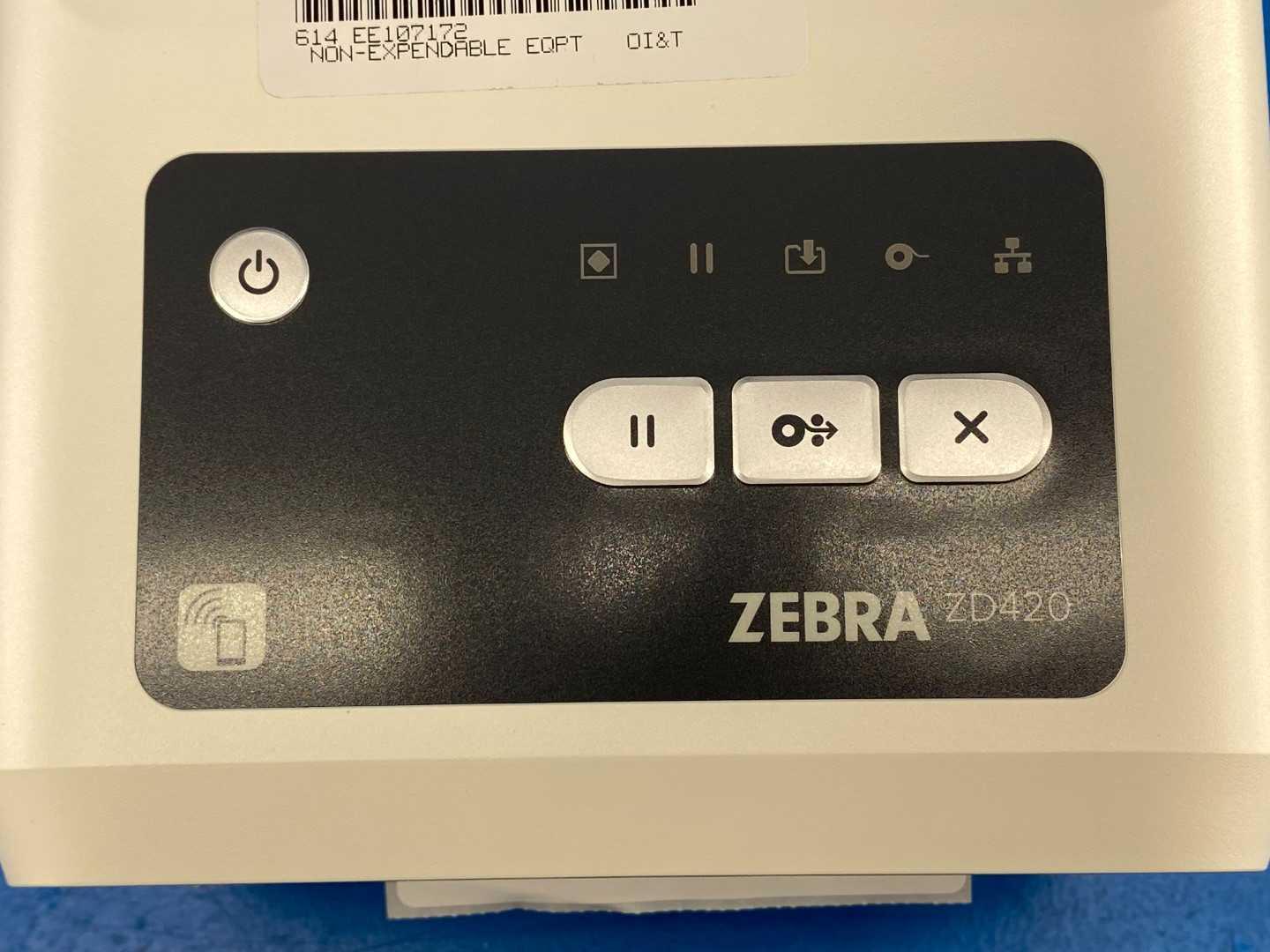

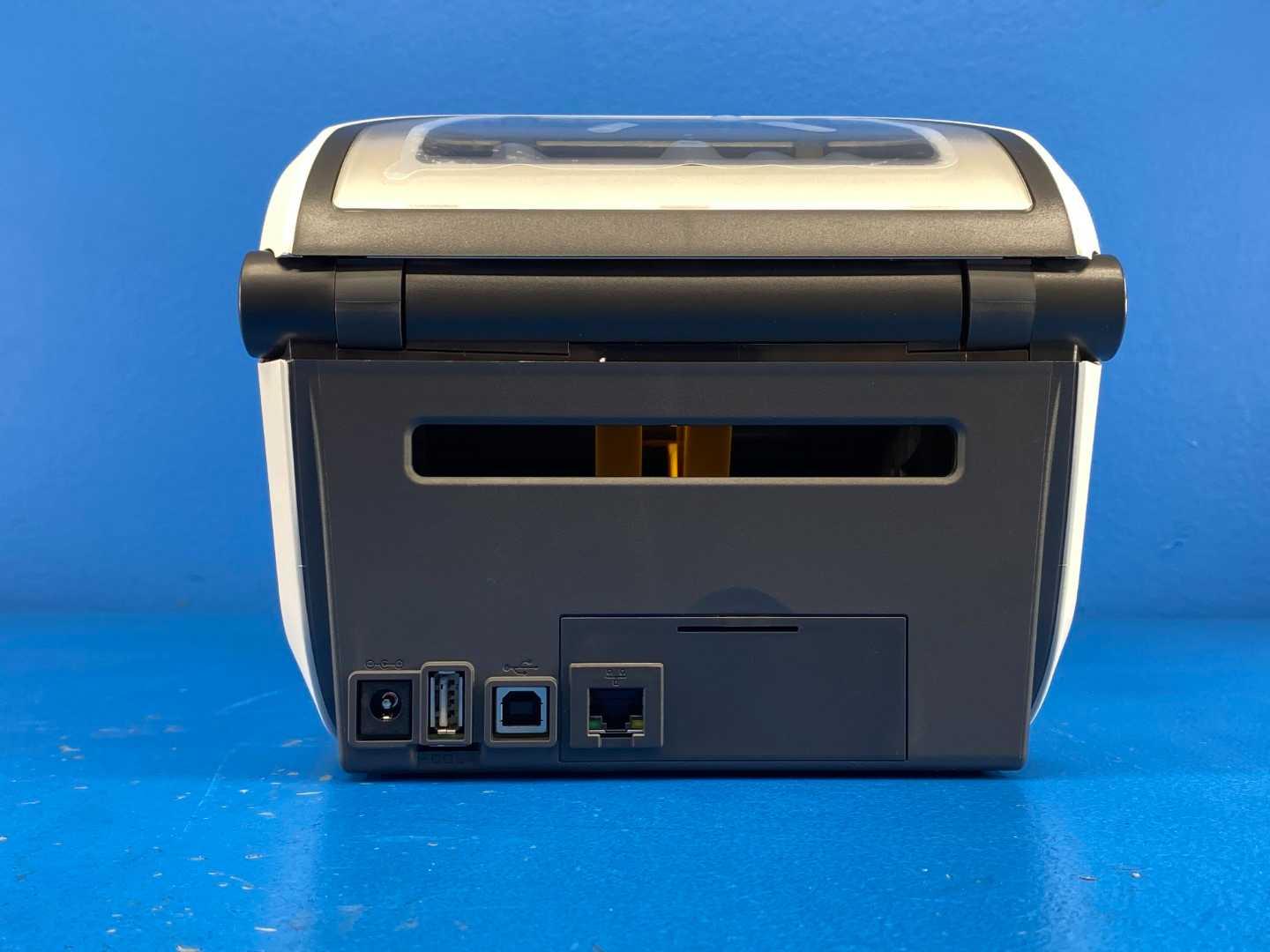

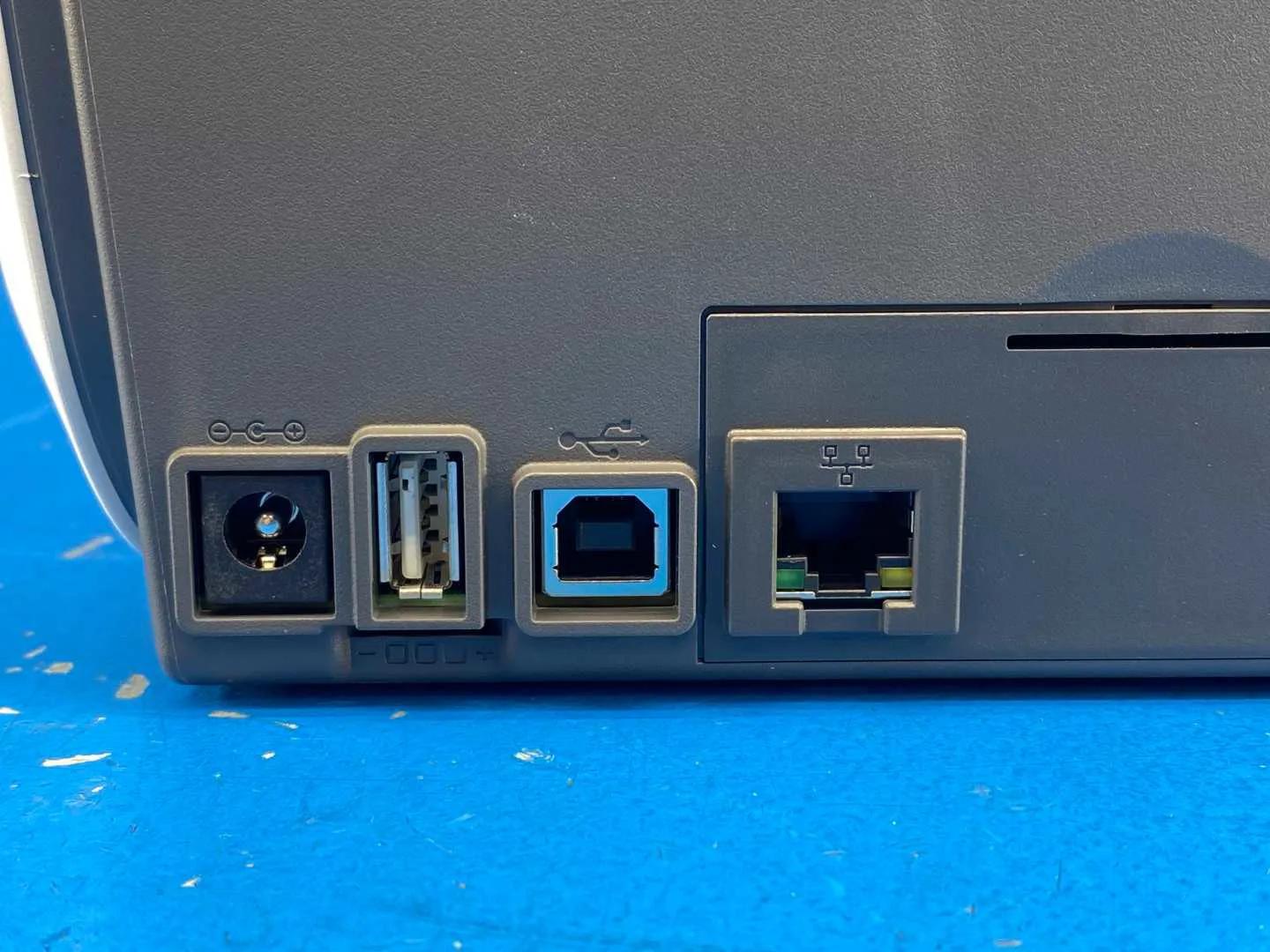

The Zebra ZD420 Thermal Transfer Printer is a reliable printing solution designed for a range of industries, including healthcare, retail, logistics, and manufacturing. This printer was introduced as part of Zebra's commitment to provide high-quality printing and ease of use. One of its notable features is its simplicity in operation, allowing users to quickly set up and start printing labels and tags. The ZD420 is known for its impressive print speed, enabling efficient processing of labels, which enhances productivity in environments where time is crucial. Furthermore, the printer supports both thermal transfer and direct thermal printing, making it versatile for different label printing needs. A key highlight of the ZD420 is its user-friendly interface, featuring a graphical display and intuitive buttons, which reduce the learning curve for new operators. This printer is also engineered to withstand the demands of various working conditions, ensuring durability and reliability. The ZD420 offers connectivity options including USB, Ethernet, and wireless, facilitating easy integration into existing systems and networks. In summary, the Zebra ZD420 Thermal Transfer Printer combines efficiency, versatility, and ease of use, making it an ideal choice for businesses seeking reliable label printing solutions.

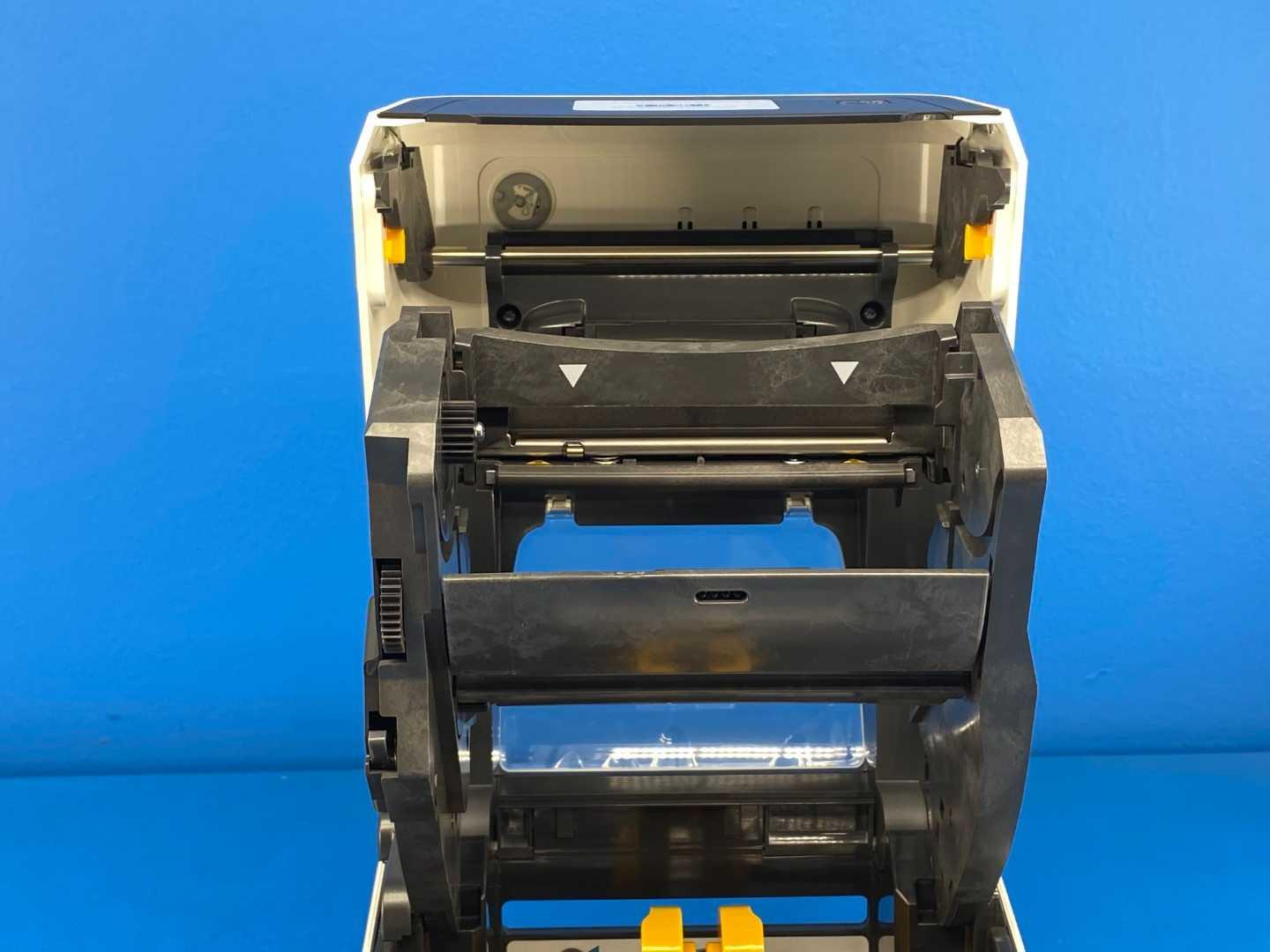

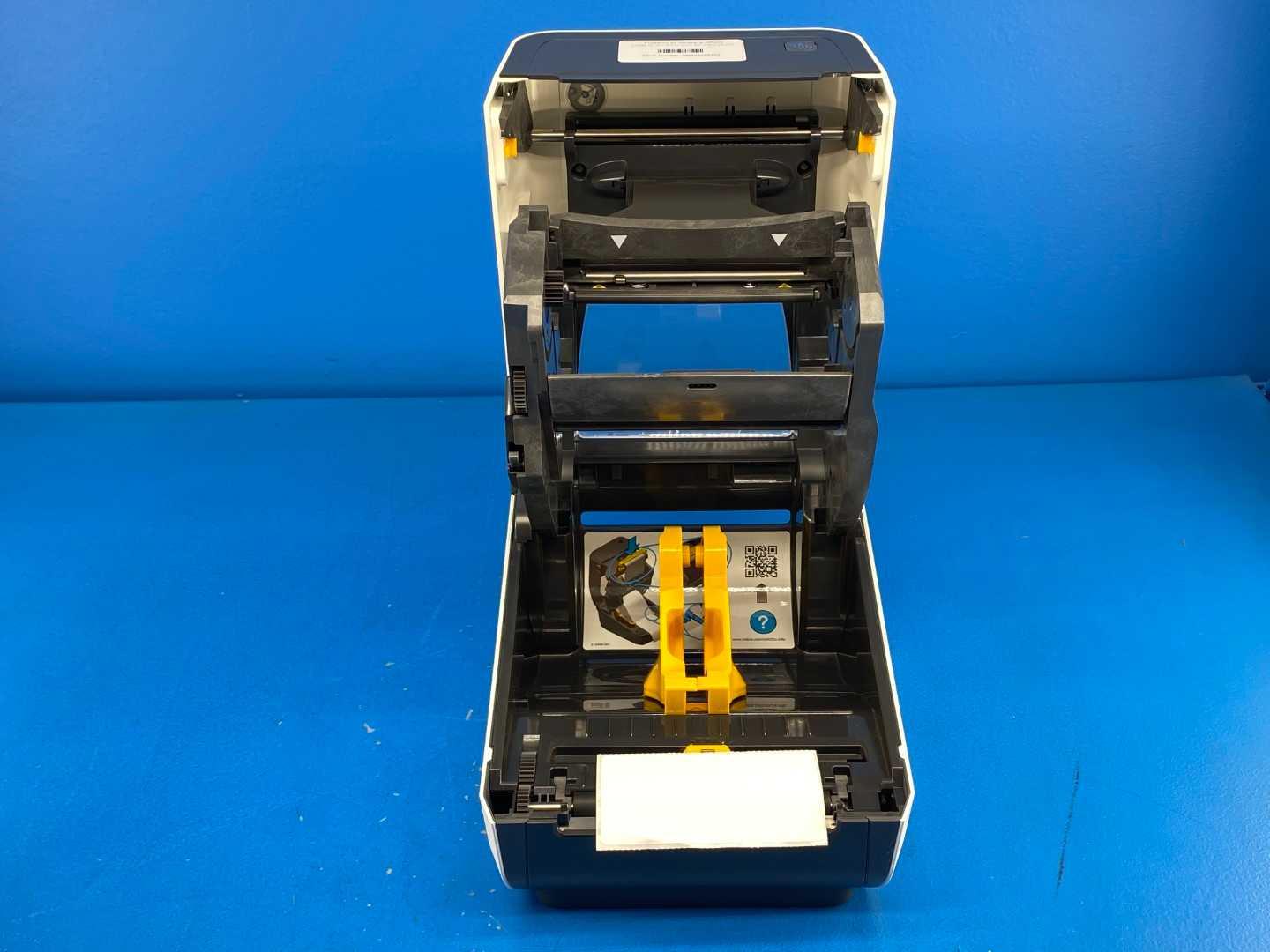

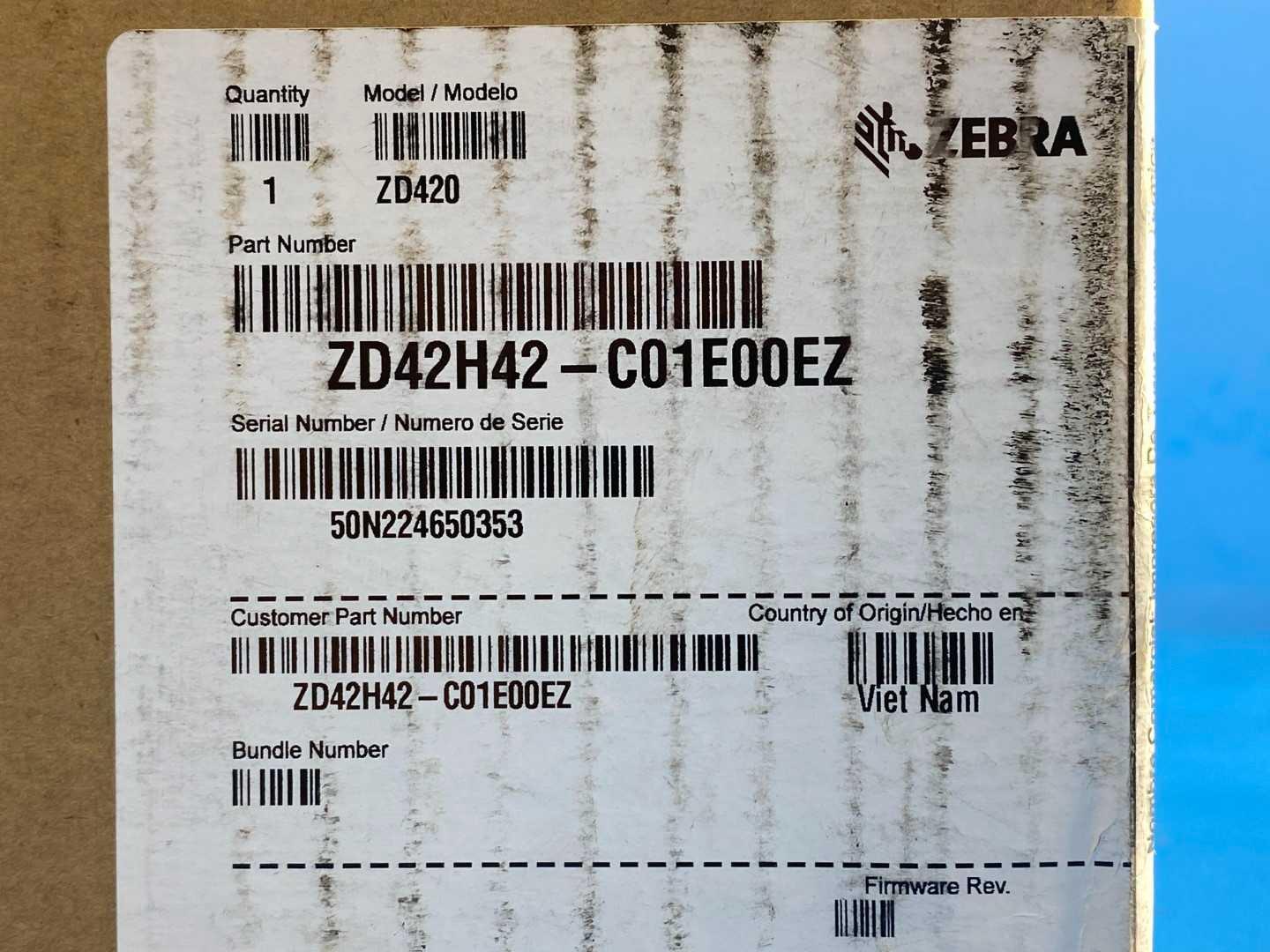

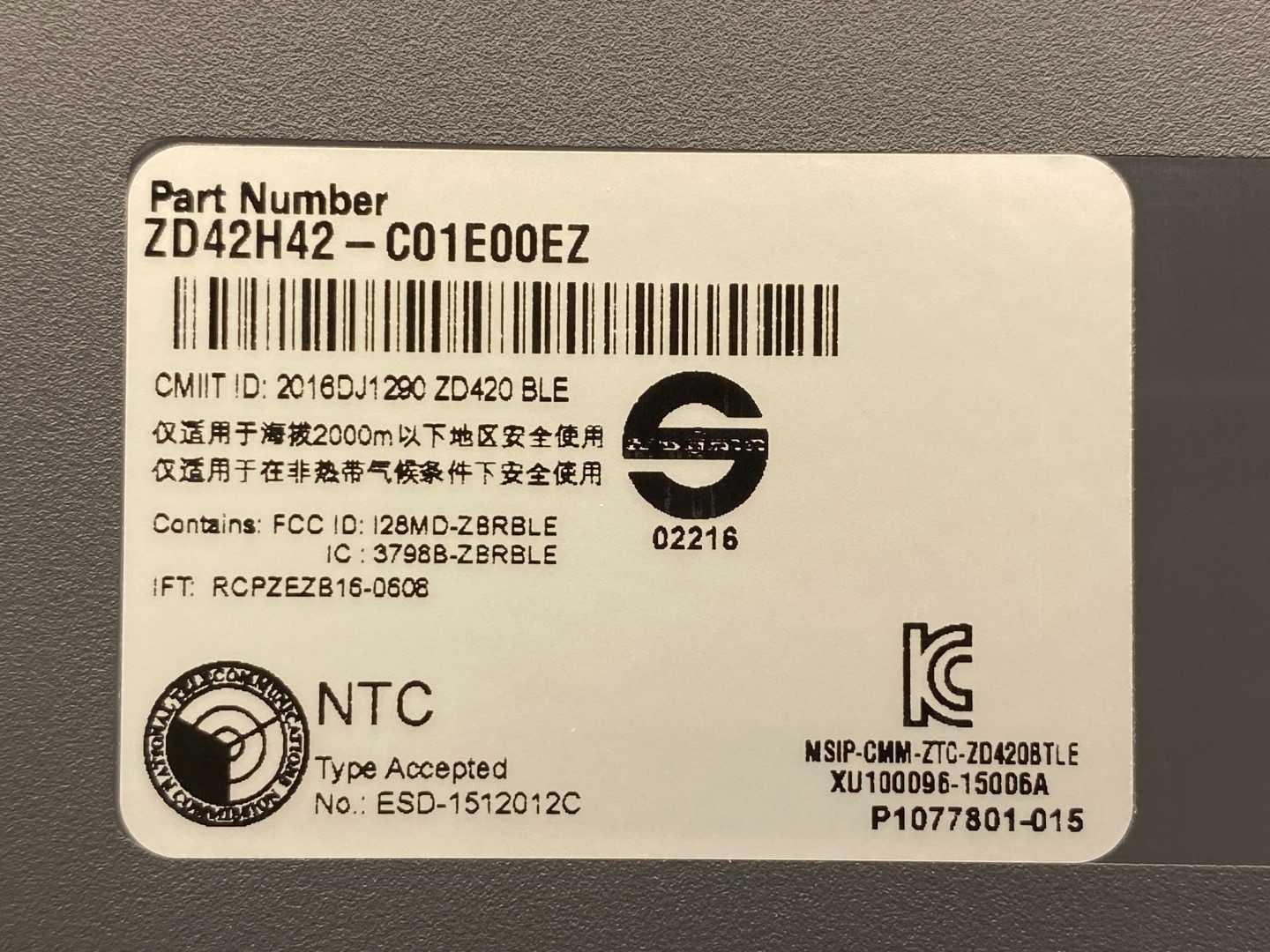

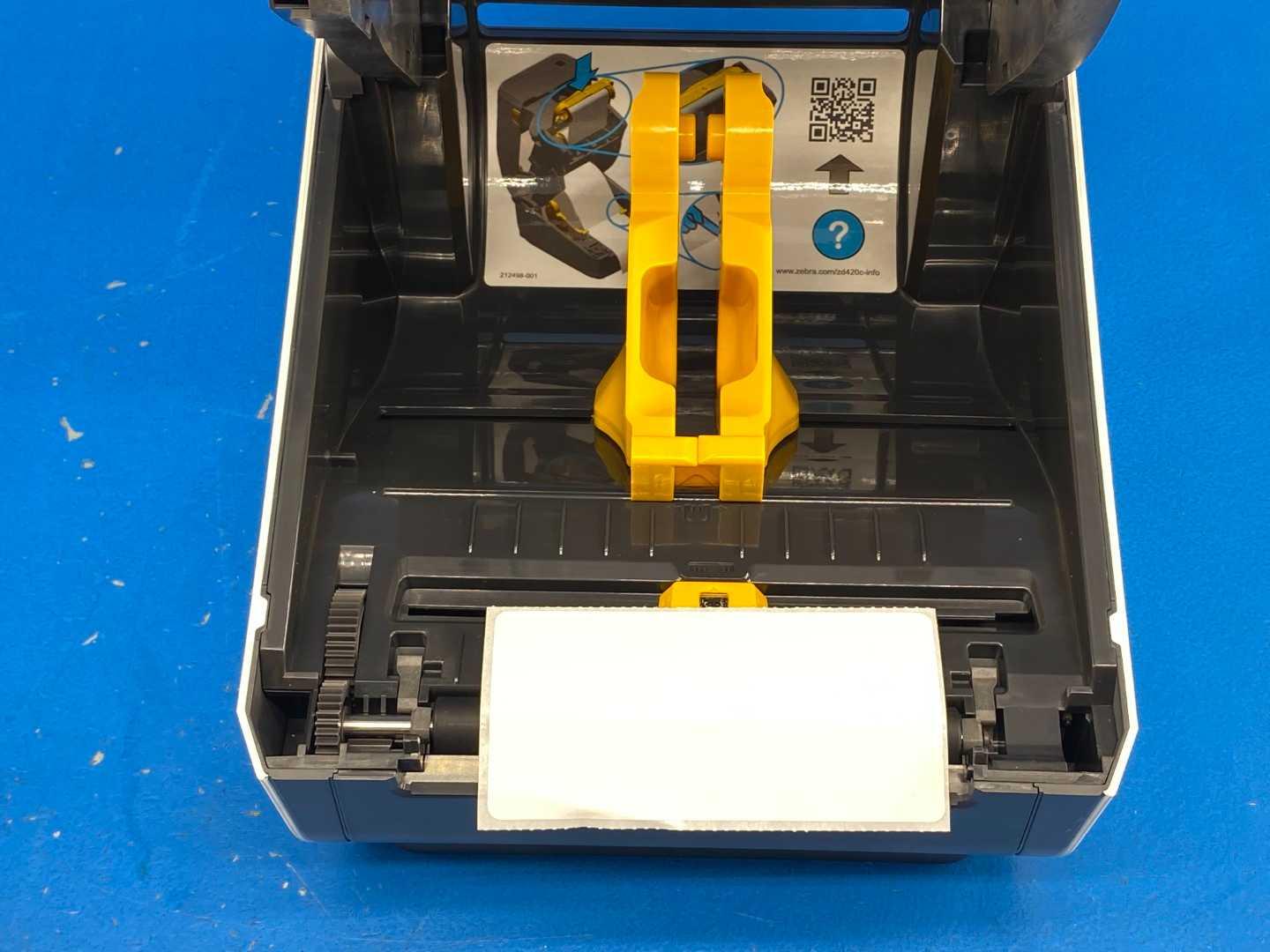

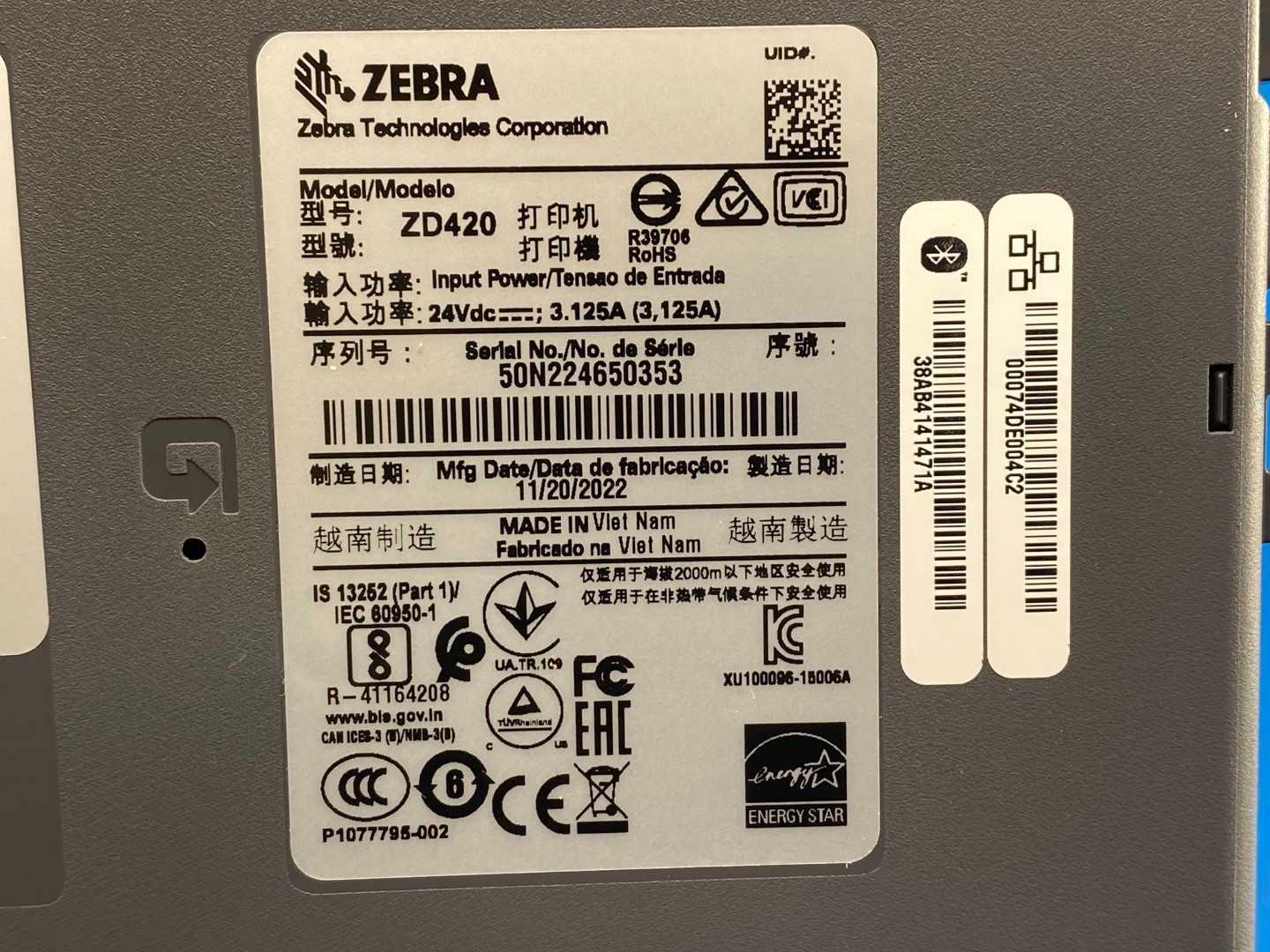

Manufacturer: Zebra Technologies Model (as labelled): ZD420 Part Number (as labelled): ZD42H42-C01E00EZ Serial Number (as labelled): 50N224650353 Country of Origin (as labelled): Viet Nam WHAT THE PART NUMBER IDENTIFIES: ZD42H42-C01E00EZ is the ZD420c-HC configuration, that is the HEALTHCARE variant of the ZD420 in the RIBBON CARTRIDGE version, 203 dpi, with Ethernet. The "H" denotes the healthcare build and the "C" denotes the ribbon cartridge print mechanism. This matters commercially: the cartridge model takes Zebra ribbon cartridges rather than conventional ribbon rolls, so it is not interchangeable in supplies with a ZD420t. PUBLISHED SPECIFICATIONS, ZEBRA ZD420c SPECIFICATION SHEET Print Method: Thermal Transfer Resolution: 203 dpi / 8 dots per mm (this part number). A 300 dpi / 12 dots per mm option exists in the range. Print Speed: 6 in. / 152 mm per second at 203 dpi (4 in. / 102 mm per second at 300 dpi) Maximum Print Width: 4.09 in. / 104 mm Maximum Media Width: 4.65 in. / 118 mm Media Thickness: 0.003 in. (0.08 mm) minimum, 0.0075 in. (0.1905 mm) maximum Media Roll Core Inner Diameter: 0.5 in. (12.7 mm) and 1.0 in. (25.4 mm) standard Maximum Roll Outer Diameter: 5.00 in. / 127 mm Memory: 512 MB Flash, 256 MB SDRAM Standard Connectivity: USB 2.0, USB Host Optional Connectivity: RS-232 auto-sensing Serial DB-9; Ethernet 10/100 internal; 802.11ac Wi-Fi and Bluetooth 4.1. This part number is the Ethernet configuration. Dimensions: 10.0 in. L x 8.0 in. W x 7.0 in. H / 254 mm L x 202 mm W x 177 mm H Weight: 5.0 lbs. / 2.3 kg Operating Temperature: 40 to 105 F / 4.4 to 41 C Operating Humidity: 10% to 90% non-condensing HEALTHCARE BUILD FEATURES: disinfectant-ready plastics and a sealed button interface, so the printer can be wiped down with common healthcare disinfectants. LIFECYCLE: Zebra has placed this part number at end of life. The named successor configuration is ZD4AH42-C01E00EZ in the ZD421 range. UNPUBLISHED / NOT STATED HERE: ribbon cartridge length and width, and the installed firmware revision. Zebra's ZD420c specification sheet does not state the cartridge media figures, and the firmware revision barcode on this unit's label is not legible. No figure has been substituted for either. Spec Basis: Label transcription from this unit's own photographs (ZEBRA, Model ZD420, Part Number and Customer Part Number ZD42H42-C01E00EZ, S/N 50N224650353, Country of Origin Viet Nam). Performance and physical data from the Zebra Technologies "ZD420c 4-Inch Thermal Transfer Printer Specification Sheet". Part-number configuration (healthcare, ribbon cartridge, 203 dpi, Ethernet) and the end-of-life successor confirmed against Zebra specialist distributor catalogue entries for this exact part number.
