Omega PGT-45L-30V Test Gauge, 30-0 inHg Vacuum, Temperature Compensated, Grade 3A, Monel K500 Tube, Monel 400 Socket
PGT-45L Gauge Specifications: Range & Mounting
System Fitment for Omega PGT-45L
| Description | Details |
|---|---|
| Available Quantity | 2 |
| Model | PGT-45L |
| Condition | New |
| Manufacturer | Omega |
| Asset Number | KSC1290 / 2167 |
| Guarantee or ASIS | 2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return |
| Inspections - Yellow Tag | 1.1 Appears Unused no box |
| Packaging Cost | 1.6 6x10 CH $3.00 |
$639.95
Basic Information
Asset #
KSC1290 / 2167
Available Quantity
2
Inspections - Yellow Tag
1.1 Appears Unused no box
Condition
New
Guarantee or ASIS
2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return
Item Description

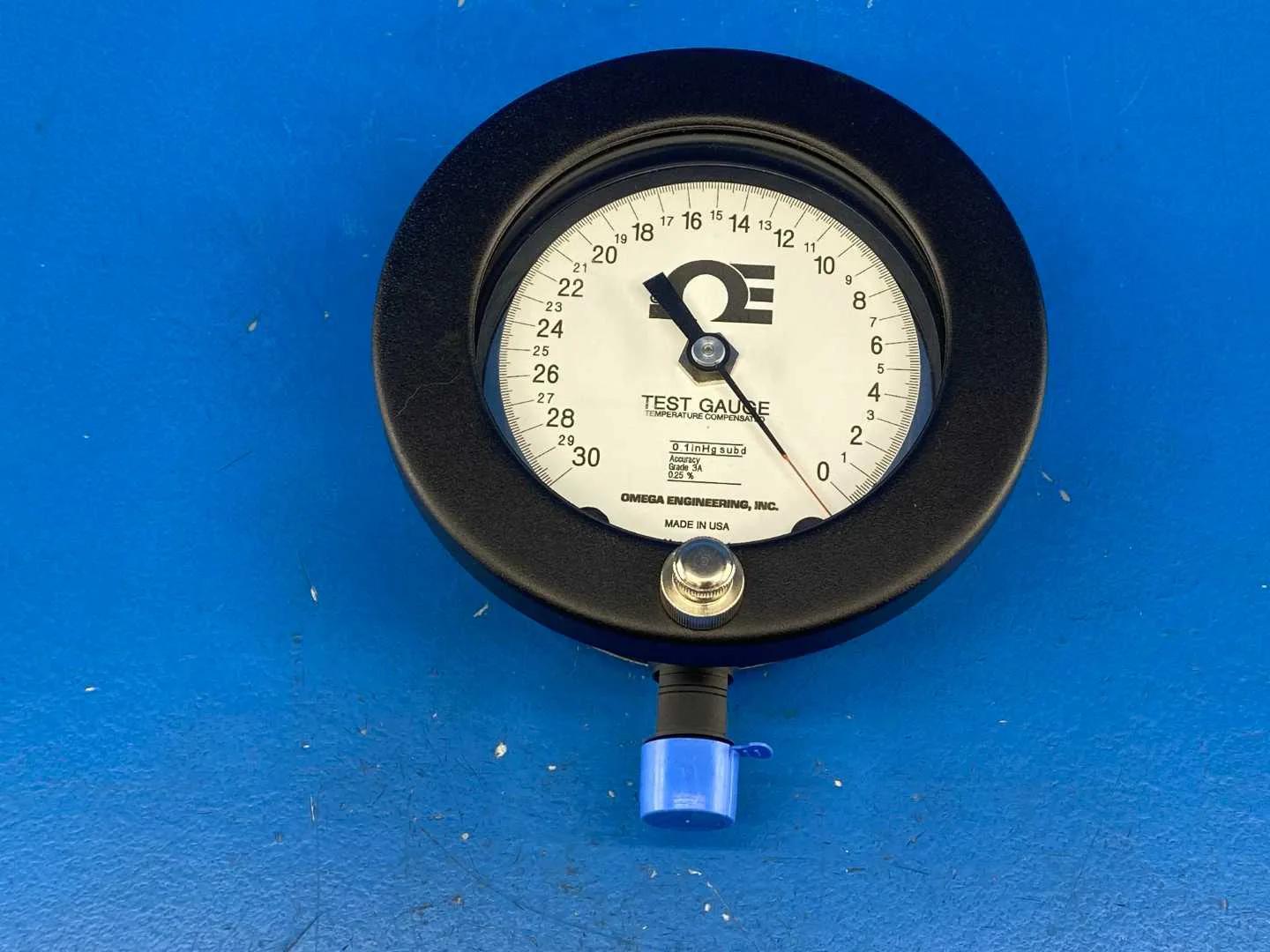

The Omega PGT-45L-30V is a Type T high accuracy test gauge for vacuum, reading 30 to 0 inches of mercury on a 4-1/2 inch dial in 0.1 inHg subdivisions. Test gauges like this are used as a reference to check and calibrate general service gauges, for production inspection and for precise readings on instrument and process lines.
In Omega's model code, PGT is the test gauge series, 45 is the 4-1/2 inch dial, L is the lower connection and 30V is the 30 inHg vacuum range code. The dial is marked temperature compensated, Grade 3A with 0.25% accuracy, and it lists a welded Monel K500 Bourdon tube and Monel 400 socket. Omega's catalog describes a solid aluminum epoxy coated case, glass window, stainless steel movement, 1/2 NPT fitting and a mirror band on the dial for reading without parallax. Monel wetted parts suit corrosive media better than brass.
Instrument technicians, calibration labs, HVAC and refrigeration service shops and process plant maintenance staff use vacuum test gauges of this class.
Available from King Surplus inventory in Del Rio, Texas.
Factory Information
- Manufacturer: Omega Engineering, Inc.
- Model: PGT-45L-30V (record title; model not visible in photos)
- Product Type: Type T test gauge, temperature compensated (dial)
- Range: 30 to 0 inHg vacuum (range code 30V)
- Subdivision: 0.1 inHg (dial)
- Dial Size: 4-1/2 in (45)

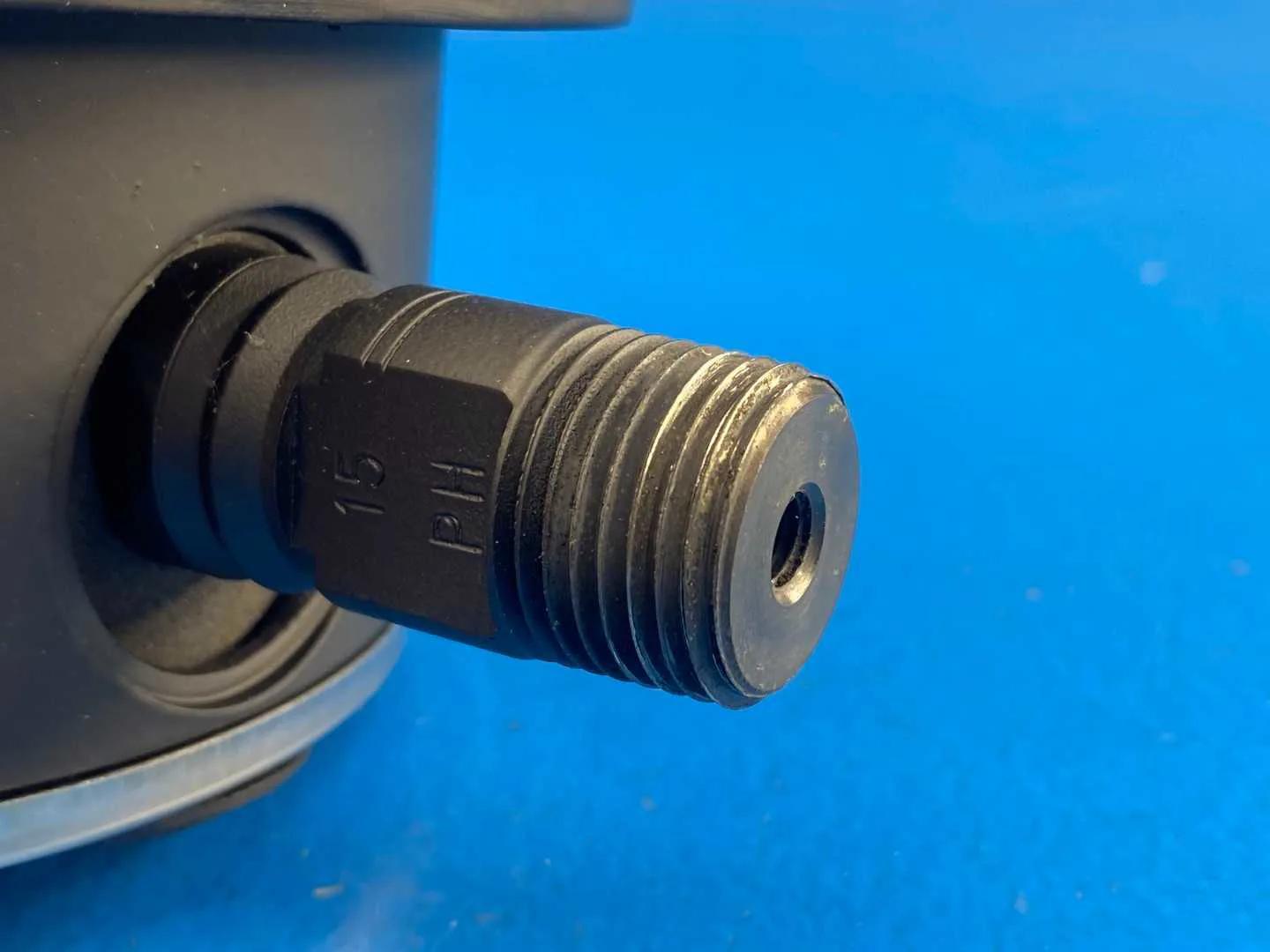

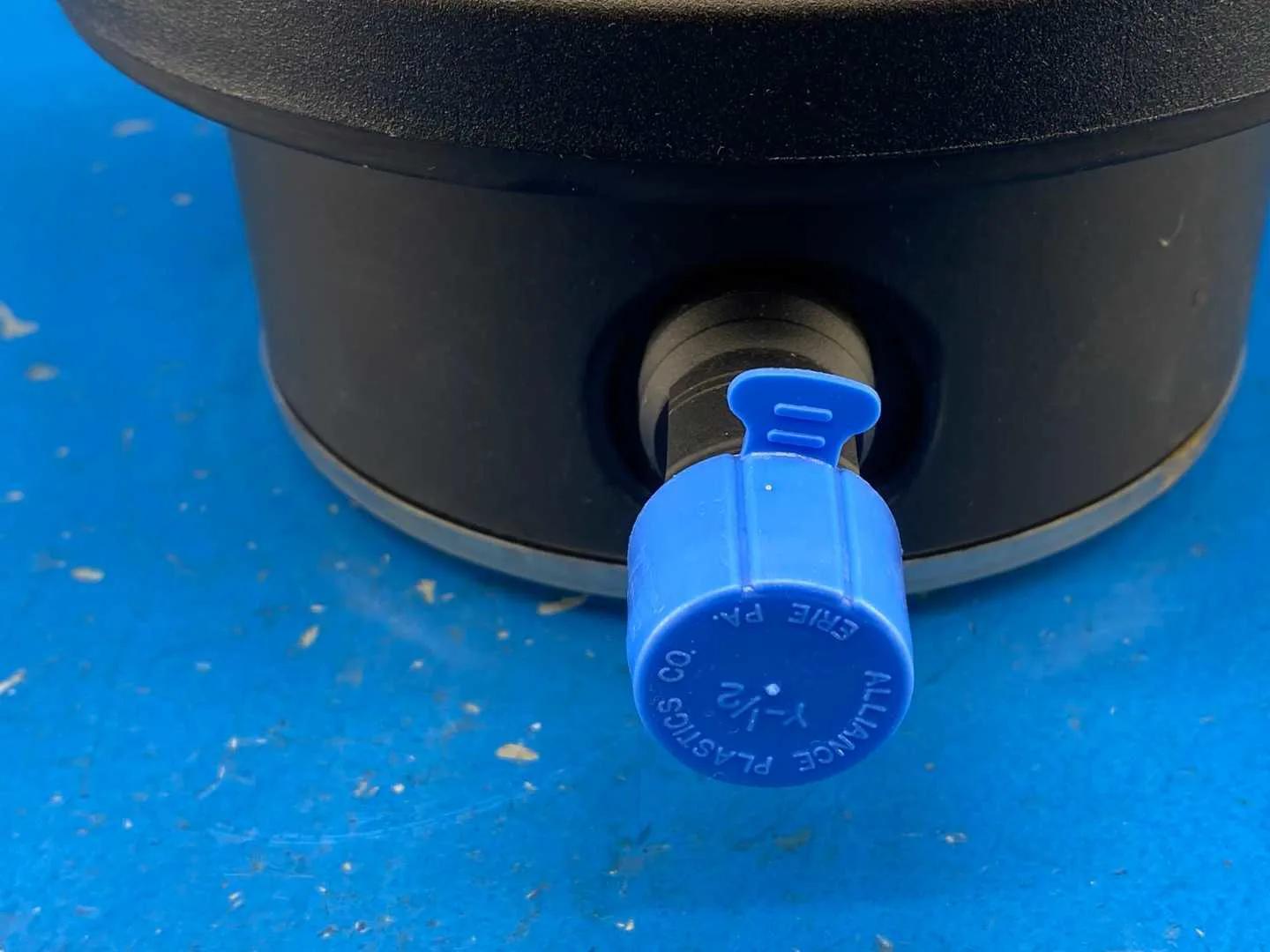

- Connection: Lower (L), 1/2 NPT
- Accuracy: 0.25% full scale, Grade 3A (dial)
- Bourdon Tube: Monel K500, welded (dial)
- Socket: Monel 400 (dial)

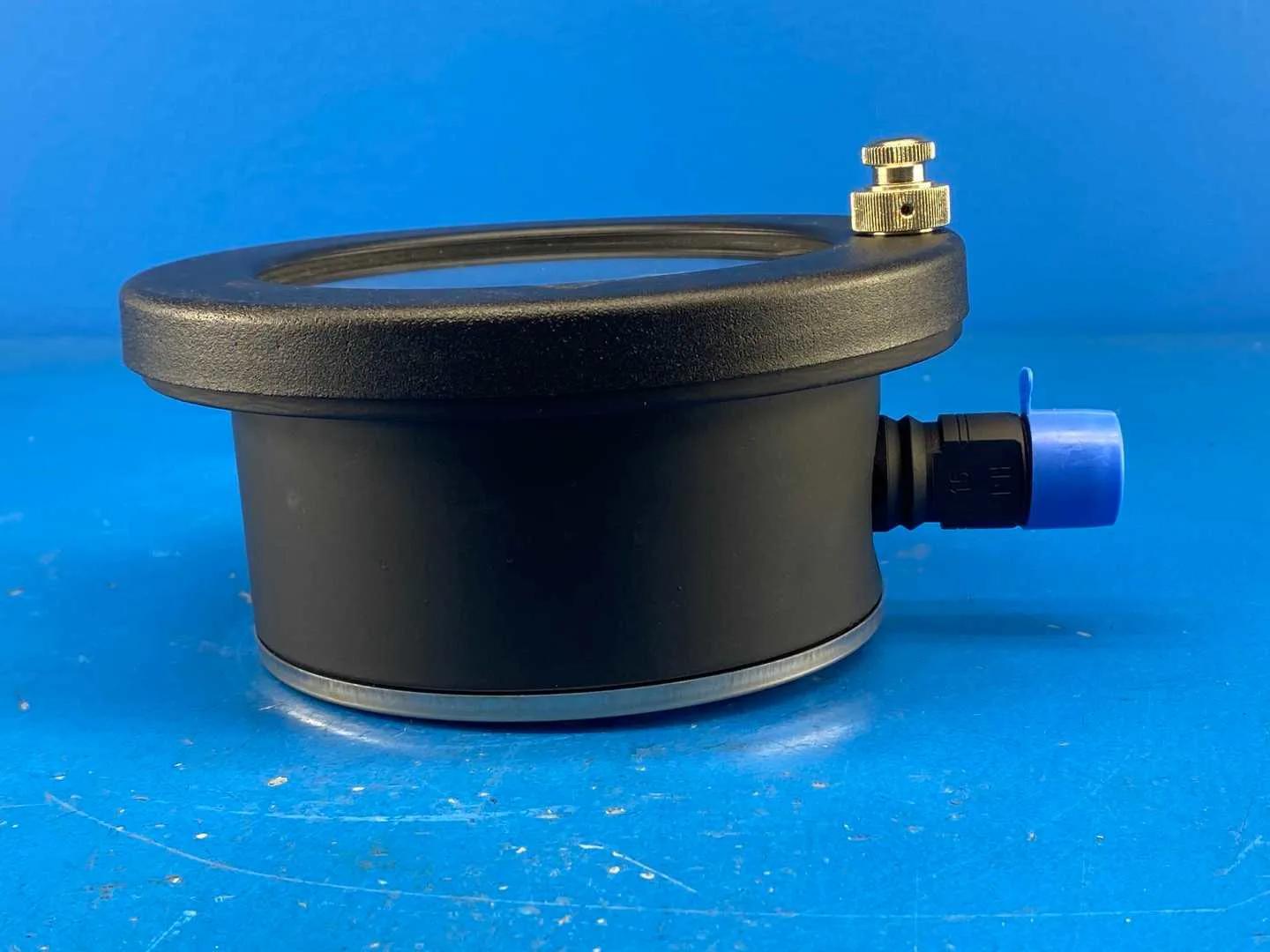

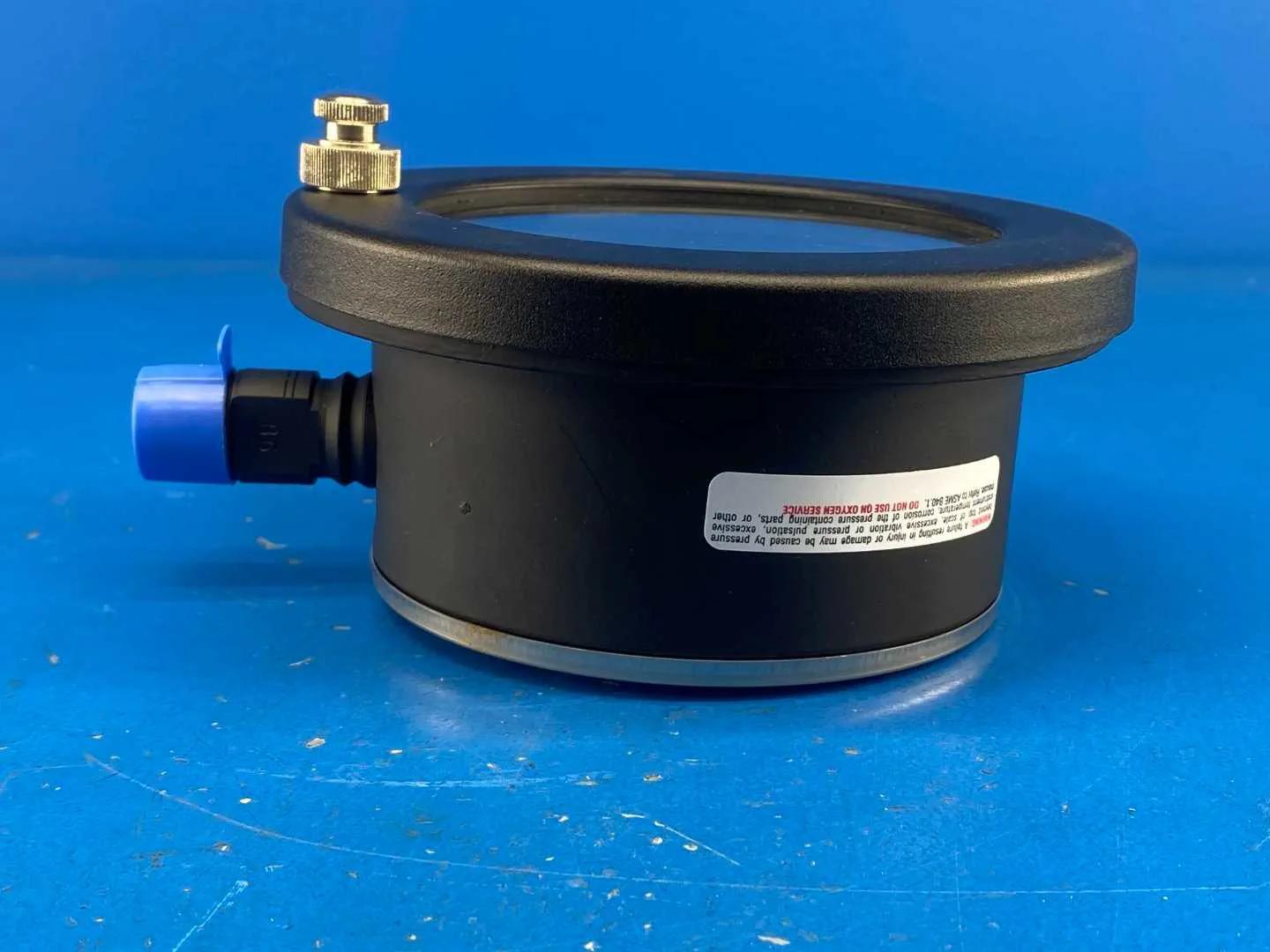

- Case: Solid aluminum, epoxy coated black finish
- Window: Glass
- Movement: Stainless steel
- Temperature Compensation: 0.005% FS per F
- Media Temperature: 150 F (66 C)
- Country of Manufacture: USA (dial)

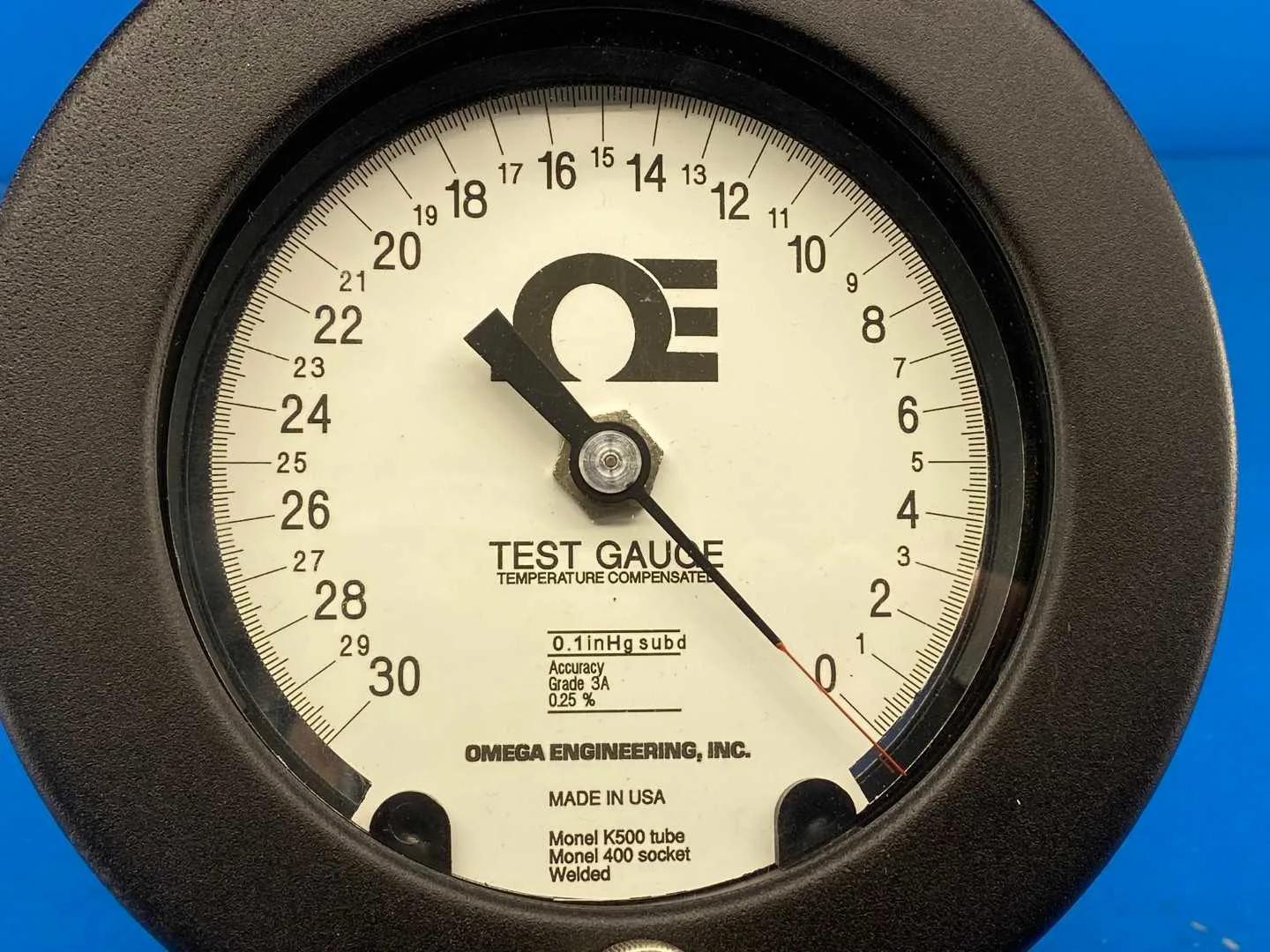

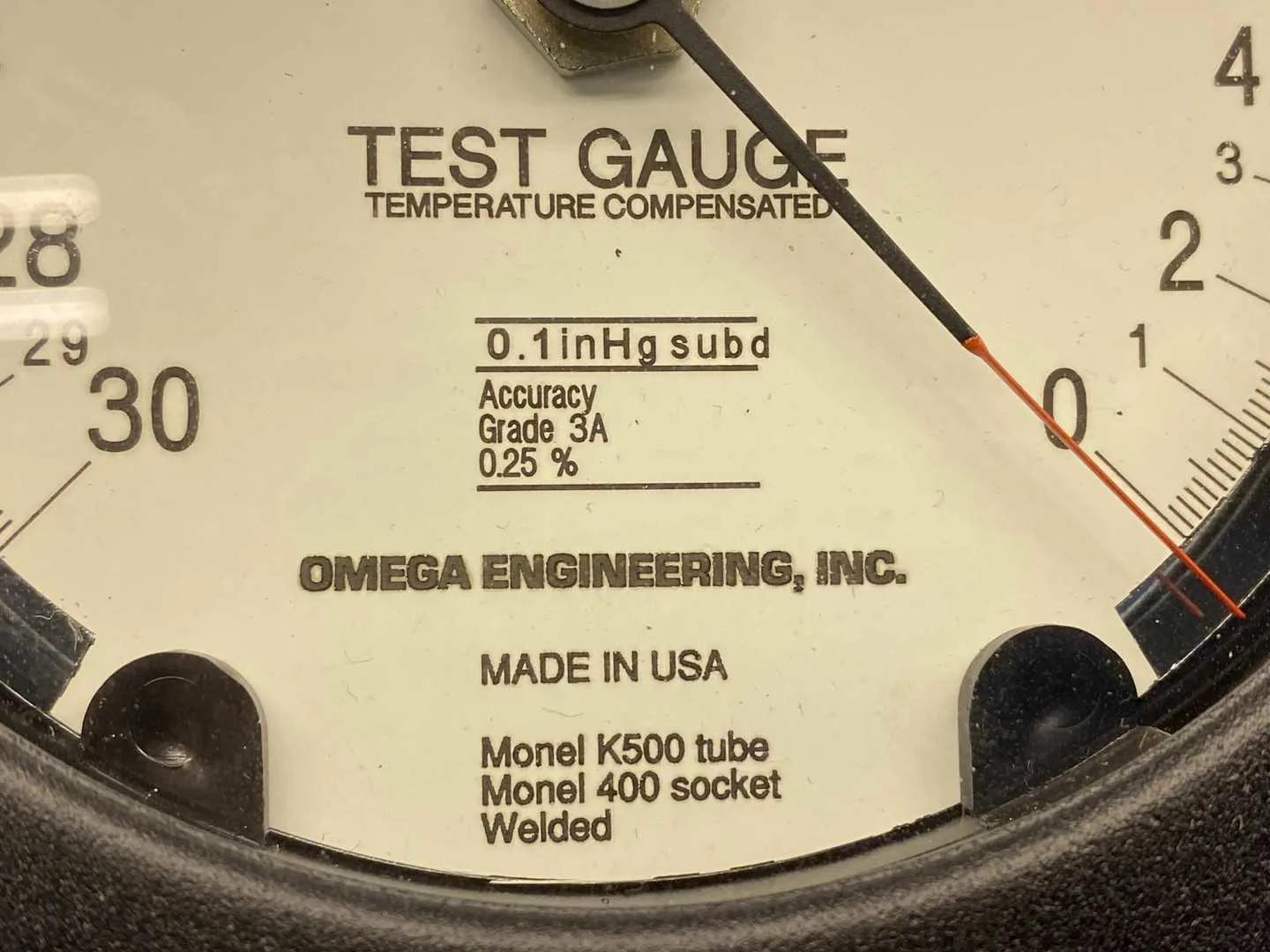

- Spec Basis: dial photo (OMEGA ENGINEERING, TEST GAUGE, TEMPERATURE COMPENSATED, 0.1 inHg subd, Grade 3A 0.25%, Monel K500 tube, Monel 400 socket, MADE IN USA); Omega Test Gauges Type T PGT catalog pages G-60 to G-62 https://br.omega.com/omegaFiles/pressure/pdf/PGT.pdf
Specifications
Omega
PGT-45L
N/A
N/A
N/A
N/A
8
7
3
N/A
2
4.56875
KSC1290 / 2167
Packaging fees
1.6 6x10 CH $3.00
