Vulcan 1GRD45 120V 1-Phase Gr Series 45lb Freestanding Fryer 1gr45m
1GRD45 Fryer Specifications: Capacity & Fuel Type
Condition & What's Included
| Description | Details |
|---|---|
| Available Quantity | 1 |
| Model | 1GRD45 |
| Condition | Used |
| Manufacturer | Vulcan |
| Asset Number | KSC565 / 462 / 2 |
| Guarantee or ASIS | 2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return |
| Inspections - Yellow Tag | 5.2 Used: Reported to be working when removed from service |
| Packaging Cost | 2.1 Plastic Pallet $25 |
$999.95
Basic Information
Asset #
KSC565 / 462 / 2
Available Quantity
1
Inspections - Yellow Tag
5.2 Used: Reported to be working when removed from service
Condition
Used
Guarantee or ASIS
2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return
Item Description

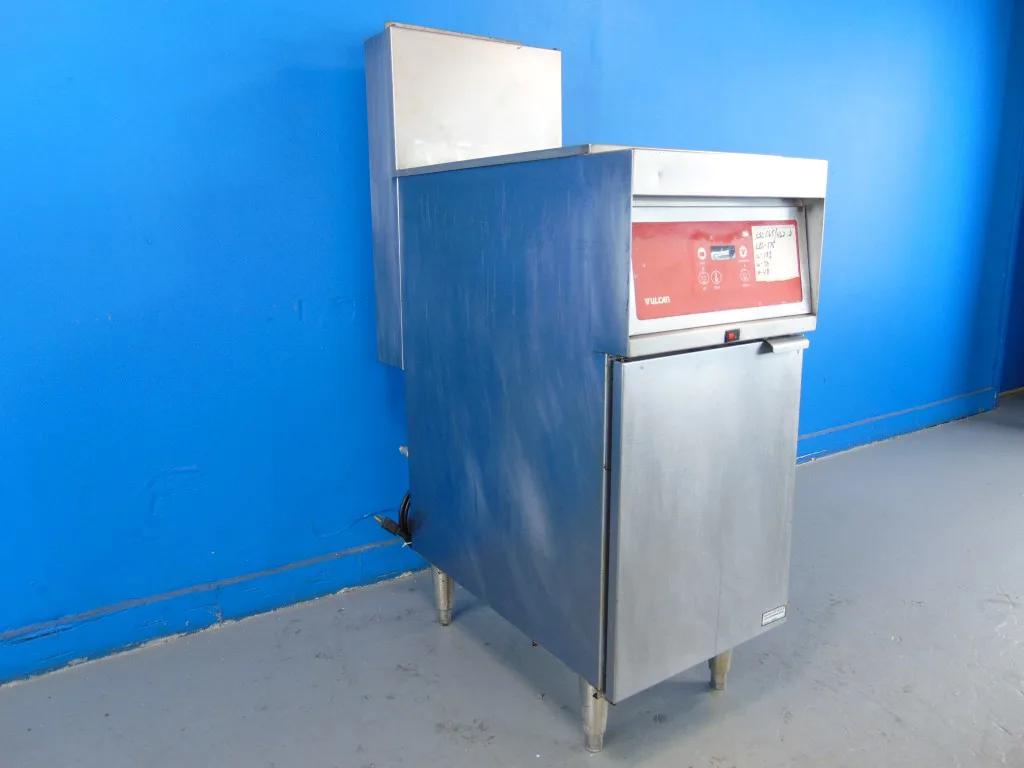

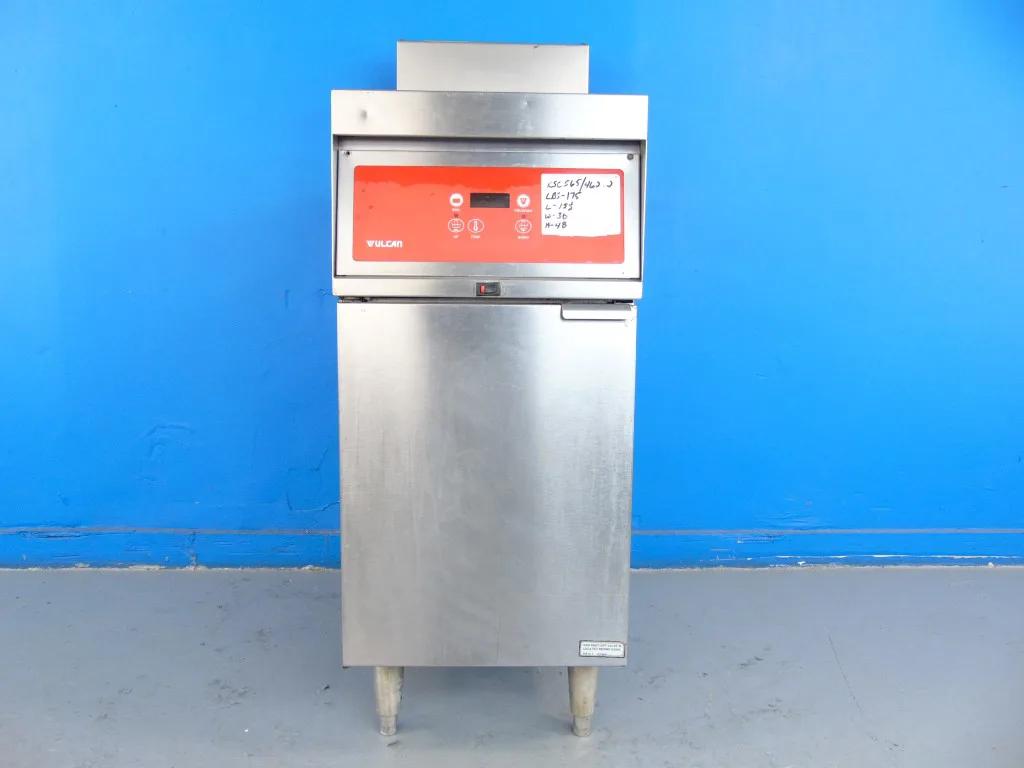

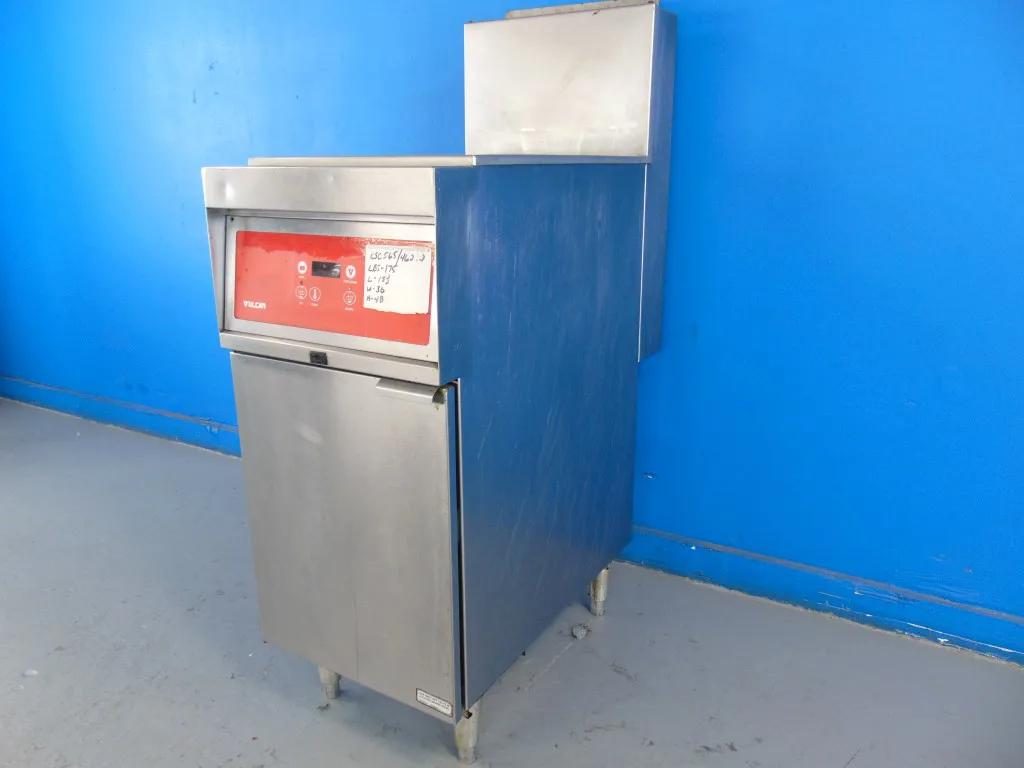

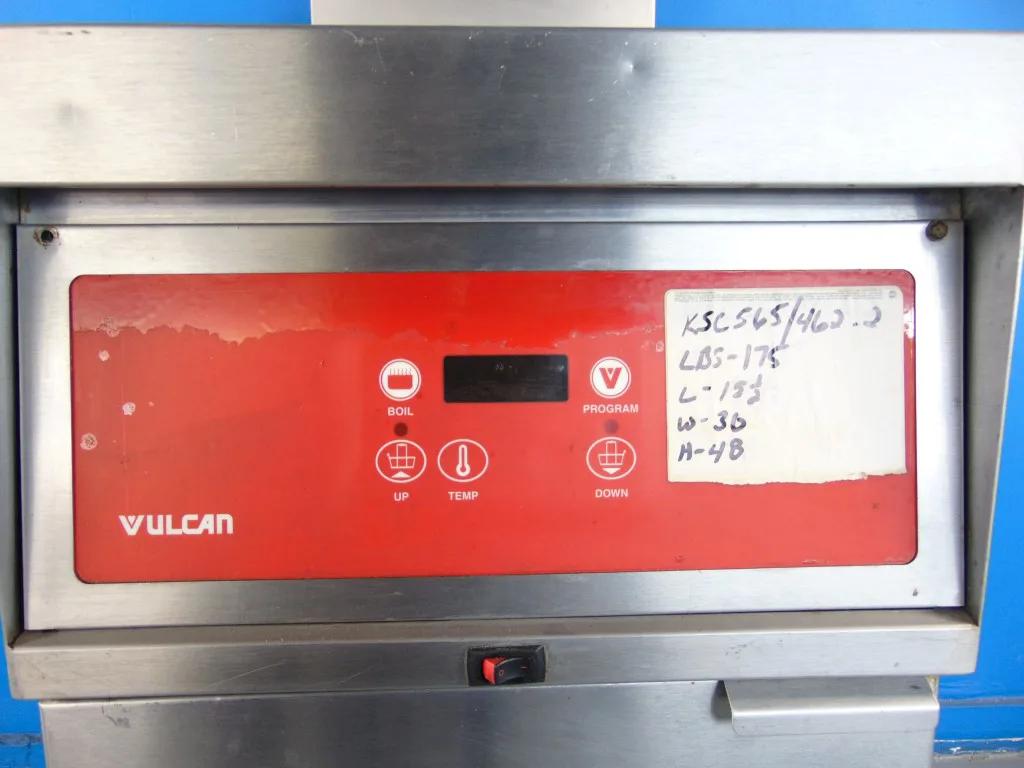

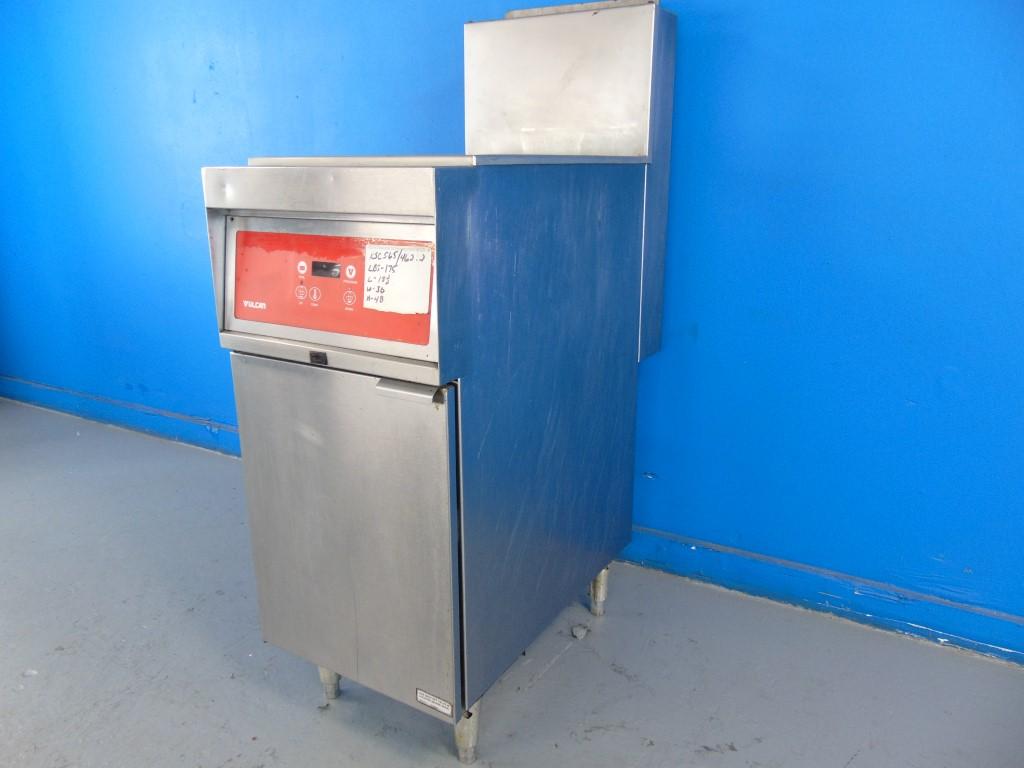

Very nice Vulcan Gas Fryer. 45 Lb. capacity with digital controls. Because it's gas, we couldn't test it, but it was reported to be working when it was removed from service.

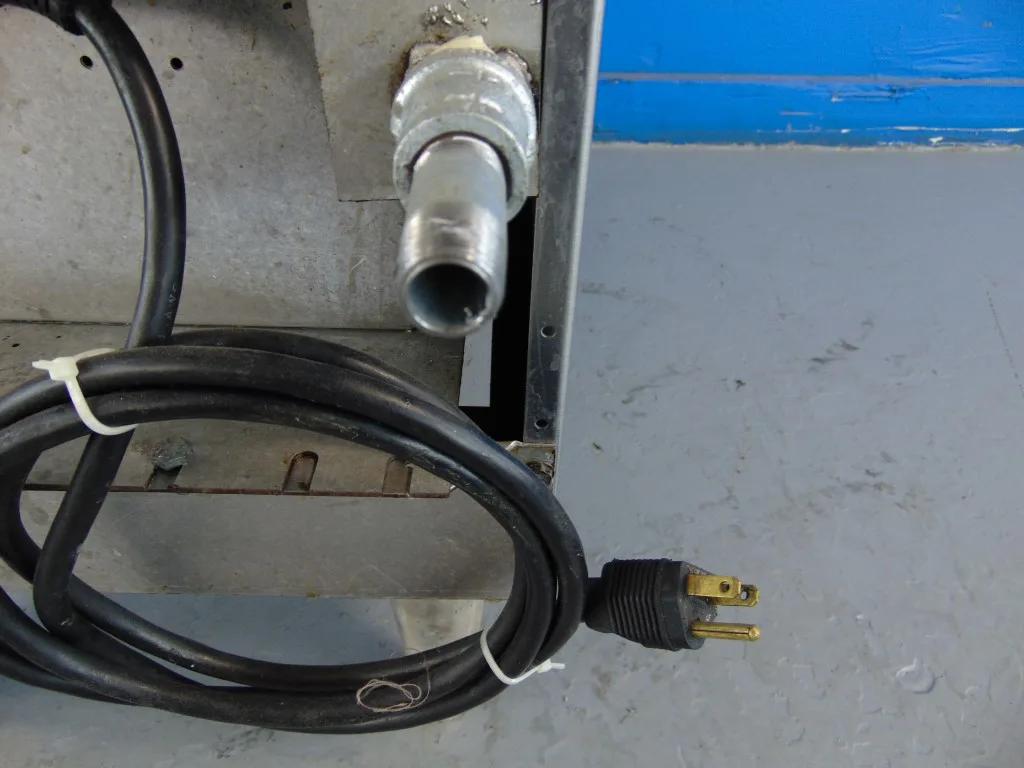

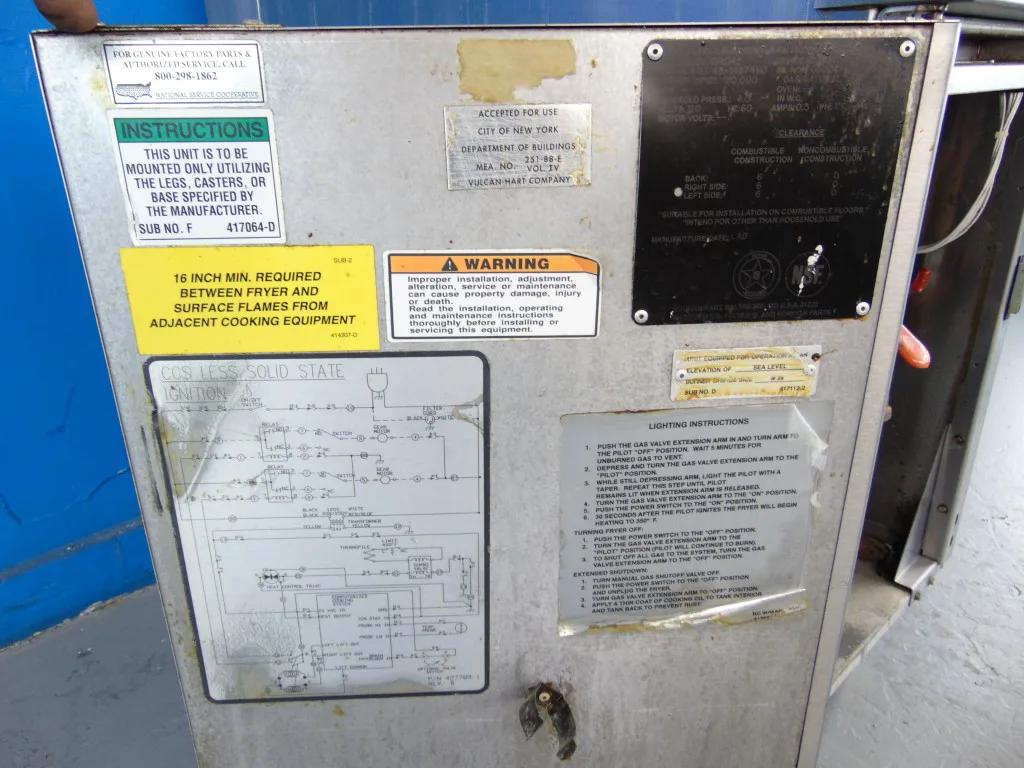

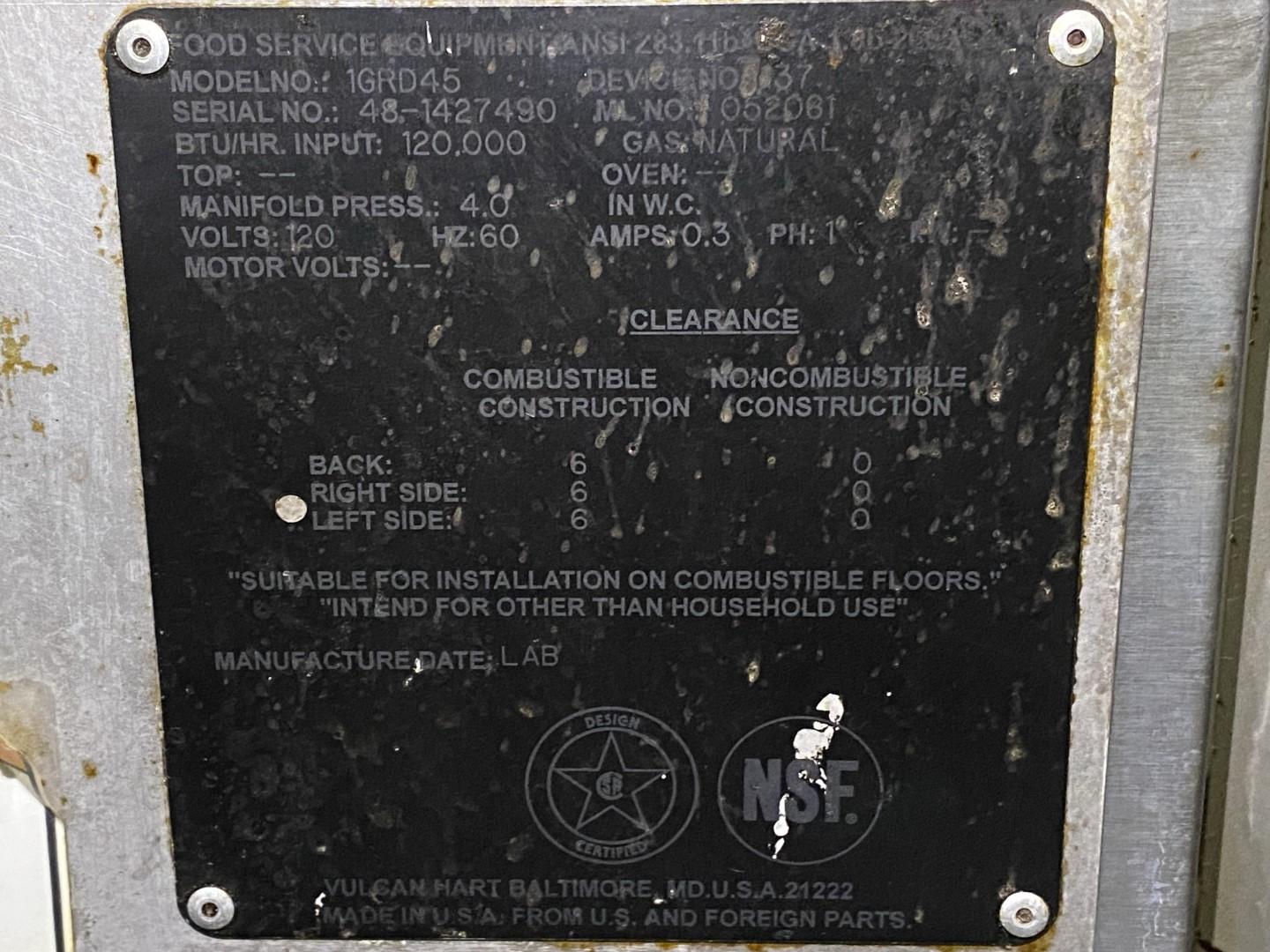

The manufacturer data plate confirms a full-pot freestanding configuration rated at 120,000 BTU/hr natural gas input, with manifold pressure set at 4.0 in W.C. A 120V 60Hz single-phase control circuit draws 0.3 amps, so the unit needs one standard 120V receptacle in addition to the gas connection. The plate carries CSA design certification to ANSI Z83.11 / CSA 1.8 and an NSF listing for commercial food-zone service.
Installation clearances off the plate are 6 inches at the back and both sides to combustible construction, zero clearance to noncombustible construction, and the fryer is approved for installation on combustible floors. That allows it to sit in an existing fry battery or against a stainless line without custom hearth work. Full-pot 45 lb gas fryers in this class run high-volume fry stations in quick-service kitchens, full-service restaurant cook lines, school and institutional cafeterias, hotel banquet kitchens, and concession operations. Built by Vulcan-Hart in Baltimore, Maryland, part of ITW Food Equipment Group.
Sold as-is, surplus from King Surplus inventory in Del Rio, Texas. Same-day shipping on orders before 3:00 PM CT.
Factory Information

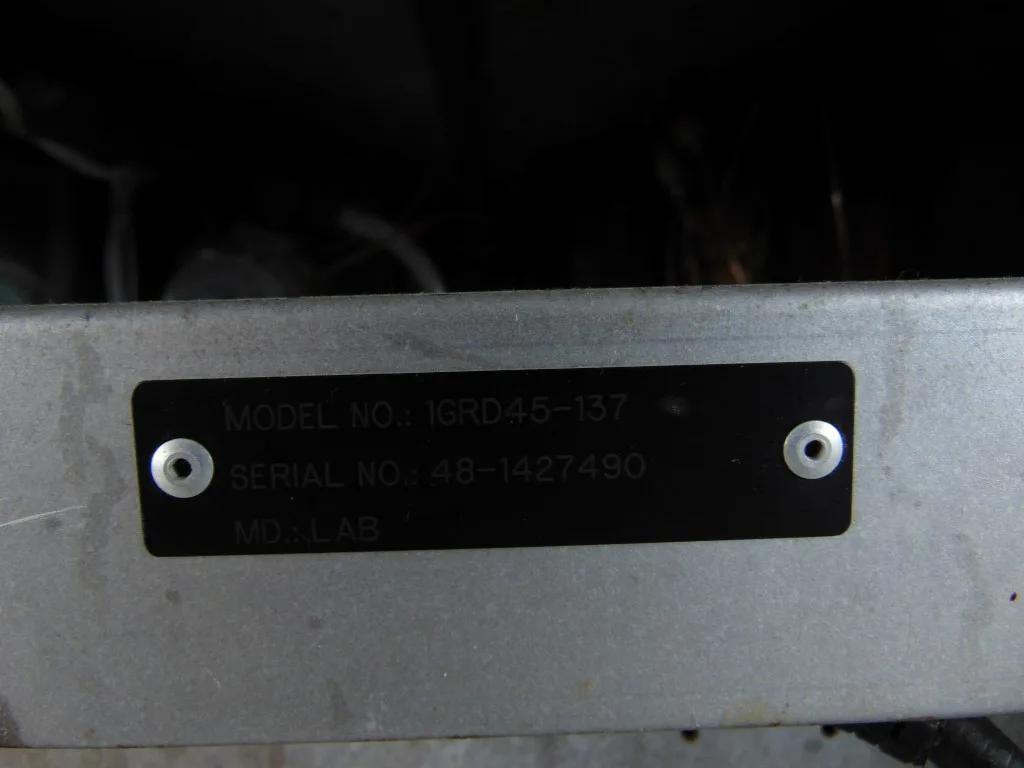

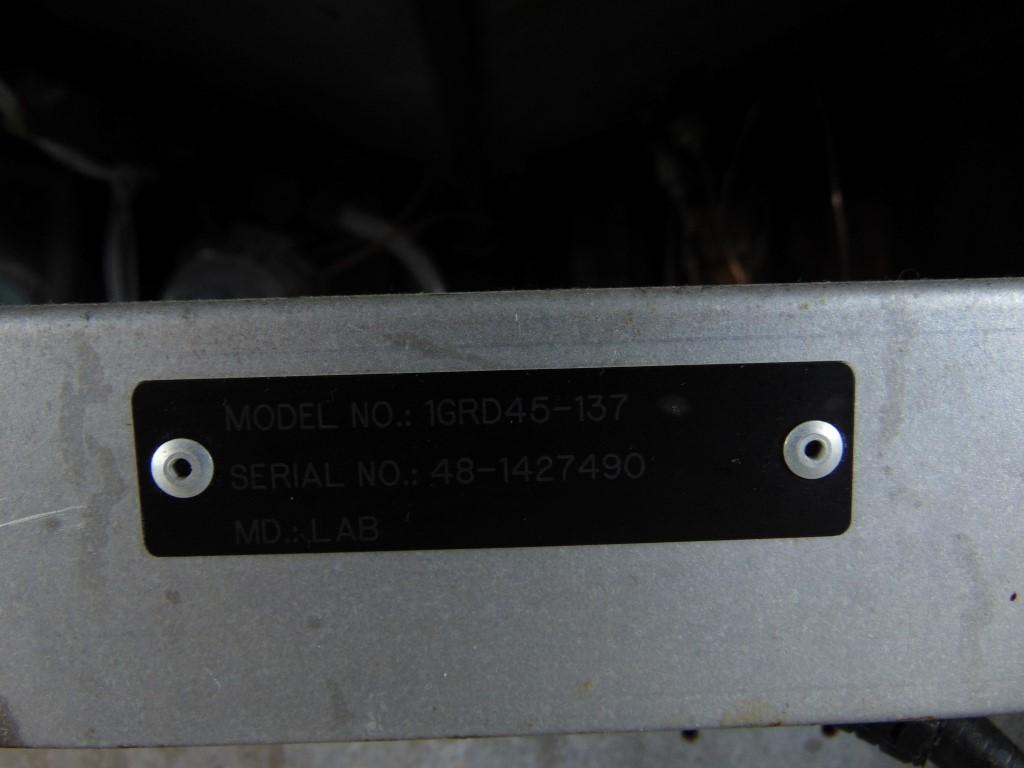

- Manufacturer: Vulcan-Hart (ITW Food Equipment Group), Baltimore, MD 21222 USA
- Model No: 1GRD45
- Device No: 137
- Serial No: 48-1427490
- Equipment Type: Freestanding full-pot commercial gas deep fryer
- Capacity: 45 lb shortening
- Gas Type: Natural
- Gas Input: 120,000 BTU/hr
- Manifold Pressure: 4.0 in W.C.
- Electrical: 120V / 60 Hz / 1 Phase / 0.3 Amps
- Motor Volts: None listed on plate
- Dimensions: 15 in L x 36 in W x 48 in H
- Weight: 175 lbs
- Clearance to Combustible Construction: 6 in back, 6 in right side, 6 in left side
- Clearance to Noncombustible Construction: 0 in back, 0 in right side, 0 in left side
- Floor Rating: Suitable for installation on combustible floors
- Certification: CSA Design Certified to ANSI Z83.11 / CSA 1.8; NSF listed
- Use Rating: Intended for other than household use
- Manufacture Date Code: LAB
- Country of Origin: Made in USA from US and foreign parts
- Condition: Reported working when removed from service; not tested (gas appliance)
Specifications
Vulcan
1GRD45
48-1427490
2002
N/A
0.3
15
36
48
1
15
190
KSC565 / 462 / 2
