Fike E70-0143 Detonator Housing Assembly for 5 & 10 Liter HRD Explosion Suppression Containers
E70-0143 Specifications: Response & Function
System Compatibility for Fike E70-0143
| Description | Details |
|---|---|
| Available Quantity | 15 |
| Model | E70-0143 |
| Condition | New |
| Manufacturer | Fike |
| Asset Number | KSC1250 / 008 |
| Guarantee or ASIS | 2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return |
| Inspections - Yellow Tag | 1.1 Appears Unused no box |
| Packaging Cost | 1.6 6x10 CH $3.00 |
$219.95
Basic Information
Asset #
KSC1250 / 008
Available Quantity
15
Inspections - Yellow Tag
1.1 Appears Unused no box
Condition
New
Guarantee or ASIS
2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return
Item Description

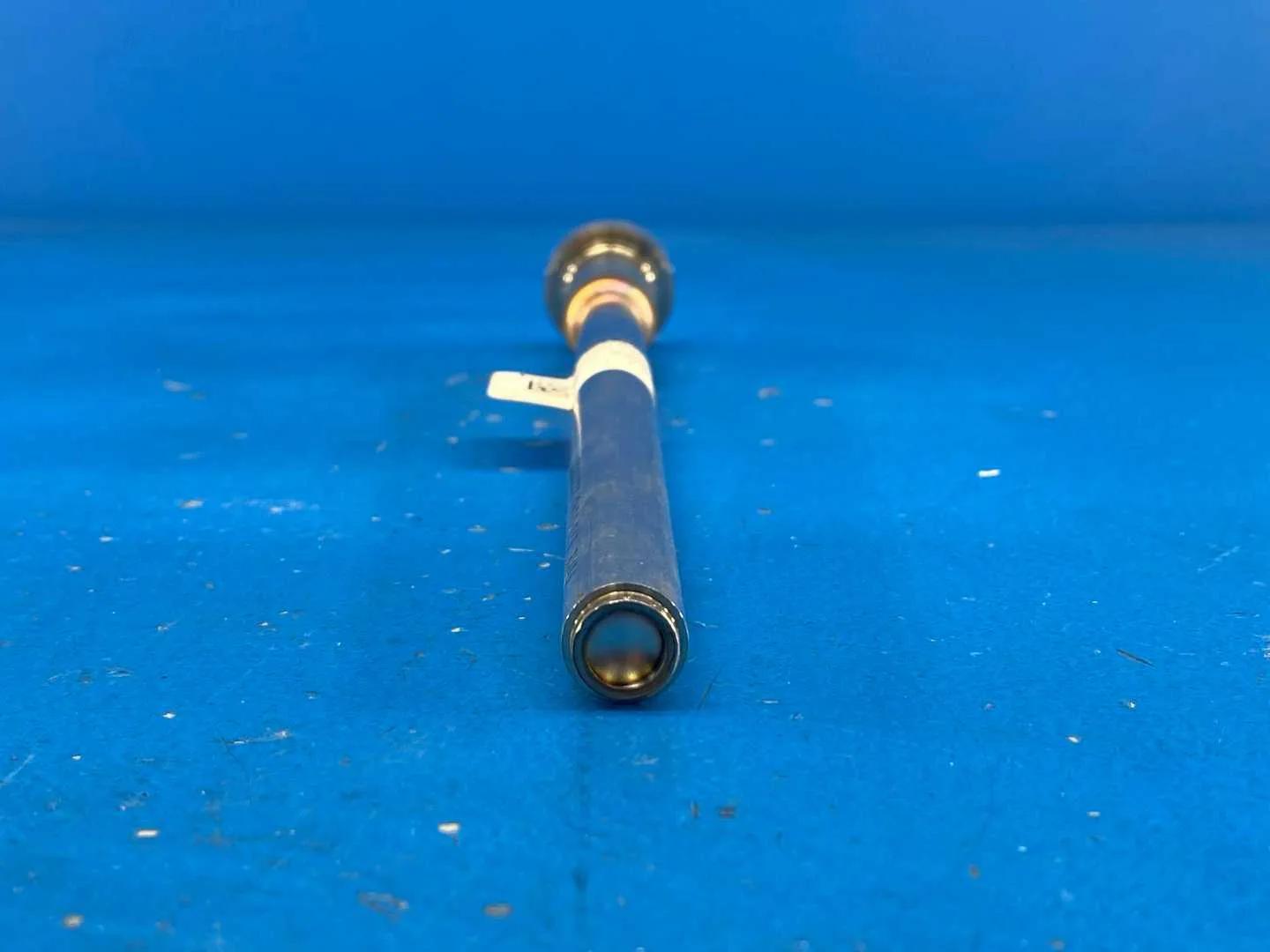

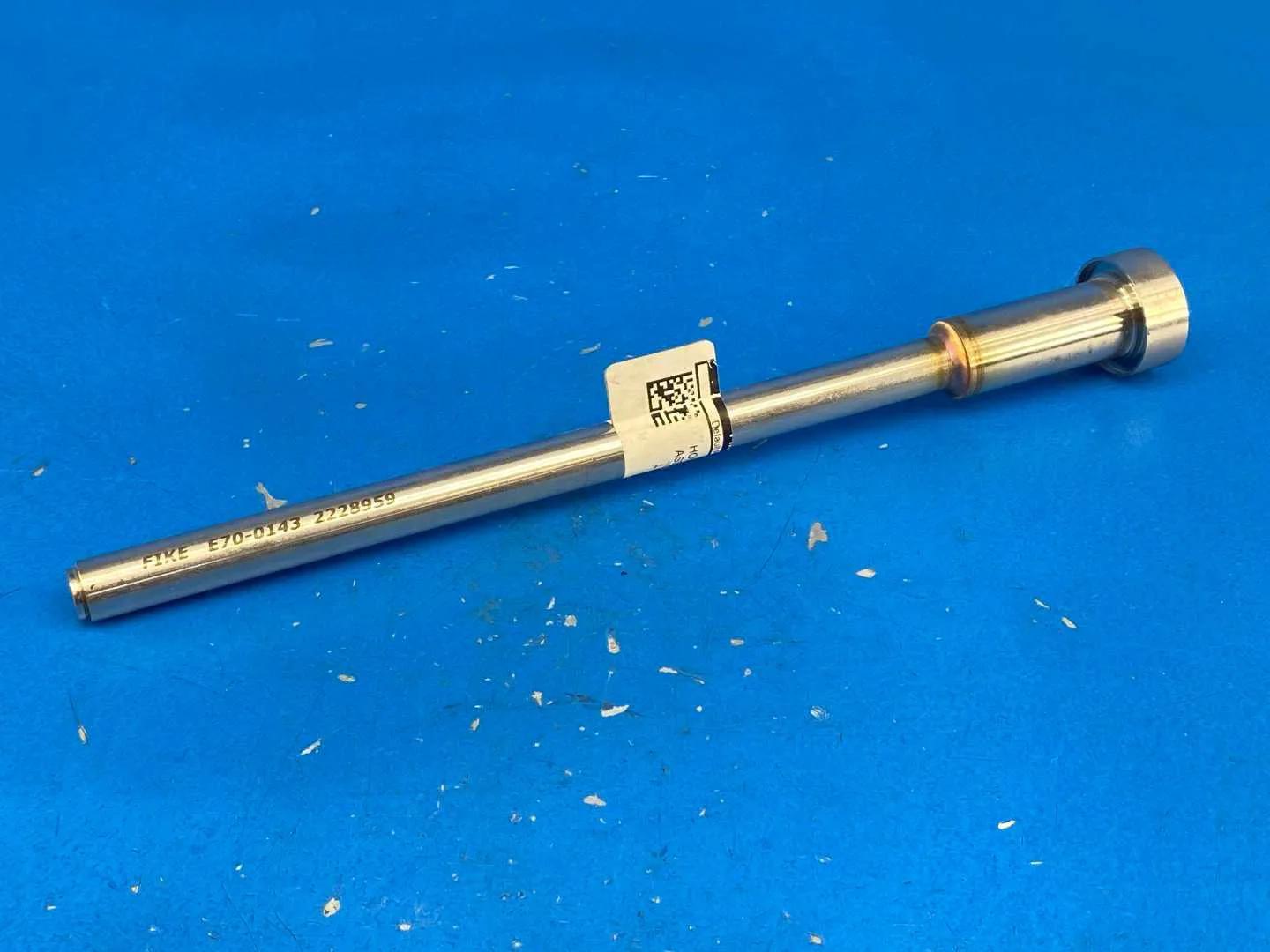

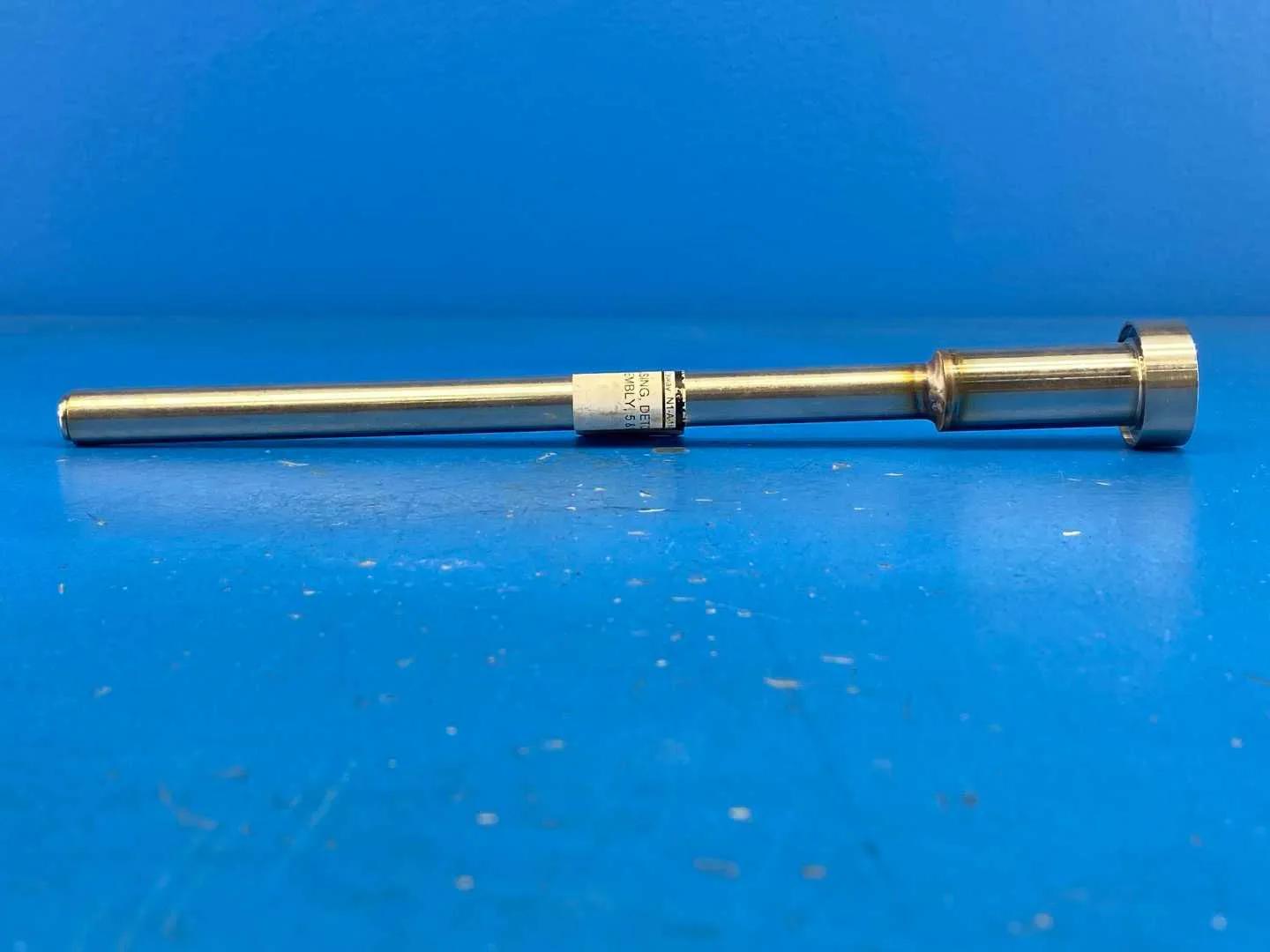

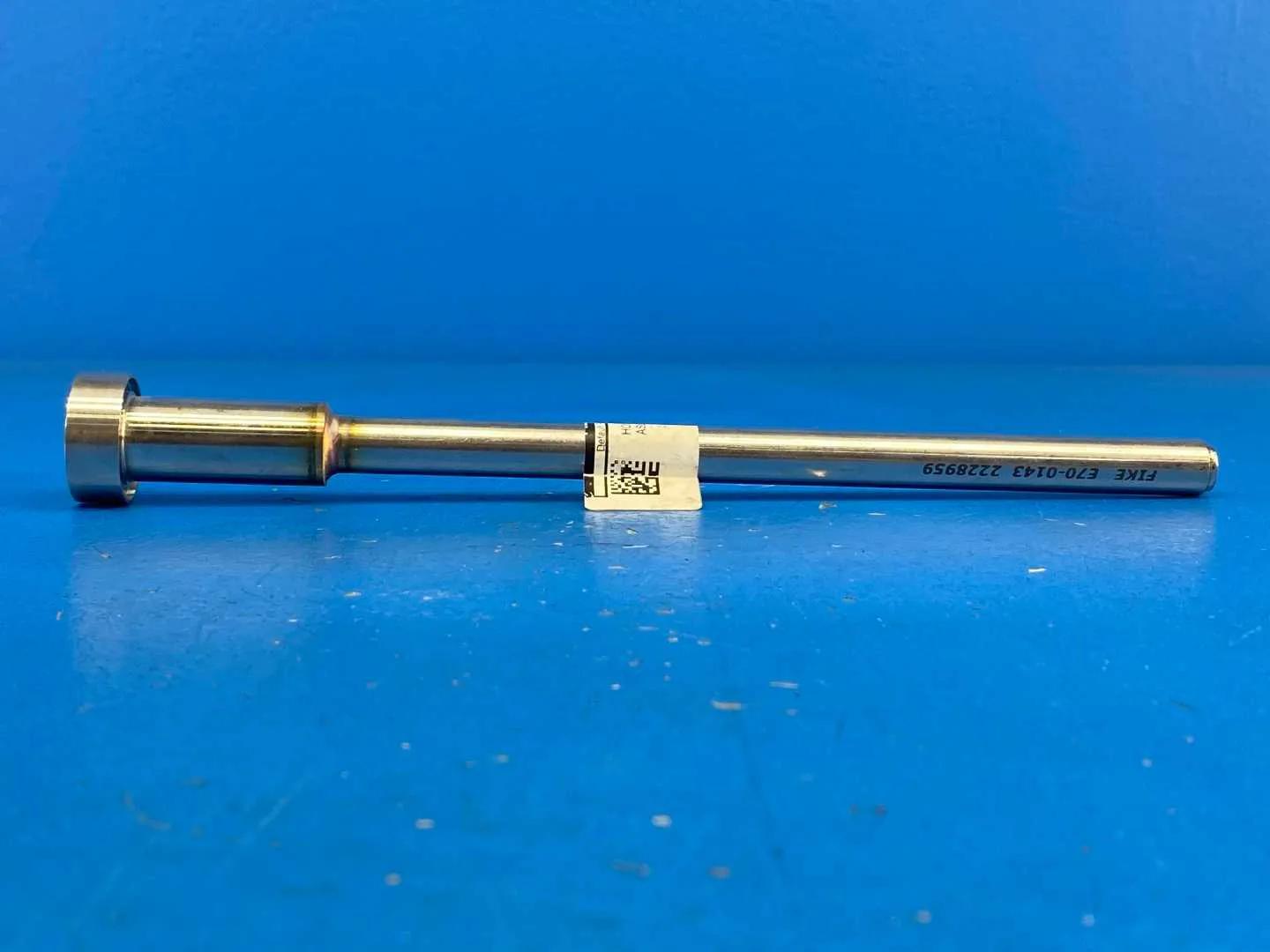

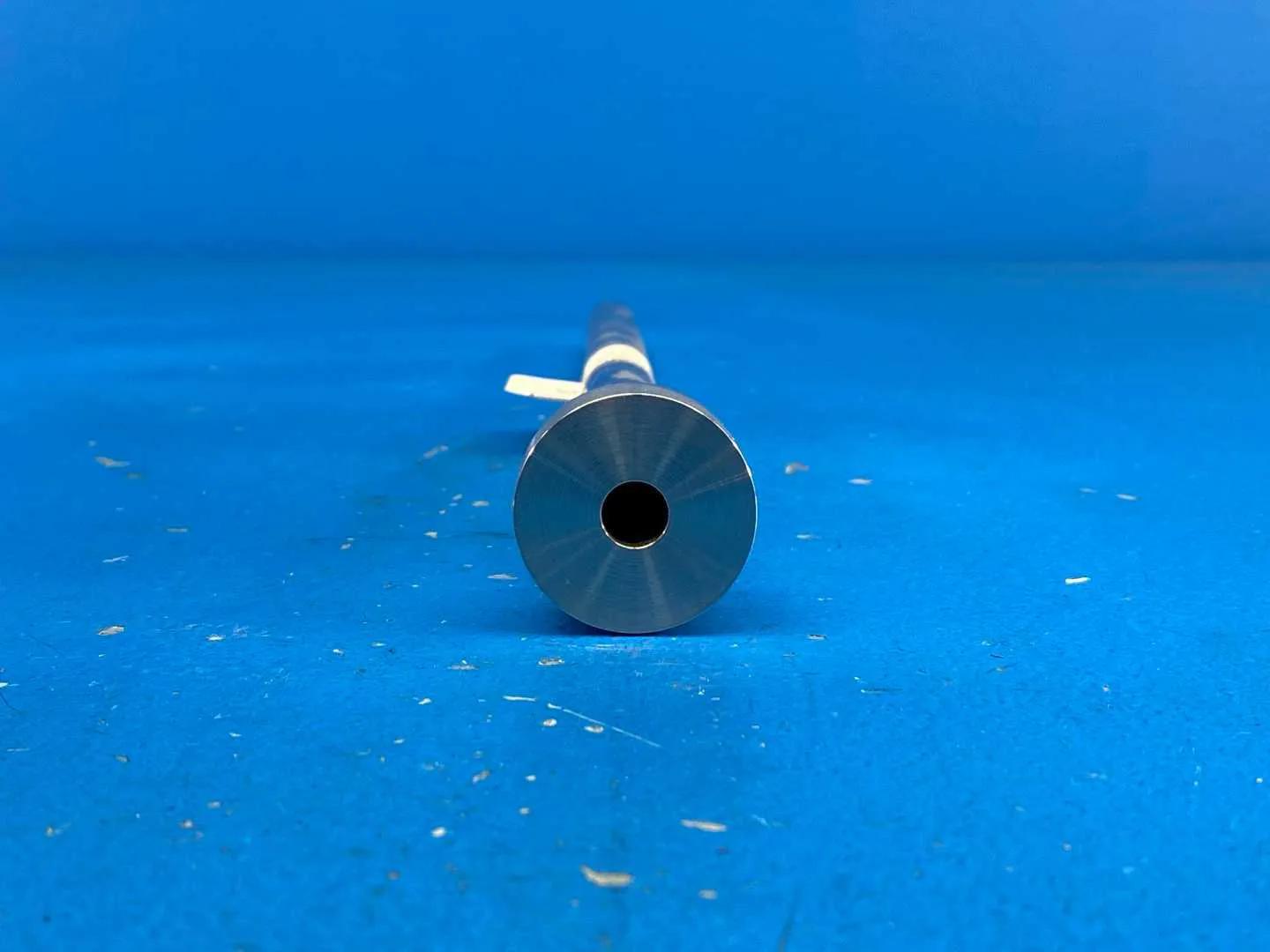

This is a Fike Corporation housing assembly, part number E70-0143, from a Fike explosion suppression system. The Fike part label identifies it as a detonator housing assembly for 5 and 10 liter containers, which in the Fike HRD (High Rate Discharge) line correspond to the 5L and 10L suppression containers. The housing is the threaded component that holds the initiating device at the container so it can open the container on command.
In a Fike chemical suppression system, pressure detectors signal the control panel, which fires a Gas Cartridge Actuator (GCA). The GCA builds localized pressure that opens the container rupture disc and discharges suppressant into the protected process, all within milliseconds. Fike states that GCAs are to be handled, installed and taken out only by Fike trained personnel.
These systems protect dust collectors, silos, spray dryers, mills, bucket elevators and other process equipment in food, chemical, pharmaceutical, wood and metal powder plants. A housing assembly like this is purchased by plant maintenance and fire protection contractors servicing an installed Fike HRD system. Buyers should match the part number and container size to their existing equipment before ordering.
Available from King Surplus inventory in Del Rio, Texas.
Factory Information
- Manufacturer: Fike Corporation

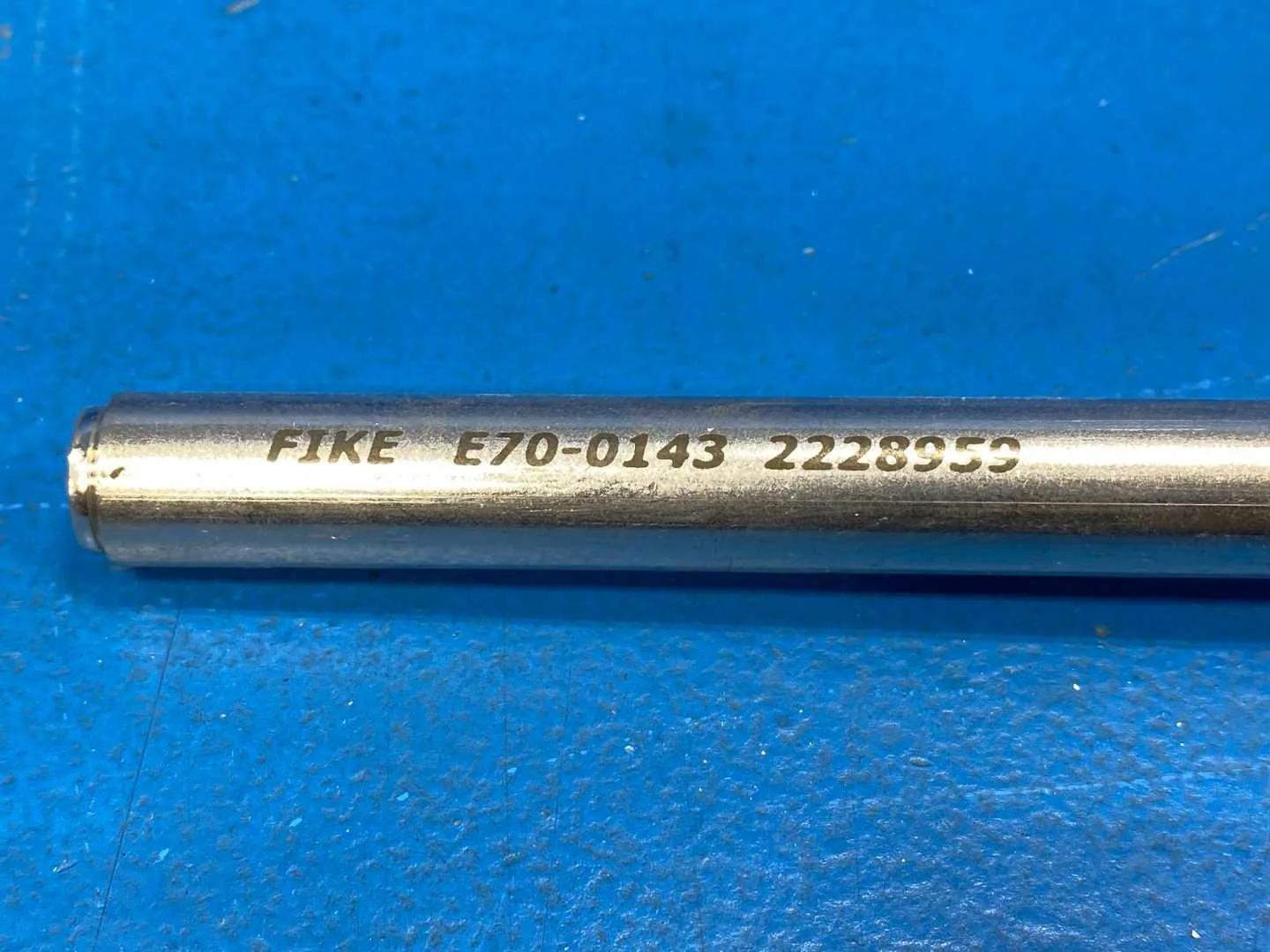

- Part Number: E70-0143
- Serial Number (label): 2228959

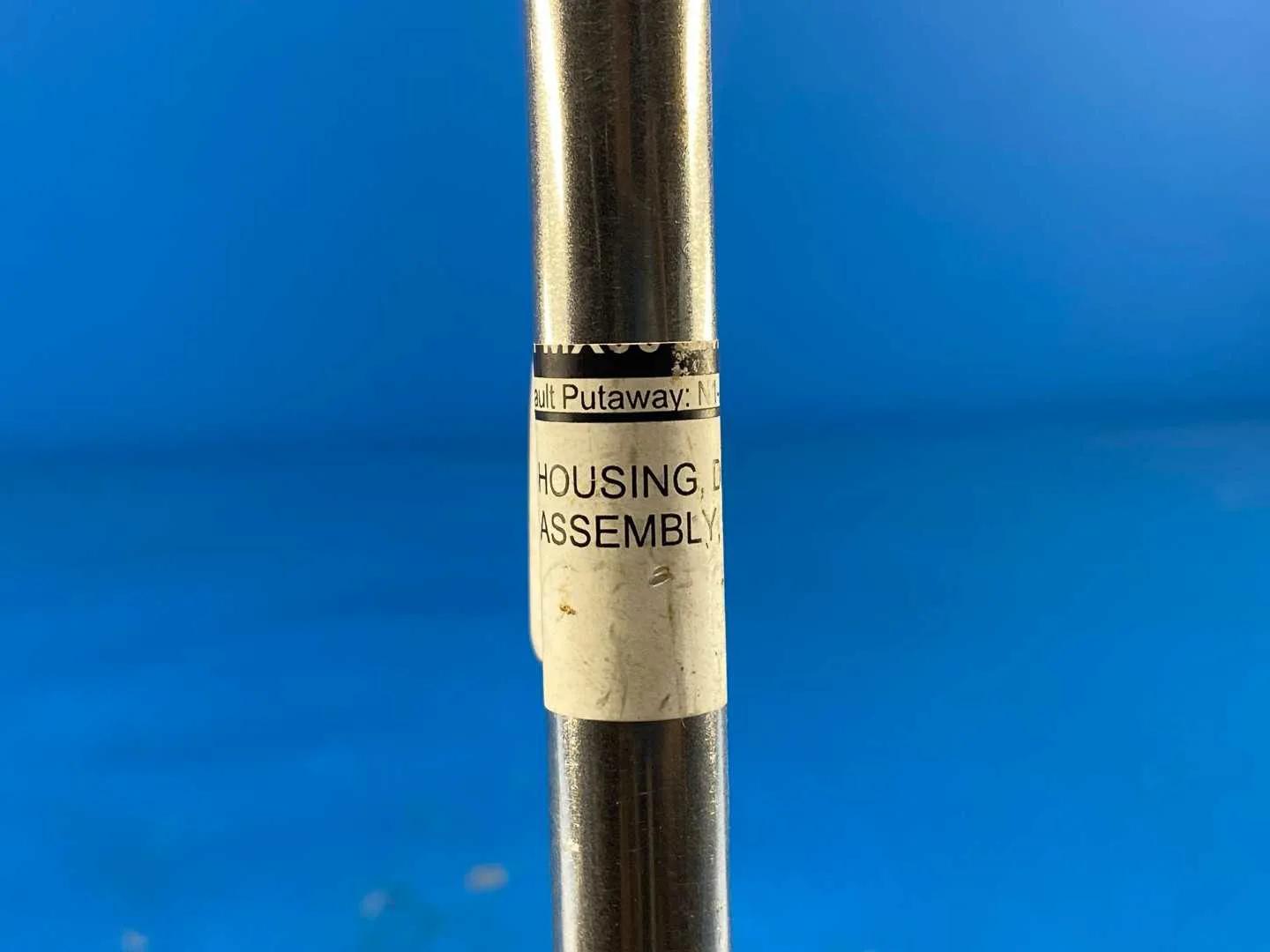

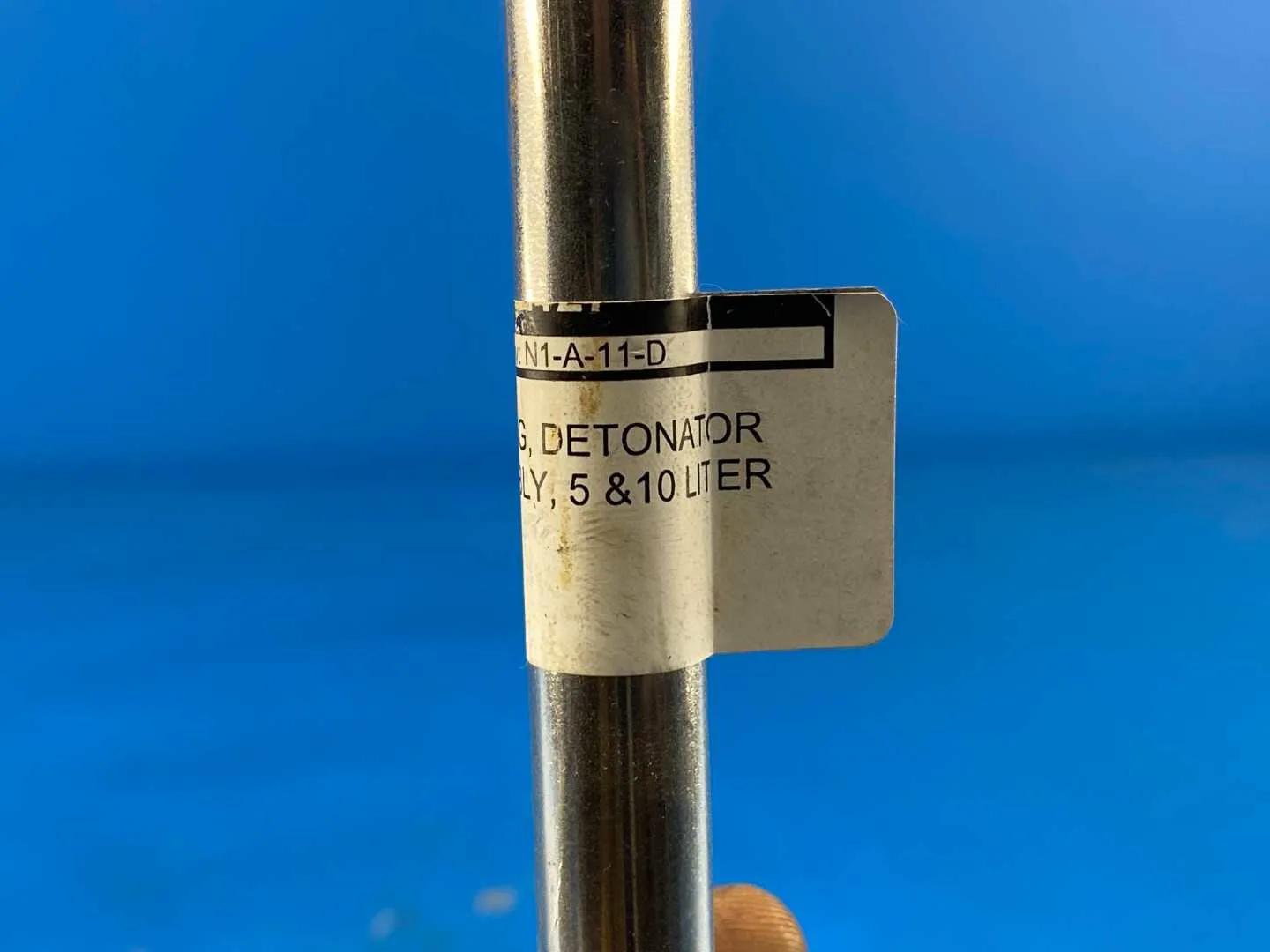

- Label Description (partial, as printed): HOUSING, D... ASSEMBLY / ...G, DETONATOR / ...LY, 5 & 10 LITER
- Application (per label): detonator (initiator) housing assembly for 5 and 10 liter containers
- Related Fike HRD containers (per Fike manual E06-018-1): 5L HRD E70-028, 10L HRD E70-029
- System: Fike explosion suppression, initiated by a Gas Cartridge Actuator (GCA) fired from a Fike control panel
- FLAG for review: title reads 4 in HRD GCA housing; the part label reads 5 & 10 liter detonator housing assembly. Fike publishes no data sheet for E70-0143, so the size wording in the title is unconfirmed.
- Spec Basis: nameplate photo (Fike part label with P/N and S/N); Fike Installation and Operation Manual E06-018-1 Rev 8 https://my.fike.com/_fike_docs/Explosion_Protection/Chemical_Suppressors/HRD/Manuals/E06-018-1_EP_Container_IO_Manual.pdf
Specifications
Fike
E70-0143
2228959
N/A
N/A
N/A
2
2
10
N/A
2
2.56
KSC1250 / 008
Packaging fees
1.6 6x10 CH $3.00
