Genscope HI0.6-100-F55, MicroFlex Series Micro-Diameter Flexible Borescope, Stainless Steel Sheath
Genscope HI0.6-100-F55 Specifications
Condition, Compatibility & What's Included
| Description | Details |
|---|---|
| Available Quantity | 1 |
| Model | HI0.6-100-F55 |
| Condition | New |
| Manufacturer | Genscope |
| Asset Number | KSC1290 / 571 |
| Guarantee or ASIS | 1. HIGH CONFIDENCE ITEM: We will offer a 100% 14 Day money back less S&H. |
| Inspections - Yellow Tag | 1. New in Box |
| Packaging Cost | 1.6 6x10 CH $3.00 |
$1,199.95
Basic Information
Asset #
KSC1290 / 571
Available Quantity
1
Inspections - Yellow Tag
1. New in Box
Condition
New
Guarantee or ASIS
1. HIGH CONFIDENCE ITEM: We will offer a 100% 14 Day money back less S&H.
Item Description

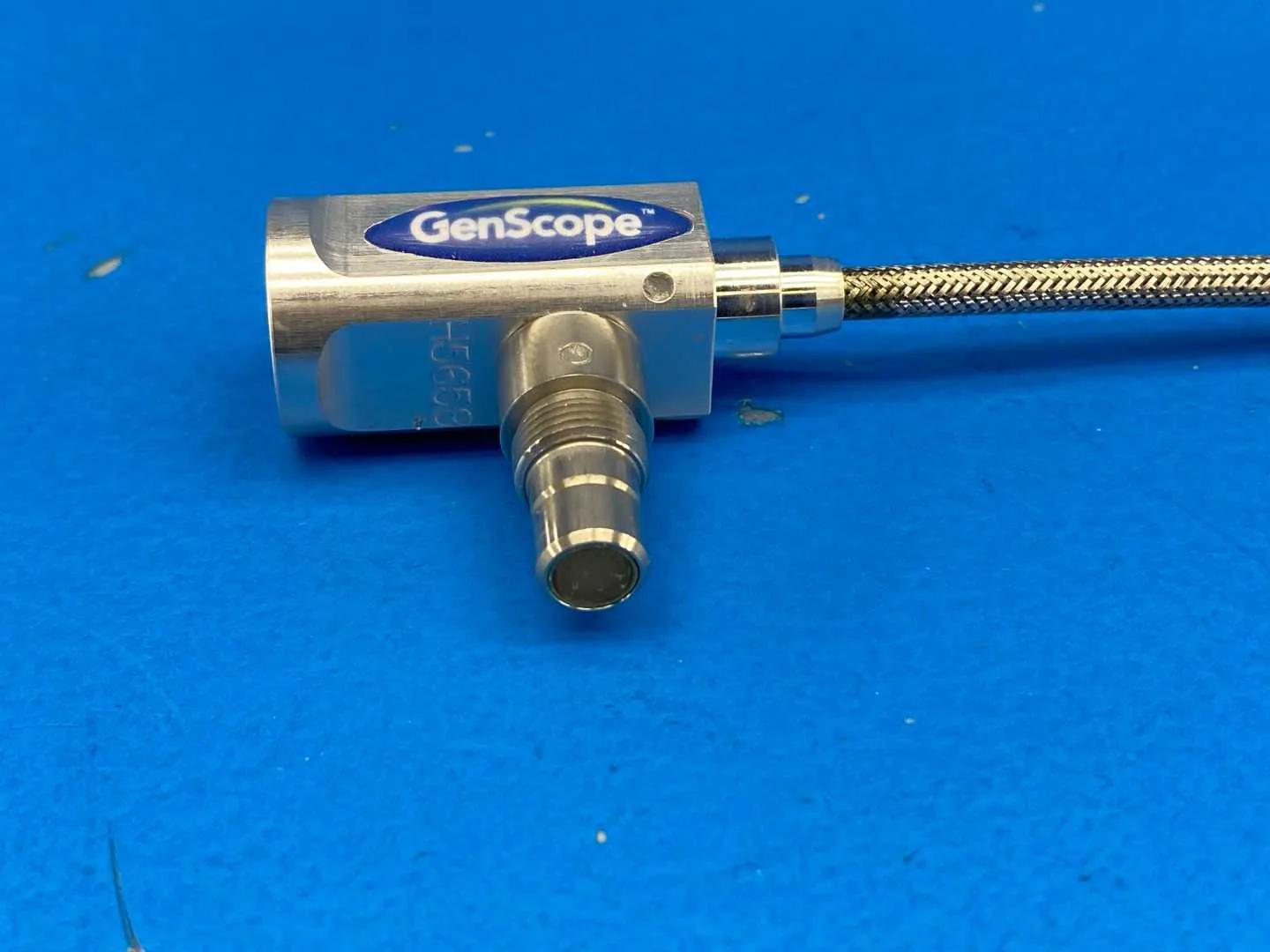

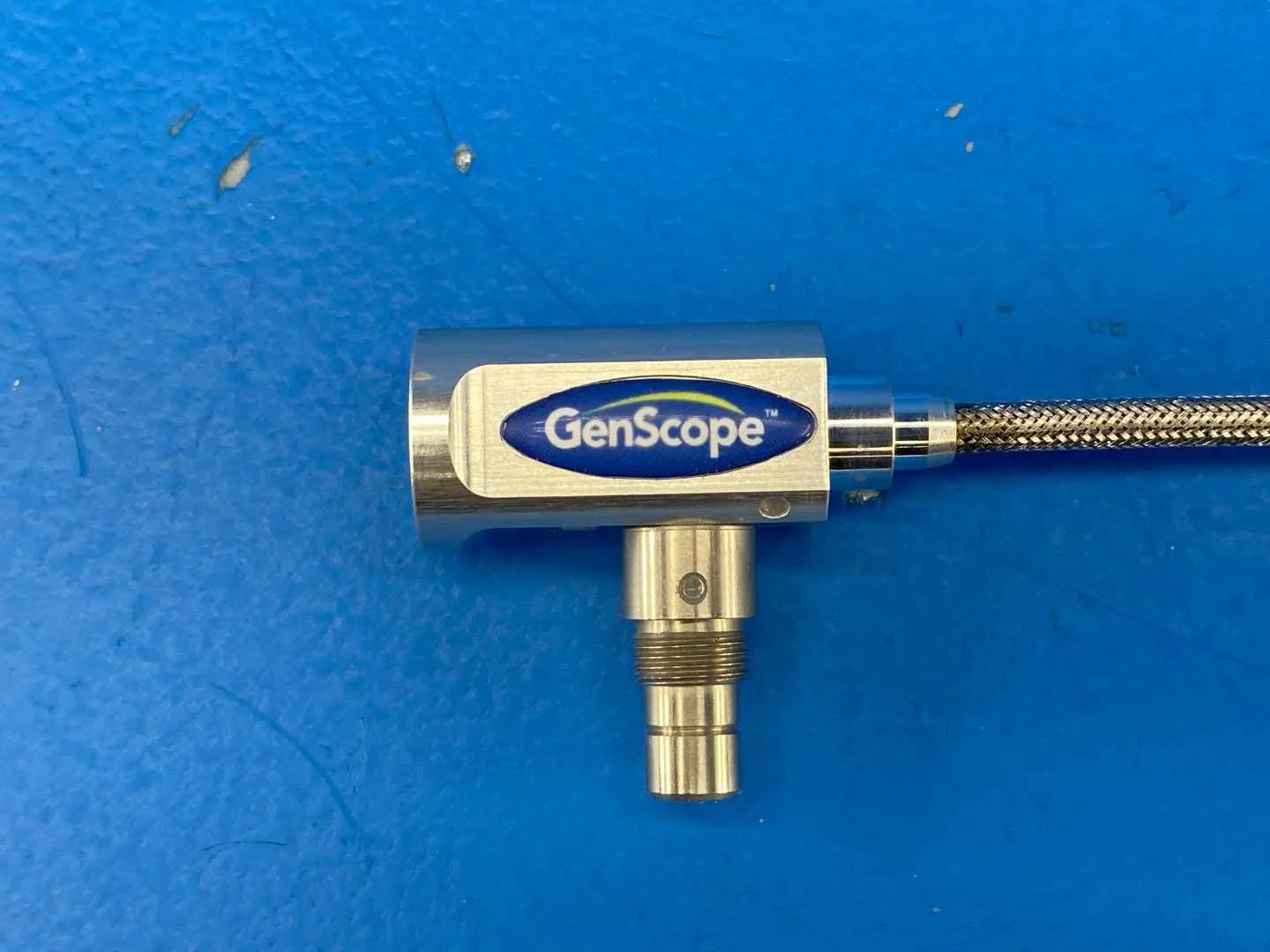

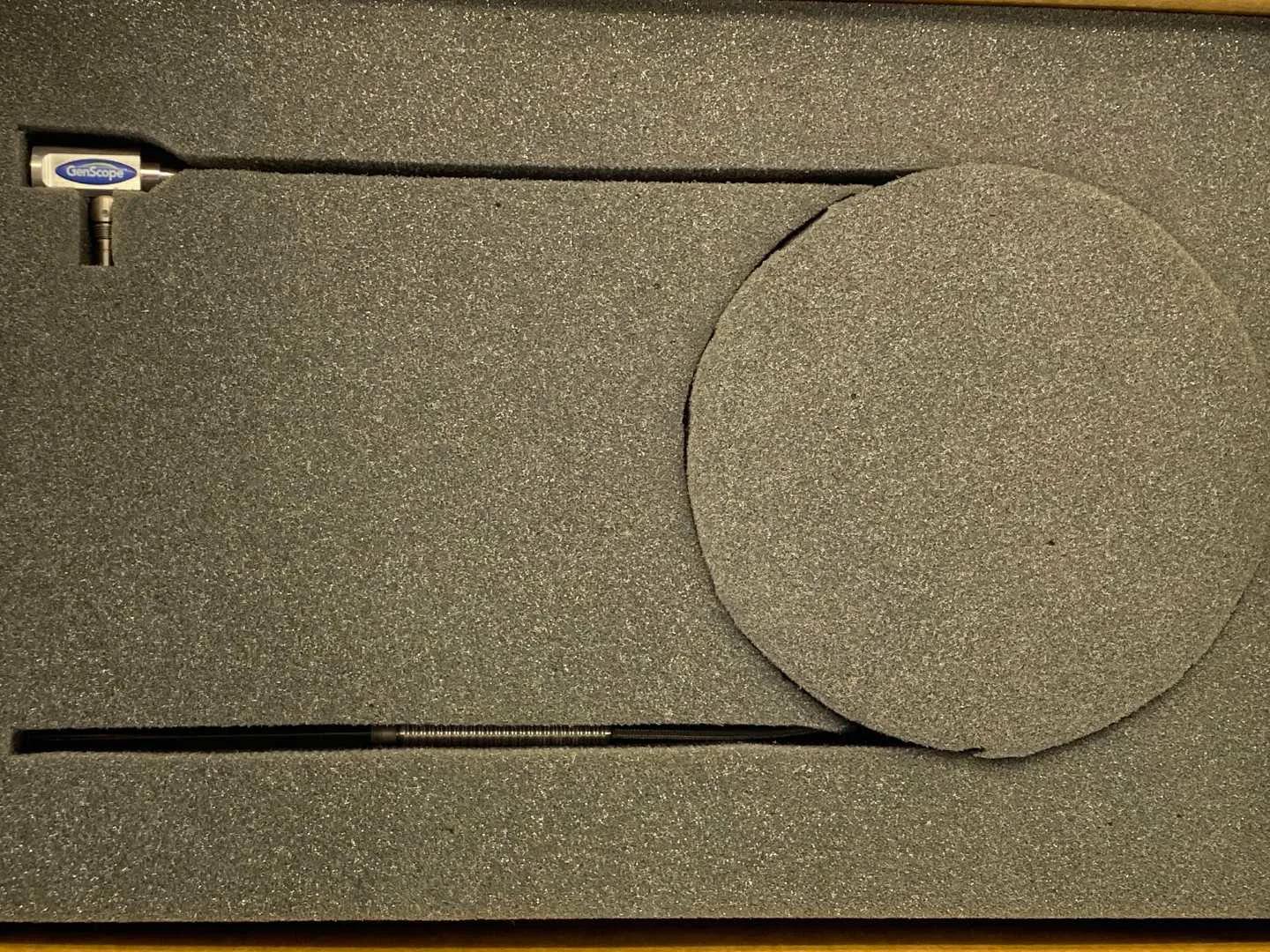

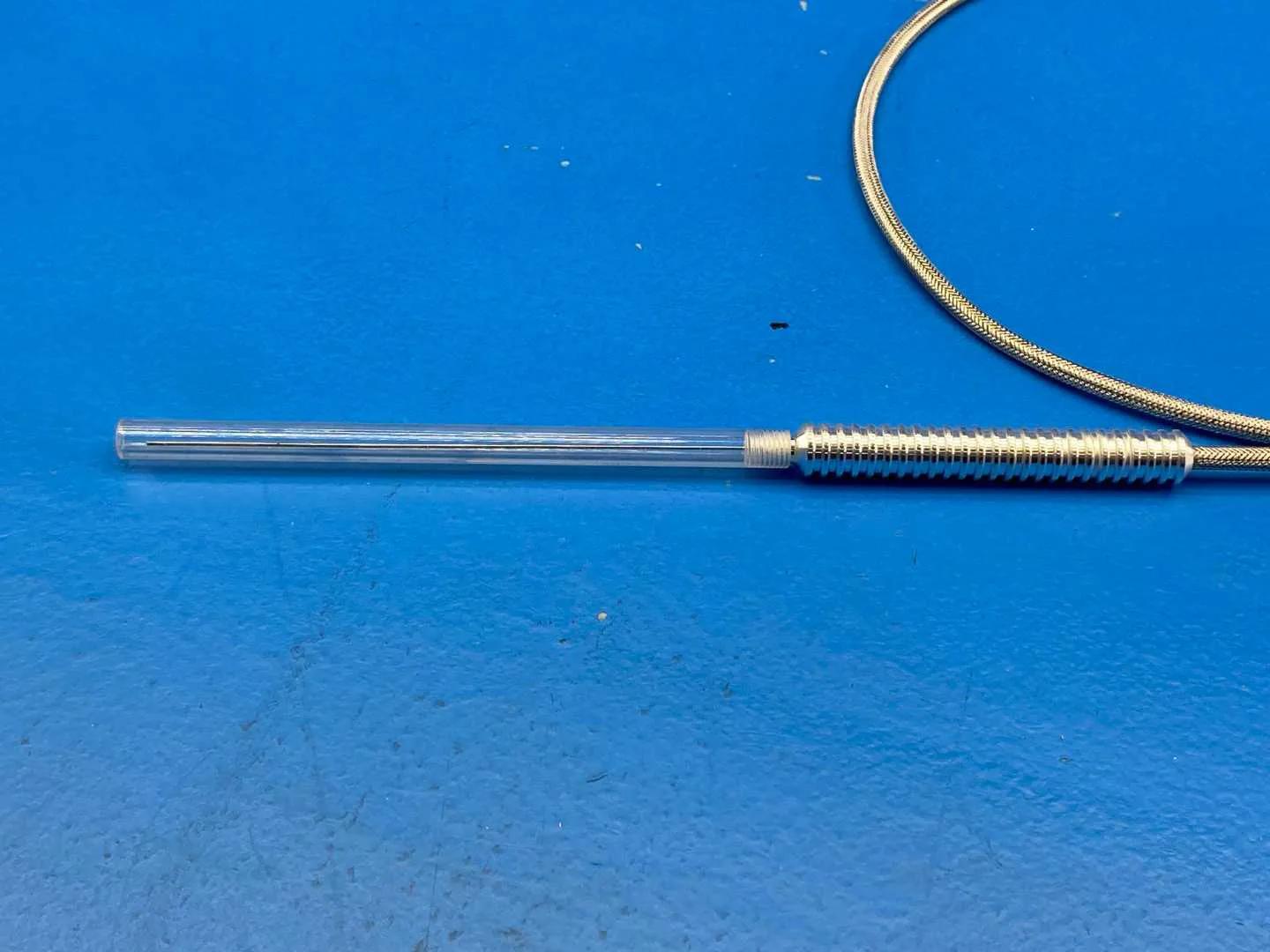

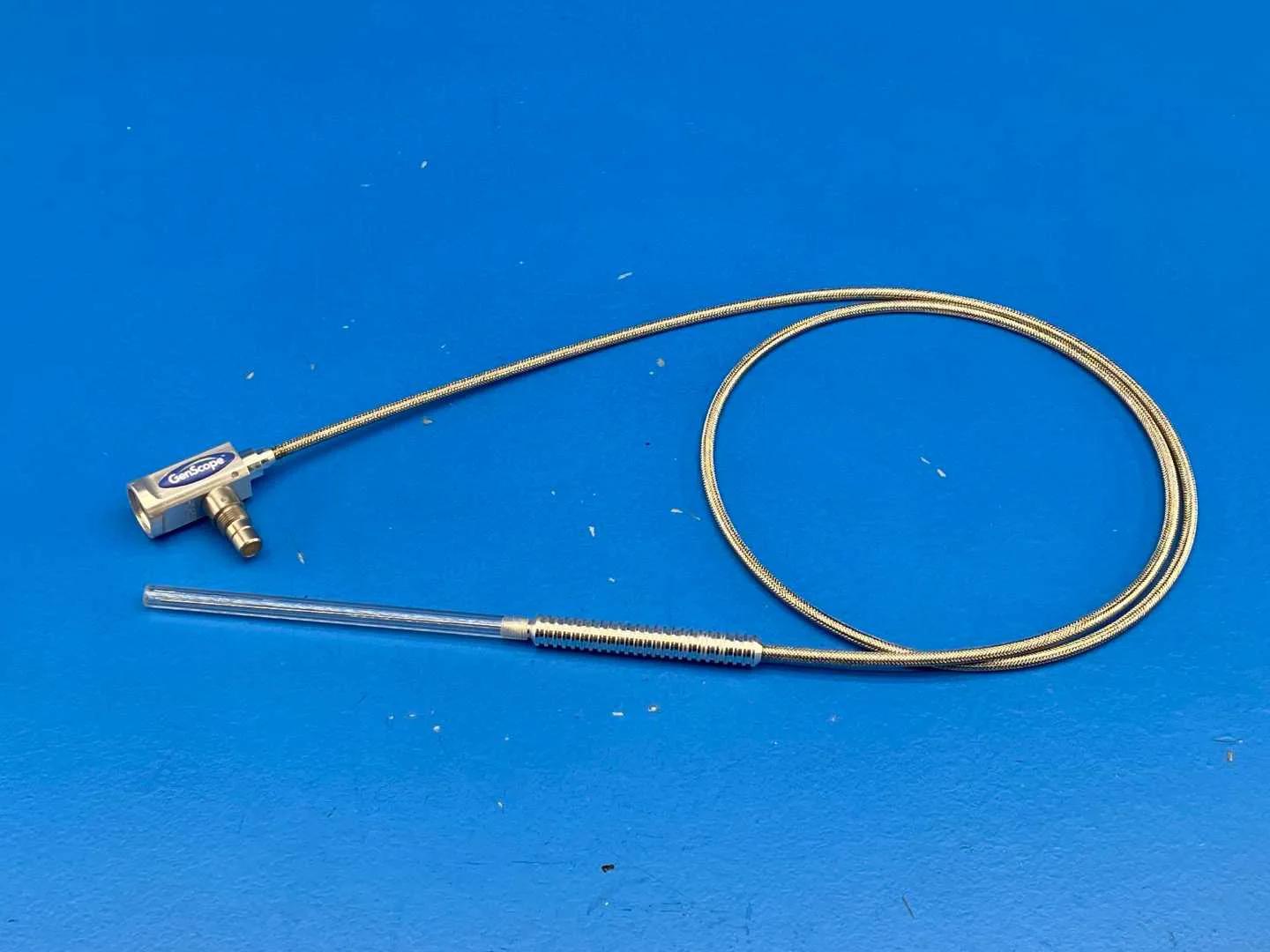

The GenScope HI0.6-100-F55 is a MicroFlex series flexible borescope, a micro-diameter fiber optic inspection scope made by GenScope, Inc. of East Longmeadow, Massachusetts. Borescopes let an inspector see inside a bore, channel or cavity that cannot be reached by eye, without taking the assembly apart.
The MicroFlex line uses a fused quartz fiber optic image bundle, which GenScope specifies for a bright, clear image and for durability through repeated bending. The small diameter and flexible construction let the probe follow narrow, curved passages. The series is built in diameters from 0.5 mm to 4.0 mm, in forward view or right angle configurations, and this unit carries a stainless steel sheath for added ruggedness. An interchangeable focusing eyepiece allows direct viewing or connection to a video documentation system or USB camera.
GenScope lists applications including turbine blades, fuel systems, hydraulics, injector nozzles, compressors, medical devices and tubing. Aerospace MRO shops, precision machining, quality control labs and medical device manufacturers use scopes of this type for visual inspection of internal features, burrs and contamination.
Available from King Surplus inventory in Del Rio, Texas.
Factory Information
- Series: MicroFlex micro-diameter flexible borescope

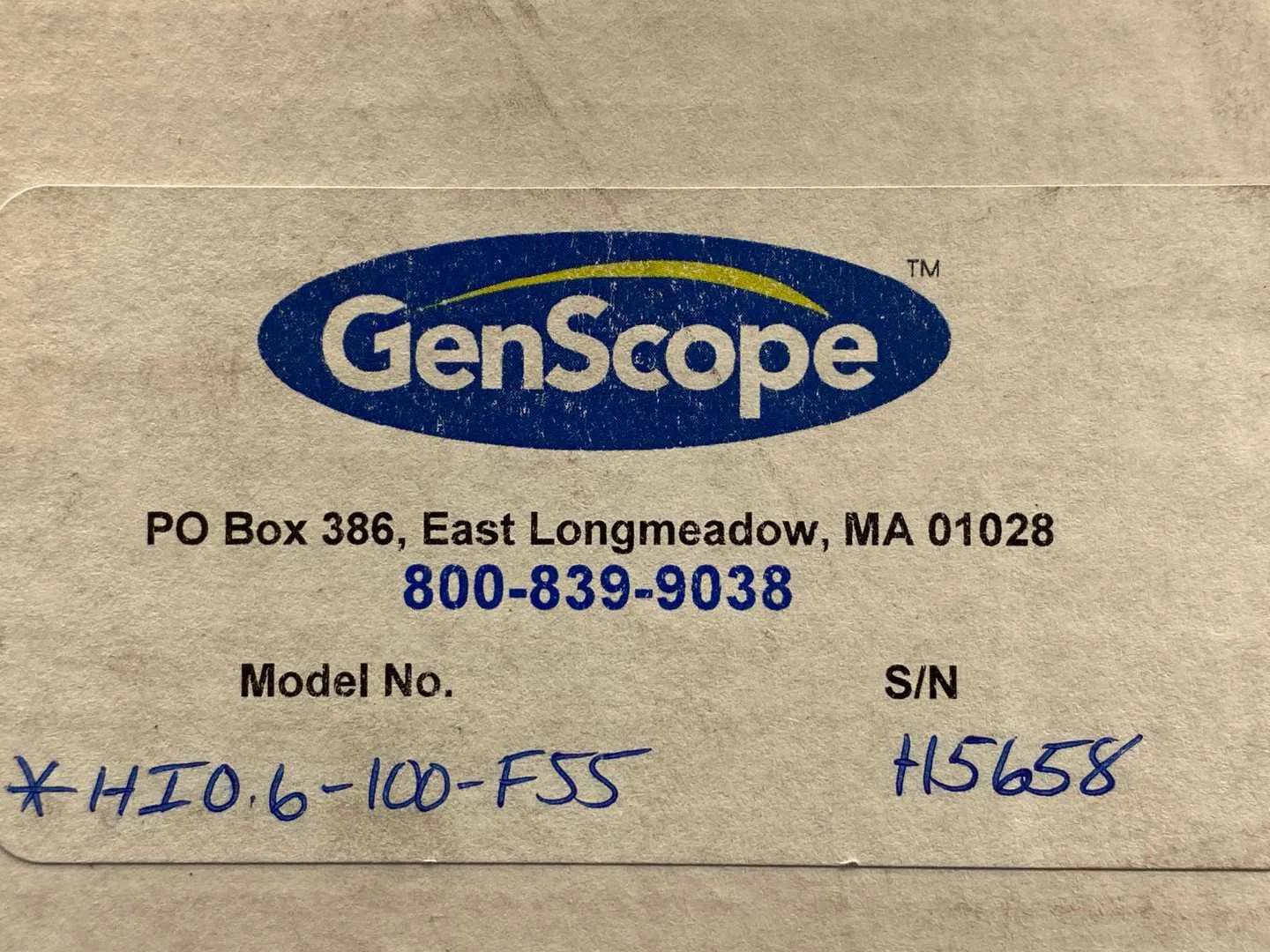

- Model No.: HI0.6-100-F55 (nameplate)
- Image Transmission: Fused quartz fiber optic image bundle
- Sheath: Stainless steel (series offered in plastic composite or stainless steel)
- Series Diameter Range: 0.5 mm to 4.0 mm
- Series Viewing Configurations: Forward view or right angle
- Series Field of View: 70 degrees (per GoPhotonics series listing)
- Eyepiece: Interchangeable focusing eyepiece; attaches to video documentation systems, optional USB camera
- Manufacturer Address on Plate: PO Box 386, East Longmeadow, MA 01028
- Spec Basis: nameplate photo; GenScope MicroFlex series page https://genscope.com/microflex; GoPhotonics MicroFlex GenScope listing https://www.gophotonics.com/products/borescopes/genscope-inc/20-1569-microflex-genscope-borescopes. Exact diameter, length and view for HI0.6-100-F55 not published; series values shown.
Specifications
Genscope
HI0.6-100-F55

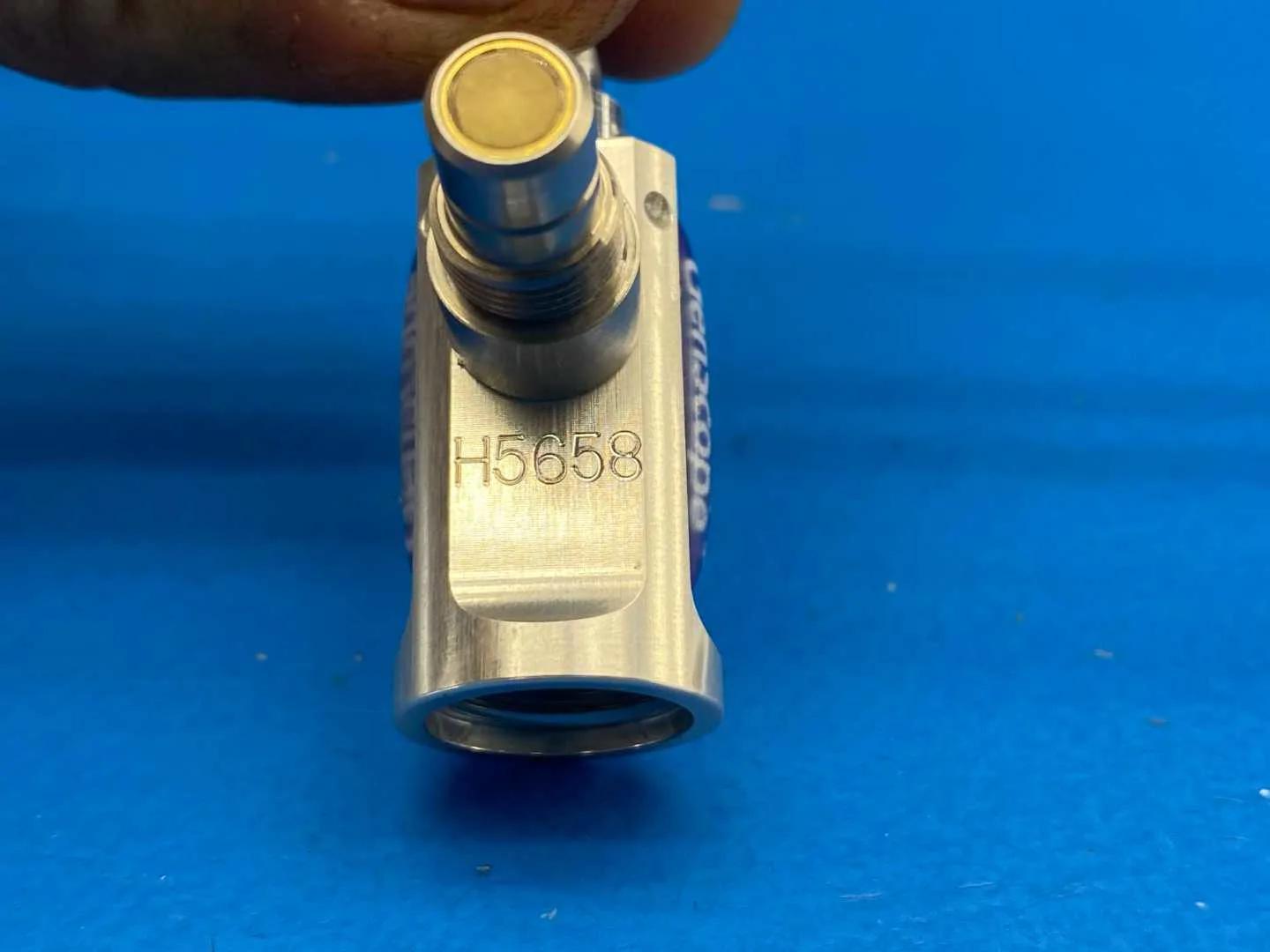

H5658
N/A
N/A
N/A
3
18
12
N/A
2
3.46
KSC1290 / 571
