Lex M100 120V; 208V 3 U.S. Army three-phase electrical feeder system distribution box
U.S. Army M100 Specifications & Fitment
Condition & What's Included
1 / 23
+23
+23
1 / 23
| Description | Details |
|---|---|
| Available Quantity | 1 |
| Model | M100 |
| Condition | Used |
| Manufacturer | U.S. Army |
| Asset Number | KSC1008 / 002 / 008 |
| Guarantee or ASIS | 2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return |
| Inspections - Yellow Tag | 5.2 Used: Reported to be working when removed from service |
| Packaging Cost | 1.5 Cardboard $30 |
Available Qty: 1
Free Shipping
$1,495.00
Basic Information
Asset #
KSC1008 / 002 / 008
Available Quantity
1
Inspections - Yellow Tag
5.2 Used: Reported to be working when removed from service
Condition
Used
Guarantee or ASIS
2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return
Item Description

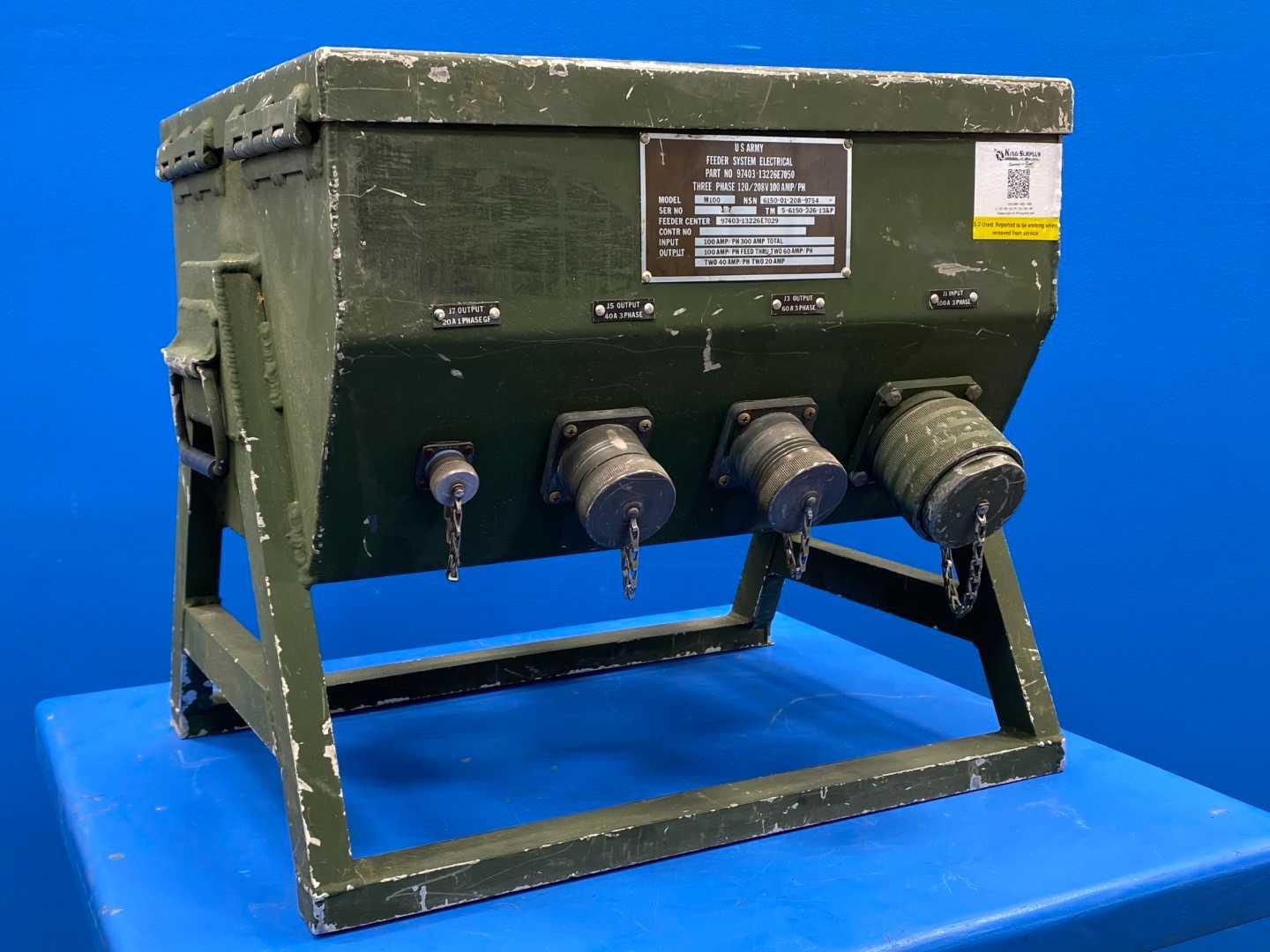

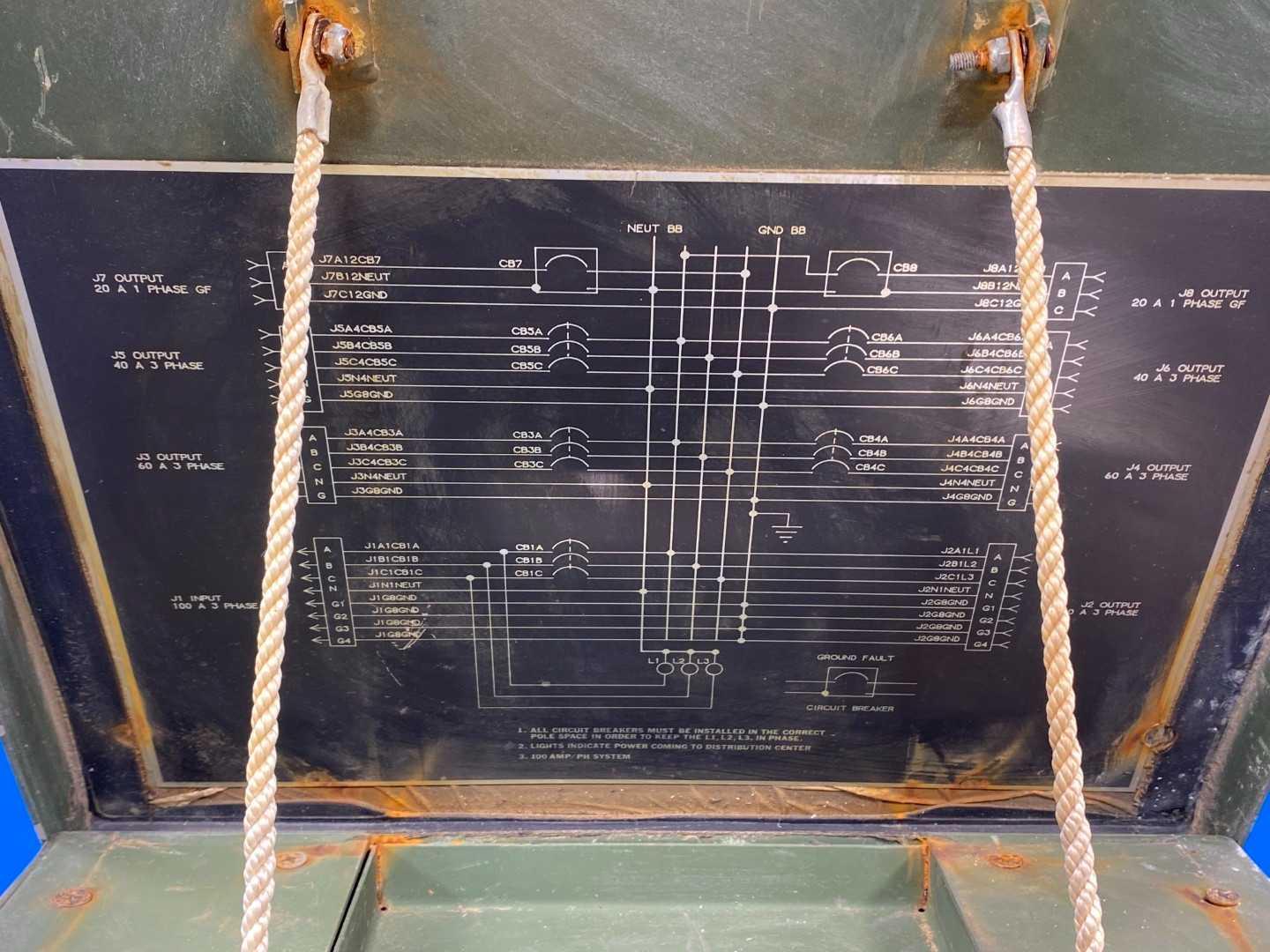

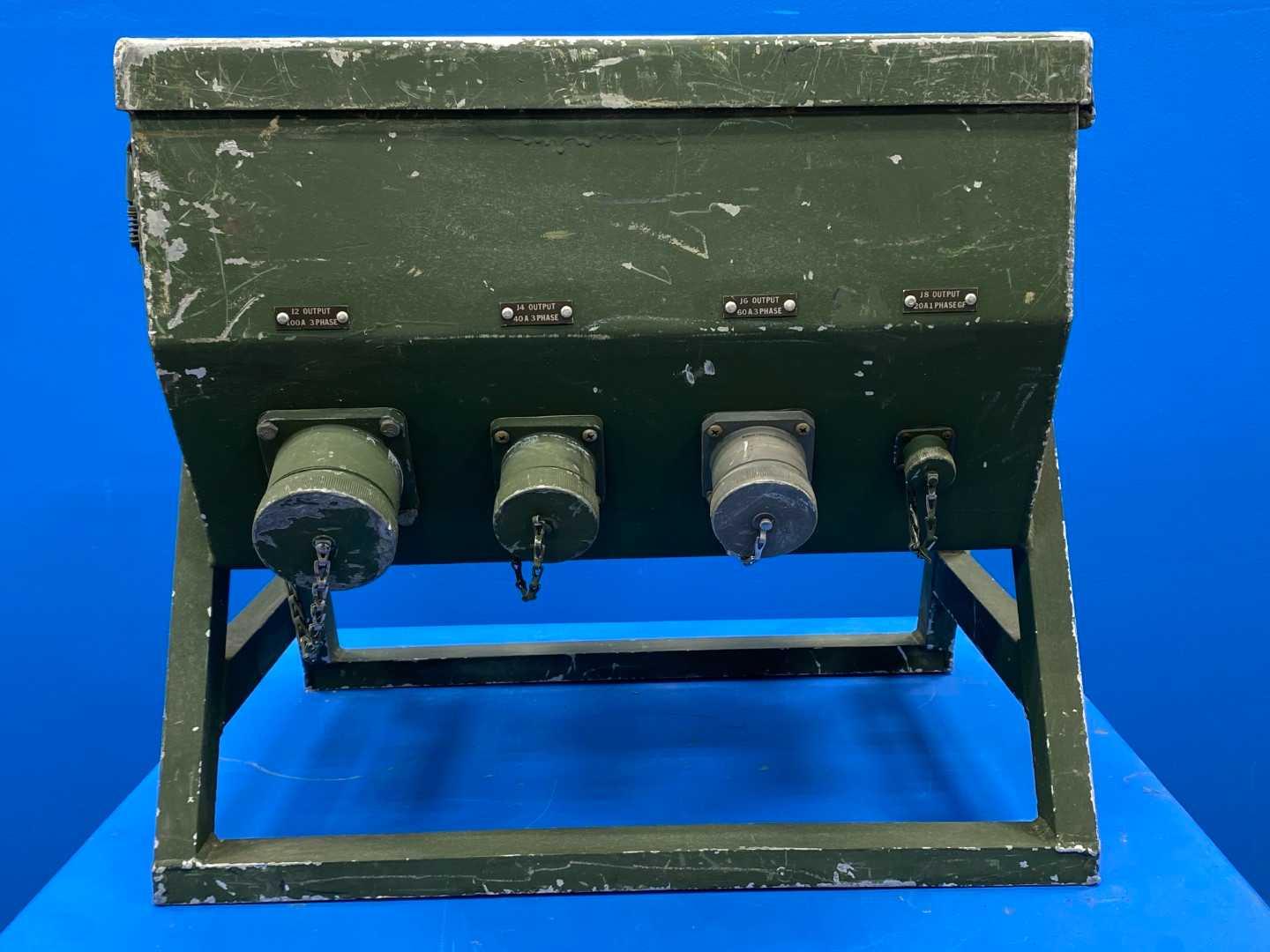

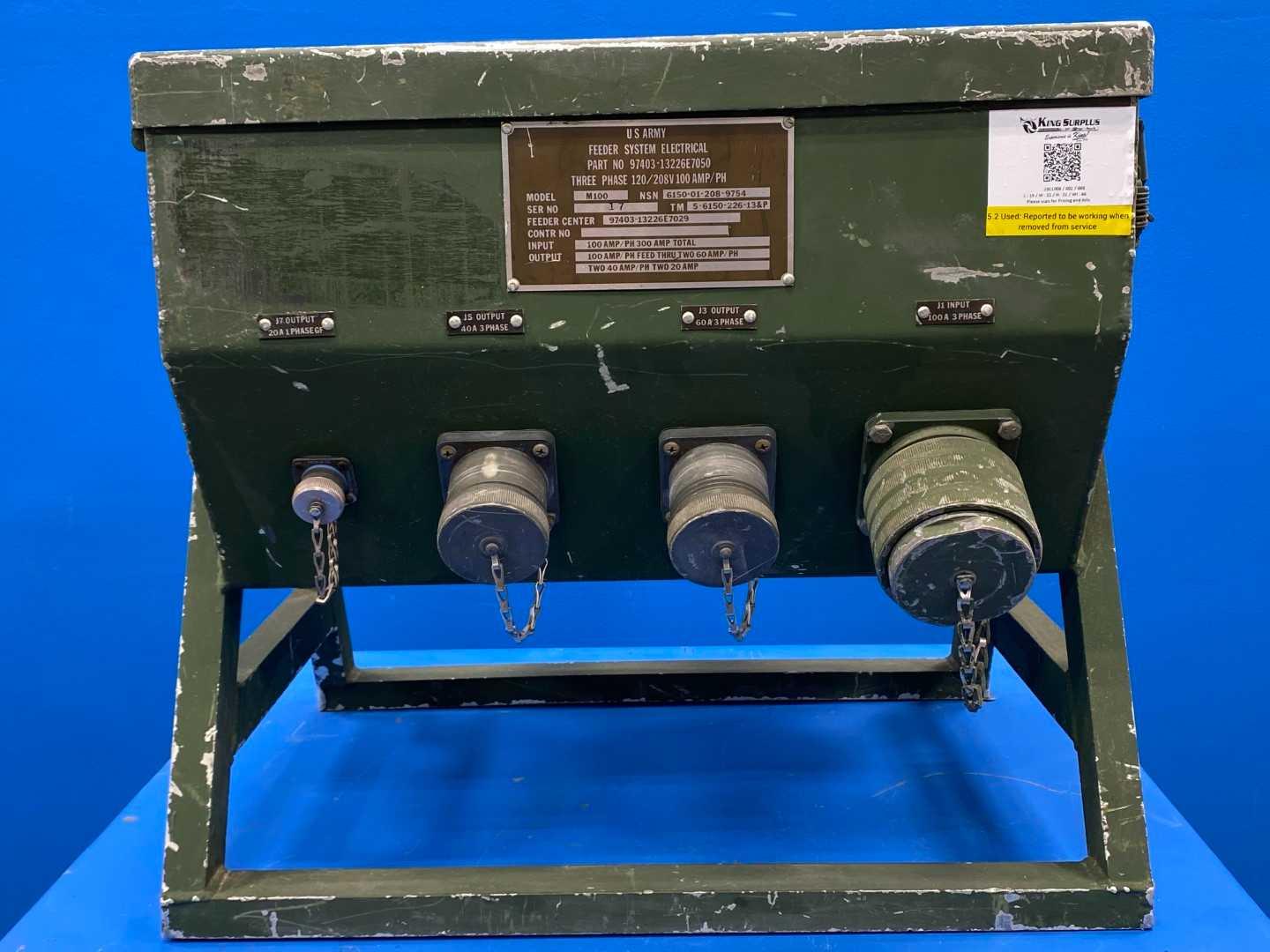

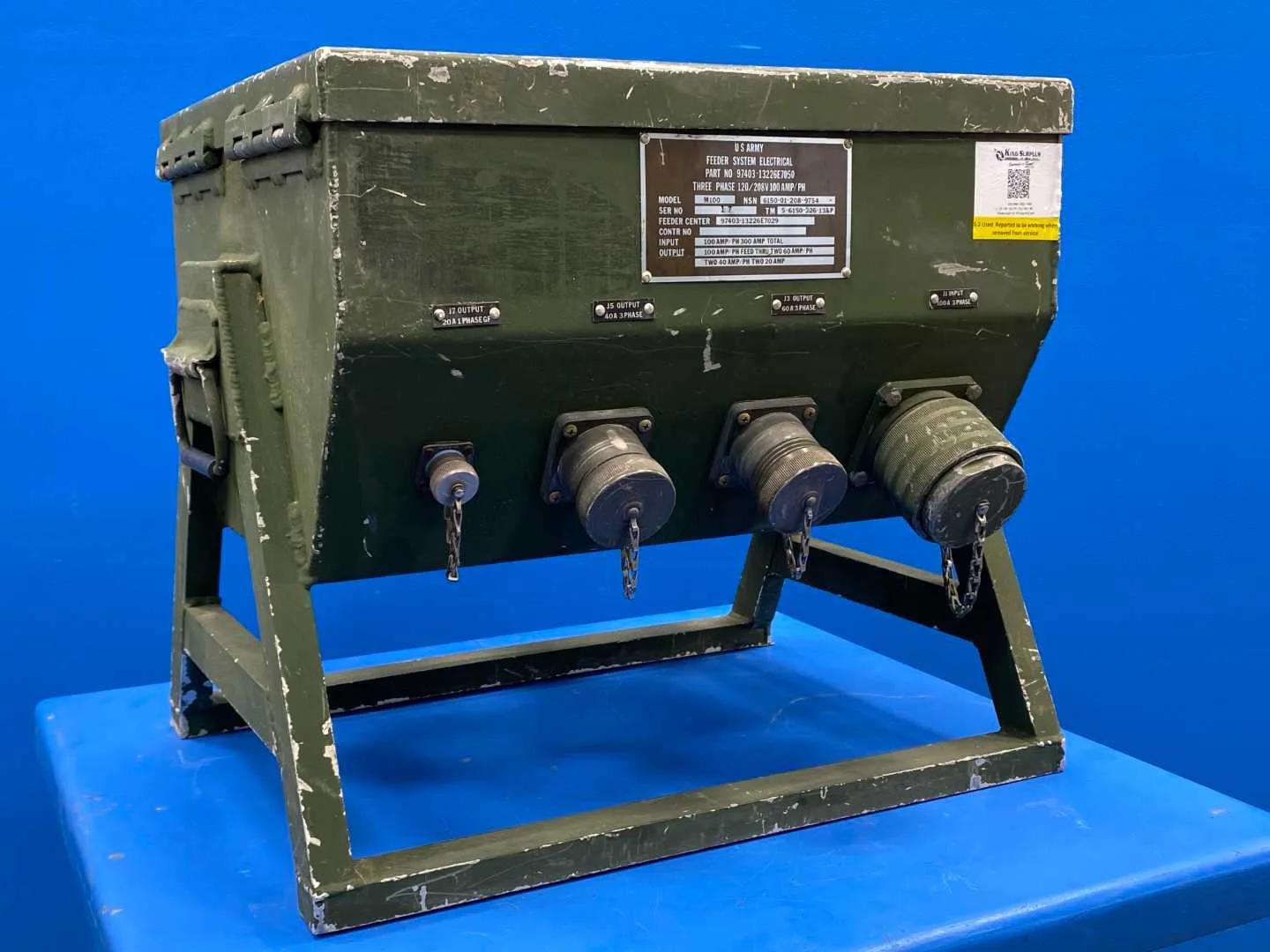

The M100 Feeder System Electrical is a U.S. Army three-phase power distribution center rated 120/208V at 100 amps per phase, built to drawing 97403-13226E7050 and cataloged under NSN 6150-01-208-9754. A single 100 AMP/PH input rated 300 amps total feeds one 100 AMP/PH feed-through circuit plus two 60 AMP/PH, two 40 AMP/PH, and two 20 AMP output circuits, allowing one generator or utility tie to serve several downstream loads at different ratings from a single breakout point.
Feeder systems in this family were fielded alongside Army standard generator sets to distribute power across field hospitals, tactical operations centers, maintenance shelters, and mobile command posts. The same unit transfers directly to civilian temporary power work: film and live event production distribution, disaster response staging areas, remote construction and pipeline job sites, temporary shop and warehouse feeds, and generator testing setups needing a rugged 208V three-phase tap panel.

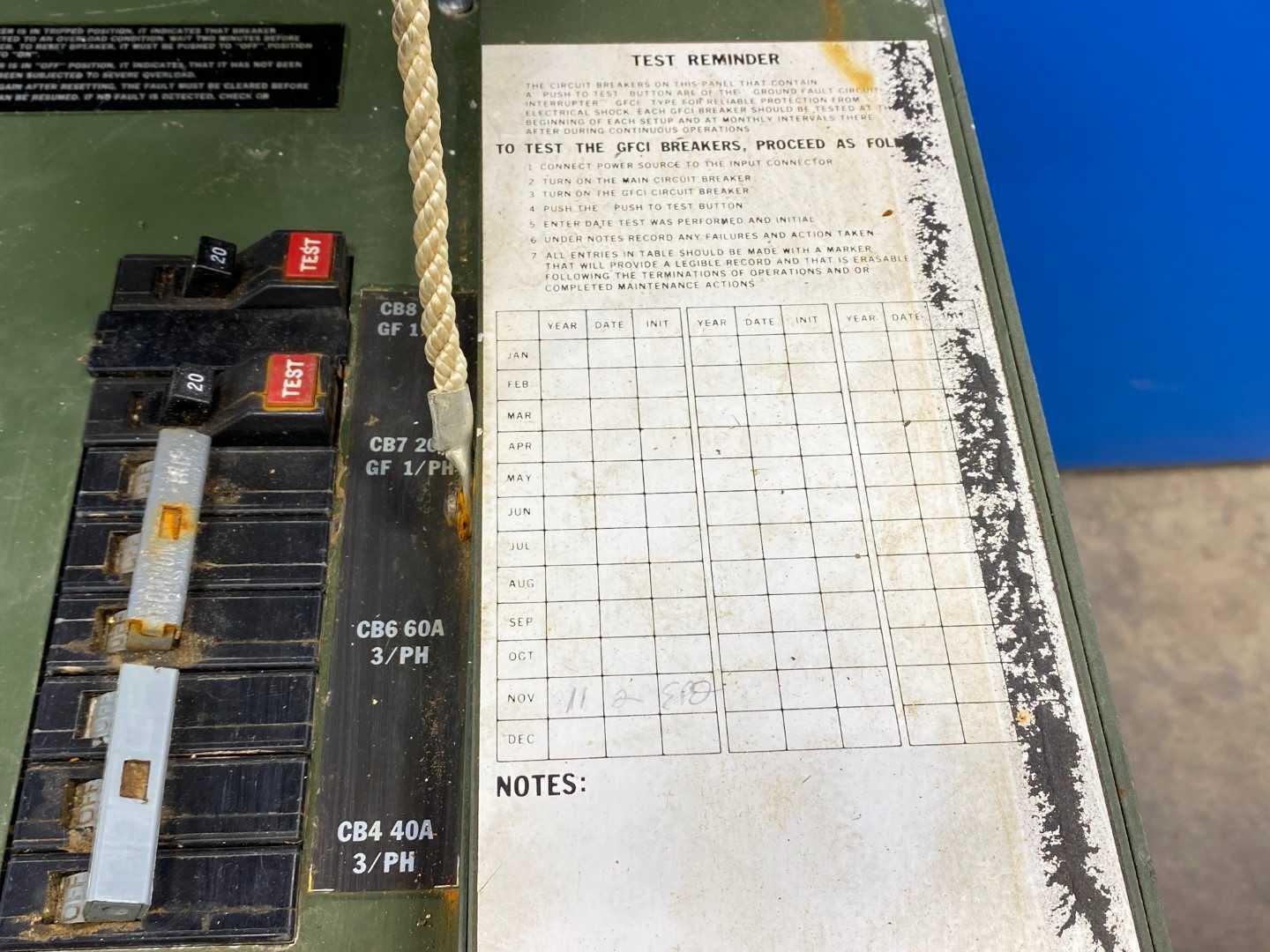

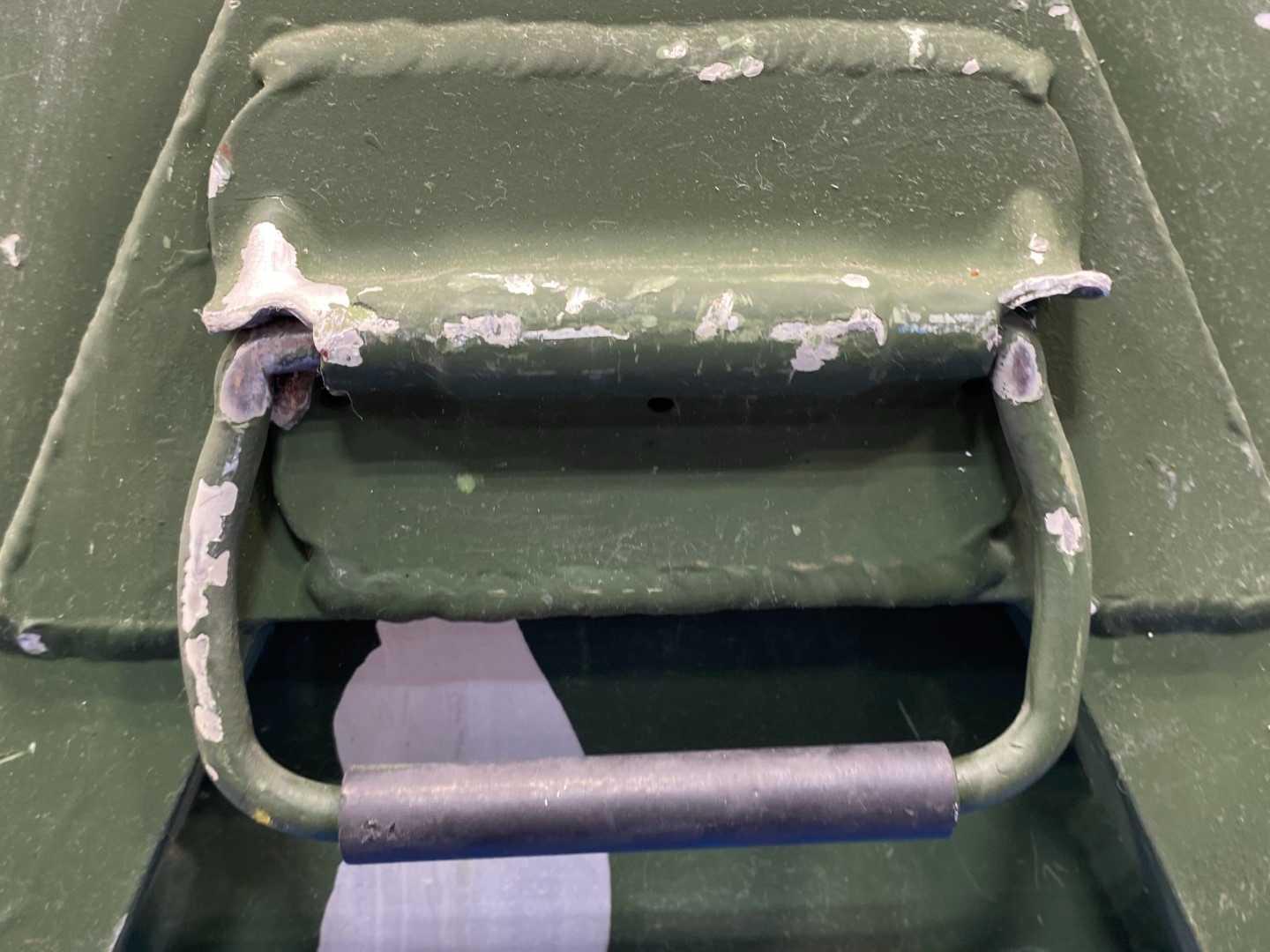

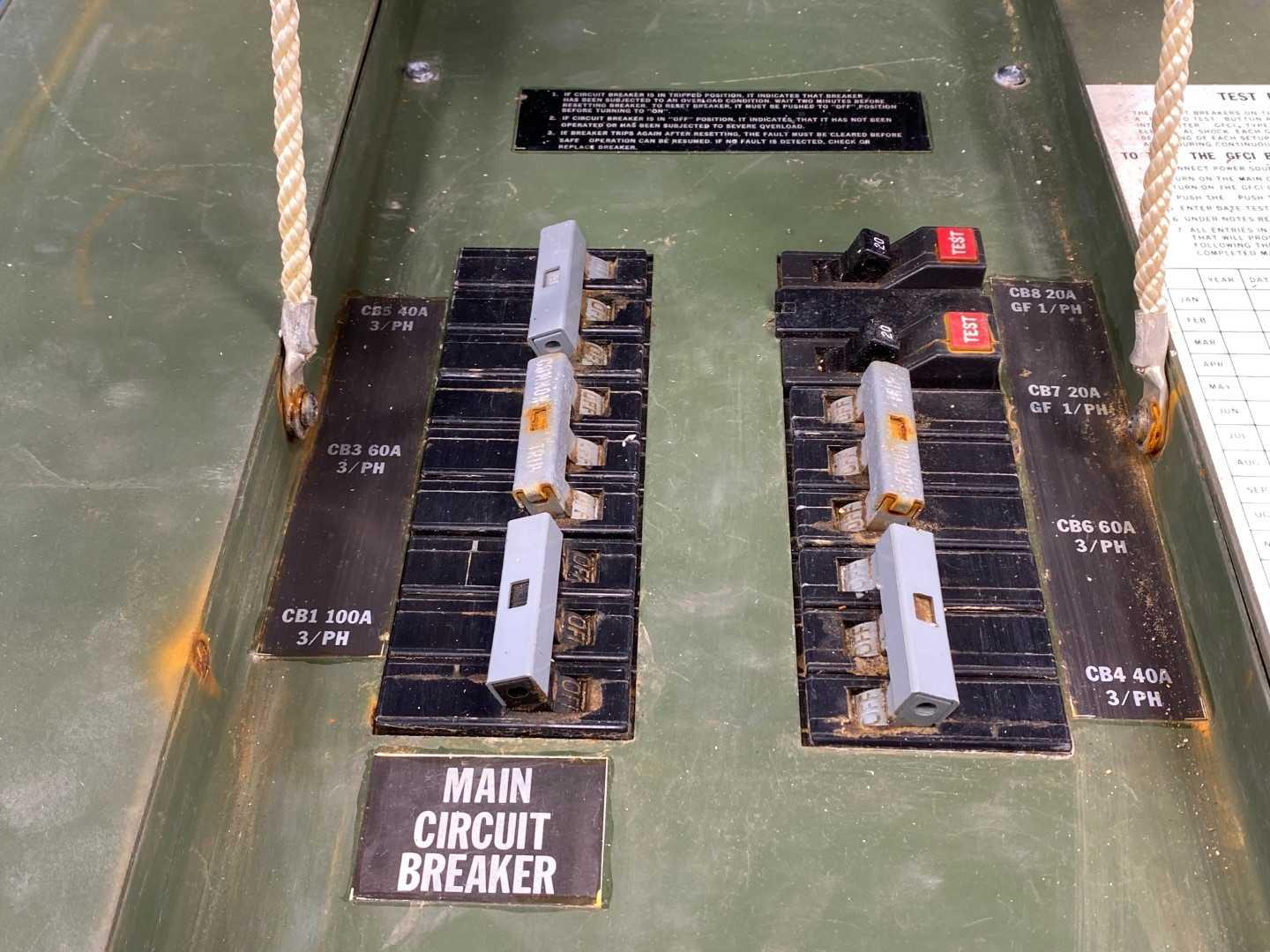

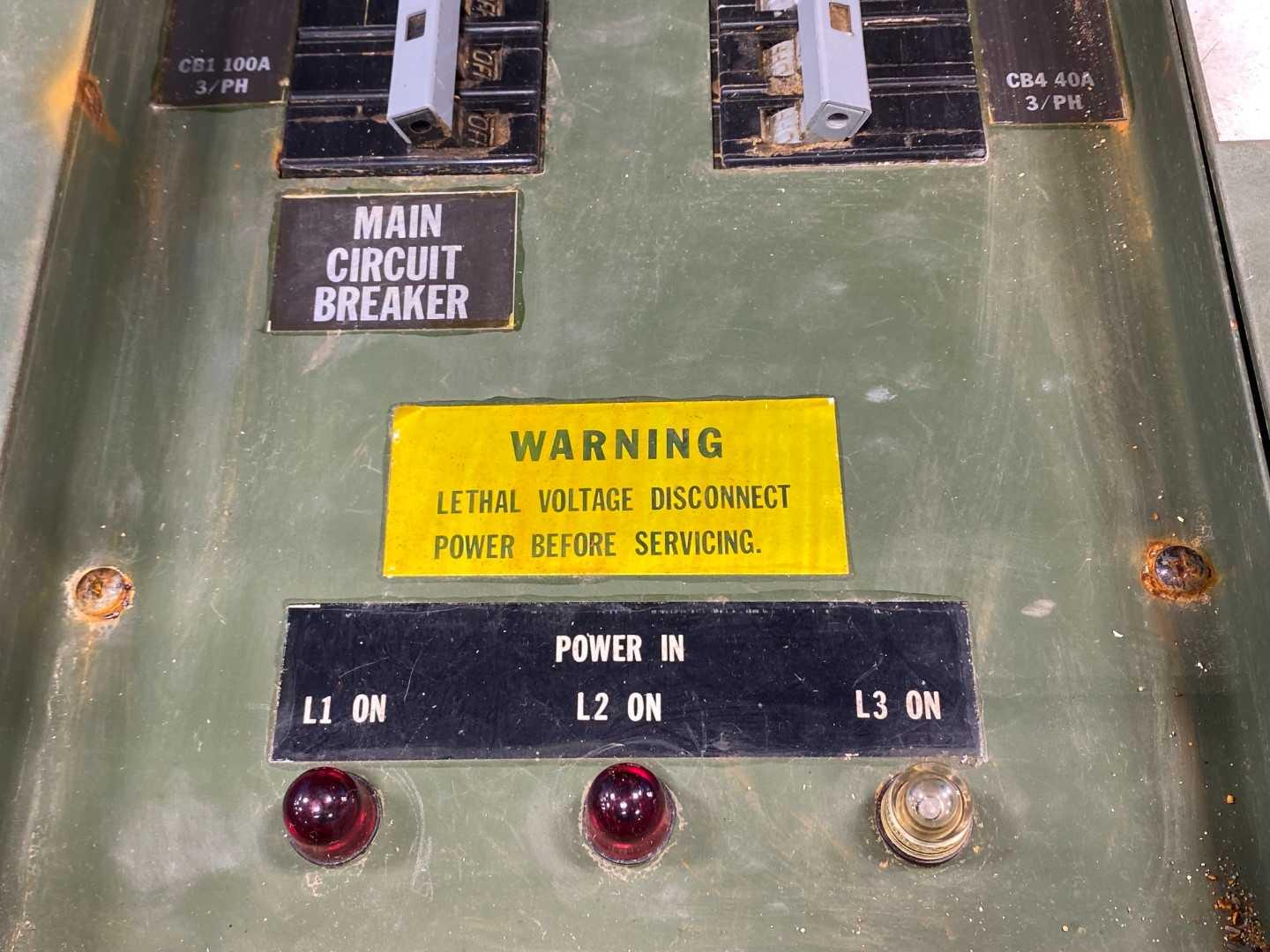

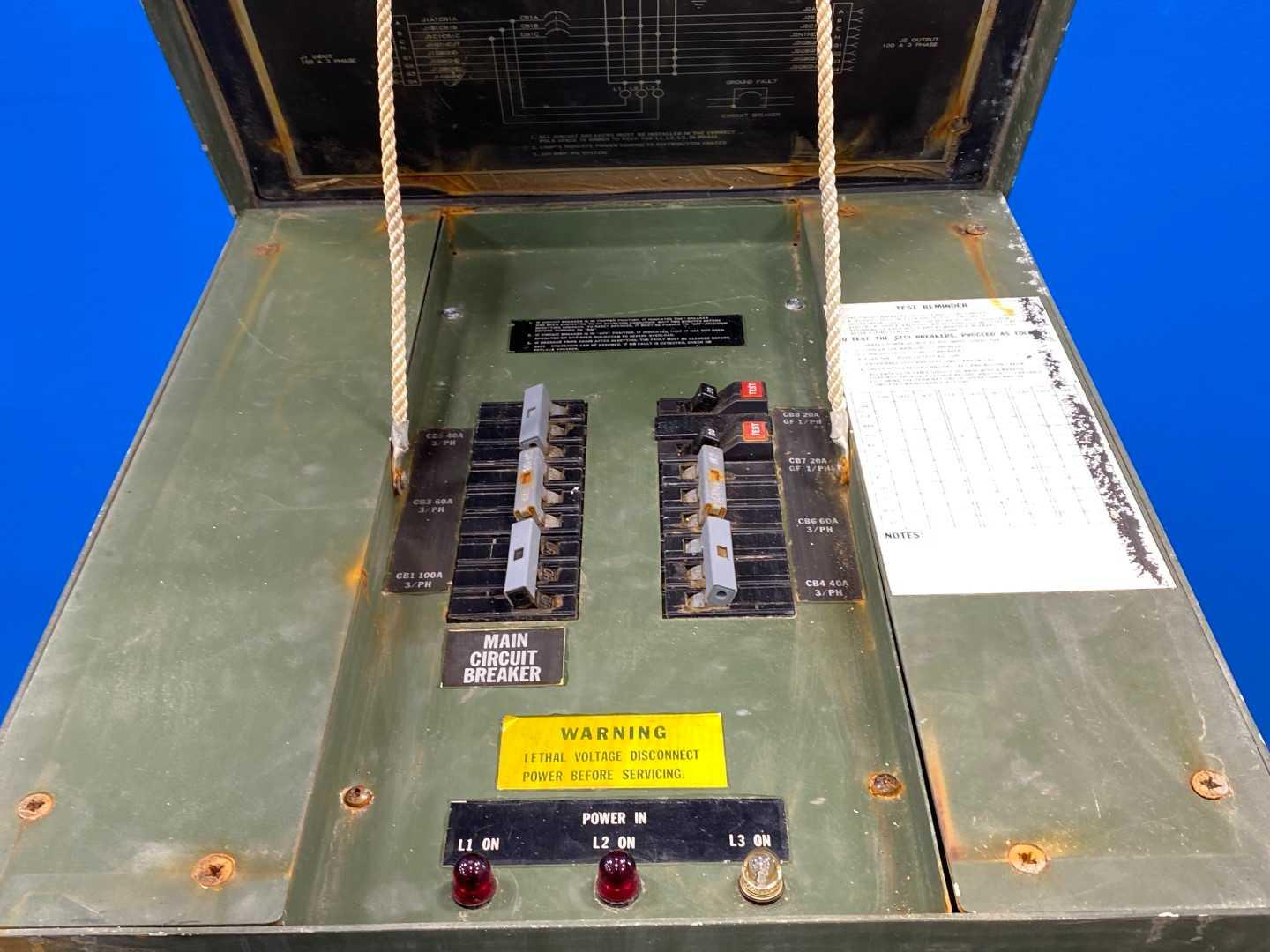

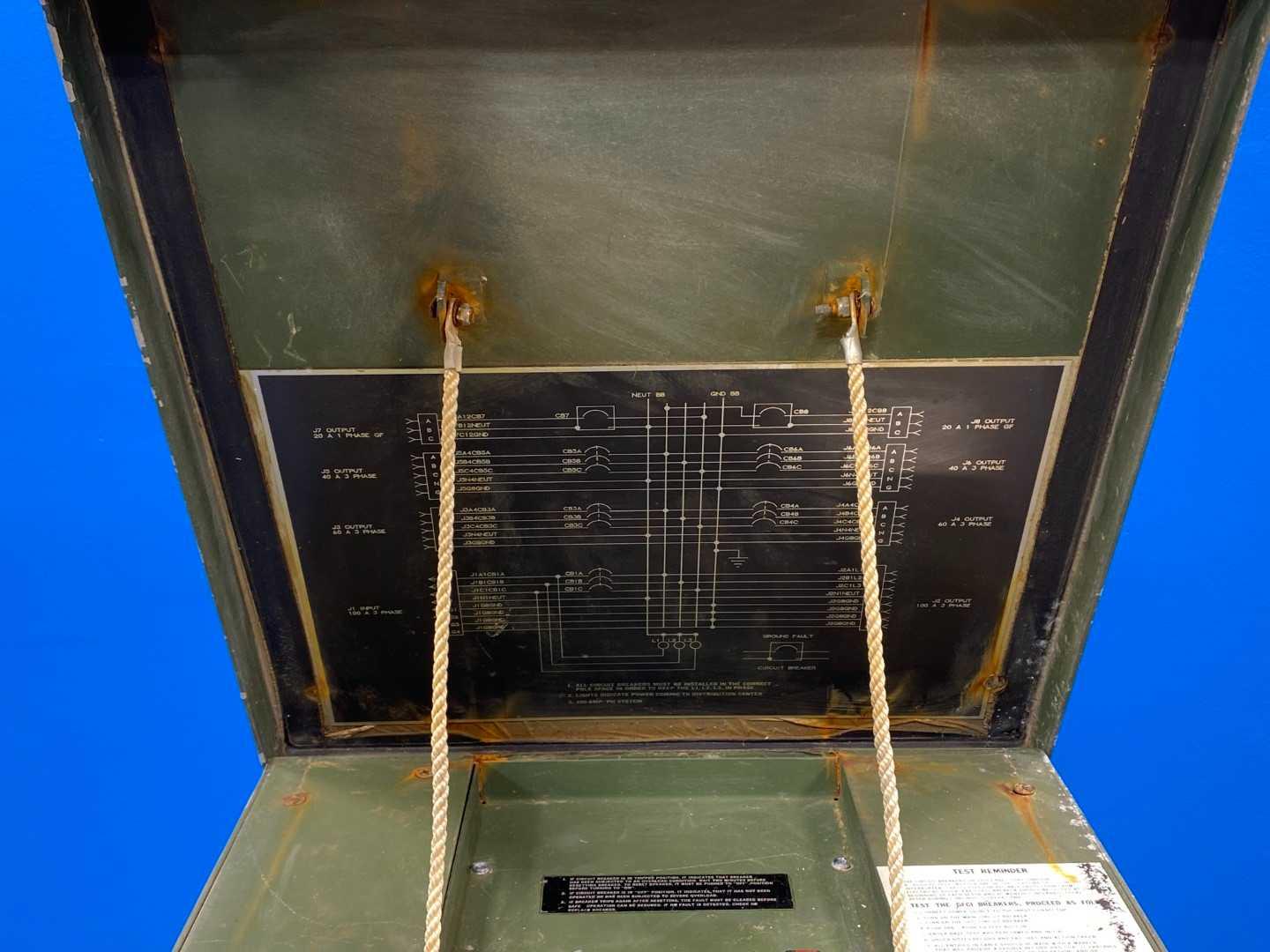

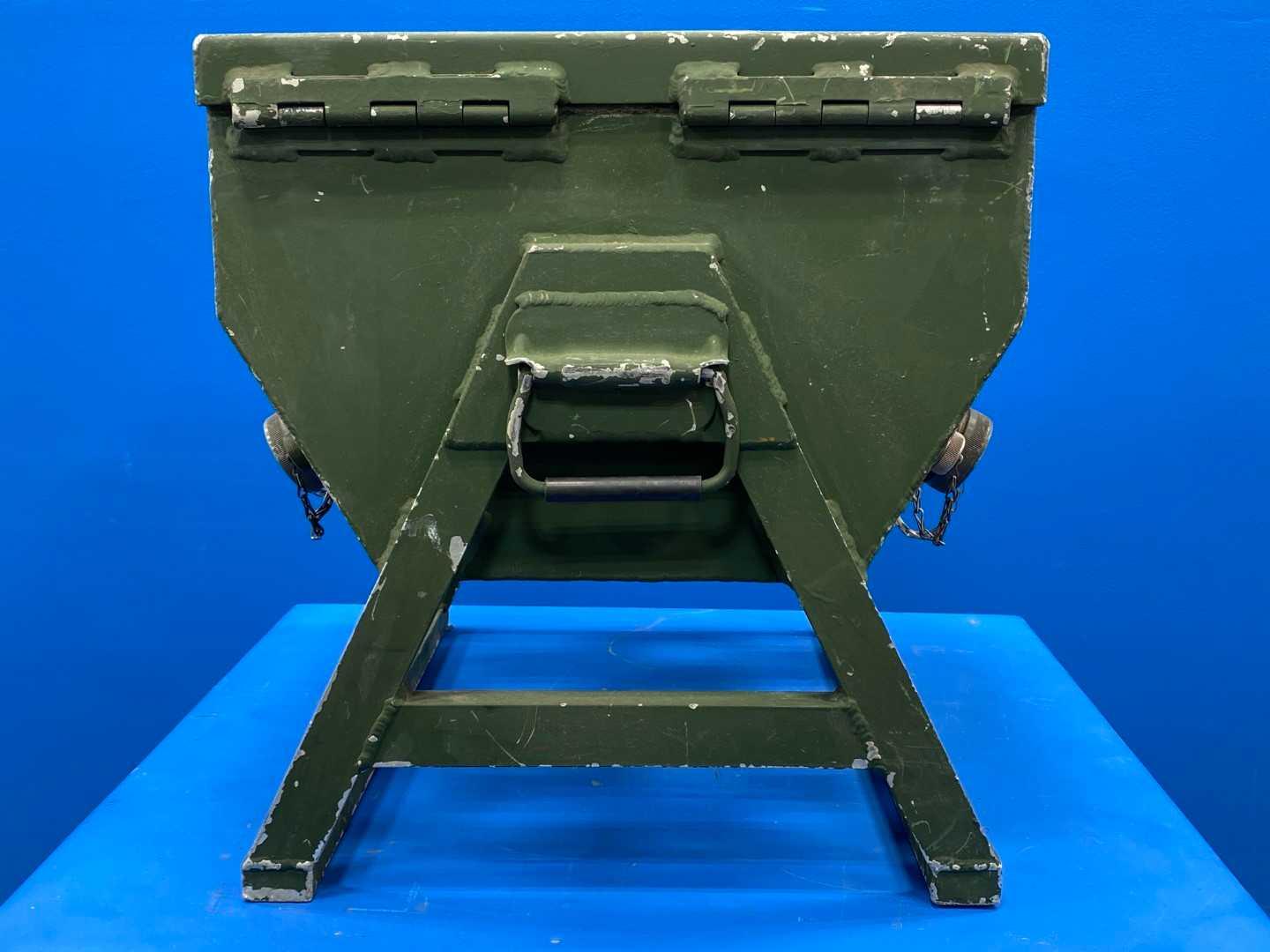

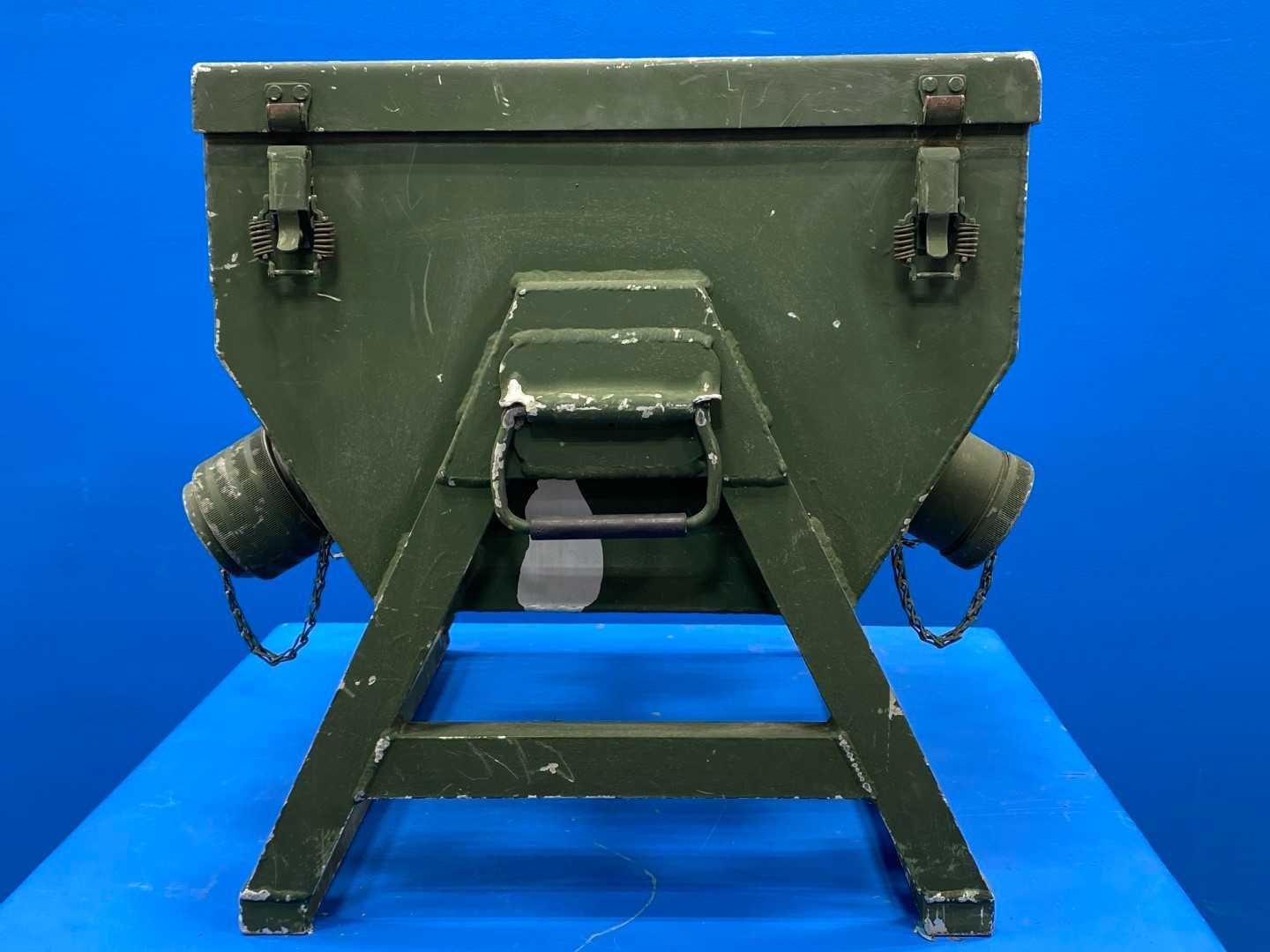

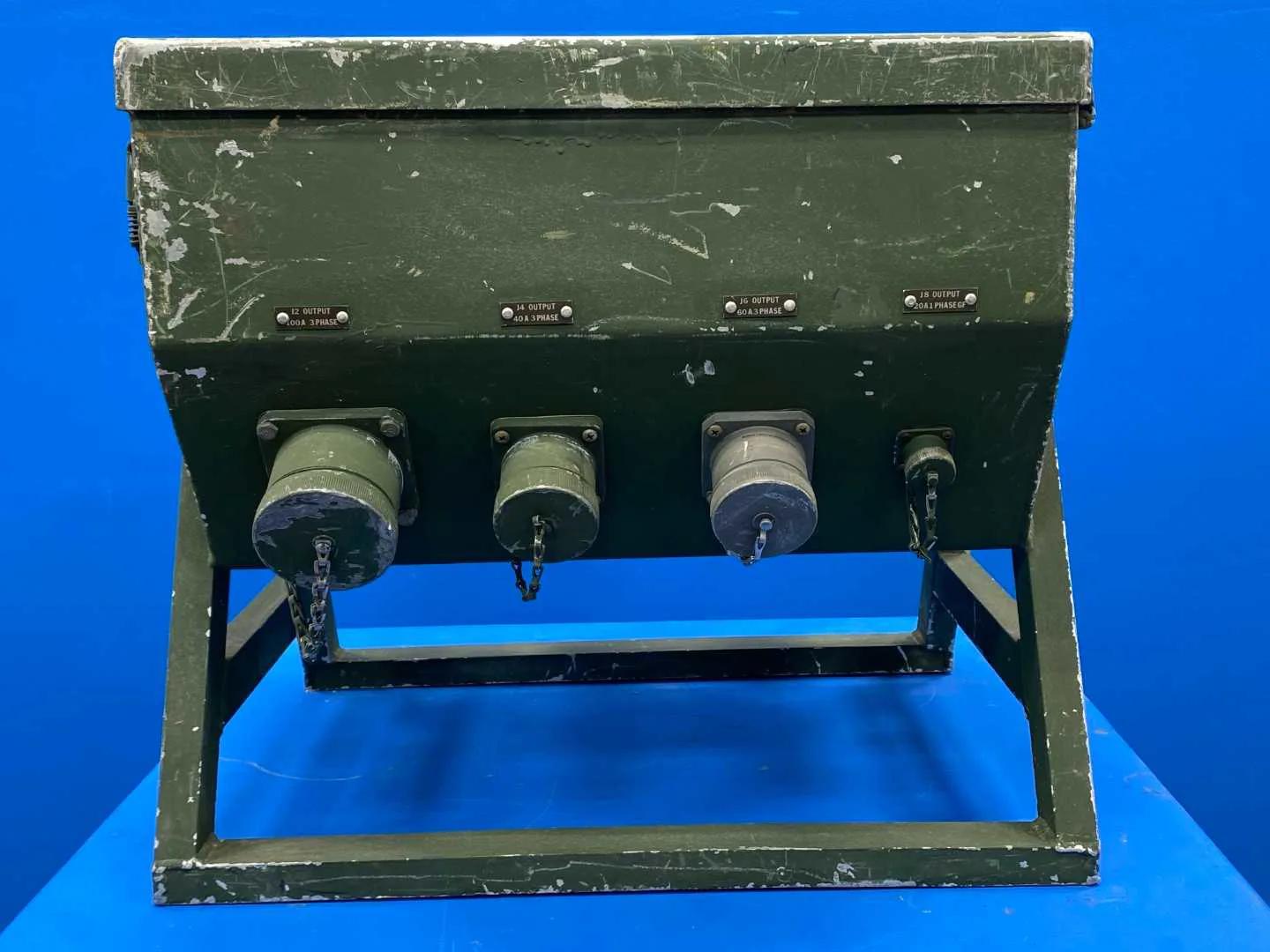

Construction is a heavy gauge steel enclosure in standard military green with panel mounted circuit protection and output connections. Operation, maintenance, and repair parts are documented in TM 5-6150-226-13&P. The feeder center subassembly carries part number 97403-13226E7029, and this unit is serial number 17.
Sold as-is, surplus from King Surplus inventory in Del Rio, Texas. Same-day shipping on orders before 3:00 PM CT.

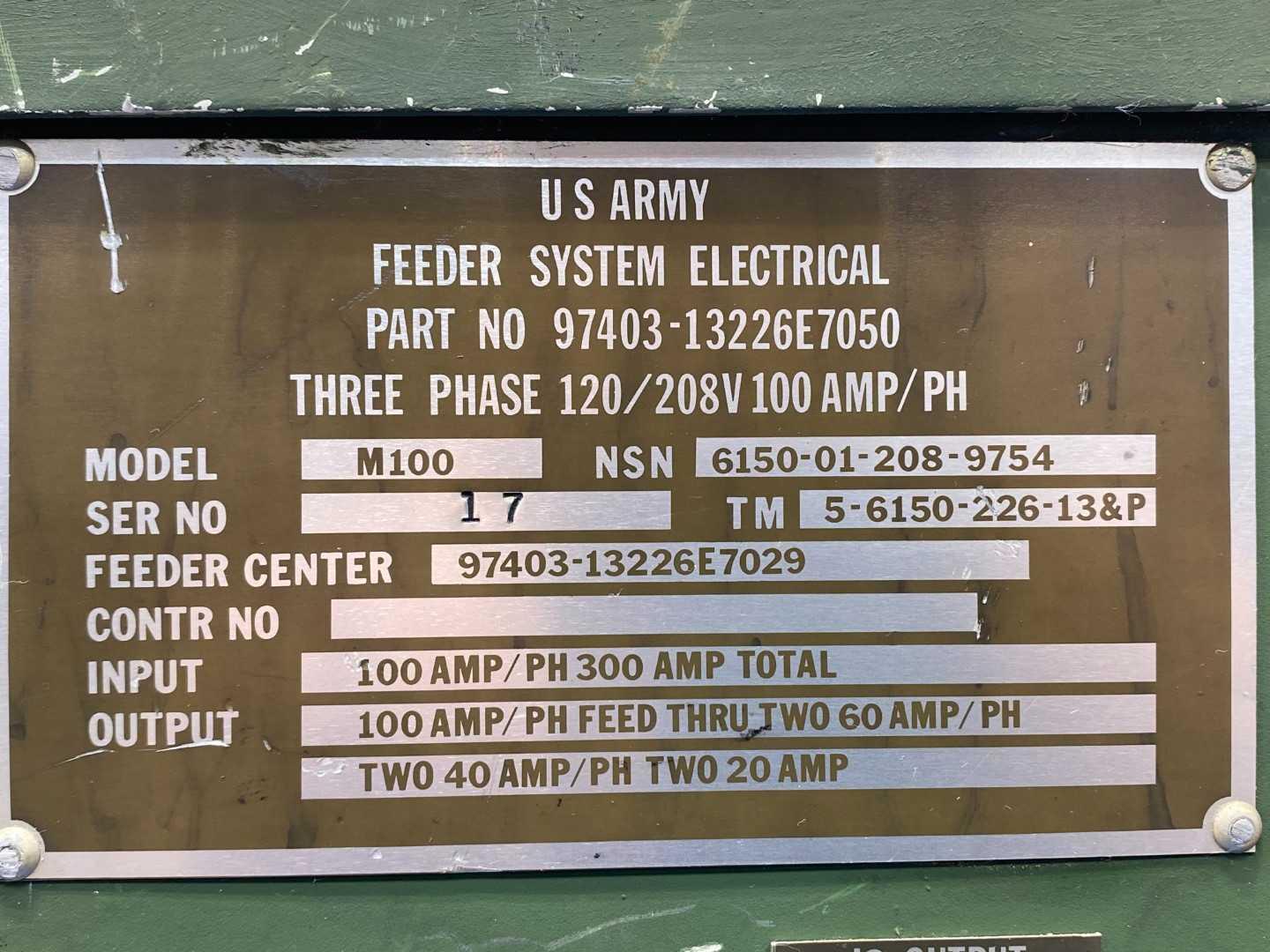

Factory Information
Nomenclature: Feeder System Electrical
Model: M100
Part Number: 97403-13226E7050
Feeder Center Part Number: 97403-13226E7029
NSN: 6150-01-208-9754
Technical Manual: TM 5-6150-226-13&P
Serial Number: 17
Voltage: 120/208V
Phase: Three phase
Amperage: 100 AMP/PH

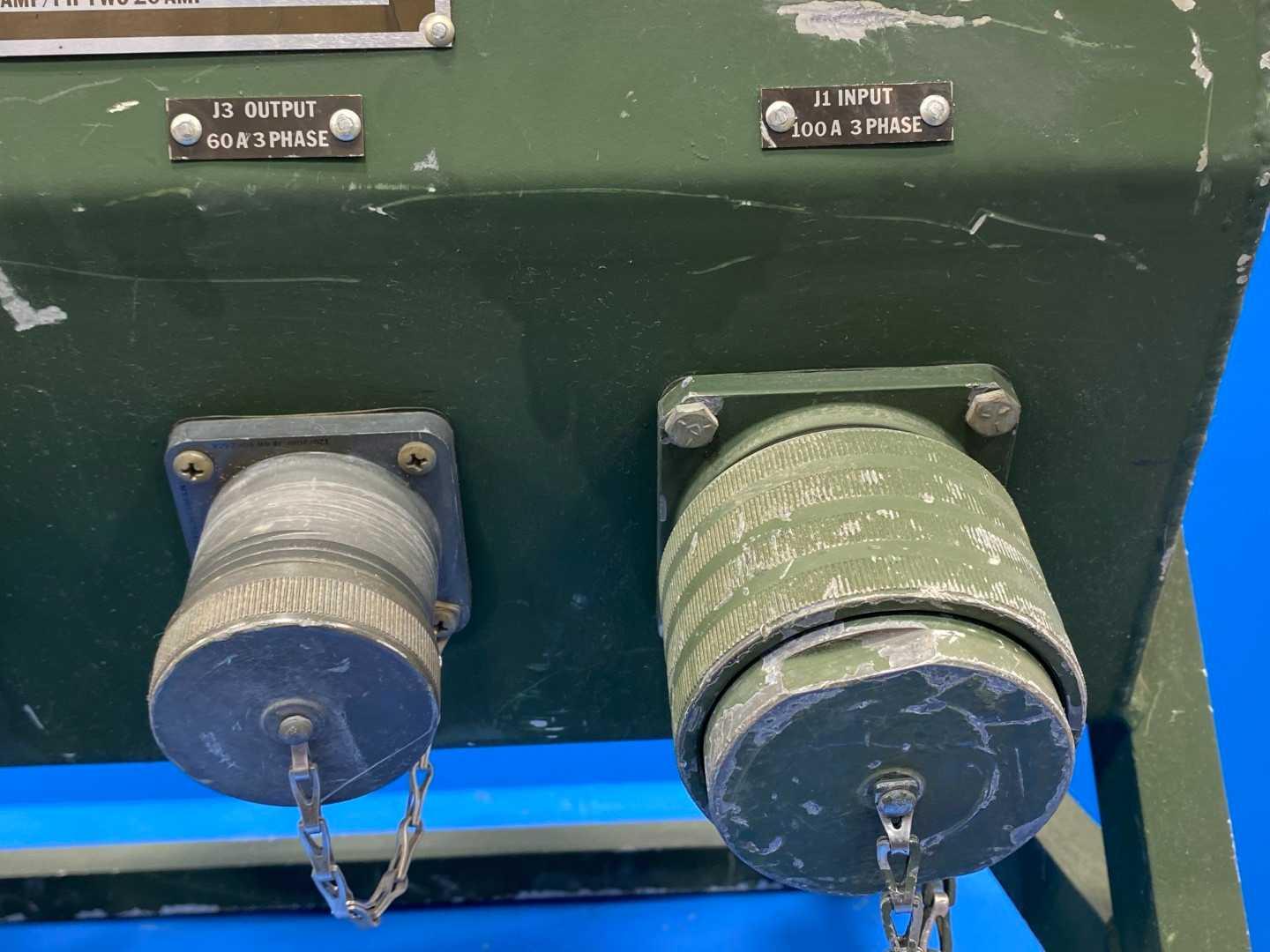

Input Rating: 100 AMP/PH, 300 AMP total

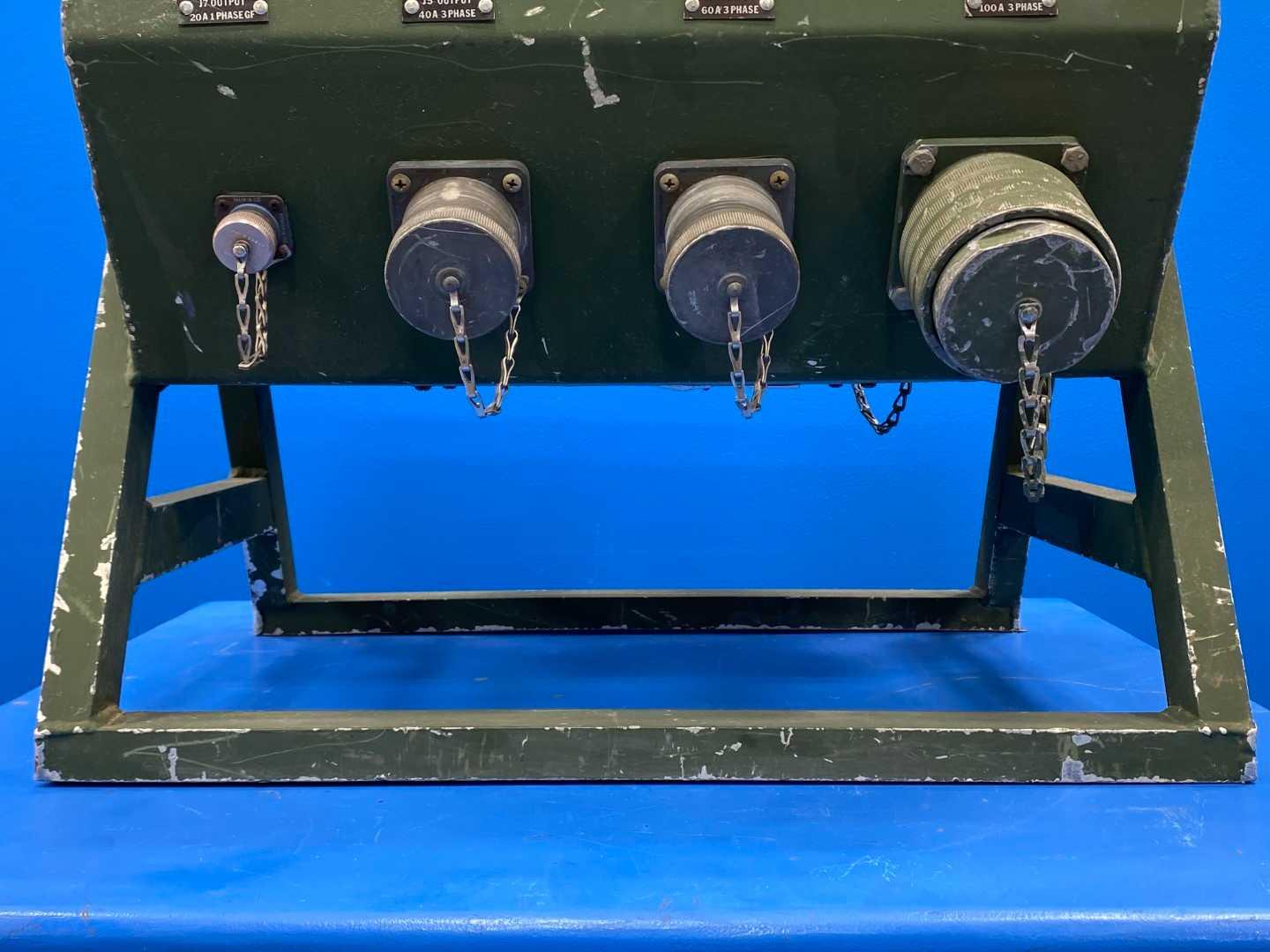

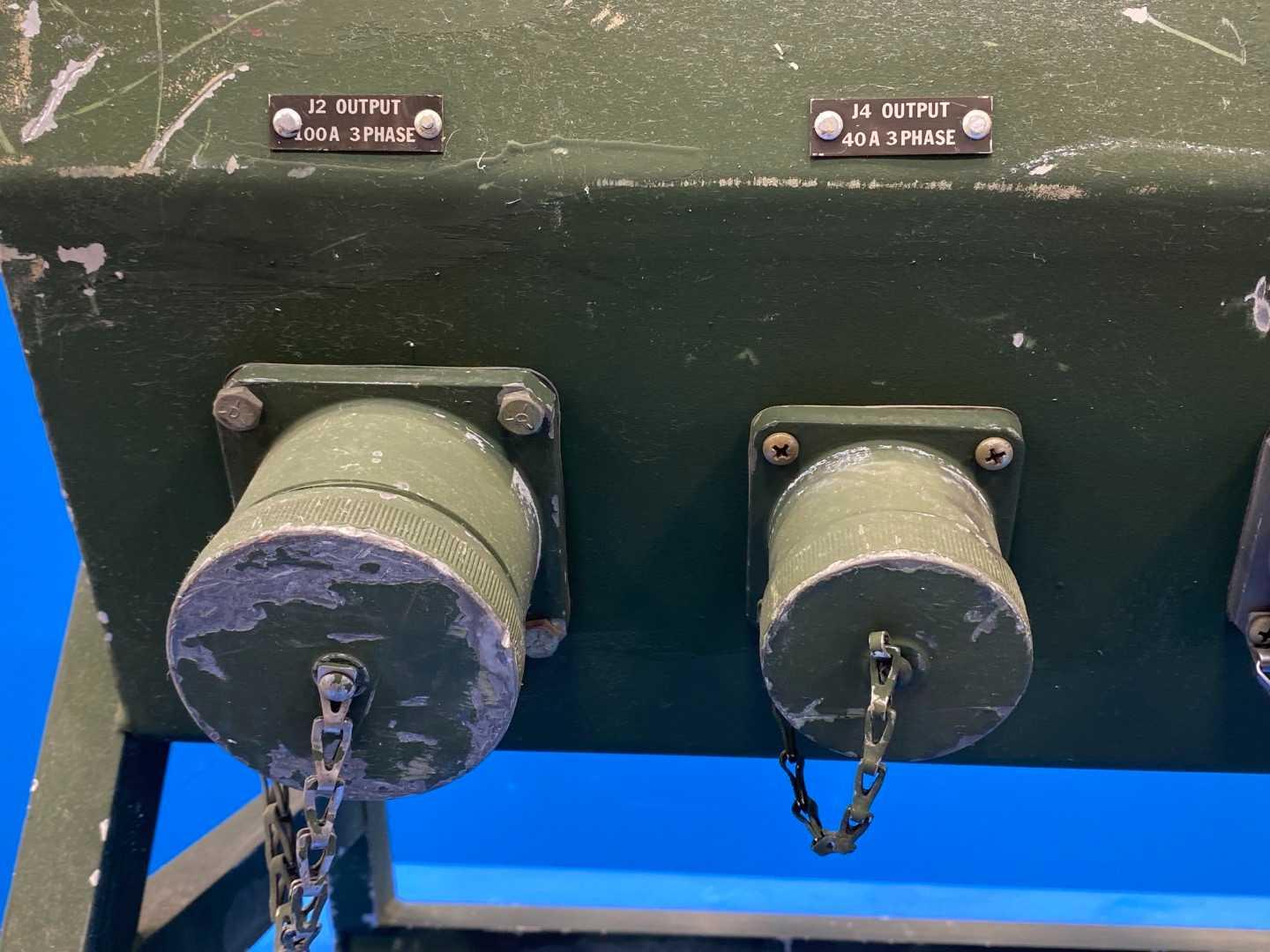

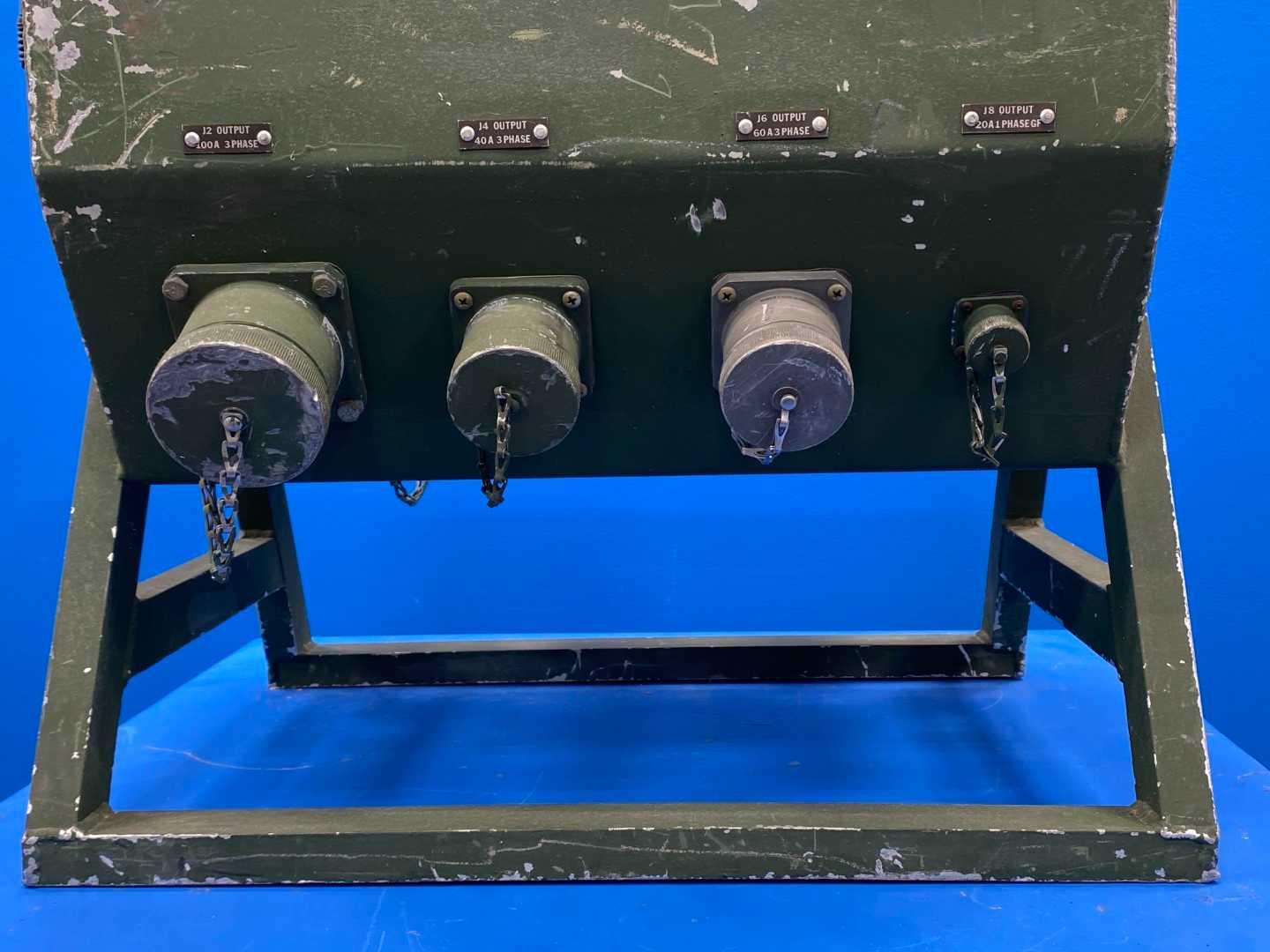

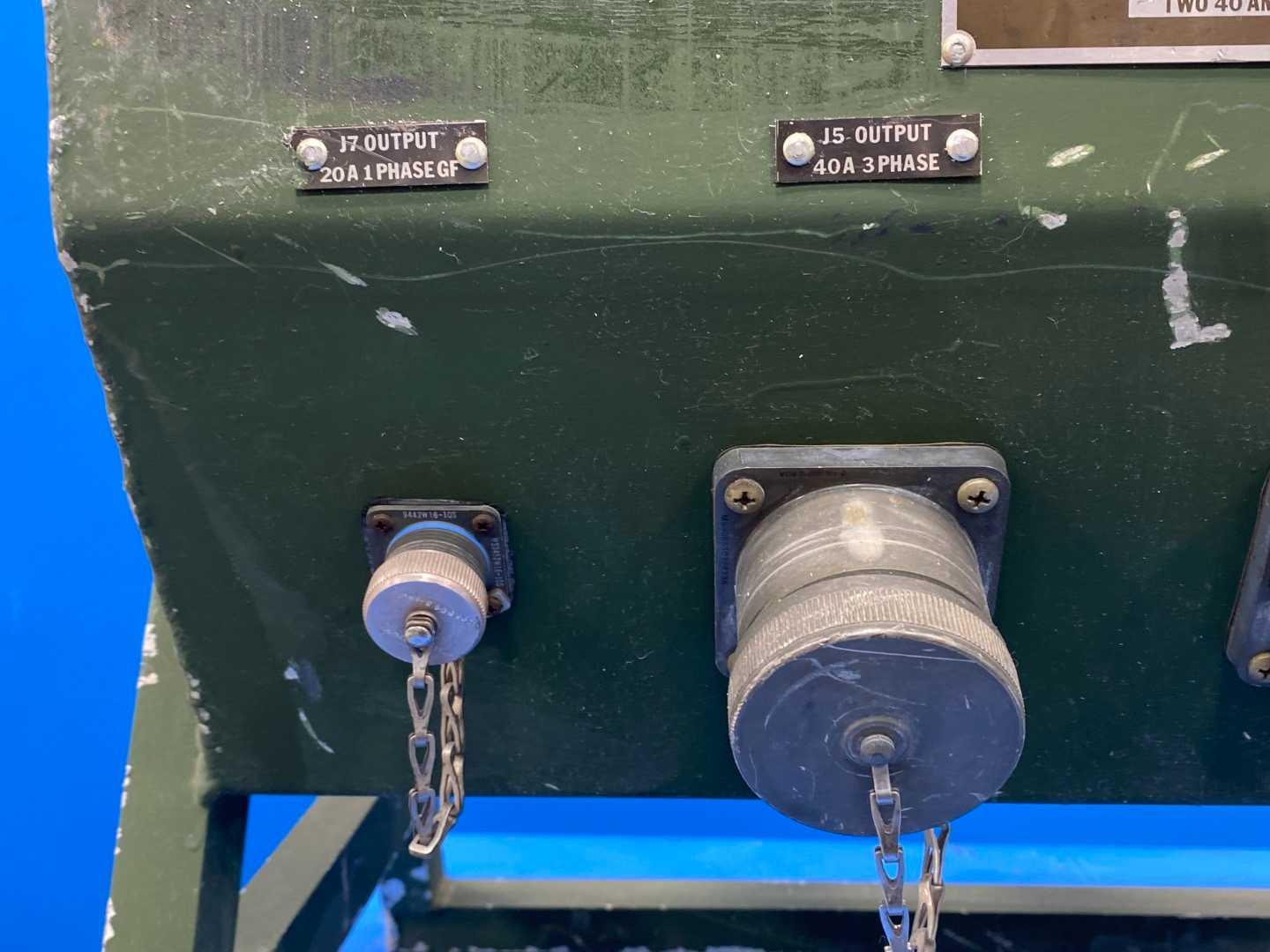

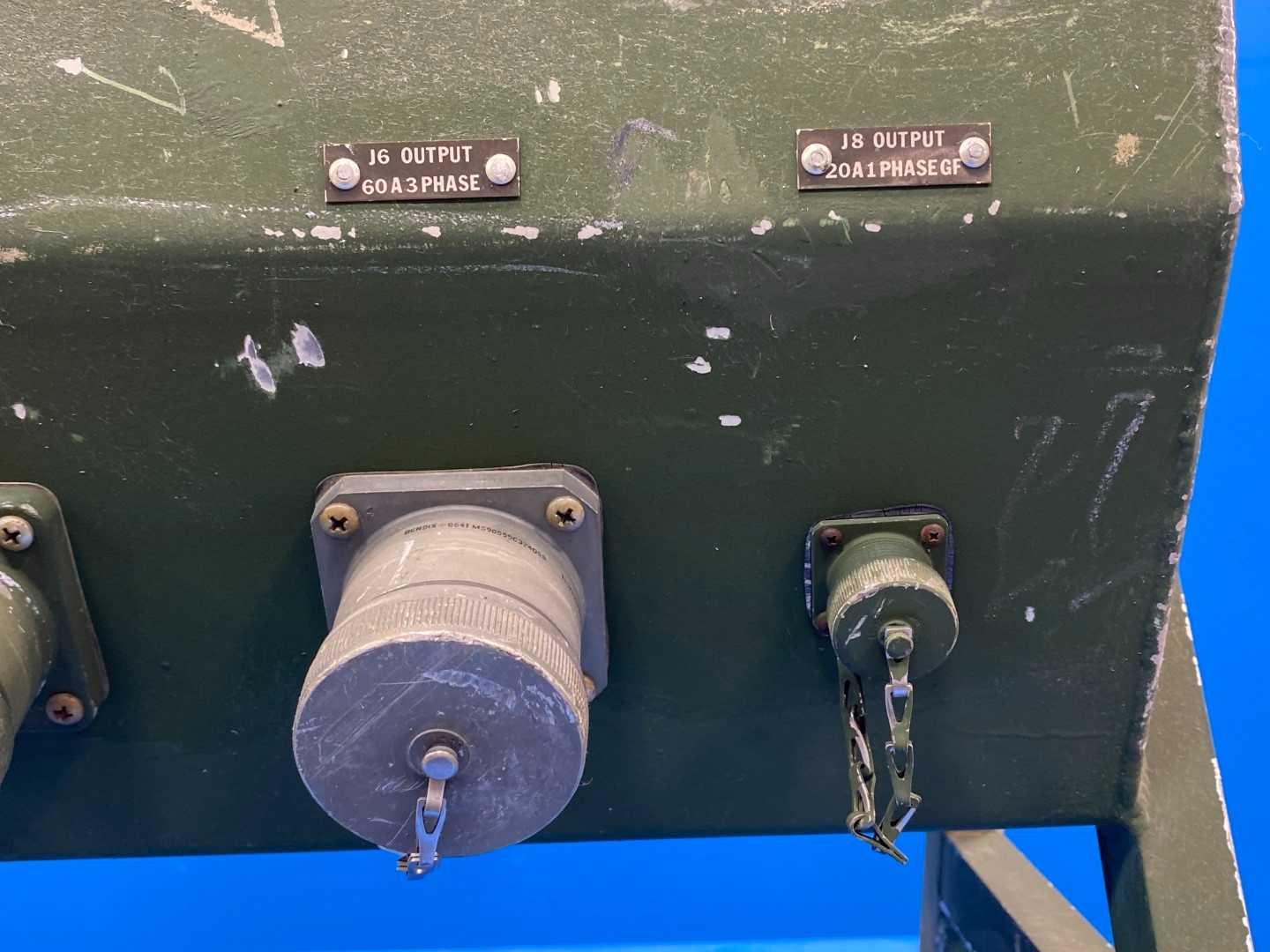

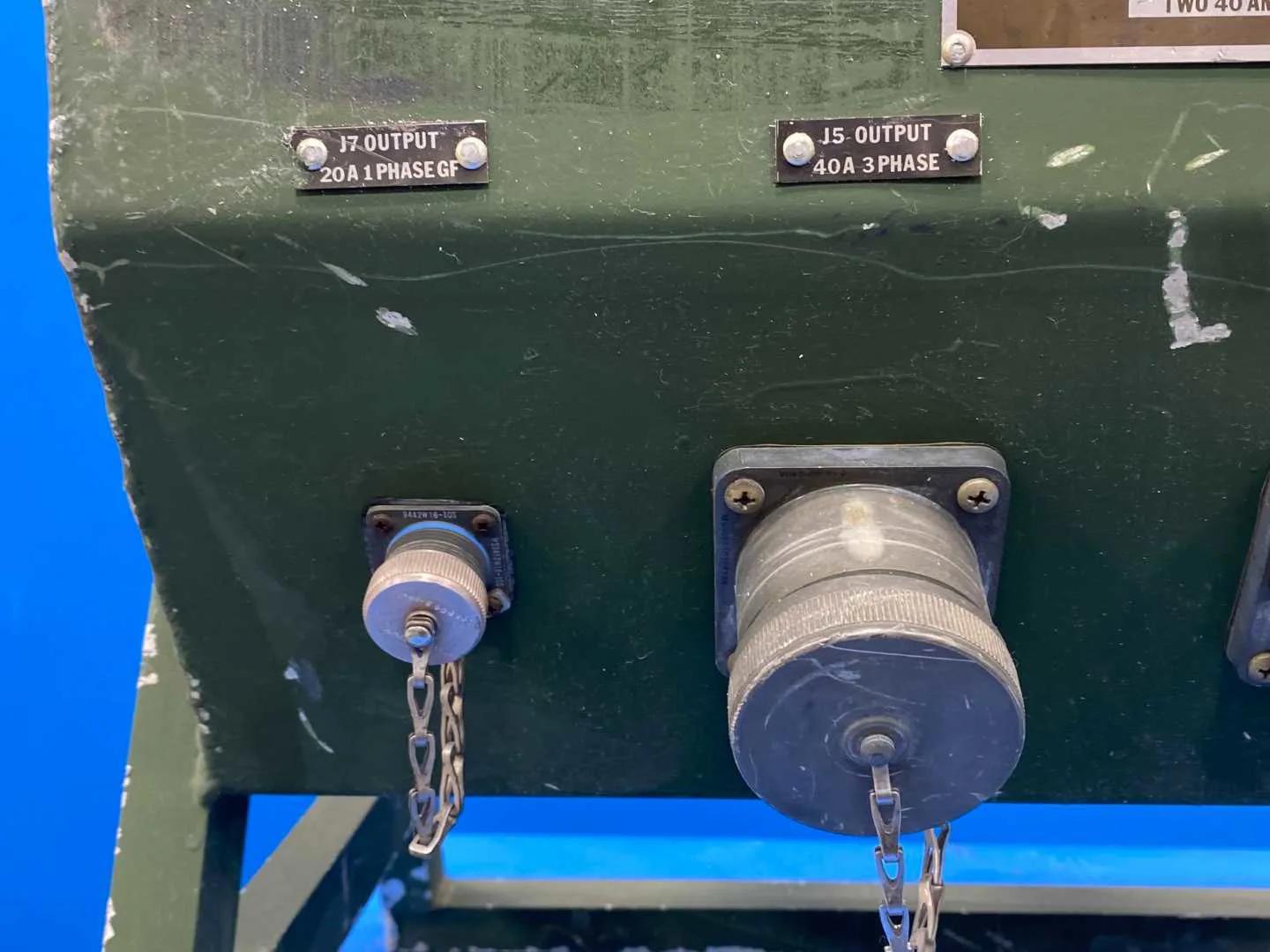

Output Circuits: One (1) 100 AMP/PH feed-through, two (2) 60 AMP/PH, two (2) 40 AMP/PH, two (2) 20 AMP

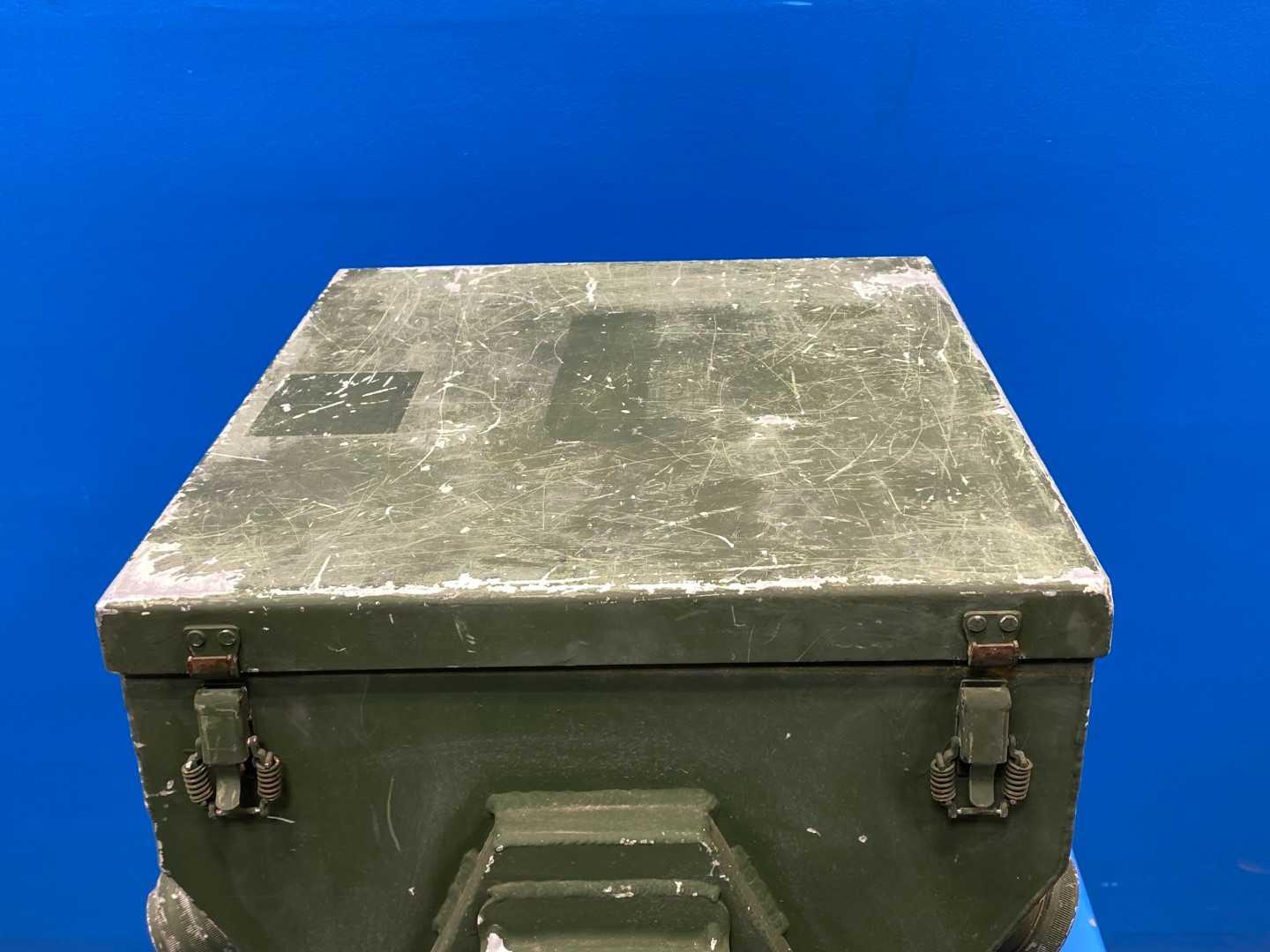

Enclosure: Steel, outdoor rated, military green finish
Condition: Used, reported to be working when removed from service
Country of Origin: United States
Specifications
Manufacturer
U.S. Army
Model
M100
Serial
17
Year
N/A
HP / AMP / KW / KVA
N/A
Amps
100
Length (Inches)
19
Width (Inches)
22
Height (Inches)
21
Phase
3
Estimated Packaging Weight
0
Estimated Total Weight
66
Asset Number
KSC1008 / 002 / 008
Packaging fees
Packaging Cost
1.5 Cardboard $30
