U.S. Army M40 Electrical Power Distribution Box 120/208V 3-Phase 40A/Phase, 12 Outputs, NSN 6150-01-208-9753
M40 Power Distribution Block Specifications: Amperage & Voltage
Electrical System Fitment for Lex Products M40
| Description | Details |
|---|---|
| Available Quantity | 1 |
| Model | M40 |
| Condition | Used |
| Manufacturer | Lex Products |
| Asset Number | KSC1008 / 002 / 009 |
| Guarantee or ASIS | 2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return |
| Inspections - Yellow Tag | 5.2 Used: Reported to be working when removed from service |
| Packaging Cost | 1.3 Cardboard $20 |
$528.00
Basic Information
Asset #
KSC1008 / 002 / 009
Available Quantity
1
Inspections - Yellow Tag
5.2 Used: Reported to be working when removed from service
Condition
Used
Guarantee or ASIS
2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return
Item Description

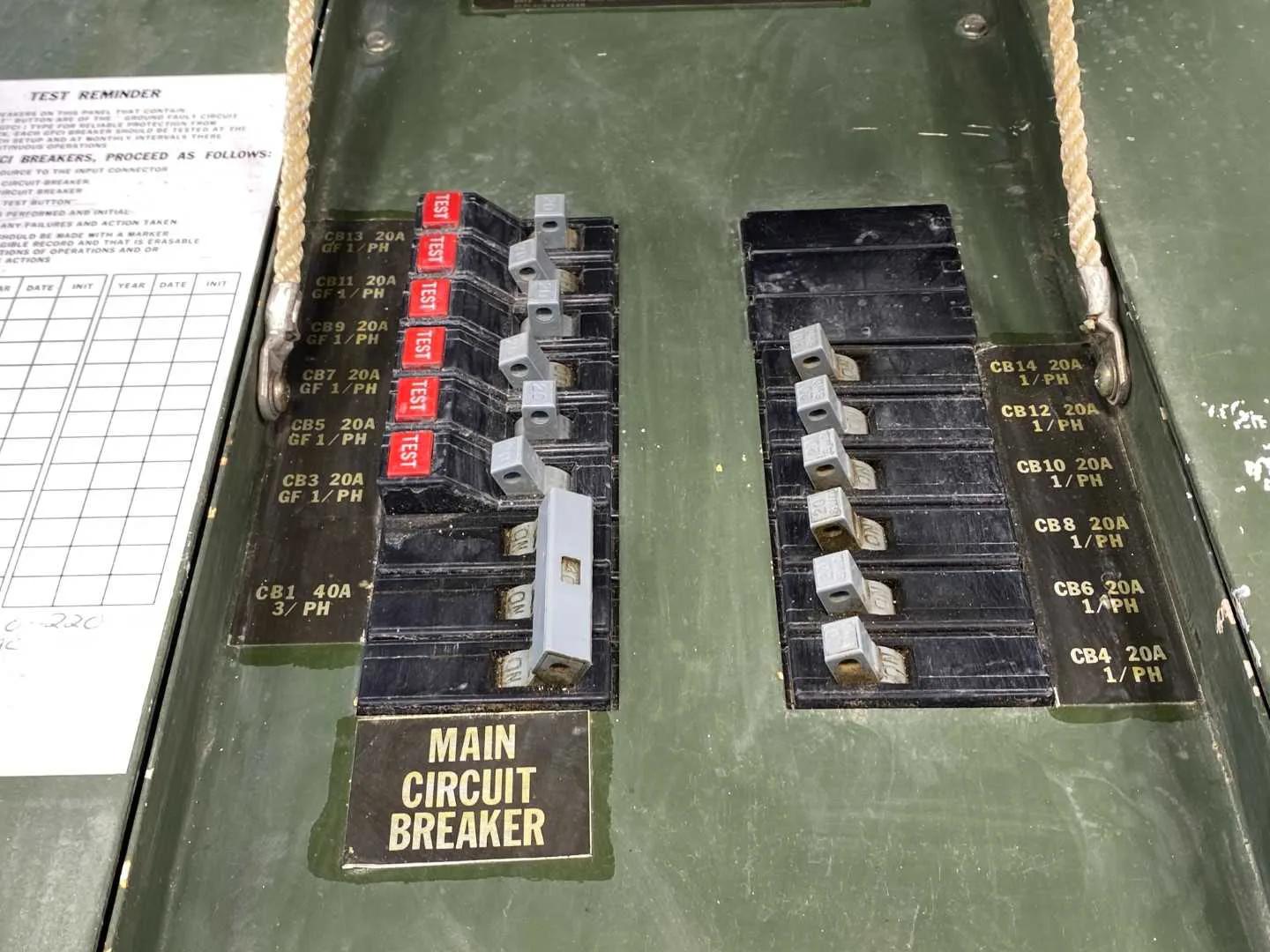

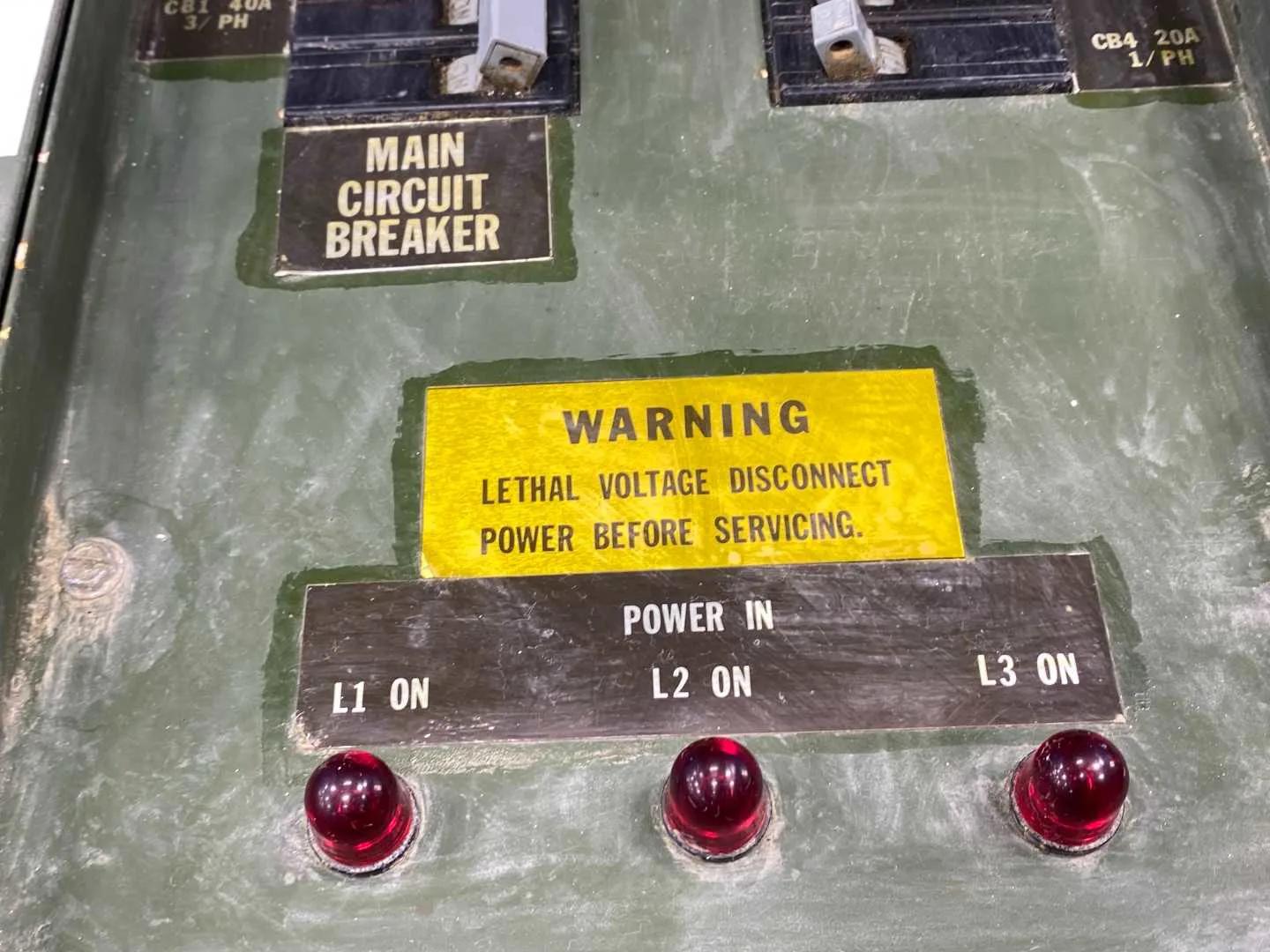

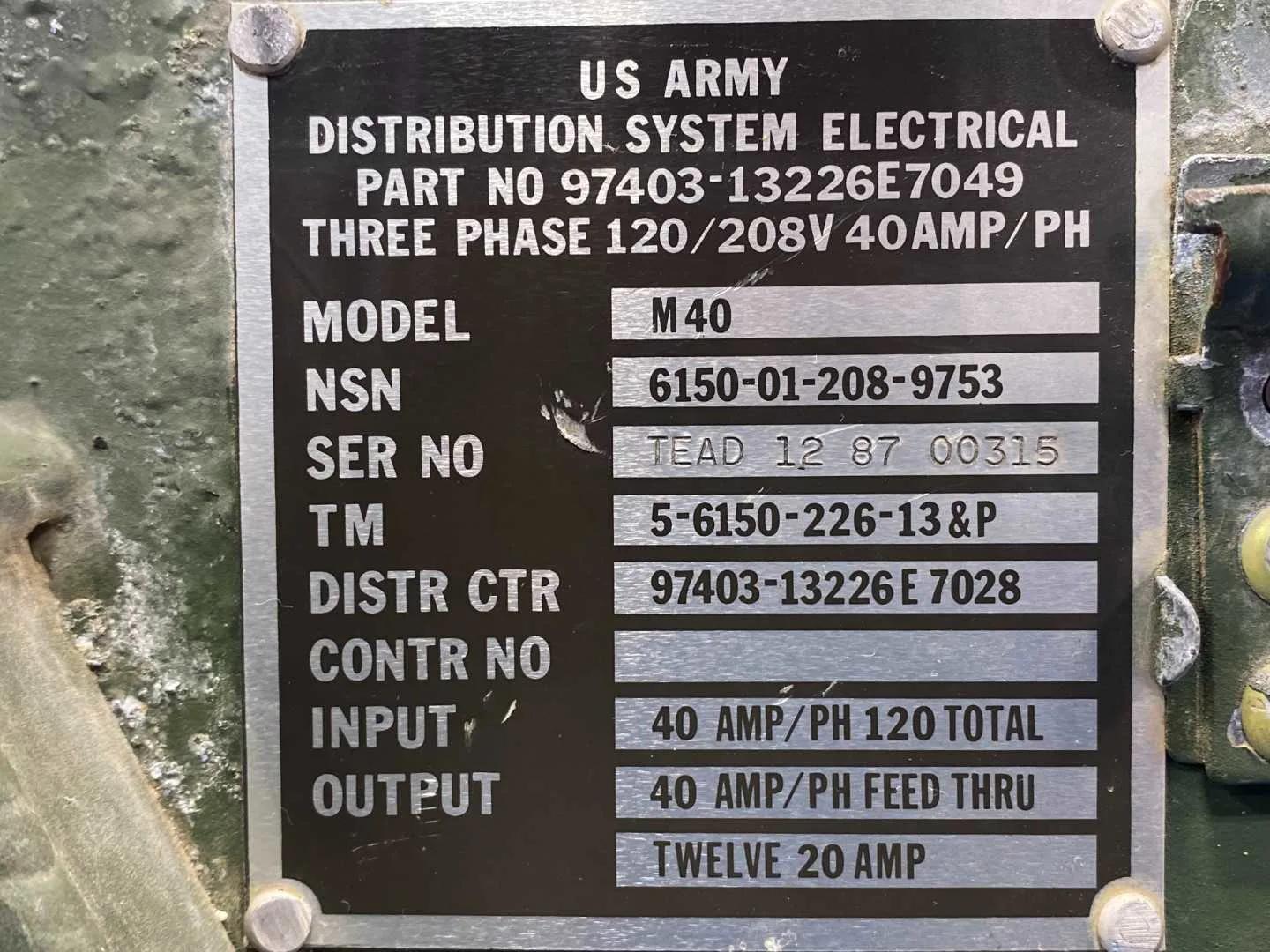

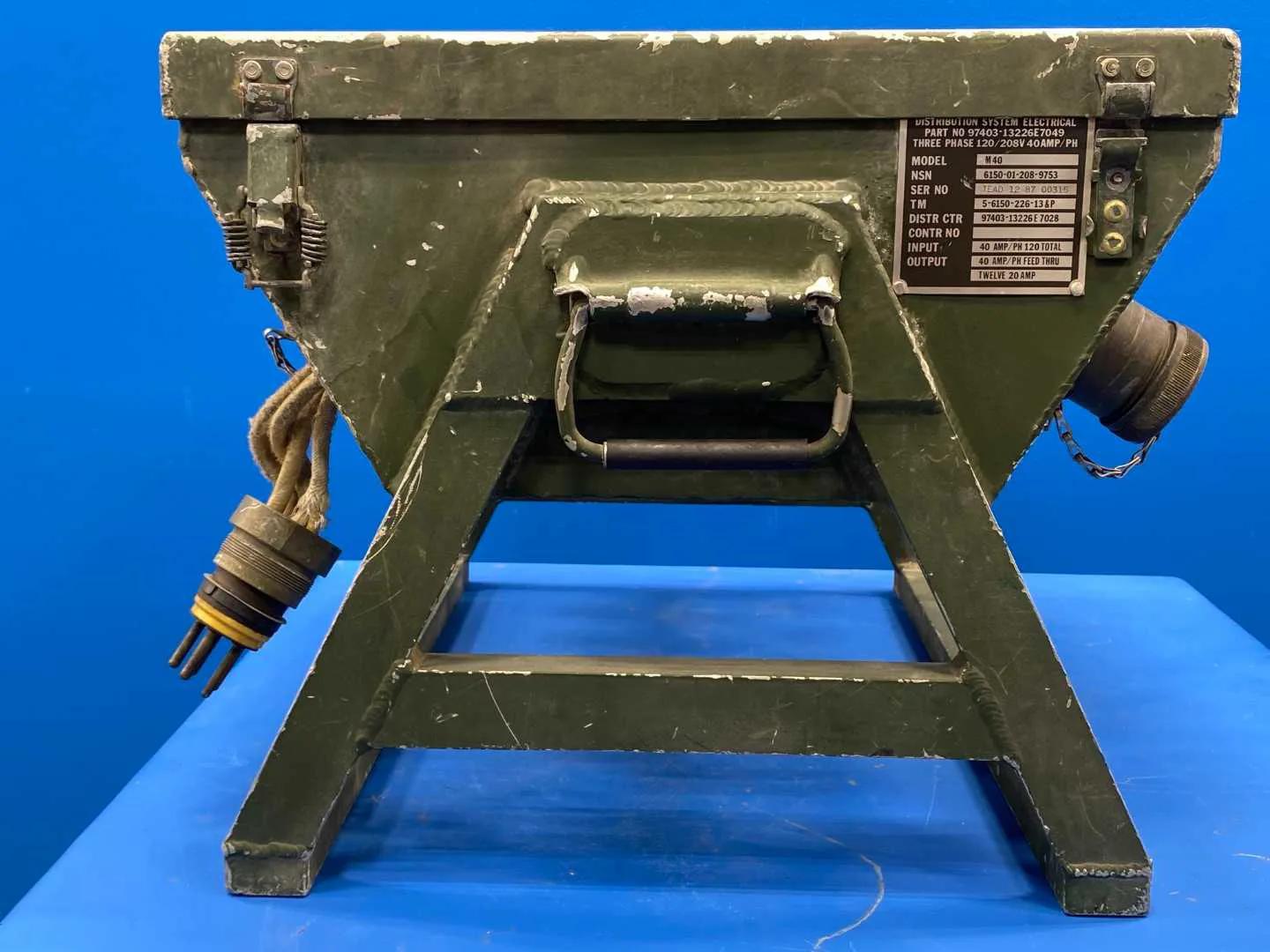

U.S. Army M40 electrical power distribution box, part of a military field distribution system: 120/208V three phase in at 40 amps per phase, feed-through output at the same rating, and twelve 20-amp single-phase branch outputs, several of them ground-fault protected. Nameplate part number 97403-13226E7049, NSN 6150-01-208-9753, technical manual TM 5-6150-226-13&P.
Boxes of this type distribute generator power across a field site: tents, shops, shelters, and equipment fed from one 3-phase source through breaker-protected branch circuits. Surplus units find second lives in mobile operations, event and film power distribution, remote job sites, disaster response, and shop power where a rugged, self-contained breaker panel with military connectors beats building one.

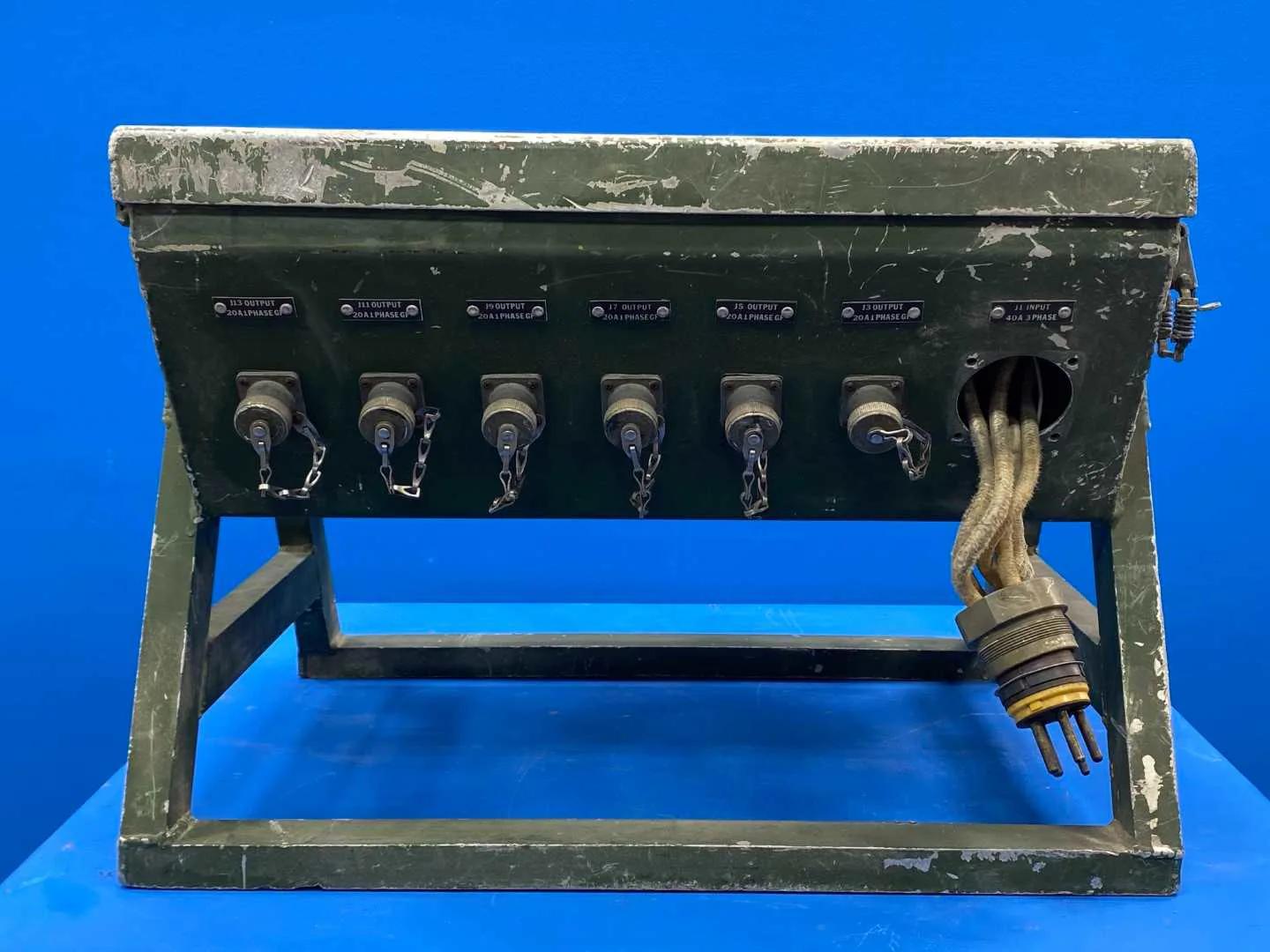

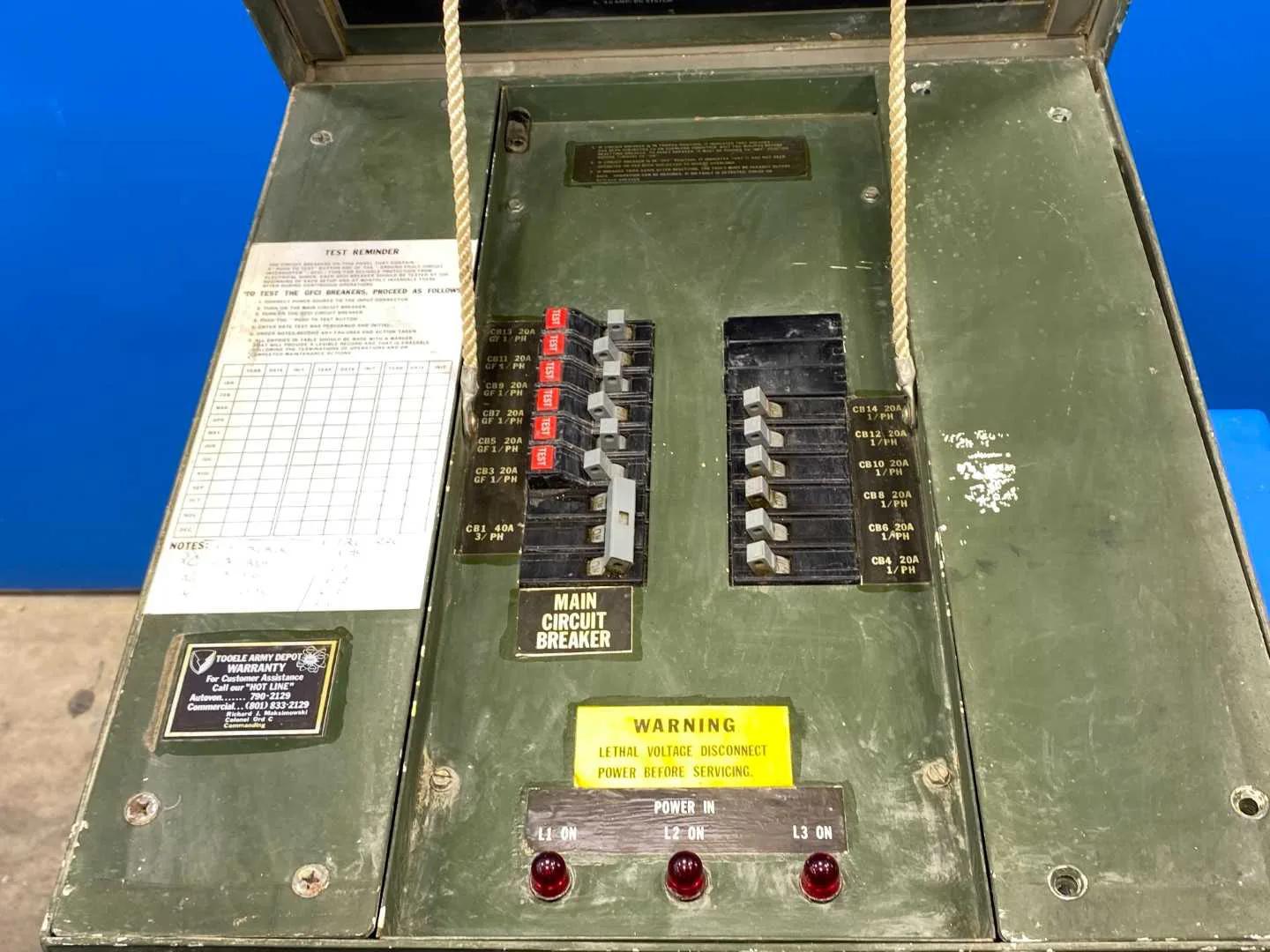

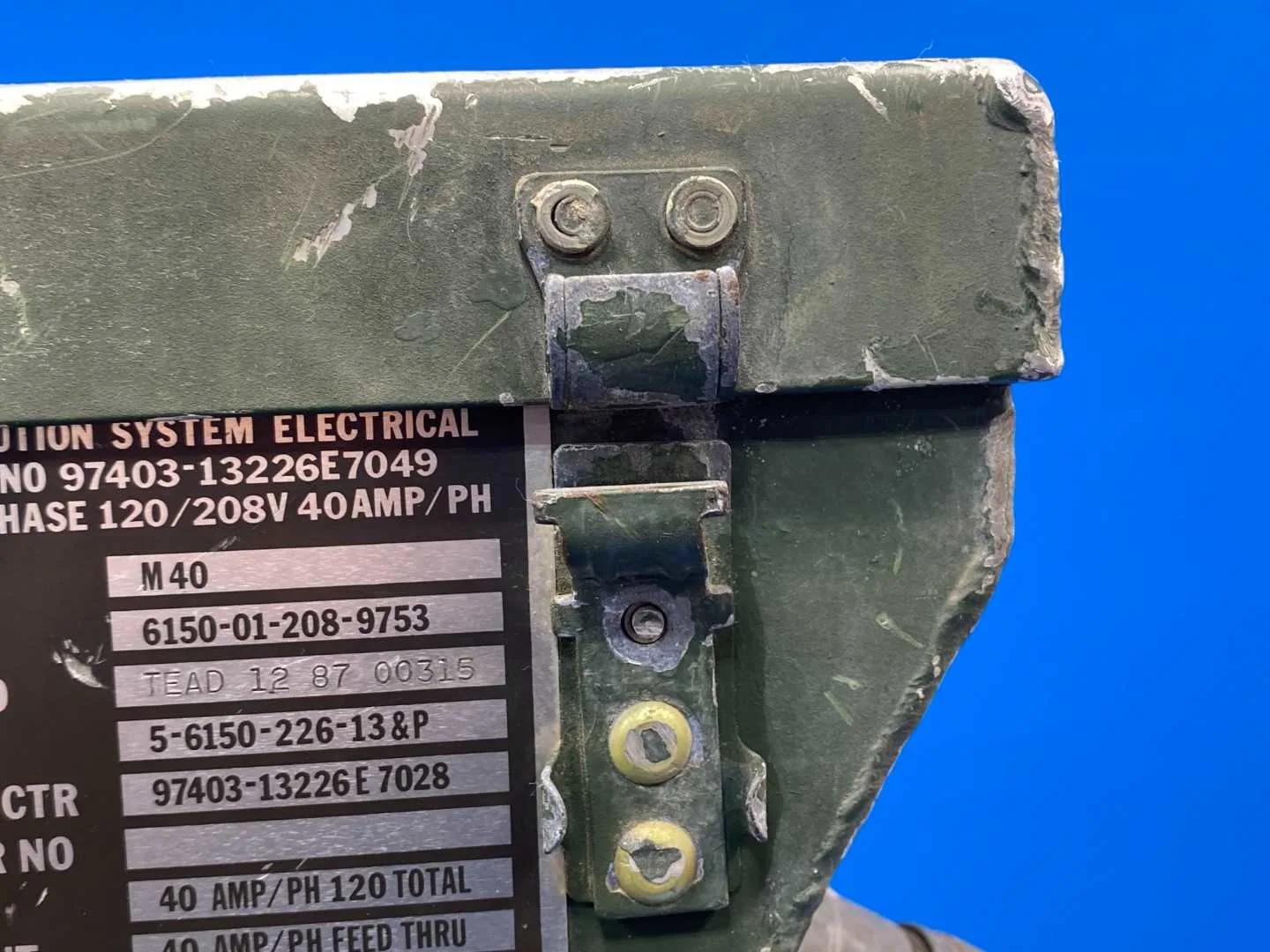

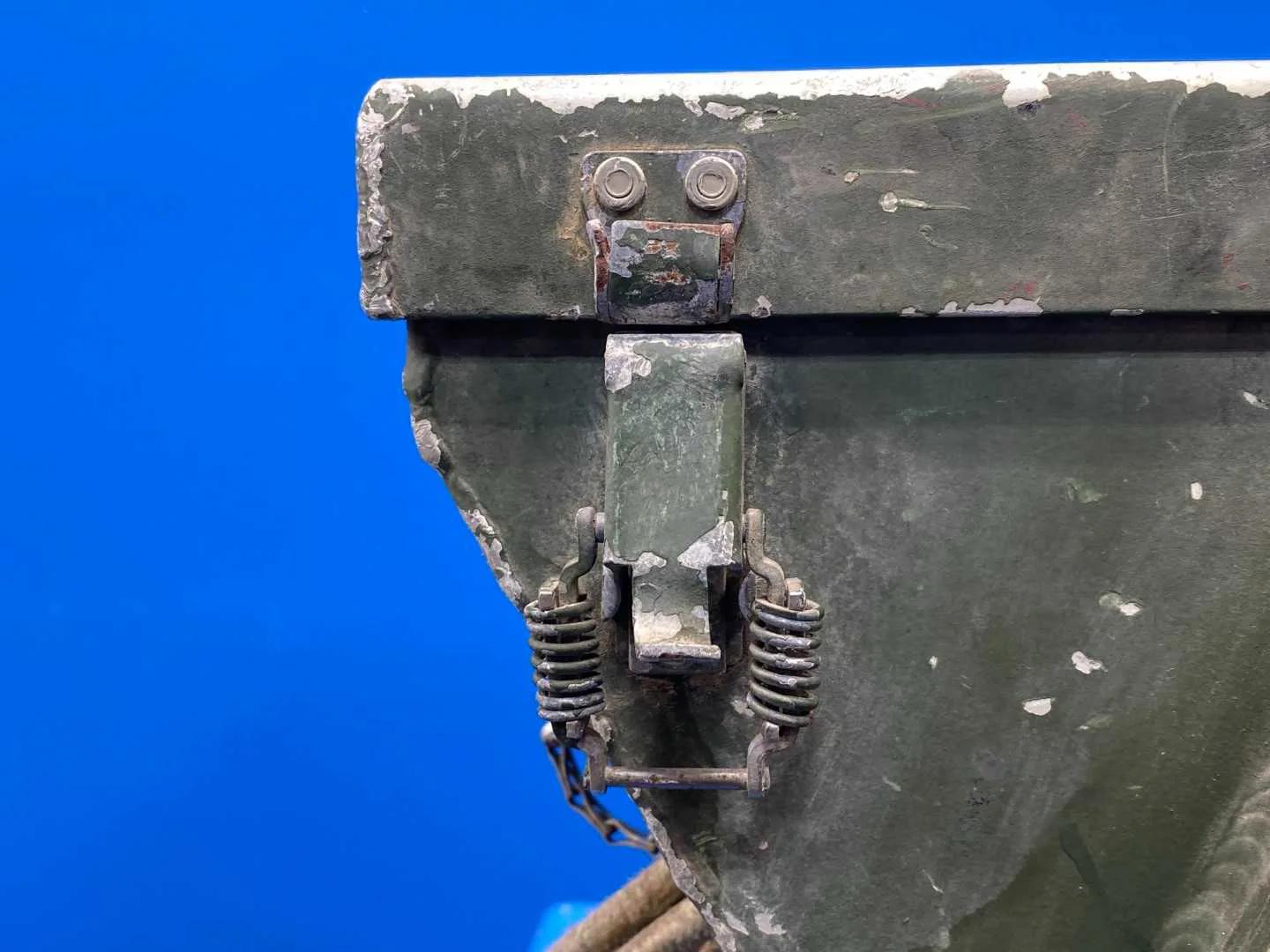

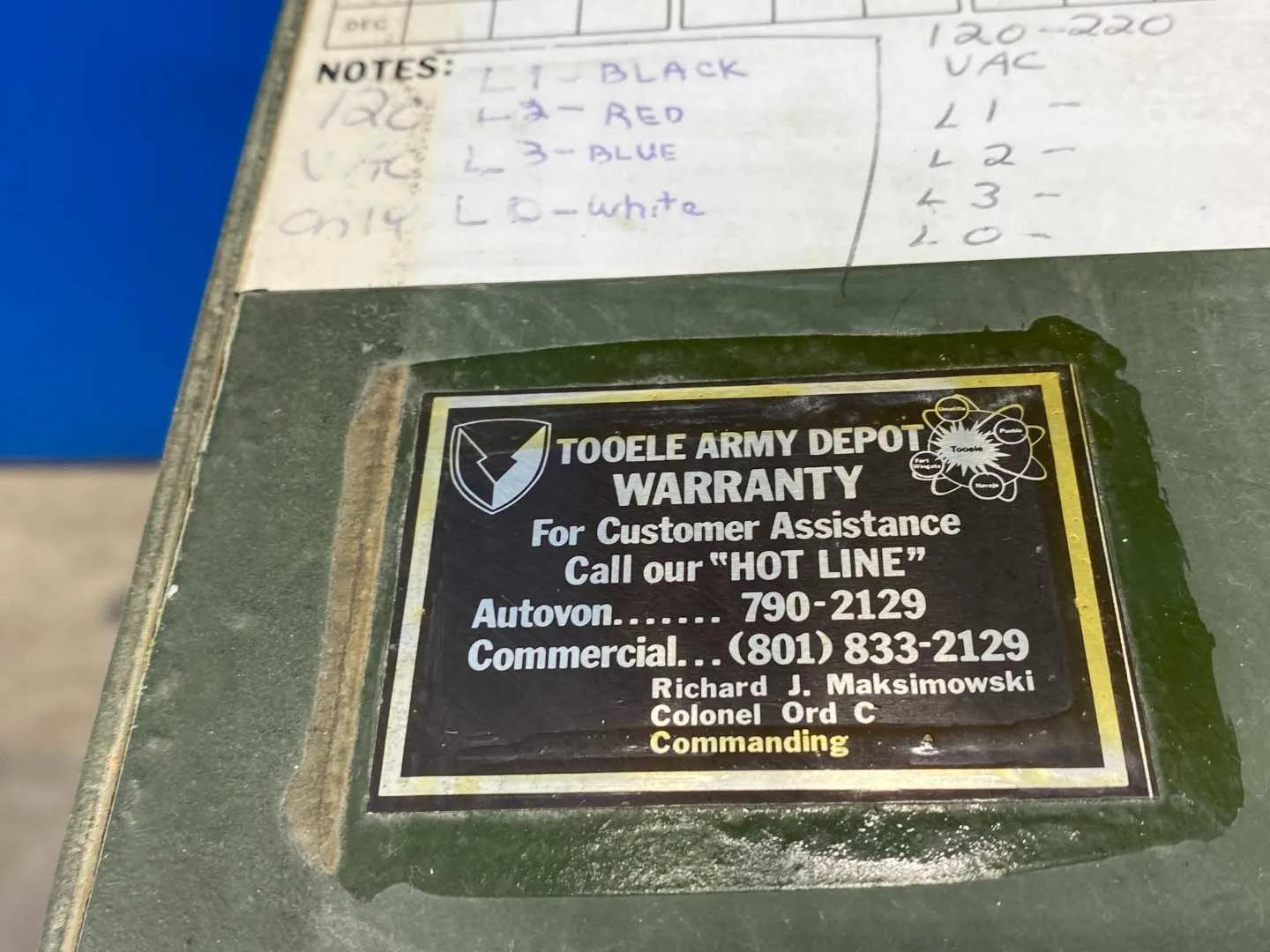

Olive-drab painted steel case with heavy paint chipping, scuffing, and surface rust on the hinges and latch hardware; well used but structurally intact. Reported to be working when removed from service, and carries a Tooele Army Depot warranty plate from its service life.
Sold as-is, surplus from King Surplus inventory in Del Rio, Texas. Same-day shipping on orders before 3:00 PM CT.
Factory Information
- Origin: U.S. Army (no commercial manufacturer named on the nameplate)
- Model: M40
- Serial: TEAD 12 87 00315
- Part Number: 97403-13226E7049
- NSN: 6150-01-208-9753
- Technical Manual: TM 5-6150-226-13&P
- Distribution Center Reference: 97403-13226E7028
- Type: Electrical power distribution box
- Voltage: 120/208V
- Phase: Three phase

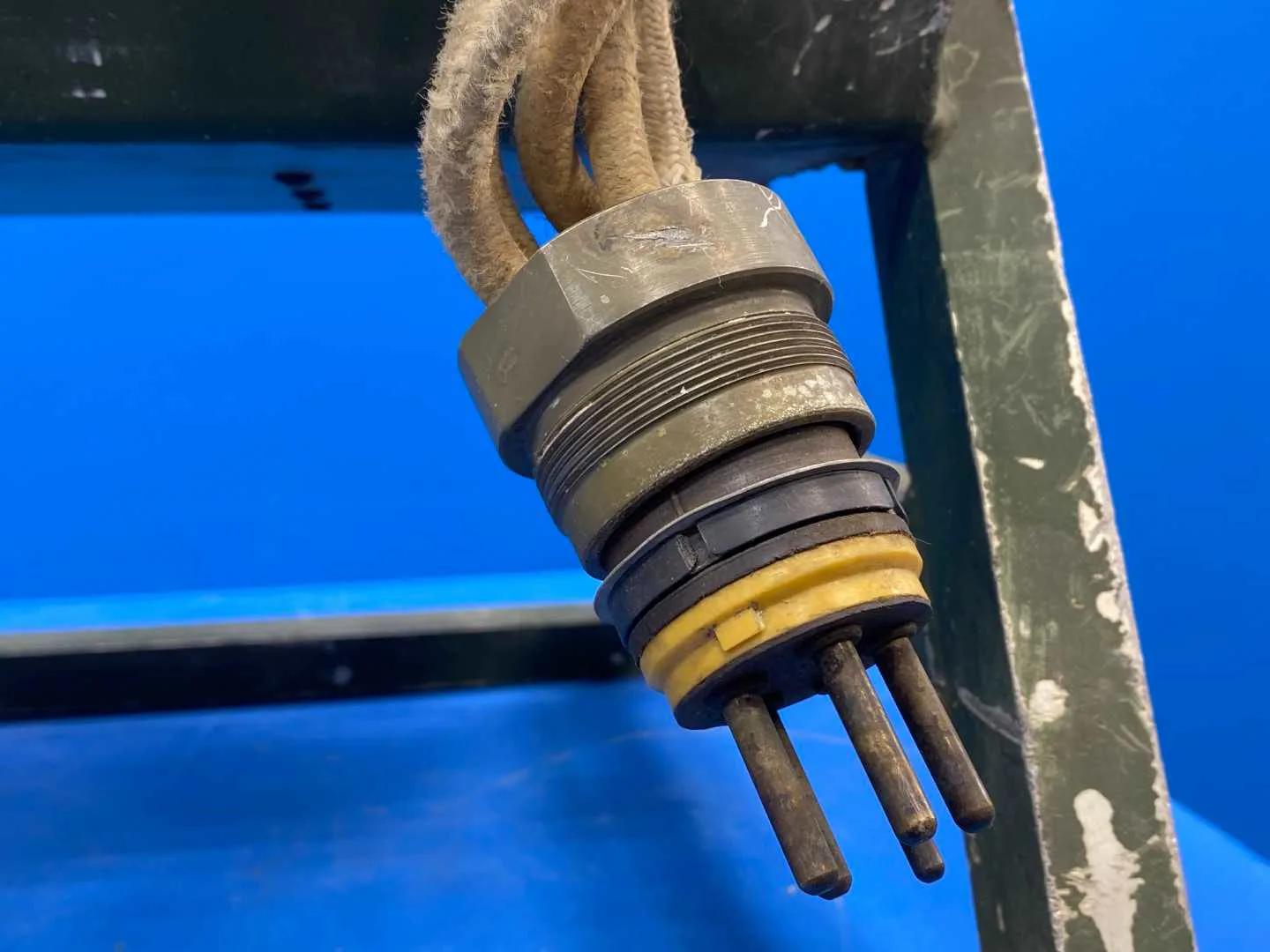

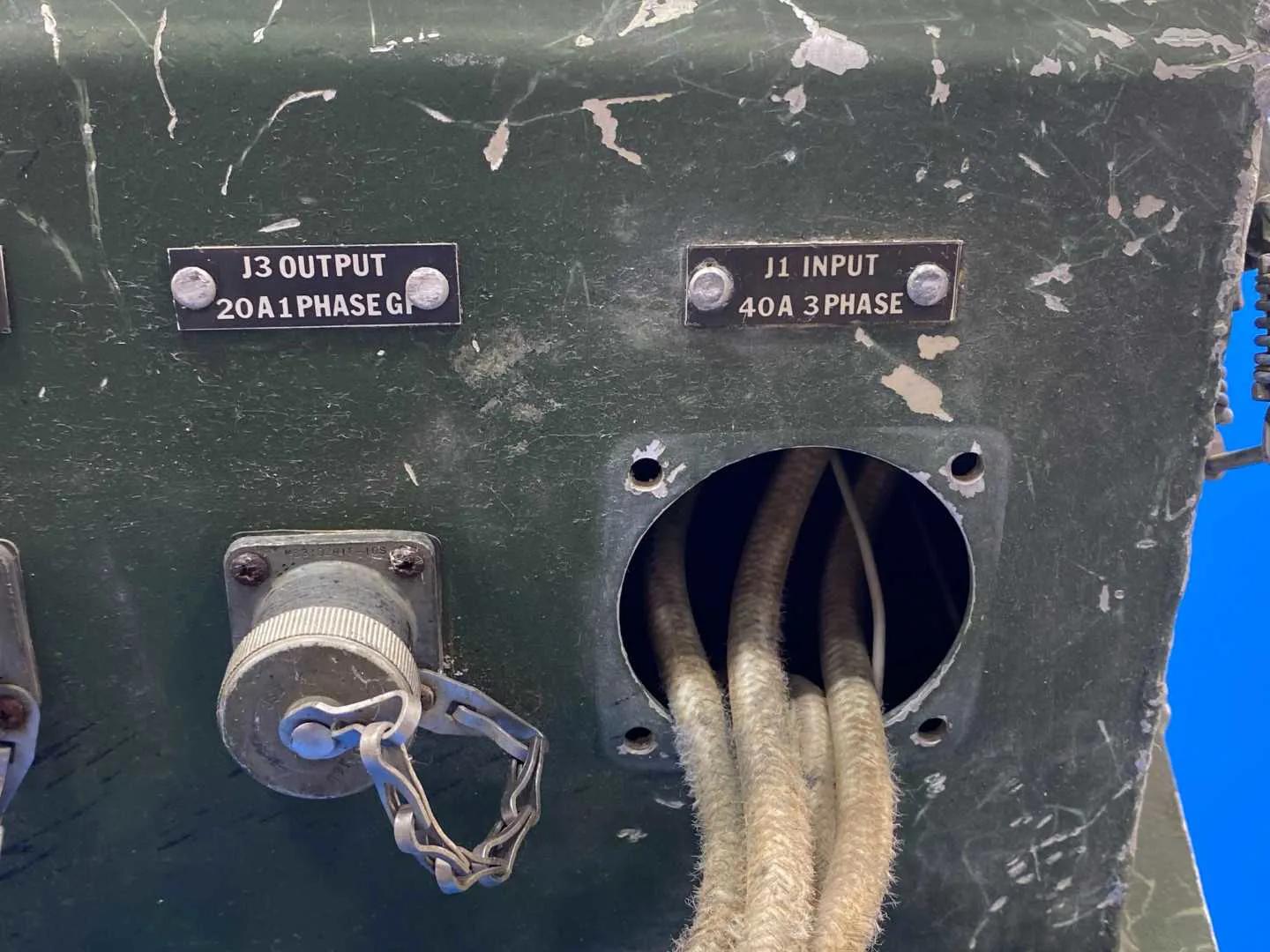

- Input (J1): 40 A per phase, 3 phase

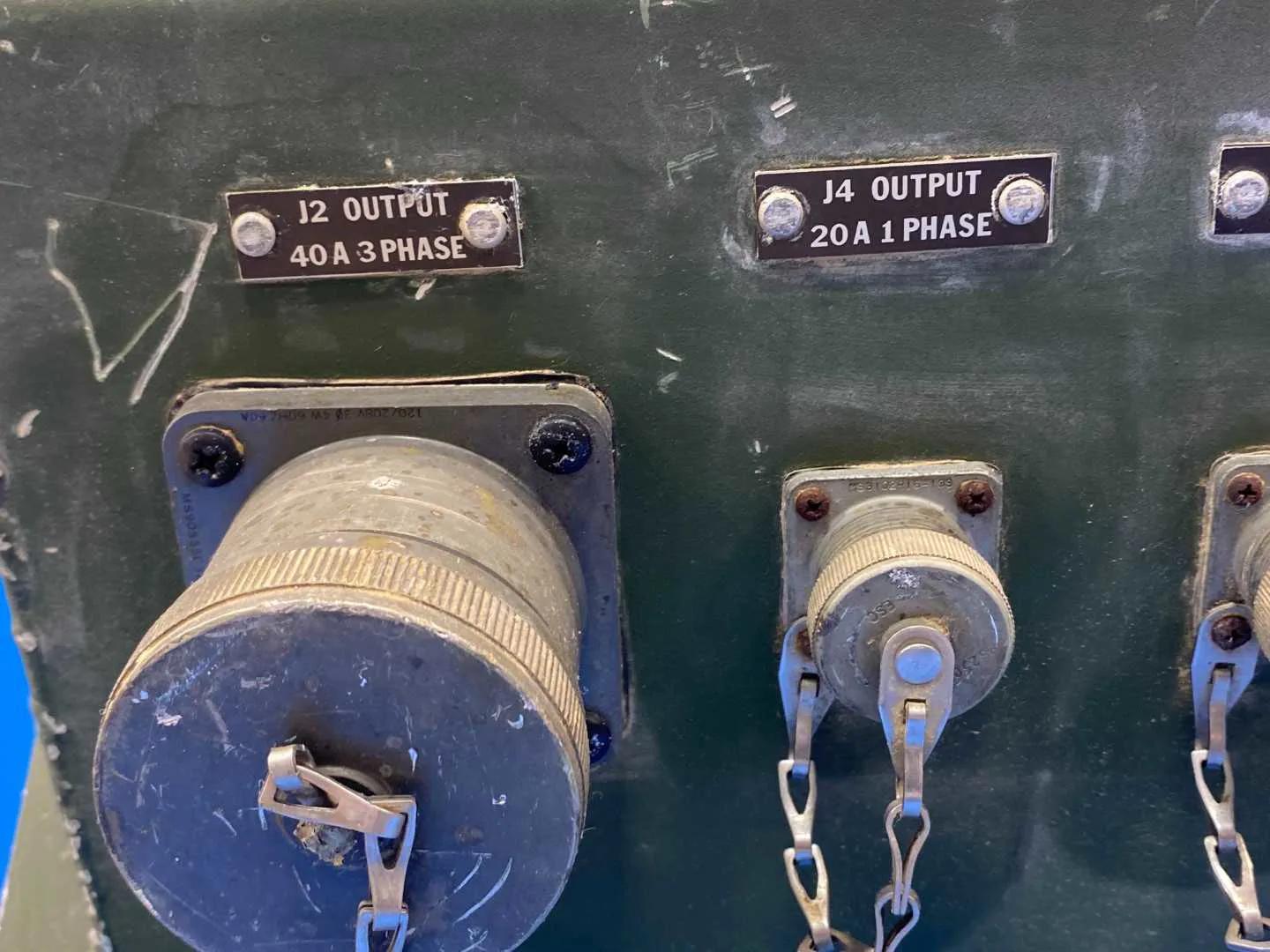

- Output (J2): 40 A per phase, 3 phase feed-through

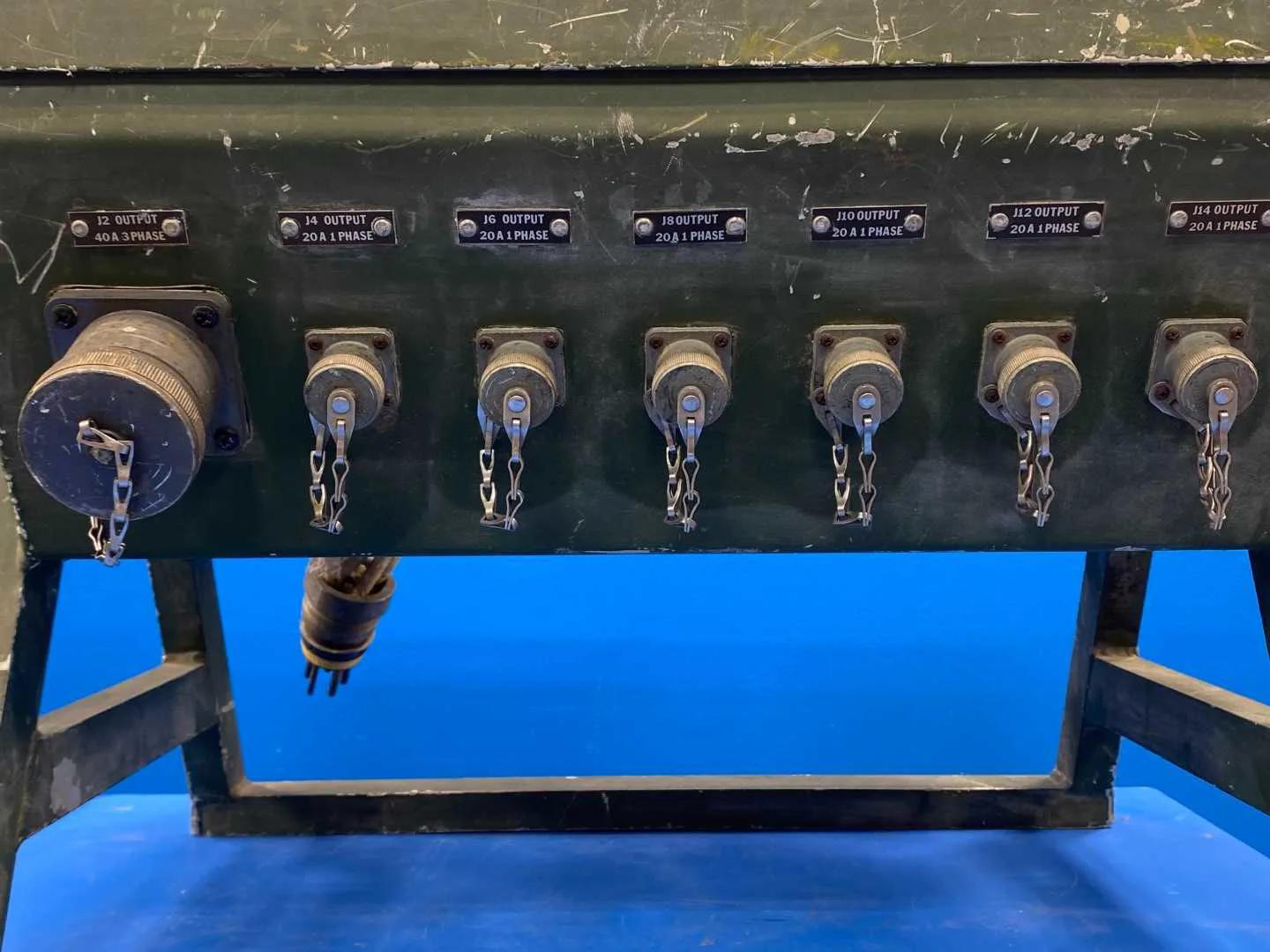

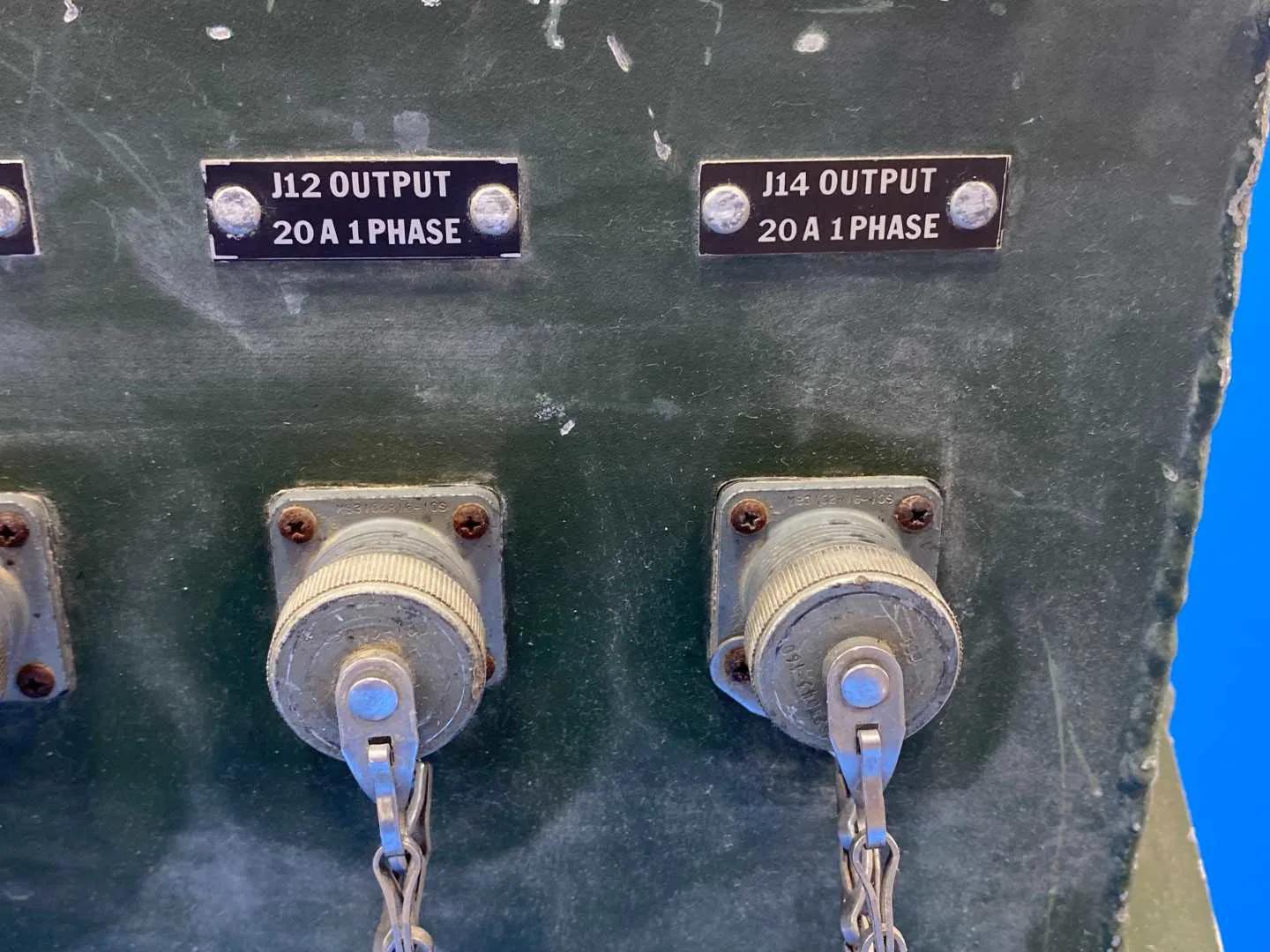

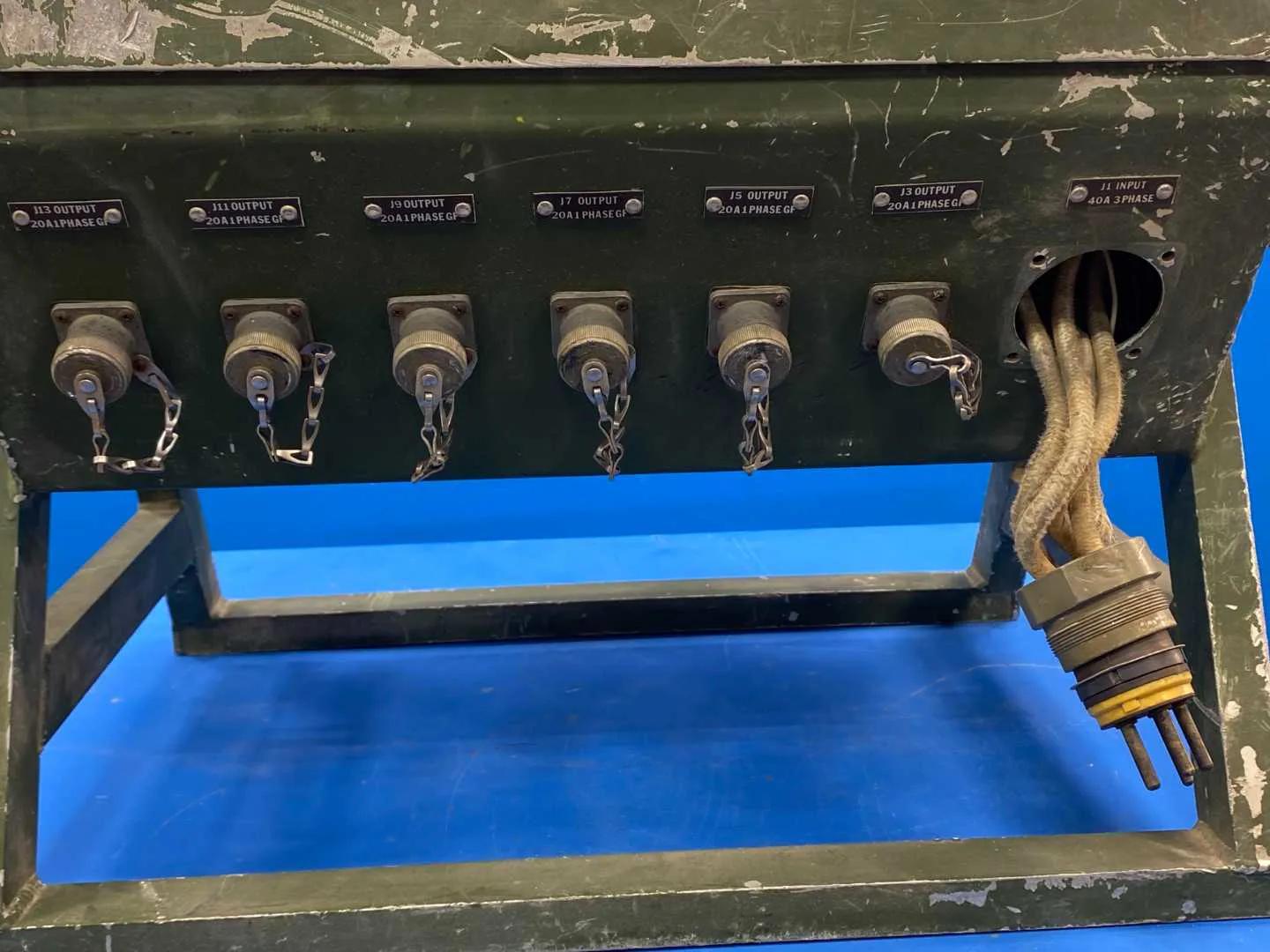

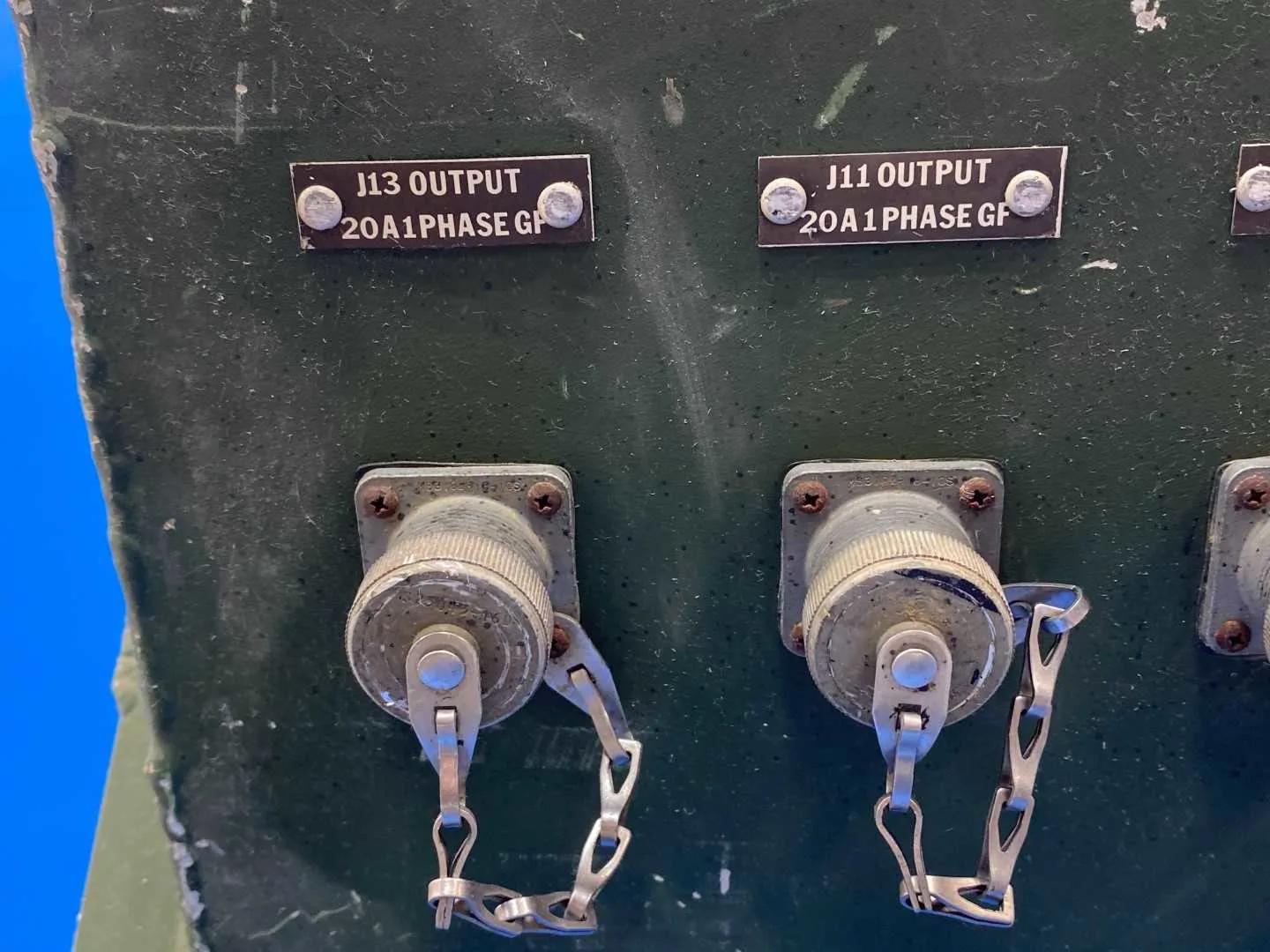

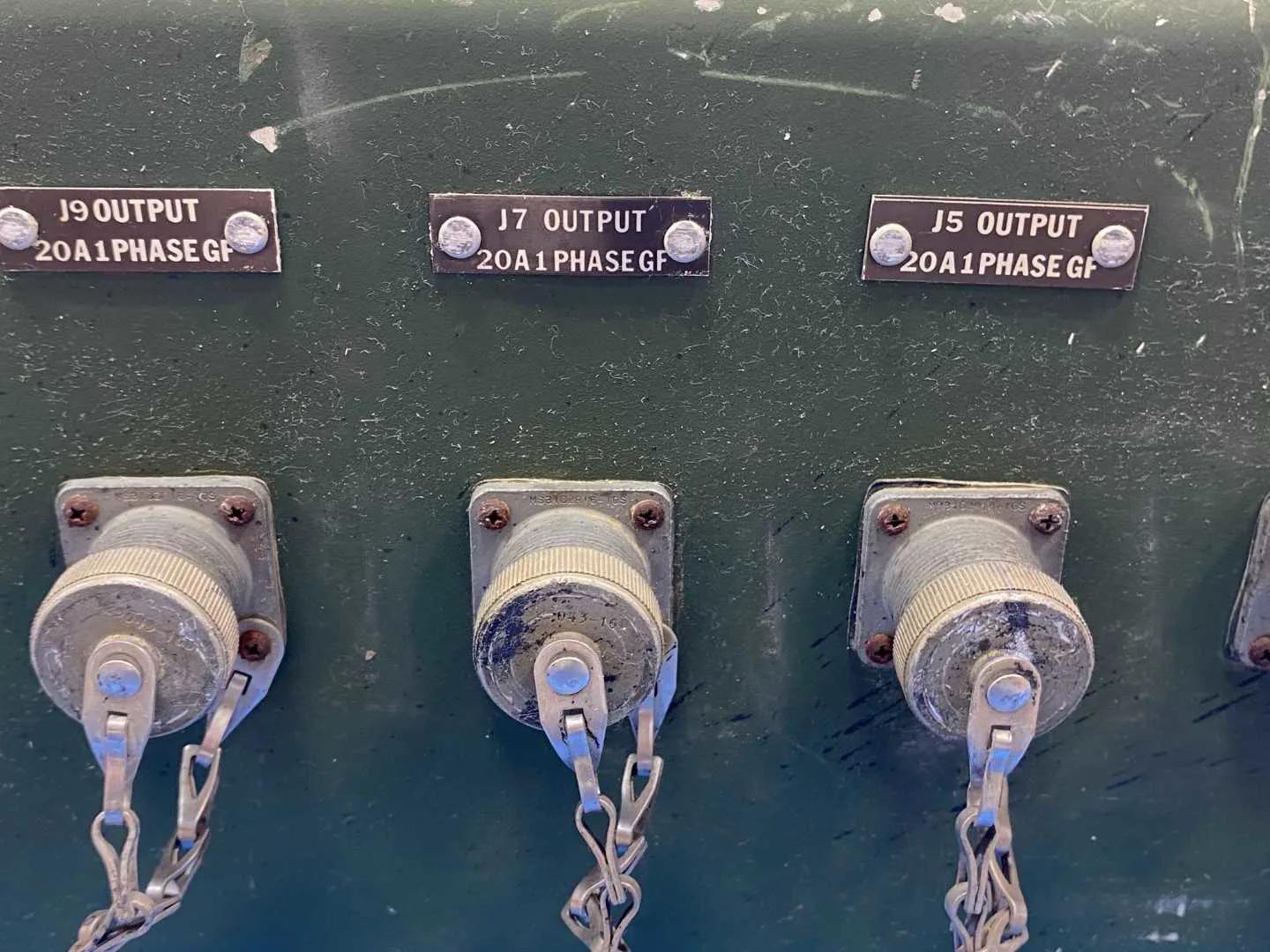

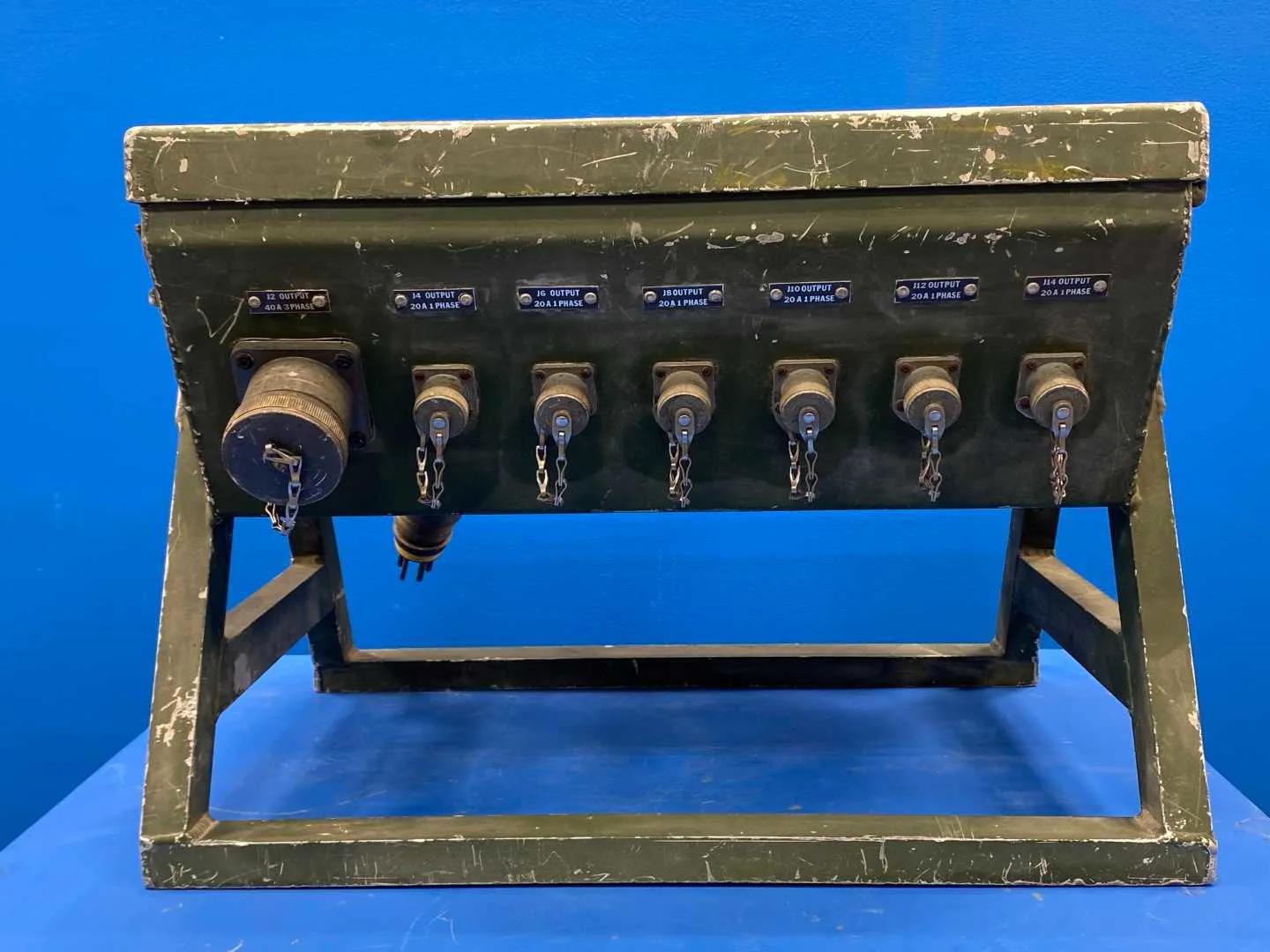

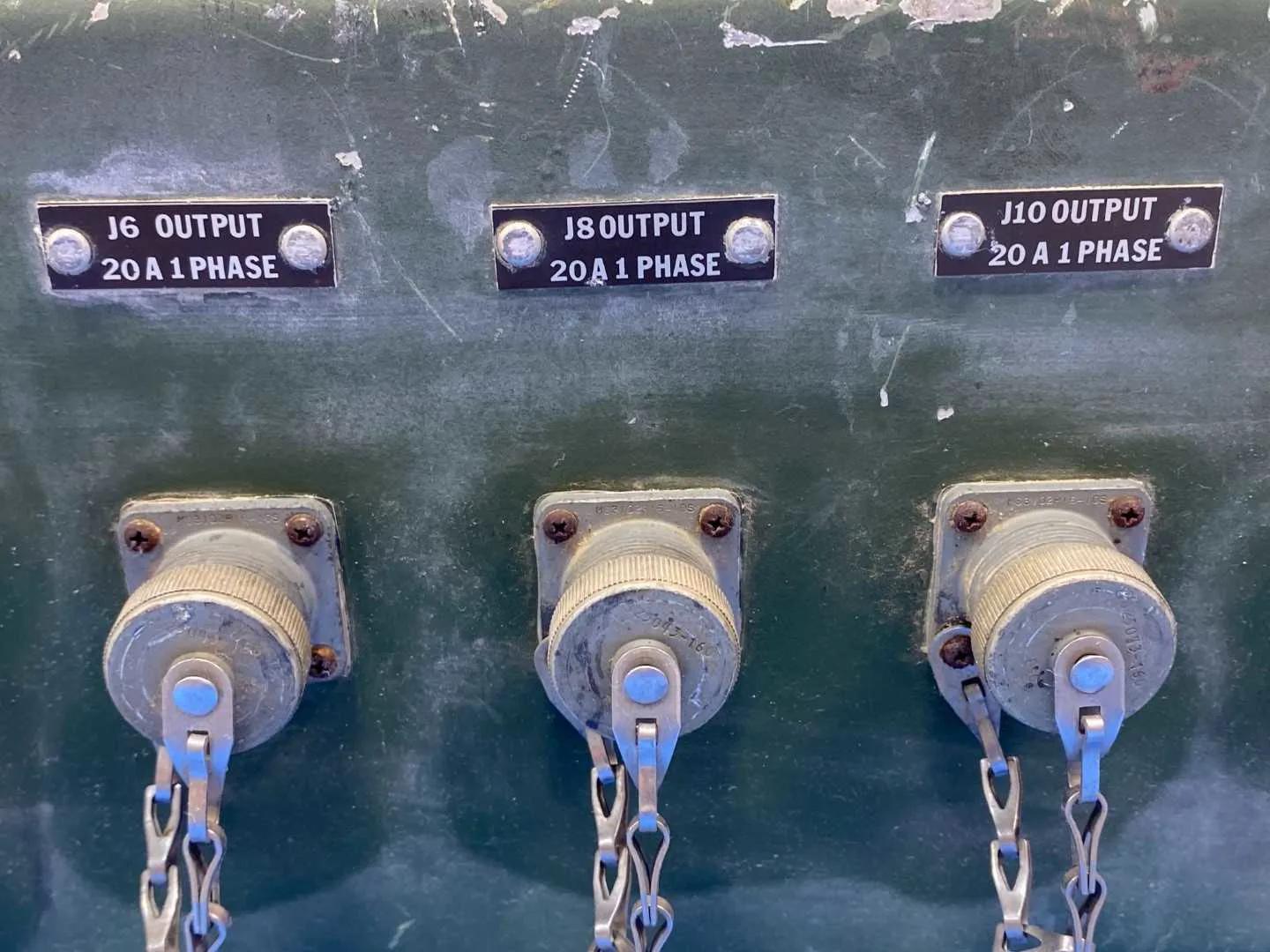

- Outputs (J3-J14): Twelve 20 A single phase (several marked GF)

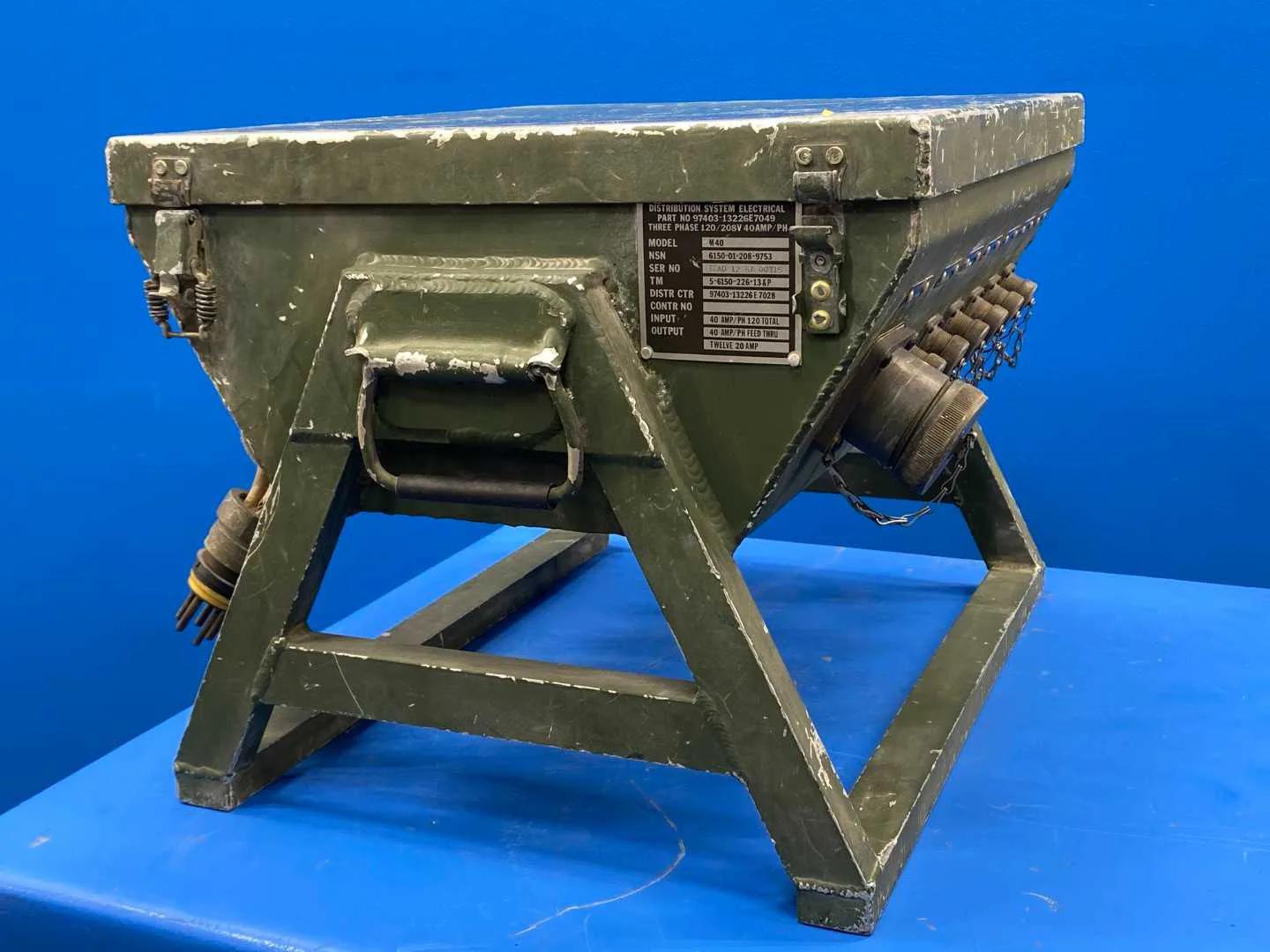

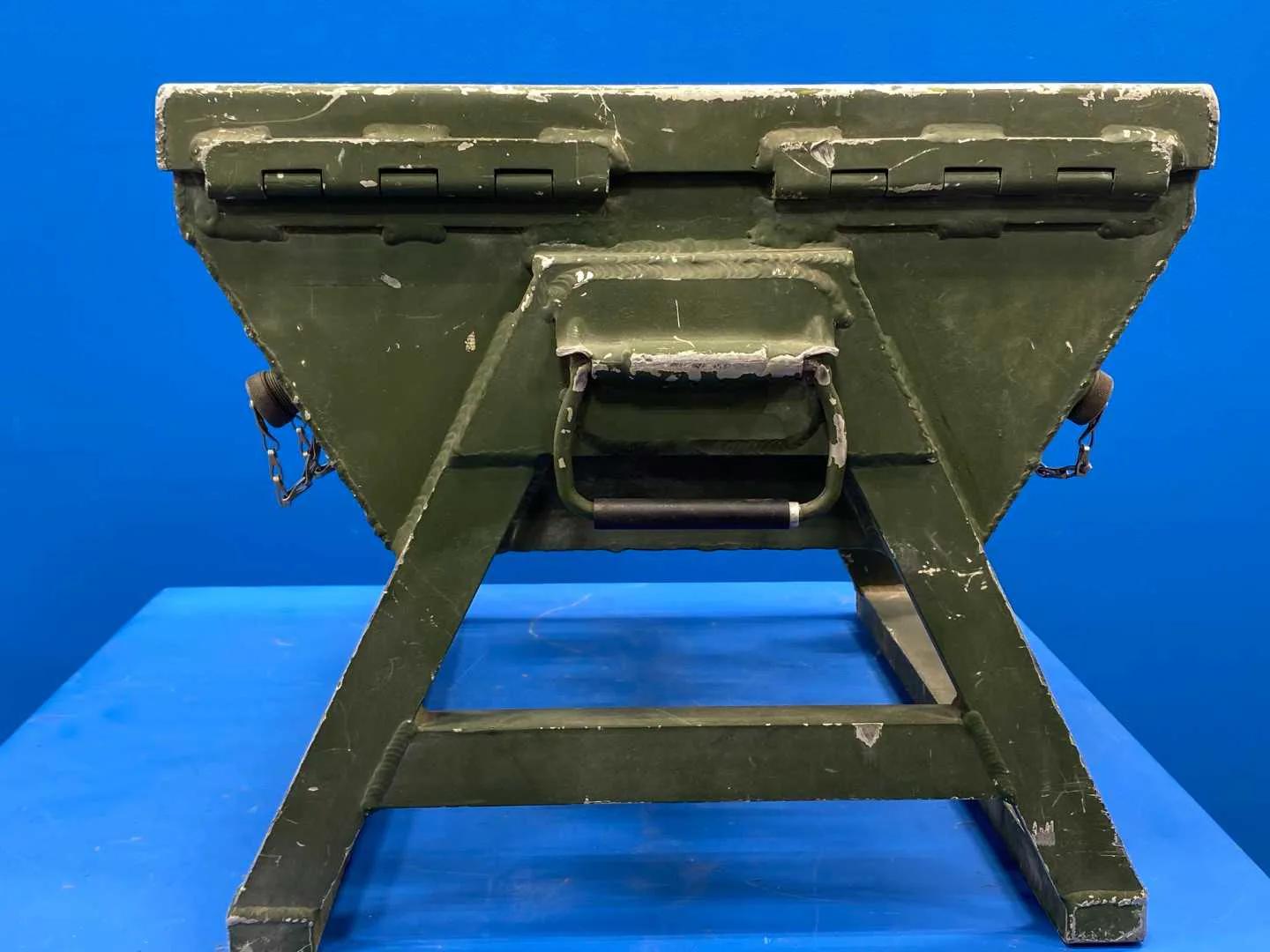

- Case: Olive-drab painted steel
- Dimensions: 19 x 22 x 17 in
- Weight: 50 lb
