TE Connectivity V23230-D2001-X004 (68420491AA) High Current Relay, 12V Coil, Normally Closed, Monostable
V23230-D2001-X004 Relay Specifications: Coil Voltage, Contacts & Base
Socket & Interchange Compatibility for TE Connectivity V23230-D2001-X004
| Description | Details |
|---|---|
| Available Quantity | 1 |
| Model | V23230-D2001-X004 |
| Condition | New |
| Manufacturer | TE Connectivity |
| Asset Number | KSCU / 1127 |
| Guarantee or ASIS | 1. HIGH CONFIDENCE ITEM: We will offer a 100% 14 Day money back less S&H. |
| Inspections - Yellow Tag | 1. New in Box |
| Packaging Cost | 1.6 6x10 CH $3.00 |
$69.95
Basic Information
Asset #
KSCU / 1127
Available Quantity
1
Inspections - Yellow Tag
1. New in Box
Condition
New
Guarantee or ASIS
1. HIGH CONFIDENCE ITEM: We will offer a 100% 14 Day money back less S&H.
Item Description

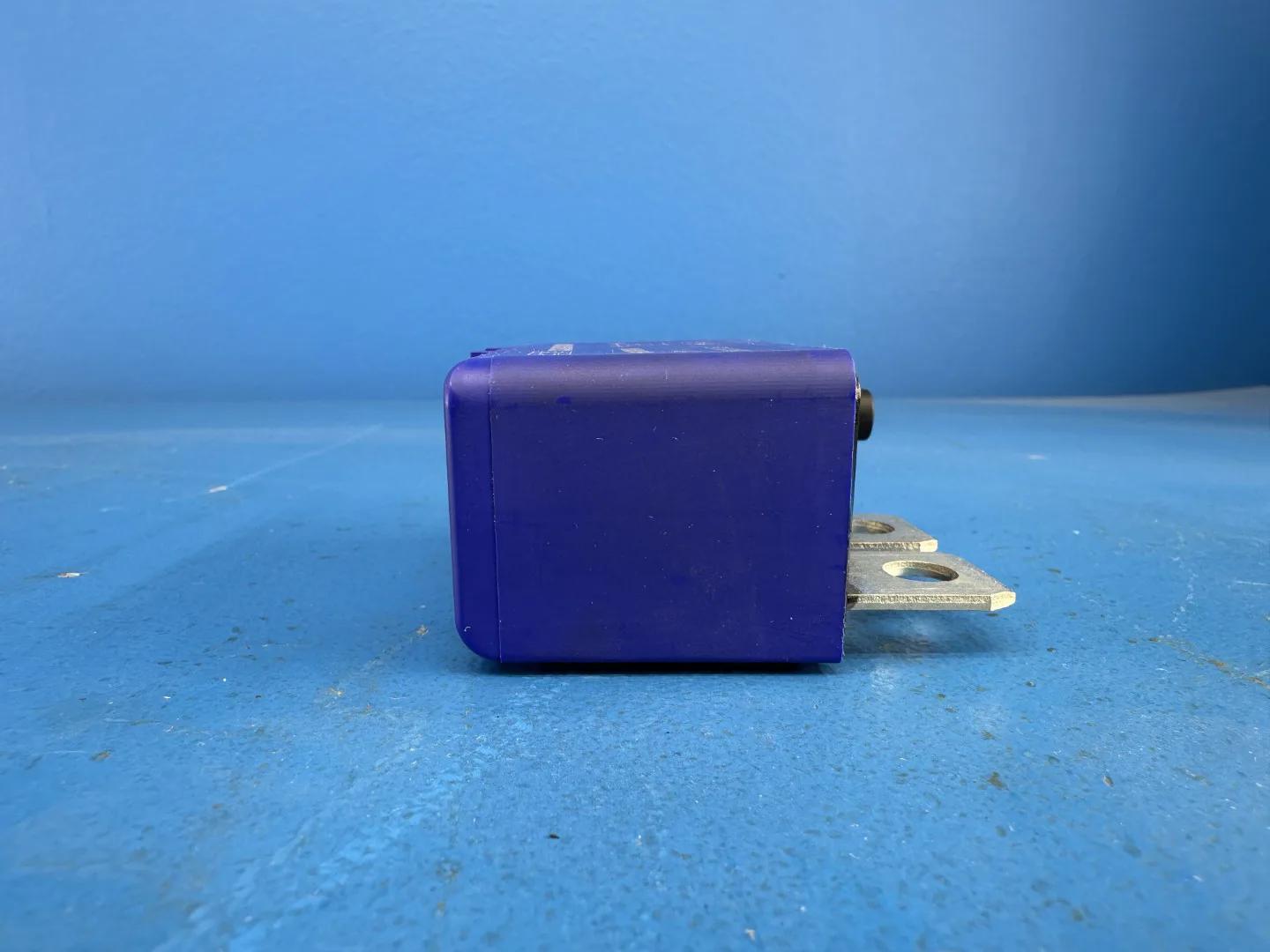

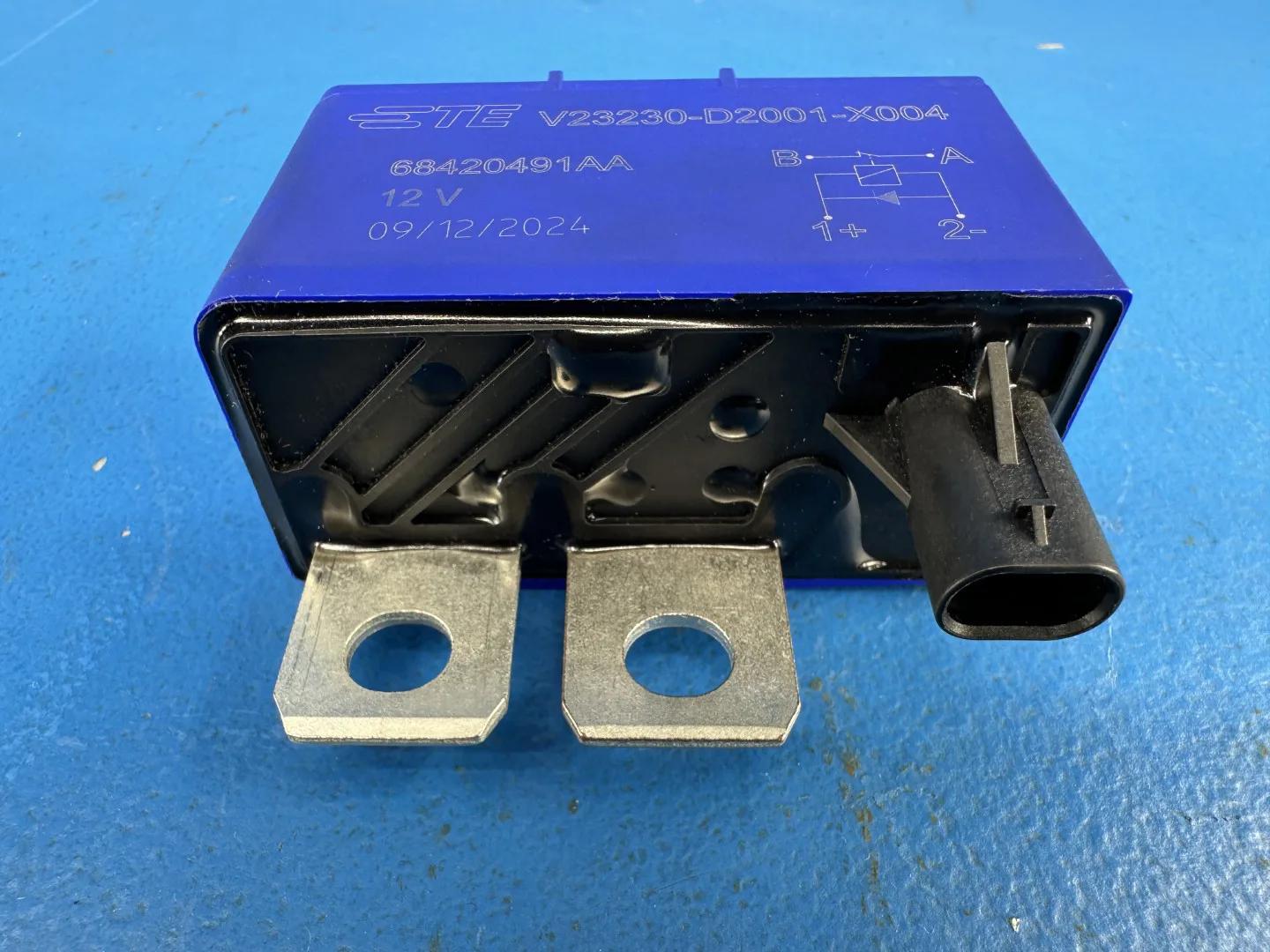

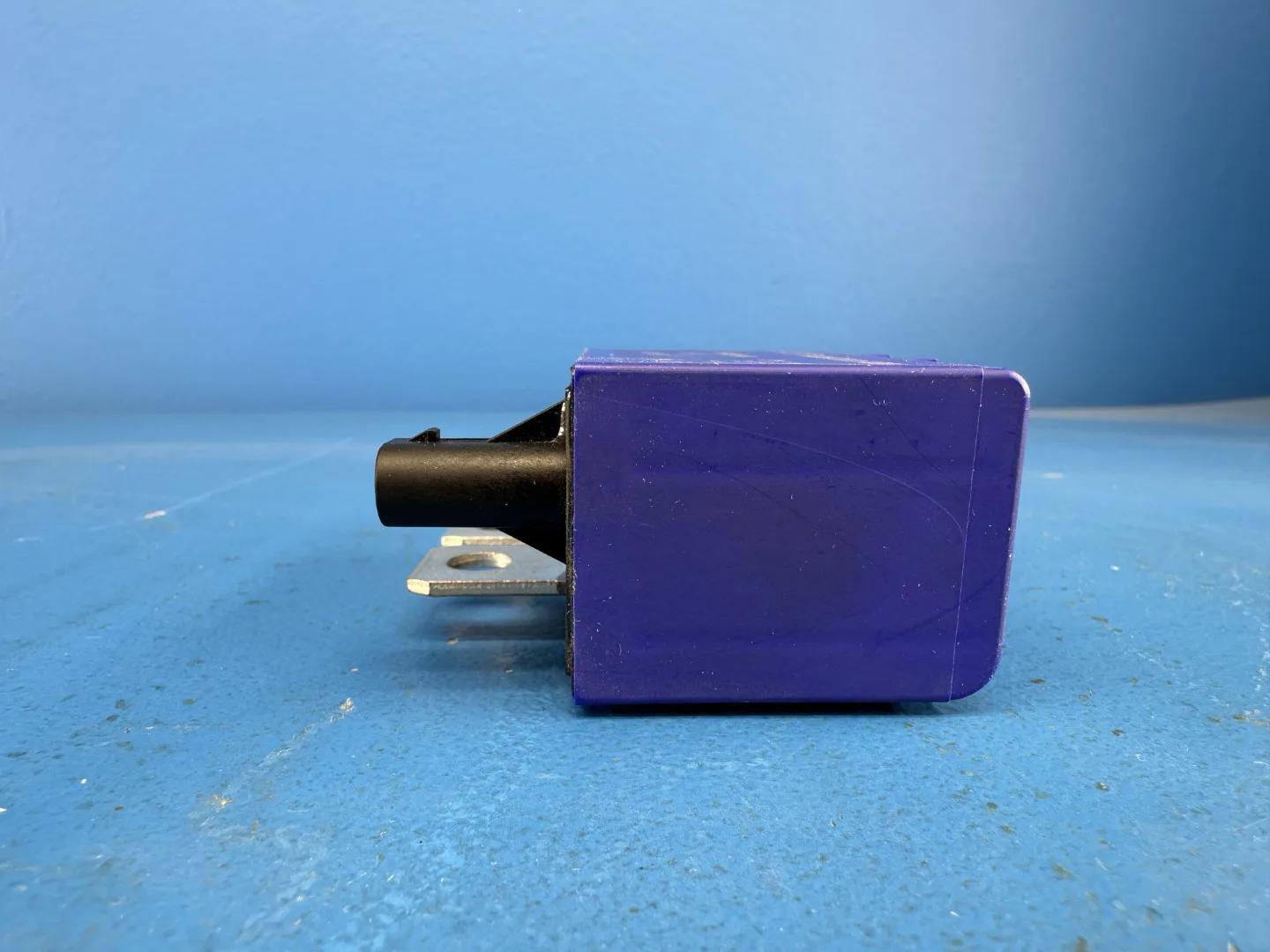

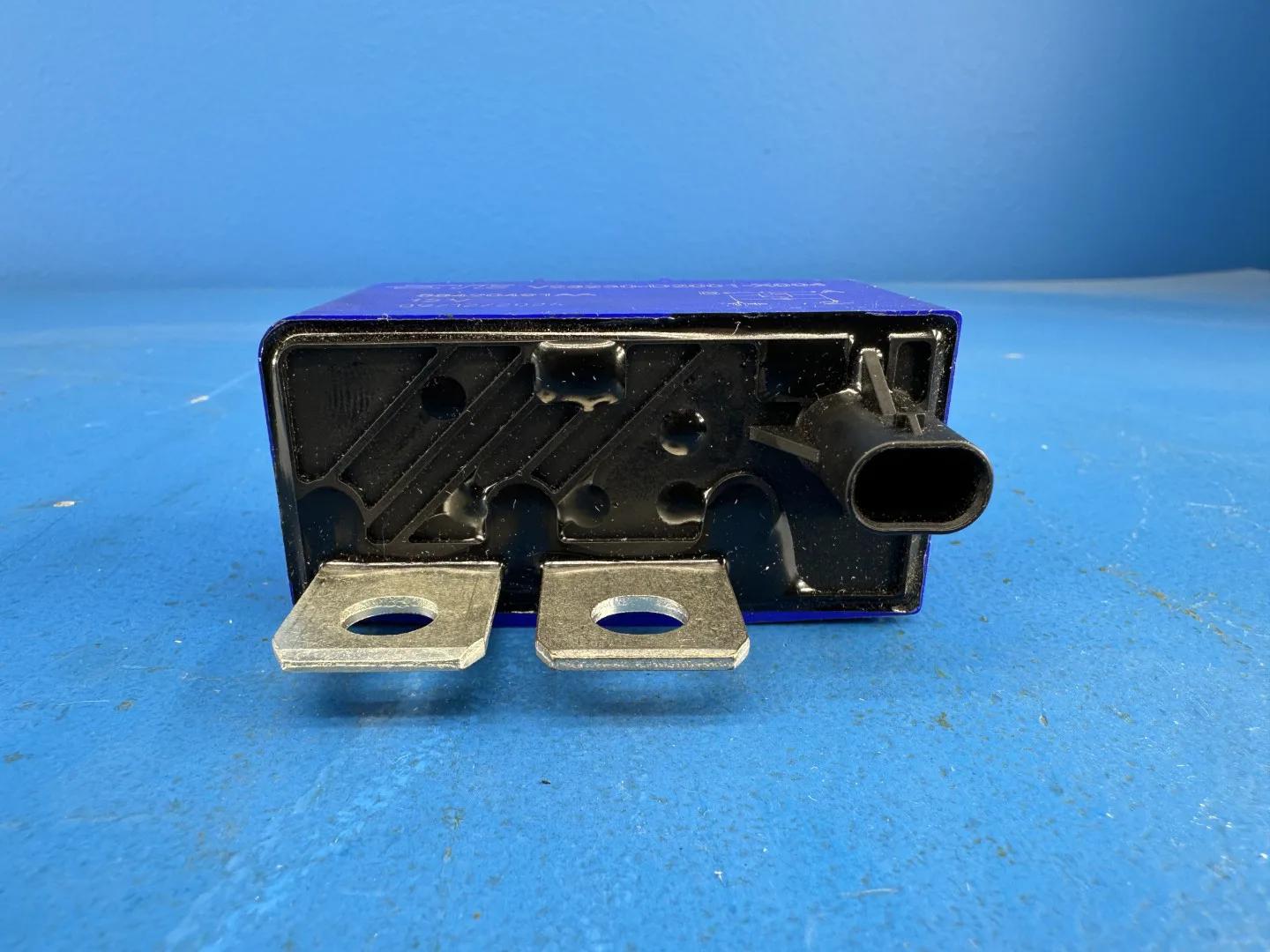

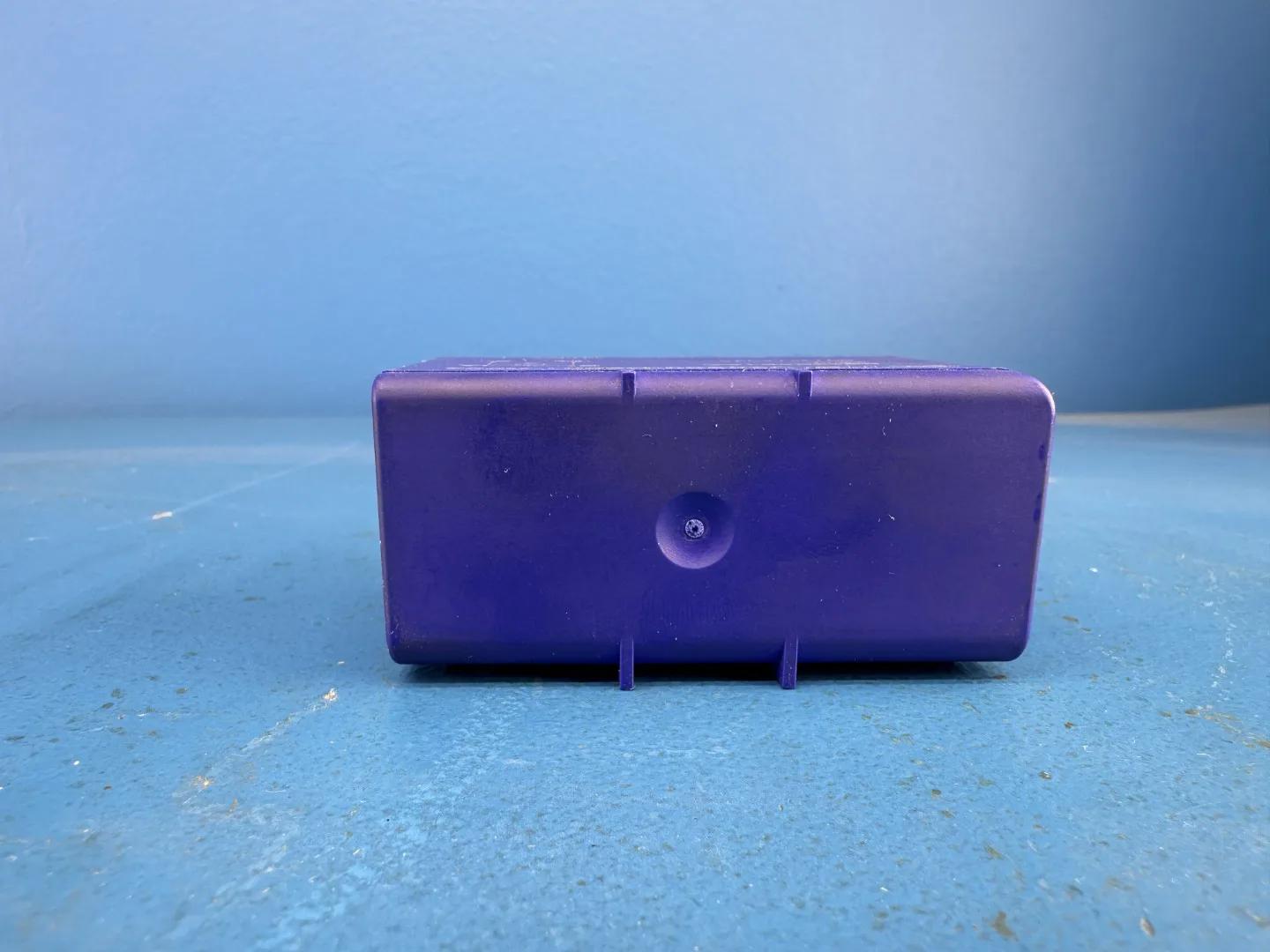

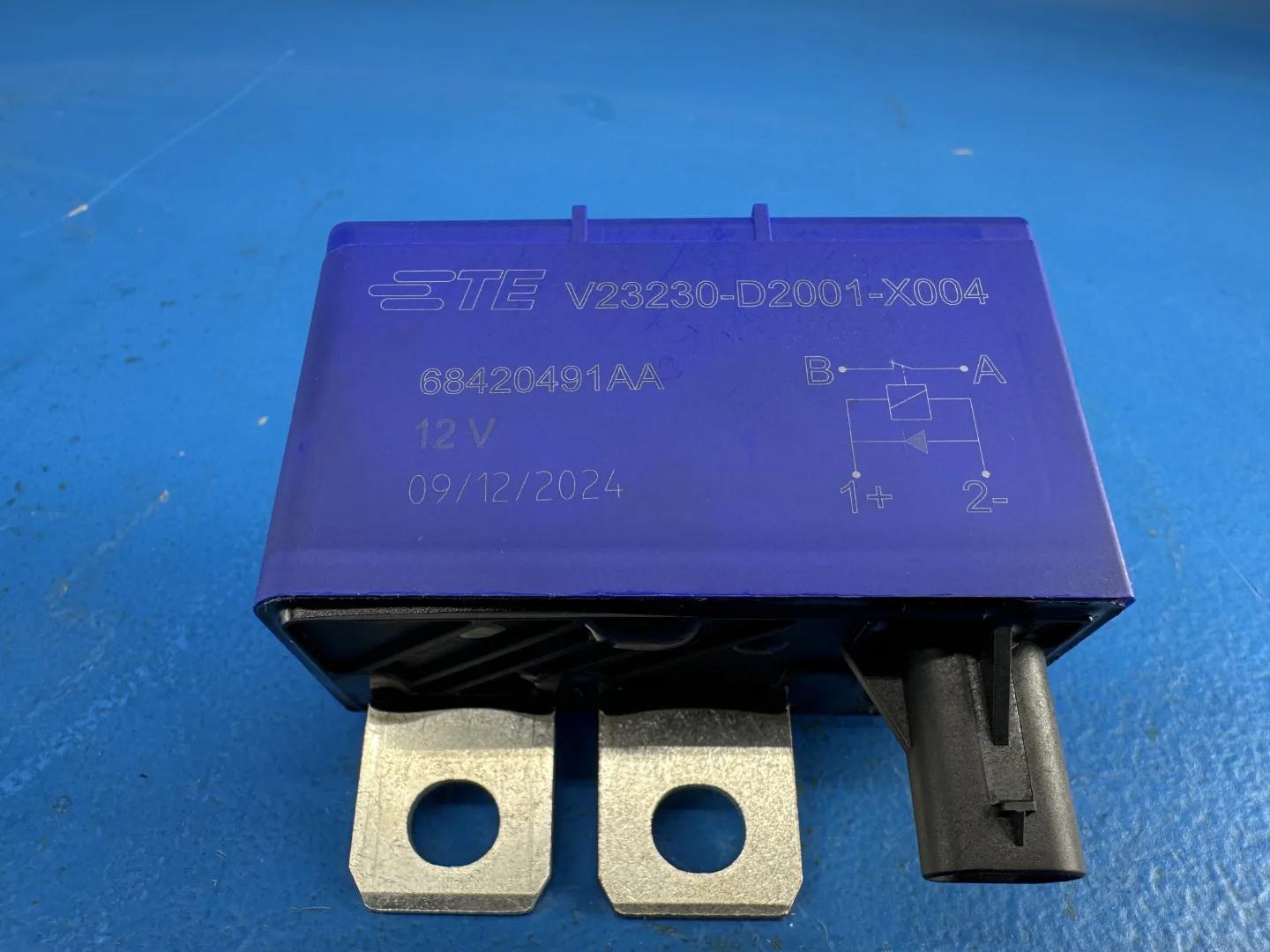

This is a TE Connectivity V23230-D2001-X004 high current relay, also labeled with the part number 68420491AA. It belongs to TE's High Current Relay 200 family, an automotive power relay built for 12 volt vehicle electrical systems.
In TE's product code, V23230 is the High Current Relay 200, D is a 1 form B normally closed contact, 2 is diode coil suppression and 001 is the 12 VDC coil. A normally closed relay keeps the load circuit connected until the coil is energized, then opens it. TE lists typical applications as energy management, battery coupling and start/stop systems. The family data sheet rates the contact at 175 A continuous at 85 C with a 50 mm2 cable, with screw terminals for the load cables and a two pin connector for the coil. The X004 suffix is a customer specific variant.
Automotive technicians, dealers and fleet shops use this part as a service replacement where 68420491AA is specified, and electrical system builders use it for high current battery switching.
Available from King Surplus inventory in Del Rio, Texas.
Factory Information
- Part number: V23230-D2001-X004
- Additional part number (label): 68420491AA
- Series: TE High Current Relay 200 (V23230)
- Contact arrangement: 1 form B, 1 NC (code D)
- Coil suppression: Diode (code 2)
- Rated coil voltage: 12 VDC (coil code 001, label 12 V)
- Coil 2001: operate 7.2 VDC, release 1.2 VDC, resistance 43 ohm +/-10%, rated coil power 3.3 W
- Rated current: 175 A at 85 C with 50 mm2 cable
- Limiting continuous current: 255 A at 23 C / 175 A at 85 C / 130 A at 110 C (50 mm2 cable)
- Limiting making and breaking current: 200 A at <5 VDC
- Contact material: AgSnO2
- Terminal type: screw (load), coil connector AMP MCPI.2 2 pos.
- Degree of protection: IP64
- Ambient temperature: -40 C to +110 C
- Weight: approx. 230 g (8.1 oz) per TE datasheet

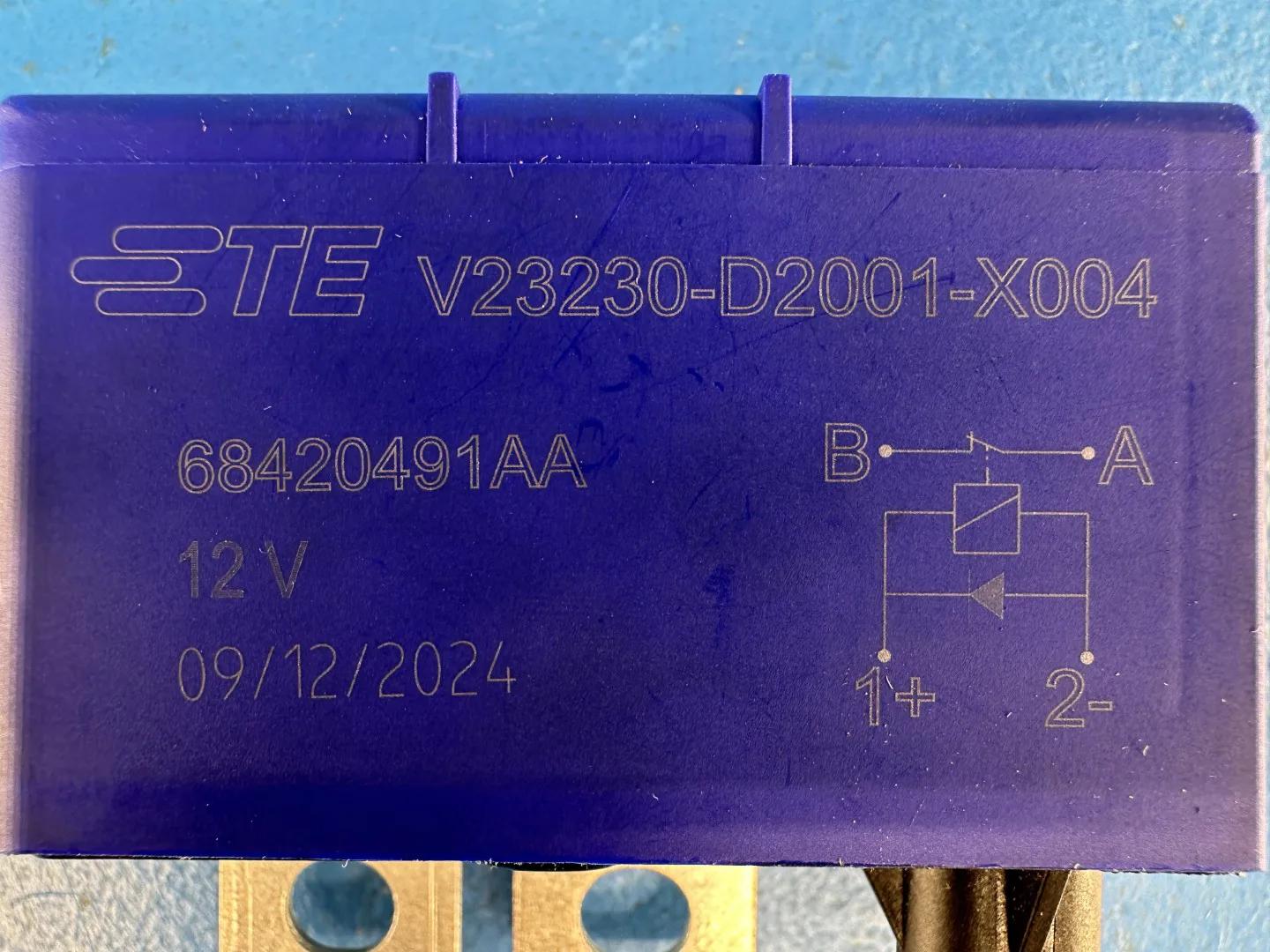

- Spec Basis: relay label (nameplate photo); TE Connectivity datasheet High Current Relay 200, Rev 1217, https://www.te.com/commerce/DocumentDelivery/DDEController?Action=showdoc&DocId=Data+Sheet%7FV23230-X0000-A001%7F1112%7Fpdf%7FEnglish%7FENG_DS_V23230-X0000-A001_1112_230.pdf%7F5-1415009-7. X004 suffix is not in the standard ordering table; values are the V23230-D2001 family values
