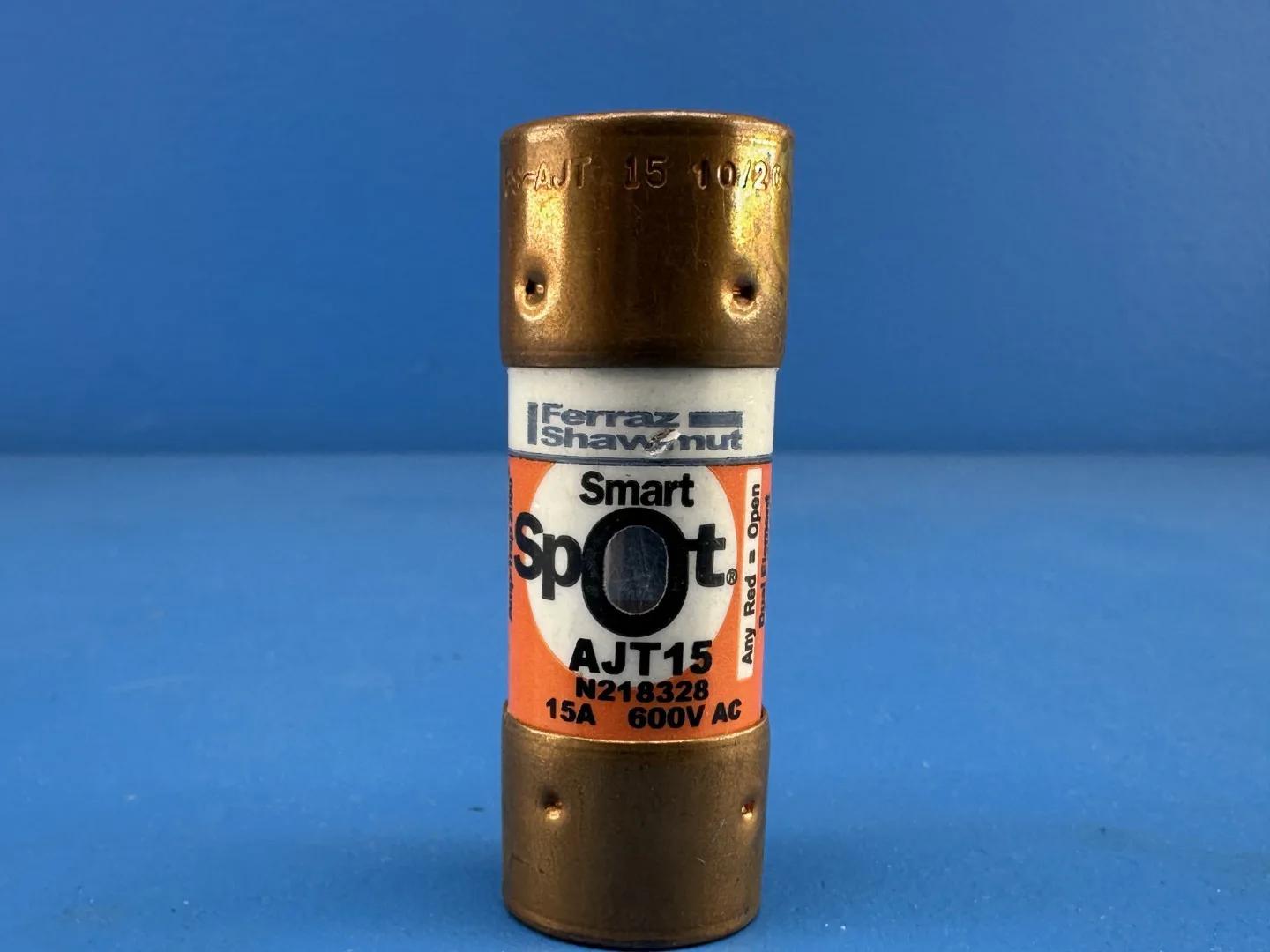

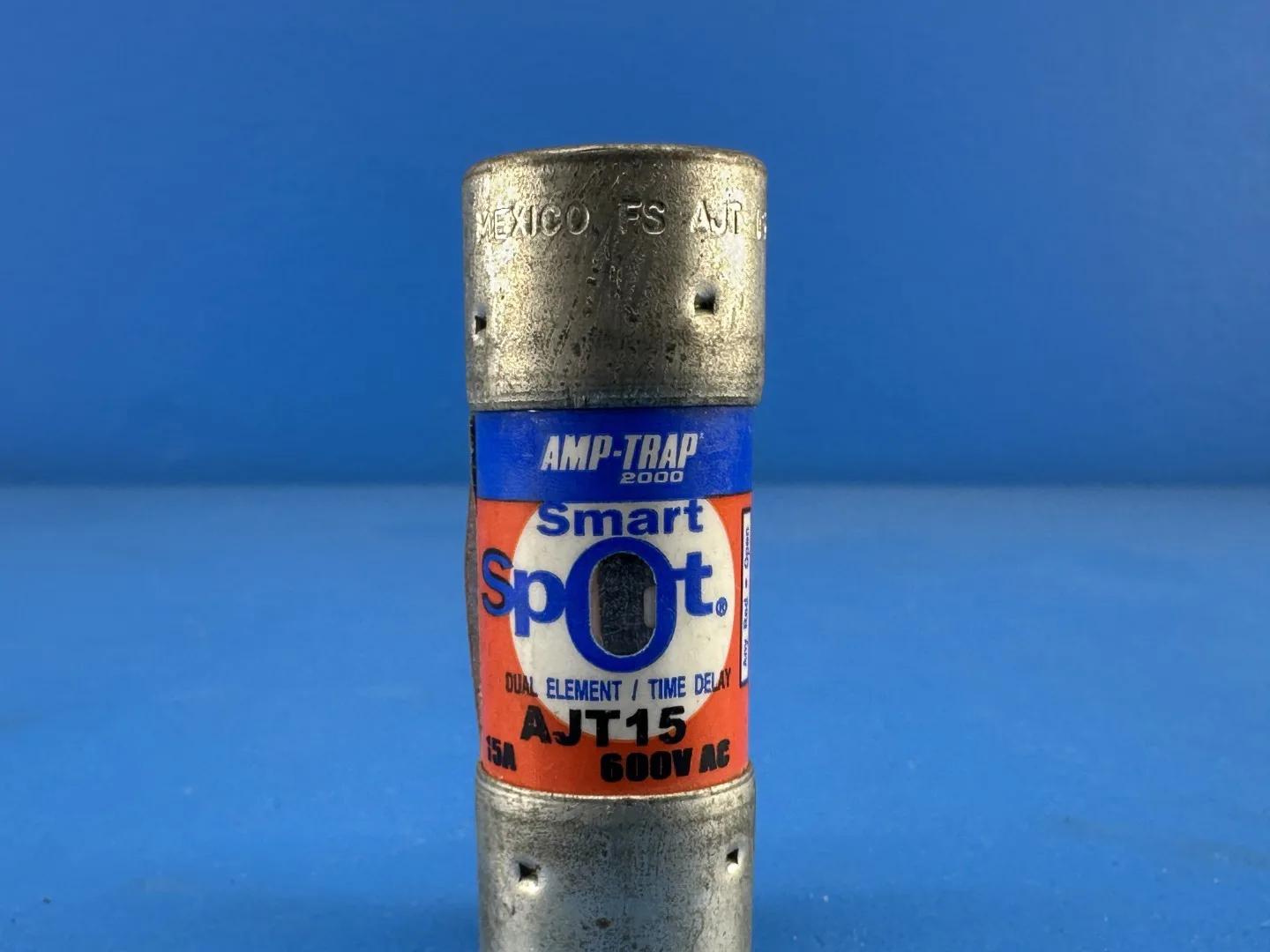

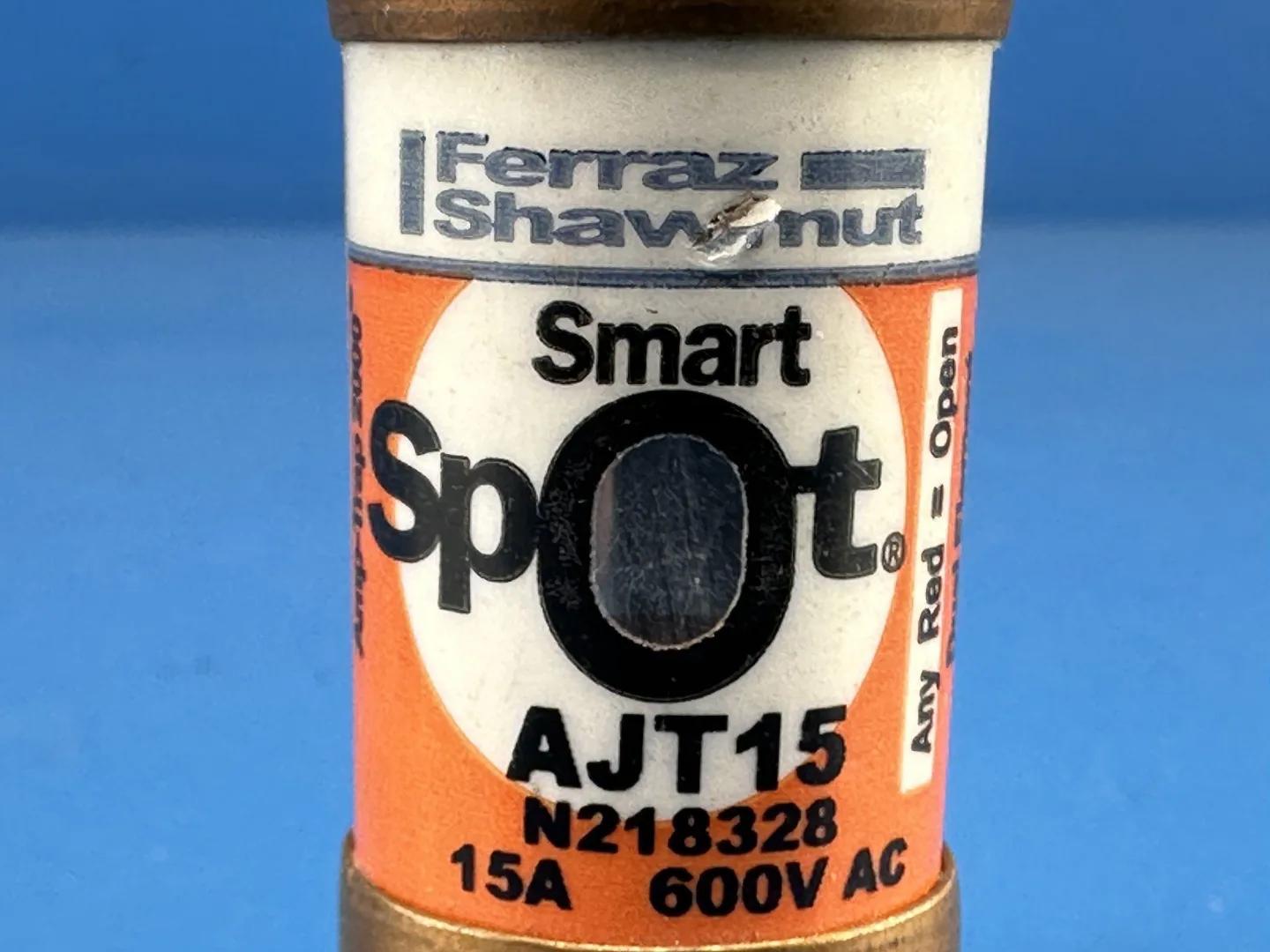

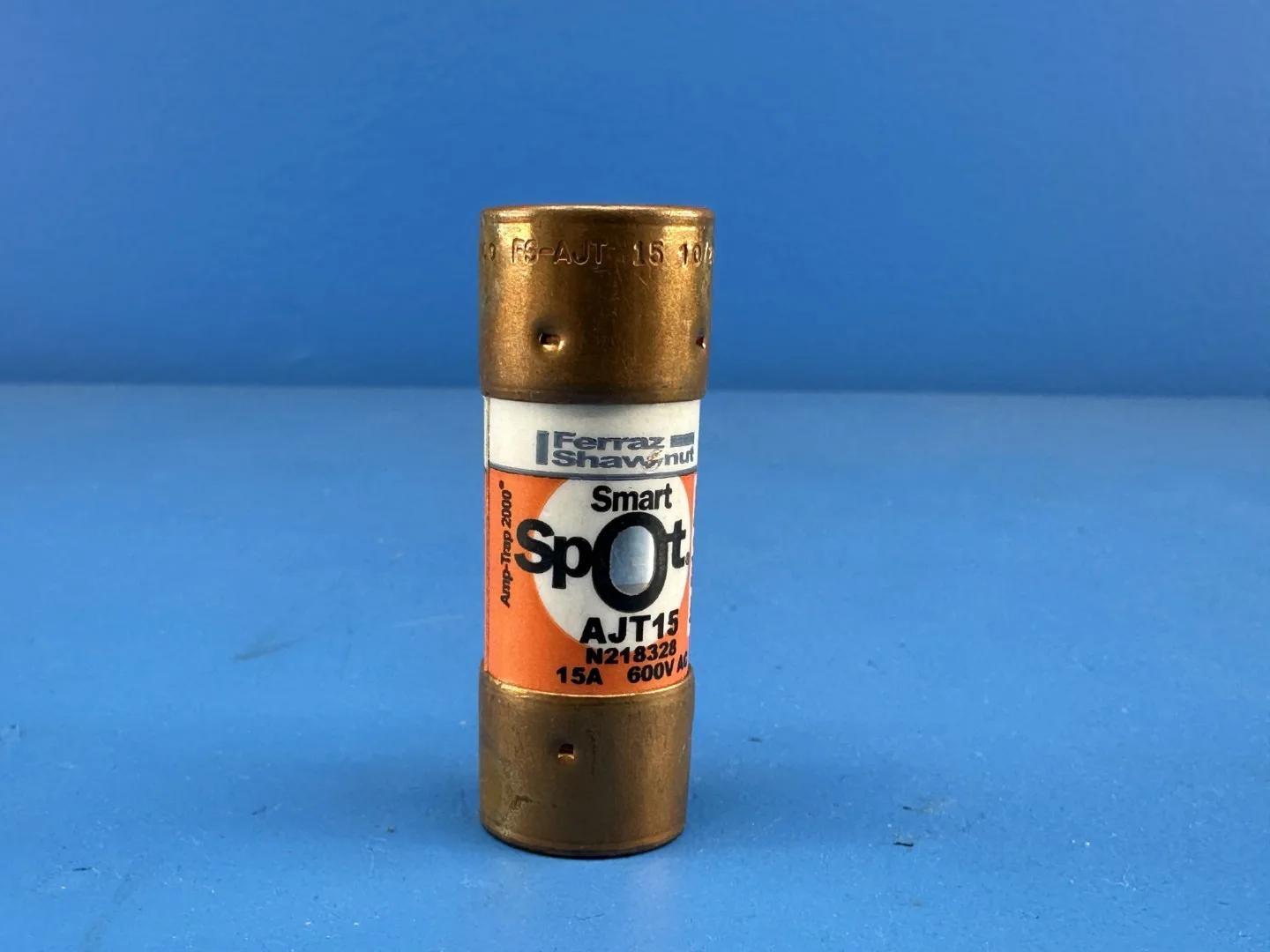

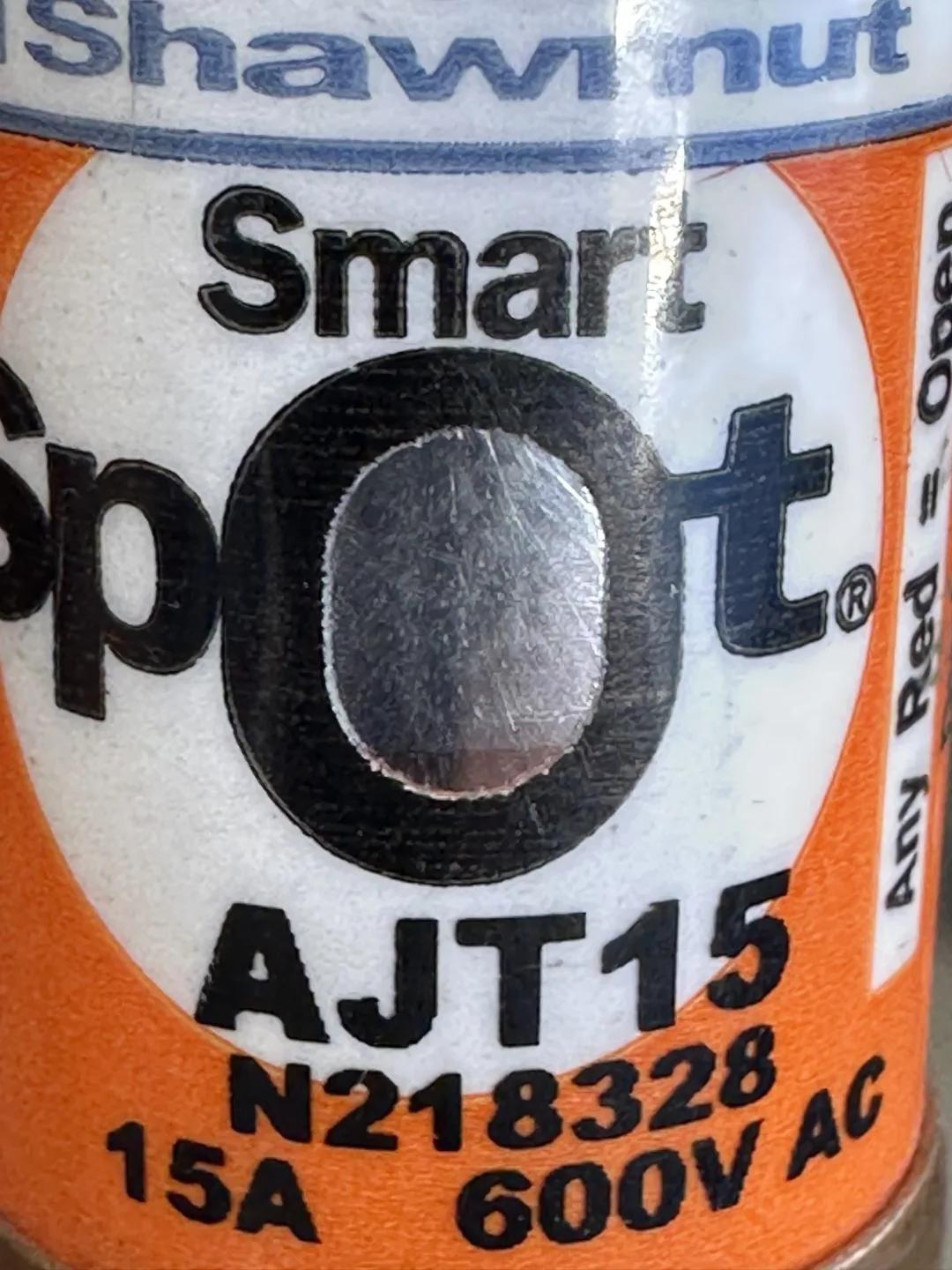

Ferraz Shawmut AJT15 SmartSpot Class J-Time Delay Fuse, 15A, 600V
AJT15 Fuse Specifications: Amps, Voltage & Class
Replacement & Interchange for Ferraz Shawmut AJT15
1 / 7
+7
+7
1 / 7
| Description | Details |
|---|---|
| Available Quantity | 3 |
| Model | AJT15 |
| Condition | New |
| Manufacturer | Ferraz Shawmut |
| Asset Number | KSC1230 / 1138 |
| Guarantee or ASIS | 2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return |
| Inspections - Yellow Tag | 1.1 Appears Unused no box |
| Packaging Cost | 1.6 6x10 CH $3.00 |
Available Qty: 3
$9.95
Basic Information
Asset #
KSC1230 / 1138
Available Quantity
3
Inspections - Yellow Tag
1.1 Appears Unused no box
Condition
New
Guarantee or ASIS
2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return
Item Description
N/A
Factory Information
- Manufacturer: Ferraz Shawmut (now Mersen)
- Model: AJT15
- Series: Amp-Trap 2000 SmartSpot
- Type: Time-delay, current-limiting power fuse
- Class: J (UL 248-8)
- Current Rating: 15 A
- Voltage Rating: 600 VAC / 500 VDC
- Interrupting Rating: 200 kA AC, 100 kA DC
- Body Size: 13/16 in (0.8125 in) diameter x 2-1/4 in (2.250 in) length
- Terminal Type: Ferrule, clip mounting
- Body Material: Fiberglass, high-grade silica filler

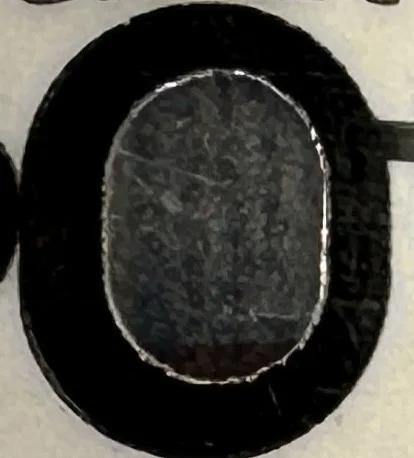

- Indicator: SmartSpot visual open-fuse indicator
- Approvals: UL Listed, CSA certified
- Application: Motor branch circuits, feeders, transformers, bus duct and load centers
- Spec Basis: Mersen published AJT Class J catalogue data
Specifications
Manufacturer
Ferraz Shawmut
Model
AJT15
Serial
N/A
Year
N/A
HP / AMP / KW / KVA
N/A
Amps
15
Length (Inches)
3
Width (Inches)
1
Height (Inches)
1
Phase
1
Estimated Packaging Weight
2
Estimated Total Weight
3
Asset Number
KSC1230 / 1138
Packaging fees
Packaging Cost
1.6 6x10 CH $3.00
