DescriptionDetails
Available Quantity1
ModelACH550-UH-015A-4
ConditionNew
ManufacturerABB
Asset NumberKSC1230 / 1065
Guarantee or ASIS2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return
Inspections - Yellow Tag1. New in Box
Packaging Cost1.2 Cardboard $15
Available Qty: 1
Free Shipping
$649.00
Call UsText UsEmail Us
$649.00
Free Shipping
Call Us

Asset #

KSC1230 / 1065

Available Quantity

1

Inspections - Yellow Tag

1. New in Box

Condition

New

Guarantee or ASIS

2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return

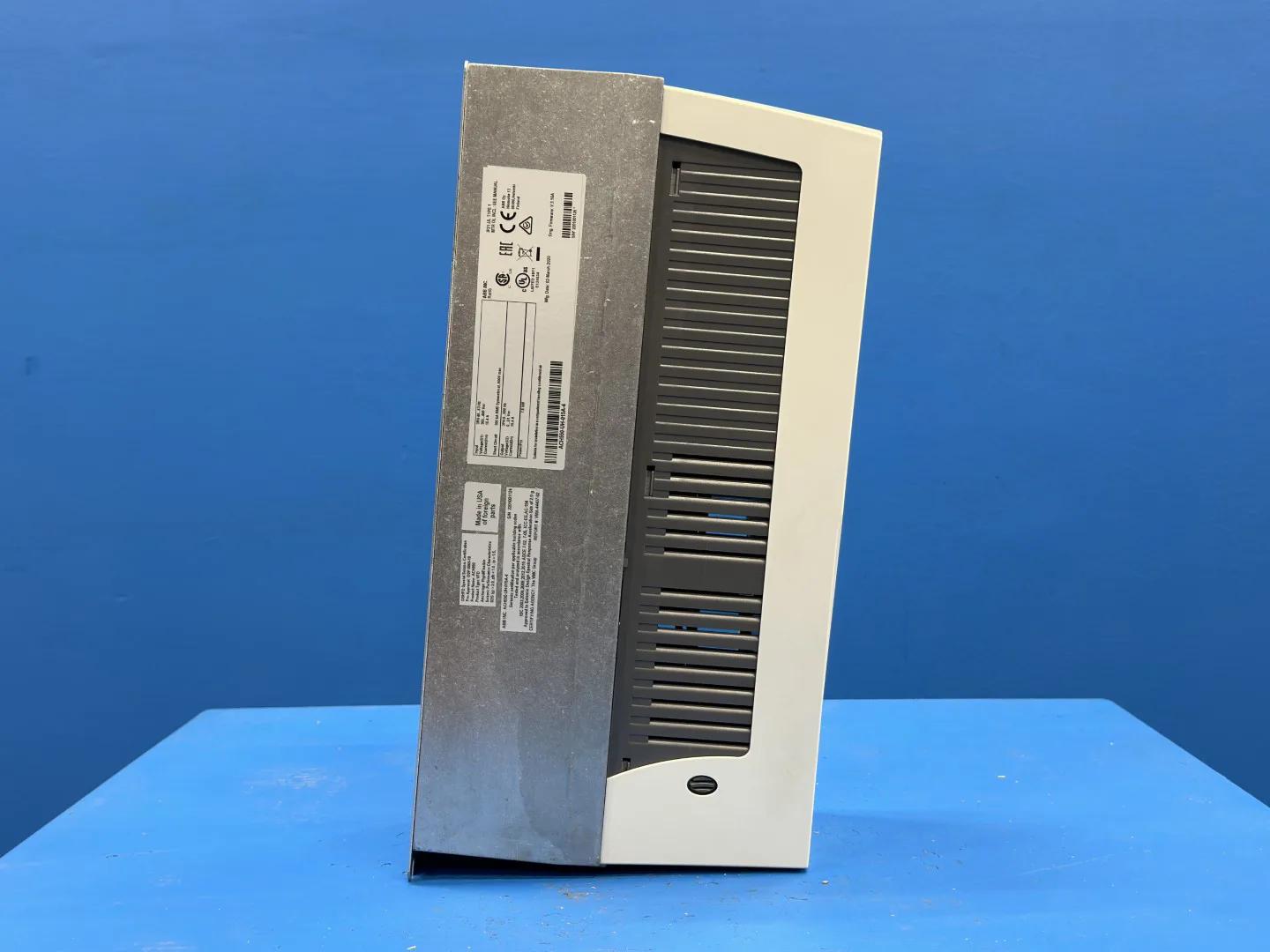

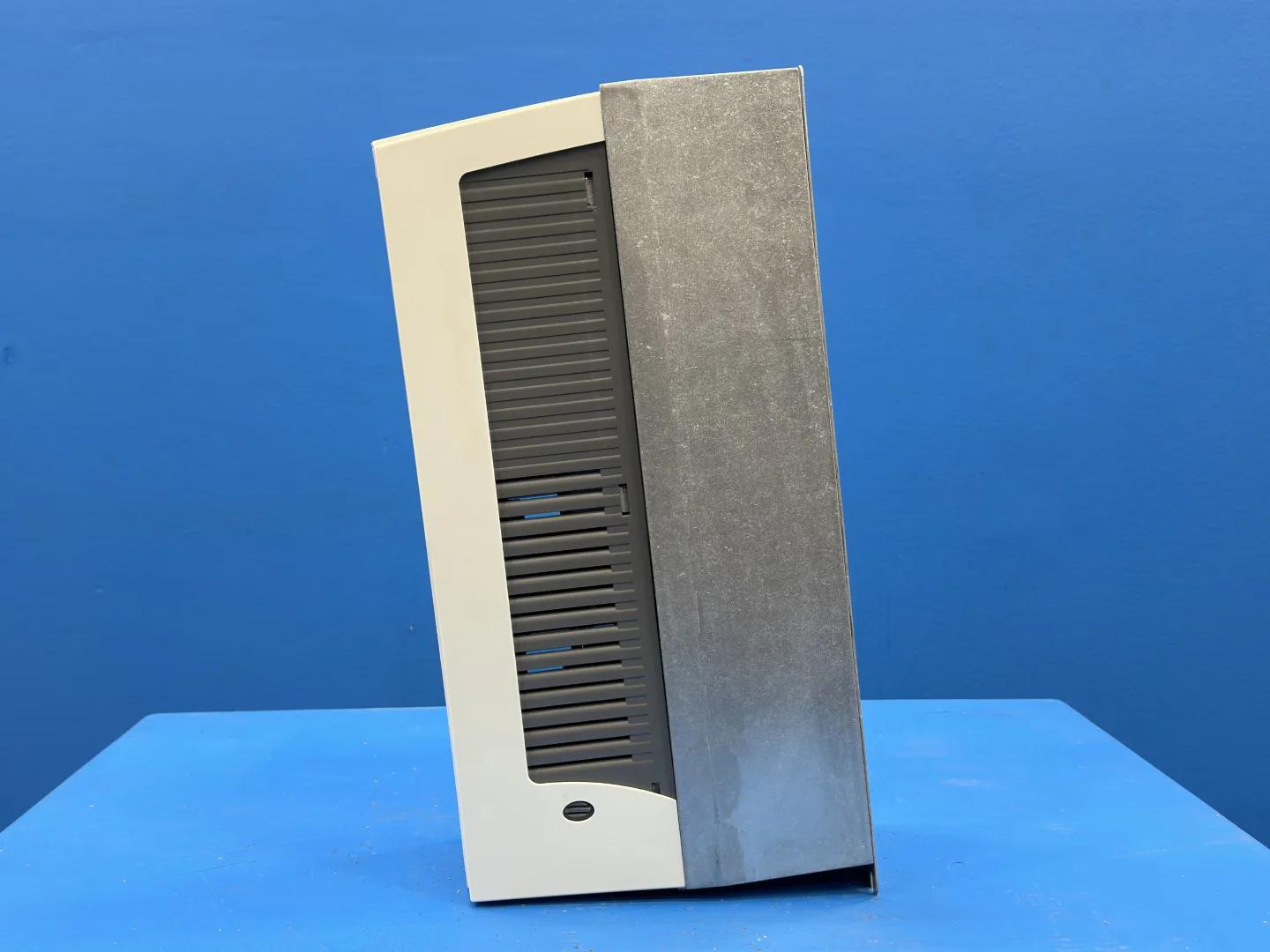

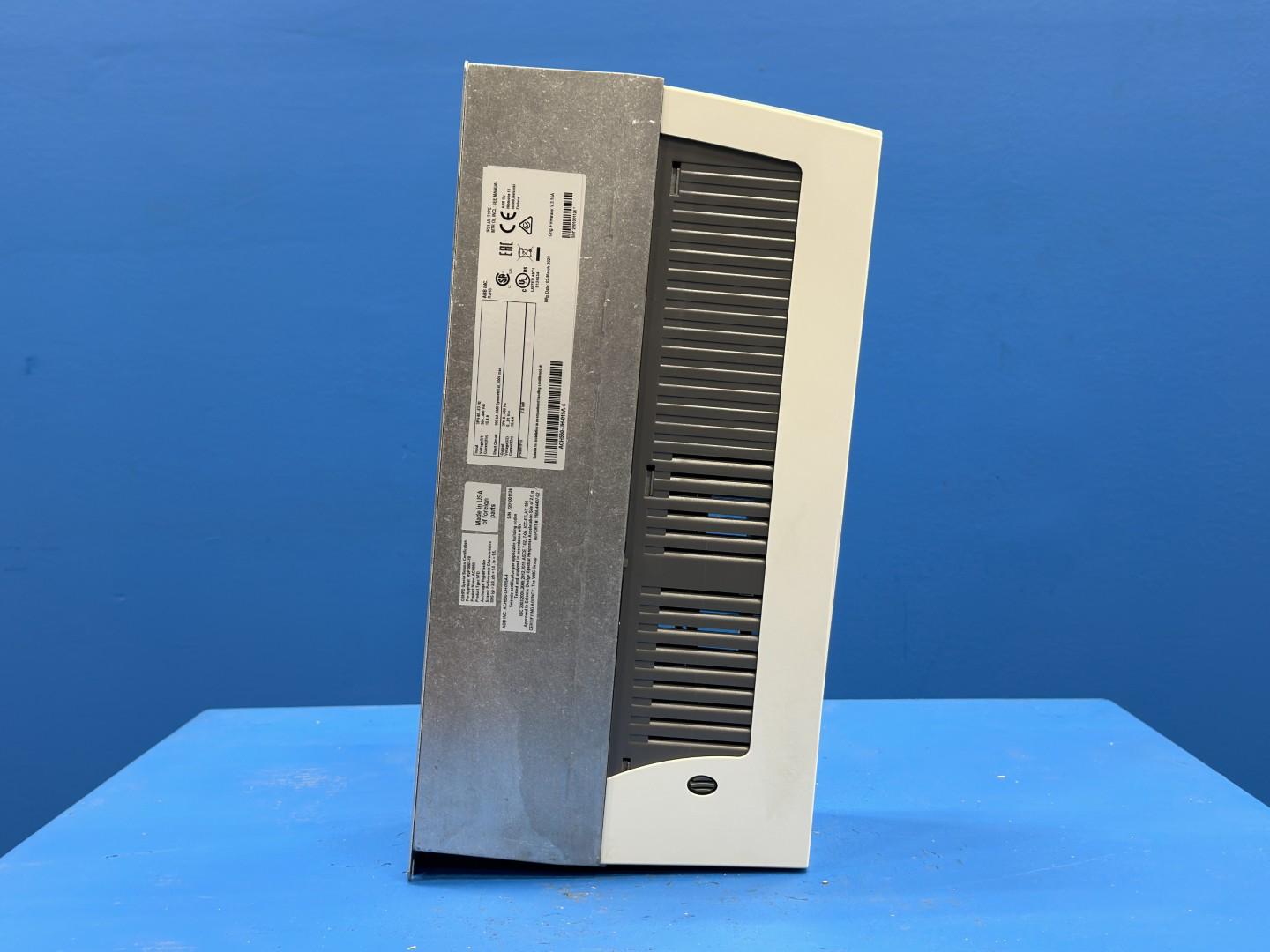

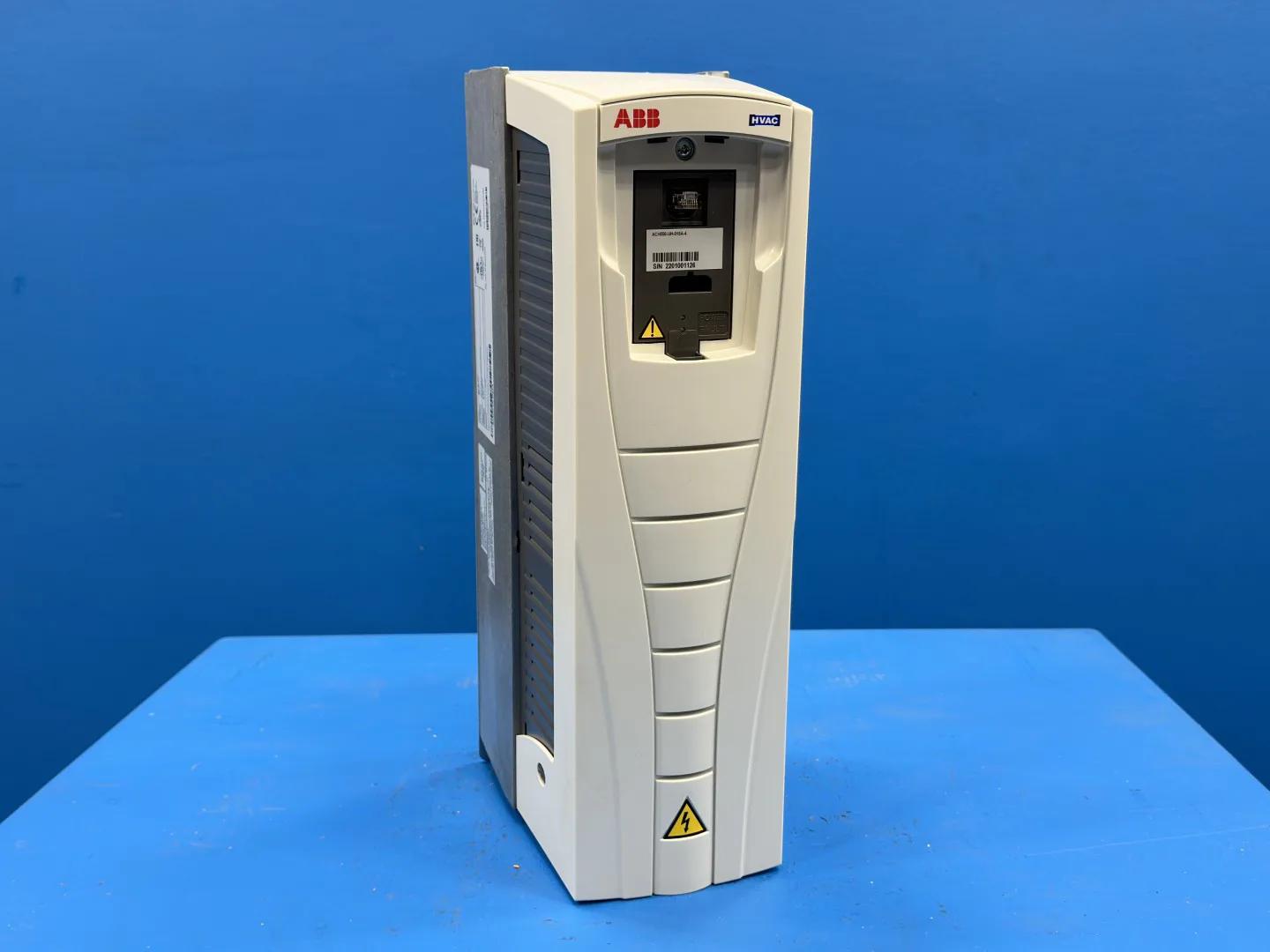

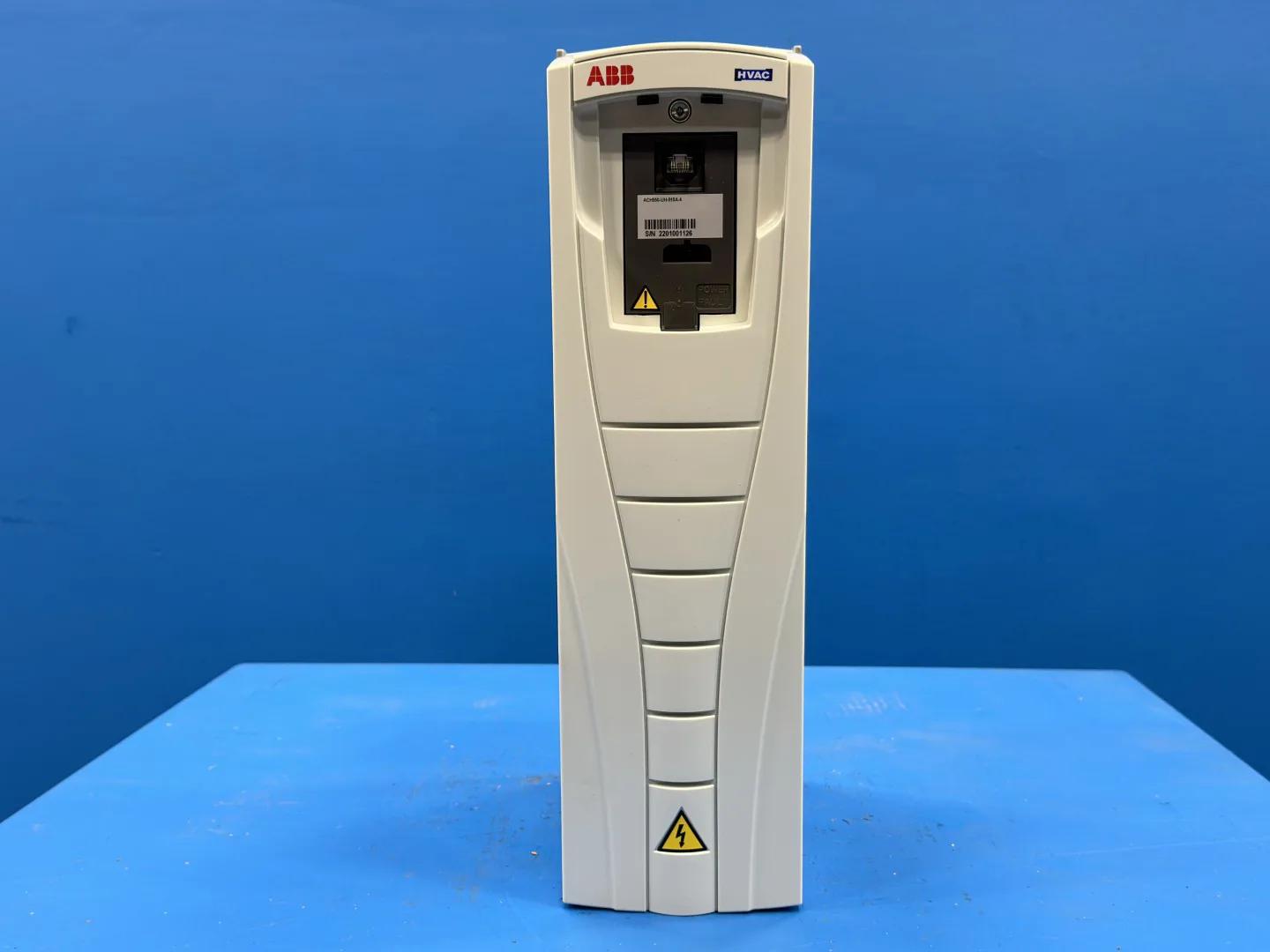

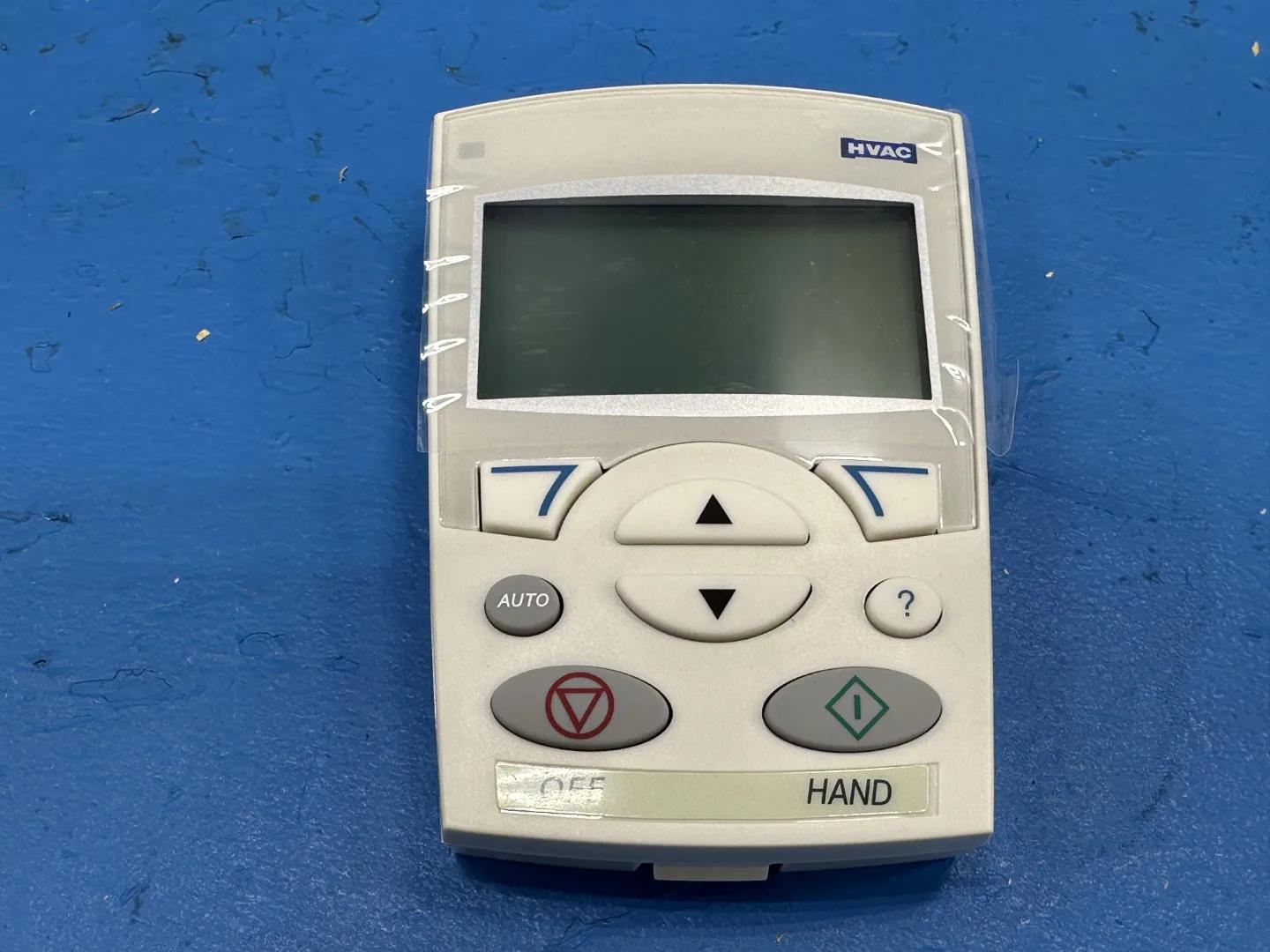

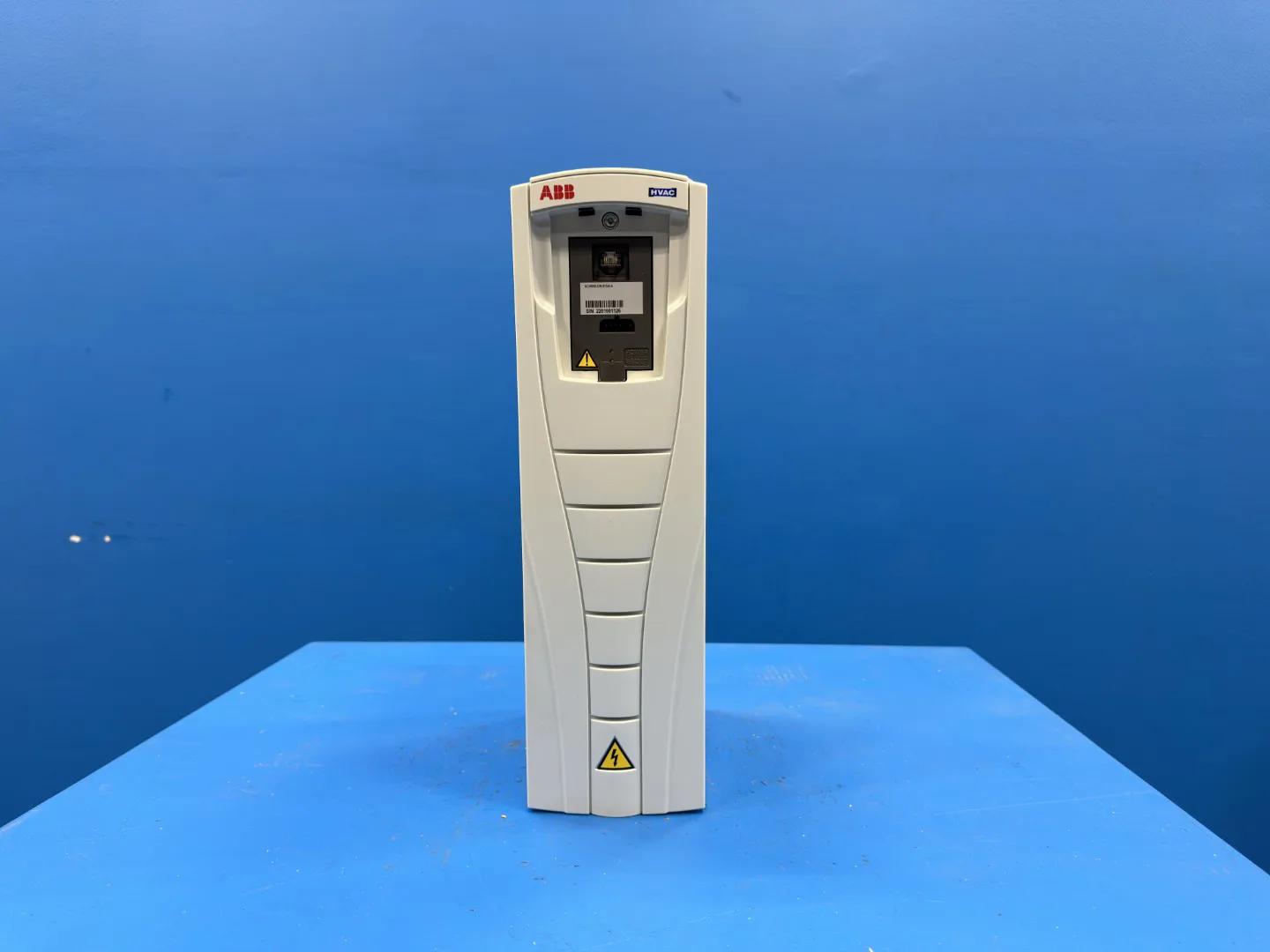

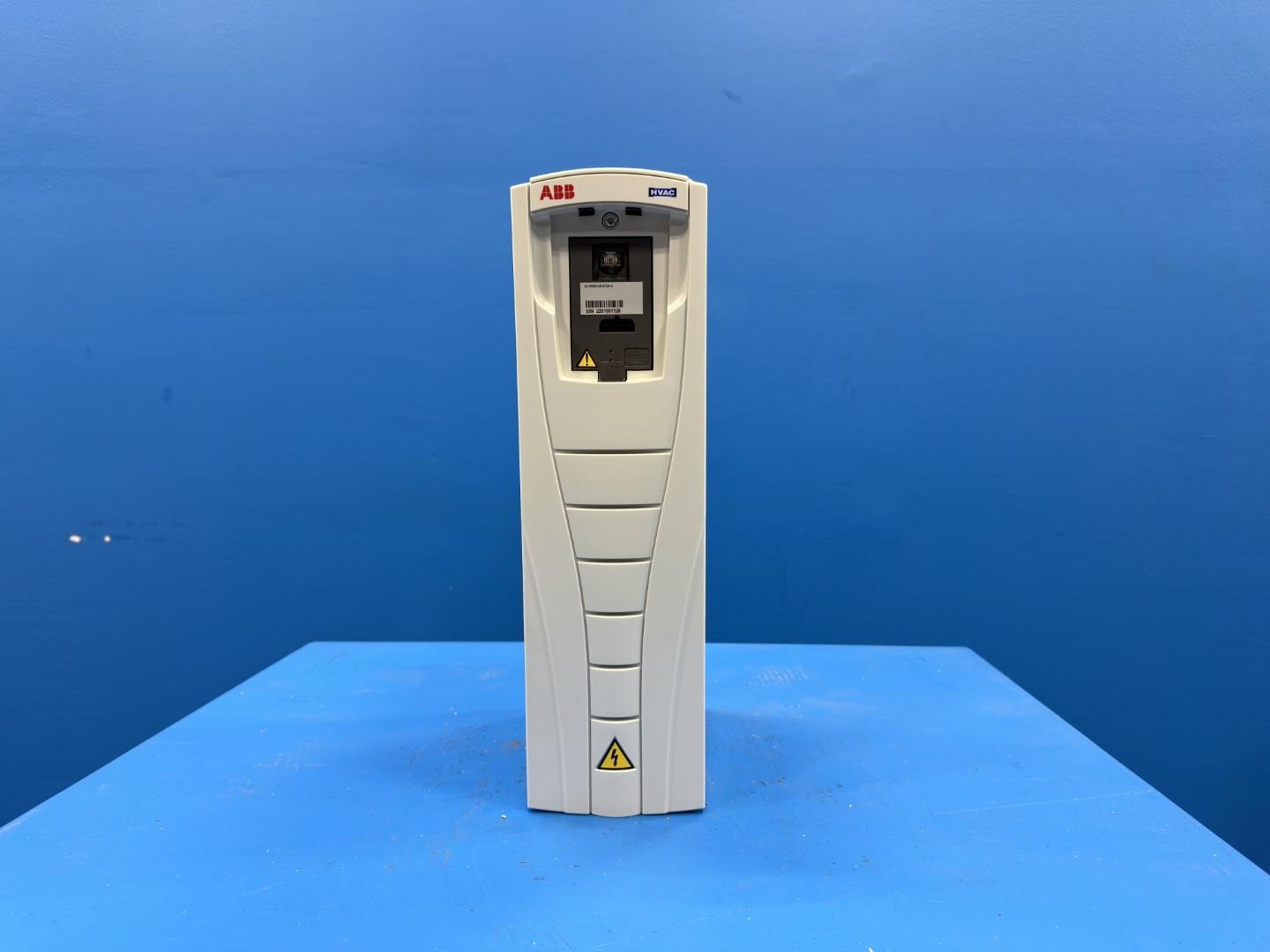

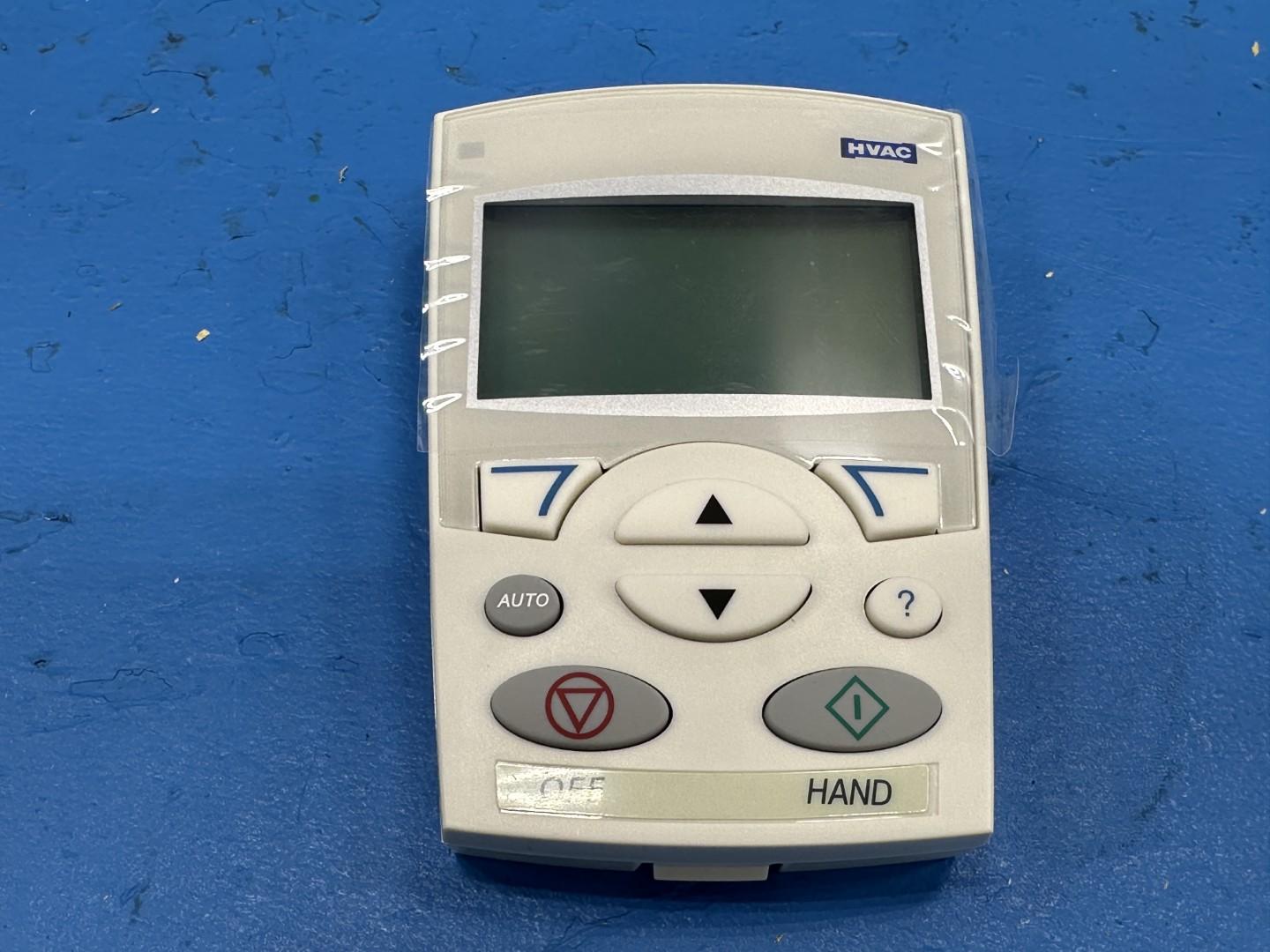

The ABB ACH550-UH-015A-4 is a 10 HP variable frequency drive (VFD) from ABB's ACH550 series, a line dedicated specifically to HVAC applications. The ACH550 precisely controls the speed of pumps, fans, and compressors in HVAC systems, reducing energy consumption by up to 70% with payback times often under a year. The "UH" in the model code designates the North American configuration — setup and parts specific to US installation and NEMA compliance — while the "-4" indicates the 380–480 V AC three-phase voltage class and "015A" is the 15.4 A output current rating. It ships in an R2 frame size with a standard UL Type 1 / NEMA 1 enclosure and an onboard keypad for setup and operation.

The ACH550 is a legacy/mature product line (ABB has since moved newer HVAC drive development to the ACH580 family), and this model is listed as discontinued by the manufacturer. It is rated 3-phase, 380–480 V AC, 50/60 Hz, 15.4 A. Note this frame is dual-rated: 10 HP normal duty / variable torque (the standard HVAC fan-and-pump rating, matching what you provided) and 7.5 HP heavy duty / constant torque. It remains widely available through the surplus, repair, and aftermarket channels, valued for its built-in HVAC functionality, BACnet support, and straightforward integration into building automation systems.

SpecificationDetail
ManufacturerABB (ASEA Brown Boveri)
SeriesACH550 (HVAC drive line)
Model / Part No.ACH550-UH-015A-4
Drive typeVariable Frequency Drive (VFD), AC
ApplicationHVAC — fans, pumps, compressors
Configuration codeUH = US/NEMA installation
Power rating10 HP normal duty (7.5 HP heavy duty)
Output current15.4 A
Input voltage380–480 V AC, 3-phase
Frequency50/60 Hz
Frame sizeR2
Enclosure ratingIP21 / UL Type 1 (NEMA 1)
Dimensions18.5″ H × 4.9″ W × 8.7″ D
StatusDiscontinued by manufacturer

The equivalent IEC-market model is the ACH550-01-015A-4 (same drive, different regional setup), and a +B055 option suffix would denote an IP54 enclosure variant rather than the standard IP21. Verify pricing against live listings if you need a defensible appraisal figure.

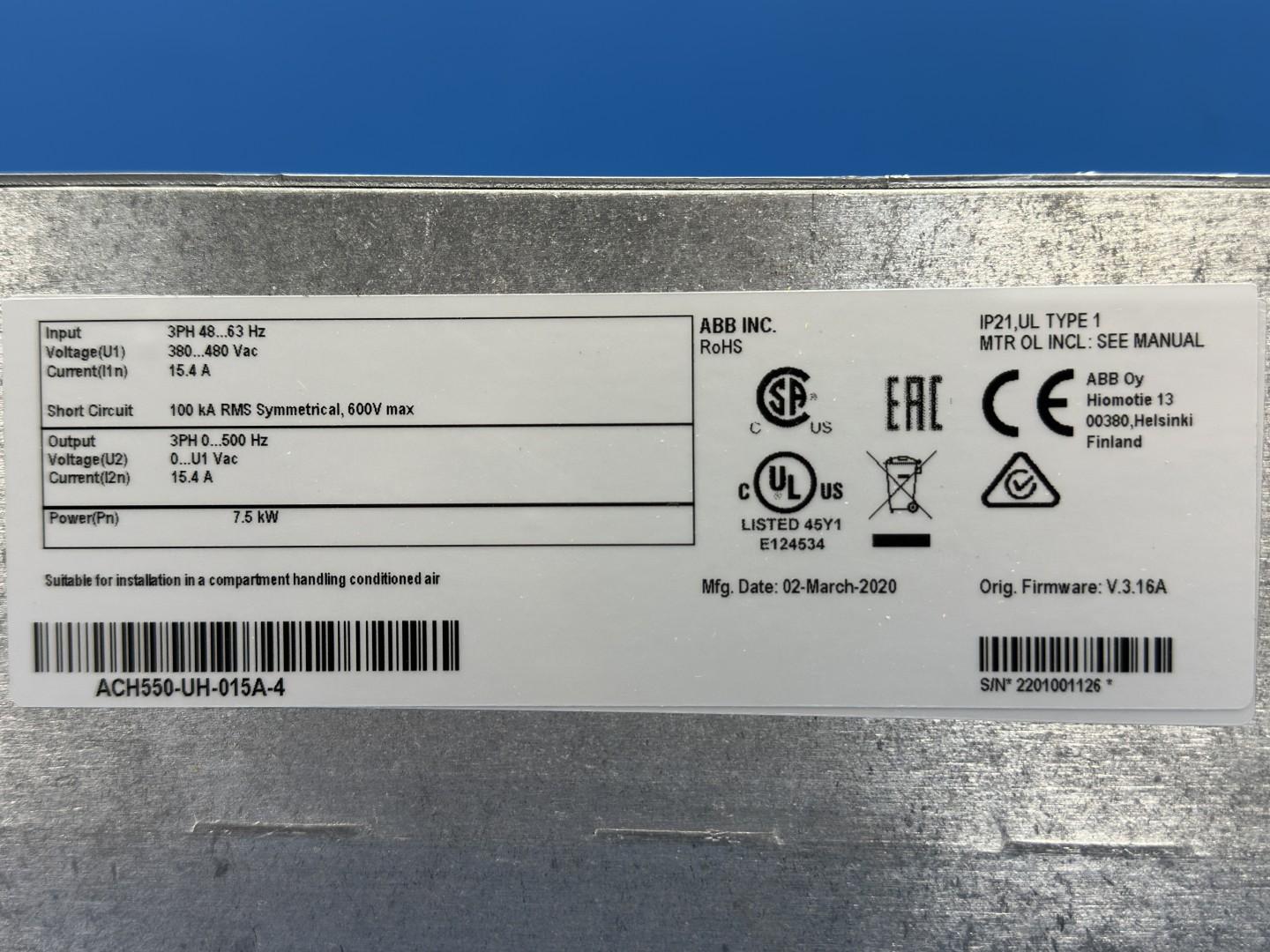

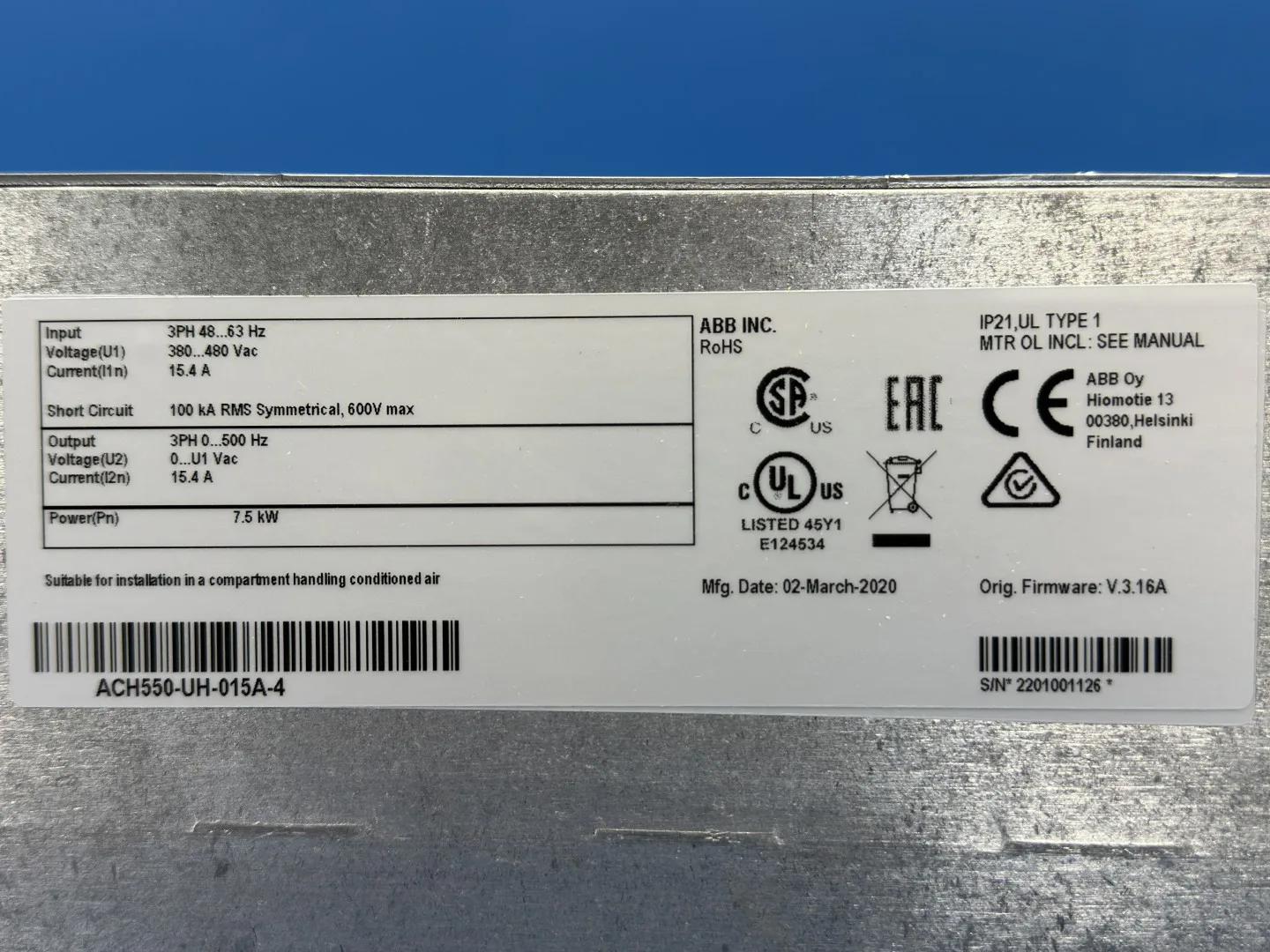

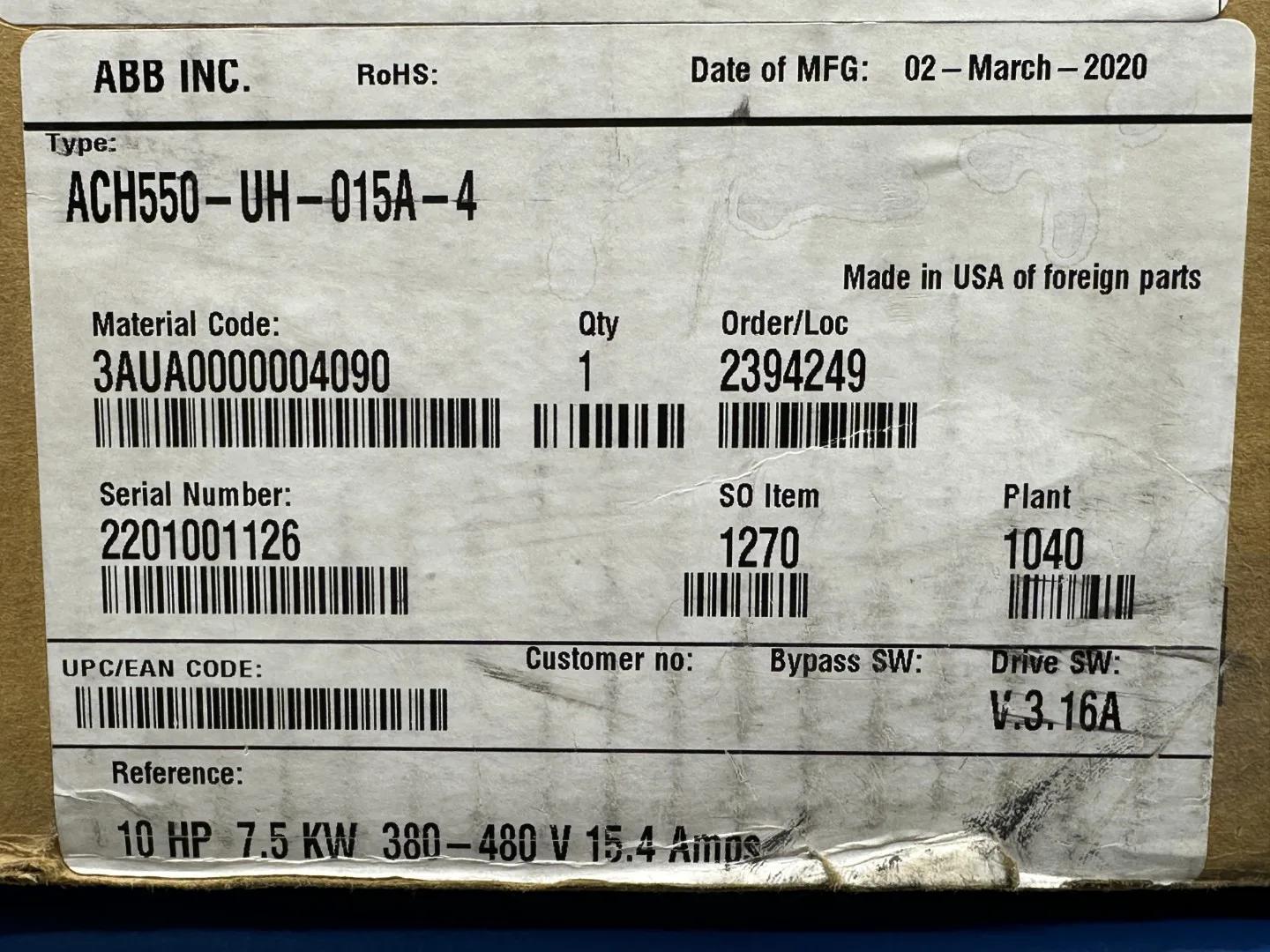

Manufacturer

ABB

Model

ACH550-UH-015A-4

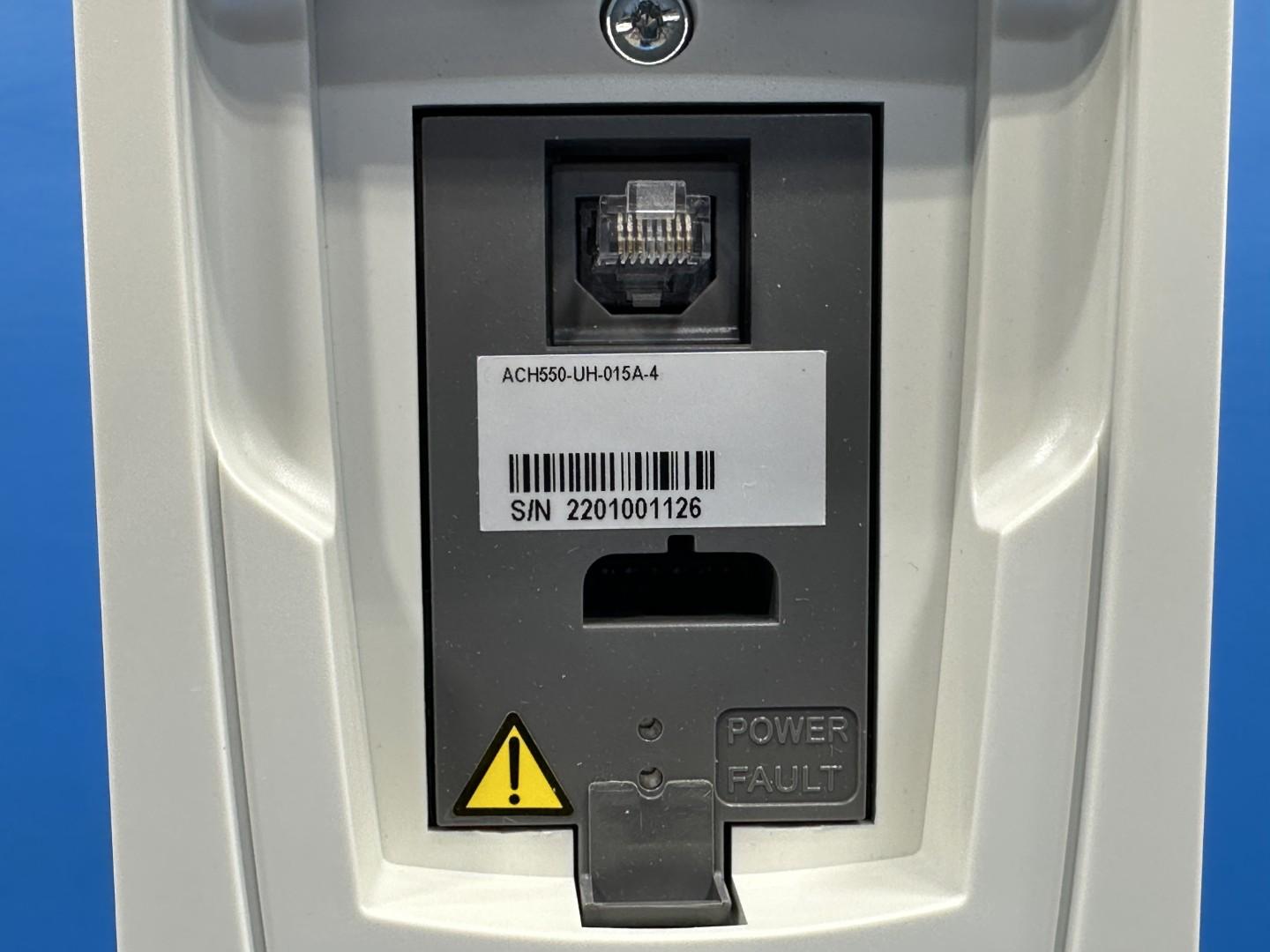

Serial

2201001126

Year

2020

HP / AMP / KW / KVA

10 HP / 15.4 A / 7.5 kW / 12.8 kVA

Amps

15.4

Length (Inches)

14

Width (Inches)

34

Height (Inches)

13

Phase

3

Estimated Packaging Weight

N/A

Estimated Total Weight

33

Asset Number

KSC1230 / 1065

Packaging Cost

1.2 Cardboard $15

Appraised Value

$649.00
