Copeland Scroll Compressor 2.5 Ton 31,000 BTU ZP31K5E-TF5-130 460V 3 Phase R410A
Copeland Scroll Compressor 2.5 Ton 31,000 BTU ZP31K5E-TF5-130 460V 3 Phase R410A
Copeland Scroll Compressor 2.5 Ton 31,000 BTU ZP31K5E-TF5-130 460V 3 Phase R410A
Copeland Scroll Compressor 2.5 Ton 31,000 BTU ZP31K5E-TF5-130 460V 3 Phase R410A
| Description | Details |
|---|---|
| Available Quantity | 4 |

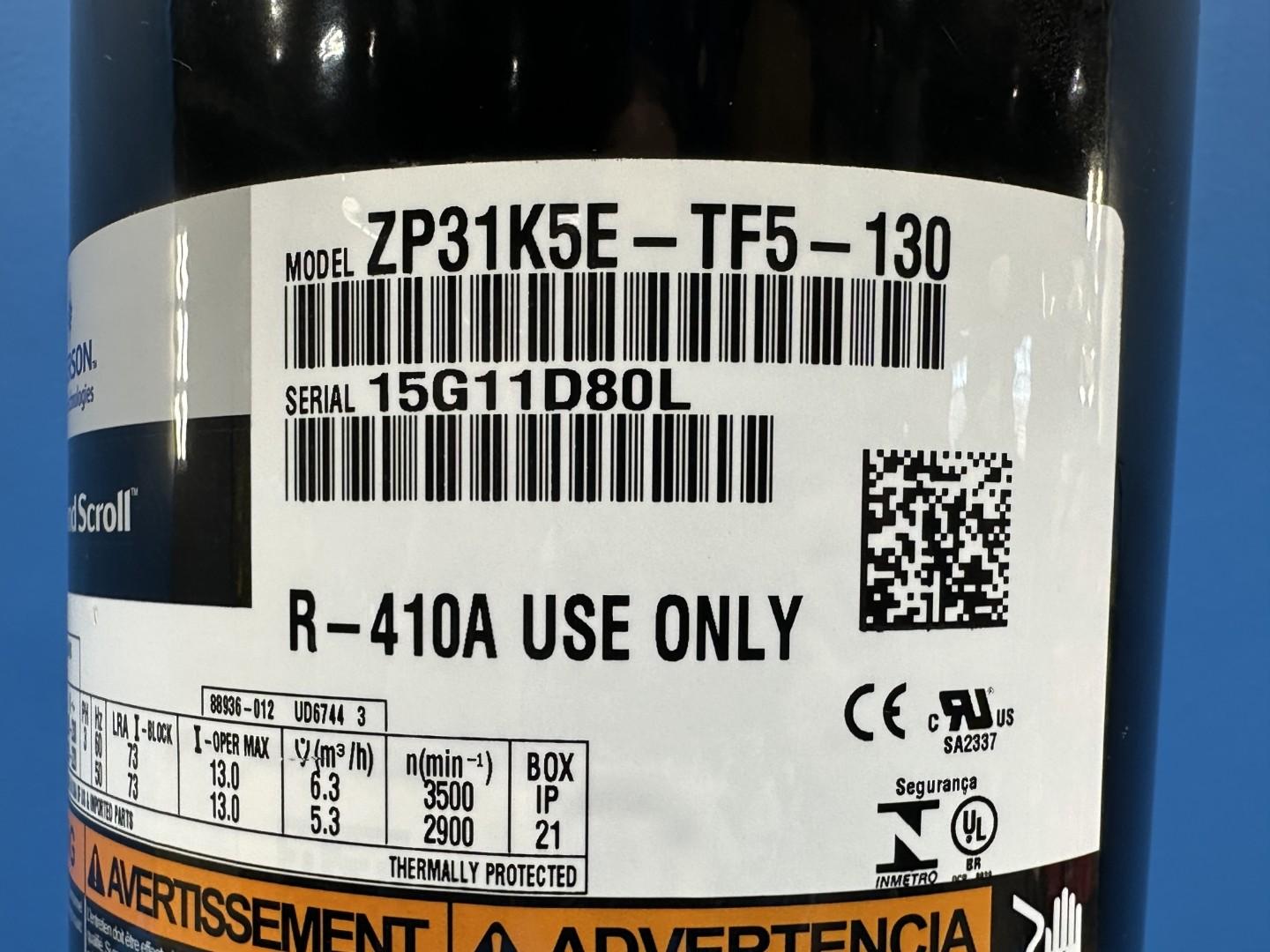

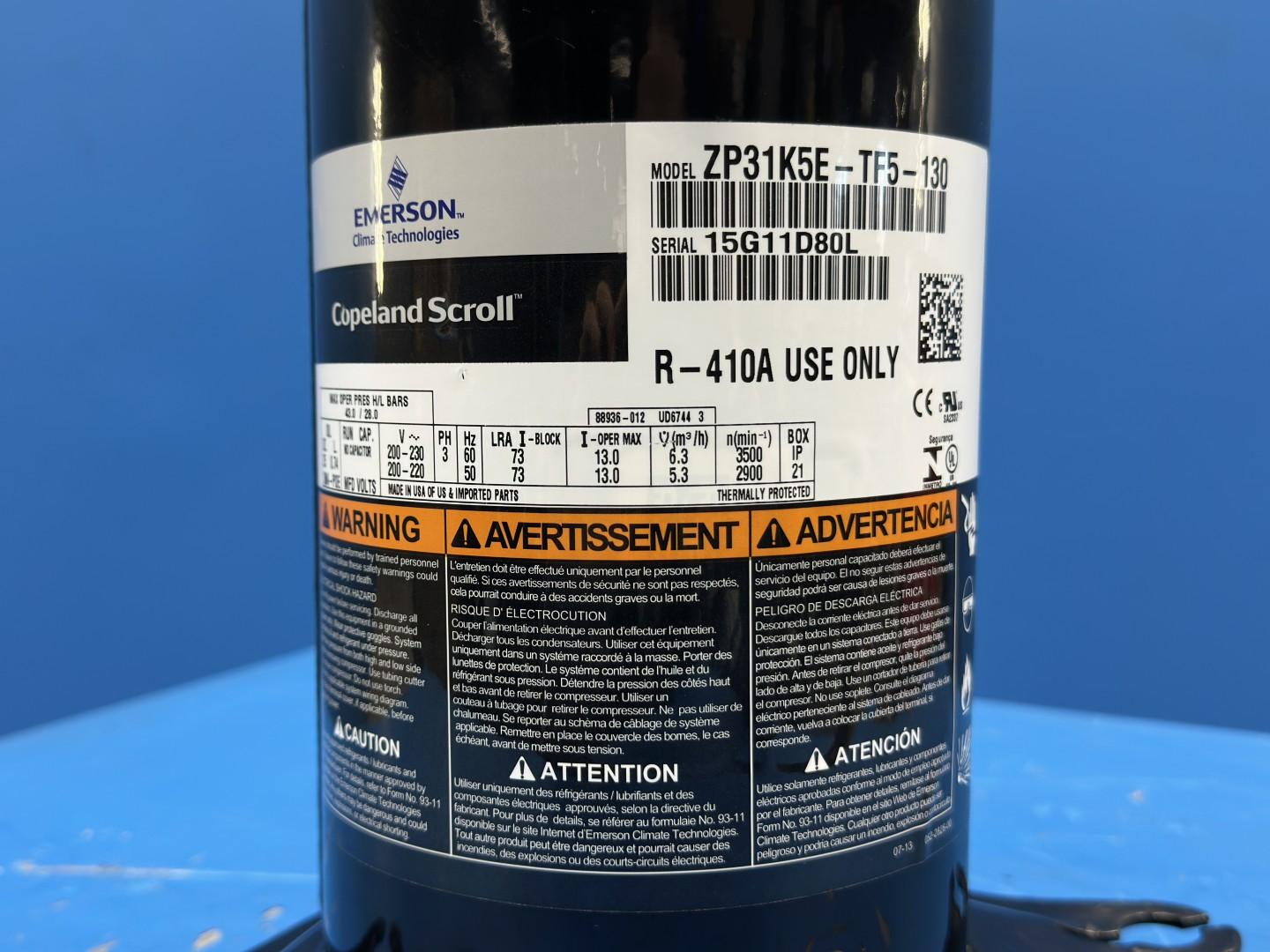

| Model | ZP31K5E-TF5-130 |
| Condition | New |
| Manufacturer | Copeland |
| Asset Number | KSC1230 / 1114 |
| Guarantee or ASIS | 2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return |

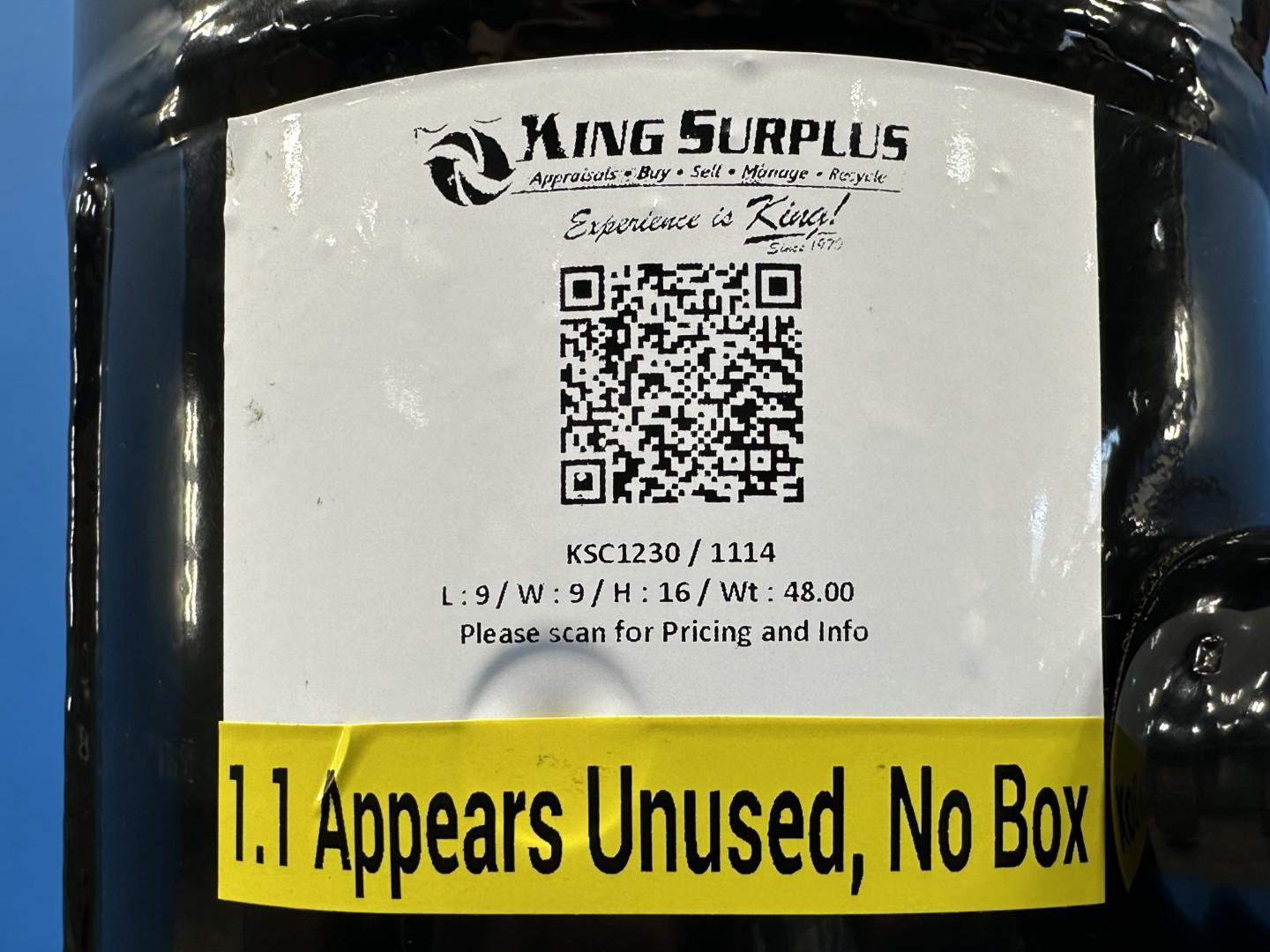

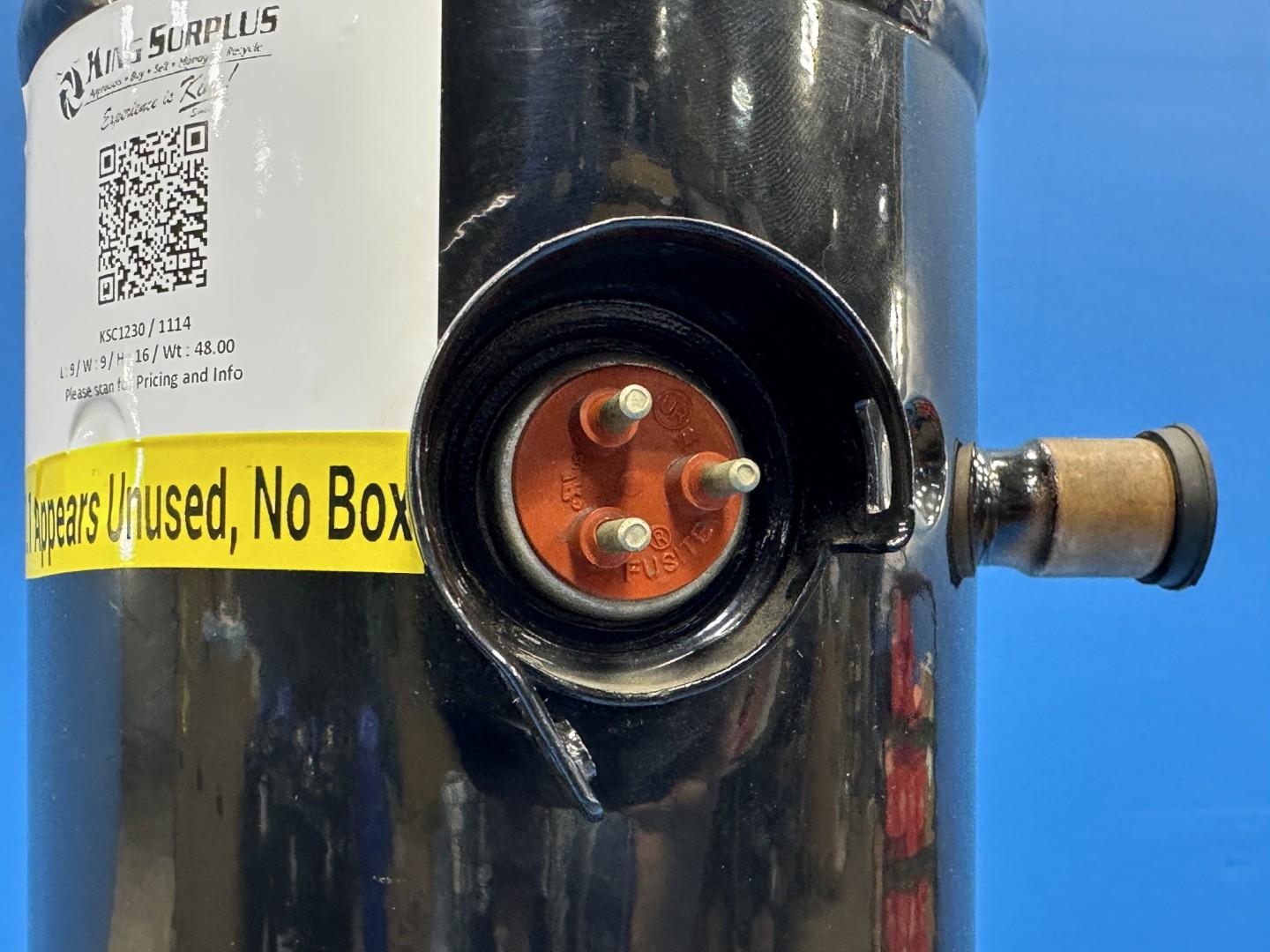

| Inspections - Yellow Tag | 1.1 Appears Unused no box |
| Packaging Cost | 1.1 Cardboard $10 |
$378.95
Basic Information
Asset #
KSC1230 / 1114
Available Quantity
4
Inspections - Yellow Tag
1.1 Appears Unused no box
Condition
New
Guarantee or ASIS
2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return
Item Description

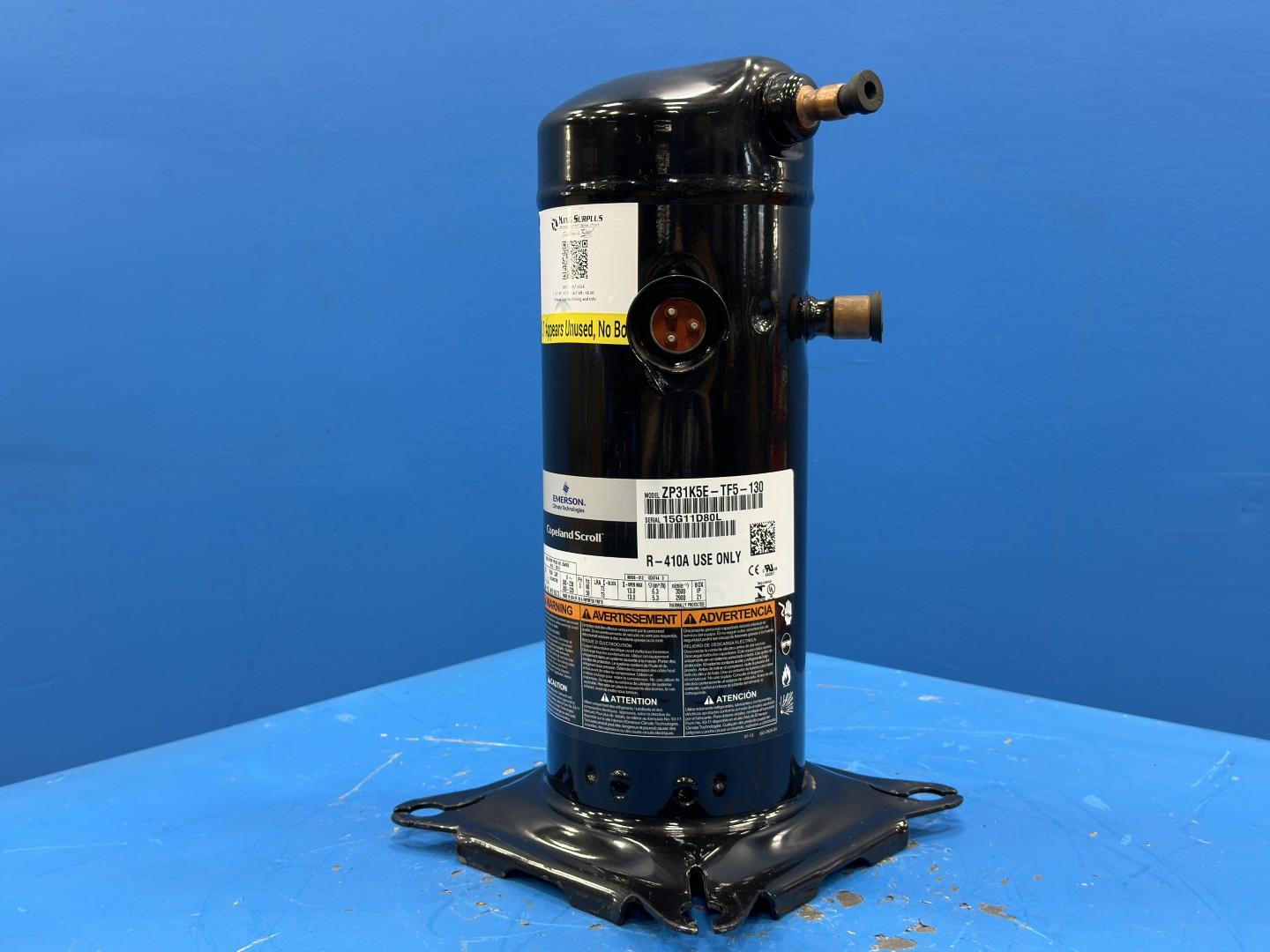

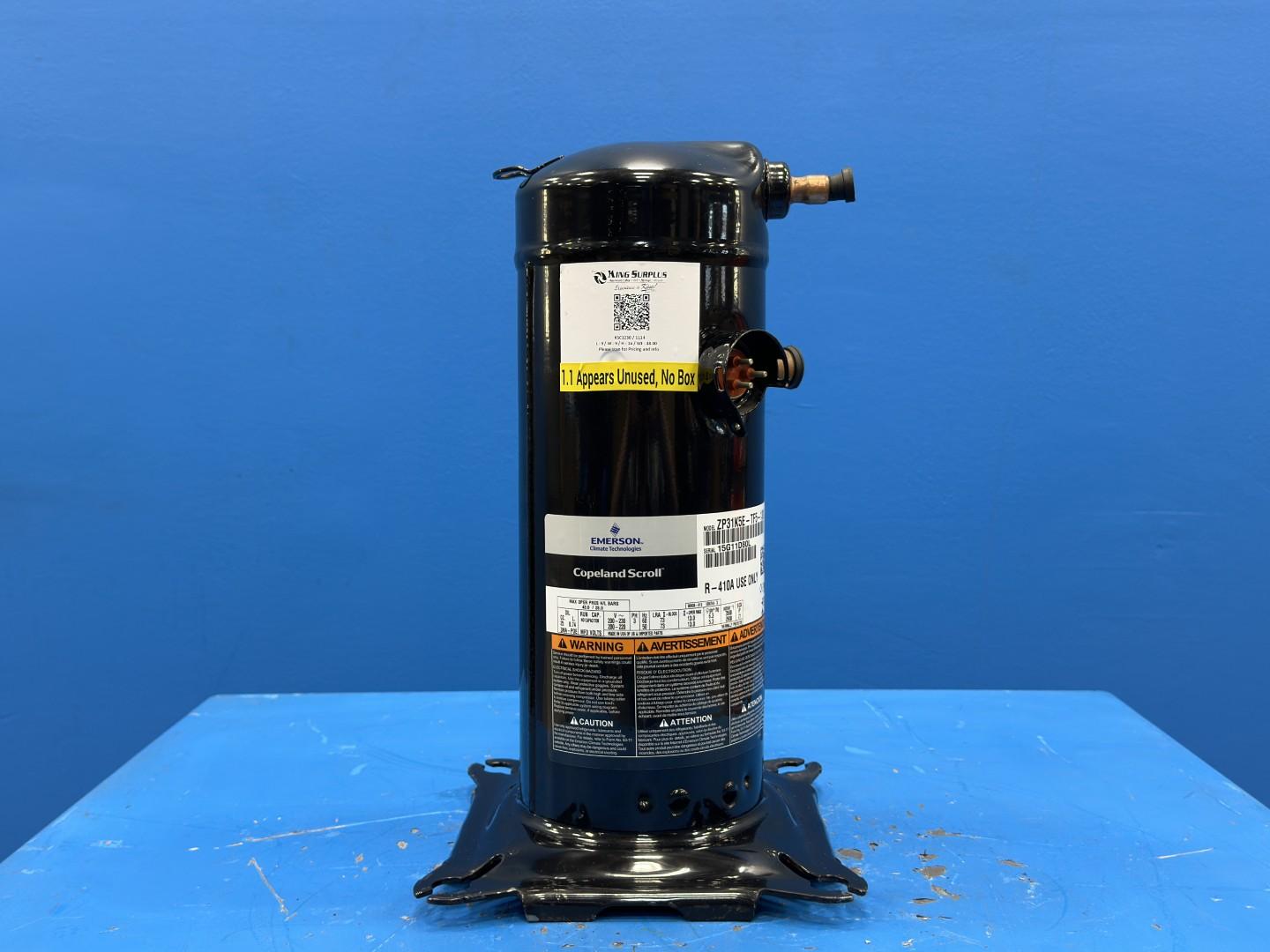

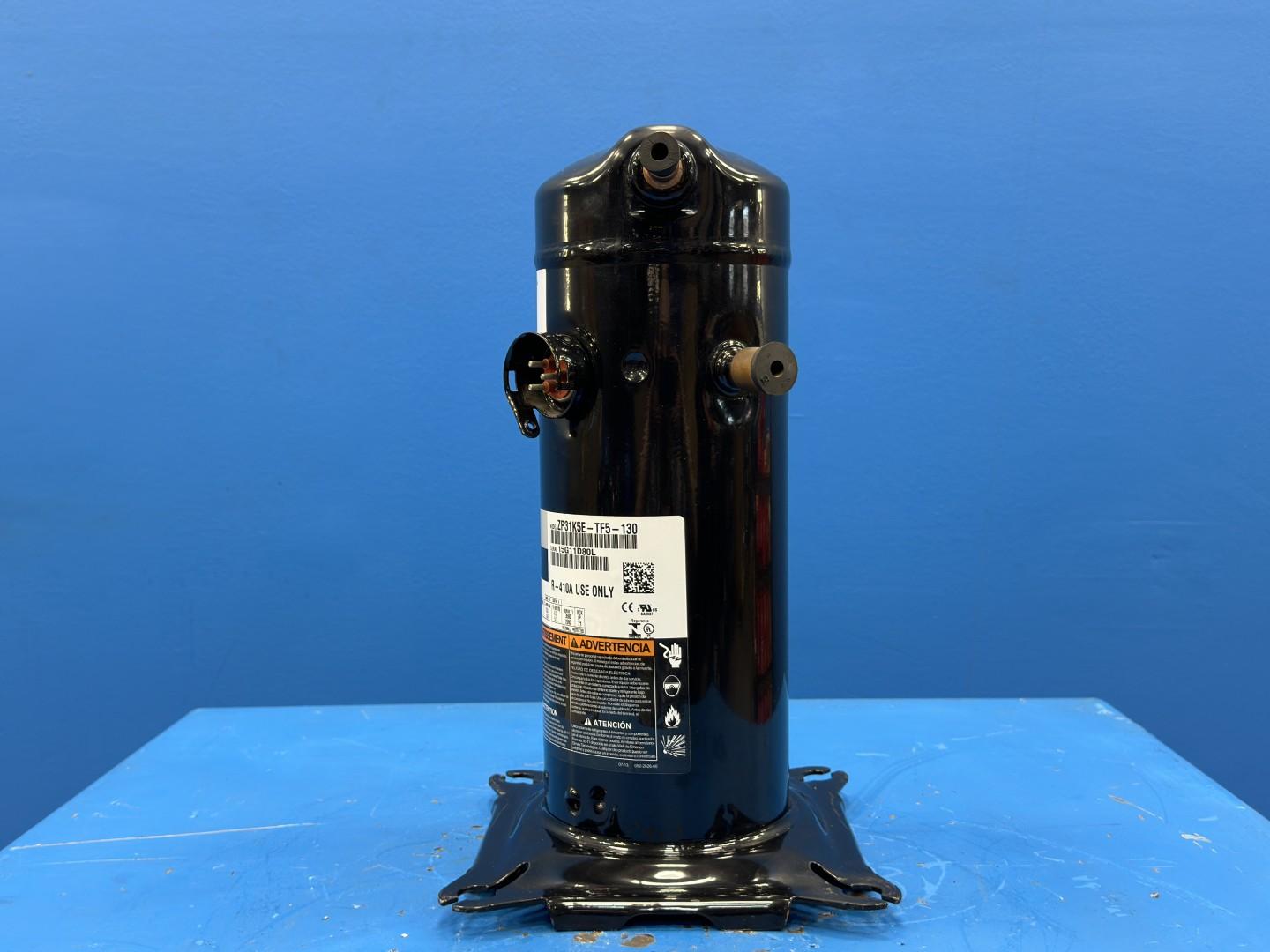

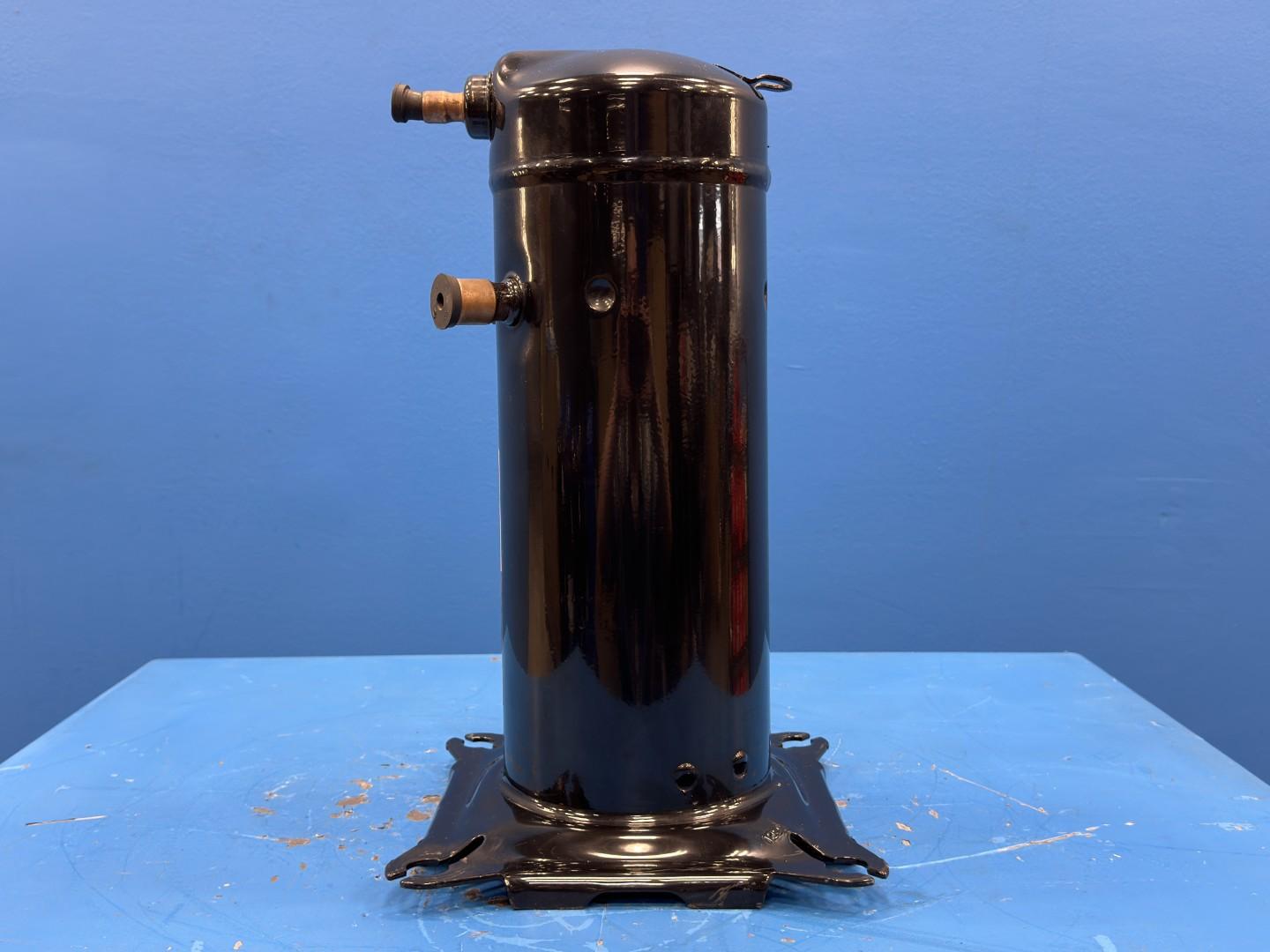

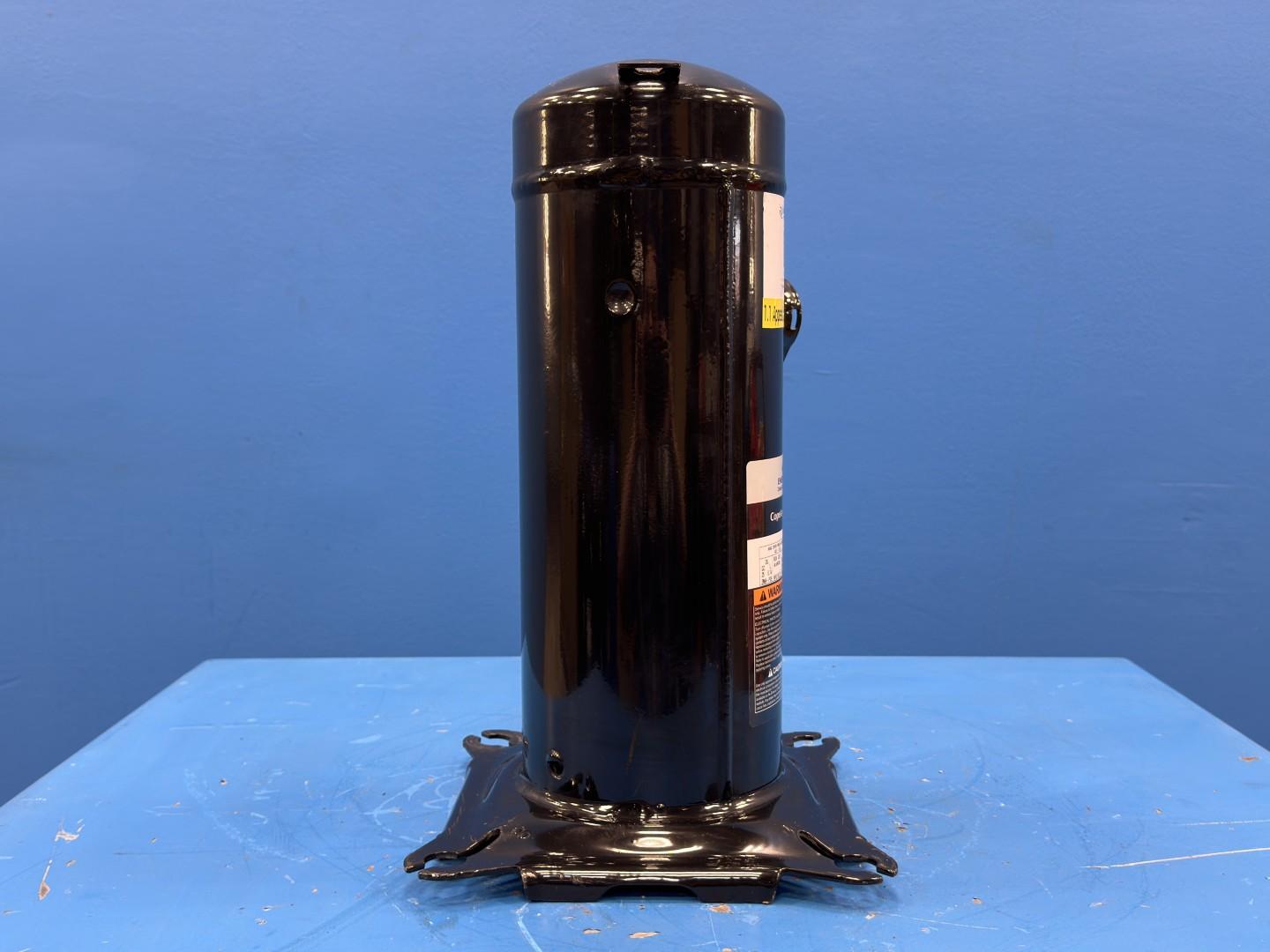

The ZP31K5E-TF5-130 is a hermetic, fixed-speed Copeland Scroll compressor for air conditioning and heat pump systems. A fixed and an orbiting spiral compress refrigerant toward the center of the scroll set, sealed inside a welded shell and replaced as a unit; it runs at one speed and cycles on and off to control capacity.
This model is built for R410A refrigerant with POE lubricant and rated at about 2.6 tons (31,200 BTU/hr) with a 10.2 EER. It runs on 200-230 V three-phase, 60 Hz power and is used in light commercial and larger residential air conditioning systems on three-phase service. In the Copeland code, ZP is the R410A scroll family, 31 the nominal capacity in thousands of BTU/hr, K5E the platform generation, and TF5 the motor code for 200-230 V three-phase, 60 Hz. It has published RLA, MCC, and LRA ratings, with 3/4 inch suction and 1/2 inch discharge connections.
Factory Information
| Specification | Value |
|---|---|
| Manufacturer | Copeland (Emerson) |
| Model | ZP31K5E-TF5-130 |
| Compressor type | Hermetic scroll, fixed speed |
| Refrigerant | R410A |
| Lubricant | POE |
| Cooling capacity | 2.6 Ton (31,200 BTU/hr) |
| Power supply | 200-230 V / 3-phase / 60 Hz |
| RLA (rated load amps) | 11.6 A |
| MCC (max continuous current) | 16.3 A |
| LRA (locked rotor amps) | 73 A |
| EER | 10.2 BTU/Wh |

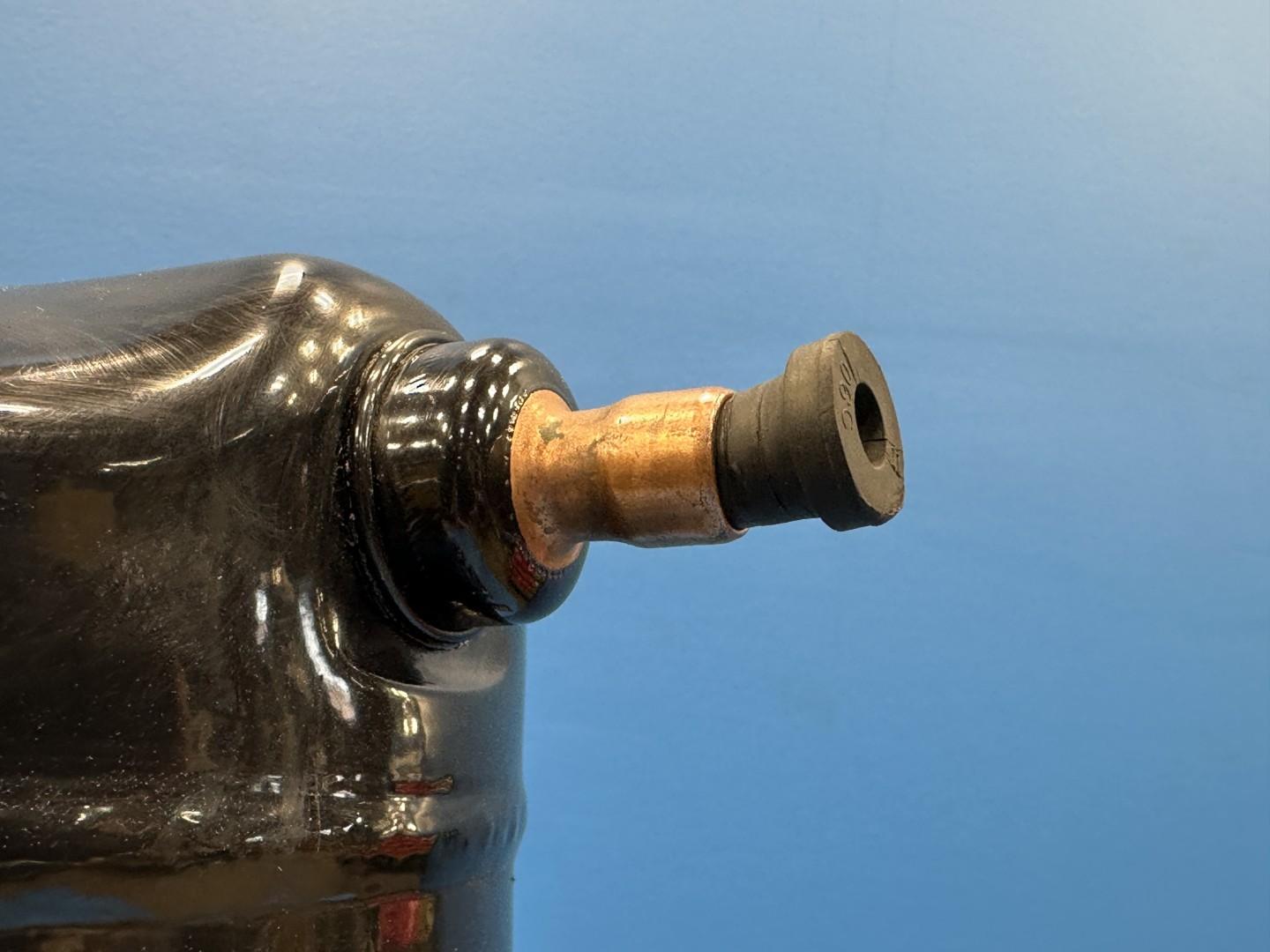

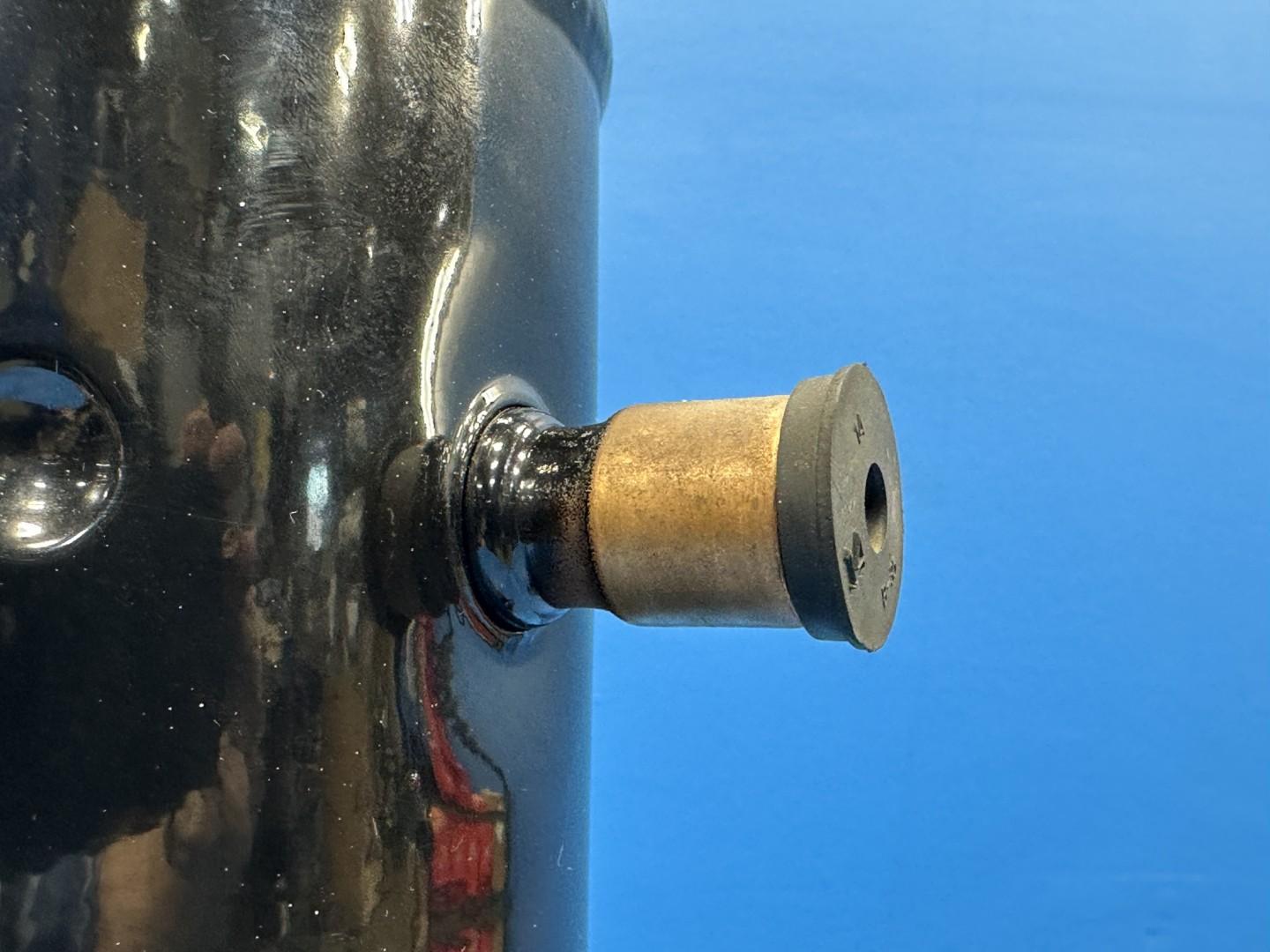

| Suction connection | 3/4 in |
| Discharge connection | 1/2 in |

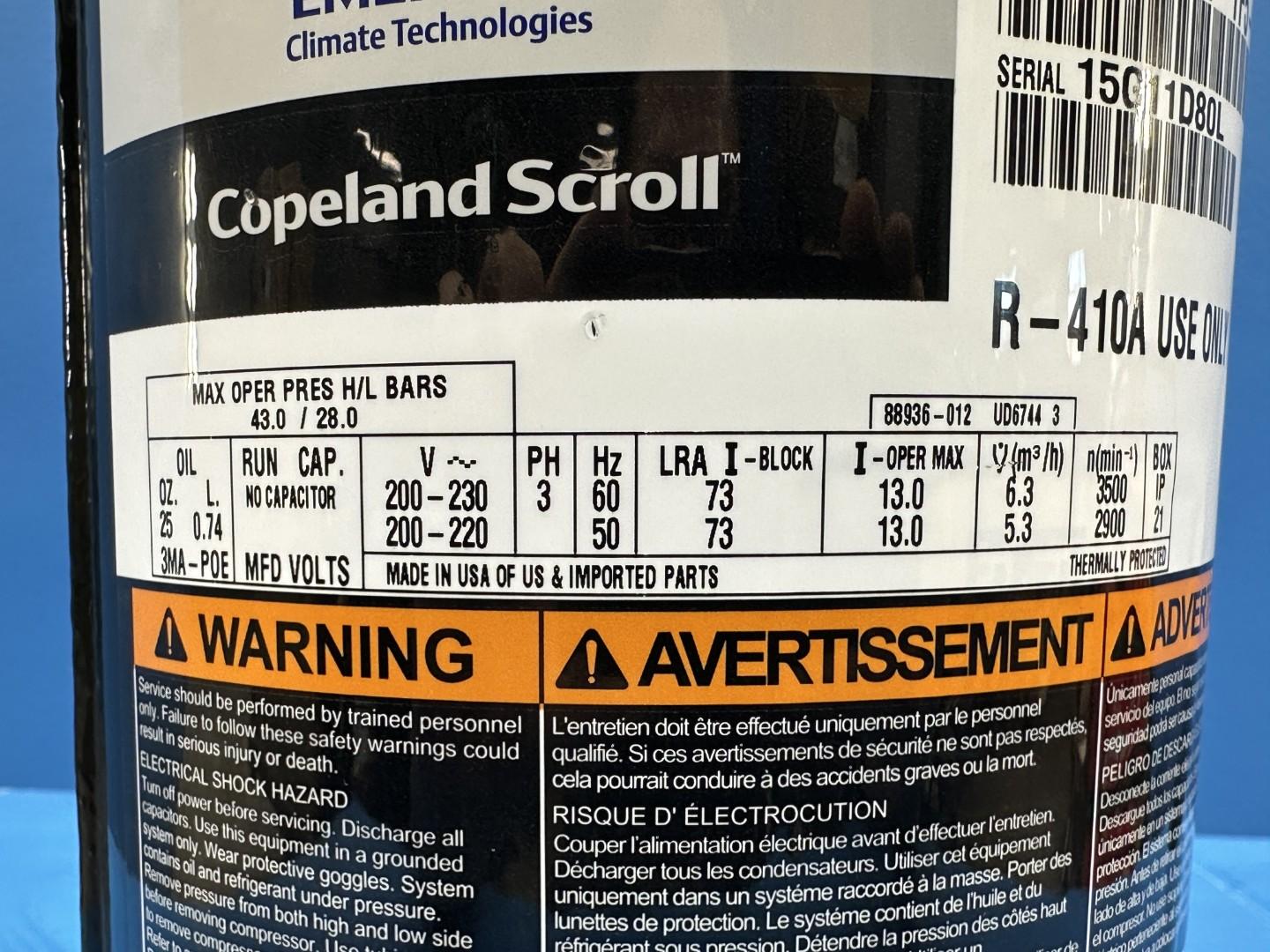

Specifications
Copeland
ZP31K5E-TF5-130
15G11D80L
N/A
50/60Hz
73
9
9
16
3
N/A
48
KSC1230 / 1114
Packaging fees
1.1 Cardboard $10
Payment Details
$378.95
Payment MethodsPayment Types Accepted : N/A
