Copeland Scroll Compressor 4 Ton 48,000 BTU ZR48K5E-TFD-130 460V 3 Phase R22
Copeland Scroll Compressor 4 Ton 48,000 BTU ZR48K5E-TFD-130 460V 3 Phase R22
Copeland Scroll Compressor 4 Ton 48,000 BTU ZR48K5E-TFD-130 460V 3 Phase R22
Copeland Scroll Compressor 4 Ton 48,000 BTU ZR48K5E-TFD-130 460V 3 Phase R22
| Description | Details |
|---|---|
| Available Quantity | 7 |

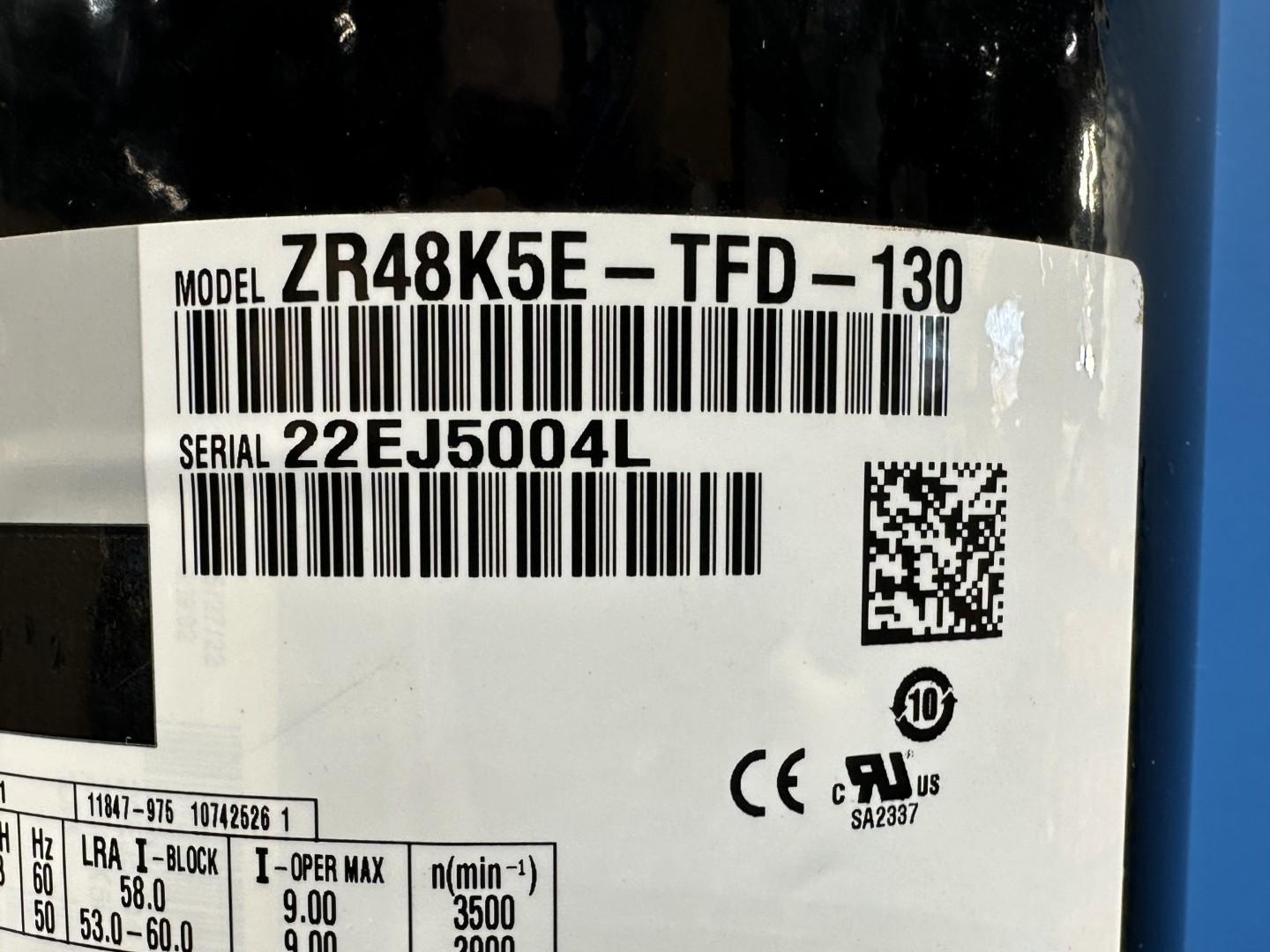

| Model | ZR48K5E-TFD-130 |
| Condition | New |
| Manufacturer | Copeland |
| Asset Number | KSC1230 / 1113 |
| Guarantee or ASIS | 2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return |
| Inspections - Yellow Tag | 1.1 Appears Unused no box |
| Packaging Cost | 1.1 Cardboard $10 |
$629.95
Basic Information
Asset #
KSC1230 / 1113
Available Quantity
7
Inspections - Yellow Tag
1.1 Appears Unused no box
Condition
New
Guarantee or ASIS
2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return
Item Description

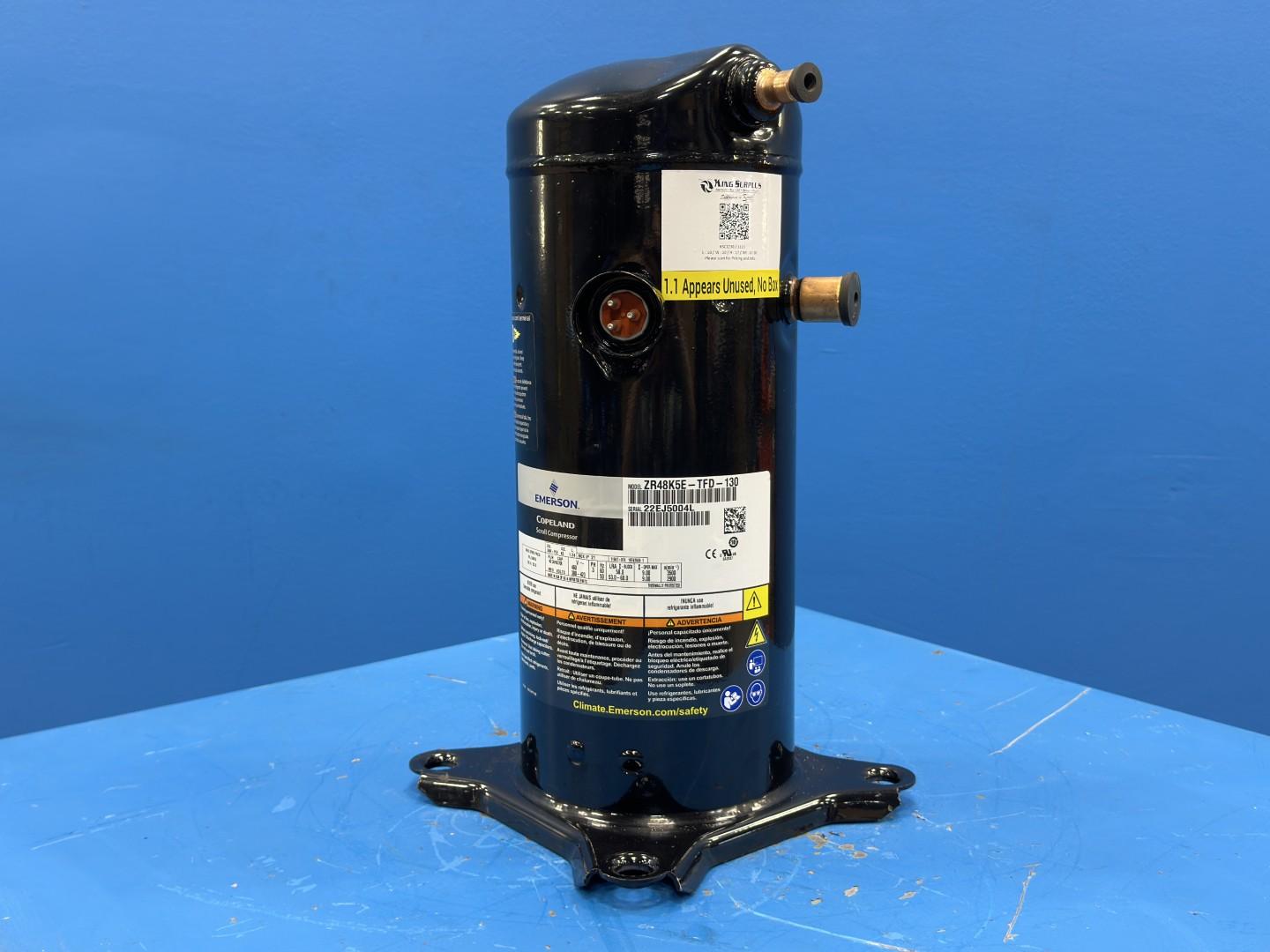

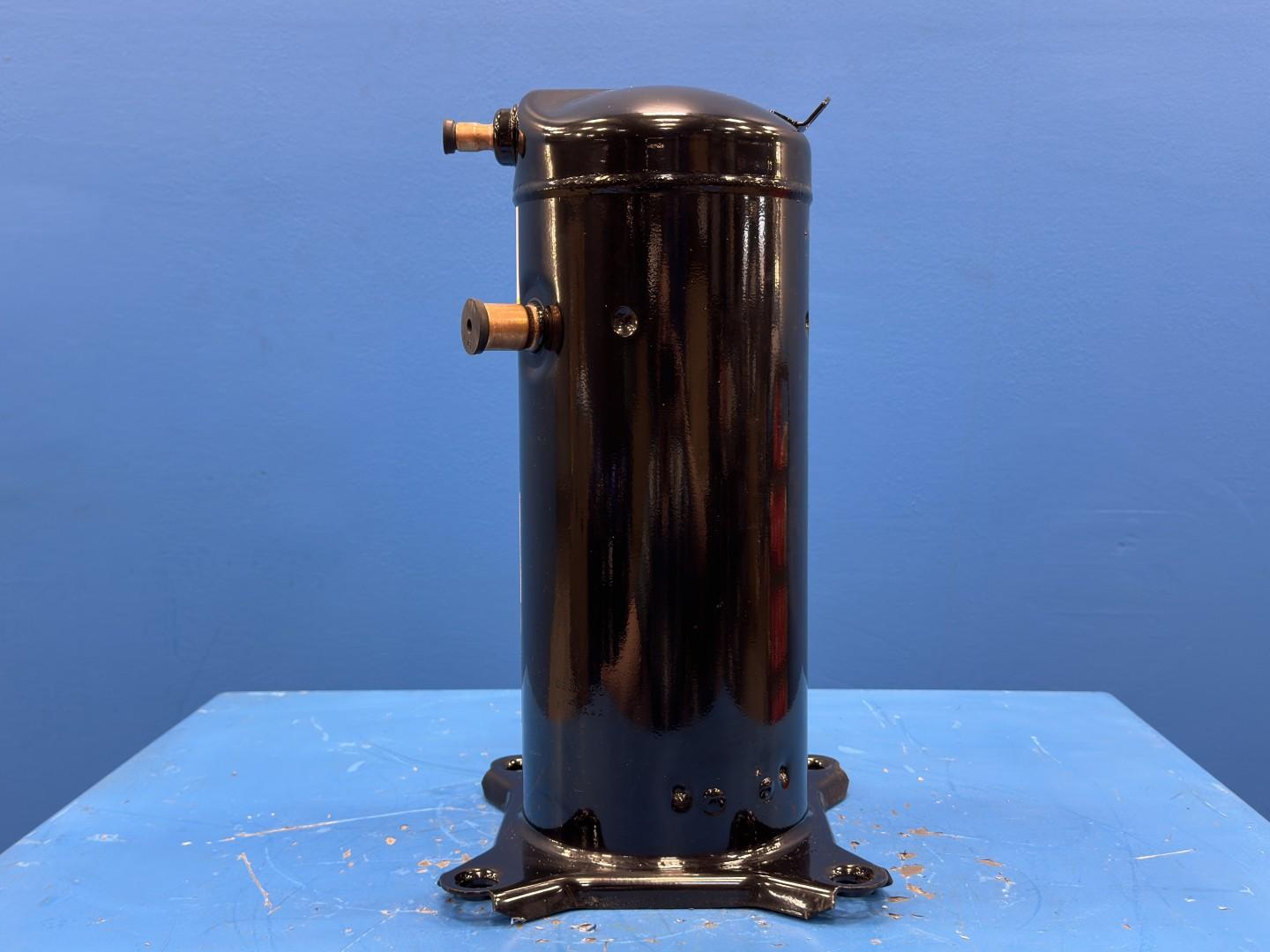

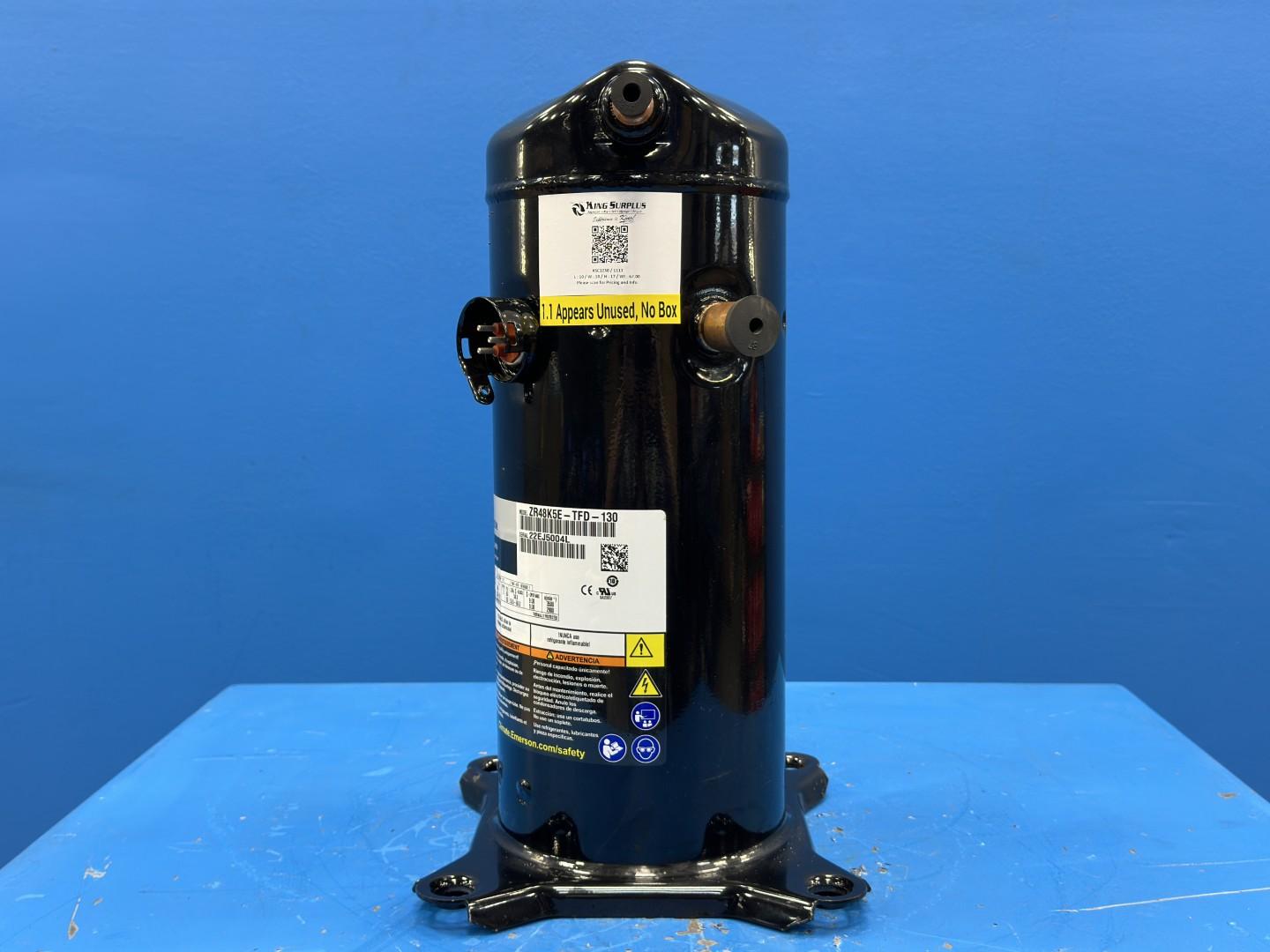

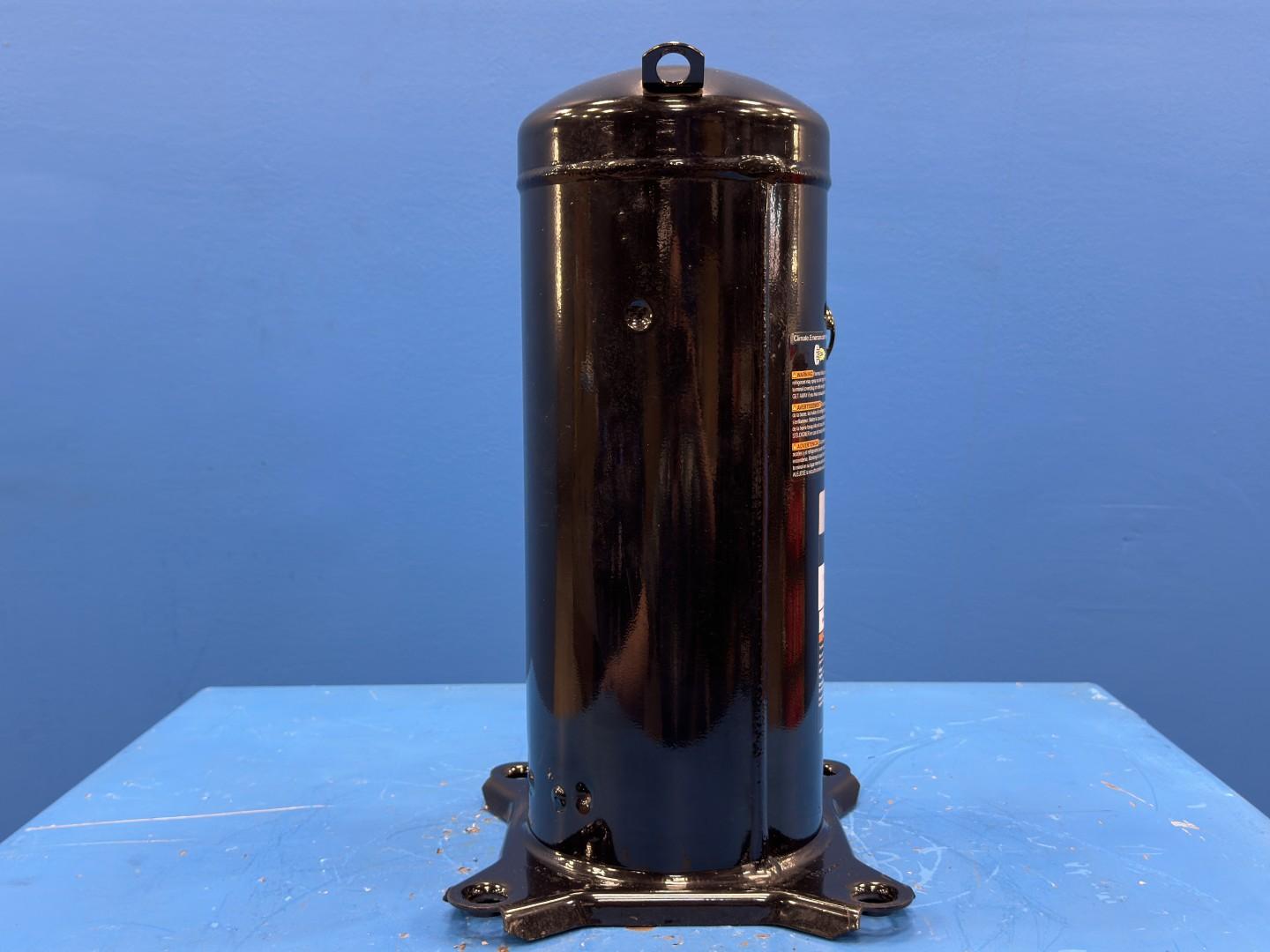

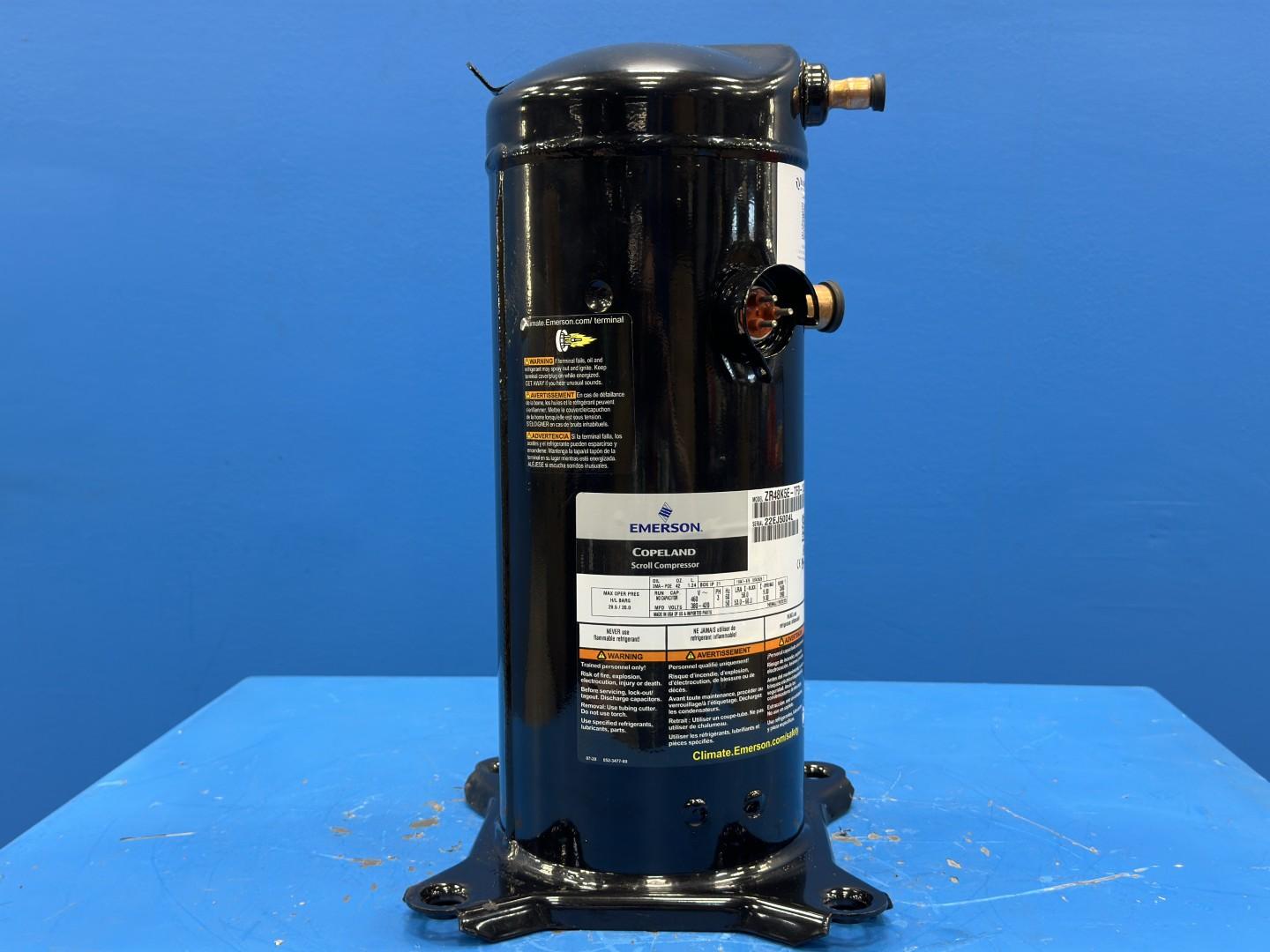

The ZR48K5E-TFD-130 is a hermetic, fixed-speed Copeland Scroll compressor for air conditioning and refrigeration. It compresses refrigerant with a fixed-and-orbiting scroll pair sealed in a welded shell, runs at a single speed, and cycles to match load. The ZR family is Copeland's scroll line for R22 (it is also compatible with R407C).
This model is built for R22 refrigerant and ships with POE lubricant, rated at about 4.0 tons (48,200 BTU/hr) with an 11.4 EER. It runs on 460 V three-phase, 60 Hz power and is used in commercial air conditioning and refrigeration equipment such as rooftop units, packaged systems, and walk-in applications. Because R22 compressors are no longer manufactured, this is a replacement part for legacy R22 systems. In the Copeland code, ZR is the R22 scroll family, 48 the nominal capacity in thousands of BTU/hr, K5E the platform generation, and TFD the motor code for 460 V three-phase, 60 Hz. It has published RLA, MCC, and LRA ratings.
Factory Information

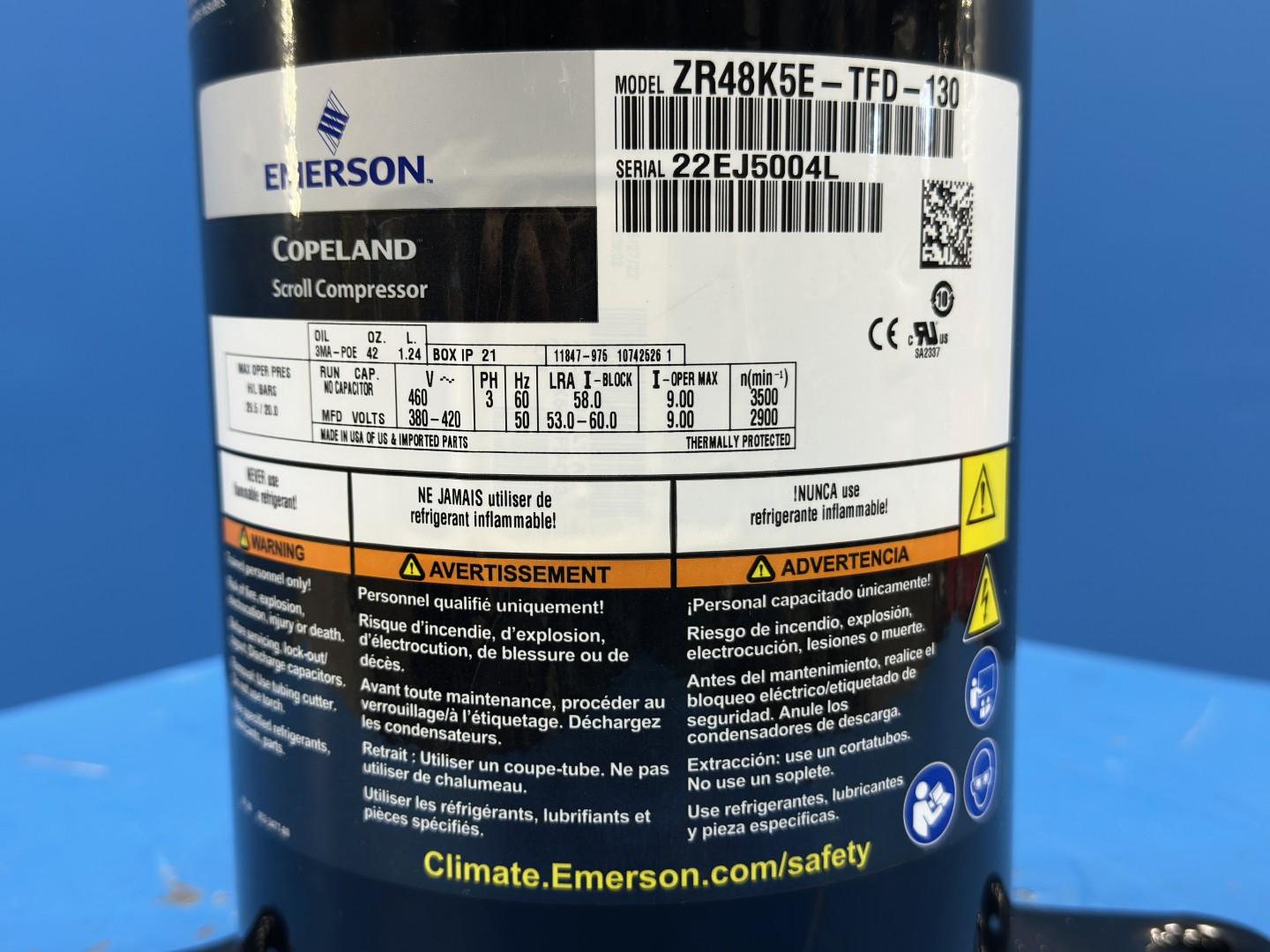

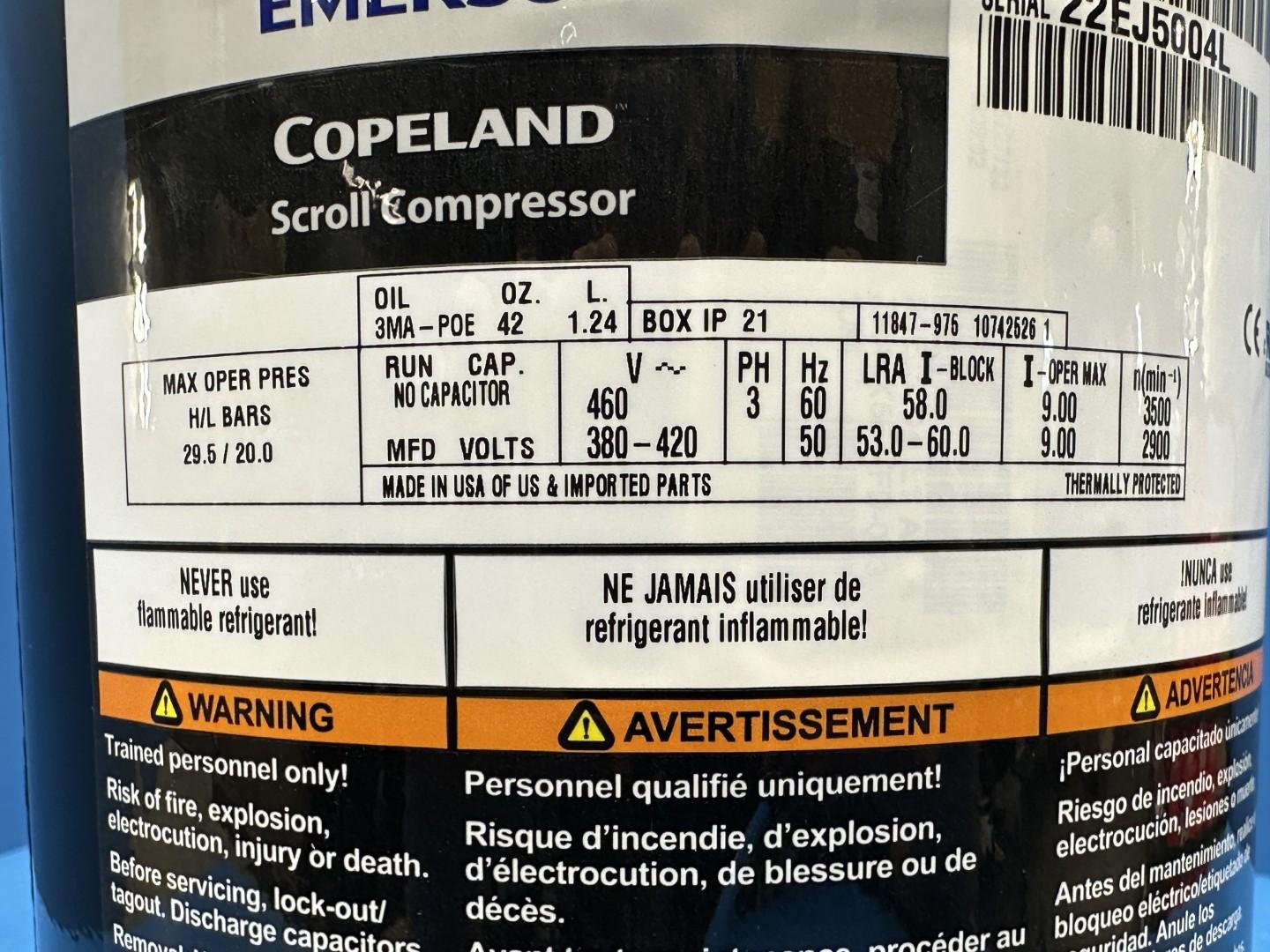

| Specification | Value |
|---|---|
| Manufacturer | Copeland (Emerson) |
| Model | ZR48K5E-TFD-130 |
| Compressor type | Hermetic scroll, fixed speed |
| Refrigerant | R22 (also R407C compatible) |
| Lubricant | POE |
| Cooling capacity | 4.0 Ton (48,200 BTU/hr) |
| Power supply | 460 V / 3-phase / 60 Hz |
| RLA (rated load amps) | 7.9 A |
| MCC (max continuous current) | 11 A |
| LRA (locked rotor amps) | 58 A |
| EER | 11.4 BTU/Wh |

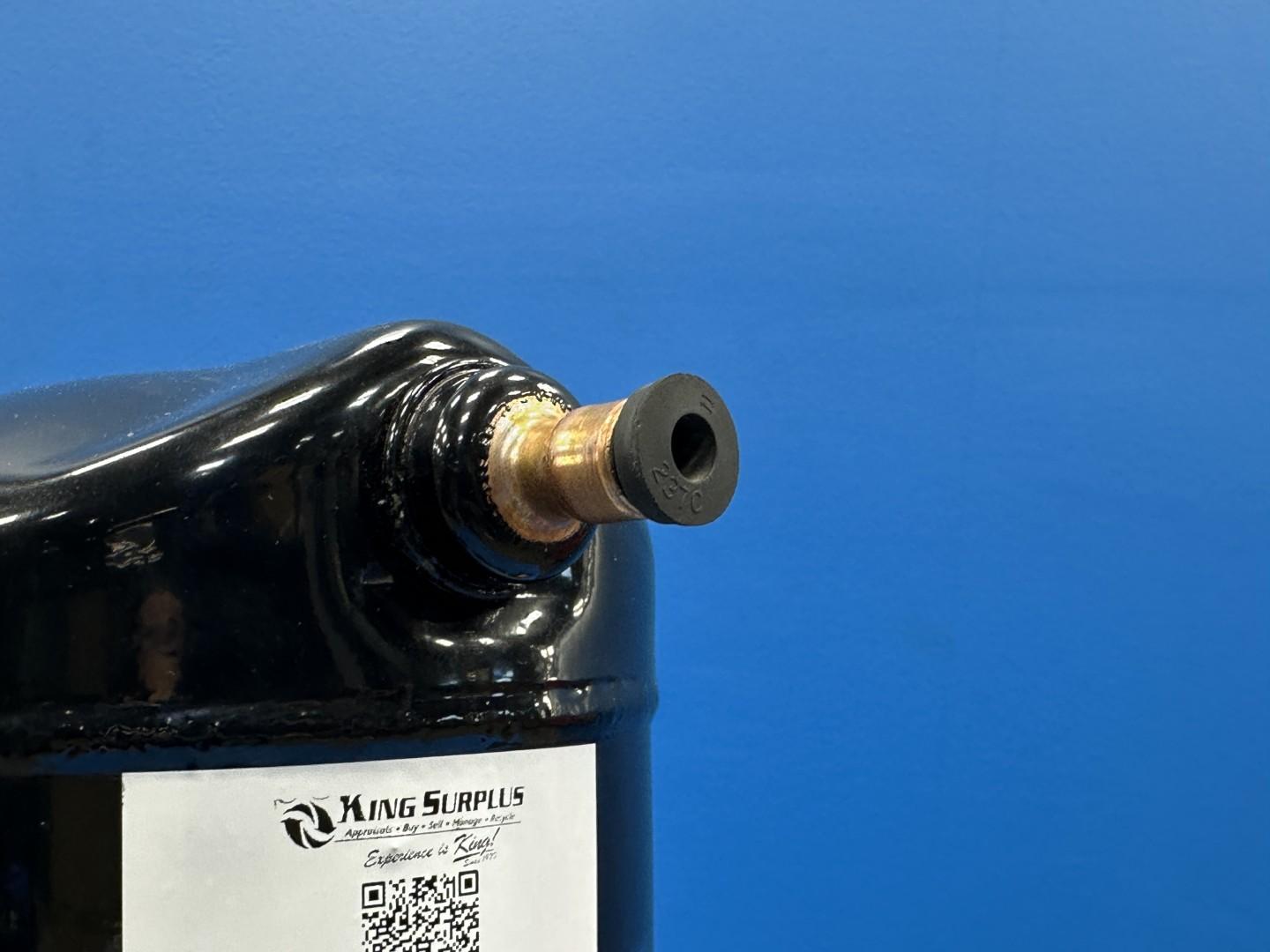

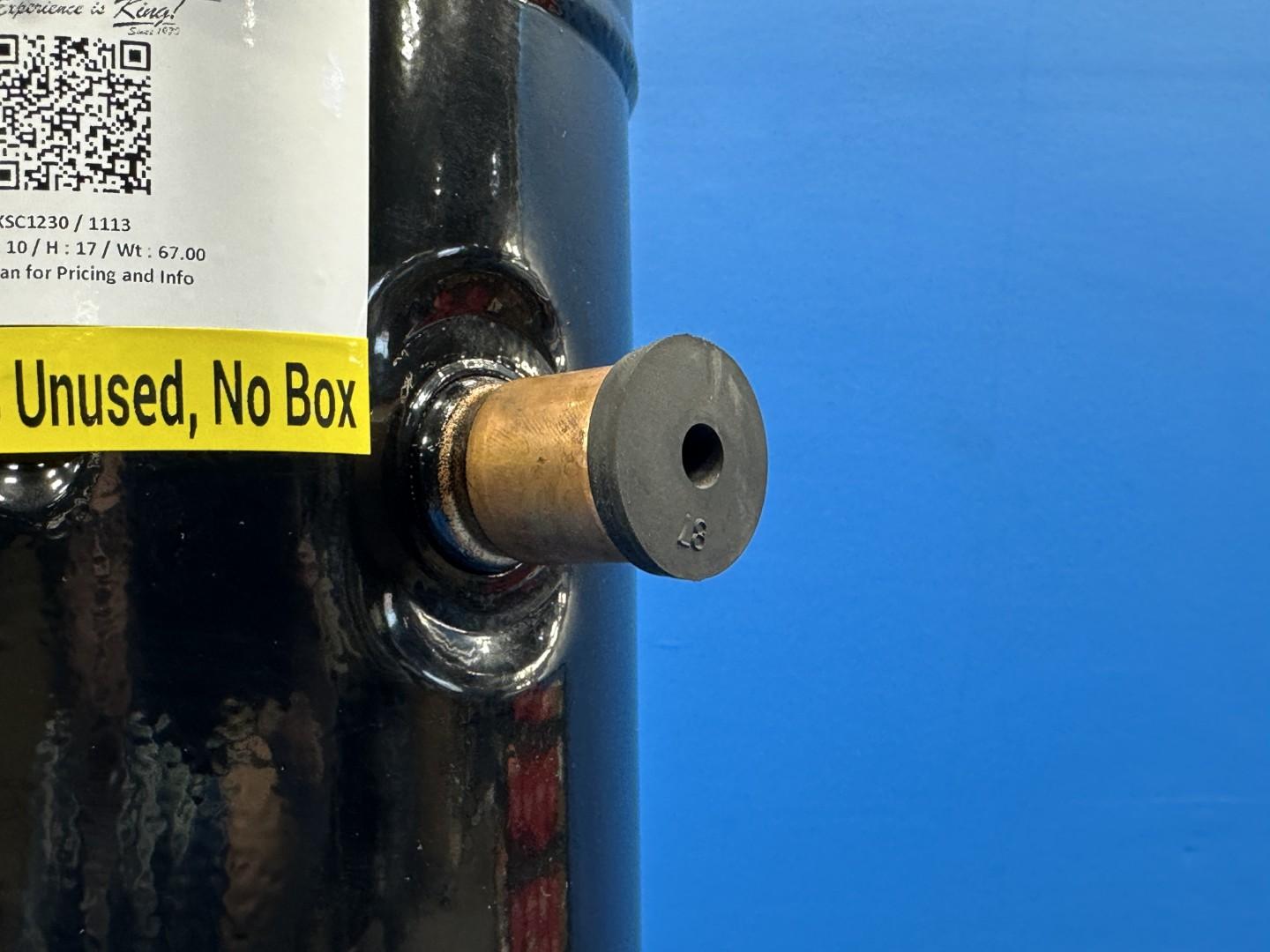

| Suction connection | 7/8 in |
| Discharge connection | 1/2 in |
Specifications
Copeland
ZR48K5E-TFD-130
22EJ5004L
N/A
60Hz
58
10
10
17
3
N/A
67
KSC1230 / 1113
Packaging fees
1.1 Cardboard $10
