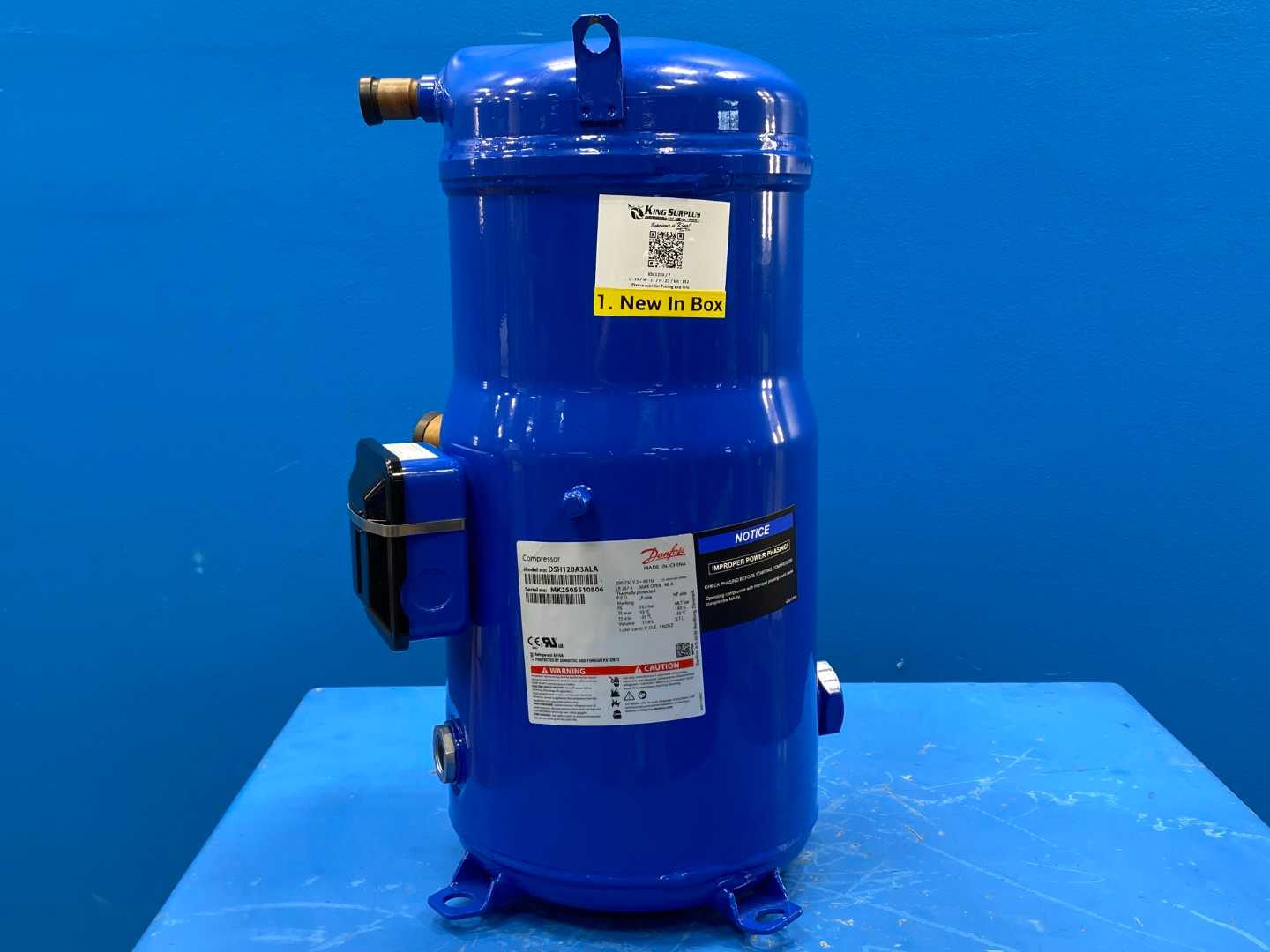

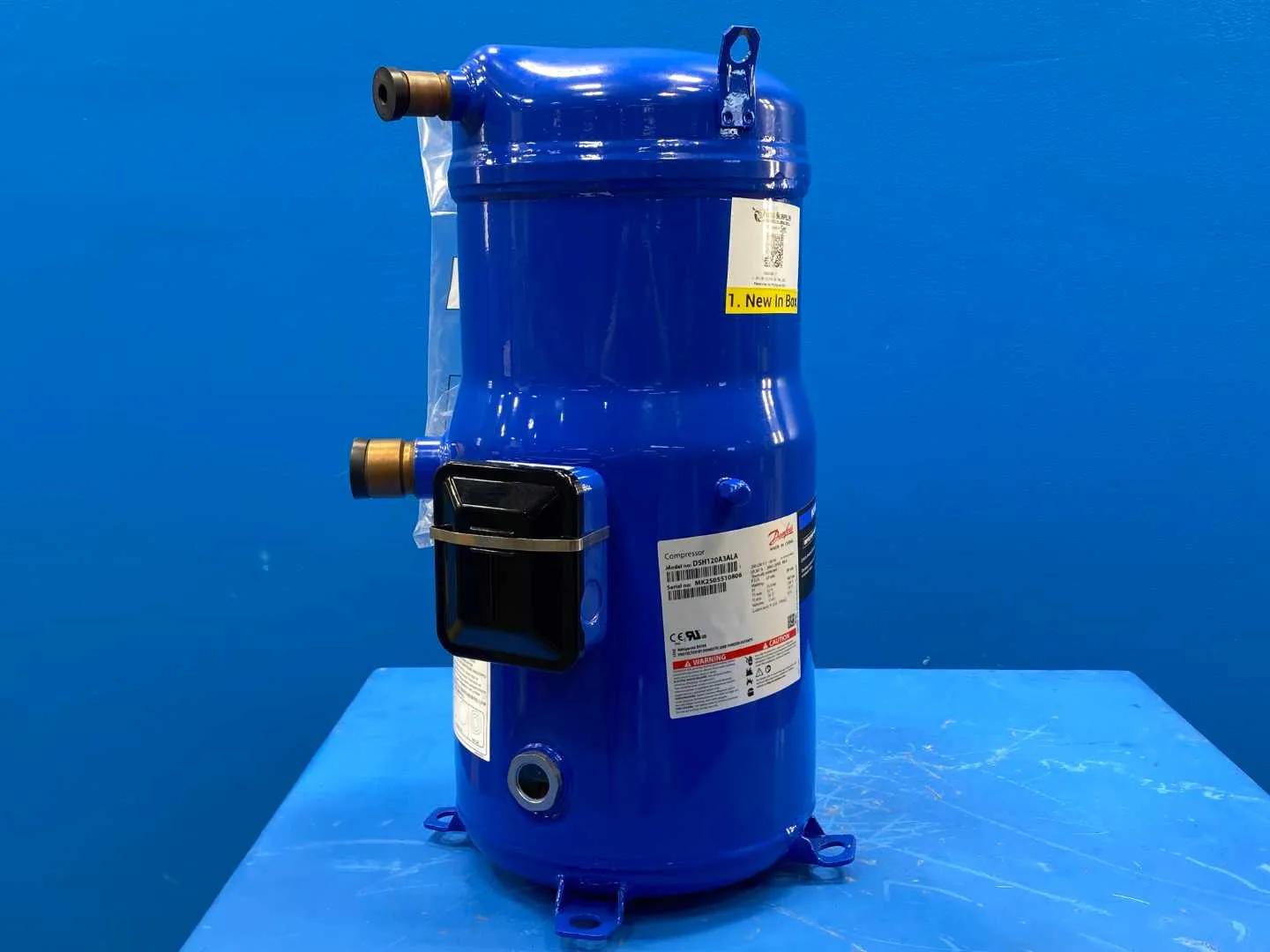

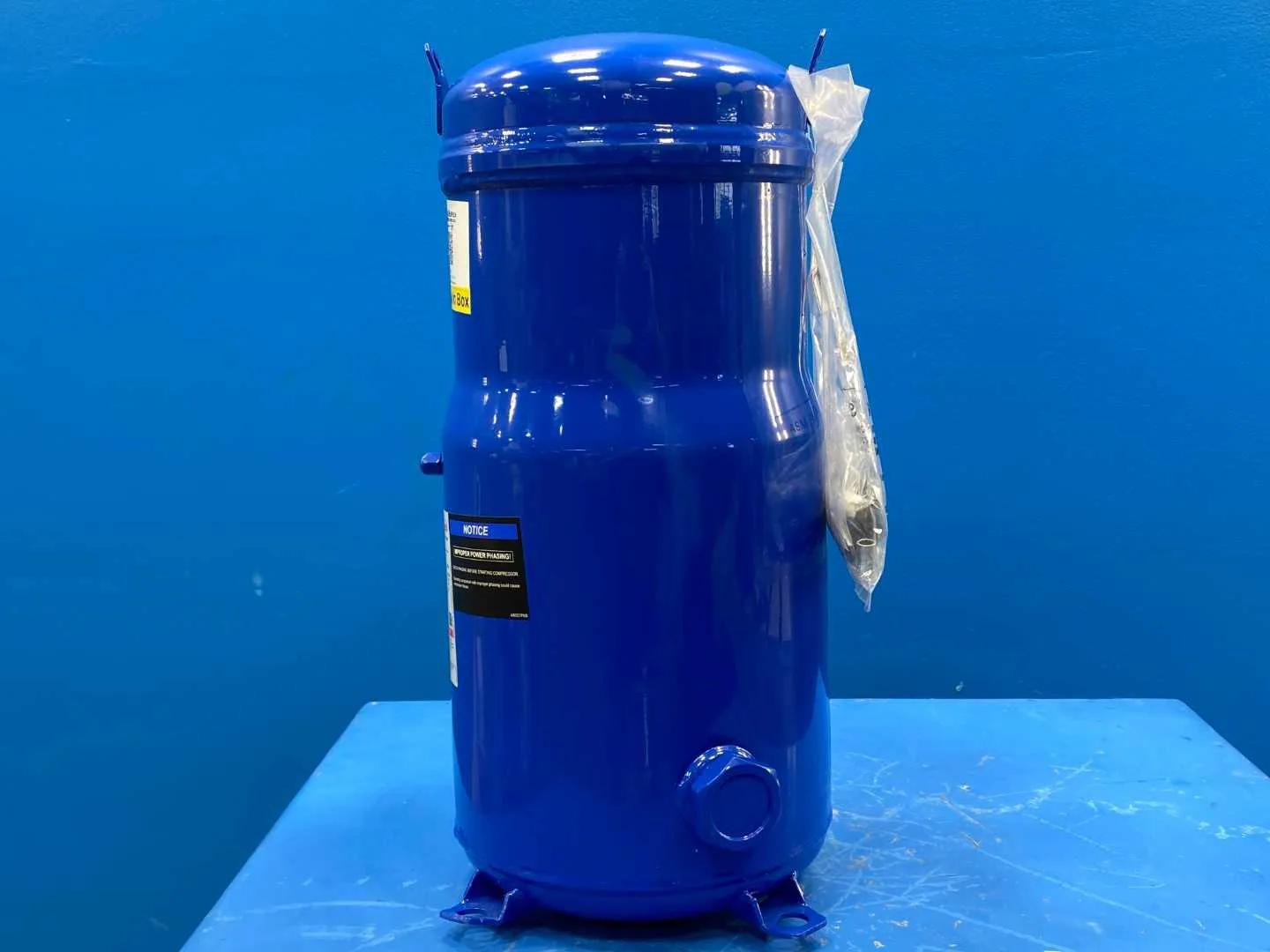

Danfoss 120H1196 DSH120A3ALA Scroll Compressor (10Ton / 120,000 BTU/hr) R410
$2,495.00
| Description | Details |
|---|---|
| Available Quantity | 4 |
| Model | DSH120A3ALA |
| Condition | New |
| Manufacturer | Danfoss |
| Asset Number | KSC1230 / 7 |
| Guarantee or ASIS | 1. HIGH CONFIDENCE ITEM: We will offer a 100% 14 Day money back less S&H. |
| Inspections - Yellow Tag | 1. New in Box |
| Packaging Cost | 2.2 Pine Pallet $35 |
$2,495.00
Item Description
Inspection Report
Basic Information
Item Description
Introducing the cutting-edge Danfoss 120H1196 DSH120A3ALA Scroll Compressor! This powerhouse confidently delivers a whopping cooling capacity of 10 Tons or 120,000 BTU/hr, making it ideal for heavy-duty cooling requirements. Utilizing the eco-friendly R410 refrigerant, it surely marks high on environmental responsibility and sustainability. Superior engineering and immaculate design distinguish it from the pack, ensuring best-in-class performance. Its not just about power; this smartly built device operates smoothly reducing operational noise significantly. Efficiency is the game-changer here; trust Danfoss to nail your cooling needs effectively while optimizing energy consumption. Empowered by a rugged and resilient construction, the compressor promises you lasting durability and solid consistency in performance. And the crown jewel is its easy installation feature, making it a dream choice for users. With Danfoss 120H1196 DSH120A3ALA Scroll Compressor, embrace the perfect balance of power, efficiency and reliability. Dont just cool; cool the smart way with Danfoss!
Item Description
Inspection Report
Introducing the cutting-edge Danfoss 120H1196 DSH120A3ALA Scroll Compressor! This powerhouse confidently delivers a whopping cooling capacity of 10 Tons or 120,000 BTU/hr, making it ideal for heavy-duty cooling requirements. Utilizing the eco-friendly R410 refrigerant, it surely marks high on environmental responsibility and sustainability. Superior engineering and immaculate design distinguish it from the pack, ensuring best-in-class performance. Its not just about power; this smartly built device operates smoothly reducing operational noise significantly. Efficiency is the game-changer here; trust Danfoss to nail your cooling needs effectively while optimizing energy consumption. Empowered by a rugged and resilient construction, the compressor promises you lasting durability and solid consistency in performance. And the crown jewel is its easy installation feature, making it a dream choice for users. With Danfoss 120H1196 DSH120A3ALA Scroll Compressor, embrace the perfect balance of power, efficiency and reliability. Dont just cool; cool the smart way with Danfoss!
Read More ▼
Factory Information
Product details
| Gross weight | 69.78 Kilogram |
| Net weight | 64 Kilogram |
| Volume | 0.1 Cubic meter |
| EAN | 5702428585026 |
| Approval | CE UL UKCA |
| Brand technique | Scroll compressor |
| Capacity control | Fixed speed |
| China RoHS compliance | Out of scope |
| Colour | Blue |
| Compressor power supply [V] | 208-230/3/60 |
| Configuration code | Single |
| Connection type | Brazed |
| Description | DSH120-3 (Old) |
| Diameter [mm] | 243 mm |
| Discharge connection height [mm] | 509 mm |
| Discharge connection pipe size [in] | 7/8 in |
| Discharge connection size [in] | 7/8 in |
| Drawing number | 8560003 |
| Economizer | No |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(a), 6(a)-I, 7(a), 7(c)-I, 8(b), 9(b) |
| Family | DSH |
| Fitting standard | ODF |
| Frequency [Hz] | 60 |
| Gauge port HP | None |
| Gauge port LP | Schrader |

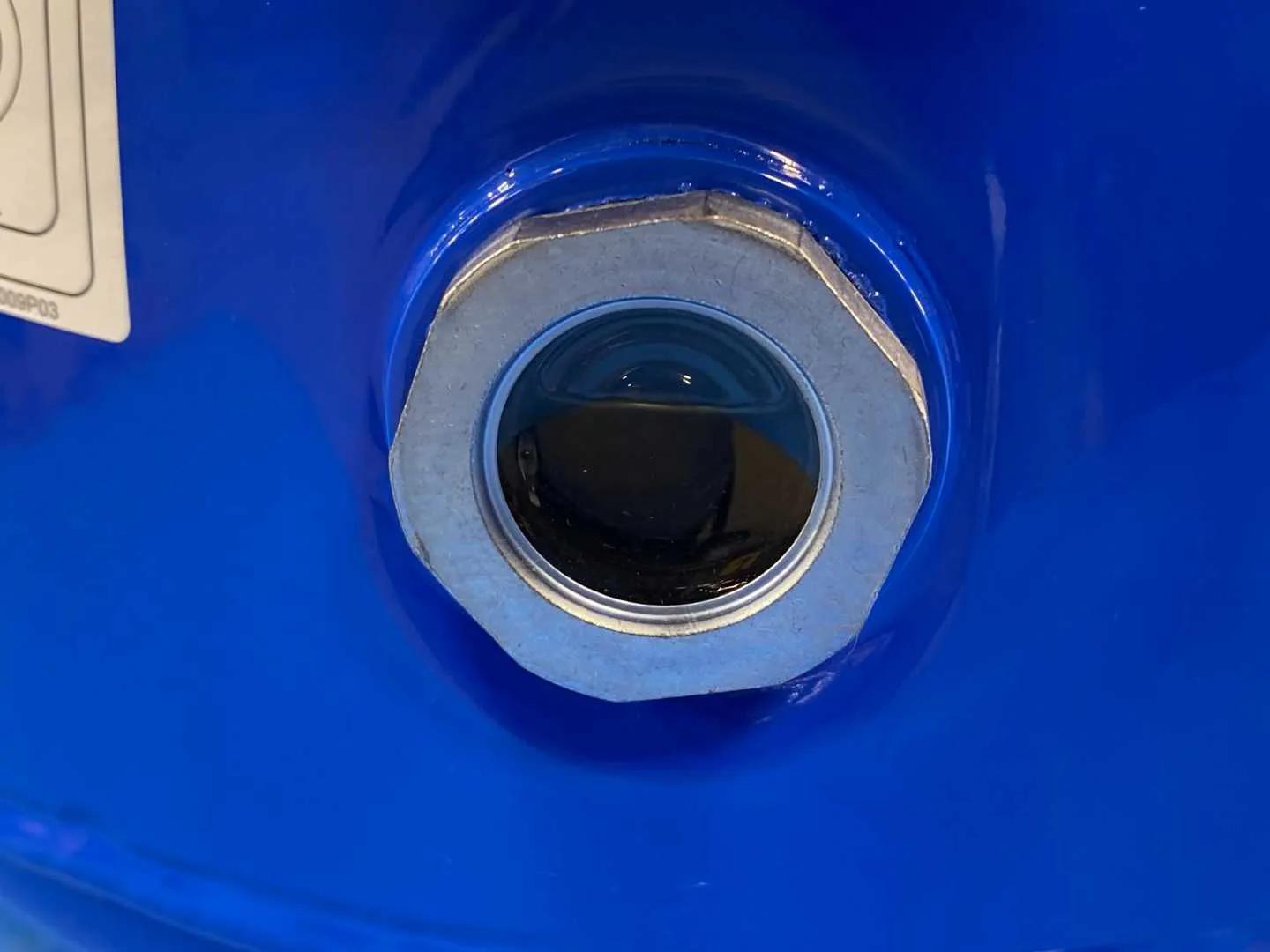

| Glass mounting | Threaded |
| Glass torque [Nm] | 50 N-m |
| High Side TS Max | 150 °C |
| High Side TS Min | -35 °C |
| High Side Volume | 0.7 L |
| High value of nominal voltage at 60Hz [V] | 230 V |
| High value of voltage range at 60Hz [V] | 253 V |
| In scope of WEEE and contain batteries | No |
| IP protection class | IP54 (with cable gland) |
| Low Side TS Max | 55 °C |
| Low Side TS Min | -35 °C |
| Low Side Volume | 13.6 L |
| Low value of nominal voltage at 60Hz [V] | 200 V |
| Low value of voltage range at 60Hz [V] | 180 V |
| LRA | 267 A |
| Max pressure (PS) - high side | 48.7 bar |
| Max pressure (PS) - low side | 33.3 bar |
| Maximum Operating Current [MOC] | 48 A |
| MCC | 61 A |
| Model number | DSH120A3ALA |
| Motor protection | Internal overload protector |
| Mounting torque [Nm] | 15 N-m |
| Network power supply [V/Ph/Hz] | 208-230/3/60 |
| Number of starts per hour [Max] | 12 |
| Oil charge [L] | 3.3 L |
| Oil equalization | 1-3/4'' Rotolock |
| Oil reference | 160SZ |
| Oil type | POE |
| Packing format | Single pack |
| Packing quantity | 1 |
| Phase | 3 |
| Power connections | Screw 4.8 mm |
| Product group | Hermetic compressors |
| Product Name Description | Scroll compressor DSH |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerant charge [kg] [Max] | 10 kg |
| Refrigerants | R410A |
| Replacement code | 120H1527 |
| RLA | 43.6 A |
| Rotational speed at 60Hz [rpm] | 3500 rpm |
| SCIP dossier no. | bff3e2c3-5aad-40f0-b874-7eee67aaf788 |
| Segment usage | Air conditioning |
| Shipped instructions | Installation instructions |

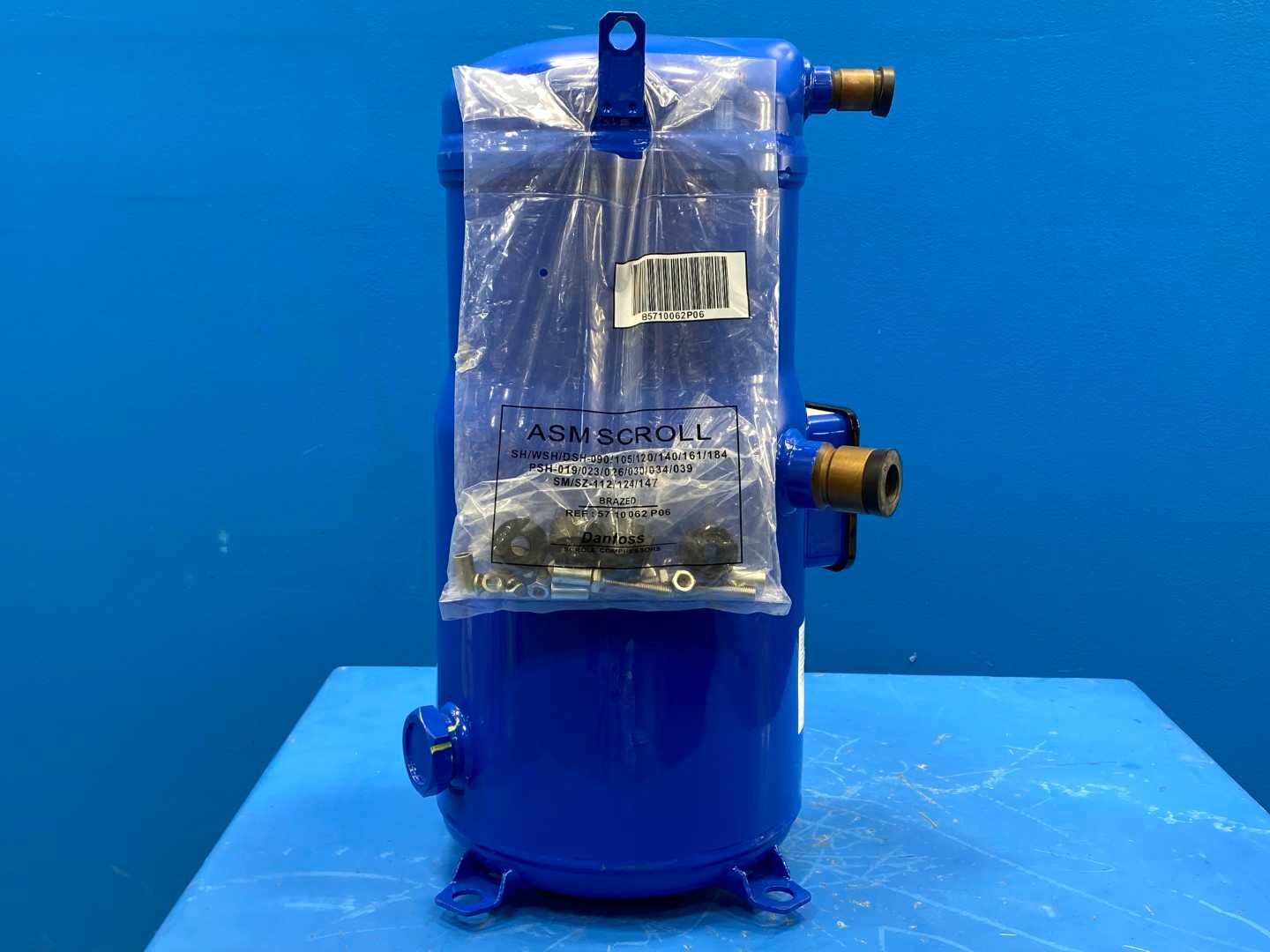

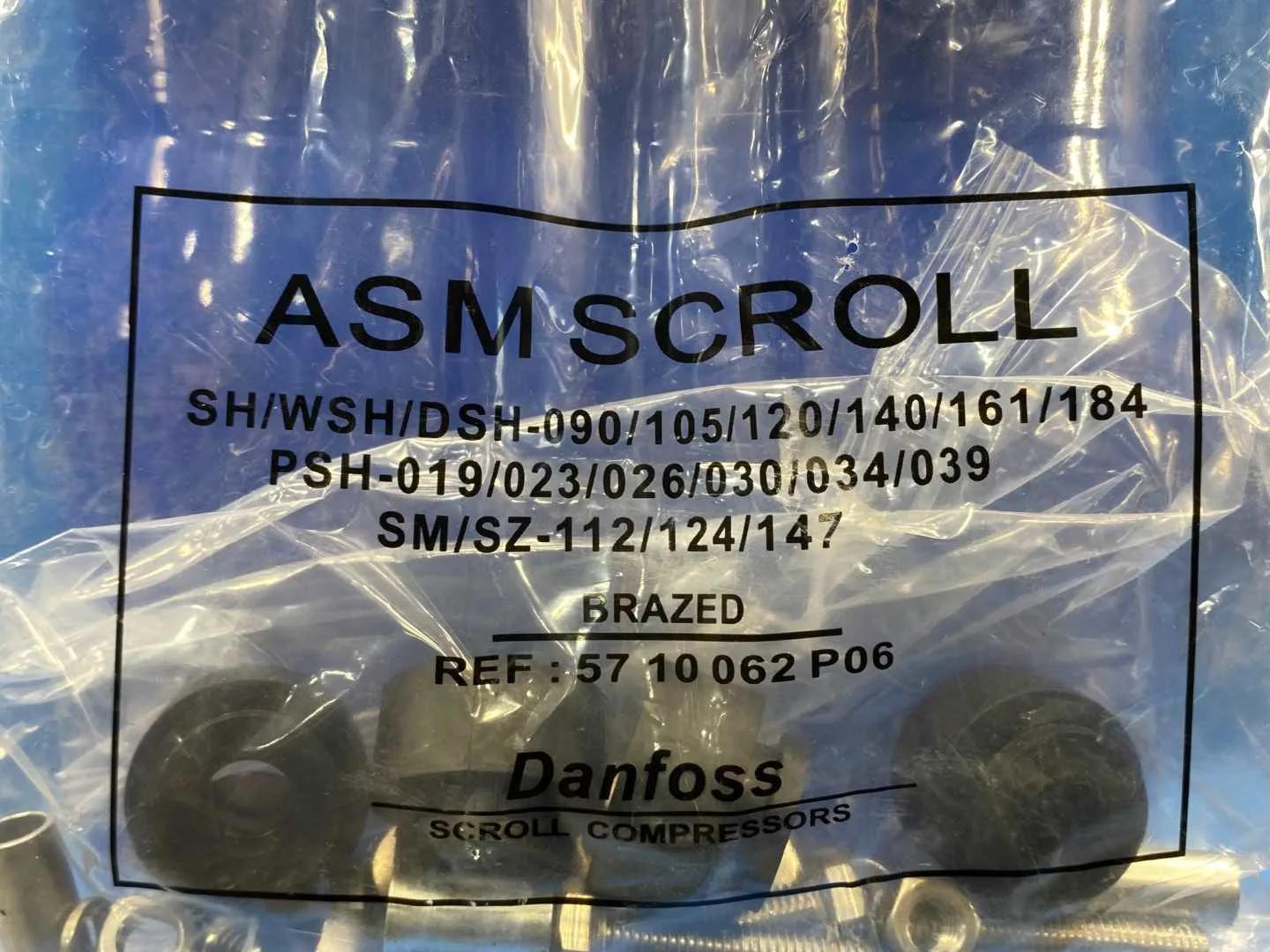

| Shipped mounting | Mounting kit with grommets, bolts, nuts, sleeves and washers |
| Shipped oil | Initial oil charge |
| Suction connection height [mm] | 278 mm |
| Suction connection material | - |
| Suction connection pipe size [in] | 1 3/8 in |
| Suction connection size [in] | 1 3/8 in |
| Swept volume [cm3] | 116.9 cm³ |
| Technology | Scroll |
| Test dif [bar] [Max] | 37 bar |
| Test HP [bar] [Max] | 48.7 bar |
| Test LP [bar] [Max] | 33.3 bar |
| Torque earth [Nm] | 2 N-m |
| Torque power [Nm] | 3 N-m |
| Total height [mm] | 540 mm |
| Type | DSH120 |
| UK RoHS compliance | Out of scope |
| Viscosity [cP] | 32 cP |
| Winding resistance for three-phase compressors with identical windings [Ohm] | 0.27 Ohm |
