Danfoss DSH120A3ALA 120H1196 Scroll Compressor 10 Tons (120,000 BTU/hr) 200-230V 3Phase 60Hz R410 Refrigerant
Danfoss DSH120A3ALA 120H1196 Scroll Compressor 10 Tons (120,000 BTU/hr) 200-230V 3Phase 60Hz R410 Refrigerant
Key Features of the Danfoss DSH120A3ALA
Specifications and Benefits of the DSH120A3ALA Compressor
1 / 12
+12
+12
1 / 12
| Description | Details |
|---|---|
| Available Quantity | 2 |
| Model | DSH120A3ALA |
| Condition | New |
| Manufacturer | Danfoss |
| Asset Number | KSC1230 / 7 |
| Guarantee or ASIS | 1. HIGH CONFIDENCE ITEM: We will offer a 100% 14 Day money back less S&H. |
| Inspections - Yellow Tag | 1. New in Box |
| Packaging Cost | 2.2 Pine Pallet $35 |
Available Qty: 2
Free Shipping
$1,890.95
Basic Information
Asset #
KSC1230 / 7
Available Quantity
2
Inspections - Yellow Tag
1. New in Box
Condition
New
Guarantee or ASIS
1. HIGH CONFIDENCE ITEM: We will offer a 100% 14 Day money back less S&H.
Item Description

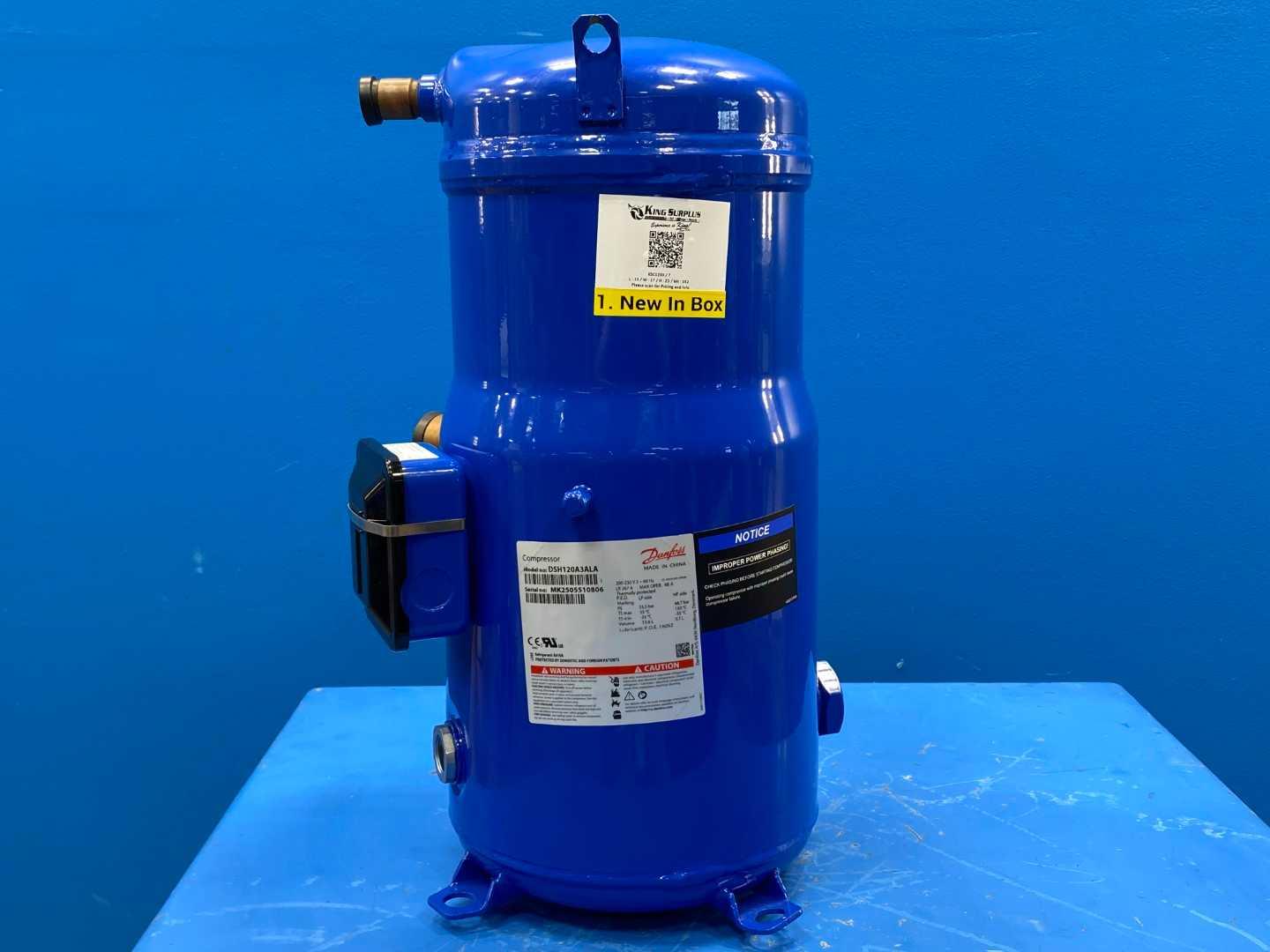

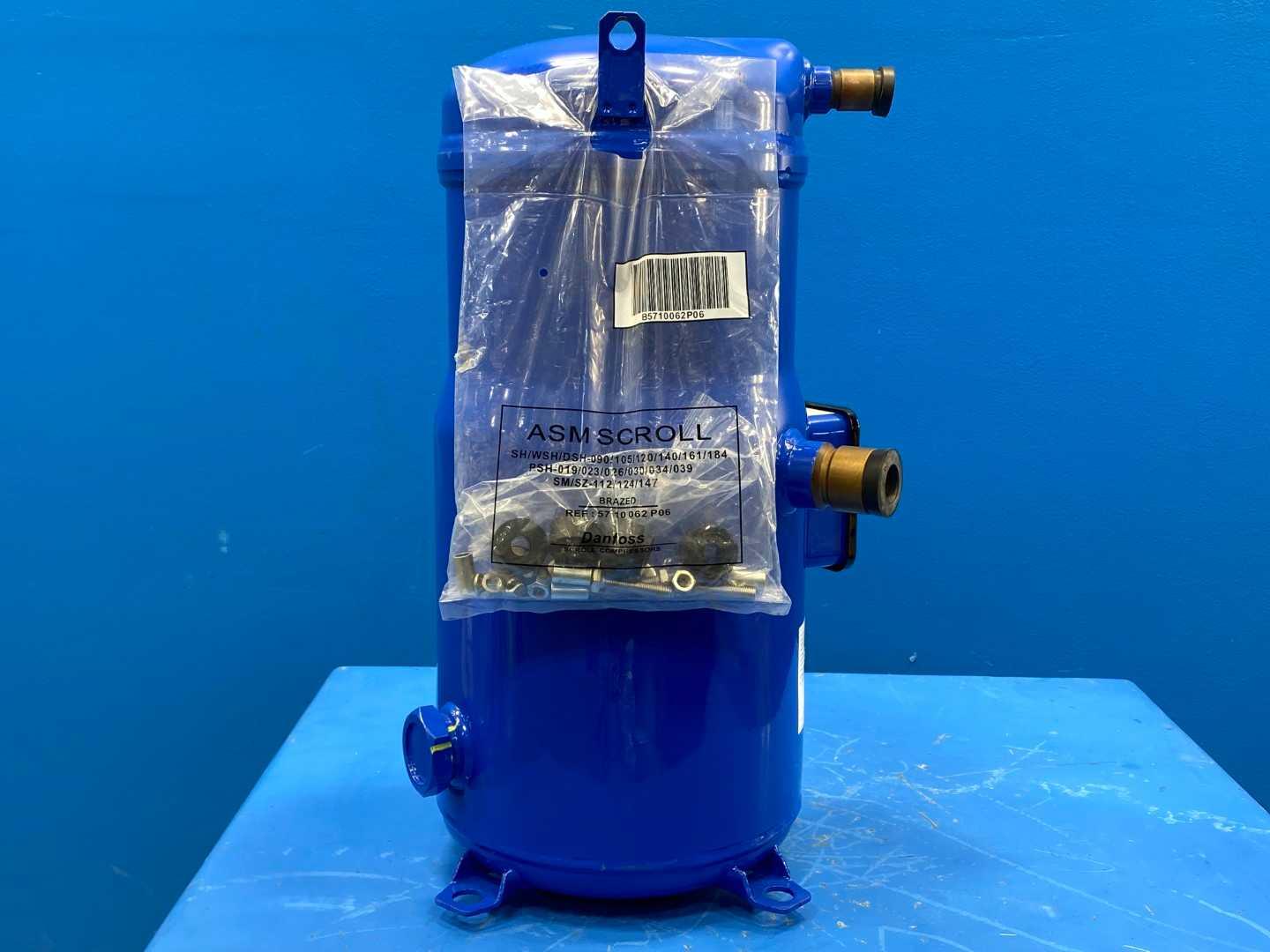

Danfoss DSH120A3ALA (120H1196) scroll compressor rated for 10-ton (120,000 BTU/hr) refrigeration capacity, designed for R-410A refrigerant on 200-230V three-phase 60Hz power. Danfoss (Nordborg, Denmark) is a major global manufacturer of refrigeration controls, compressors, and HVAC drives.
Applications include commercial HVAC systems, refrigeration racks, rooftop units, and chilled water plants where 10-ton scroll compressor capacity is needed. R-410A compatibility makes this suitable for current-generation HVAC equipment; the scroll mechanism provides quieter operation and higher efficiency than reciprocating compressors at this capacity. 2020 manufacture date, new condition.
New surplus, available from King Surplus inventory in Del Rio, Texas.
Factory Information

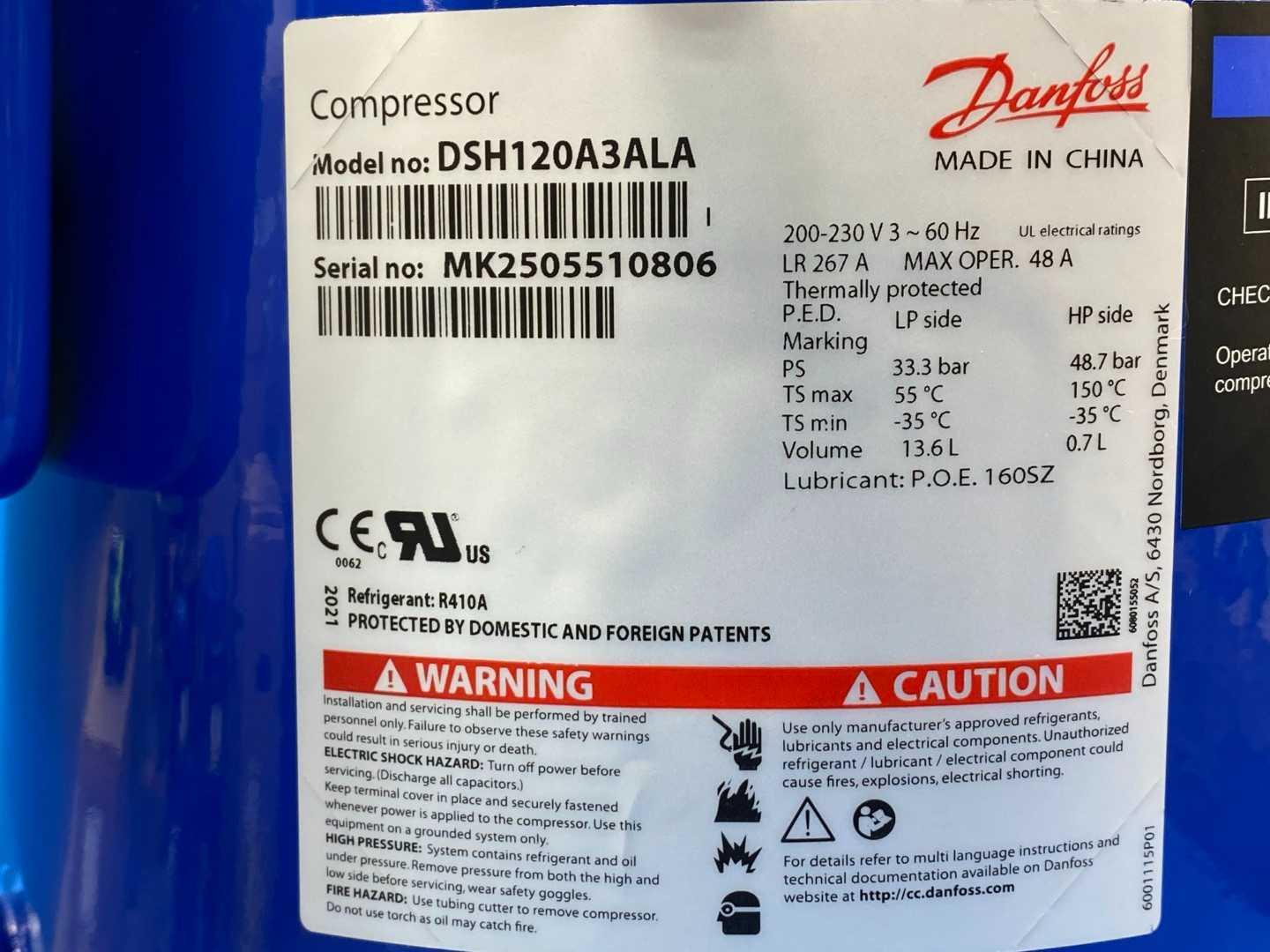

| Specification | Value |
|---|---|
| Manufacturer | Danfoss |
| Model | DSH120A3ALA |
| Danfoss ordering code | 120H1196 (industrial pack: 120H1197) |
| Type | Hermetic scroll compressor, fixed speed |
| Nominal capacity | 10 Ton (approx. 120,000 BTU/hr) |
| Refrigerant | R410A |
| Oil | POE, type 160SZ, 3.30 L charge |
| Power supply | 208-230 V / 3 Ph / 60 Hz |
| Voltage range | 180 V to 253 V |
| RLA (rated load amps) | 43.6 A |
| MCC (max continuous current) | 61 A |
| MOC (max operating current) | 48 A |
| LRA (locked rotor amps) | 267 A |
| Rotational speed | 3500 rpm |
| Motor protection | Internal overload protector |
| Swept volume | 116.90 cm³ |

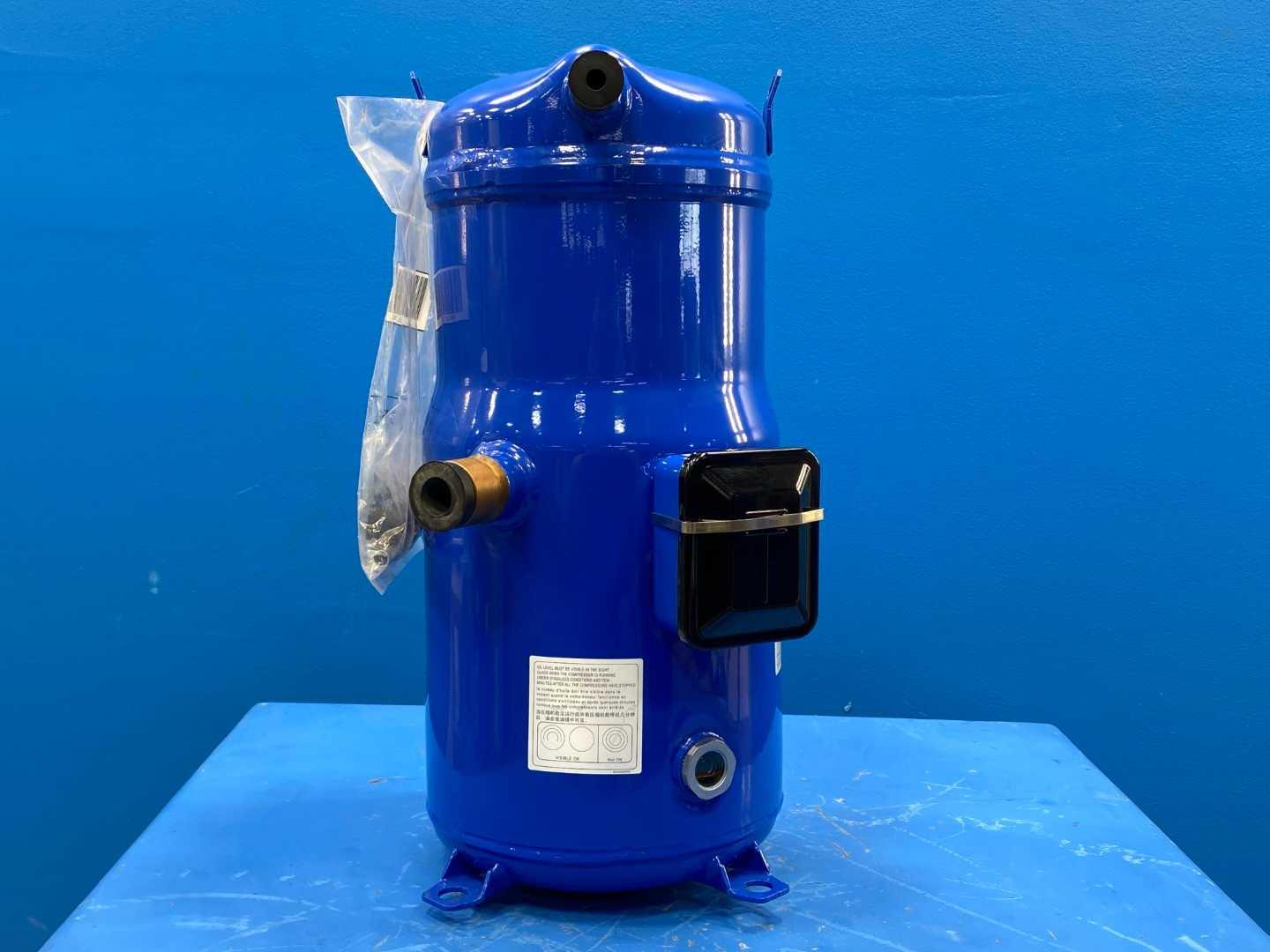

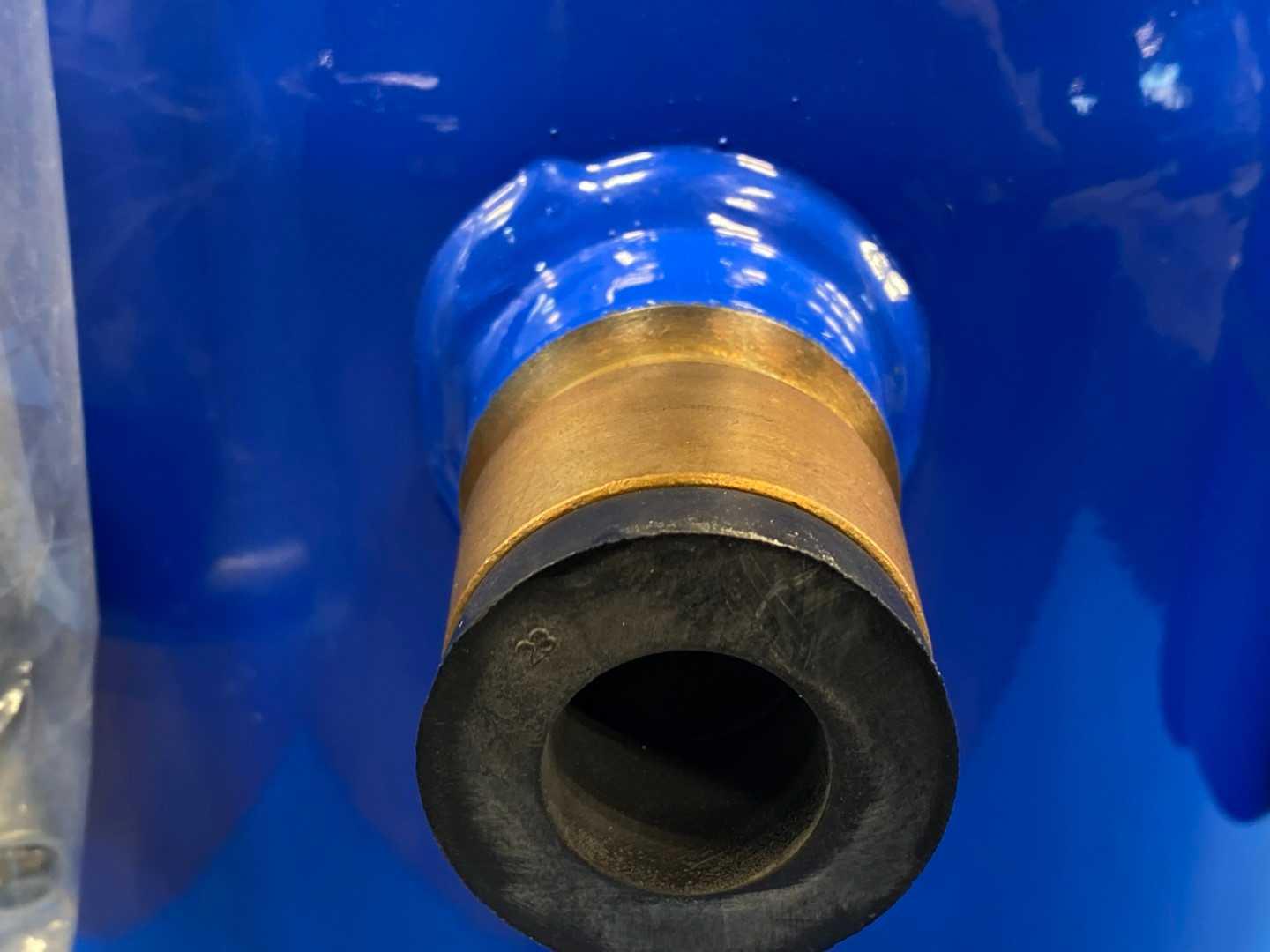

| Suction connection | 1-3/8 in ODF (brazed) |

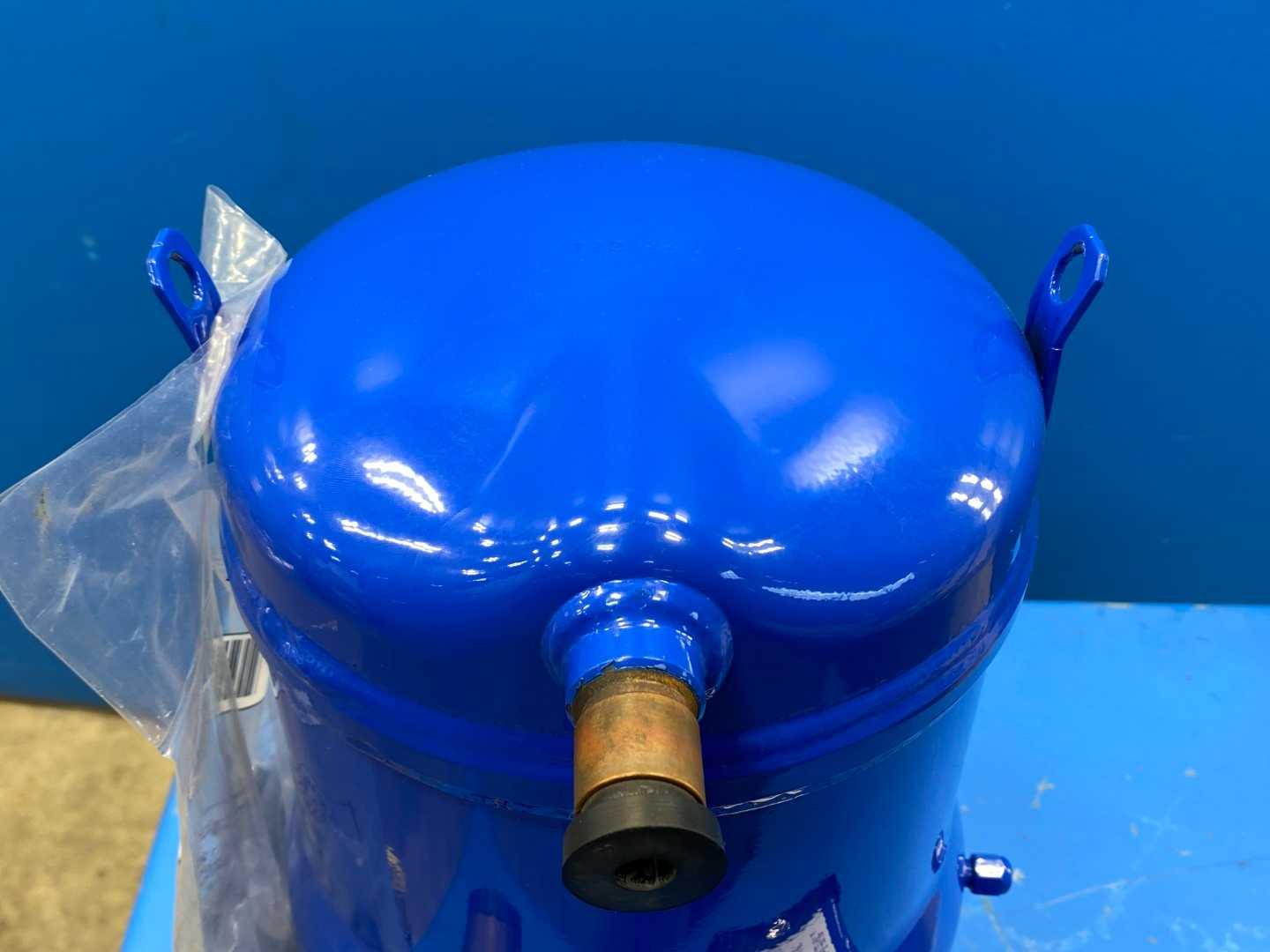

| Discharge connection | 7/8 in ODF (brazed) |
| Max high-side pressure (PS) | 48.70 bar |
| Max low-side pressure (PS) | 33.30 bar |
| IP protection class | IP54 (with cable gland) |
| Approvals | CE, UL, EAC, UKCA |
| Net weight | 64 kg (approx. 141 lb) |
| Gross weight | 69.78 kg |
| Diameter / total height | 243 mm / 540 mm |
Specifications
Manufacturer
Danfoss
Model
DSH120A3ALA
Serial
MK2505510806
Year
2020
HP / AMP / KW / KVA
60Hz
Amps
48
Length (Inches)
13
Width (Inches)
17
Height (Inches)
23
Phase
3
Estimated Packaging Weight
35
Estimated Total Weight
187
Asset Number
KSC1230 / 7
Packaging fees
Packaging Cost
2.2 Pine Pallet $35
Payment Details
Appraised Value
$1,890.95
Payment MethodsPayment Types Accepted : Visa, Mastercard, Check (14 Day Hold Before Release), Cash
