Danfoss DSH161A3ALA (120H1212) Scroll Compressor 13 Tons (161,740 BTU/Hr) 200-230V 3PH 60Hz R410A Refrigerant

Danfoss DSH161A3ALA (120H1212) Scroll Compressor 13 Tons (161,740 BTU/Hr) 200-230V 3PH 60Hz R410A Refrigerant

High-Performance 13 Ton Scroll Compressor

Specifications and Features of Danfoss DSH161A3ALA

Product image 1
1 / 15
Thumbnail 1
Thumbnail 2
Thumbnail 3
Thumbnail 4
Thumbnail 5
Thumbnail 6
Thumbnail 7
Thumbnail 8
Thumbnail 9
Thumbnail 10
Thumbnail 11
Thumbnail 12
Thumbnail 13
Thumbnail 14
Thumbnail 15
Thumbnail 15
+15
Thumbnail 1
Thumbnail 2
Thumbnail 3
Thumbnail 4
Thumbnail 5
Thumbnail 6
Thumbnail 7
Thumbnail 8
Thumbnail 9
Thumbnail 10
Thumbnail 11
Thumbnail 12
Thumbnail 13
Thumbnail 14
Thumbnail 15
Thumbnail 15
+15
Product image 1
1 / 15
DescriptionDetails
Available Quantity3
ModelDSH161A3ALA
ConditionNew
ManufacturerDanfoss
Asset NumberKSC1230 / 21
Guarantee or ASIS1. HIGH CONFIDENCE ITEM: We will offer a 100% 14 Day money back less S&H.
Inspections - Yellow Tag1. New in Box
Packaging Cost2.2 Pine Pallet $35
Available Qty: 3
Free Shipping
$1,969.95
Call UsText UsEmail Us
$1,969.95
Free Shipping
Call Us

Asset #

KSC1230 / 21

Available Quantity

3

Inspections - Yellow Tag

1. New in Box

Condition

New

Guarantee or ASIS

1. HIGH CONFIDENCE ITEM: We will offer a 100% 14 Day money back less S&H.

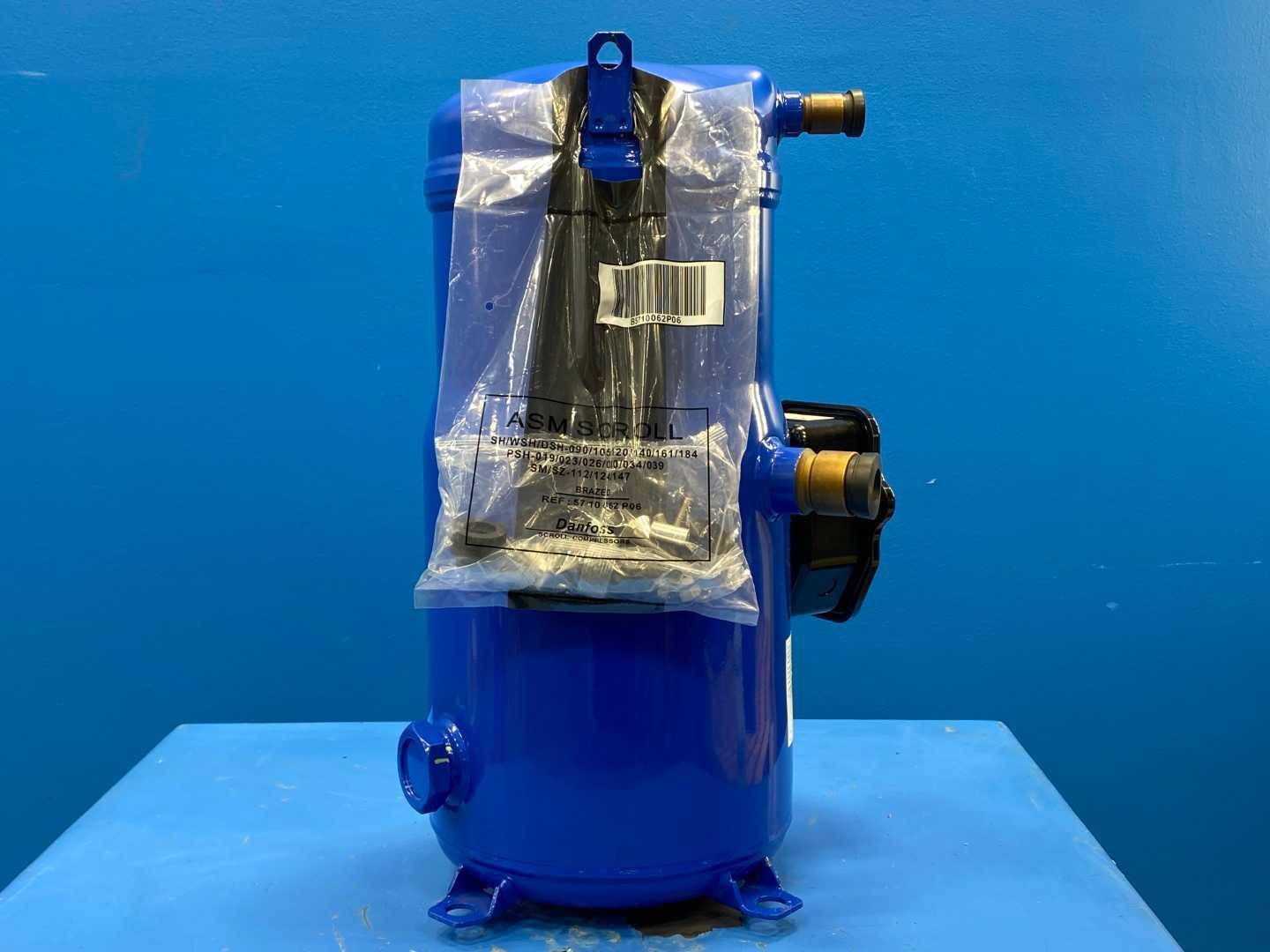

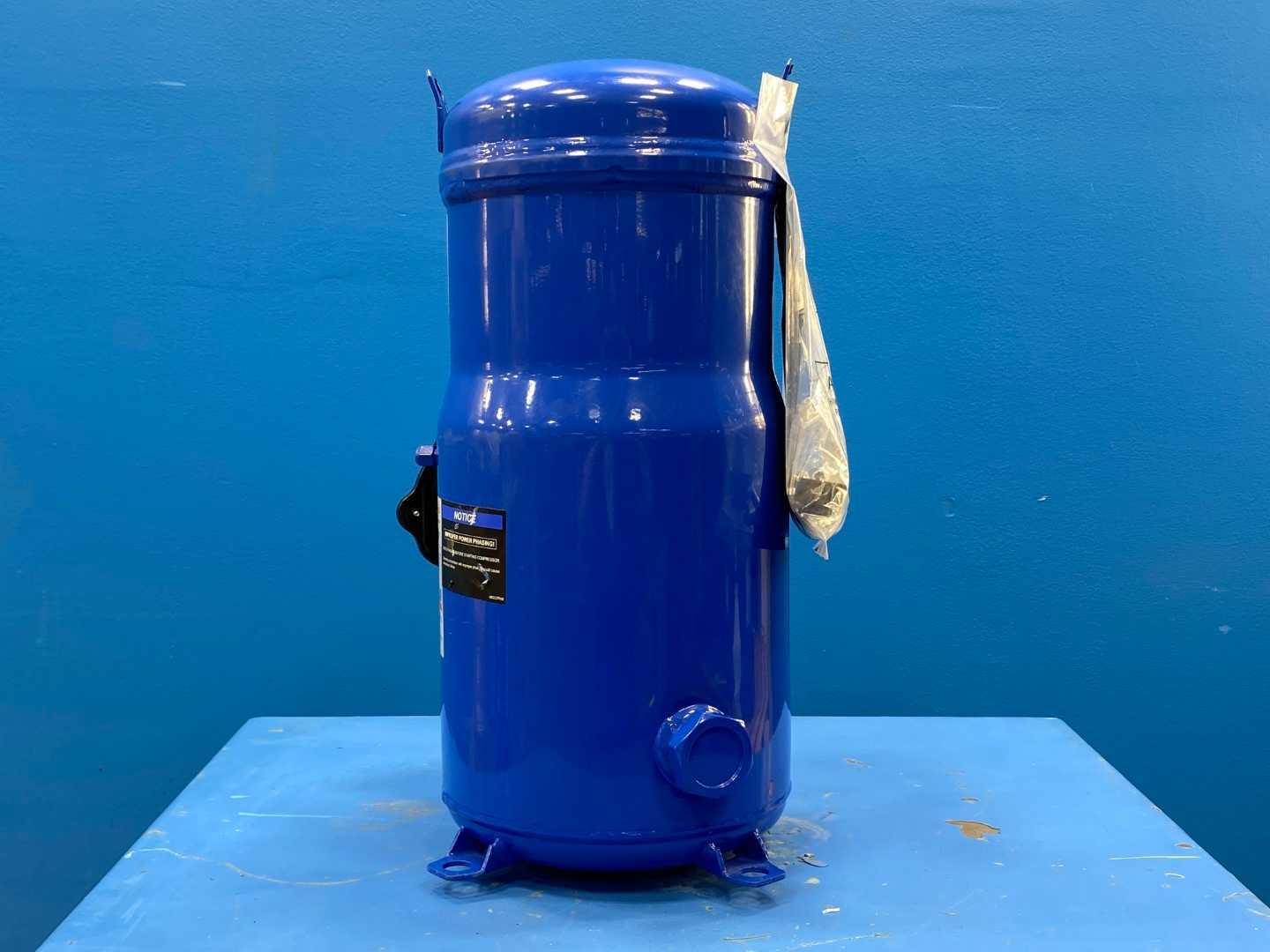

The Danfoss Inverter Scroll Compressor DSH161A3ALA is a powerful and efficient compressor designed specifically for commercial air conditioning and refrigeration applications. With a capacity of 16 tons, equivalent to 192,000 BTU, this compressor is equipped to handle large cooling needs in industrial and commercial settings. Danfoss, a leader in refrigeration and air conditioning technologies, has developed this scroll compressor with advanced inverter technology, allowing for variable speed operation. This feature enhances energy efficiency by adjusting the compressor's speed according to the cooling demand, thereby reducing energy consumption and costs. This model is typically used in large buildings, supermarkets, and process cooling systems where efficient thermal management is essential. The DSH161A3ALA is noted for its reliability and durability, featuring a robust design that ensures long operational life even in demanding environments. One of the unique features of the DSH161A3ALA is its ability to provide precise temperature control, which is vital in applications requiring stringent temperature stability. Additionally, the inverter technology contributes to lower noise levels compared to traditional compressors, making it suitable for noise-sensitive environments. Overall, the Danfoss DSH161A3ALA is a prime choice for those seeking high performance, energy efficiency, and advanced technology in large-scale refrigeration and air conditioning systems.

SpecificationValue
ManufacturerDanfoss
Model numberDSH161A3ALA
Ordering code120H1213
Compressor typeHermetic scroll, fixed speed
FamilyDSH (H-series, R410A)
Nominal cooling capacity13.4 Ton (161,000 BTU/hr)
RefrigerantR410A
Oil typePOE (reference 160SZ)
Oil charge3.30 L (112 oz)
Oil viscosity32 cP
Power supply208-230 V / 3 ph / 60 Hz
Motor protectionInternal overload protector
Rotational speed3500 rpm
Starts per hour (max)12
Swept volume (displacement)151.7 cm3 (9.26 cu in)

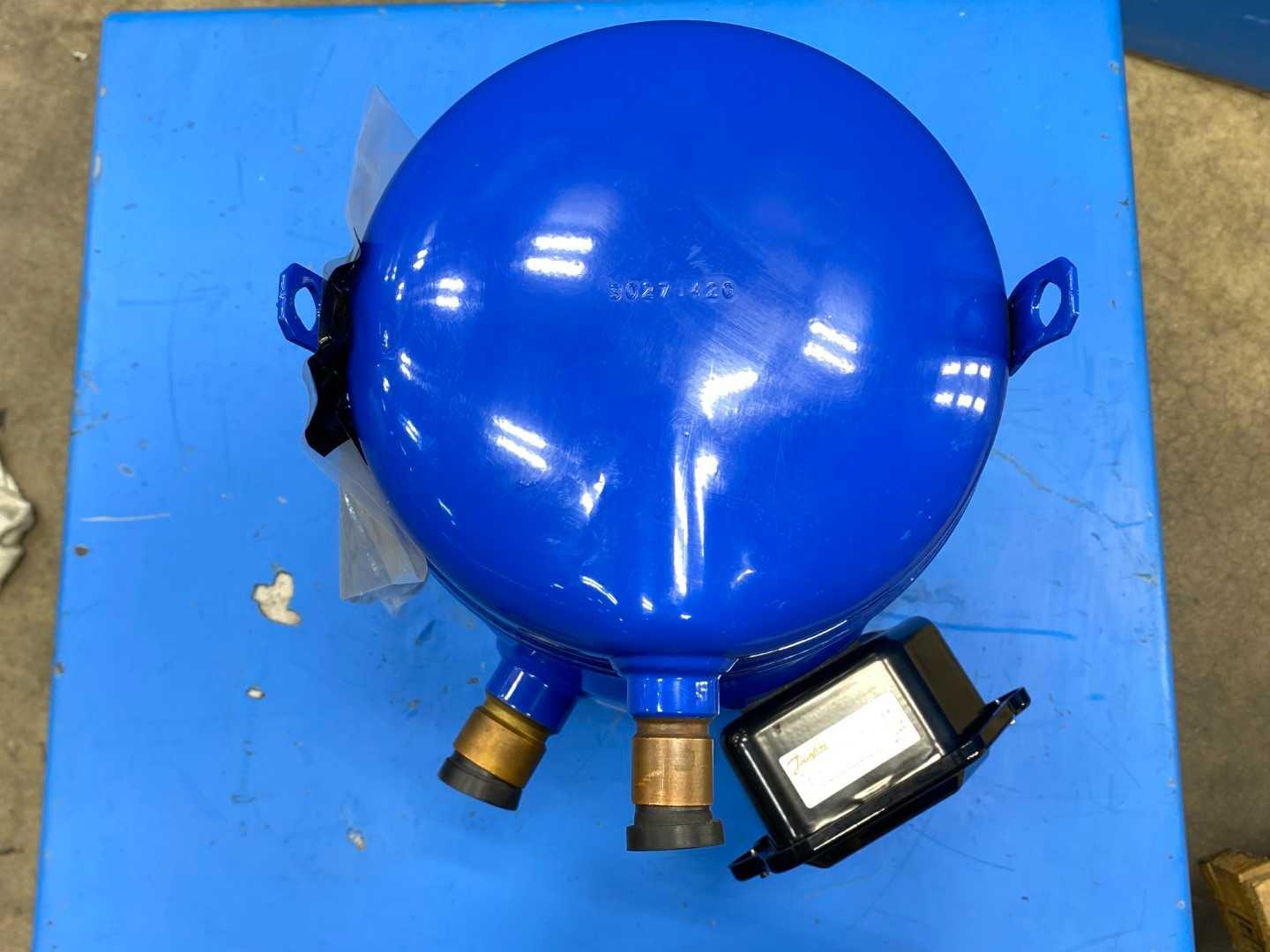

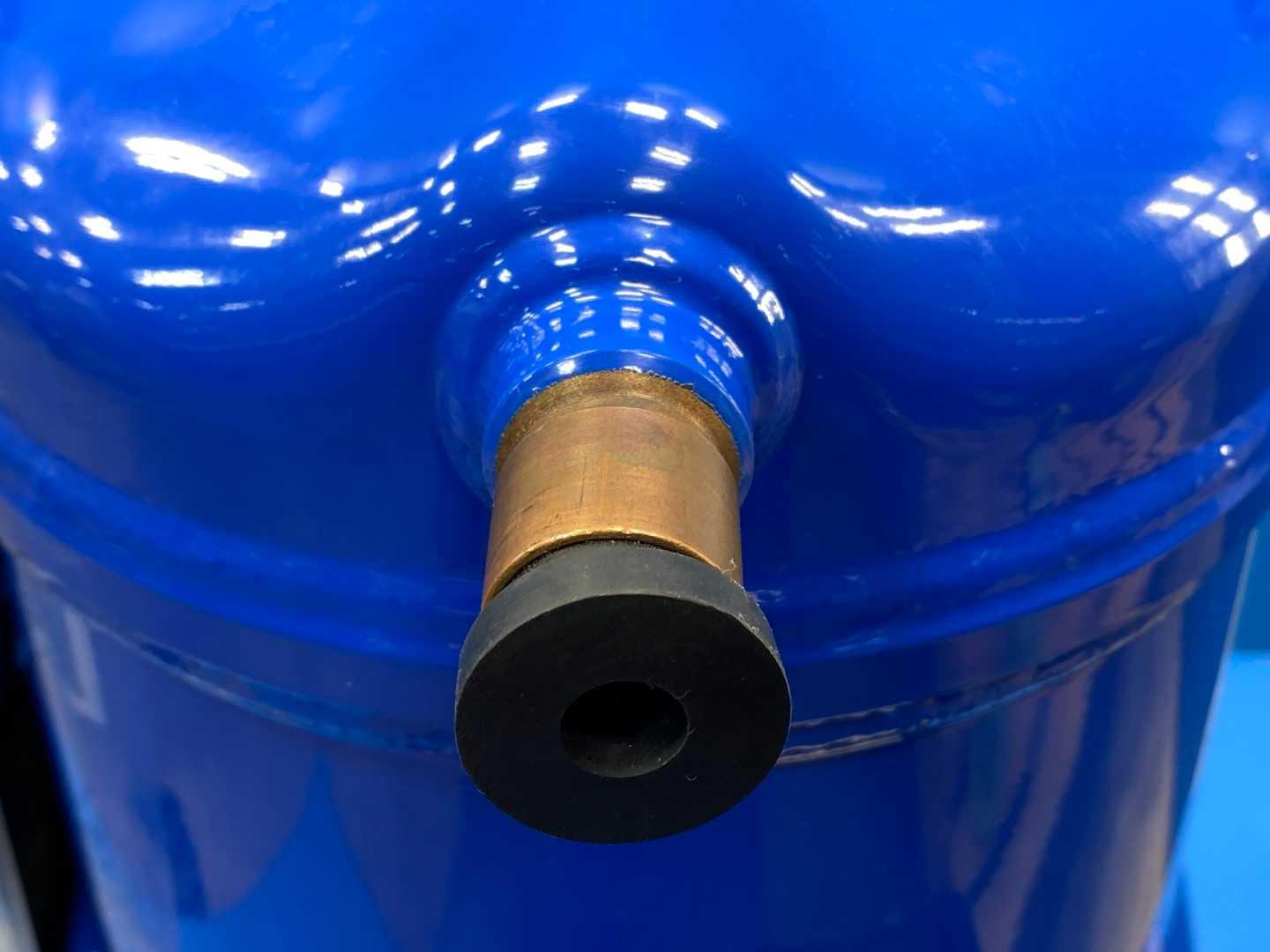

Suction connection1-3/8 in ODF (brazed)
Discharge connection7/8 in ODF (brazed)
Oil equalization1-3/4 in Rotolock
Internal discharge valve (IDV)Yes
Max pressure (PS), high side48.7 bar
Max pressure (PS), low side33.3 bar

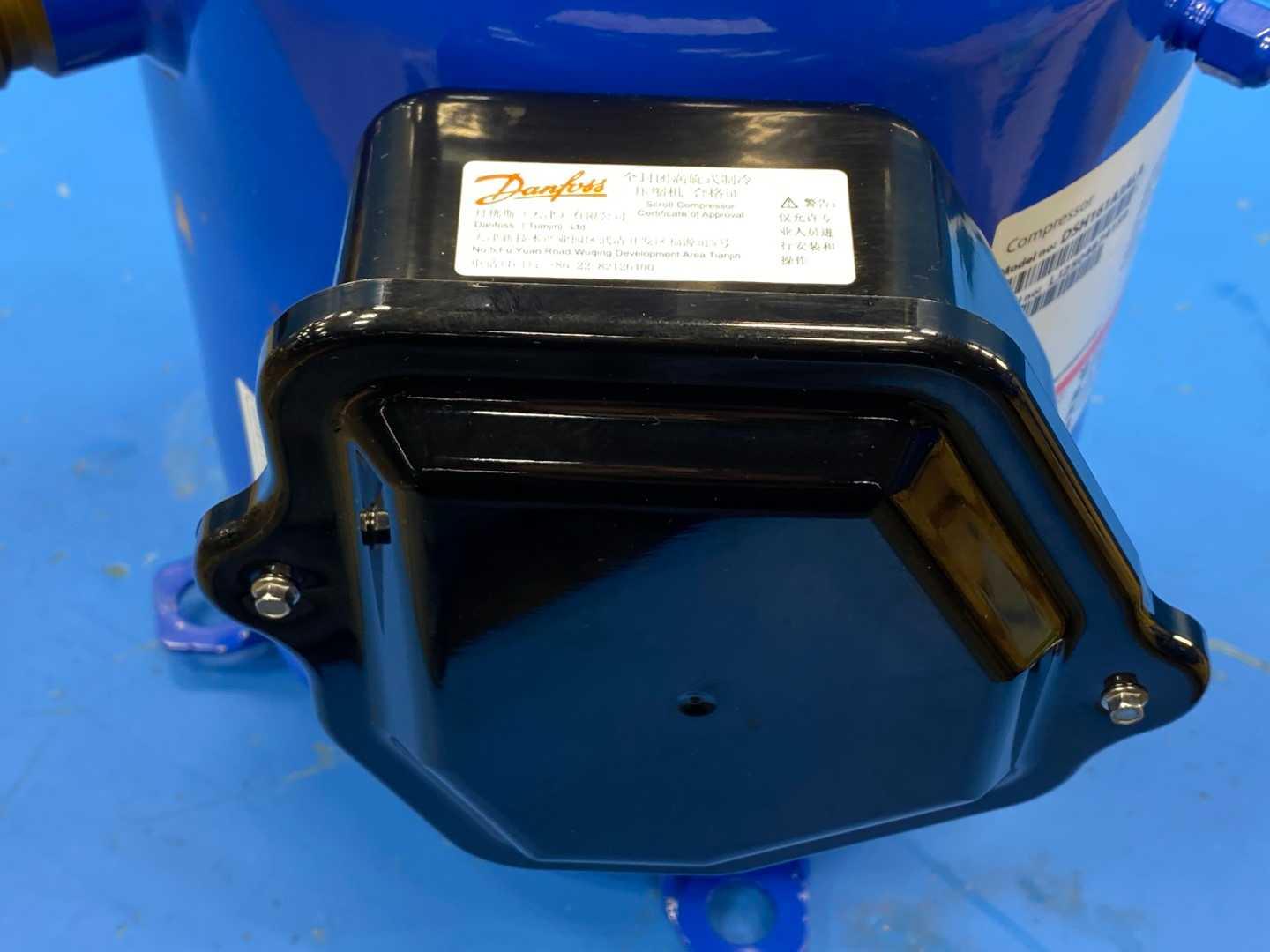

IP protection classIP54 (with cable gland)
ApprovalsCE, UL, UKCA
Net weight71 kg (156 lb)
Gross weight73.5 kg (162 lb)
Diameter243 mm
Total height542 mm
Width230 mm
Suction connection height278 mm
Discharge connection height509 mm

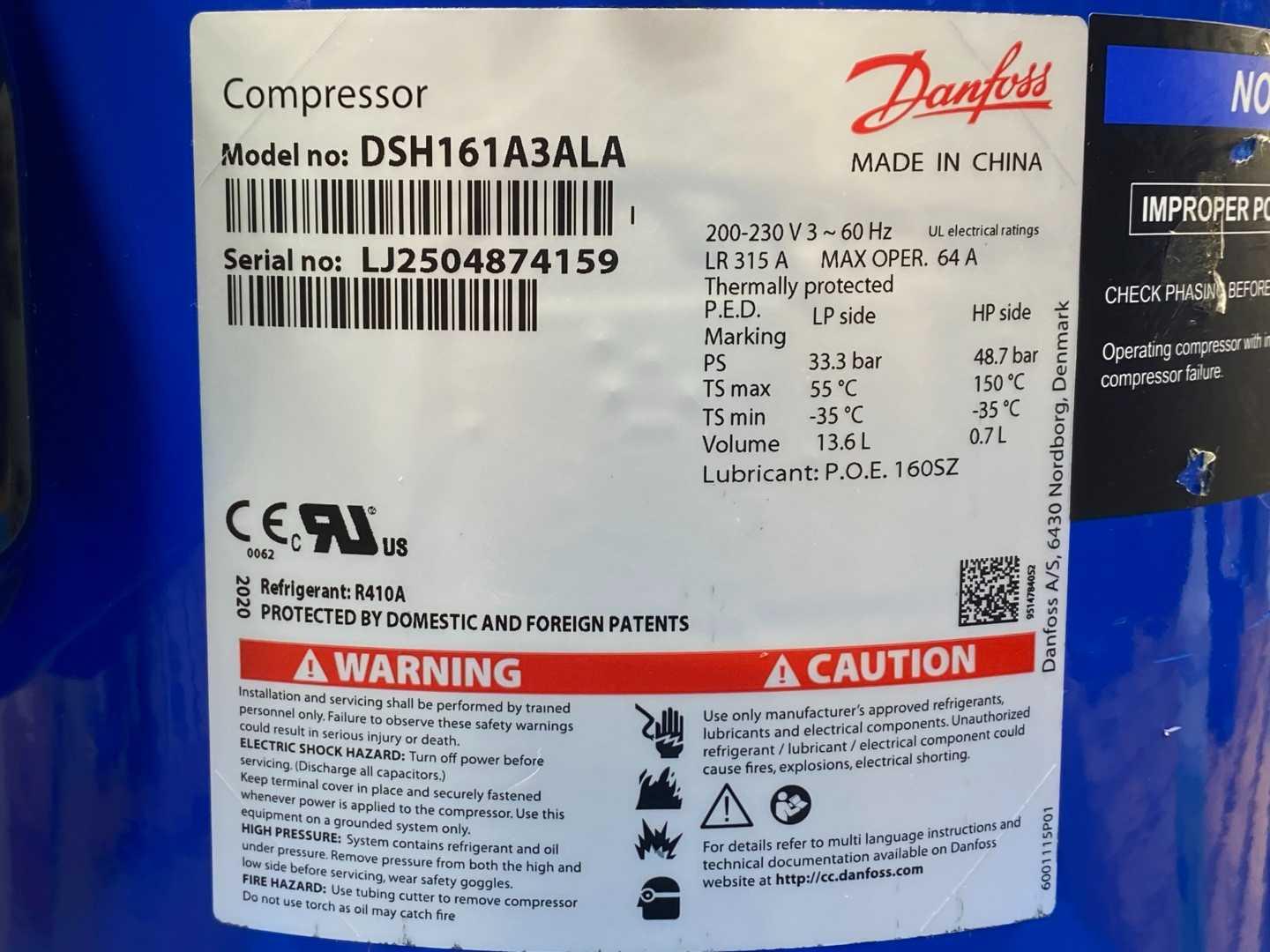

Manufacturer

Danfoss

Model

DSH161A3ALA

Serial

LJ2504874159

Year

2020

HP / AMP / KW / KVA

60Hz

Amps

64

Length (Inches)

18

Width (Inches)

18

Height (Inches)

23

Phase

3

Estimated Packaging Weight

35

Estimated Total Weight

195

Asset Number

KSC1230 / 21

Packaging Cost

2.2 Pine Pallet $35

Appraised Value

$1,969.95
