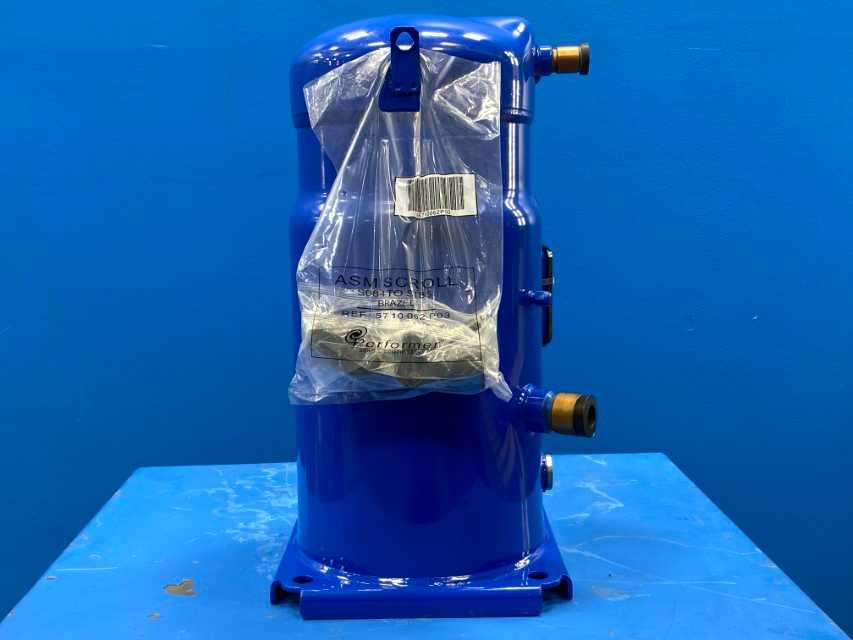

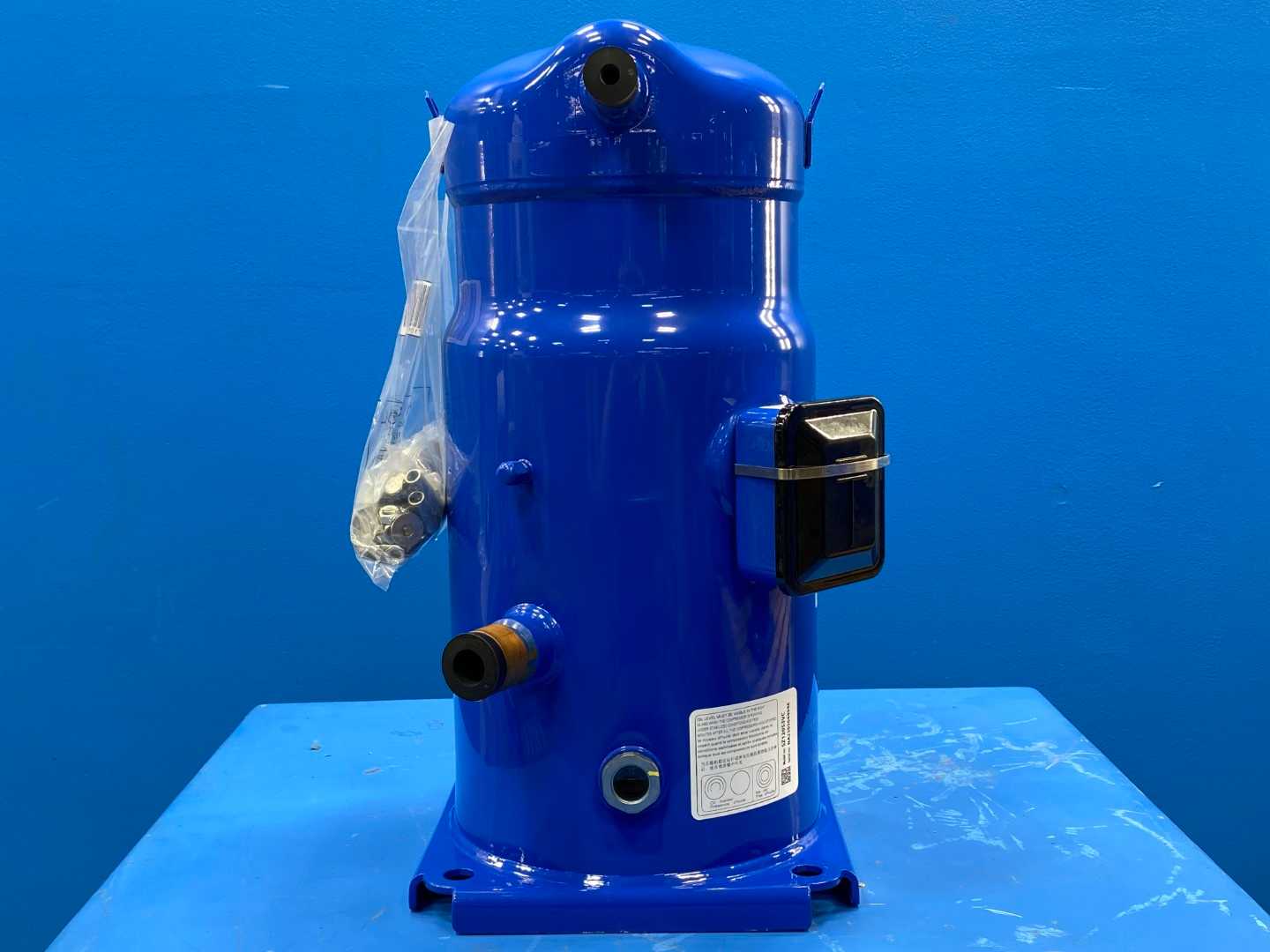

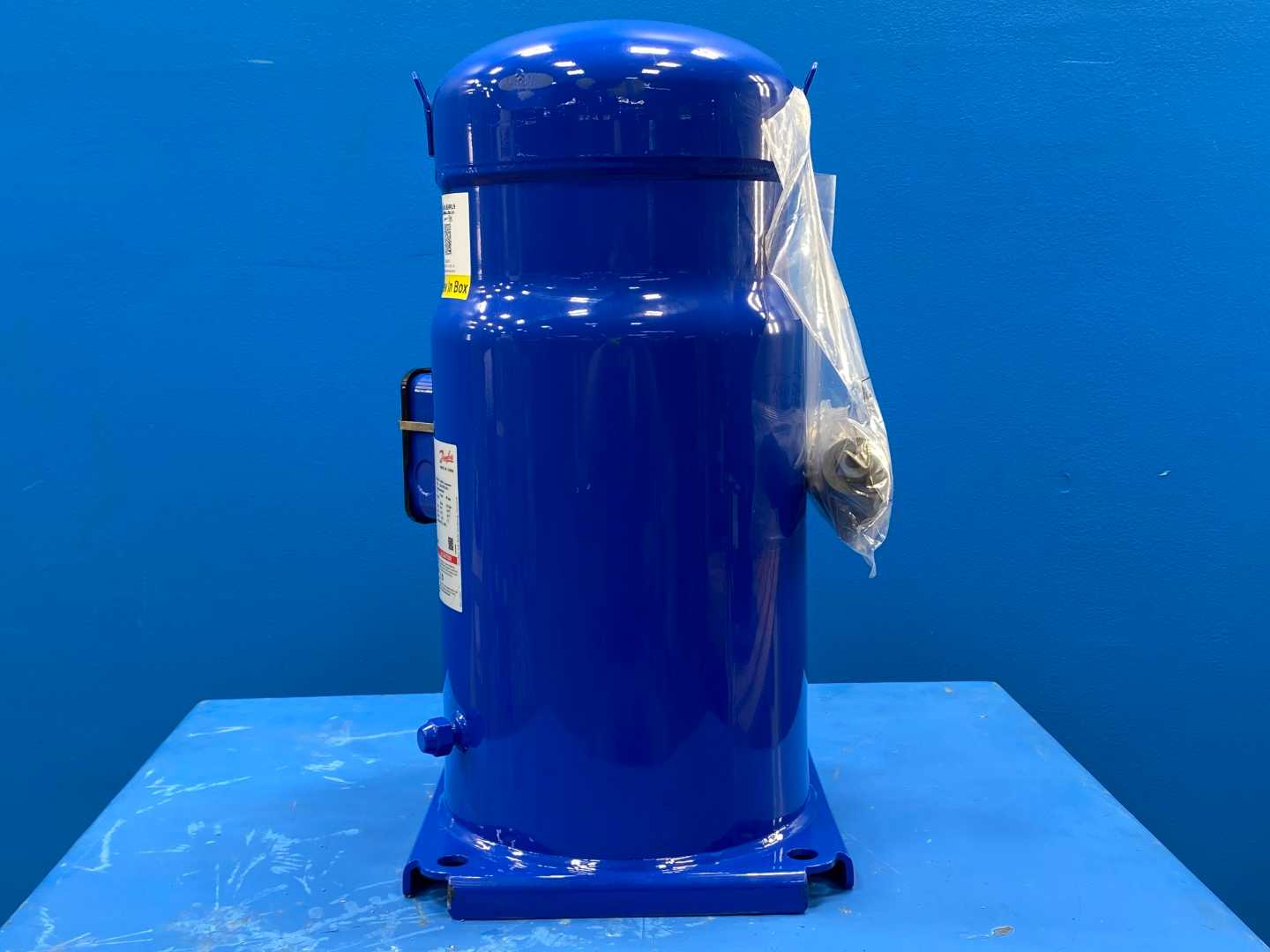

Danfoss Inverter Scroll Compressor SZ120S3VC SZ120-3VI (10 Tons / 120K BTU)
$2,495.00
| Description | Details |
|---|---|
| Available Quantity | 4 |
| Model | SZ120S3VC |
| Condition | New |
| Manufacturer | Danfoss |
| Asset Number | KSC1230 / 20 |
| Guarantee or ASIS | 1. HIGH CONFIDENCE ITEM: We will offer a 100% 14 Day money back less S&H. |
| Inspections - Yellow Tag | 1. New in Box |
| Packaging Cost | 2.2 Pine Pallet $35 |
$2,495.00
Item Description
Inspection Report
Basic Information
Item Description
Introducing the Danfoss Inverter Scroll Compressor SZ120S3VC SZ120-3VI, a trailblazer in climate control and efficiency. This 10 Ton / 120K BTU unit is expertly engineered for exceptional performance and reliability. Unlike conventional compressors, the Danfoss compressors' inverter technology ensures optimized control - meaning it can adapt and maintain desired temperature levels with increased precision, resulting in maximum comfort and reduced energy costs. The SZ120S3VC model is designed for superior cooling operations, able to comfortably handle a demanding 10 tons capacity. Its robust build guarantees an extended lifespan and minimal maintenance, providing true value for money. Whether you're looking to cool a small business or a large industrial area, the Danfoss compressor's exceptional cooling capacity is unparalleled. In the world of HVAC, Danfoss is synonymous with cutting-edge technology and efficiency and investing in this Scroll Compressor means investing in a consistently comfortable and economic environment. Choose the Danfoss SZ120S3VC SZ120-3VI, where superior quality meets advanced technology for unbeatable performance.
Item Description
Inspection Report
Introducing the Danfoss Inverter Scroll Compressor SZ120S3VC SZ120-3VI, a trailblazer in climate control and efficiency. This 10 Ton / 120K BTU unit is expertly engineered for exceptional performance and reliability. Unlike conventional compressors, the Danfoss compressors' inverter technology ensures optimized control - meaning it can adapt and maintain desired temperature levels with increased precision, resulting in maximum comfort and reduced energy costs. The SZ120S3VC model is designed for superior cooling operations, able to comfortably handle a demanding 10 tons capacity. Its robust build guarantees an extended lifespan and minimal maintenance, providing true value for money. Whether you're looking to cool a small business or a large industrial area, the Danfoss compressor's exceptional cooling capacity is unparalleled. In the world of HVAC, Danfoss is synonymous with cutting-edge technology and efficiency and investing in this Scroll Compressor means investing in a consistently comfortable and economic environment. Choose the Danfoss SZ120S3VC SZ120-3VI, where superior quality meets advanced technology for unbeatable performance.
Read More ▼
Factory Information
Product details
| Gross weight | 79.34 Kilogram |
| Net weight | 73 Kilogram |
| Volume | 0.24 Cubic meter |
| EAN | 5702428582865 |
| Approval | CE UL UKCA |
| Brand technique | Scroll compressor |
| Capacity control | Fixed speed |
| China RoHS compliance | Out of scope |
| Colour | Blue |
| Compressor power supply [V] | 200-230/3/60 |
| Configuration code | Single |

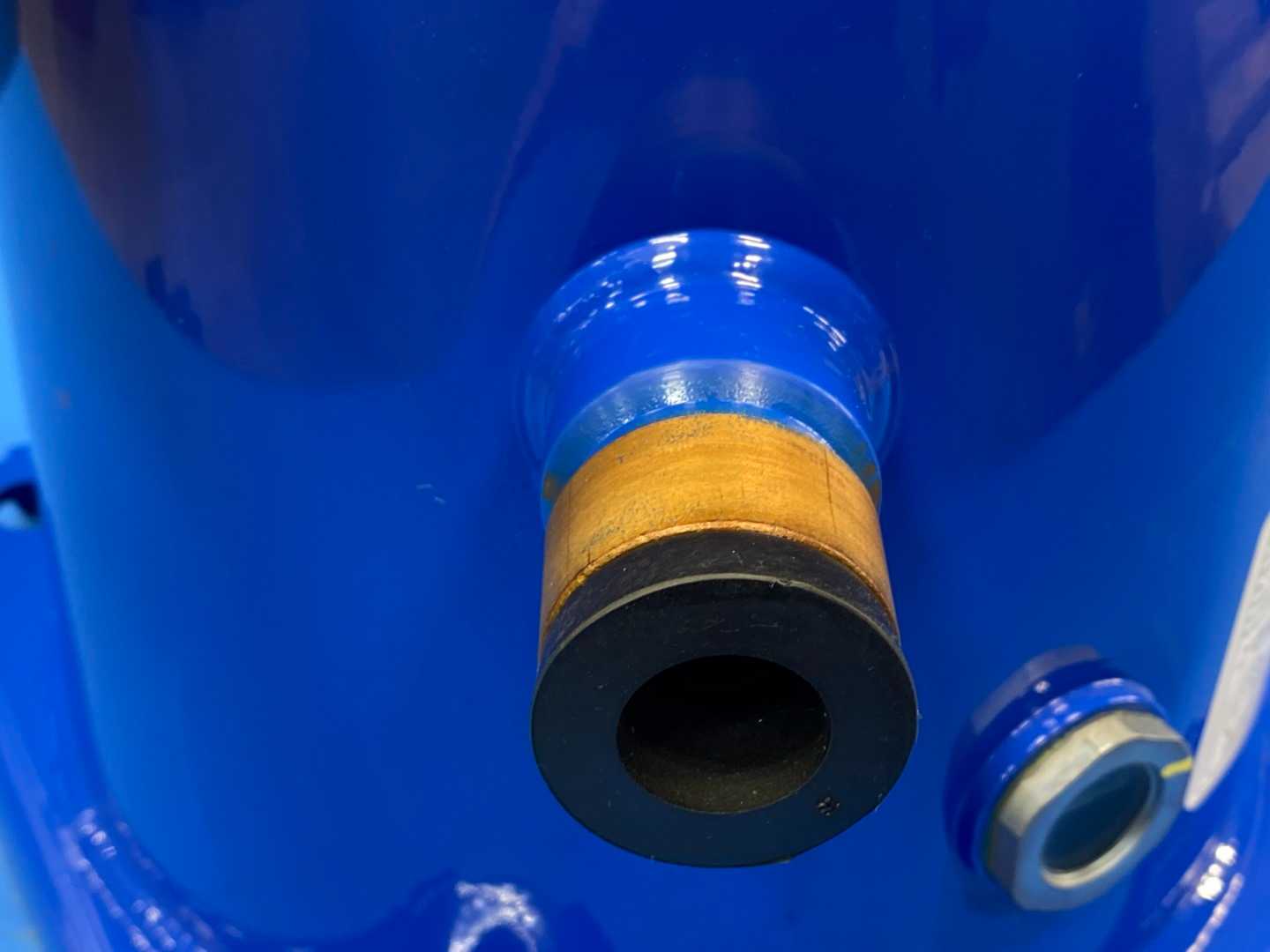

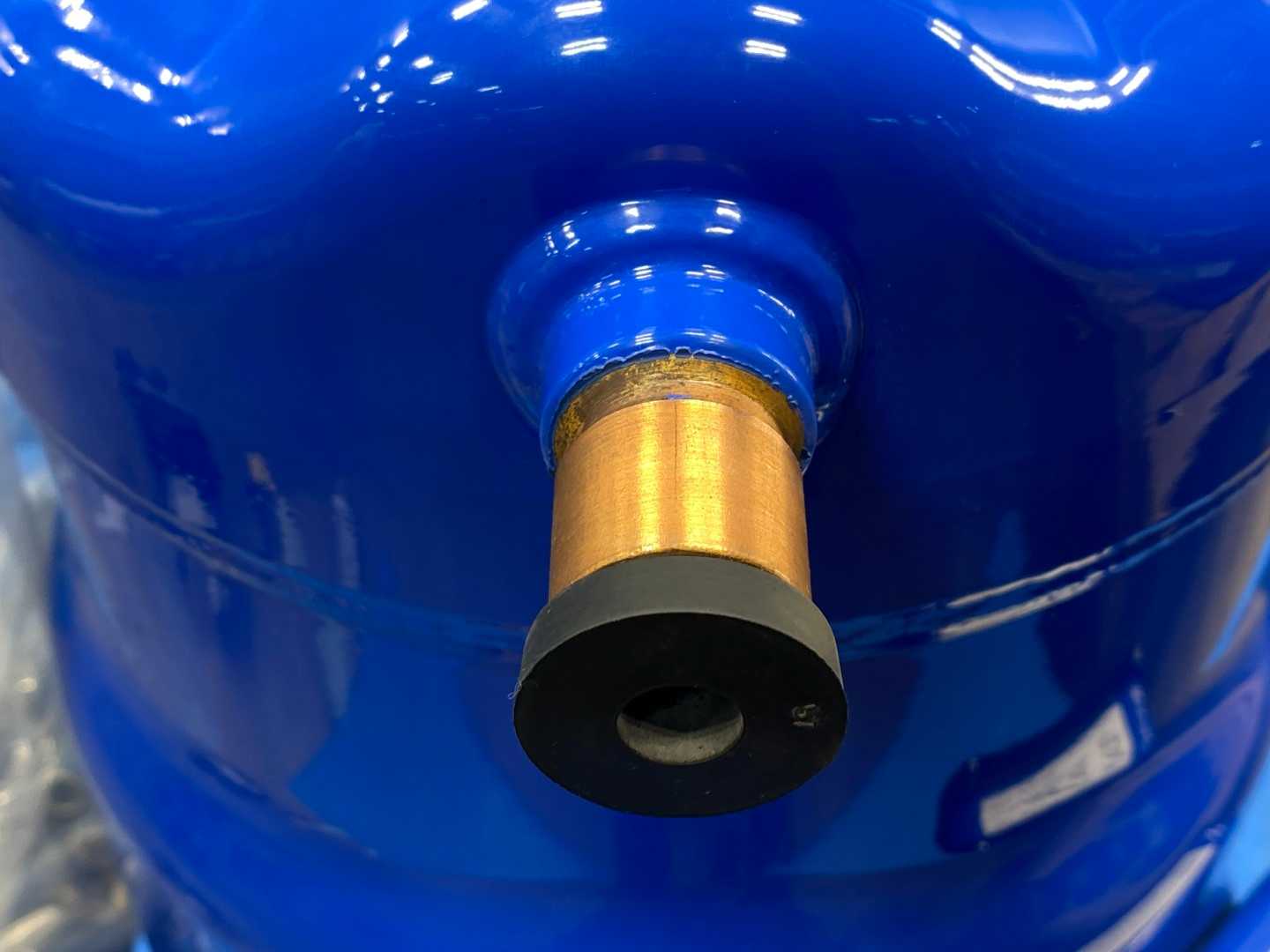

| Connection type | Brazed |
| Description | SZ120-3 |
| Diameter [mm] | 254 mm |
| Discharge connection height [mm] | 515 mm |
| Discharge connection pipe size [in] | 7/8 in |
| Discharge connection size [in] | 7/8 in |
| Drawing number | 8552037b |
| Economizer | No |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(a), 6(a)-I, 7(a), 7(c)-I, 8(b), 9(b) |
| Factory HP [bar] | 33 bar |
| Factory LP [bar] | 25 bar |
| Family | SZ |
| Fitting standard | ODF |
| Frequency [Hz] | 60 |
| Gauge port HP | None |
| Gauge port LP | Schrader |

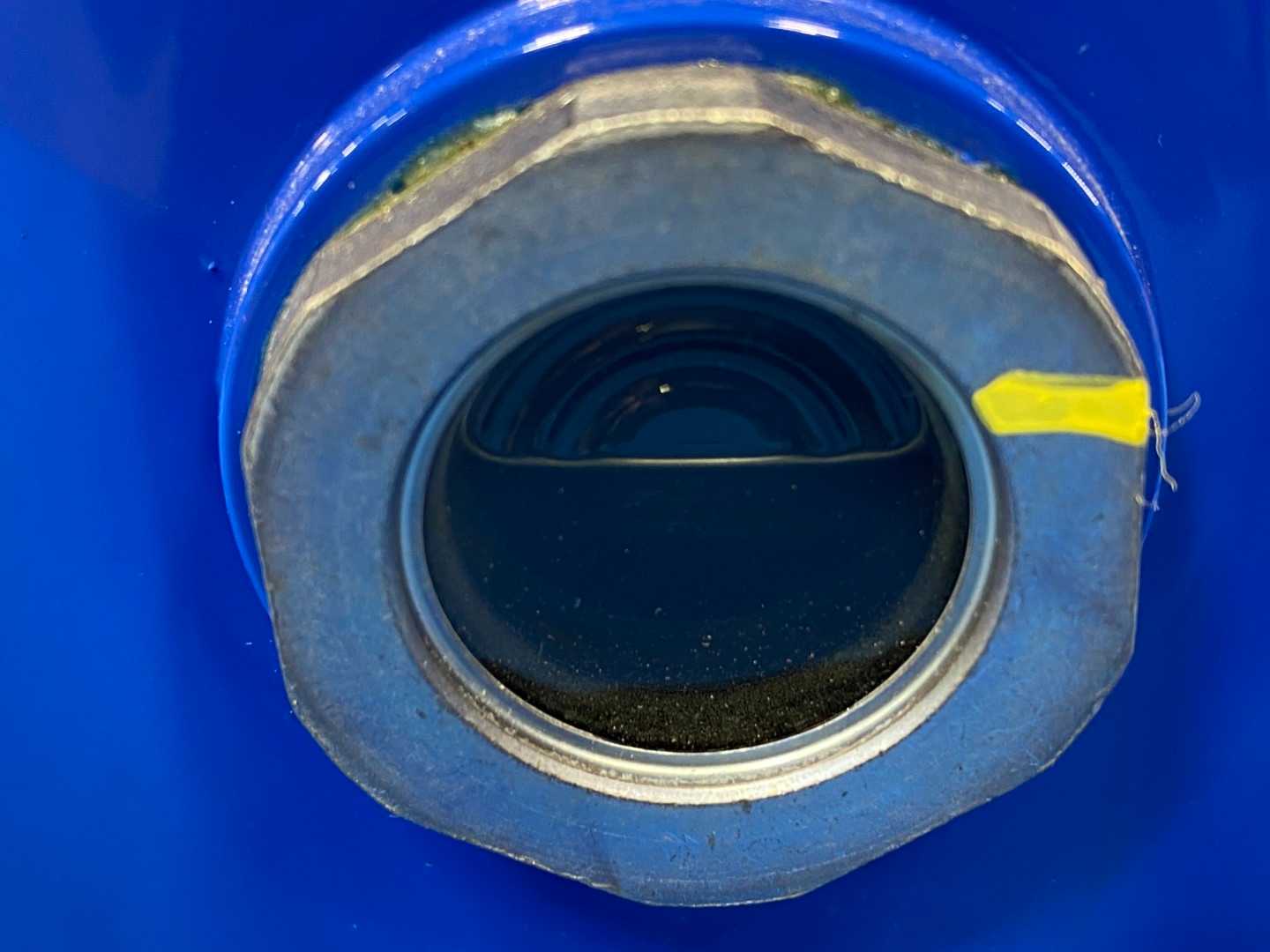

| Glass mounting | Threaded |
| Glass torque [Nm] | 50 N-m |
| GP LP torque [Nm] | 15 N-m |
| High Side TS Max | 150 °C |
| High Side TS Min | -35 °C |
| High Side Volume | 1.1 L |
| High value of nominal voltage at 60Hz [V] | 230 V |
| High value of voltage range at 60Hz [V] | 253 V |
| In scope of WEEE and contain batteries | No |
| IP protection class | IP54 (with cable gland) |
| Low Side TS Max | 54 °C |
| Low Side TS Min | -35 °C |
| Low Side Volume | 13.6 L |
| Low value of nominal voltage at 60Hz [V] | 200 V |
| Low value of voltage range at 60Hz [V] | 180 V |
| LRA | 237 A |
| Max pressure (PS) - high side | 34.3 bar |
| Max pressure (PS) - low side | 25 bar |
| Maximum Operating Current [MOC] | 48 A |
| MCC | 50 A |

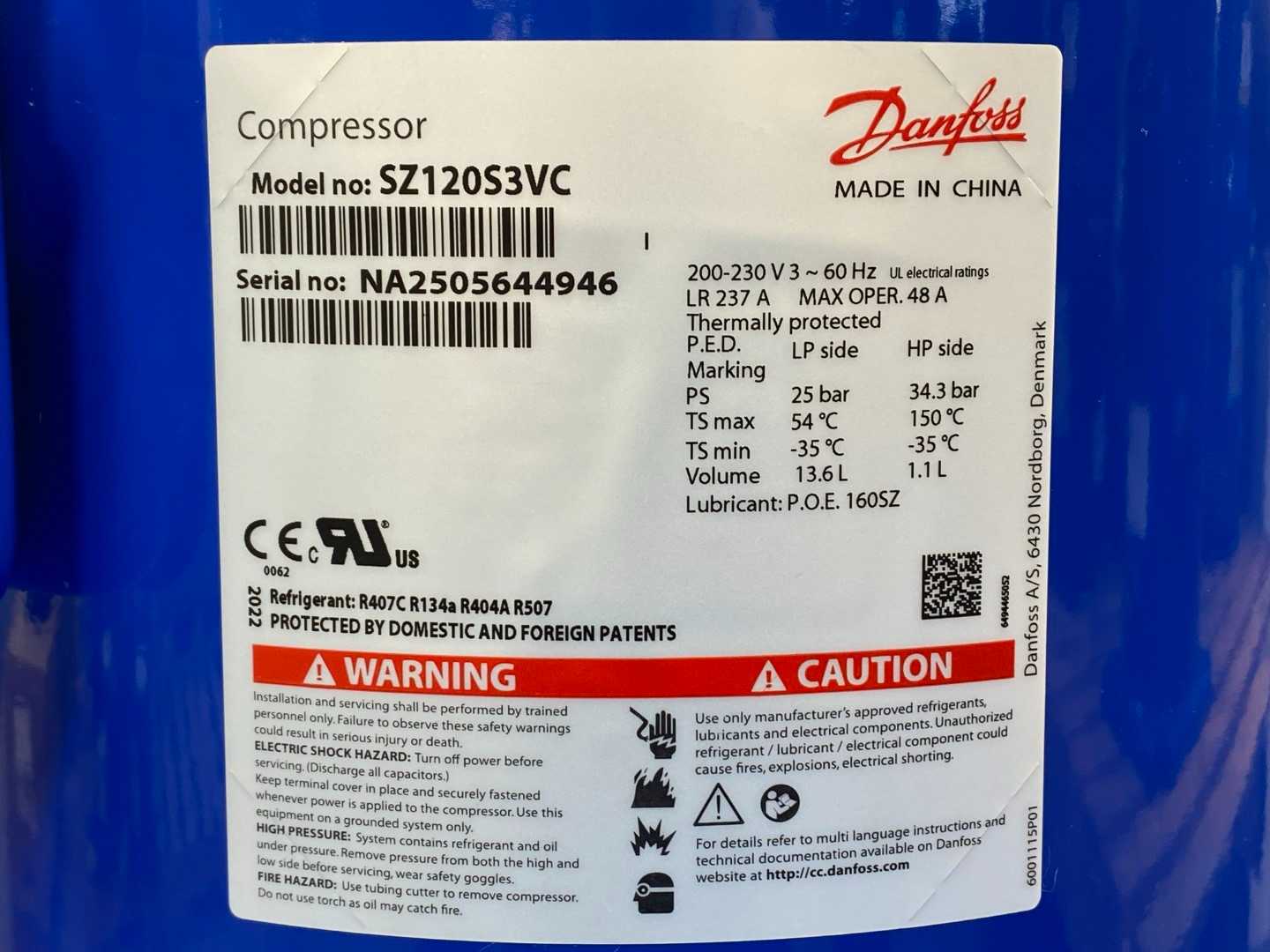

| Model number | SZ120S3VC |
| Motor protection | Internal overload protector |
| Mounting torque [Nm] | 21 N-m |
| Network power supply [V/Ph/Hz] | 208-230/3/60 |
| Number of starts per hour [Max] | 12 |
| Oil charge [L] | 3.25 L |

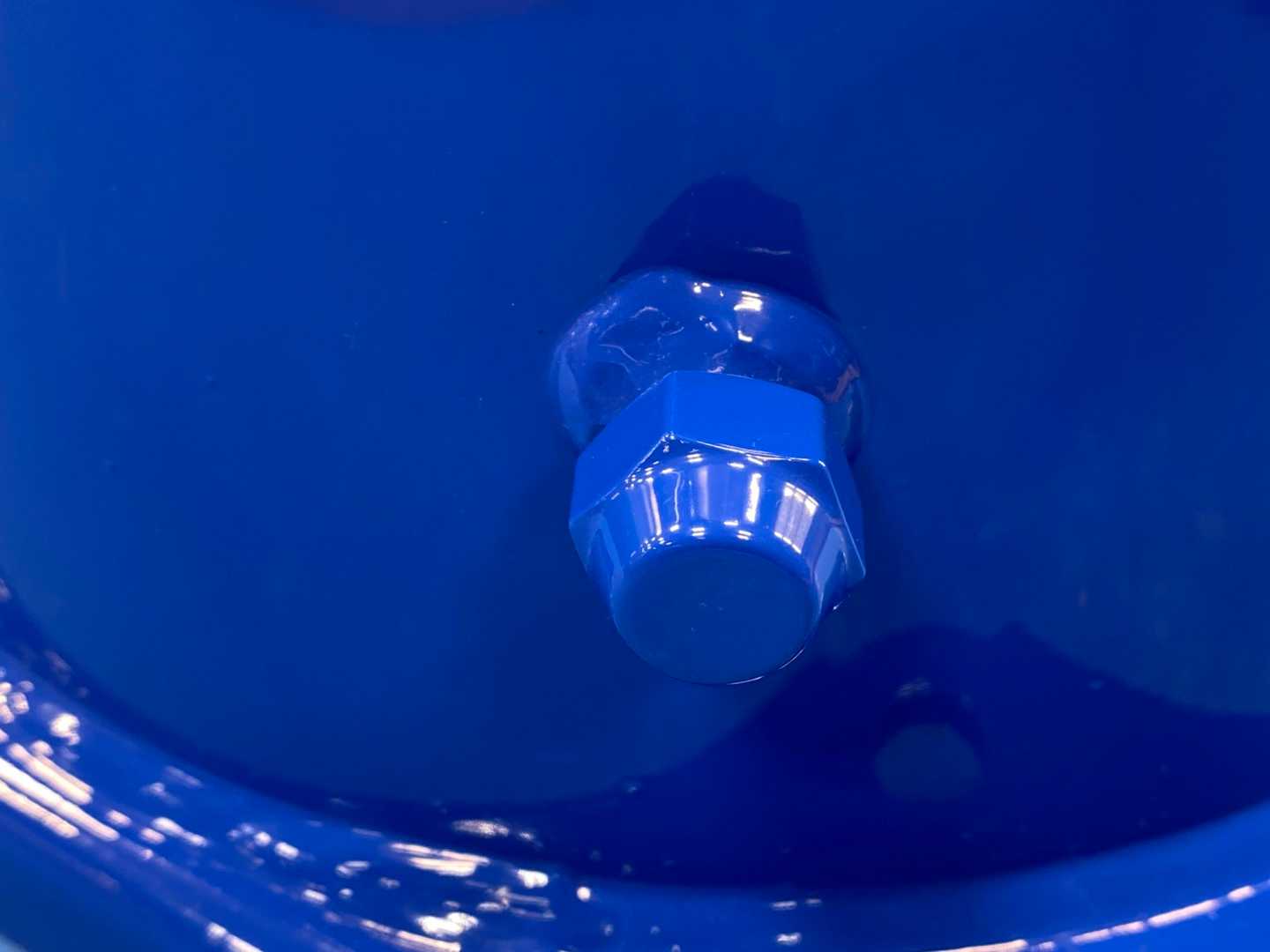

| Oil equalization | 3/8'' flare SAE |
| Oil equalization torque [Nm] | 48 N-m |
| Oil reference | 160SZ |
| Oil type | POE |
| Packaging height [mm] | 596 mm |
| Packaging length [mm] | 470 mm |
| Packaging weight [Kg] | 78 kg |
| Packaging width [mm] | 370 mm |
| Packing format | Single pack |
| Packing quantity | 1 |
| Phase | 3 |
| Power connections | Screw 4.8 mm |
| Product group | Hermetic compressors |
| Product Name Description | Scroll compressor SZ |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerant charge [kg] [Max] | 10 kg |
| Refrigerants | R134a R407C |
| RLA | 35.7 A |
| Rotational speed at 60Hz [rpm] | 3500 rpm |
| SCIP dossier no. | 2e9b0776-281a-4205-bf1f-dbeea526b31d |
| SCIP dossier product name | SM084/SM090/SM100/SM110/SM120/SM148/SM161/SZ084/SZ090/SZ100/SZ110/SZ120/SZ148/SZ161 |
| Segment usage | Air conditioning |
| Shipped instructions | Installation instructions |

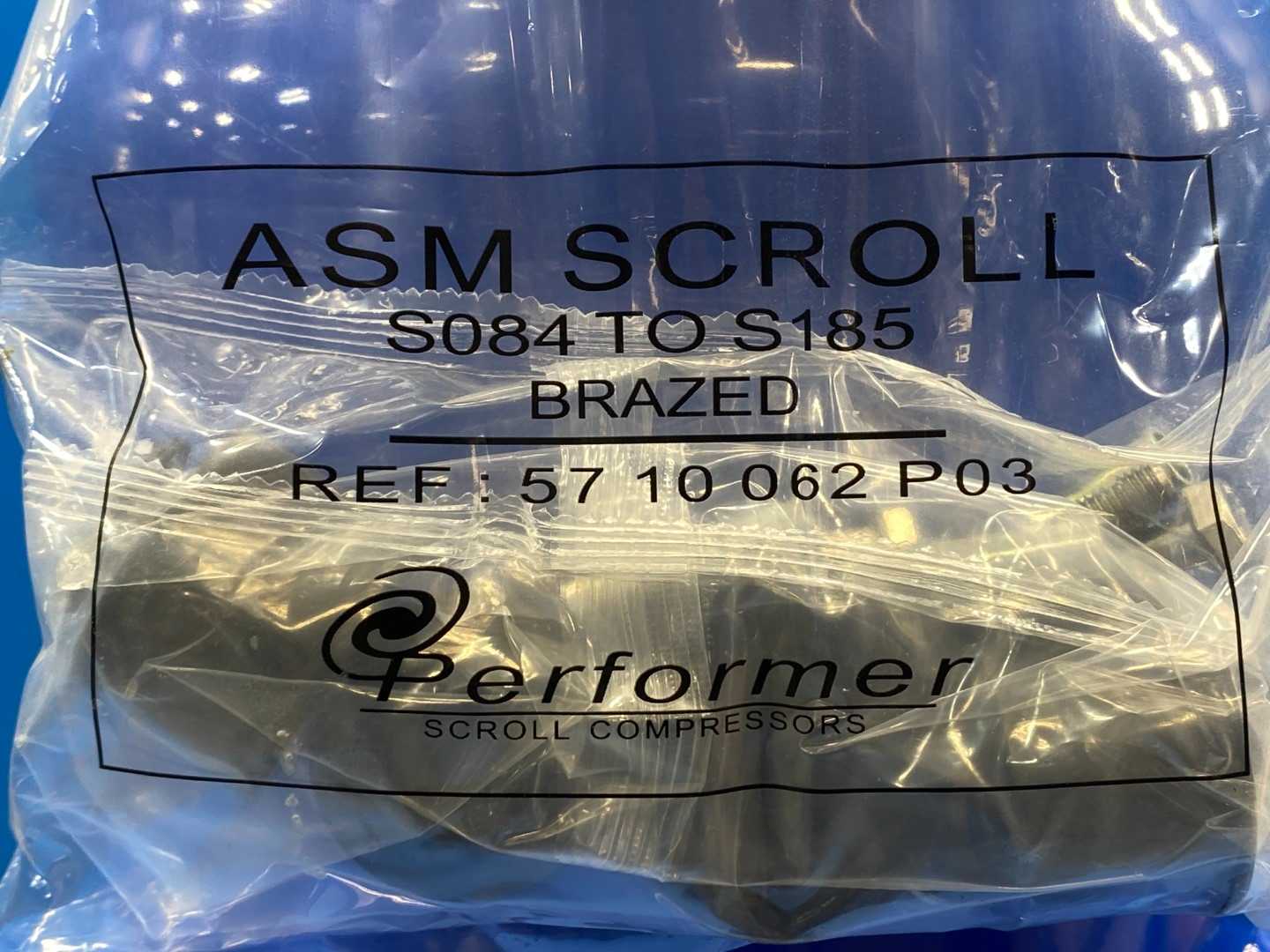

| Shipped mounting | Mounting kit with grommets, bolts, nuts, sleeves and washers |
| Shipped oil | Initial oil charge |
| Suction connection height [mm] | 178 mm |
| Suction connection material | - |
| Suction connection pipe size [in] | 1 3/8 in |
| Suction connection size [in] | 1 3/8 in |
| Swept volume [cm3] | 166.6 cm³ |
| Technology | Scroll |
| Test dif [bar] [Max] | 24 bar |
| Test HP [bar] [Max] | 32 bar |
| Test LP [bar] [Max] | 25 bar |
| Torque earth [Nm] | 2 N-m |
| Torque power [Nm] | 3 N-m |
| Total height [mm] | 558 mm |
| Type | SZ120 |
| UK RoHS compliance | Out of scope |
| Viscosity [cP] | 32 cP |
| Winding resistance for three-phase compressors with identical windings [Ohm] | 0.26 Ohm |
