Danfoss SZ120S3VC SZ120-3VI Scroll Compressor 10 Tons (120,000 BTU/hr) 200-230V 3Ph 60Hz Refrigerant R407C, R134a, R404A, R507

Danfoss SZ120S3VC SZ120-3VI Scroll Compressor 10 Tons (120,000 BTU/hr) 200-230V 3Ph 60Hz Refrigerant R407C, R134a, R404A, R507

Key Features of the Danfoss SZ120-3VI Compressor

Specifications and Applications of the SZ120S3VC

Product image 1
1 / 14
Thumbnail 1
Thumbnail 2
Thumbnail 3
Thumbnail 4
Thumbnail 5
Thumbnail 6
Thumbnail 7
Thumbnail 8
Thumbnail 9
Thumbnail 10
Thumbnail 11
Thumbnail 12
Thumbnail 13
Thumbnail 14
Thumbnail 14
+14
Thumbnail 1
Thumbnail 2
Thumbnail 3
Thumbnail 4
Thumbnail 5
Thumbnail 6
Thumbnail 7
Thumbnail 8
Thumbnail 9
Thumbnail 10
Thumbnail 11
Thumbnail 12
Thumbnail 13
Thumbnail 14
Thumbnail 14
+14
Product image 1
1 / 14
DescriptionDetails
Available Quantity4
ModelSZ120S3VC
ConditionNew
ManufacturerDanfoss
Asset NumberKSC1230 / 20
Guarantee or ASIS1. HIGH CONFIDENCE ITEM: We will offer a 100% 14 Day money back less S&H.
Inspections - Yellow Tag1. New in Box
Packaging Cost2.2 Pine Pallet $35
Available Qty: 4
Free Shipping
$1,890.95
Call UsText UsEmail Us
$1,890.95
Free Shipping
Call Us

Asset #

KSC1230 / 20

Available Quantity

4

Inspections - Yellow Tag

1. New in Box

Condition

New

Guarantee or ASIS

1. HIGH CONFIDENCE ITEM: We will offer a 100% 14 Day money back less S&H.

The Danfoss Inverter Scroll Compressor SZ120S3VC is a highly efficient and innovative cooling solution designed for commercial and industrial applications. Initially developed to tackle the rising demand for energy-efficient refrigeration systems, the SZ120S3VC offers a significant advancement over traditional compressor technologies. Its inverter-driven design allows for variable speed operation, adjusting the cooling output according to the demand, resulting in lower energy consumption and reduced operational costs. Danfoss has a long history of engineering excellence in the HVACR market, and the SZ120S3VC is a testament to their commitment to innovation and sustainability. It is especially popular in applications such as large-scale air conditioning systems, process cooling, and refrigeration systems where efficiency and performance are critical. Key features of the SZ120S3VC include: - High efficiency with inverter technology for optimized energy use - Scroll compressor design that reduces noise and vibration - Enhanced reliability and durability with fewer moving parts compared to traditional piston compressors - Wide operating range suitable for various climatic conditions - Compatibility with a variety of refrigerants, enhancing flexibility in system design Overall, the Danfoss SZ120S3VC is designed to provide high-performance cooling solutions while supporting environmental sustainability efforts through reduced energy consumption and less refrigerant use.

SpecificationValue
ManufacturerDanfoss
ModelSZ120S3VC
Ordering / catalog codeSZ120-3VI
Compressor typeHermetic scroll, fixed speed, single
Family / lubricant / refrigerant designationSZ: scroll, polyolester (POE) oil, R407C / R134a
Nominal cooling capacity (60 Hz, R407C, ARI)10 Ton (118,800 BTU/hr), 34,800 W
Nominal cooling capacity (50 Hz, R407C)8.1 Ton (97,600 BTU/hr), 28,600 W
Rated power input (60 Hz)10.7 kW
COP3.24 (W/W)
EER11.1 (BTU/hr/W)
RefrigerantsR407C, R134a (range also compatible with R404A, R507A)
Oil typePolyolester (POE), Danfoss 160PZ / 160SZ
Oil charge3.25 L
Power supply200-230 V / 3-phase / 60 Hz (voltage code 3)
Voltage range180-253 V
MCC (max continuous current)50 A
MOC (max operating current)48 A
LRA (locked rotor amps)237 A
Nominal running current (calculated, ARI)approx. 30 A
Winding resistance (at 25°C)0.26 Ω
Swept volume (displacement)166.6 cm3/rev
Displacement at 60 Hz (50 Hz)35.0 m3/h (29.0 m3/h)
Nominal speedapprox. 3500 rpm at 60 Hz

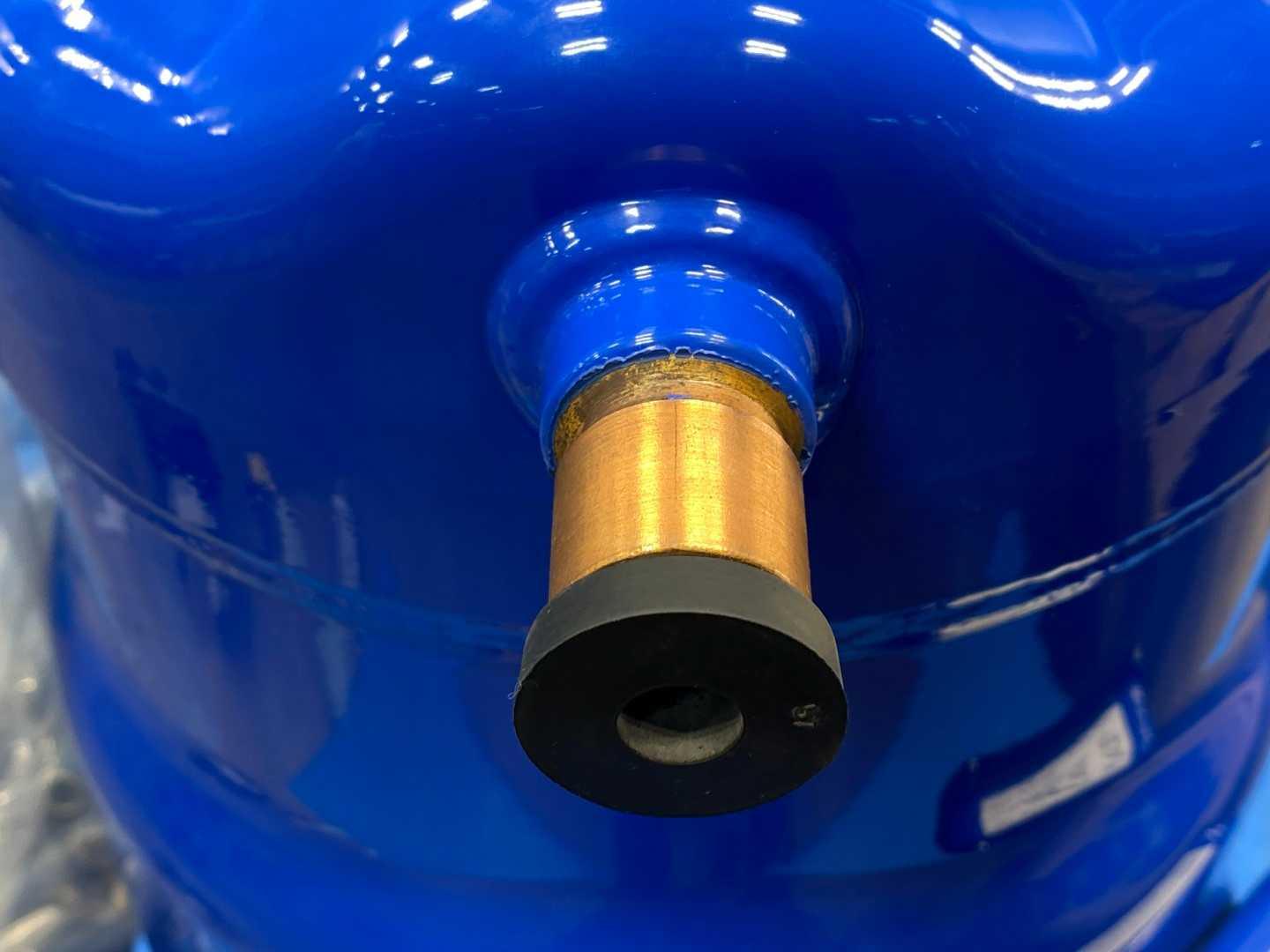

Suction connection1-3/8 in (brazed)

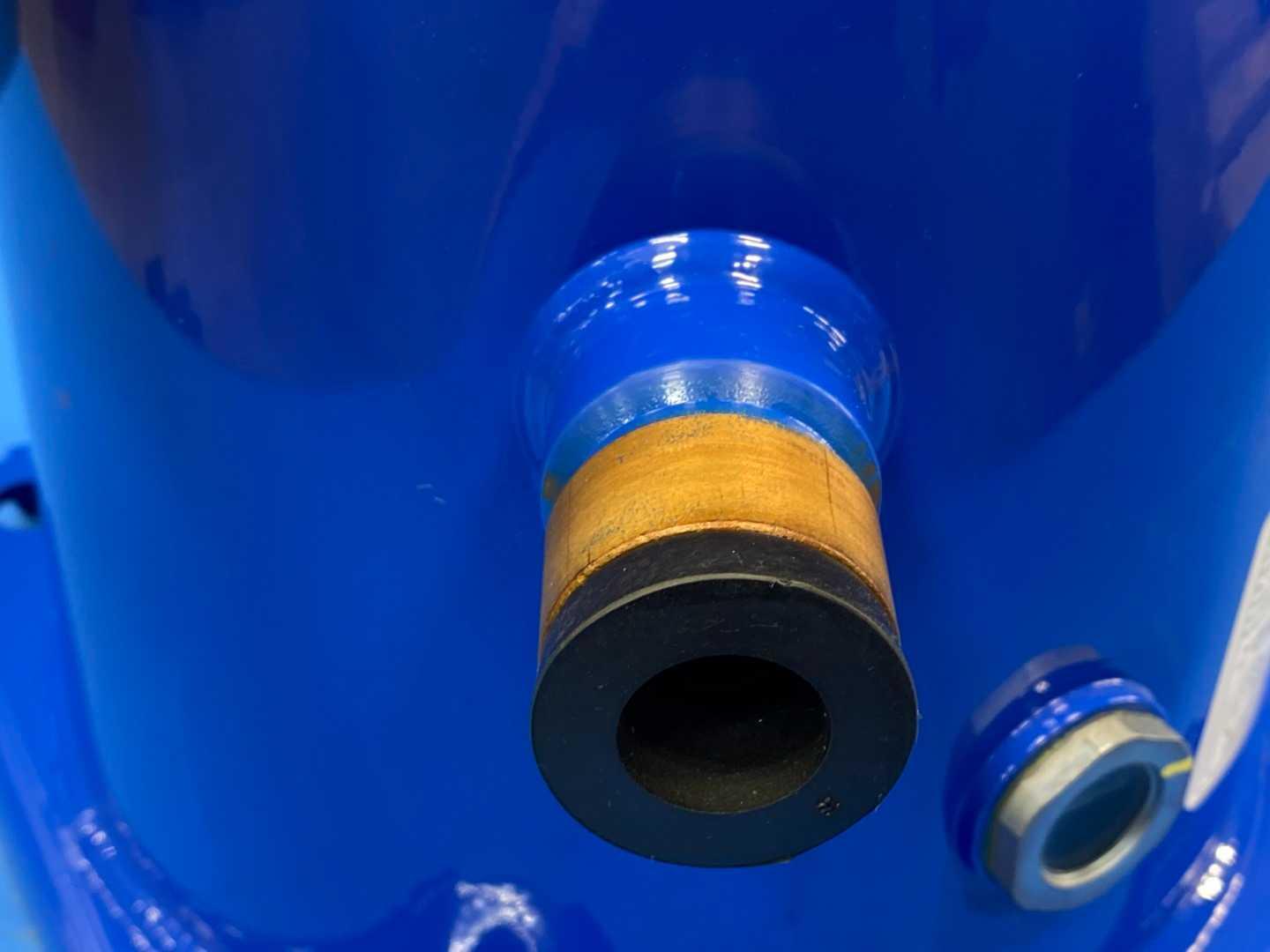

Discharge connection7/8 in (brazed)

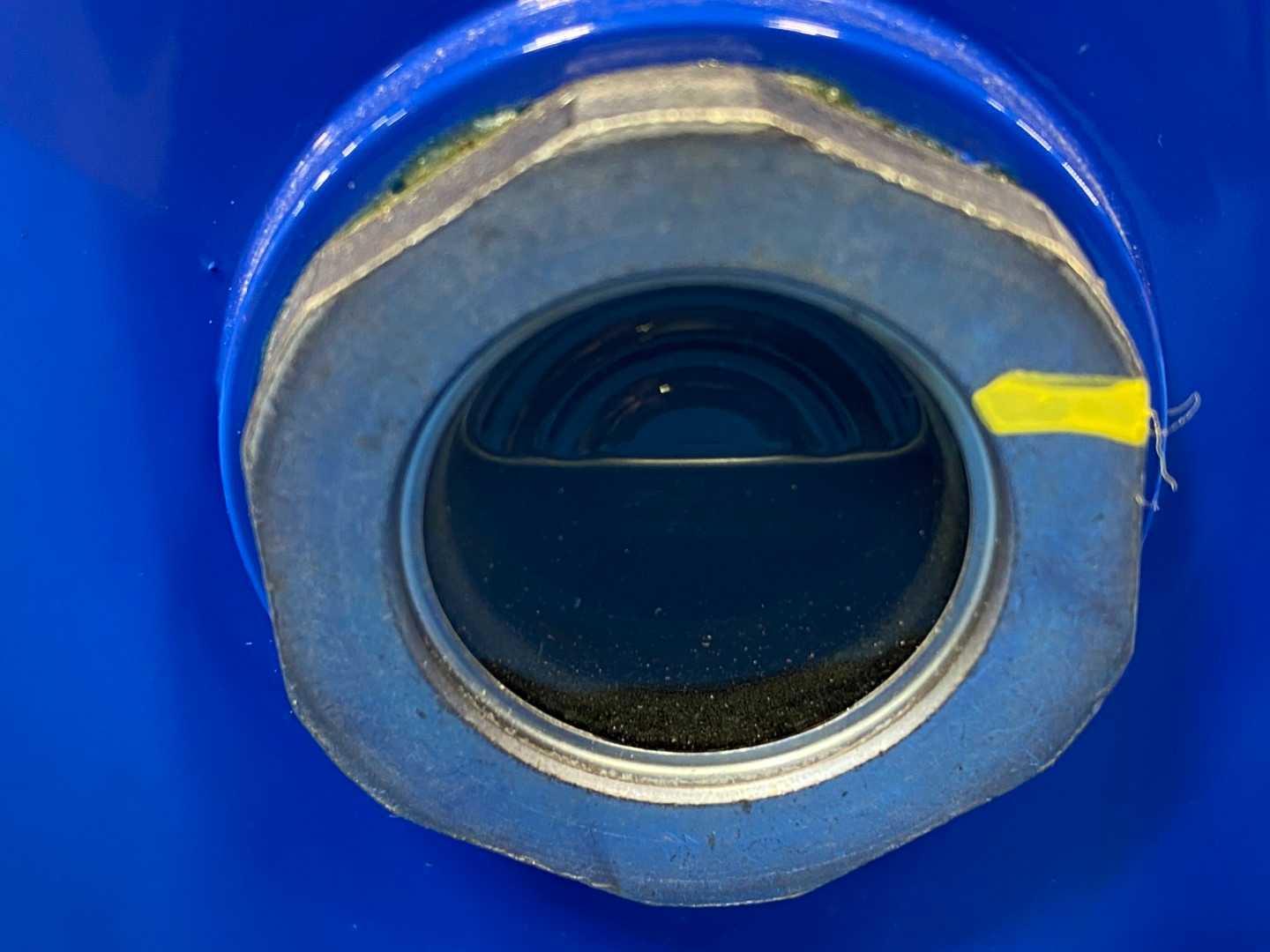

Oil sight glassYes (1-1/8 in - 18 UNF)
Internal free volume (without oil)14.7 L
Refrigerant charge limit10 kg
Working pressure range, high side (R407C)10.5 - 29.1 bar(g)
Working pressure range, low side (R407C)1.1 - 6.4 bar(g)
Max high-pressure safety switch setting29.5 bar(g)
Max discharge gas temperature135°C
Service pressure (Ps, PED)25 bar(g)
Service temperature range (Ts)-35°C to +53°C
Terminal box IP ratingIP54 (with correctly sized cable glands)
PED category (97/23/EC)II
ApprovalsCE (PED, LVD 2006/95/EC, Machinery 2006/42/EC), UL (all 60 Hz models)
Sound power (60 Hz, R407C)81 dB(A)
Net weight (with oil)73 kg (161 lb)
Body diameter (approx.)254 mm
Overall height (approx., brazed 110-120 body)515 mm
Mounting4 holes, Ø 19.4 mm
Manufacturer

Danfoss

Model

SZ120S3VC

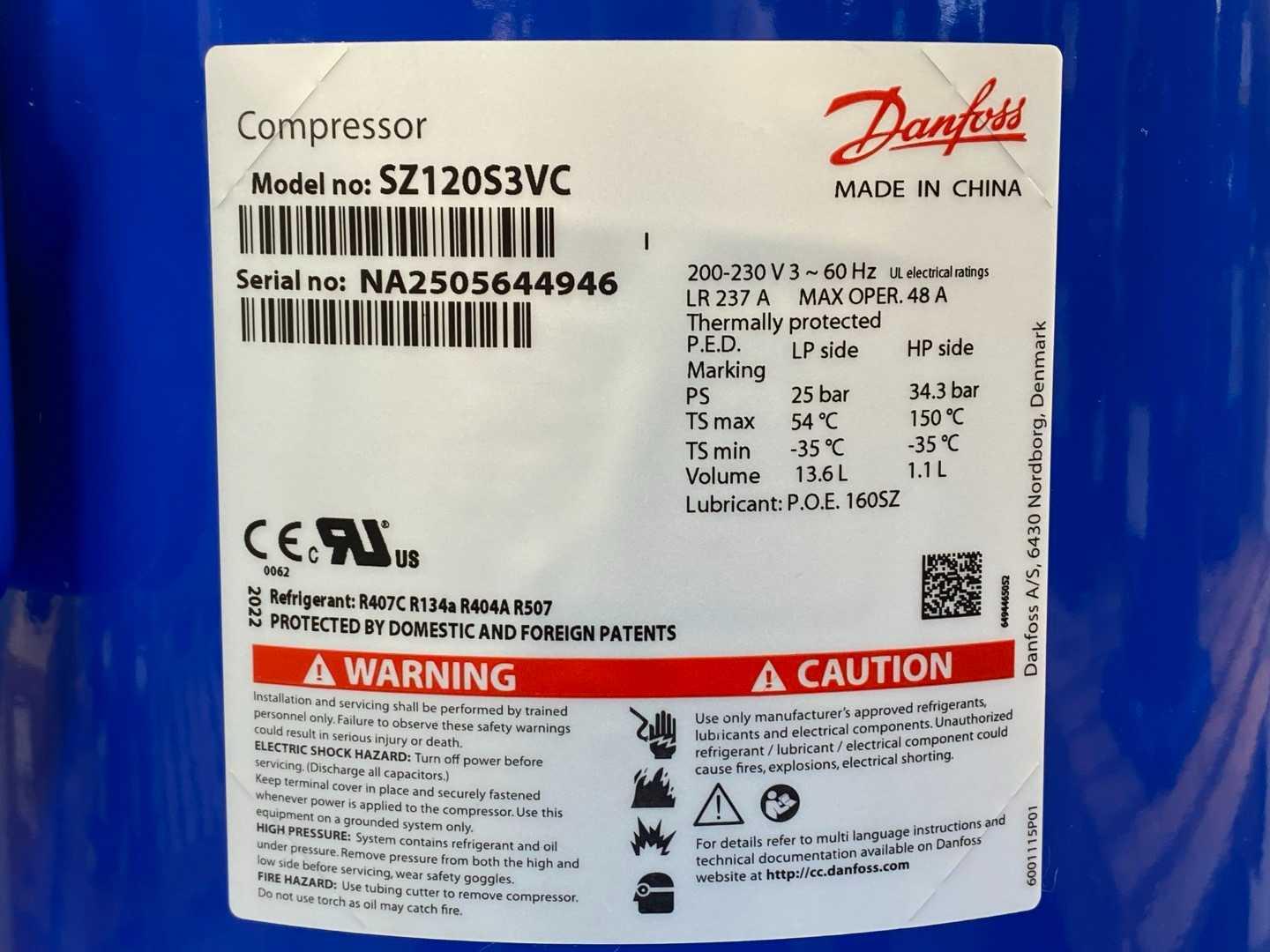

Serial

NA2505644946

Year

2020

HP / AMP / KW / KVA

60Hz

Amps

48

Length (Inches)

18

Width (Inches)

18

Height (Inches)

23

Phase

3

Estimated Packaging Weight

35

Estimated Total Weight

210

Asset Number

KSC1230 / 20

Packaging Cost

2.2 Pine Pallet $35

Appraised Value

$1,890.95
