Danfoss VZH117BJDNA (120G0112) Scroll Compressor 9.75 Tons (117,000 BTU/hr) 200-240V 3 Phase 60Hz R410A Refrigerant
Danfoss VZH117BJDNA (120G0112) Scroll Compressor 9.75 Tons (117,000 BTU/hr) 200-240V 3 Phase 60Hz R410A Refrigerant
Explore the Features of the 9.75 Ton Scroll Compressor
Specifications and Performance of Danfoss VZH117BJDNA
| Description | Details |
|---|---|
| Available Quantity | 2 |
| Model | VZH117BJDNA |
| Condition | New |
| Manufacturer | Danfoss |
| Asset Number | KSC1230 / 11 |
| Guarantee or ASIS | 1. HIGH CONFIDENCE ITEM: We will offer a 100% 14 Day money back less S&H. |
| Inspections - Yellow Tag | 1. New in Box |
| Packaging Cost | 2.2 Pine Pallet $35 |
$1,999.95
Basic Information
Asset #
KSC1230 / 11
Available Quantity
2
Inspections - Yellow Tag
1. New in Box
Condition
New
Guarantee or ASIS
1. HIGH CONFIDENCE ITEM: We will offer a 100% 14 Day money back less S&H.
Item Description

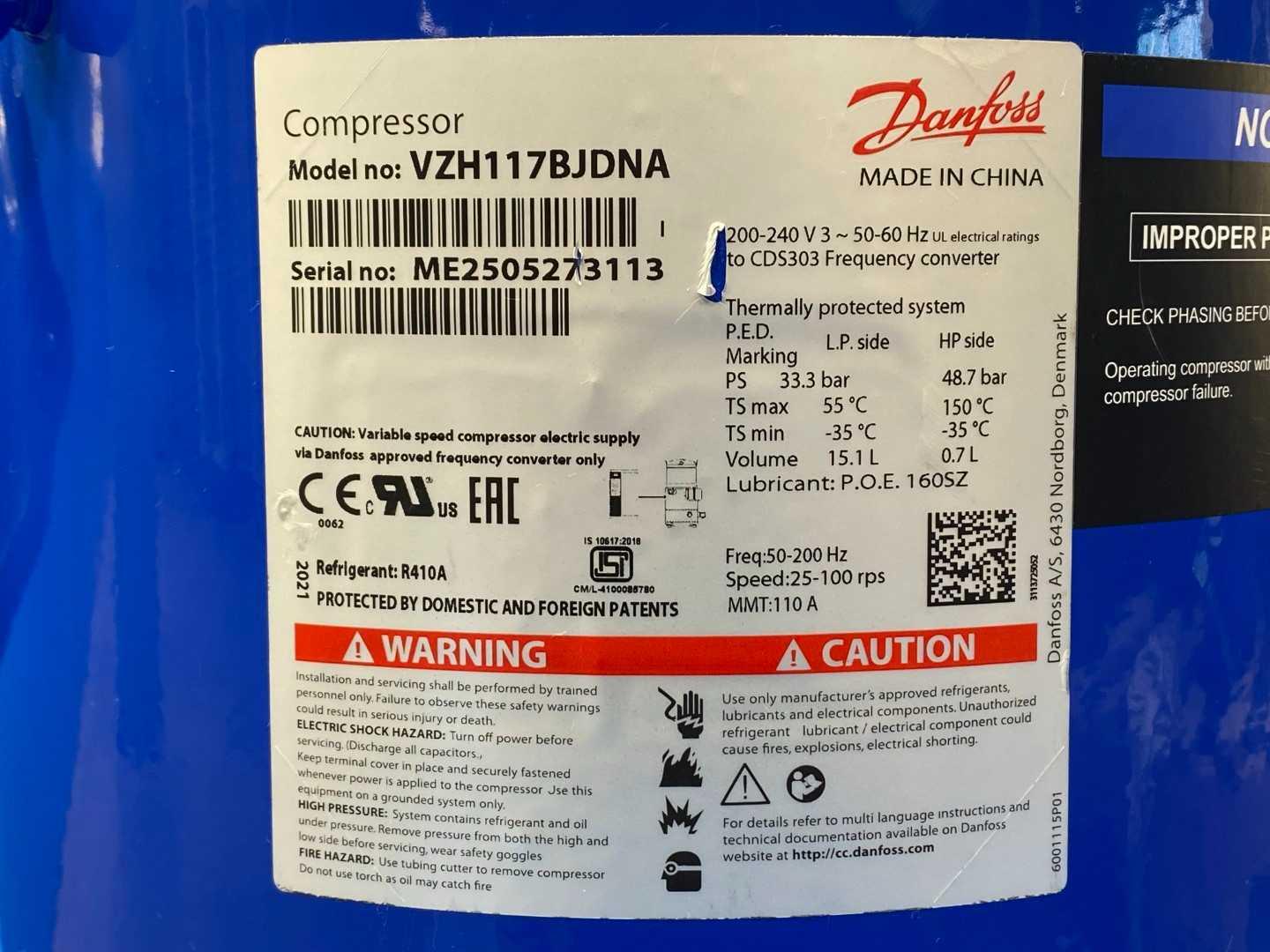

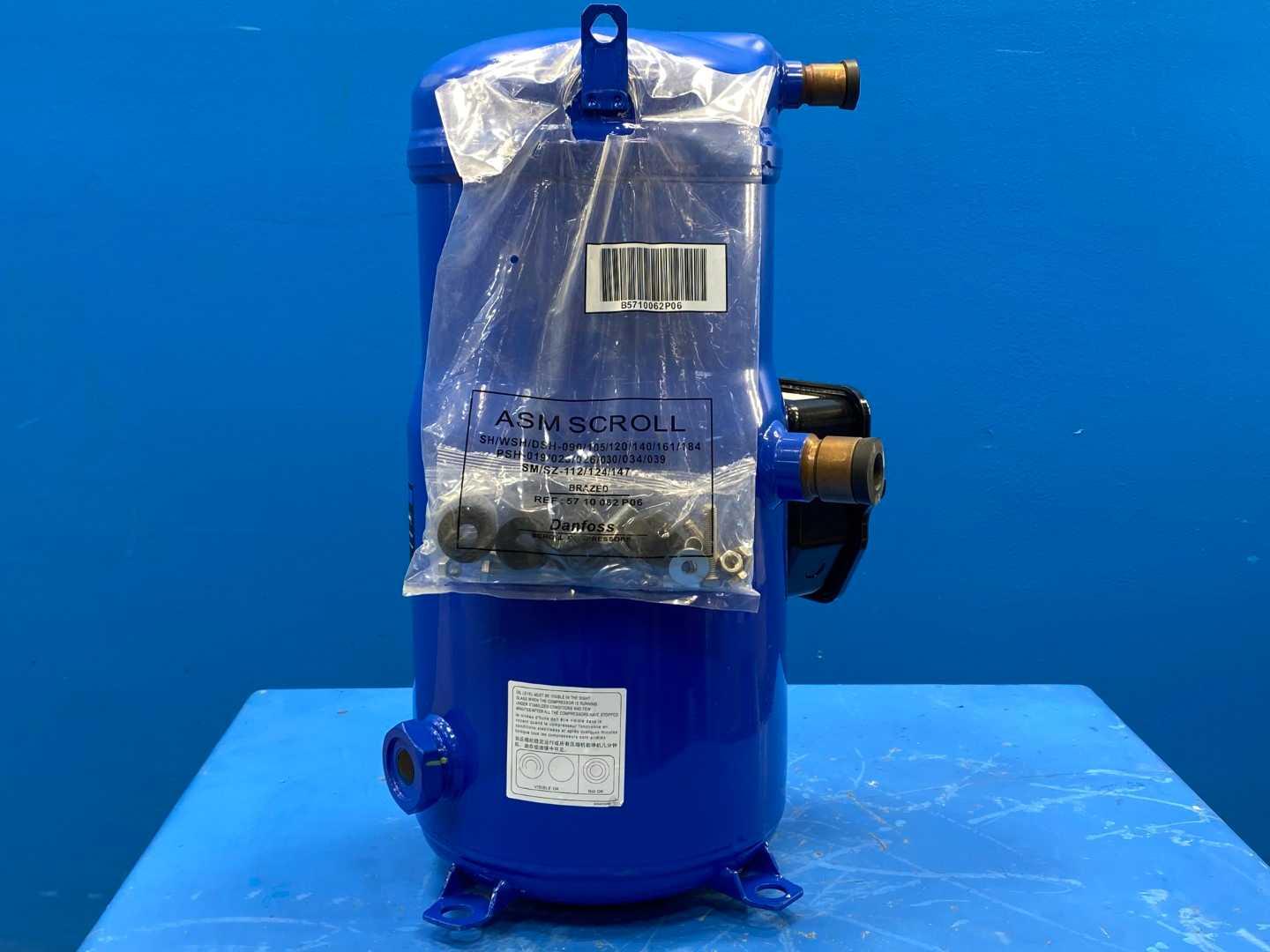

The Danfoss VZH117BJDNA is a variable-speed (inverter) hermetic scroll compressor for commercial air conditioning, running on R410A refrigerant. Danfoss VZH inverter scroll compressors for commercial air conditioning deliver cooling capacity using variable-speed technology, providing step-less modulation and pre-equipped tandem capability. It carries Danfoss code number 120G0112 and is rated at roughly 9.75 tons of cooling capacity, equivalent to approximately 117,000 BTU. Unlike a fixed-speed compressor, it is not started across the line: it must be powered through a Danfoss approved frequency converter (CDS303 family), with the drive providing motor protection rather than an internal overload.
Factory Information
| Specification | Value |
|---|---|
| Manufacturer | Danfoss |
| Model | VZH117BJDNA |
| Ordering code (code number) | 120G0112 |
| Type | Variable-speed (inverter) hermetic scroll compressor |
| Family | VZH (R410A, POE lubricant) |
| Motor type | Permanent magnet, drive-controlled |
| Segment usage | Commercial air conditioning |
| Cooling capacity | 9.75 Ton (117,000 BTU/hr) |
| Refrigerant | R410A |
| Lubricant (oil type) | POE (Danfoss 160SZ) |
| Oil charge | 4.1 dm³ (139 oz) |
| Power supply | 200-240 V / 3~ / 50-60 Hz (to CDS303 frequency converter) |
| Motor protection | None internal (provided by drive) |
| Operating speed | 25 to 100 rps |
| Frequency range | 50 to 200 Hz |
| Swept volume | 116.9 cm³/rev (7.13 cu.in/rev) |
| Displacement (25 / 50 / 60 / 100 rps) | 10.52 / 21.04 / 25.25 / 42.08 m³/h |
| Internal free volume (LP side, no oil) | 15.1 L (921 cu.in) |
| Working pressure range (low side) | 2.3 to 15.7 bar (33.4 to 227.7 psi) |
| Service pressure LP side (PS) | 33.3 bar (483 psi) |
| Max high-pressure switch setting | 46.1 bar (668.6 psi) |
| Min low-pressure switch setting | 1.5 bar (21.75 psi) |
| Service temperature (TS) | -35 °C to +55 °C (-31 °F to 131 °F) |
| Connections | Brazed suction and discharge, copper-plated steel |
| Power terminals | #10-32 UNF 2A screws, 3 Nm torque, 1/4 in ring terminal |
| Approvals | CE, UL, EMC 2014/30/EU; PED Group 2, Category II |
| Net weight | 61 kg (134 lb) |
| Body diameter (ØD) | 220.8 mm (8.69 in) |
| Overall height (H4) | 541.6 mm (21.34 in) |
| Mounting base (L1 x L2) | 230 mm x 230 mm (9.05 in x 9.05 in) |
Specifications
Danfoss
VZH117BJDNA
ME2505273113
2020
60Hz
110
13
17
23
3
35
178
KSC1230 / 11
Packaging fees
2.2 Pine Pallet $35
Payment Details
$1,999.95
Payment MethodsPayment Types Accepted : Visa, Mastercard, Check (14 Day Hold Before Release), Cash
