DescriptionDetails
Available Quantity6
ModelEG1R-480-500-13 / M3G150-FF25-64
ConditionNew
Manufacturerebm-papst
Asset NumberKSC1230 / 1183
Guarantee or ASIS1. HIGH CONFIDENCE ITEM: We will offer a 100% 14 Day money back less S&H.
Inspections - Yellow Tag1.1 Appears Unused no box
Packaging Cost3.1 Oak Pallet $45
Available Qty: 6
Free Shipping
$795.00
Call UsText UsEmail Us
$795.00
Free Shipping
Call Us

Asset #

KSC1230 / 1183

Available Quantity

6

Inspections - Yellow Tag

1.1 Appears Unused no box

Condition

New

Guarantee or ASIS

1. HIGH CONFIDENCE ITEM: We will offer a 100% 14 Day money back less S&H.

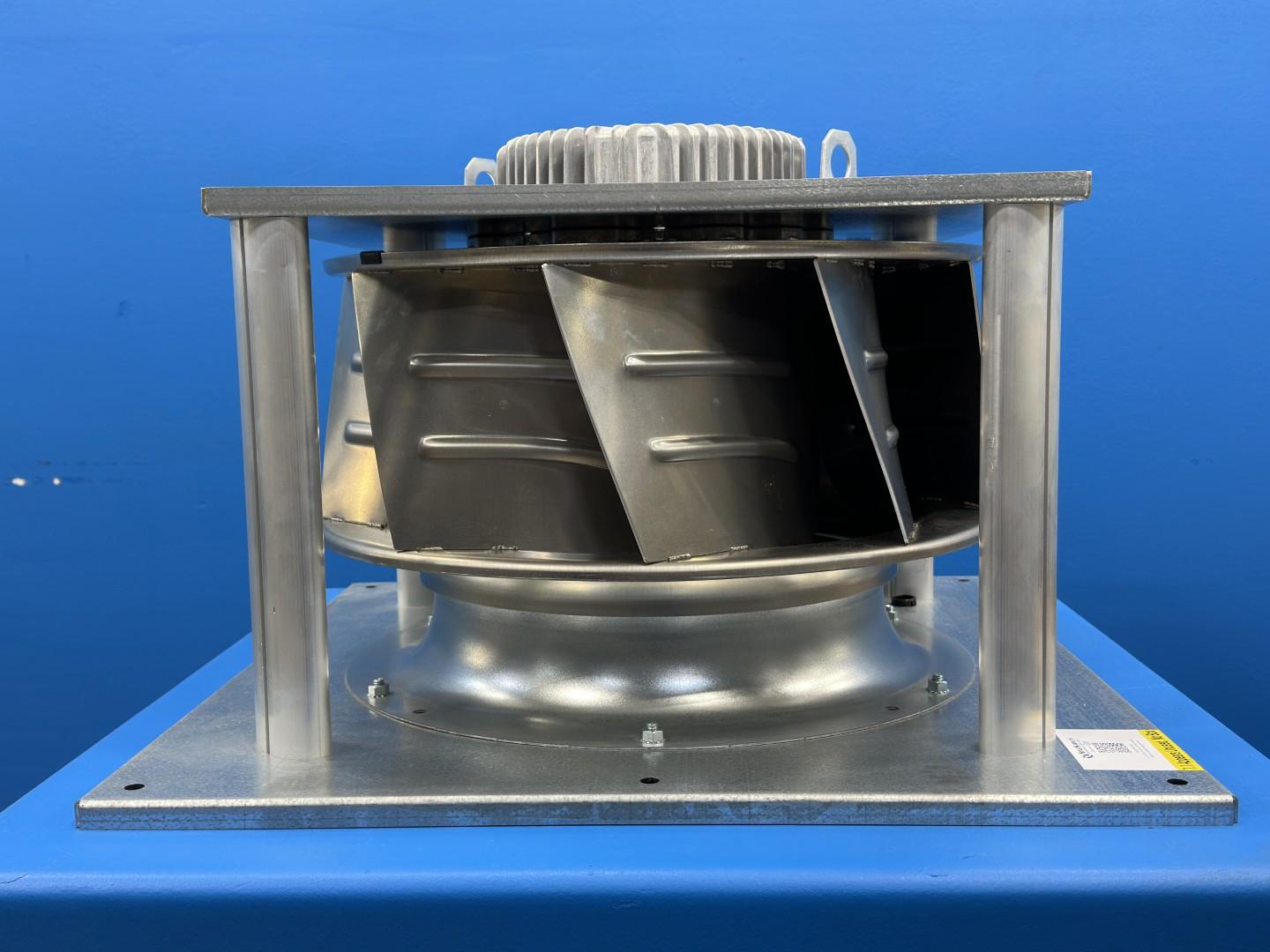

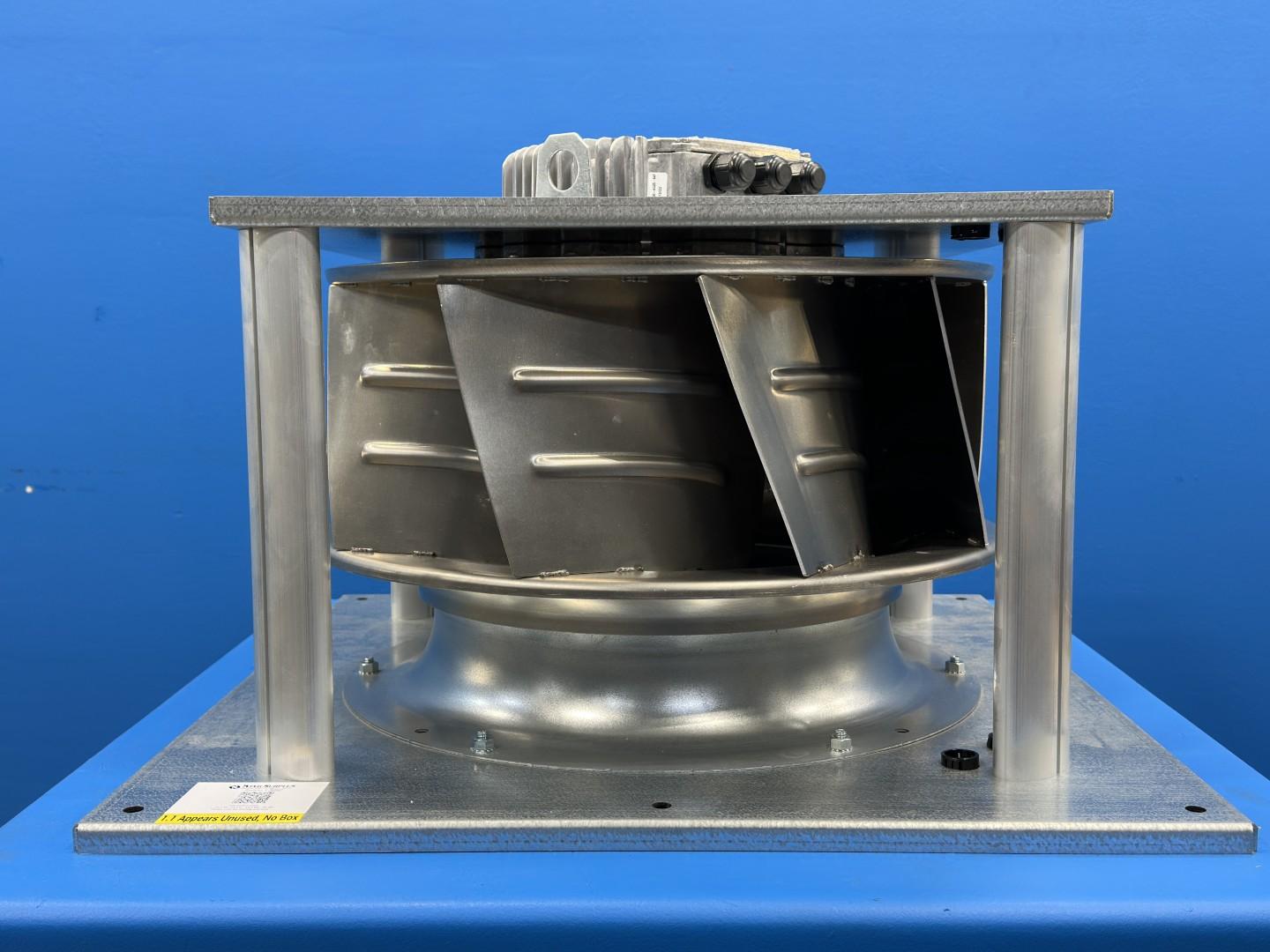

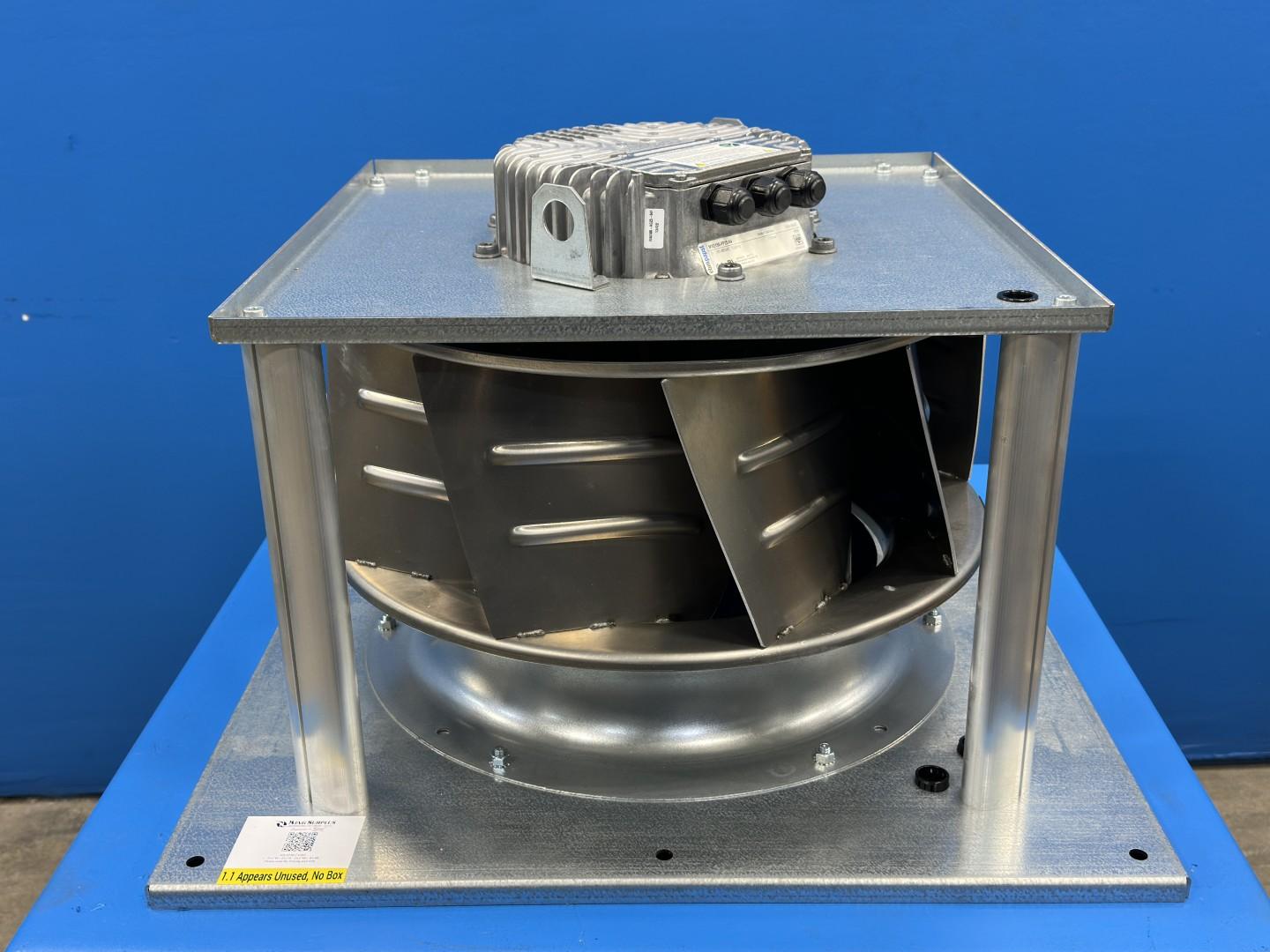

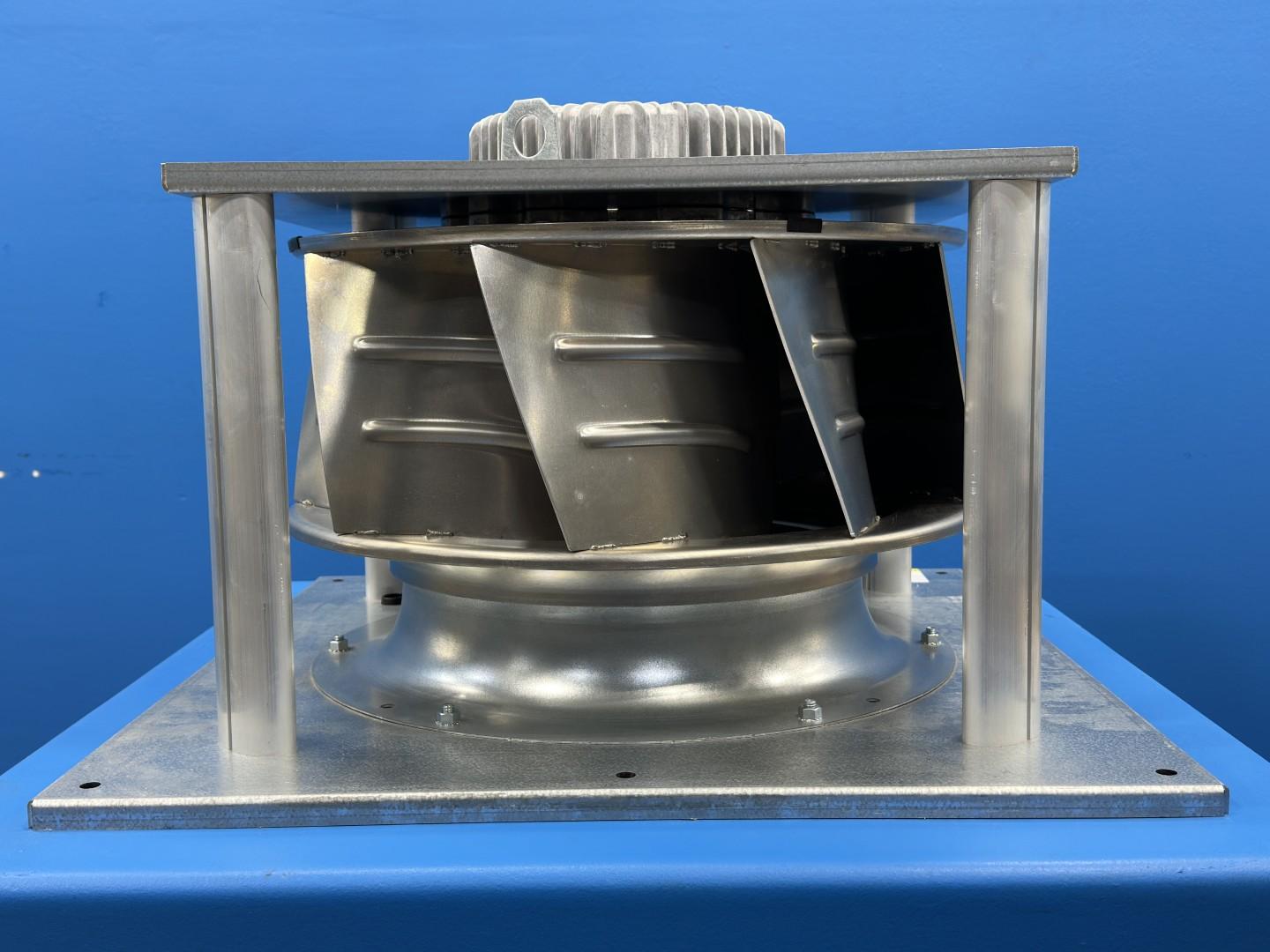

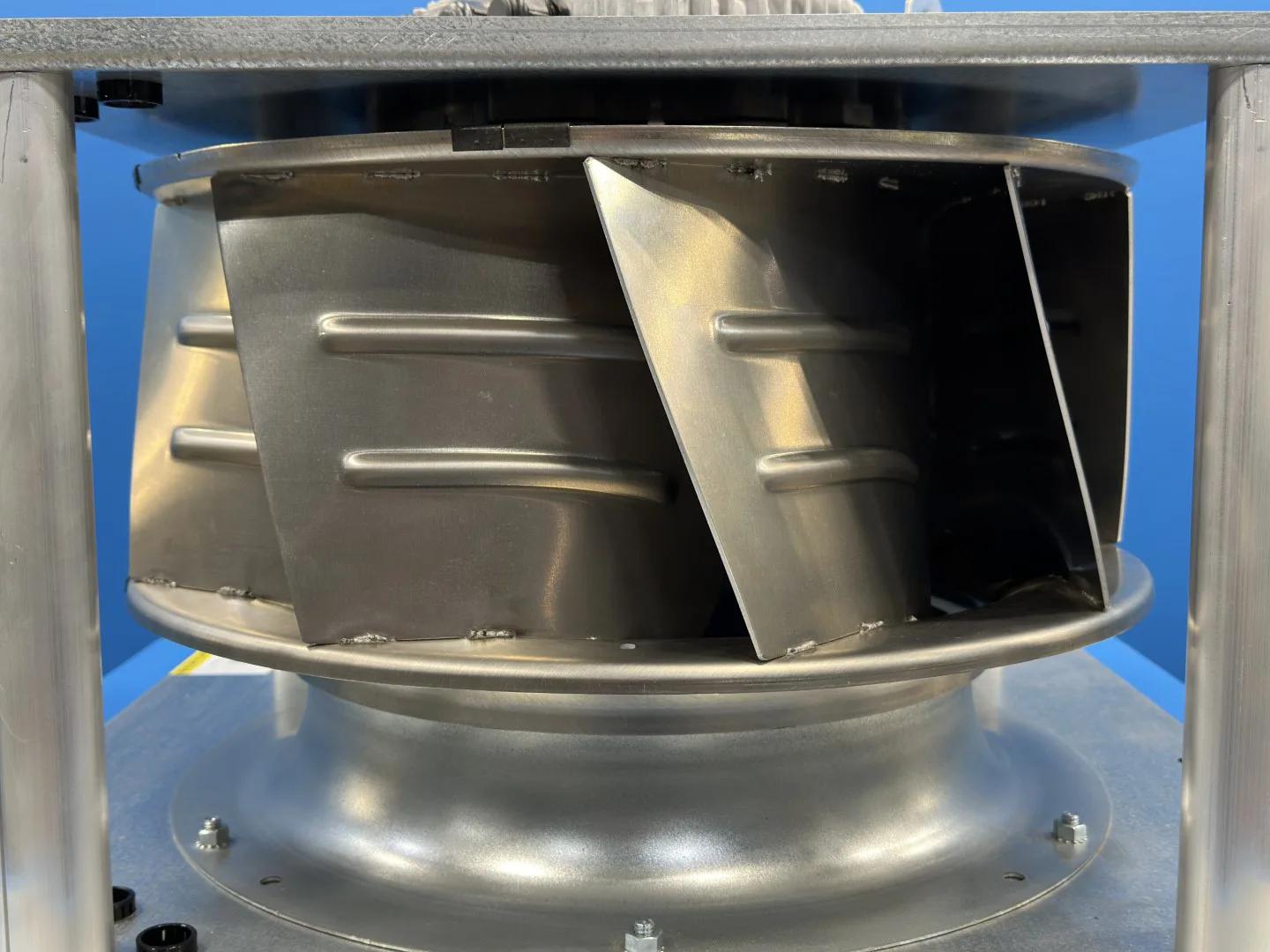

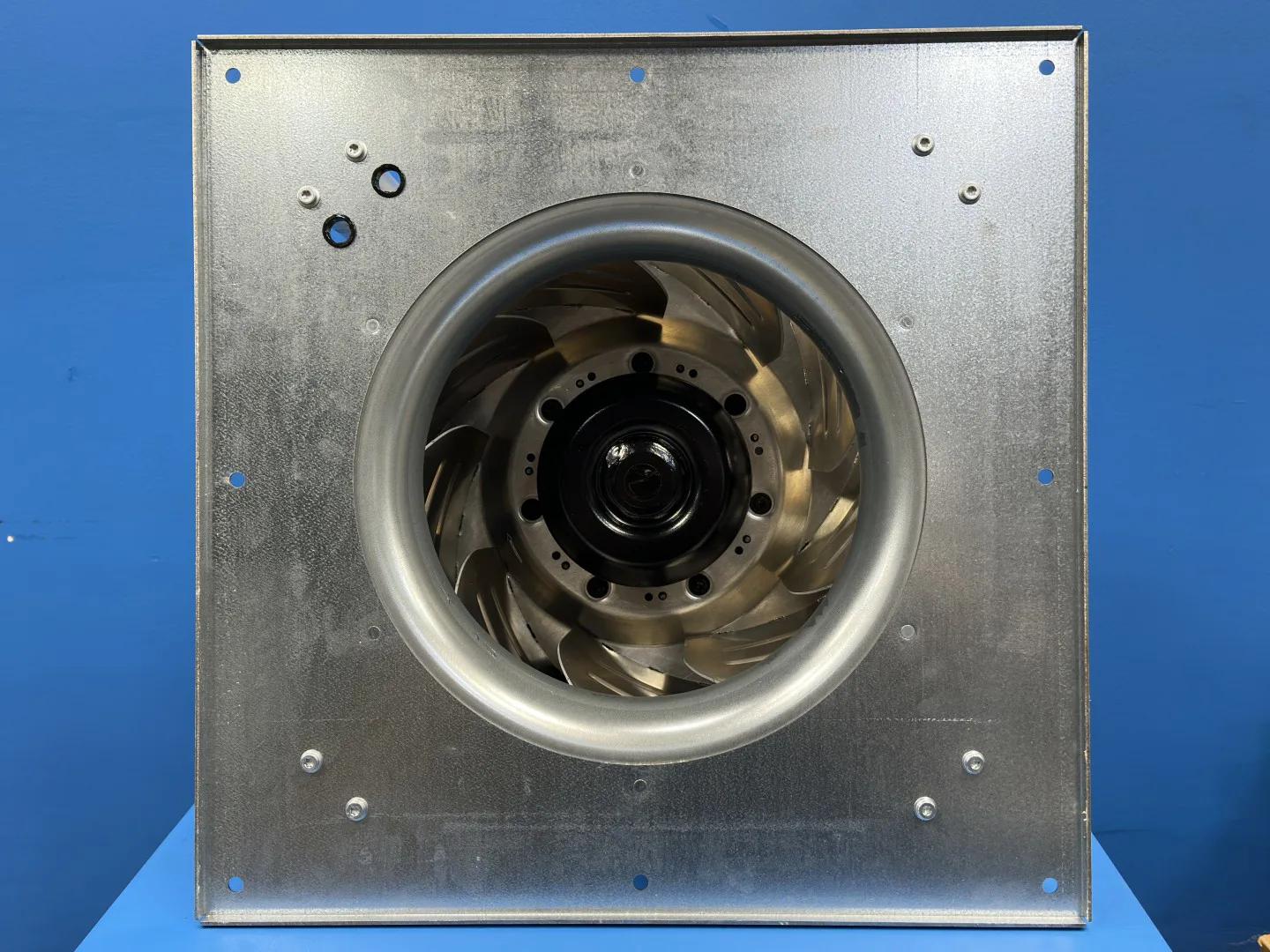

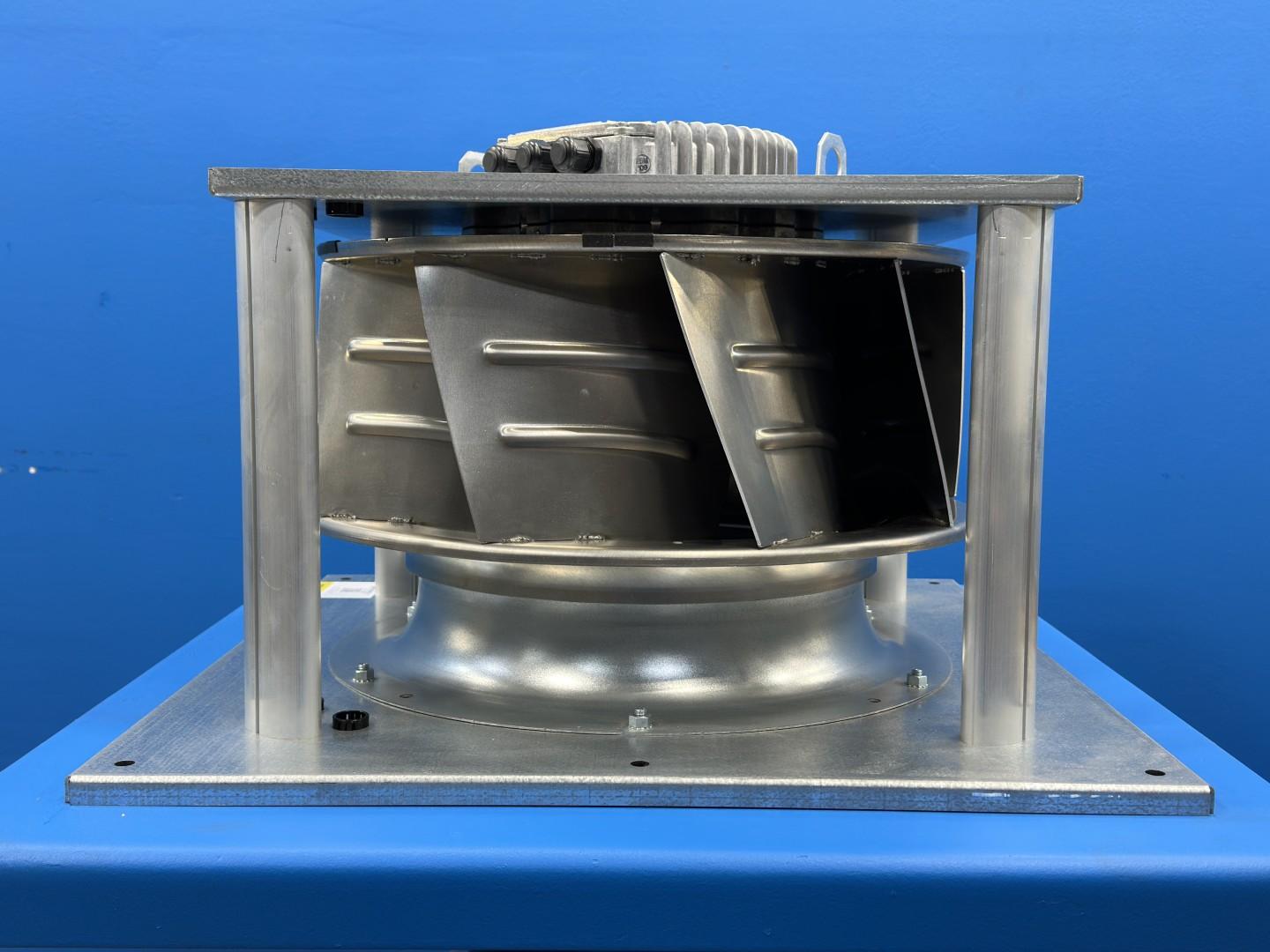

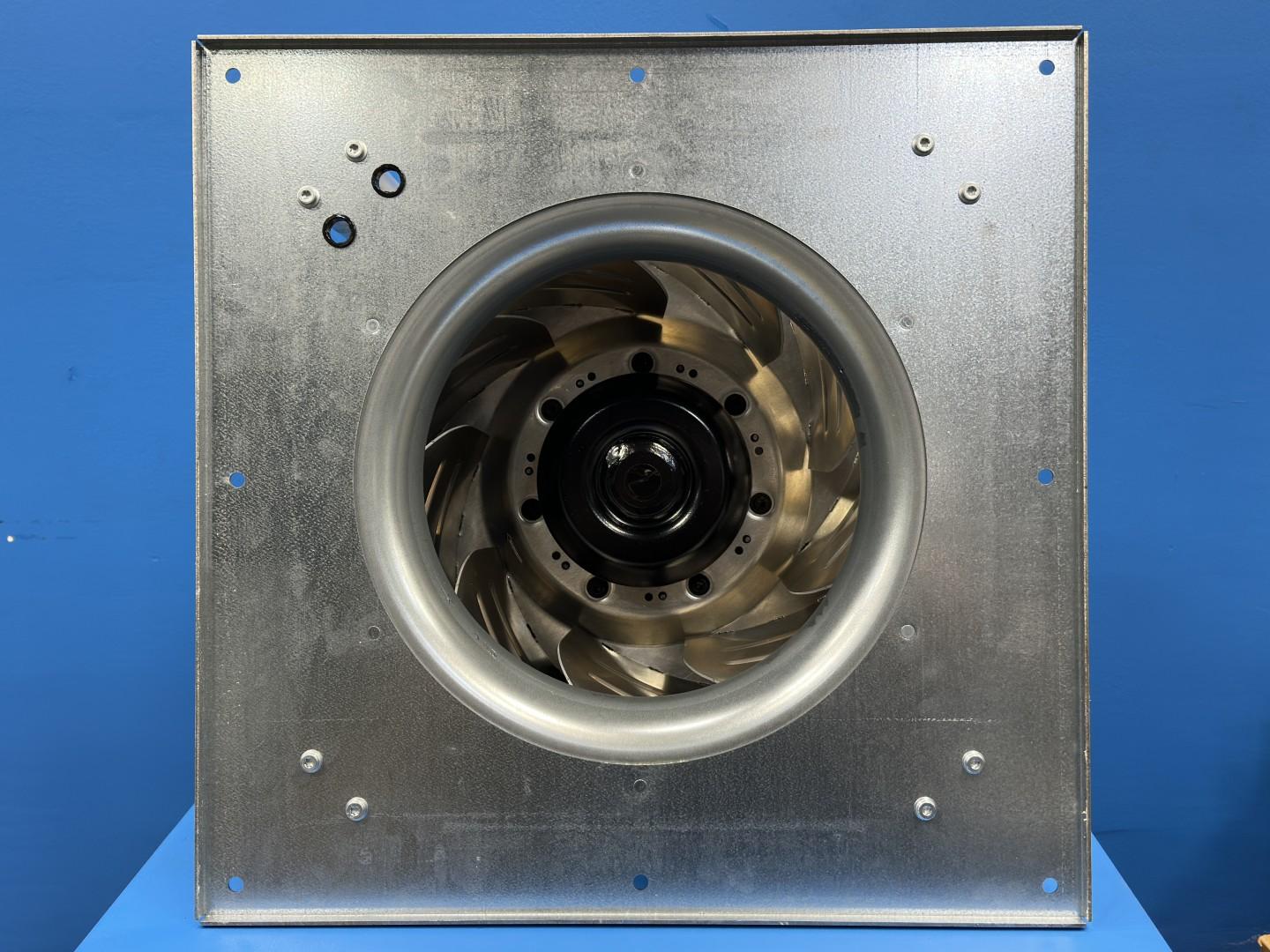

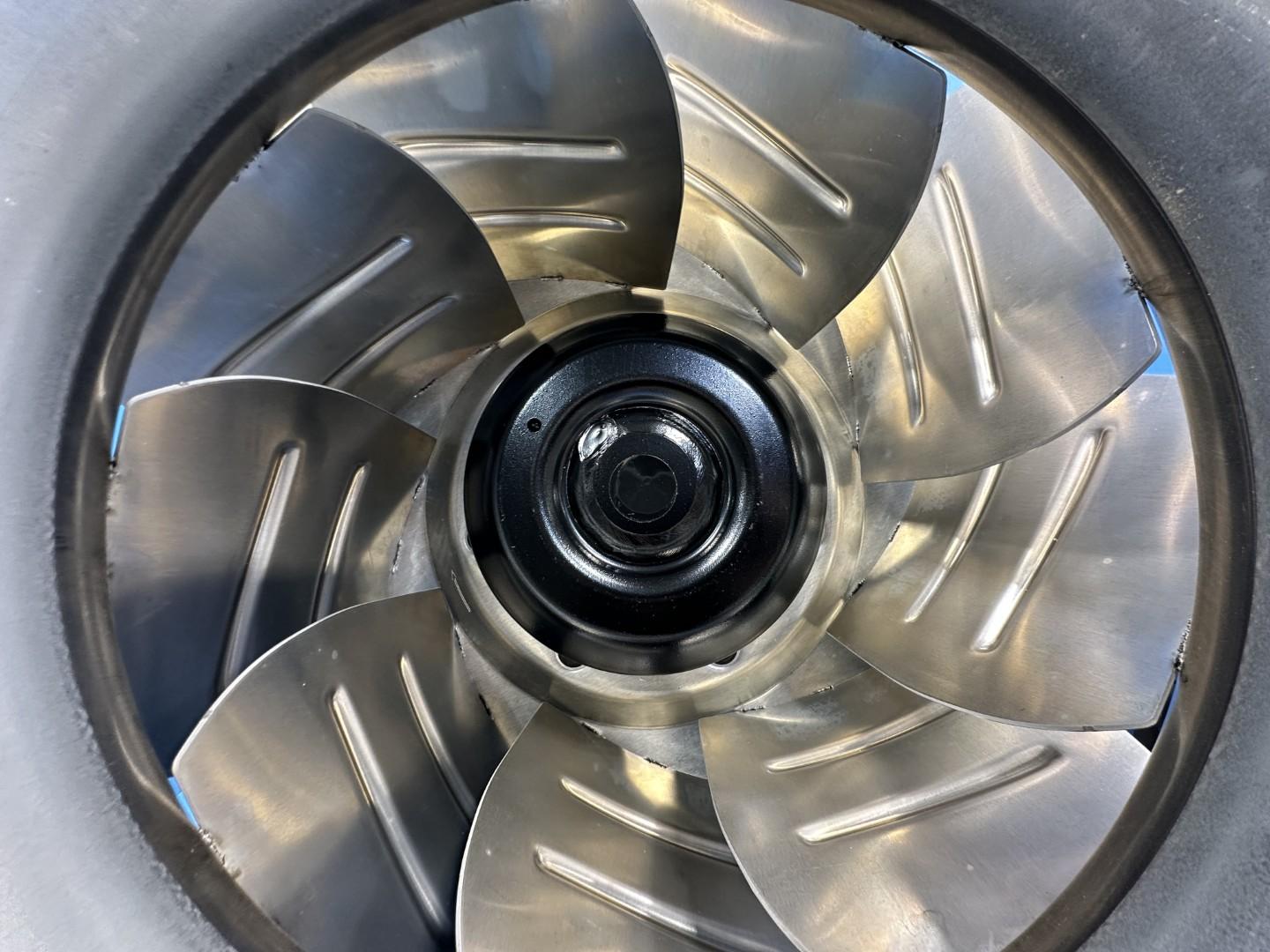

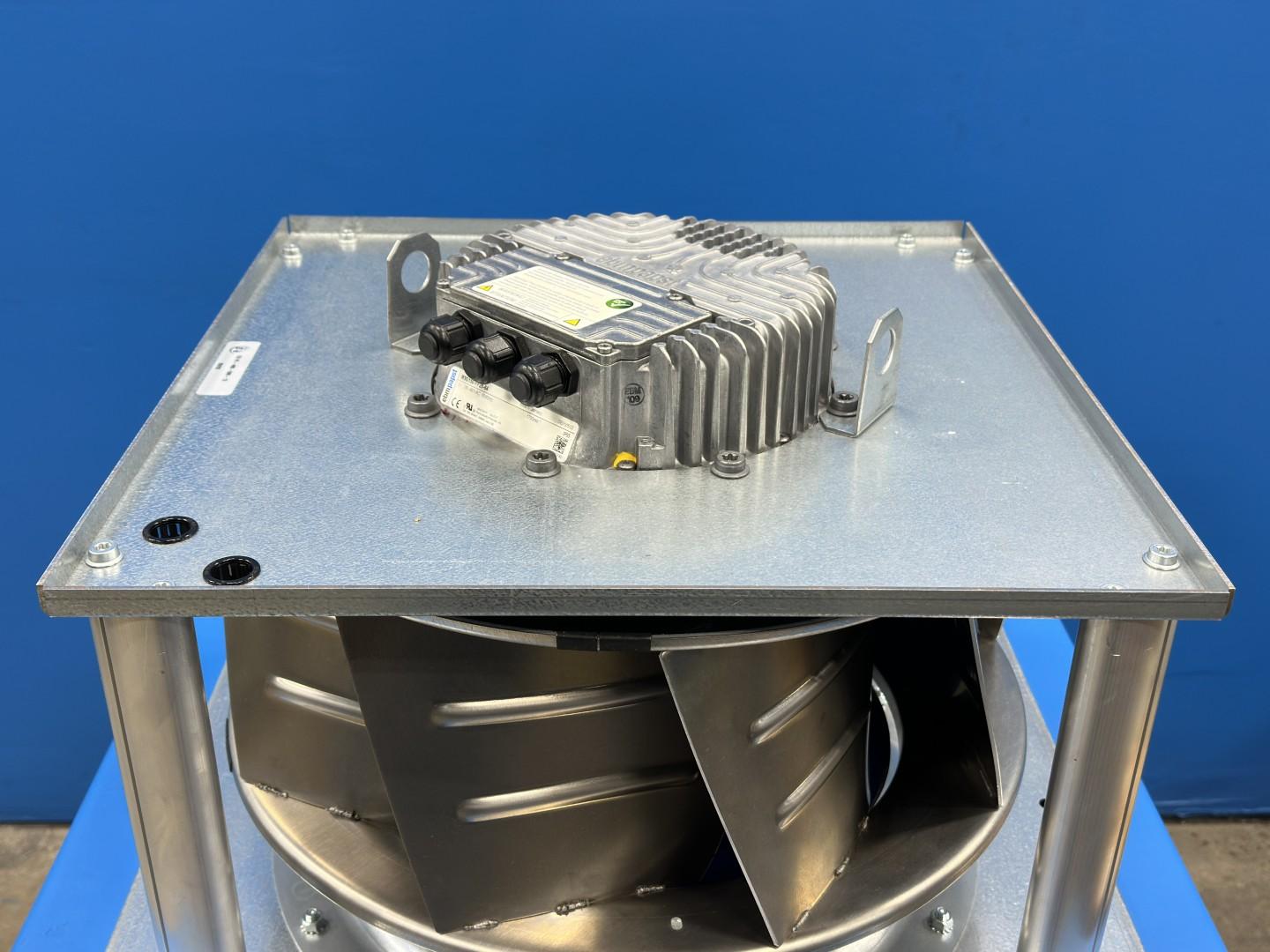

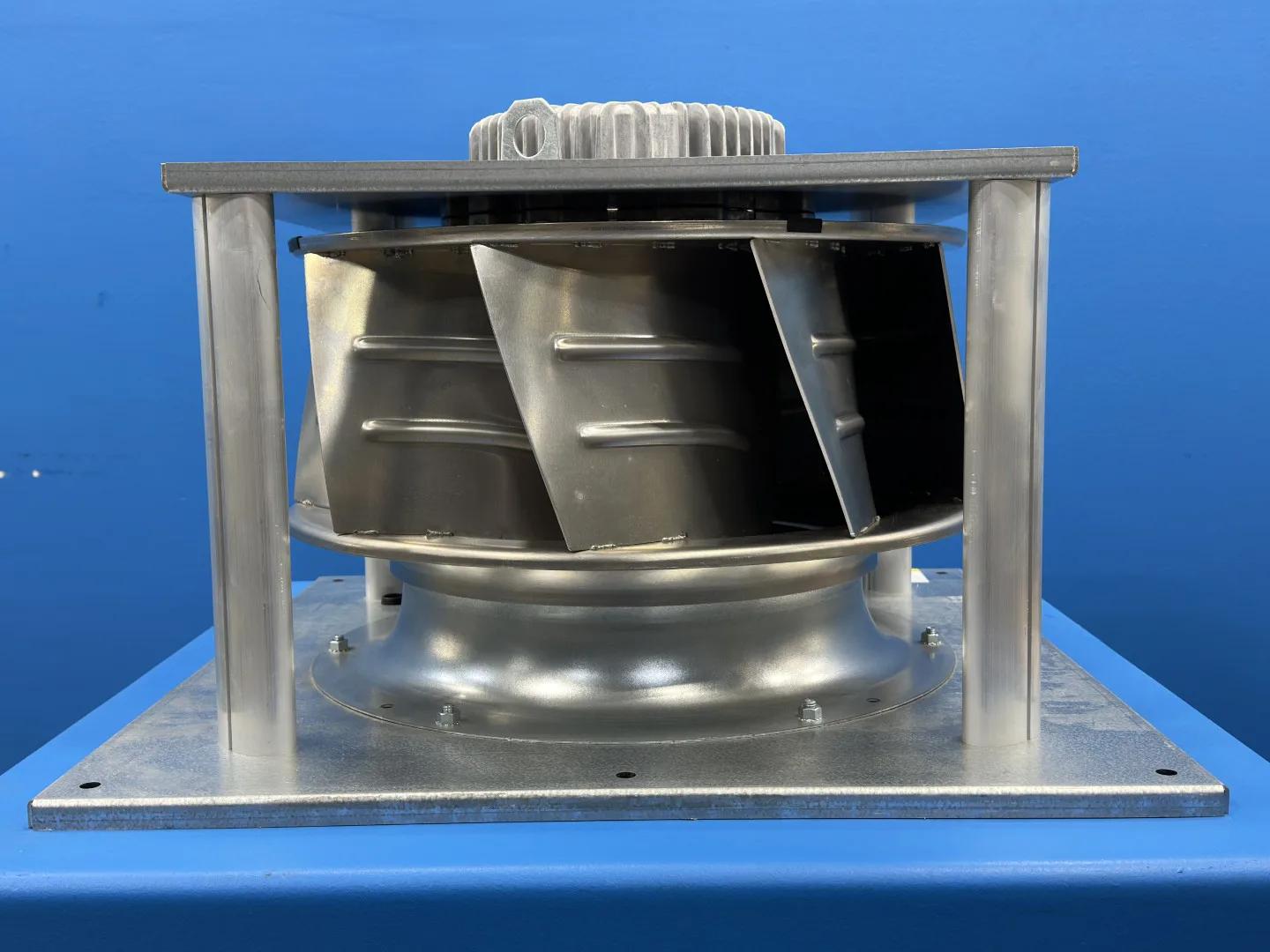

This is an ebm-papst RadiPac EC centrifugal plenum fan ("plug fan") built around an integrated GreenTech M3G150 electronically commutated (EC) motor. The EG1R-480-500-13 designation decodes from the ebm-papst RadiPac scheme as a backward-curved, single-inlet centrifugal module rated for 400 to 480 VAC (the "480") with a 500 mm fan wheel (the "500"). The companion nameplate part M3G150-FF25-64 identifies the drive itself: a Generation 3, size 150 EC motor, which is among ebm-papst's larger high-power EC units in this family.


These units are designed for air handling units (AHUs), rooftop units, and large building ventilation and air conditioning systems. They run on 3-phase 380 to 480 VAC with integrated active PFC (power-factor correction), so they draw near-unity power factor and avoid harmonic-filtering hardware. They feature maintenance-free ball bearings, continuous-duty (S1) operation, a glass-fiber-reinforced composite impeller, and onboard control inputs (0 to 10 V, 4 to 20 mA, digital). ebm-papst rates this series at roughly IE5-equivalent system efficiency.

SpecificationDetail
Manufacturerebm-papst (Mulfingen GmbH & Co. KG)

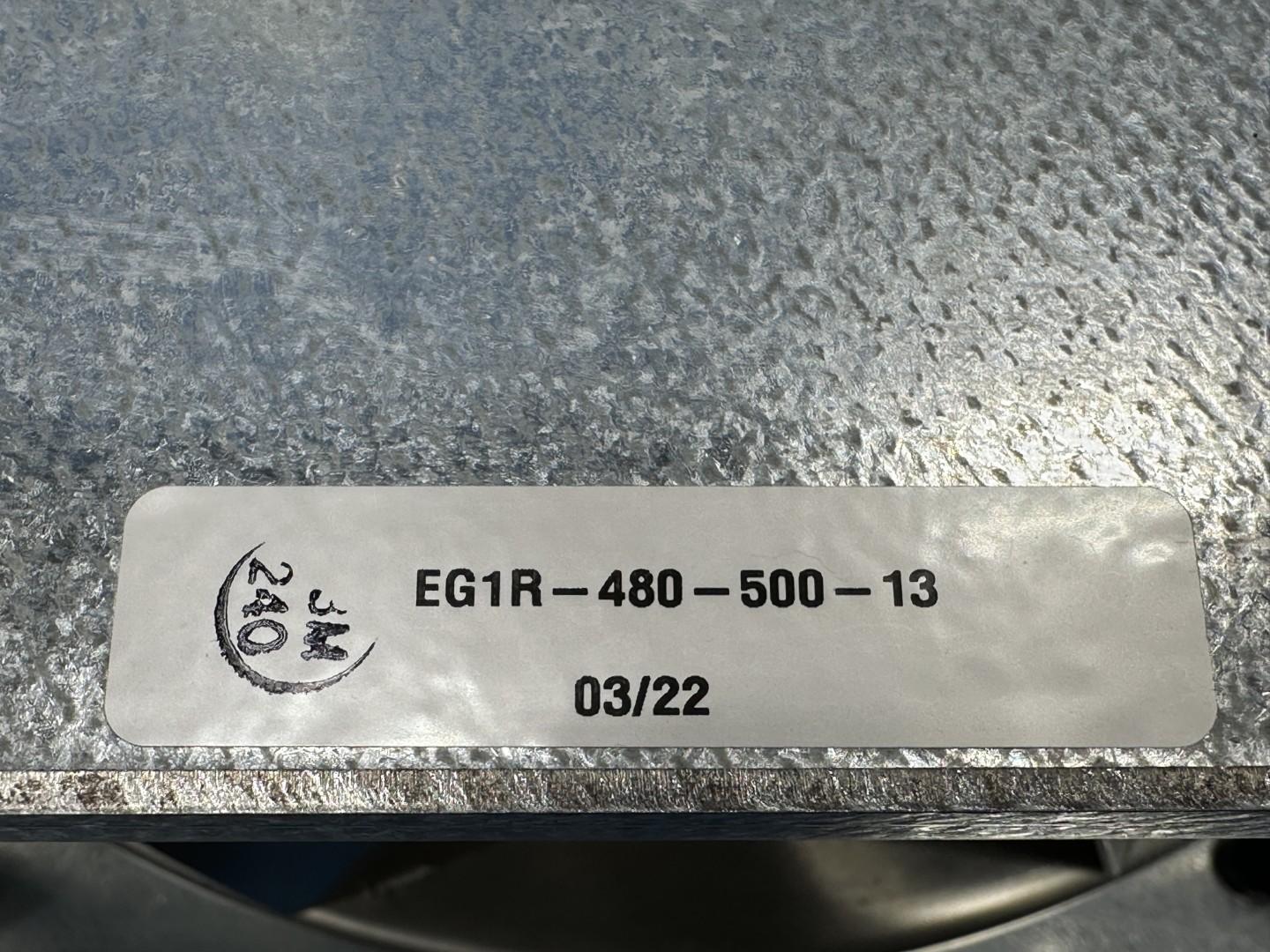

Fan module modelEG1R-480-500-13

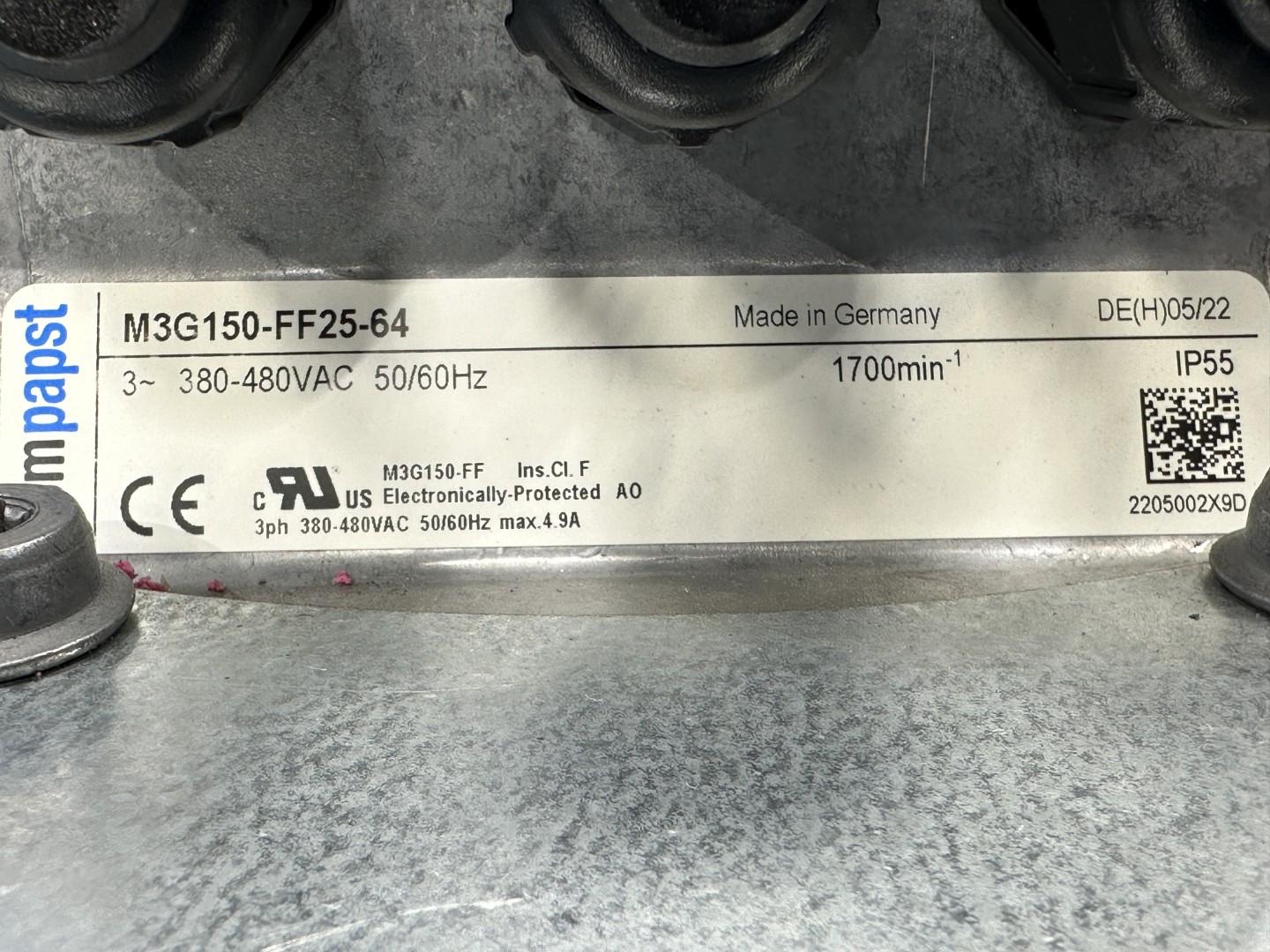

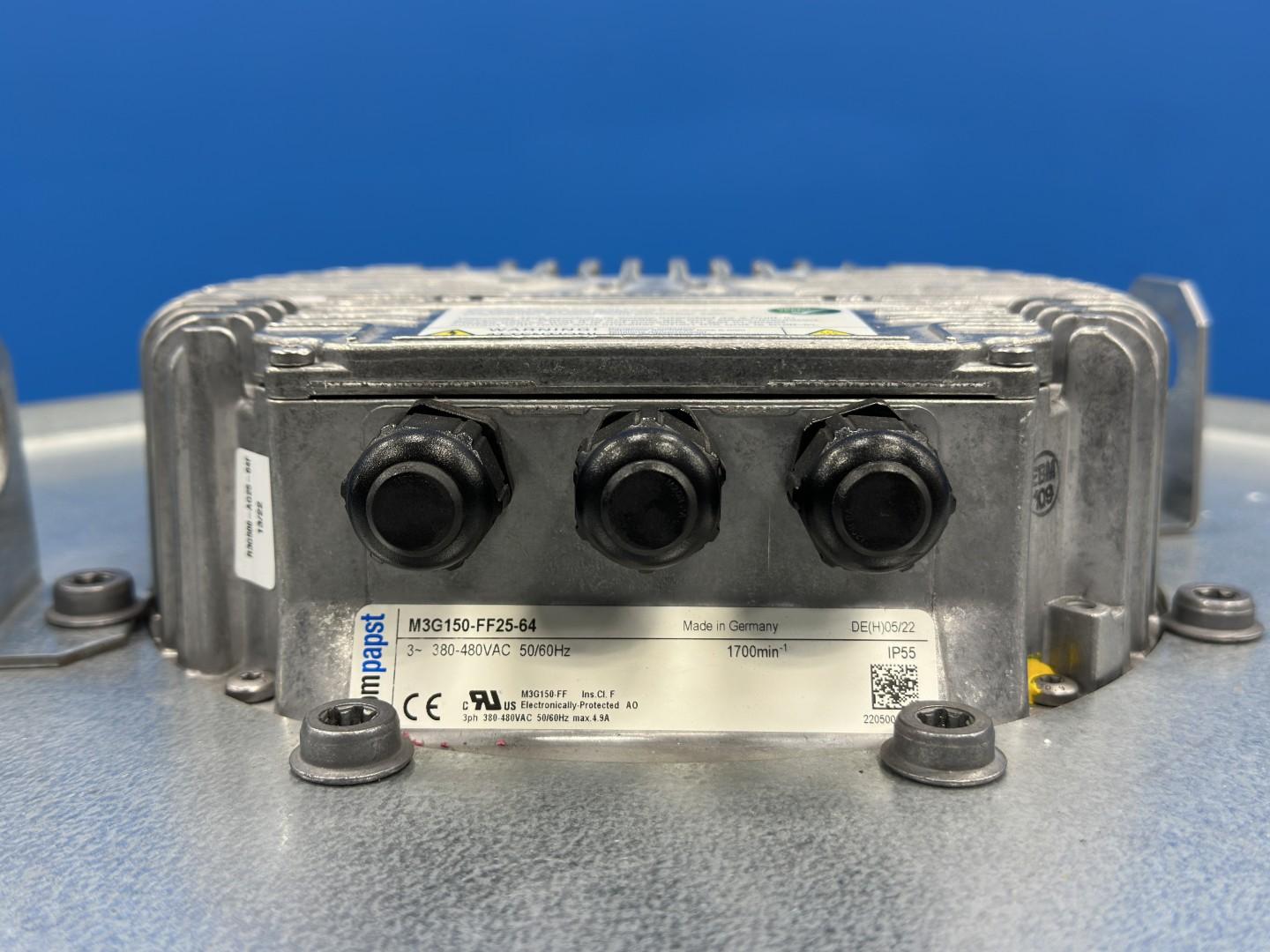

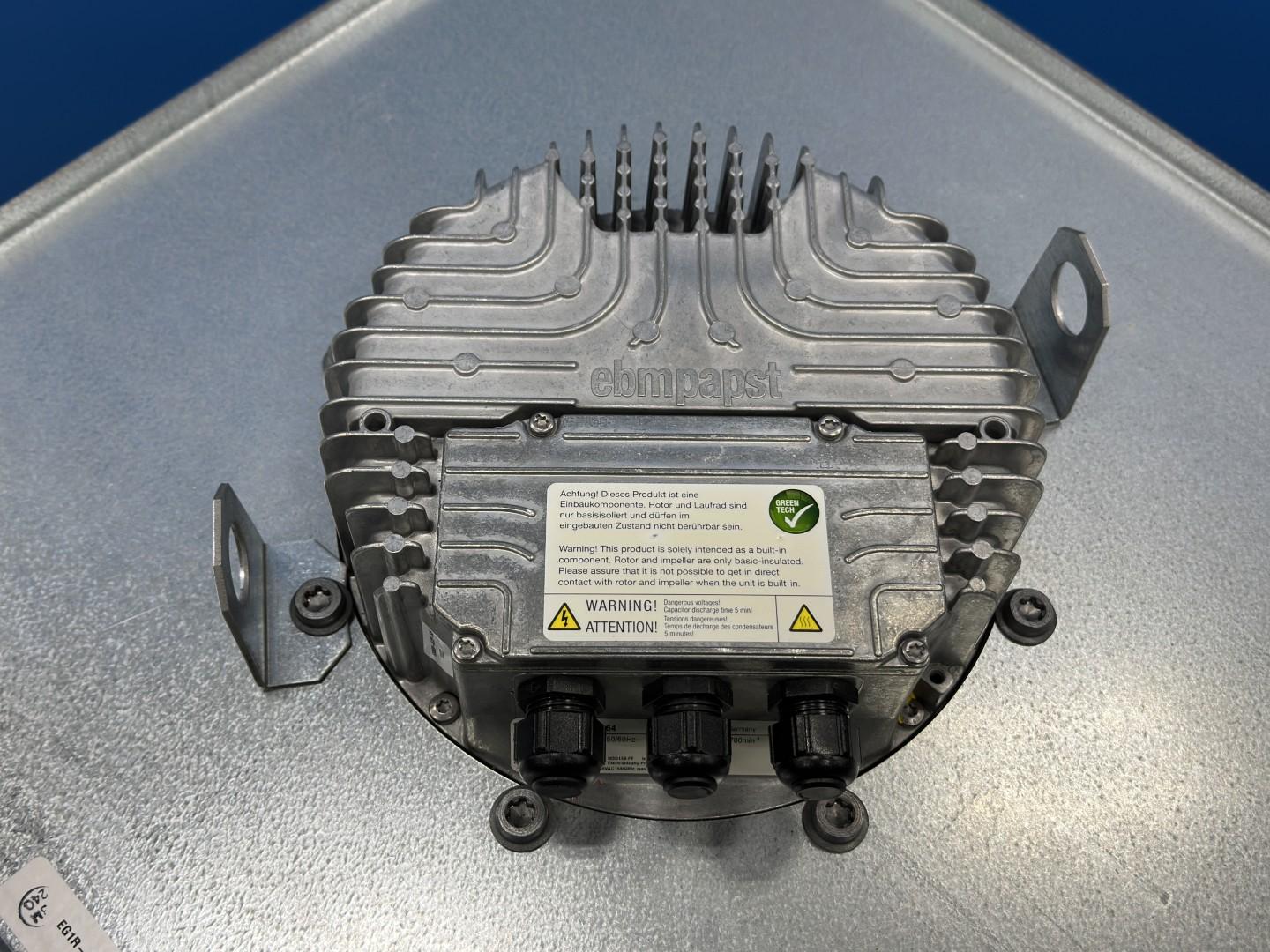

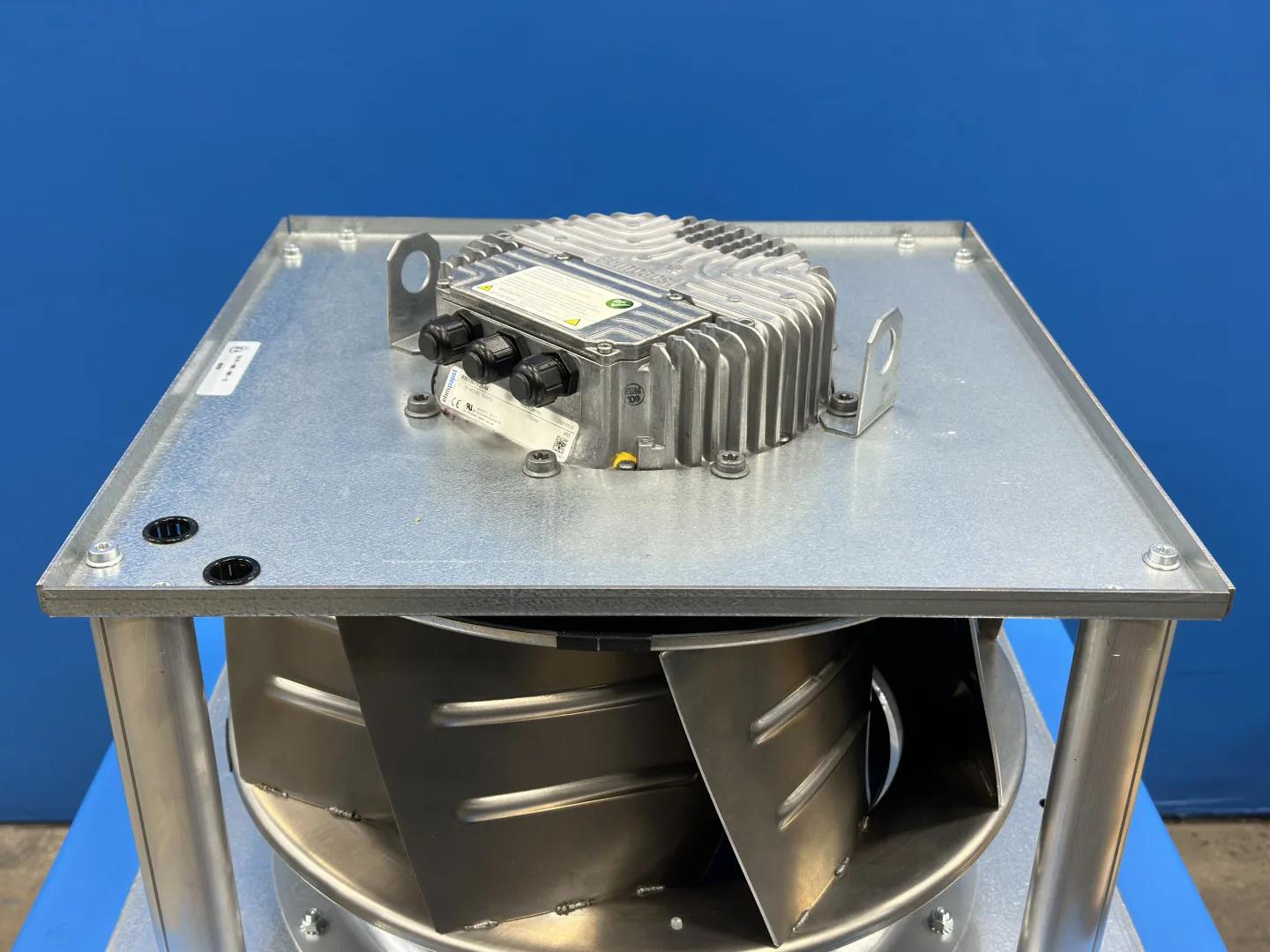

Integrated motorM3G150-FF25-64 (EC, GreenTech, Gen 3, size 150)
TypeEC centrifugal plenum / plug fan, backward-curved, single-inlet (RadiPac)
Voltage3~ 380 to 480 VAC
Phase / Frequency3-phase / 50 to 60 Hz
Fan wheel diameter500 mm
Power factor~1.0 (integrated active PFC)
DutyContinuous (S1)
BearingsMaintenance-free ball bearings
Control inputs0 to 10 V, 4 to 20 mA, digital input, status relay

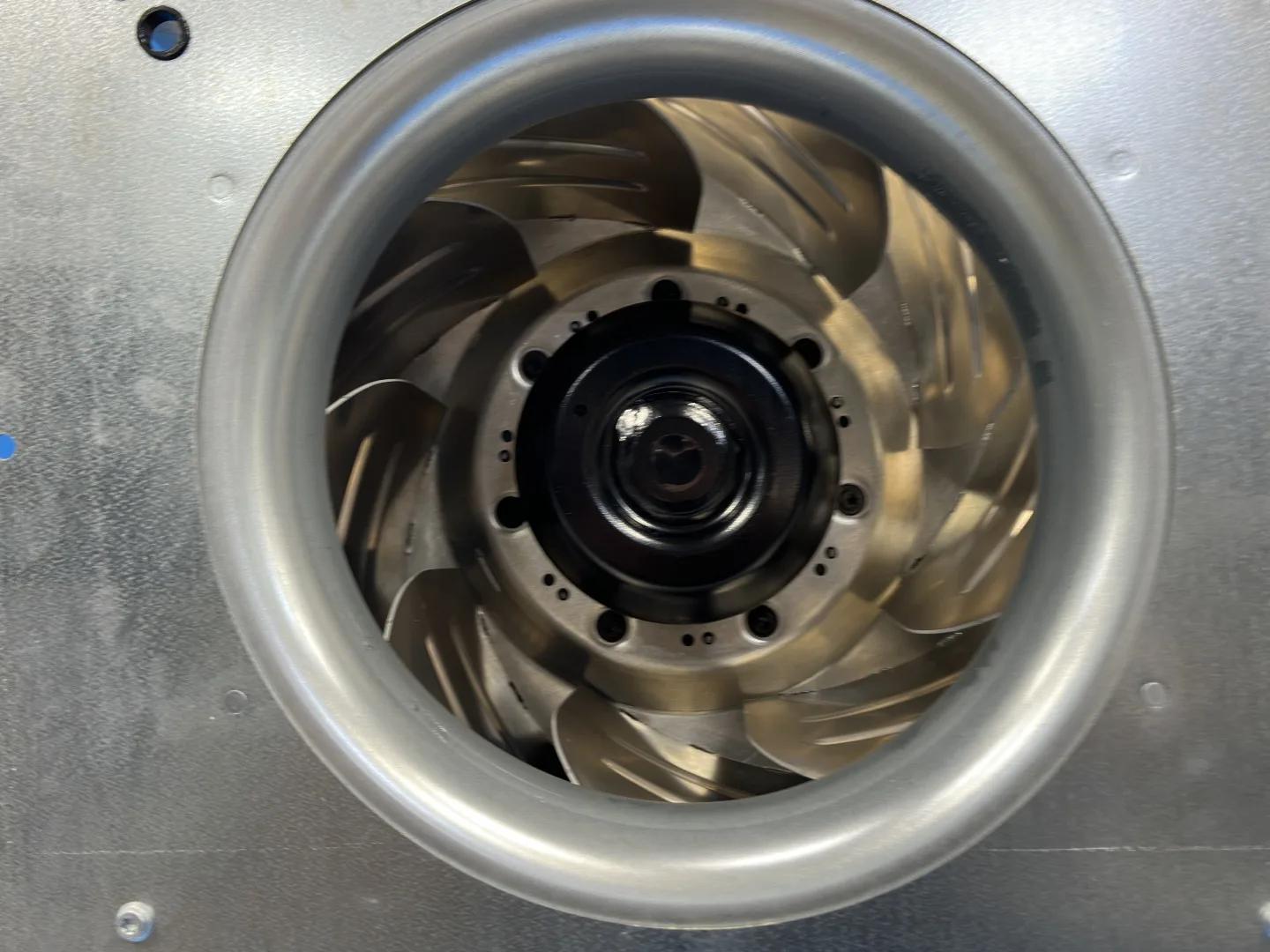

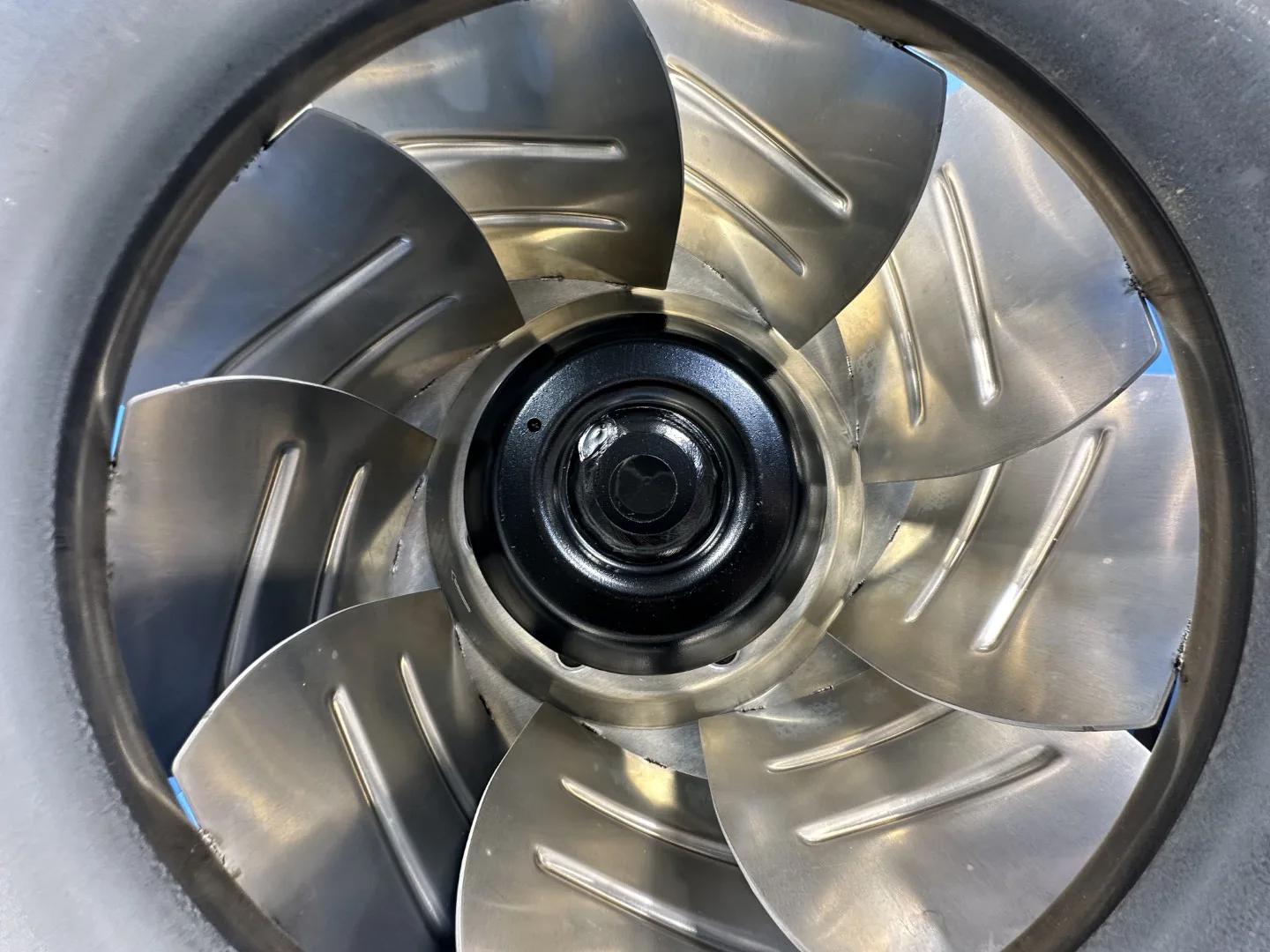

Impeller materialGlass-fiber-reinforced composite (plastic)
ApprovalsCE, VDE, UL (RadiPac series)
Manufacturer

ebm-papst

Model

EG1R-480-500-13 / M3G150-FF25-64

Serial

N/A

Year

2022

HP / AMP / KW / KVA

4.9 A / 1.4 KW

Amps

4.9

Length (Inches)

25

Width (Inches)

25

Height (Inches)

15

Phase

3

Estimated Packaging Weight

N/A

Estimated Total Weight

85

Asset Number

KSC1230 / 1183

Packaging Cost

3.1 Oak Pallet $45

Appraised Value

$795.00
