Johnson Controls M9208-BGC-3 Spring Return Actuator, 70 in-lb (8 Nm), 24VAC/VDC, On/Off, with Aux Switches
M9208-BGC-3 Actuator Specifications: Torque, Travel & Supply
Valve & System Fitment for Johnson Controls M9208-BGC-3
| Description | Details |
|---|---|
| Available Quantity | 2 |
| Model | M9208-BGC-3 |
| Condition | New |
| Manufacturer | Johnson Controls |
| Asset Number | KSC1230 / 1075 |
| Guarantee or ASIS | 2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return |
| Inspections - Yellow Tag | 1. New in Box |
| Packaging Cost | 1.6 6x10 CH $3.00 |
$24.95
Basic Information
Asset #
KSC1230 / 1075
Available Quantity
2
Inspections - Yellow Tag
1. New in Box
Condition
New
Guarantee or ASIS
2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return
Item Description

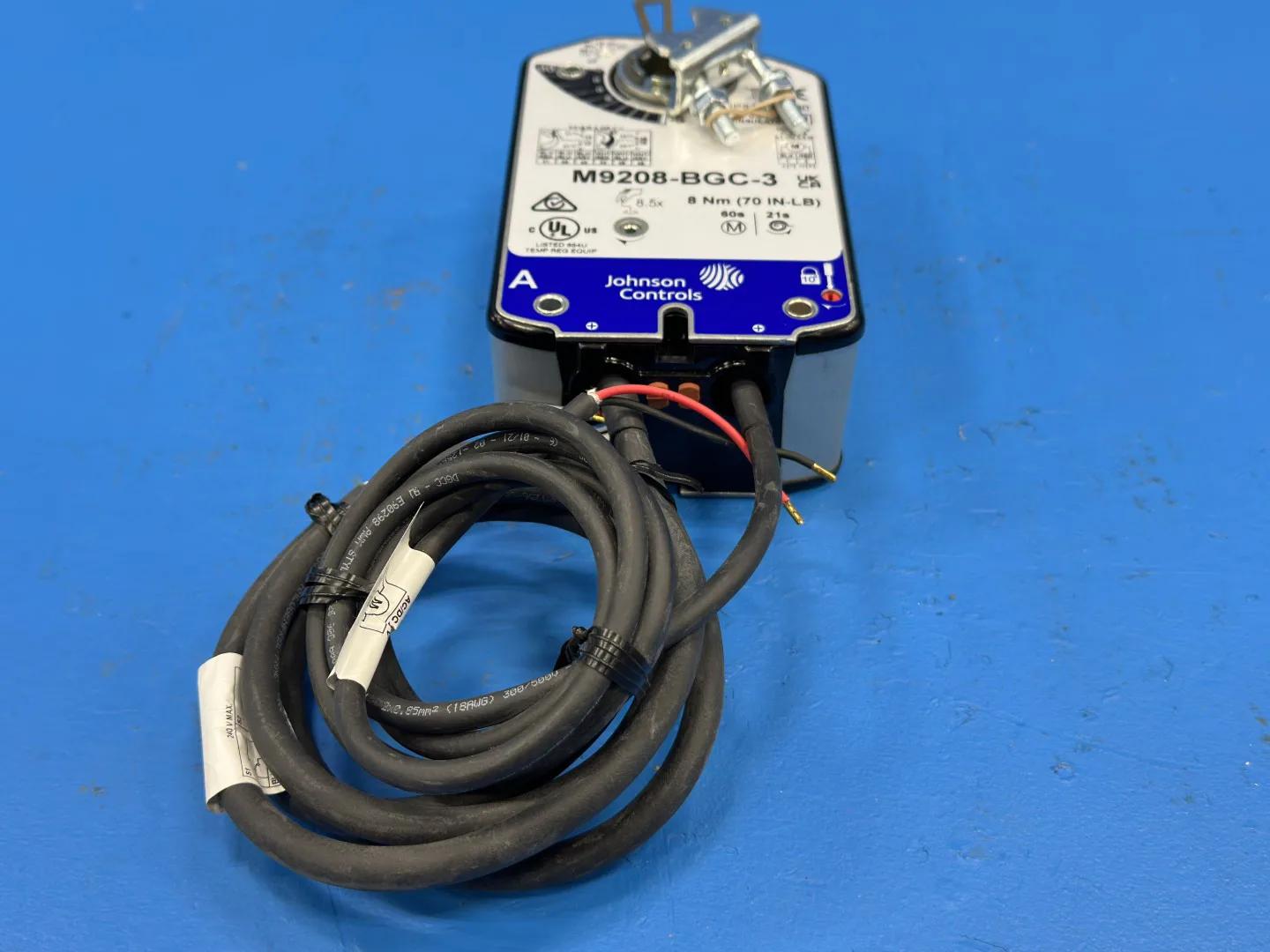

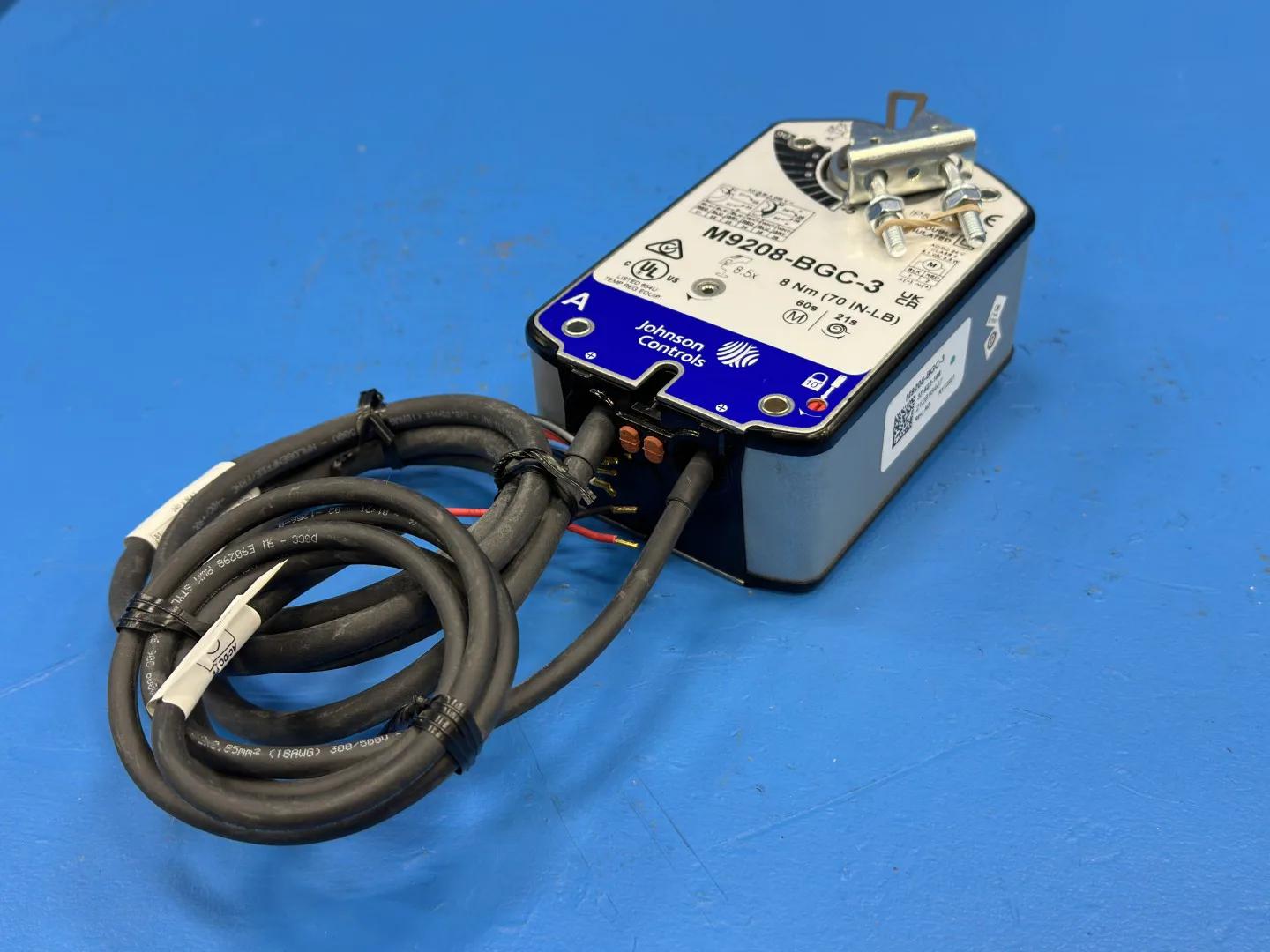

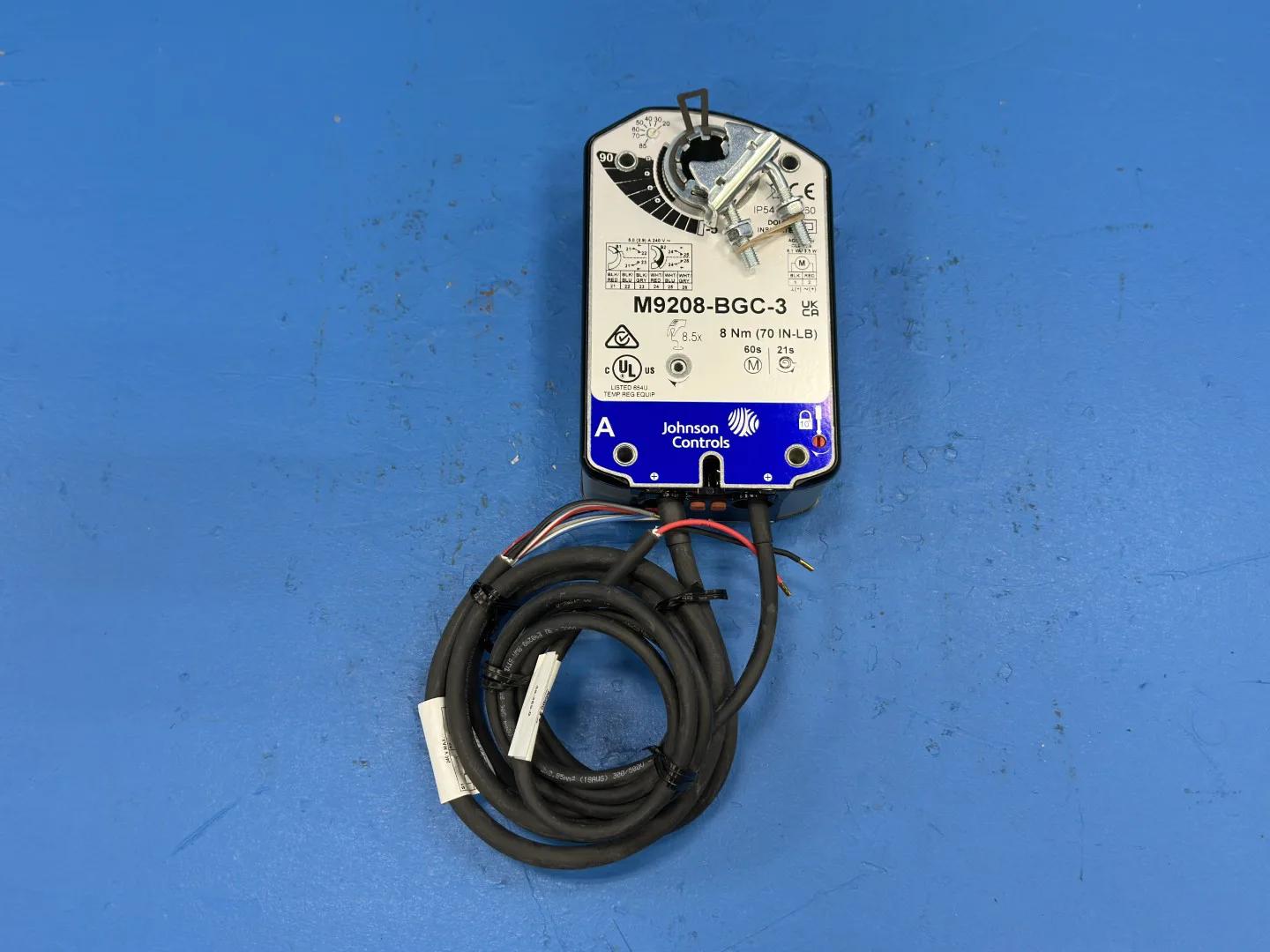

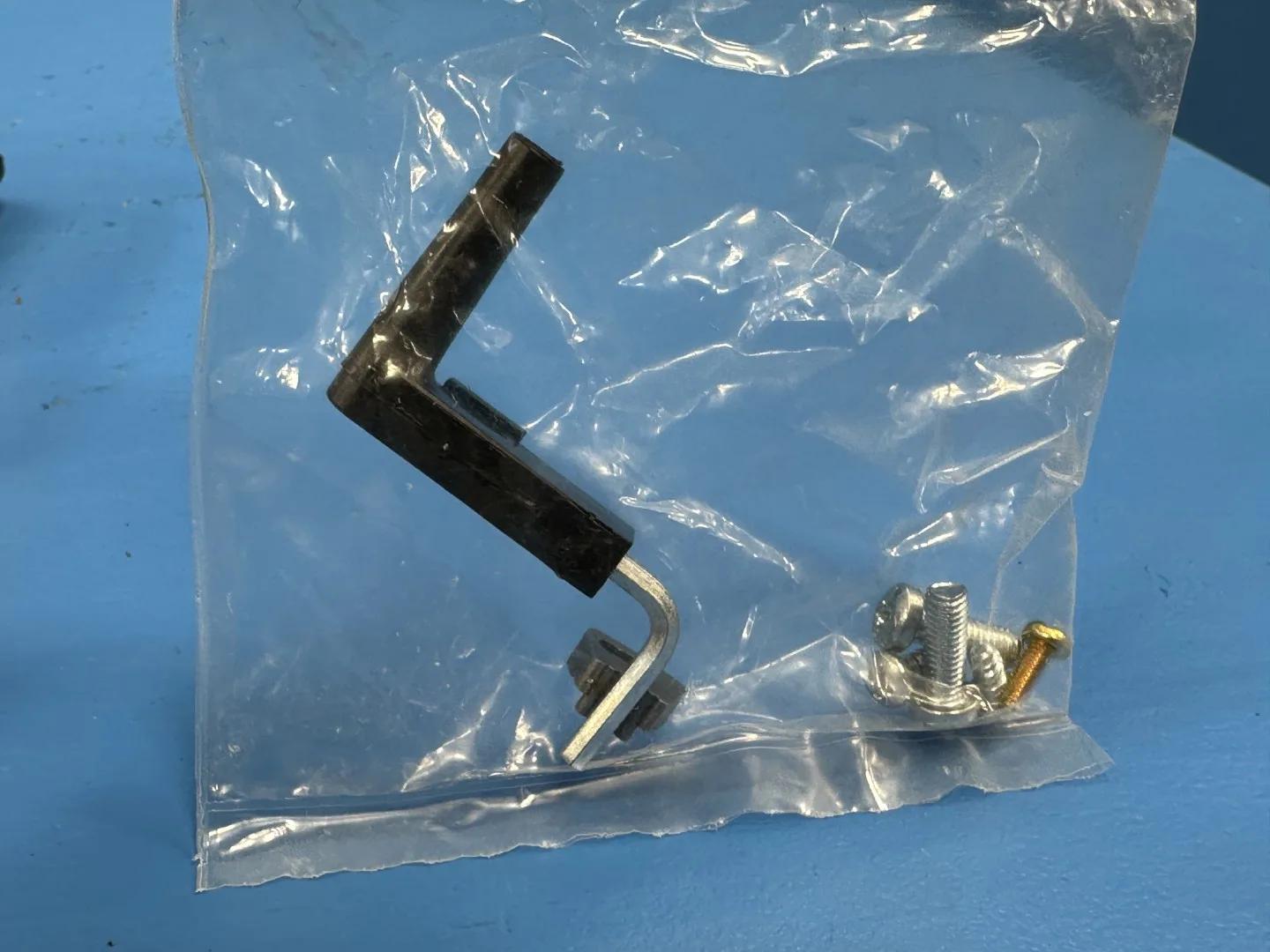

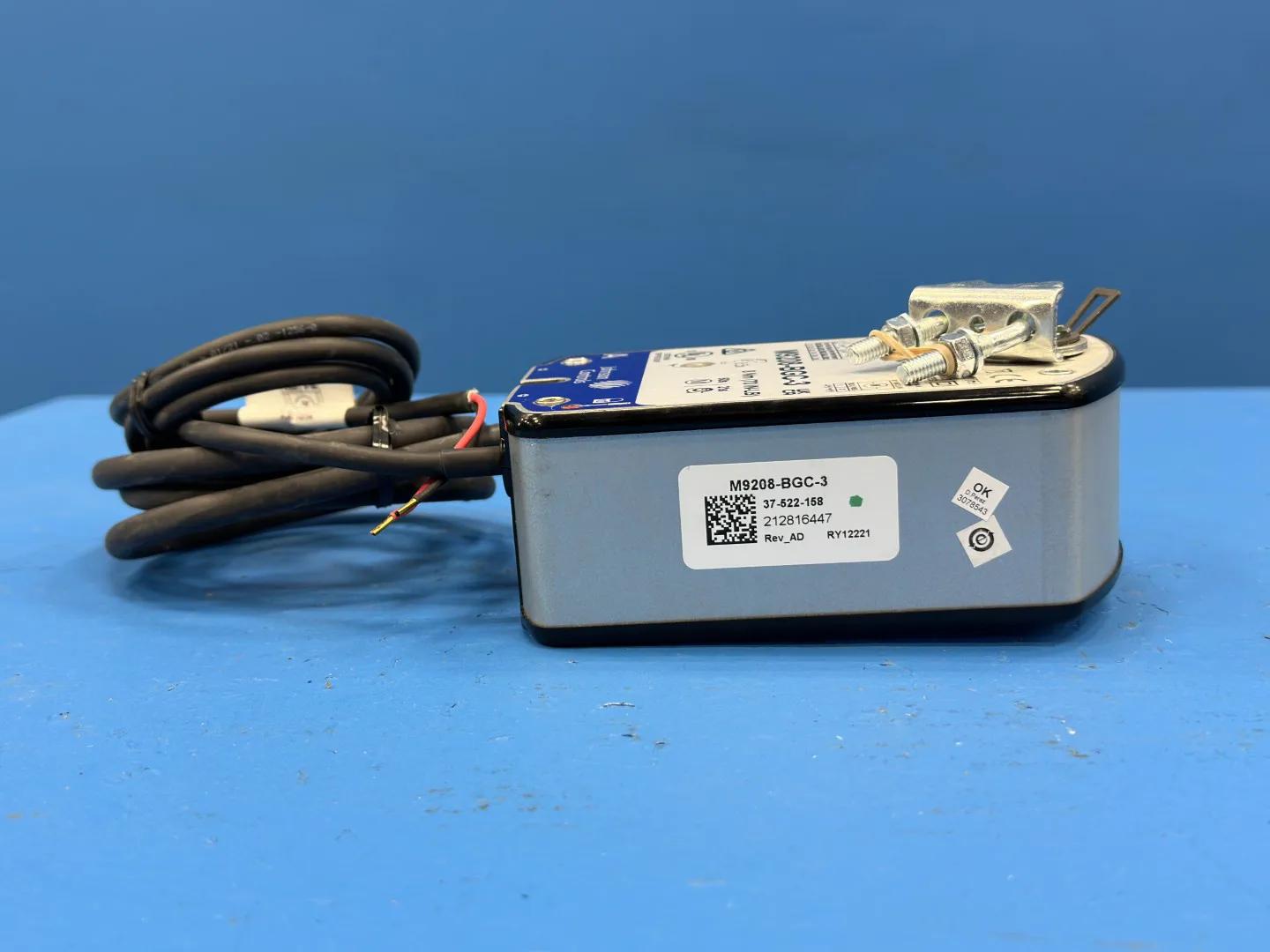

The Johnson Controls M9208-BGC-3 is a 24 volt, two position electric spring return actuator from the M9208 series, rated at 70 in-lb (8 Nm) of torque. It mounts directly on a damper shaft without a separate linkage and drives the damper open or closed on an on/off signal. When power is lost, the internal spring returns the damper to its fail safe position, which is why these actuators are used on outside air, smoke and freeze protection dampers.

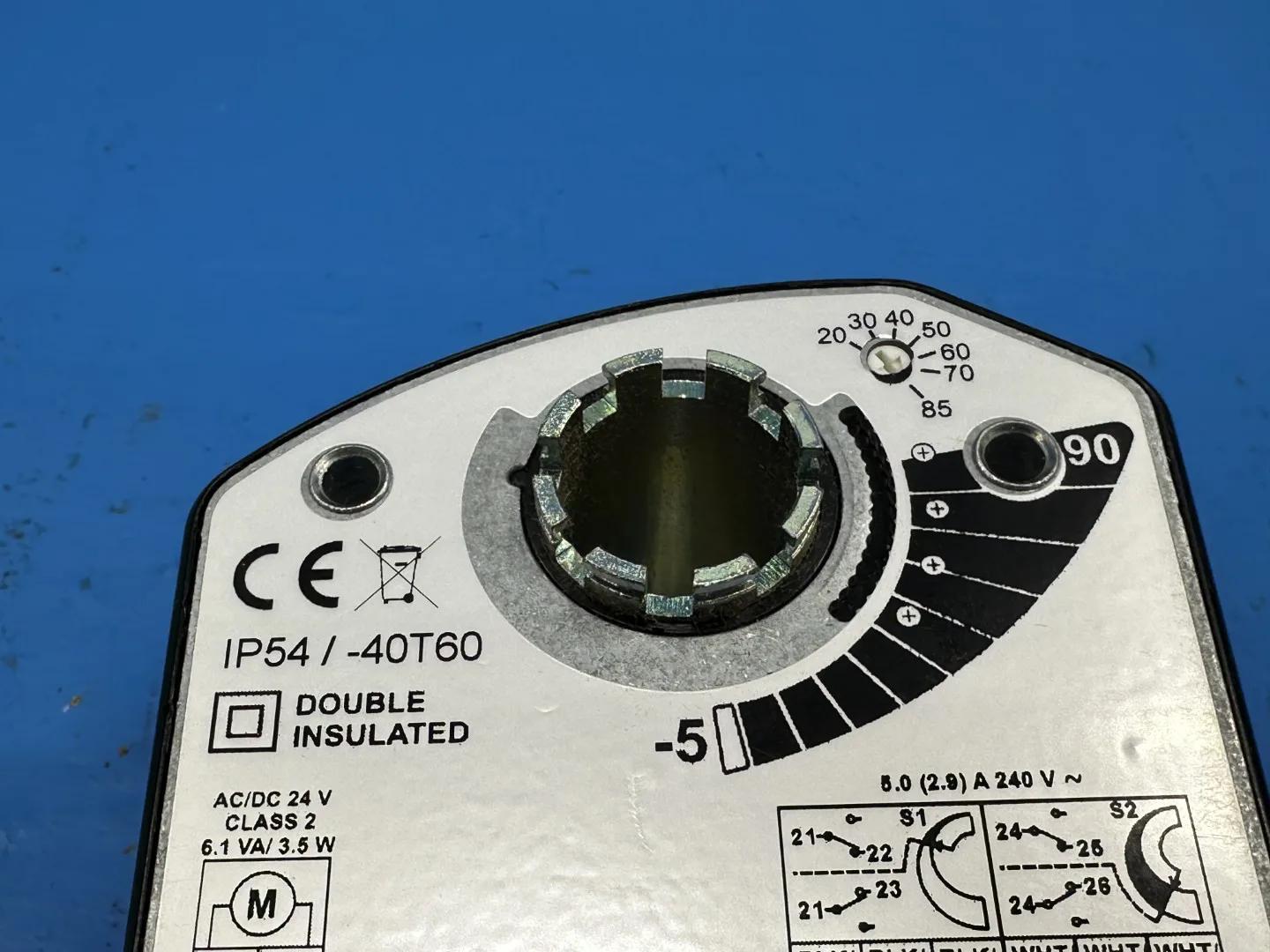

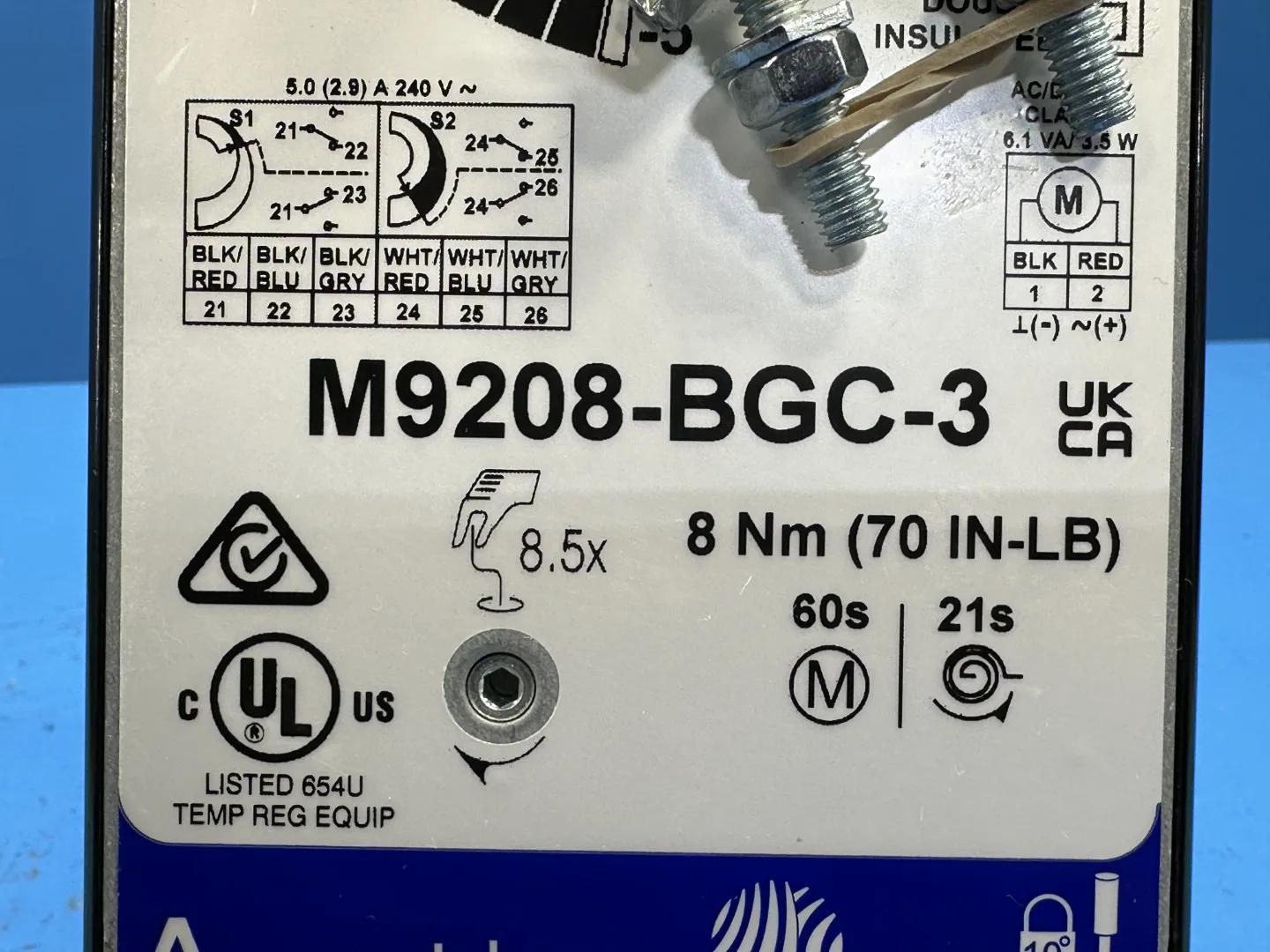

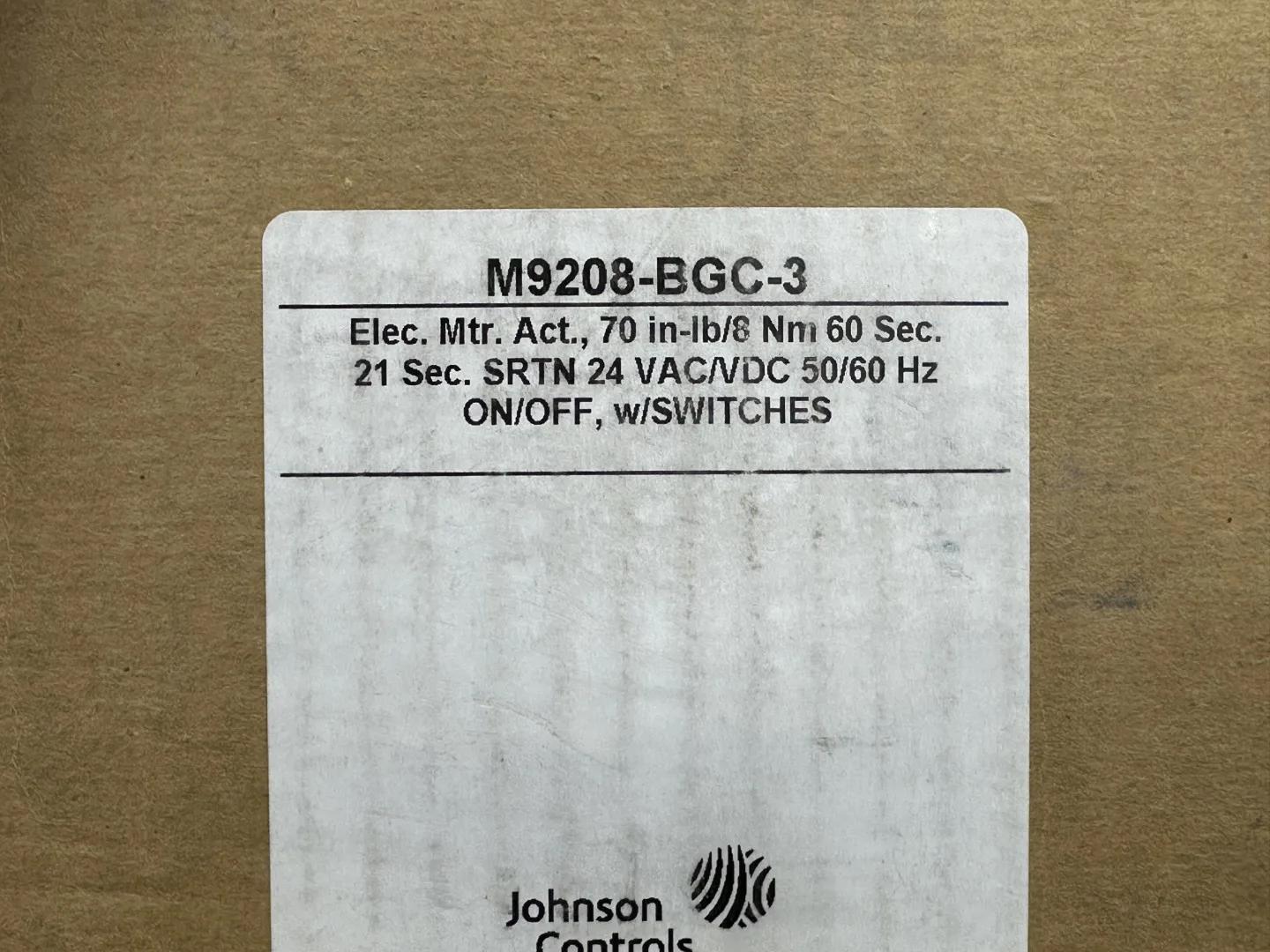

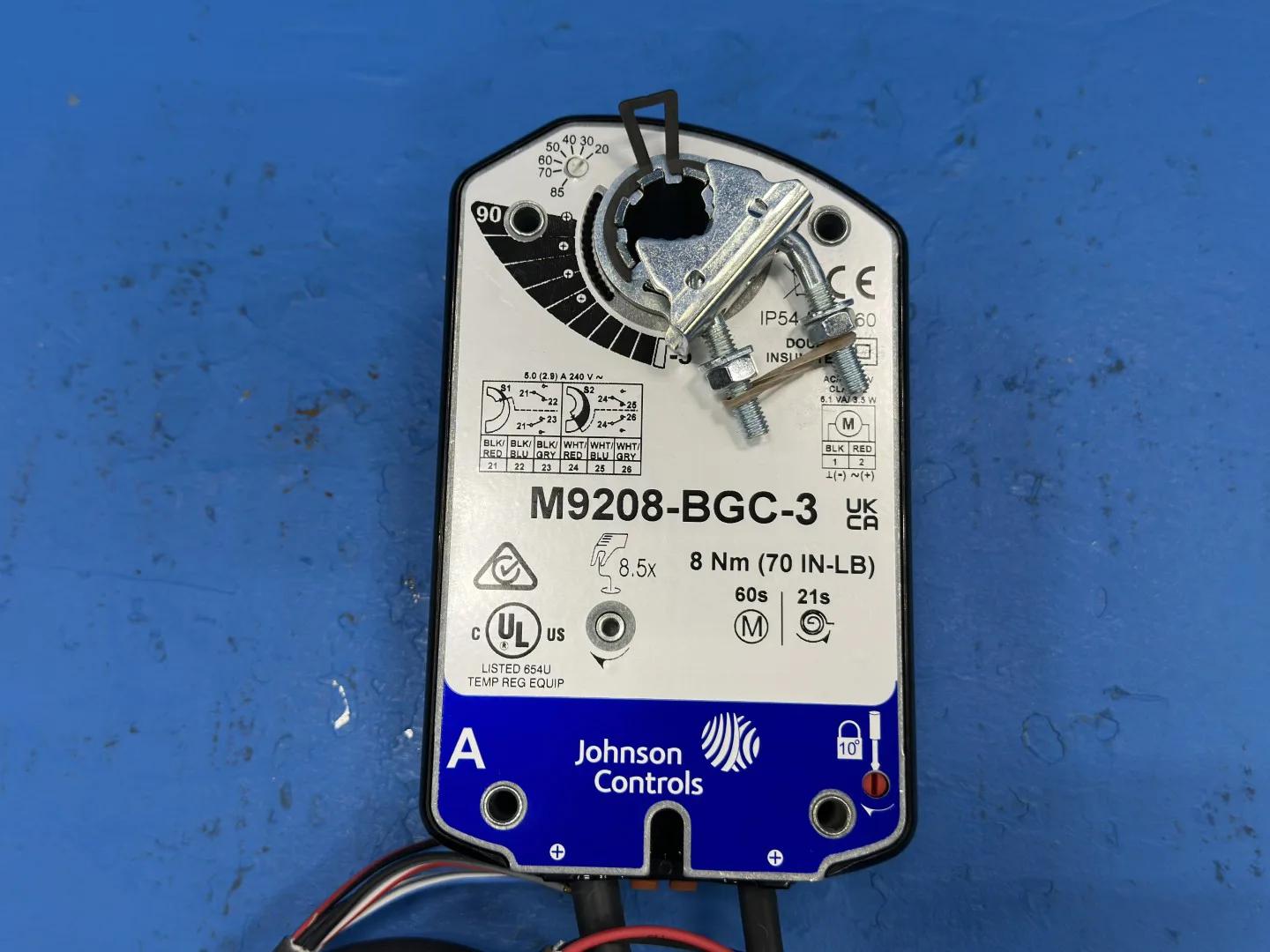

The nameplate lists a 60 second powered run time, a 21 second spring return, 6.1 VA power draw on 24 VAC or VDC, and two built in auxiliary switches rated 5.0 (2.9) A at 240 VAC for end position signaling or interlocks. The BGC-3 suffix identifies the 24V on/off version with auxiliary switches. Distributors list 95 degrees of rotation, an IP54 enclosure and an operating range of -40 F to 140 F.
HVAC controls contractors, building automation technicians and facility maintenance staff use this actuator in air handlers, rooftop units and ventilation systems.
Available from King Surplus inventory in Del Rio, Texas.
Factory Information
- Manufacturer: Johnson Controls
- Model: M9208-BGC-3
- Product Type: M9208 series electric spring return direct coupled actuator with 2 auxiliary switches
- Rated Torque: 70 in-lb (8 Nm)
- Supply Voltage: 24 VAC/VDC, 50/60 Hz (nameplate)
- Power Consumption: 6.1 VA / 3.5 W (nameplate); 7 VA (Kele listing)
- Control: Two position (on/off)
- Running Time: 60 s (nameplate)
- Spring Return Time: 21 s (nameplate)
- Rotation: 95 degrees

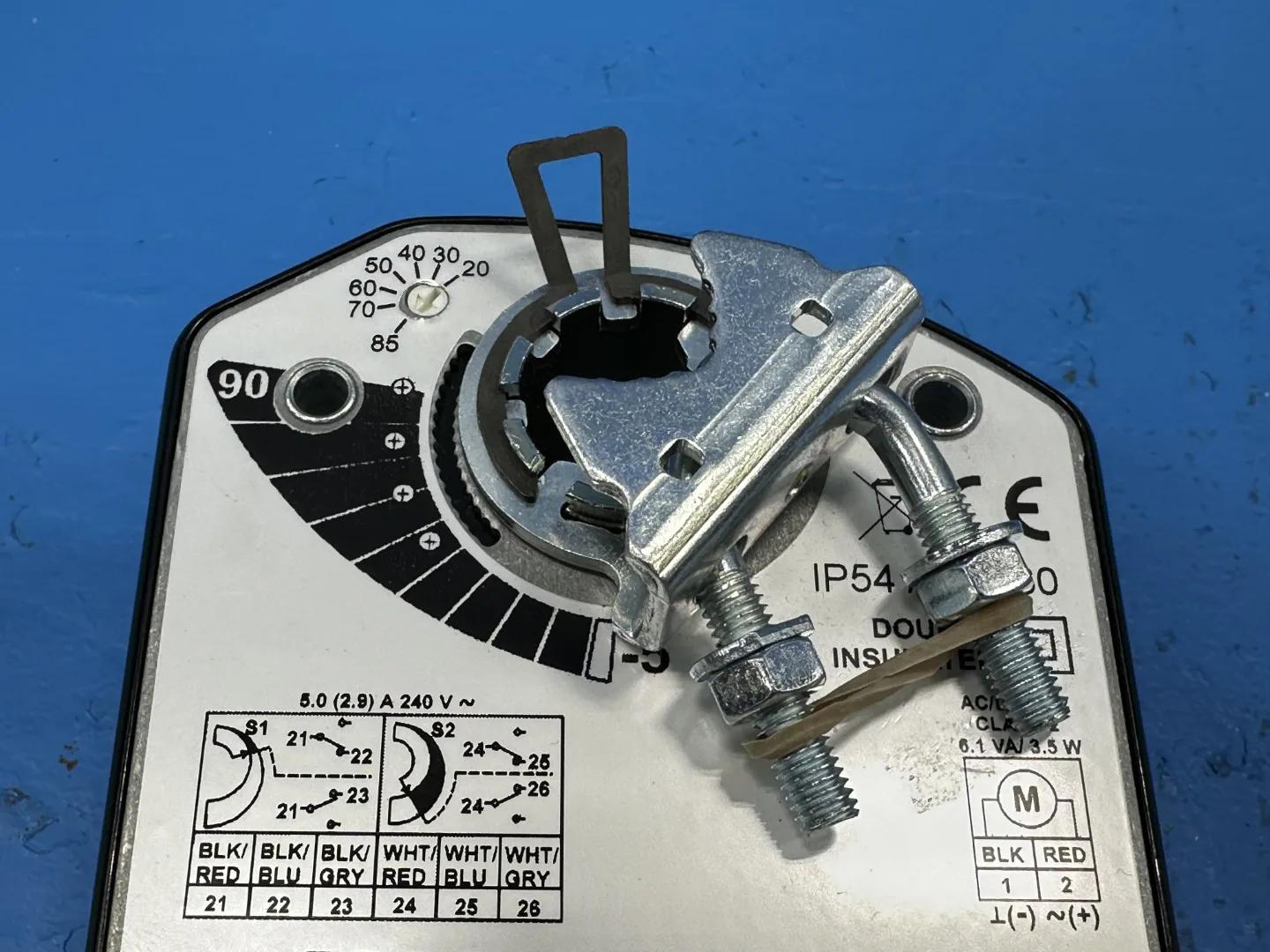

- Auxiliary Switch Rating: 5.0 (2.9) A, 240 VAC (nameplate)
- Enclosure: NEMA 2 (IP54)
- Ambient Operating Temperature: -40 F to 140 F (-40 C to 60 C)

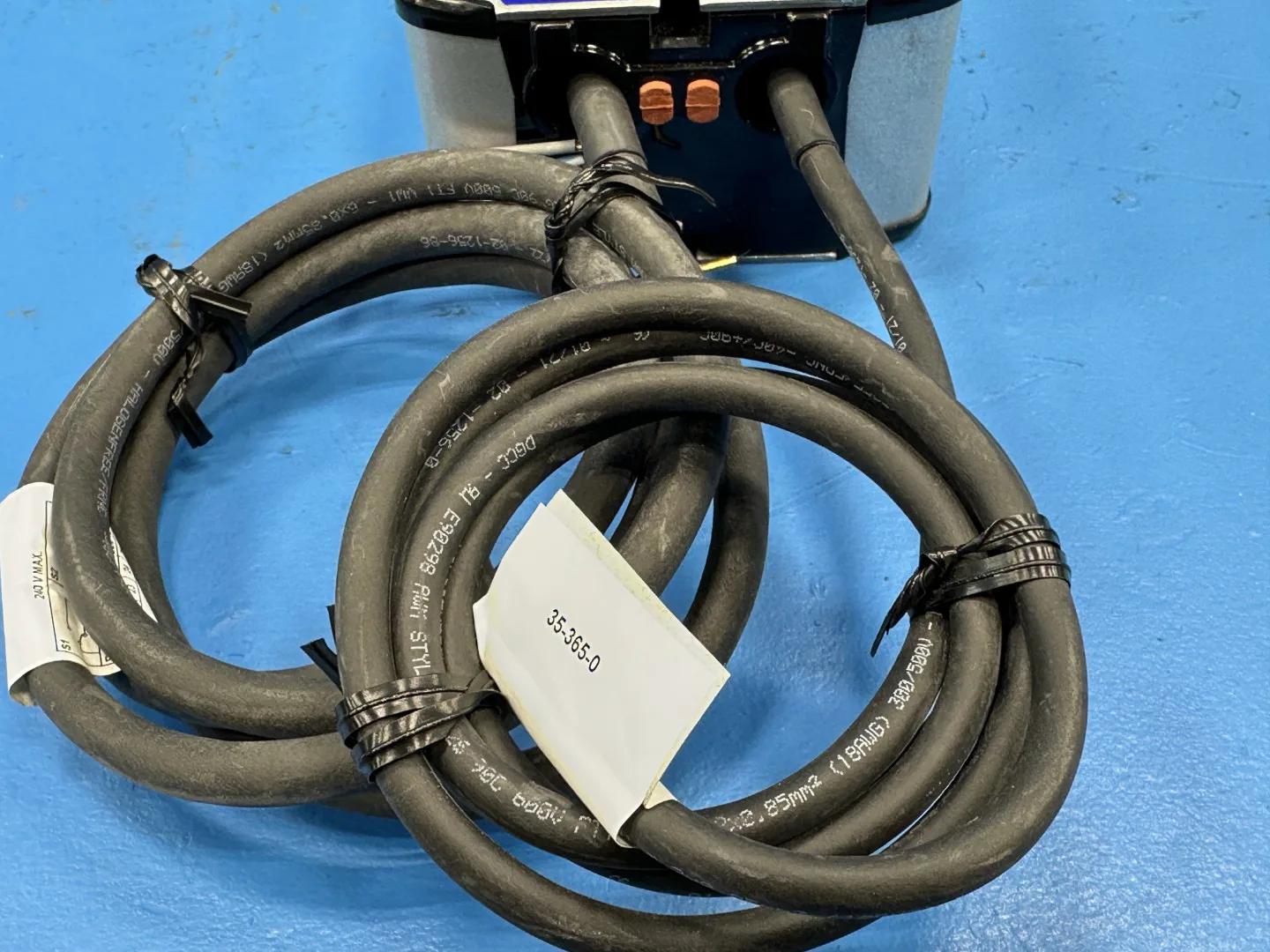

- Cable: 18 AWG, 120 in (3 m) plenum leads or 18 AWG, 48 in (1.2 m) appliance cable
- Approvals: UL Listed 654U temperature regulating equipment (nameplate); CE, UL File E22734, C-tick (Kele)
- Spec Basis: nameplate photo (Johnson Controls M9208-BGC-3, 70 in-lb, 60 s, 21 s SRTN, 24 VAC/VDC, 6.1 VA/3.5 W, 5.0 (2.9) A 240 V); Kele https://www.kele.com/product/actuators-and-dampers/spring-return/johnson-controls/m9208-bgc-3
Specifications
Johnson Controls
M9208-BGC-3
N/A
N/A
N/A
0.25
6
8
3
1
2
3
KSC1230 / 1075
Packaging fees
1.6 6x10 CH $3.00
