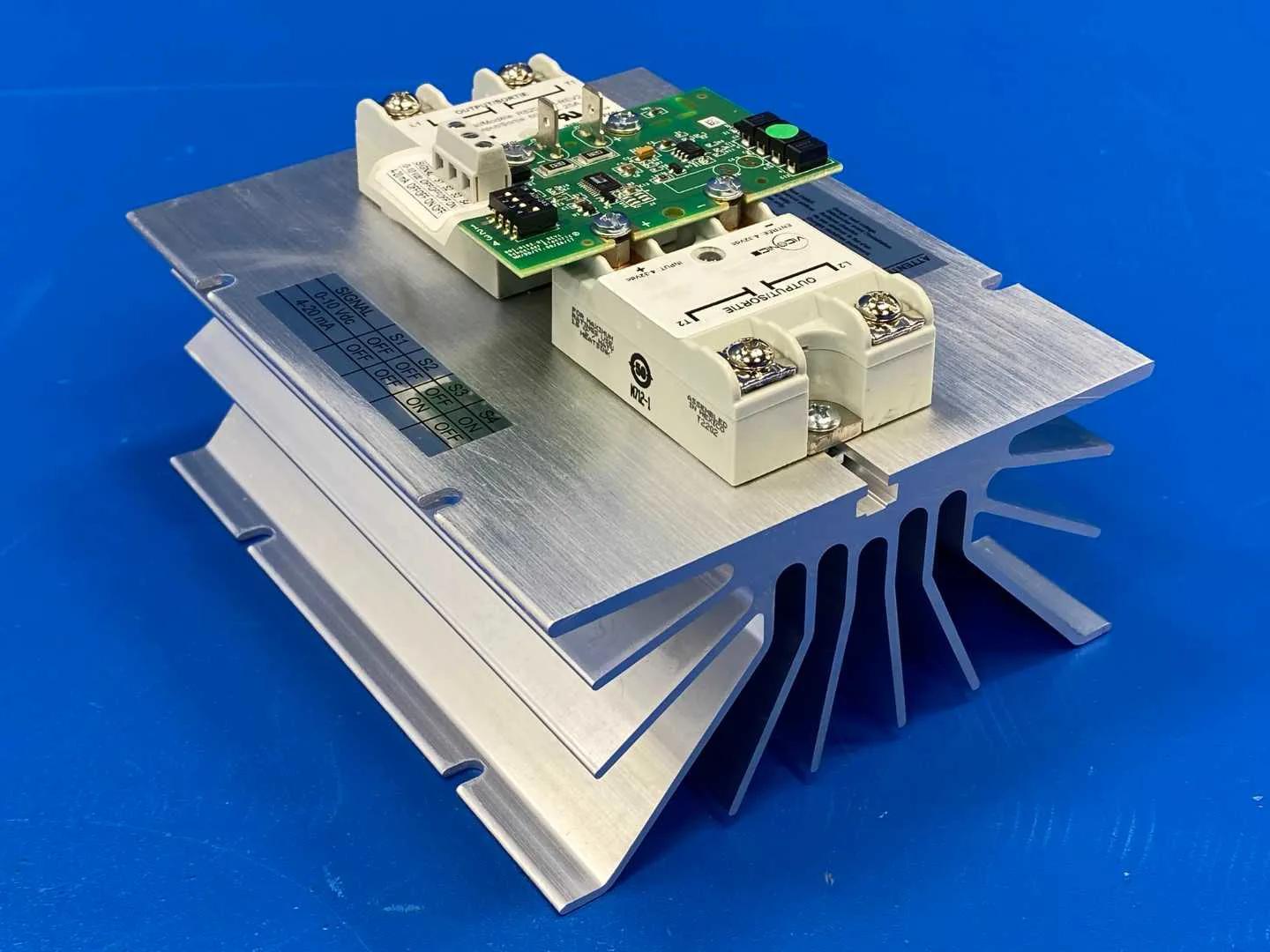

The Schneider Electric R820-623-REV2 SCR Power Controller is a significant product in the field of electrical power management. It is designed to control the power delivered to electric loads in various industrial and commercial applications. The SCR (Silicon Controlled Rectifier) technology enables efficient control of electrical current, resulting in reduced energy consumption and improved system performance. This power controller is widely used in industries such as manufacturing, HVAC (Heating, Ventilation, and Air Conditioning), and process automation. It provides precise control over electric motors, heaters, and other resistive loads, contributing to enhanced operational efficiency and reliability. One of the key features of the R820-623-REV2 is its advanced thermal management capabilities, which allow it to operate effectively in high-temperature environments. The built-in protection mechanisms ensure the durability and safety of both the controller and the connected loads. Additionally, it supports various control methods, including phase control and zero-crossing detection, making it versatile for different applications. Designed with user-friendly interfaces and integration options, the R820-623-REV2 simplifies installation and operation. Its modular design also allows for easy maintenance and upgrade, catering to the evolving needs of modern industrial systems. Overall, this product exemplifies Schneider Electric's commitment to innovation and sustainability in power management solutions.

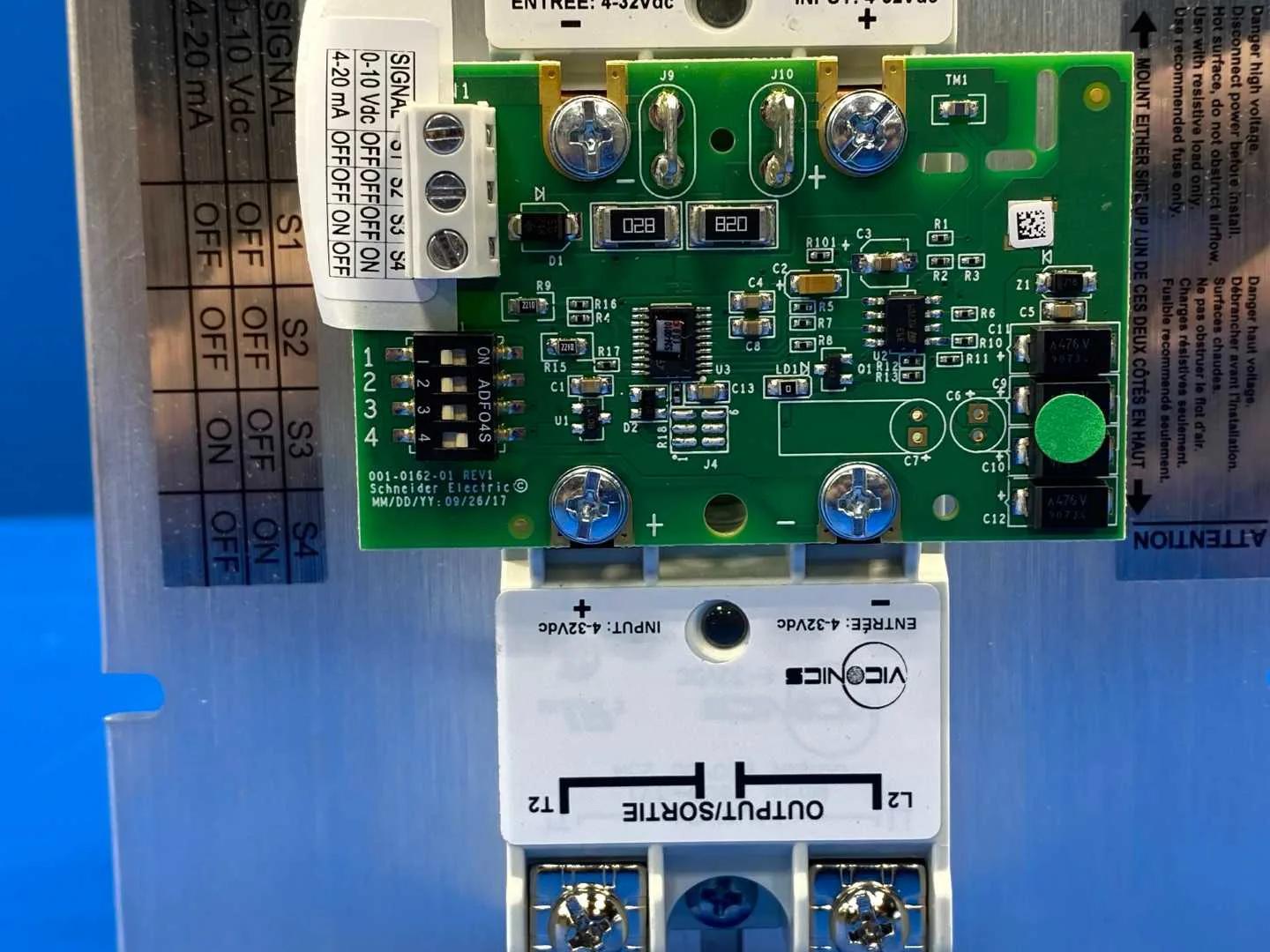

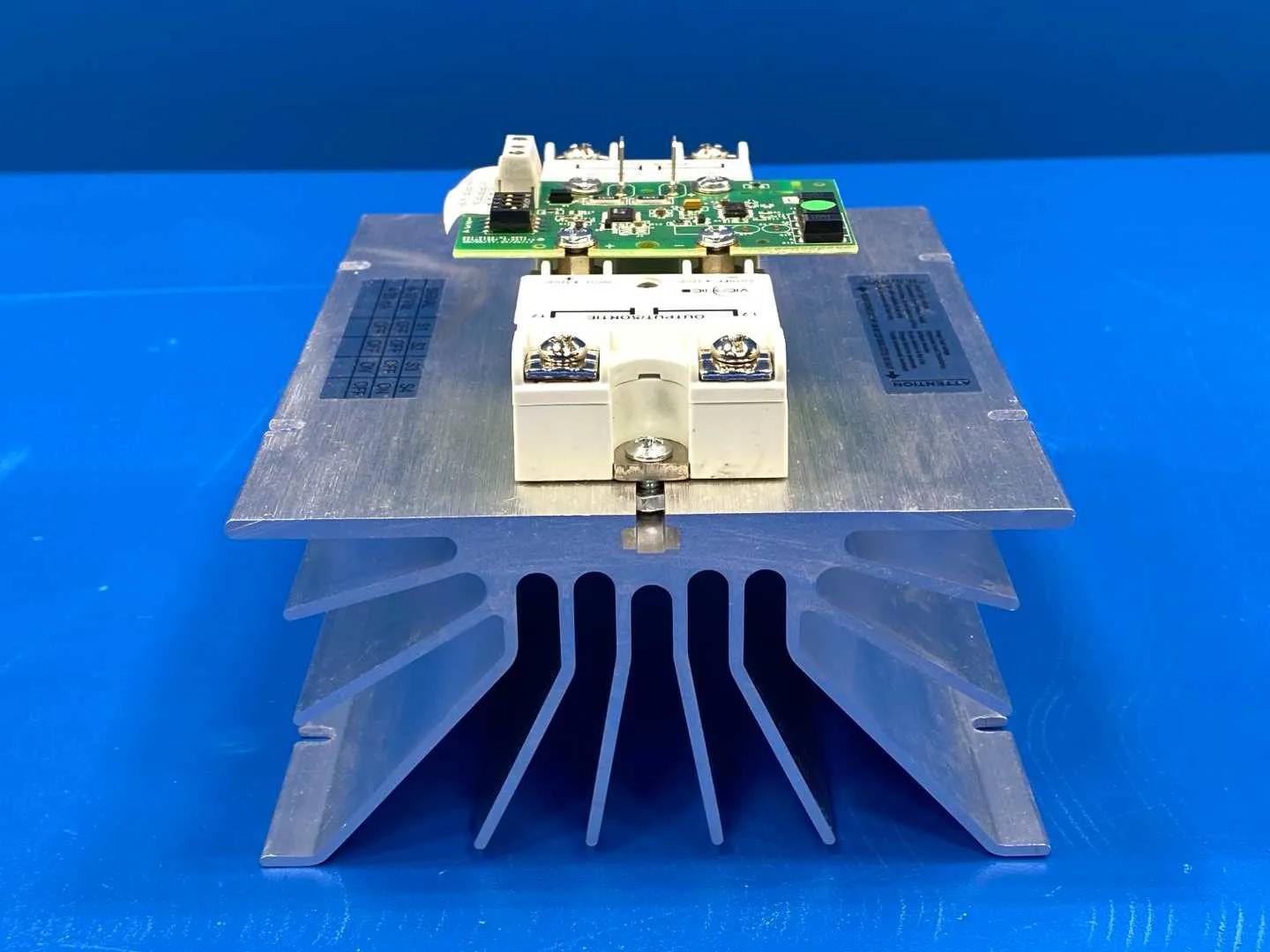

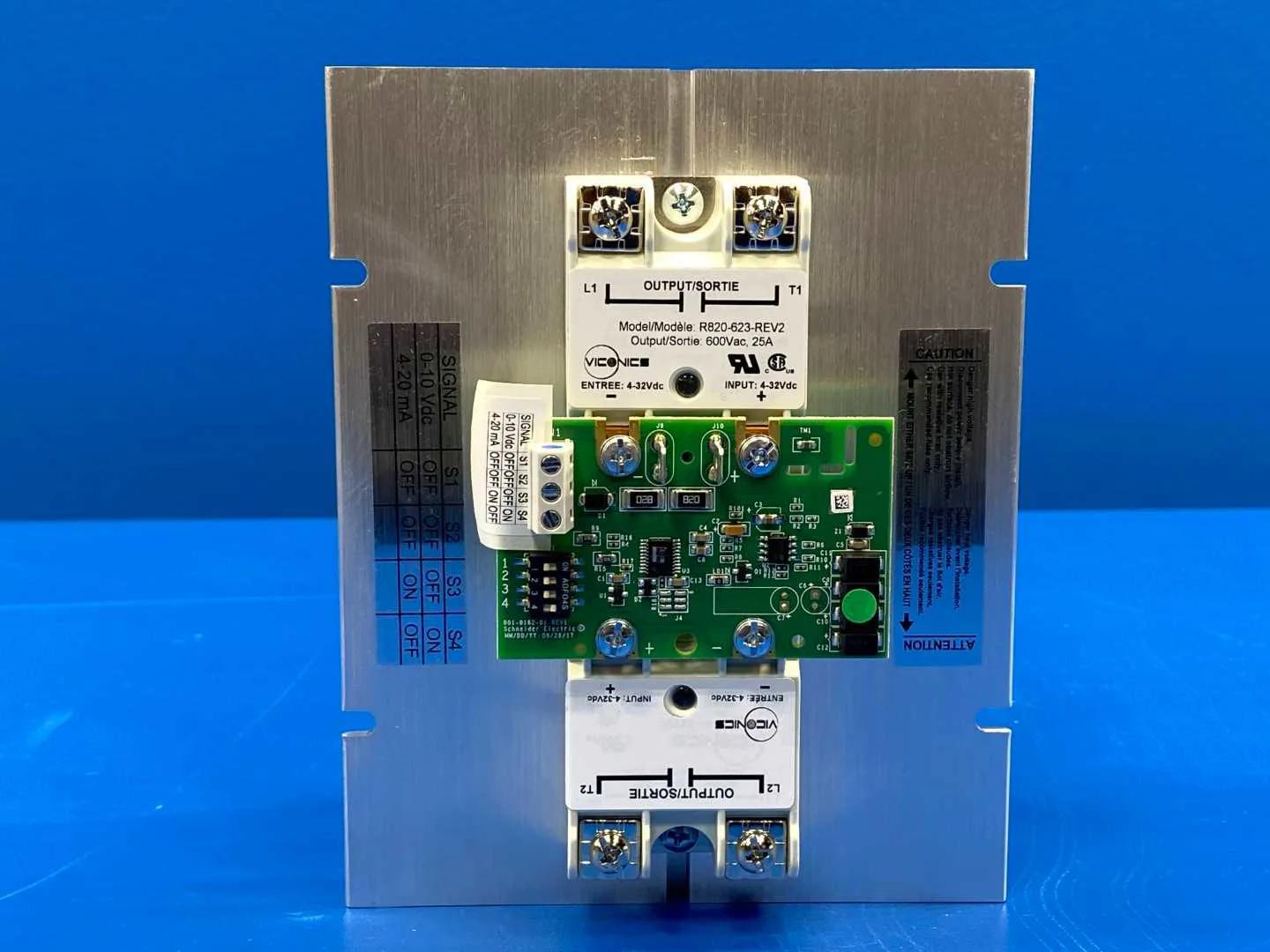

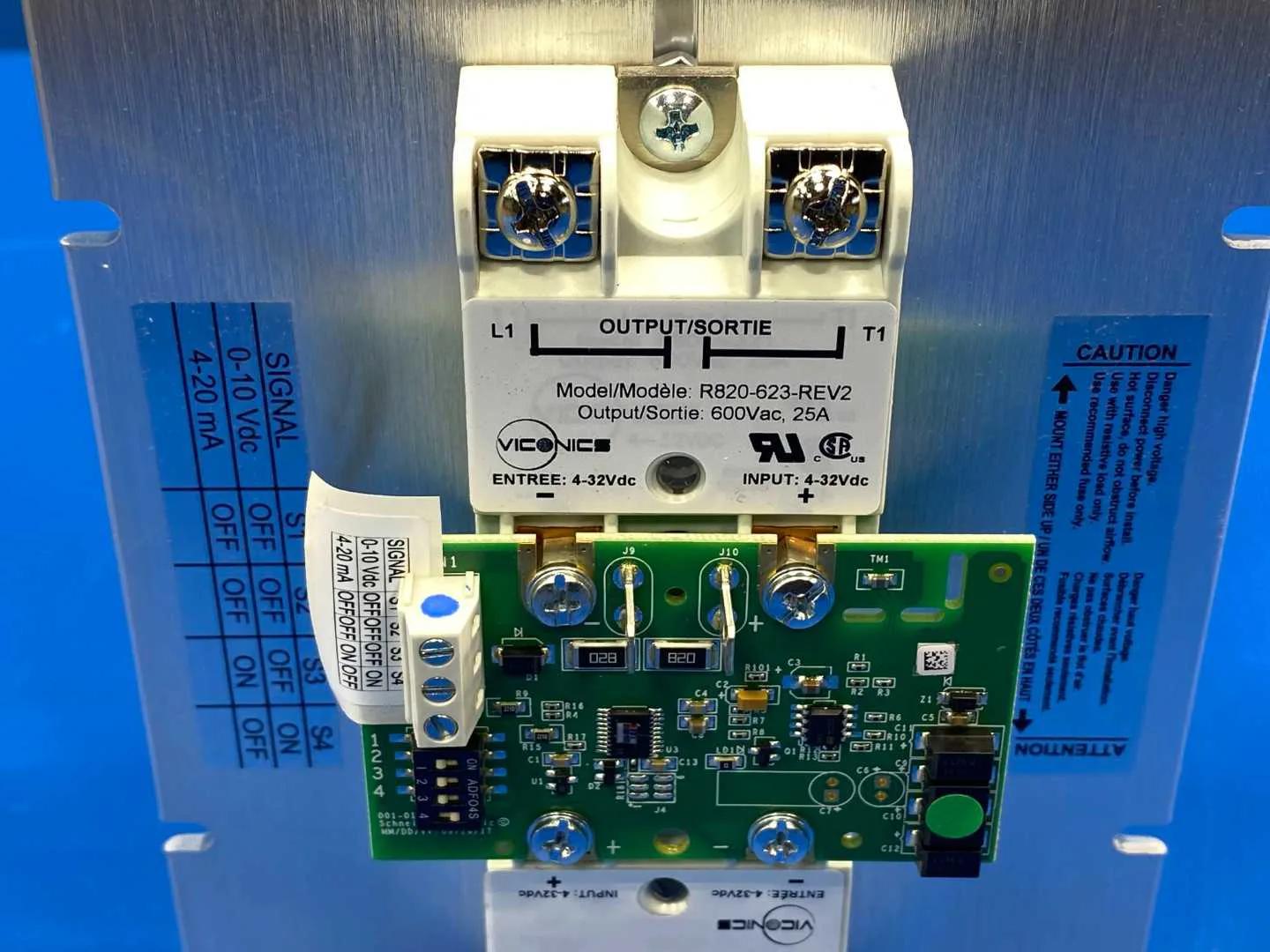

Model: R820-623-REV2 Rated current: 25A Input voltage: 24-600VAC Control signal: 0-10VDC (2-10VDC selectable via dip switch) Phase: 3-Phase Control method: Phase control with zero-crossing detection Mounting type: Surface or in-panel (heatsink tab mounting, NOT DIN rail) Dimensions: 9.15" x 15.3" x 5.9" Weight: 3.86 lb Protection: Integrated over-temperature thermostatic protection (self-resetting); auto shut-off above 82 degrees C ambient SCR temperature Dip switches: 4 total for control signal selection Application: Resistive loads only (electric duct heaters, heating elements) Replaces: R820-423-REV2
