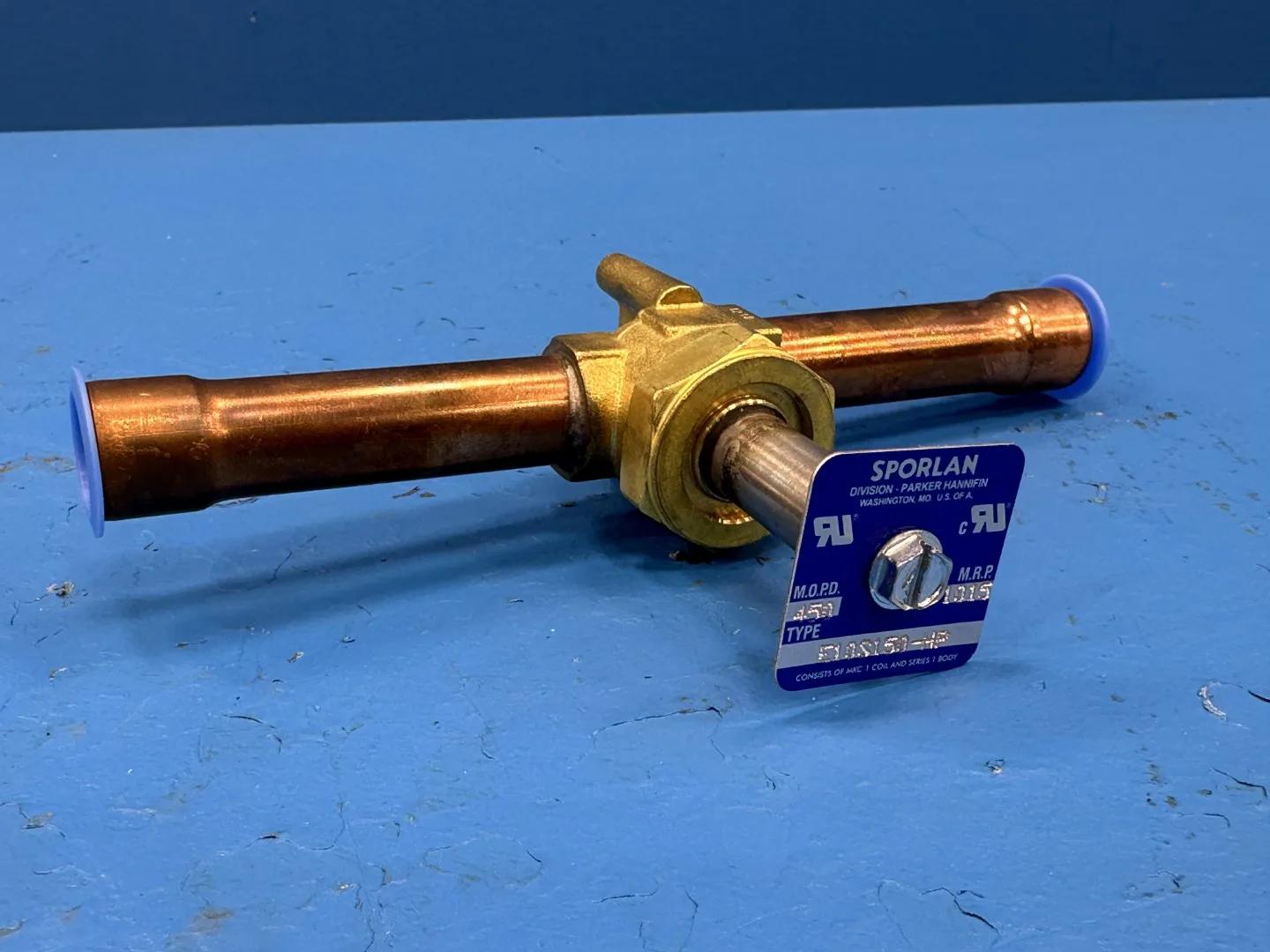

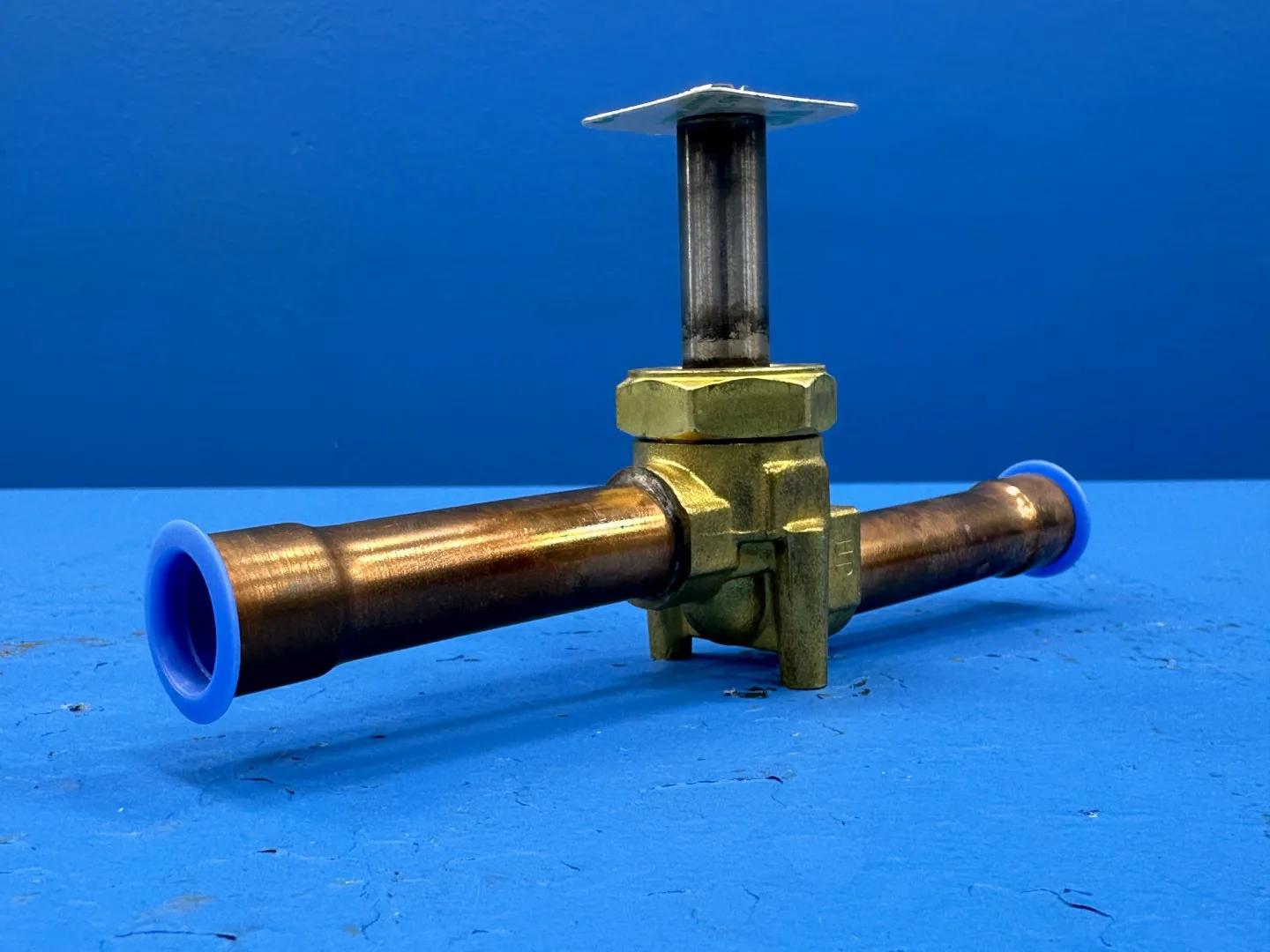

Sporlan E10S150-HP, Solenoid Valve Body, 5/8" ODF Solder Connections (Less Coil)

This is a Sporlan E10S150-HP refrigerant solenoid valve body, SVD item number 4340-00, supplied less coil. Sporlan is a division of Parker Hannifin based in Washington, Missouri, and makes refrigeration and air conditioning flow controls.

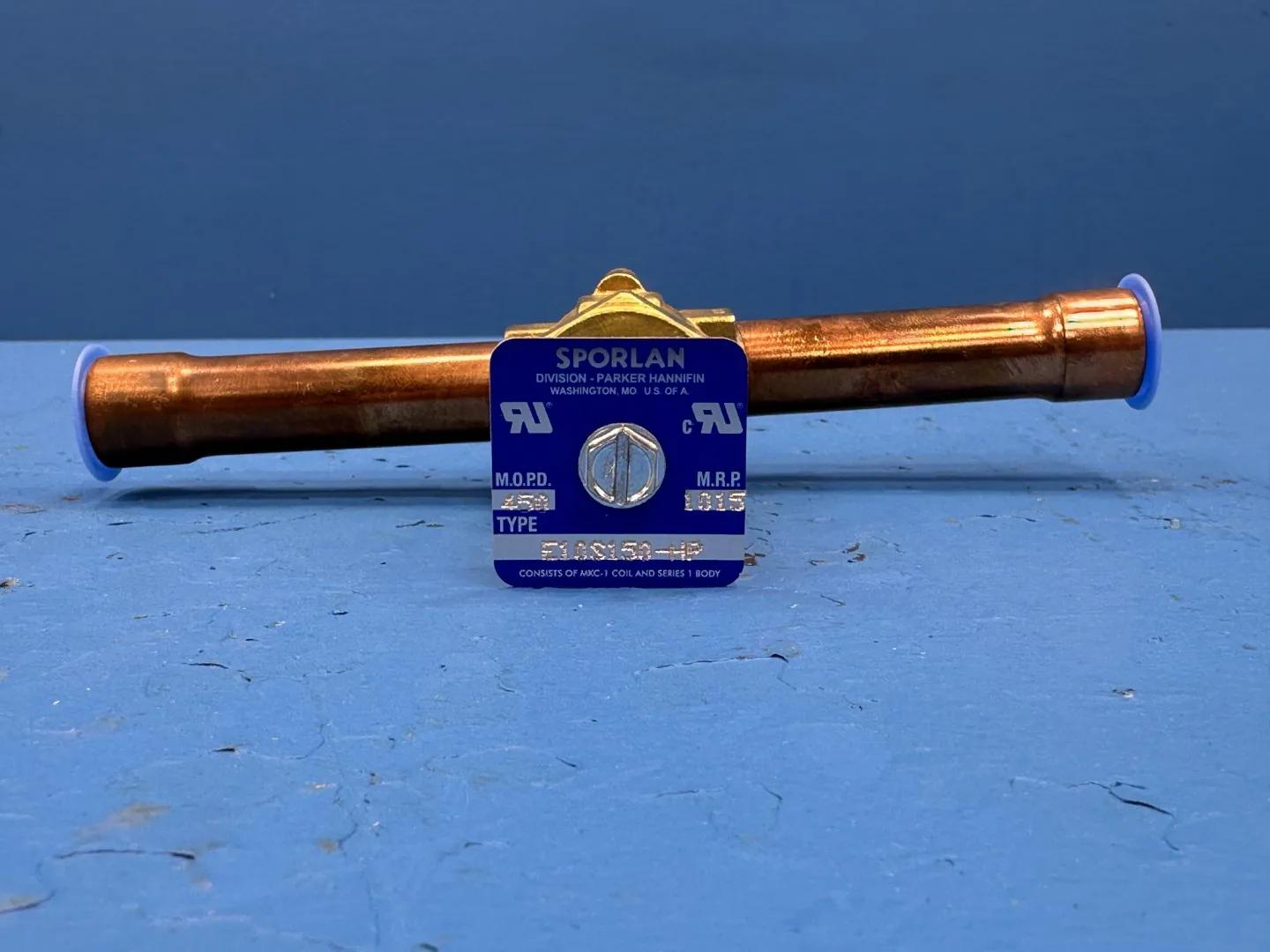

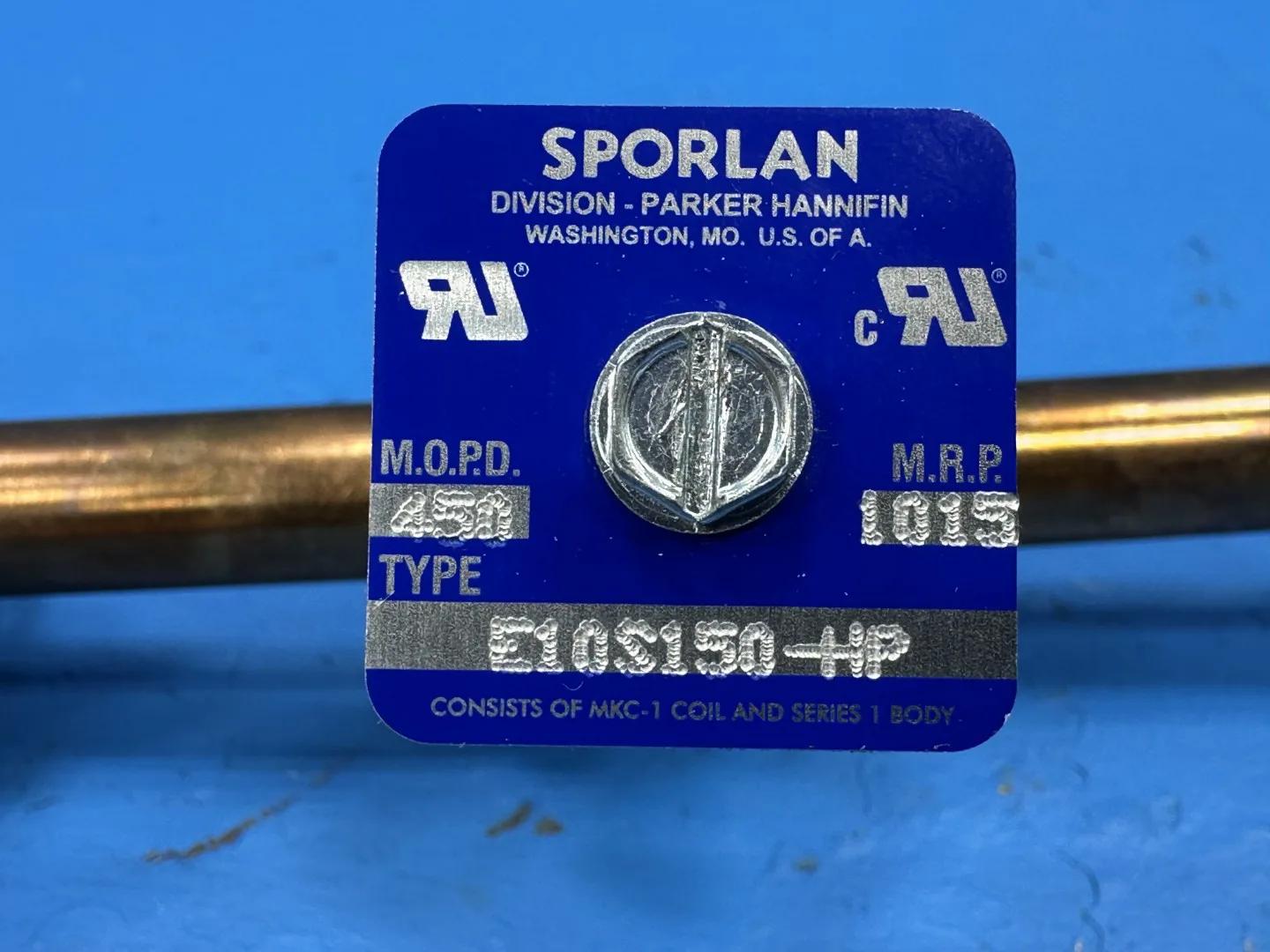

A solenoid valve opens and closes a refrigerant line on an electrical signal. This normally closed, pilot operated valve needs only 1 psi of differential to open fully, so Sporlan lists it for liquid line and suction line service. It operates once an MKC-1 coil is fitted, and the label states a maximum operating pressure differential of 450 psi and a maximum rated pressure of 1015 psi. The HP suffix marks the high pressure version of the E10 series, which Sporlan lists for R-410A.

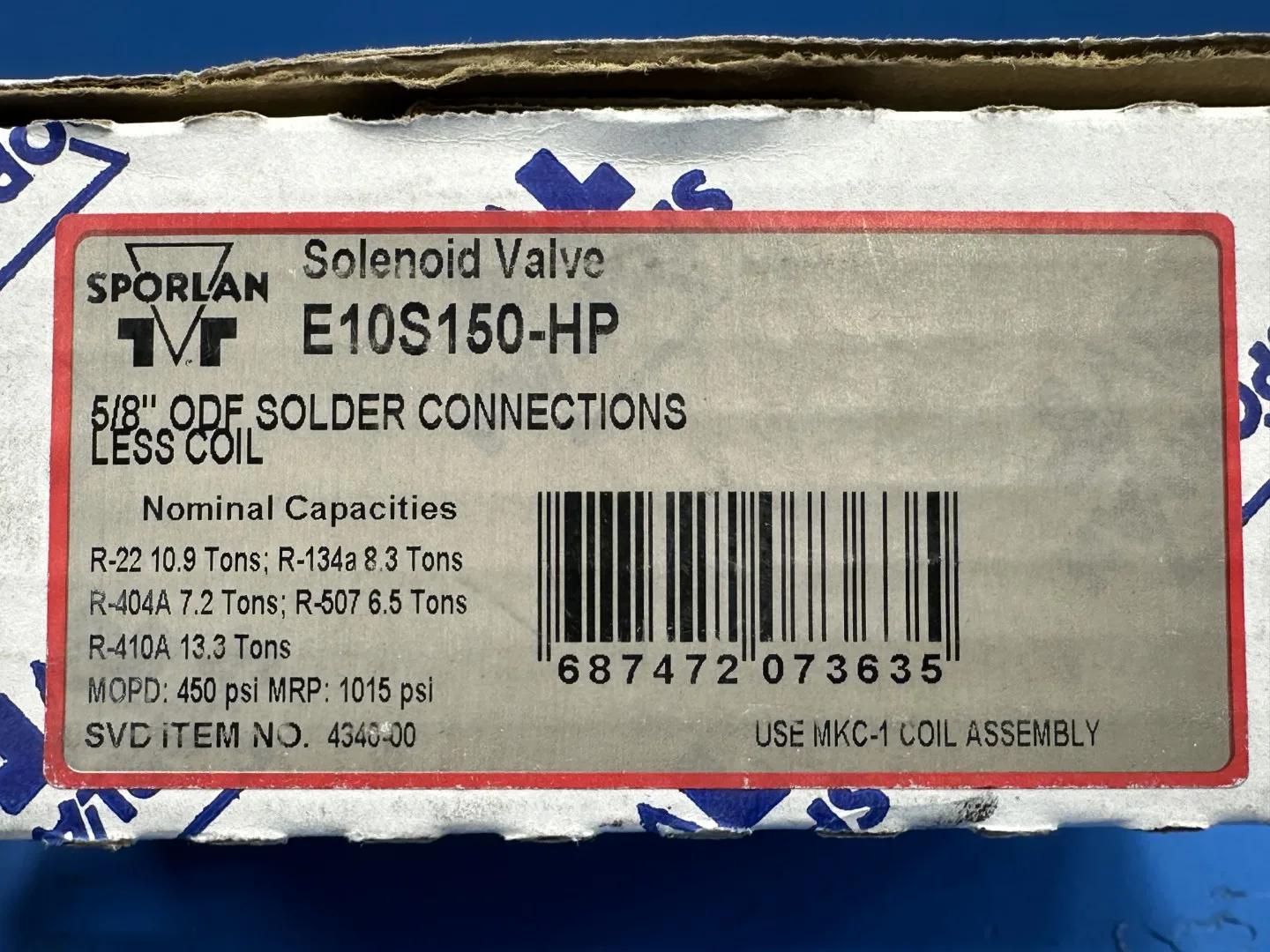

The valve has a 5/16 inch port, a Cv of 2.06 and extended 5/8 inch ODF solder connections. The label lists nominal liquid line capacities of 13.3 tons on R-410A, 10.9 tons on R-22, 8.3 tons on R-134a and 7.2 tons on R-404A. HVAC and refrigeration technicians use it for pump-down control, zoning and evaporator shutoff in air conditioning, heat pump and commercial refrigeration systems.

Available from King Surplus inventory in Del Rio, Texas.

• Manufacturer (label): Sporlan Division, Parker Hannifin, Washington, MO, U.S.A.
• Type (label): E10S150-HP solenoid valve, less coil
• Series: E10S1-HP (high pressure version, R-410A capable)
• SVD Item Number (label): 4340-00
• Construction (label): Series 1 body, uses MKC-1 coil assembly
• Operation: Pilot operated, floating disc; 1 psi (0.07 bar) differential for full opening
• Valve Action: Normally closed, opens when coil is energized
• Port Size: 5/16 in (7.94 mm)
• Flow Coefficient Cv: 2.06

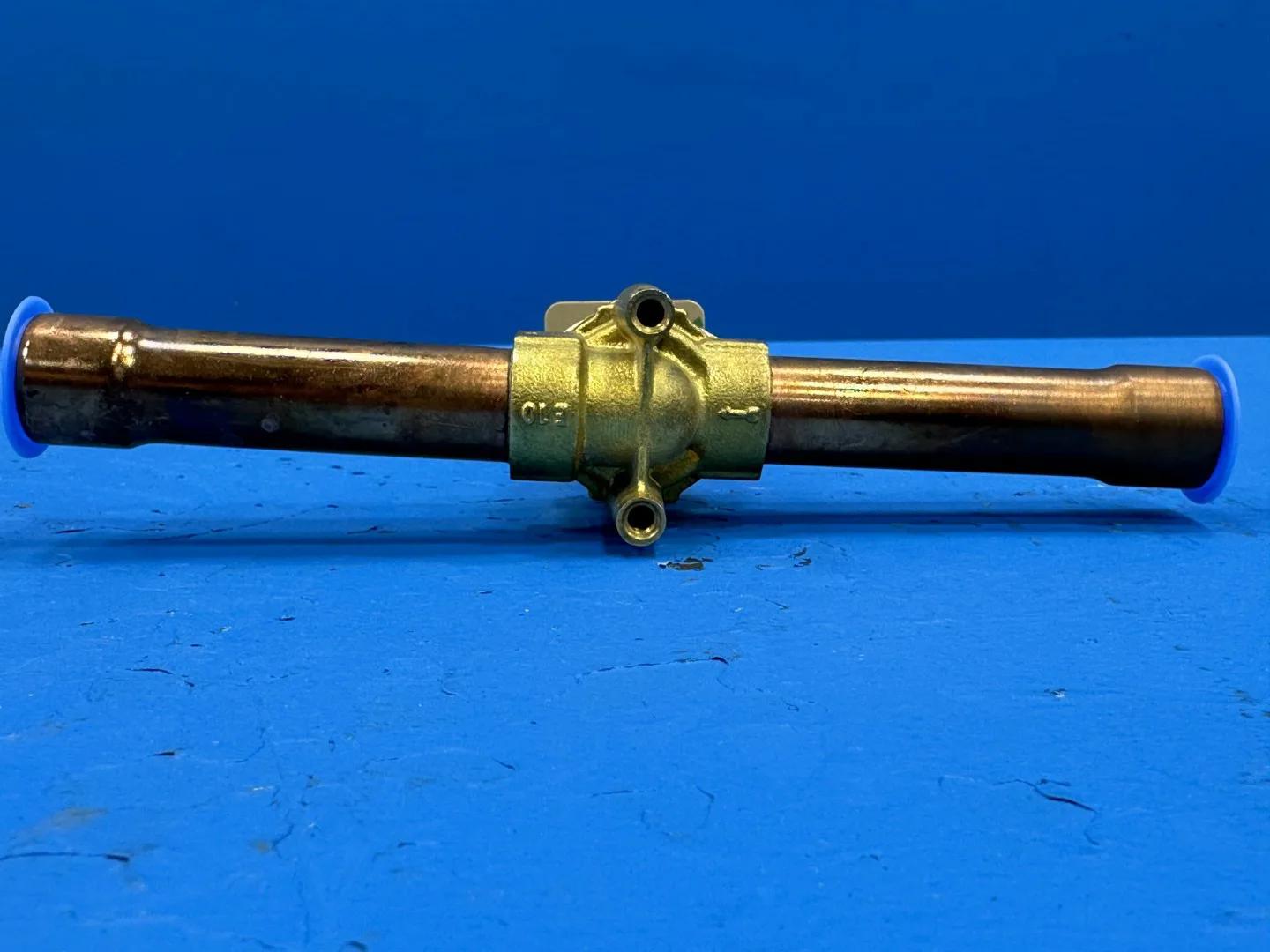

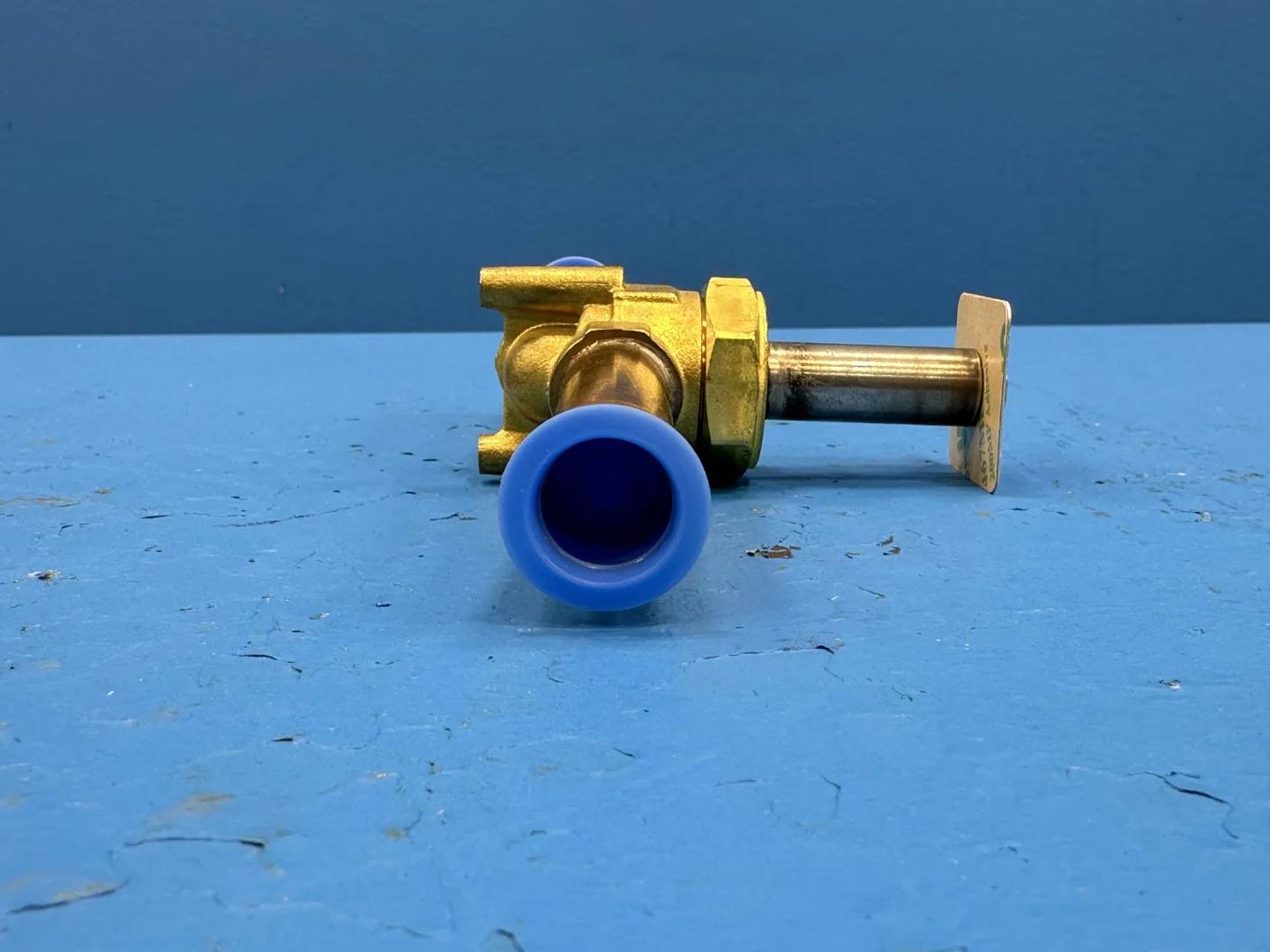

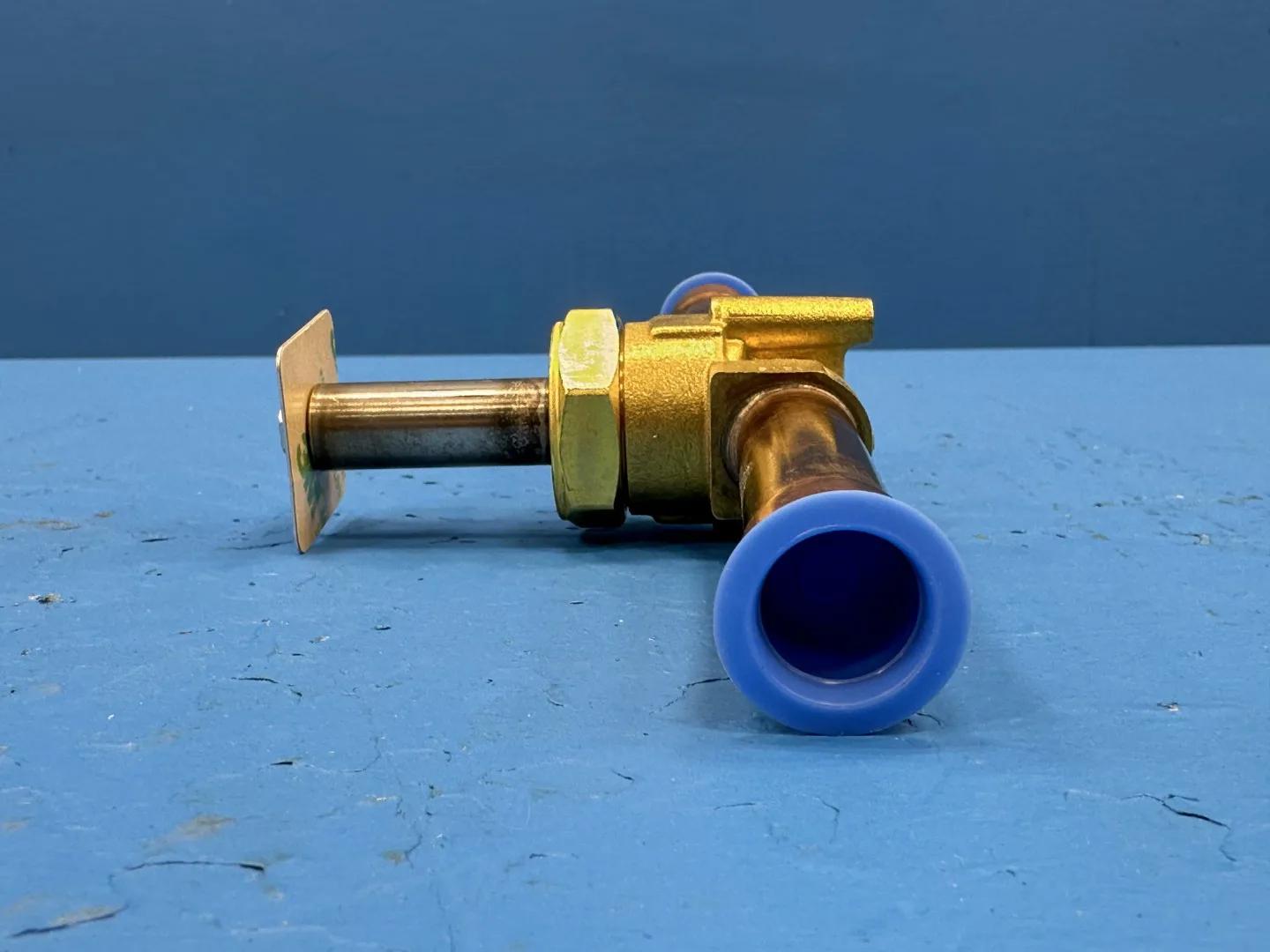

• Connections: 5/8 in ODF solder inlet x 5/8 in ODF solder outlet, extended solder type
• MOPD (label): 450 psi (31 bar), AC and DC, rated at 85 percent voltage with hot coil
• MRP (label): 1015 psi; bulletin 30-10-14 (Aug 2015) lists 700 psig (48 bar)
• Nominal Capacity R-410A (label): 13.3 tons (46.8 kW)
• Nominal Capacity R-22 (label): 10.9 tons (38.3 kW)
• Nominal Capacity R-134a (label): 8.3 tons (29.2 kW)
• Nominal Capacity R-404A (label): 7.2 tons (25.3 kW)
• Nominal Capacity R-507 (label): 6.5 tons; bulletin lists 7.1 tons (25.0 kW)
• Additional Bulletin Capacities: R-407F 10.4 tons, R-407C 10.0 tons, R-401A 8.9 tons, R-402A 7.2 tons
• Capacity Basis: 110 F condensing, 100 F liquid, 40 F evaporating
• Dimensions (bulletin): 6.49 in (165 mm) overall length; B 0.86 in (22 mm); C 2.52 in (64 mm); fitting depth 0.50 in (13 mm)
• Coil Required: MKC-1, Class F, 10 W AC / 15 W DC (not included)
• Spec Basis: carton and valve labels read from photos; Parker Sporlan Bulletin 30-10-14, August 2015, E10S1-HP series, pages 1 and 2 (https://www.parker.com/content/dam/Parker-com/Literature/Sporlan/Sporlan-pdf-files/Sporlan-pdf-030/30-10-14.pdf); Parker Sporlan Bulletin 30-10, October 2022, pages 21, 22 and 28 (https://www.parker.com/content/dam/Parker-com/Literature/Sporlan/Sporlan-pdf-files/Sporlan-pdf-030/30-10-Solenoid-Valves.pdf)
