Daman AD05SPS8P D05 Hydraulic Subplate Side Ported 1/2" NPT Aluminum 3000 PSI
AD05SPS8P Manifold Specifications: Port Size & Pressure
System Fitment for Daman AD05SPS8P
| Description | Details |
|---|---|
| Available Quantity | 1 |
| Model | AD05SPS8P |
| Condition | New |
| Manufacturer | Daman |
| Asset Number | KSC1290 / 2017 |
| Guarantee or ASIS | 2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return |
| Inspections - Yellow Tag | 1.1 Appears Unused no box |
| Packaging Cost | 1.6 6x10 CH $3.00 |
$24.95
Basic Information
Asset #
KSC1290 / 2017
Available Quantity
1
Inspections - Yellow Tag
1.1 Appears Unused no box
Condition
New
Guarantee or ASIS
2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return
Item Description

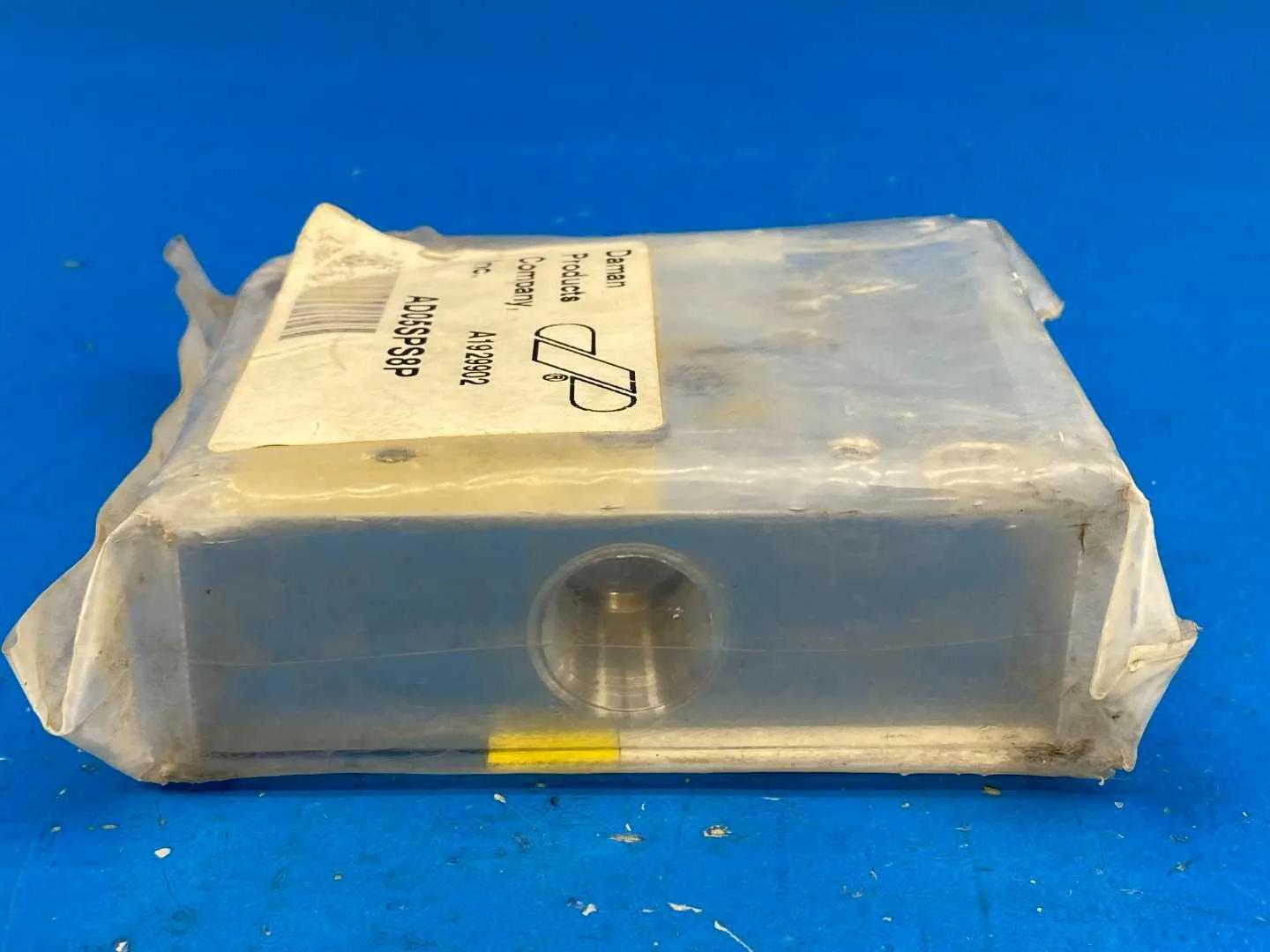

This is a Daman Products AD05SPS8P aluminum subplate for NFPA D05 (ISO NG10) hydraulic valves. Daman Products Company builds hydraulic manifolds, subplates and valve mounting products. Per Daman, a subplate gives one hydraulic valve a mounting pad of the same size, and offers a lower profile than a single station manifold while allowing different port styles, sizes, locations and pressure ratings. Daman uses the term subplate for mounting a single valve and manifold for assemblies that carry more than one valve.
The part number describes the configuration. A marks aluminum construction, D05 is the valve pattern, SPS indicates a side ported subplate, and 8P indicates 1/2 inch NPT ports. The aluminum version is rated for 3000 PSI and this model has no relief valve cavity.
A D05 directional control valve, such as a solenoid operated spool valve, bolts to the top face, and the pressure, tank and work port lines connect to the side ports. Hydraulic system builders, machine designers and maintenance technicians use subplates like this on hydraulic power units and machine hydraulics.
Available from King Surplus inventory in Del Rio, Texas.
Factory Information

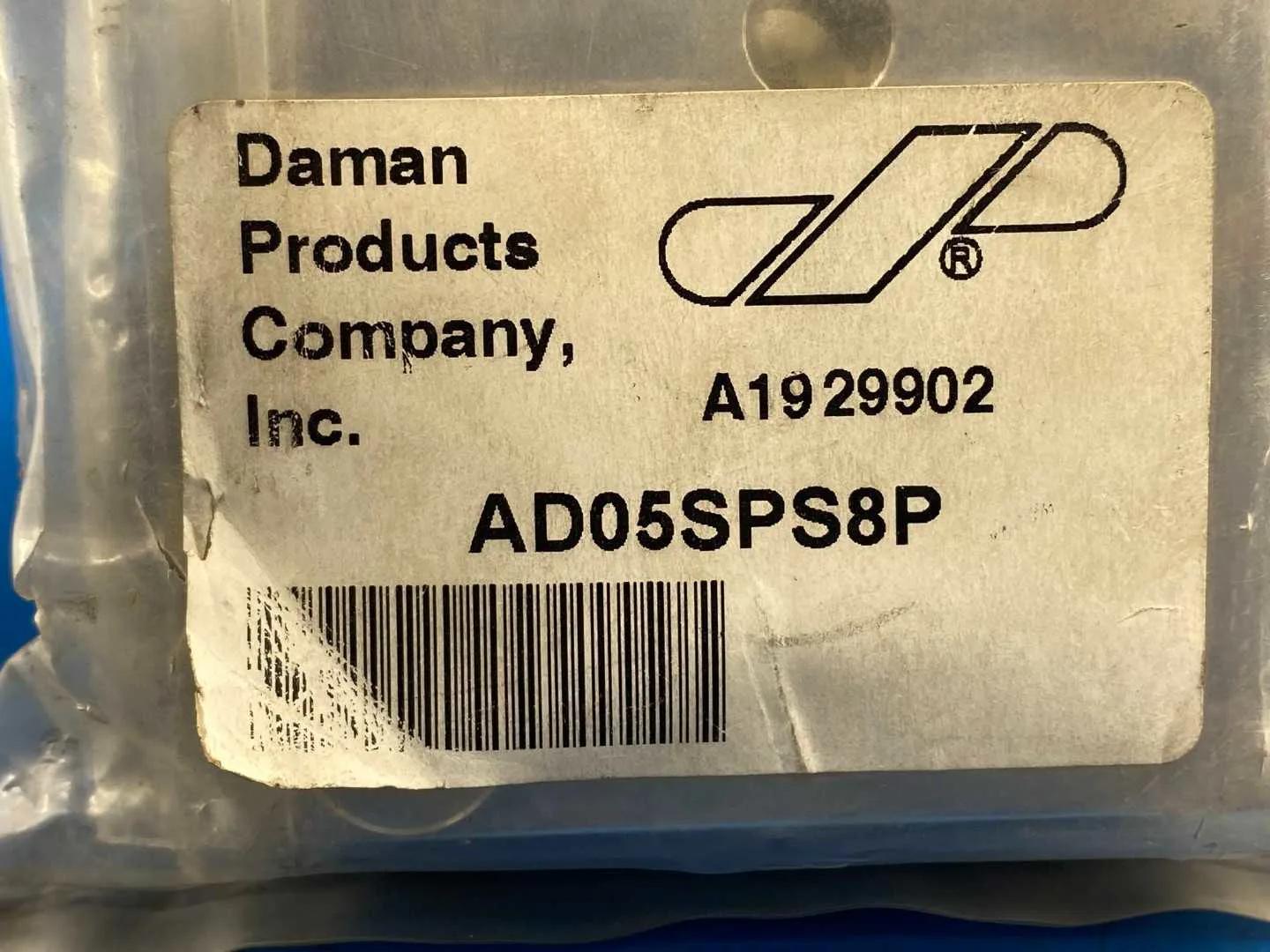

- Maker on label: Daman Products Company, Inc. (label photo)
- Label codes: AD05SPS8P, A1929902 (label photo)
- Type: single valve directional valve subplate
- Valve interface: NFPA D05 (ISO NG10)
- Material: aluminum
- Maximum pressure: 3000 PSI
- Ports: side ported, 1/2" NPT
- Relief cavity: none
- Spec Basis: label photo; One Hydraulics AD05SPS8P listing, https://www.onehydraulics.com/products/ad05sps8p; Livingston and Haven AD05SPS8P listing (search excerpt); Daman product page https://products.daman.com/products/ad05sps8p. Record title reads NPTF; sources state NPT.
Specifications
Daman
AD05SPS8P
N/A
N/A
N/A
N/A
4
4
1
N/A
2
3.29
KSC1290 / 2017
Packaging fees
1.6 6x10 CH $3.00
