Dodge DU-SD-200 Special Duty Tapered Roller Bearing Unit, 2 in Bore, with 066118 Adapter
DU-SD-200 Bearing Specifications: Bore, OD & Width
Interchange & Applications for Dodge DU-SD-200
| Description | Details |
|---|---|
| Available Quantity | 2 |
| Model | DU-SD-200 |
| Condition | Used |
| Manufacturer | Dodge |
| Asset Number | KSC1290 / 2179 |
| Guarantee or ASIS | 2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return |
| Inspections - Yellow Tag | 5. Used: Unit looks good to us |
| Packaging Cost | 1.6 6x10 CH $3.00 |
$1,199.95
Basic Information
Asset #
KSC1290 / 2179
Available Quantity
2
Inspections - Yellow Tag
5. Used: Unit looks good to us
Condition
Used
Guarantee or ASIS
2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return
Item Description
This is a Dodge DU-SD-200 Special Duty tapered roller bearing inner unit for a 2 inch shaft. Dodge, now Dodge Industrial, is a major North American maker of mounted bearings and power transmission components, and its Special Duty line is built for heavy radial and thrust loads.
In the Dodge part designation, DU identifies the D unit, the non-expansion inner unit, SD stands for Special Duty, and 200 is the 2 inch shaft size. Dodge builds the same size as the S1U-SD-200 expansion unit and the B1U-SD-200 for a customer supplied housing. Per the Dodge catalog, Special Duty units use duplex tapered roller bearings with case-carburized cones, cups and rollers, mount to the shaft on a tapered adapter sleeve with an adapter nut, and seal with two piston ring seals. The inner units are supplied assembled, adjusted and lubricated so they can be fitted into a split pillow block or flange housing as a complete cartridge.
These units carry shafts on fans, conveyors, crushers, screens, pulp and paper rolls, and other heavy plant equipment. Maintenance crews replace the inner unit without replacing the housing. Current Dodge catalogs list the DU-SD-200 as part 066464, and the markings on this unit should be checked against the machine's existing bearing.
Available from King Surplus inventory in Del Rio, Texas.
Factory Information
- Manufacturer: Dodge (record)
- Description: DU-SD-200 Special Duty tapered roller bearing inner unit, D unit (non-expansion)
- Shaft Size: 2 in
- Current Dodge Part No. for DU-SD-200: 066464 (catalog)
- Catalog Approx. Weight: 12 lb
- Bearing Type: Duplex tapered roller bearings with case-carburized cones, cups and rollers
- Shaft Mounting: Tapered adapter sleeve with single adapter nut (sizes through 3-1/2 in)
- Sealing: Two piston ring seals running in grooved seal ring carriers
- Unit Housing: Solid one-piece construction for D, S1 and B1 units; supplied assembled, adjusted and lubricated
- Related Units Same Size: S1U-SD-200 expansion unit (066504); B1U-SD-200 for customer supplied housing (066564)

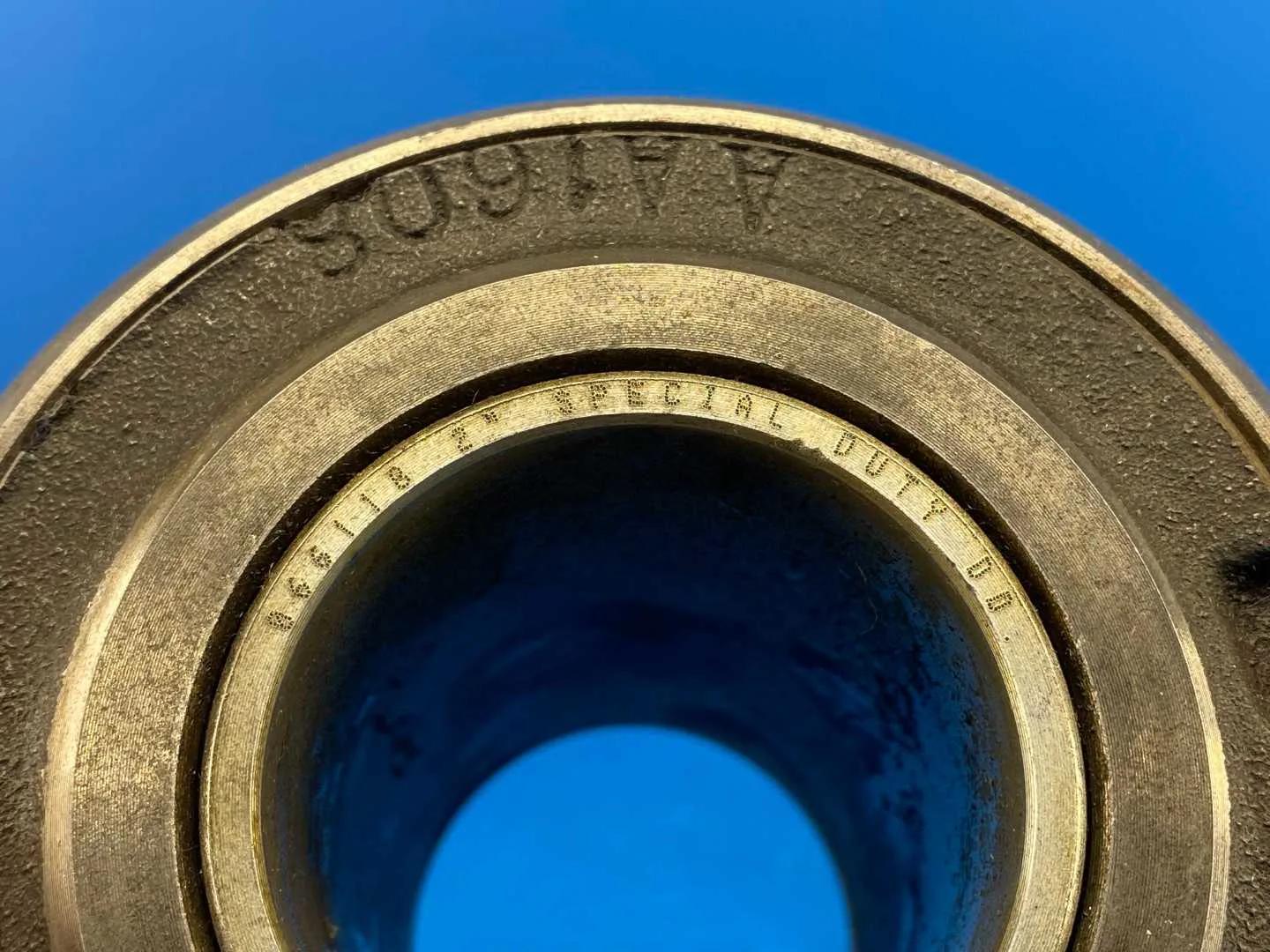

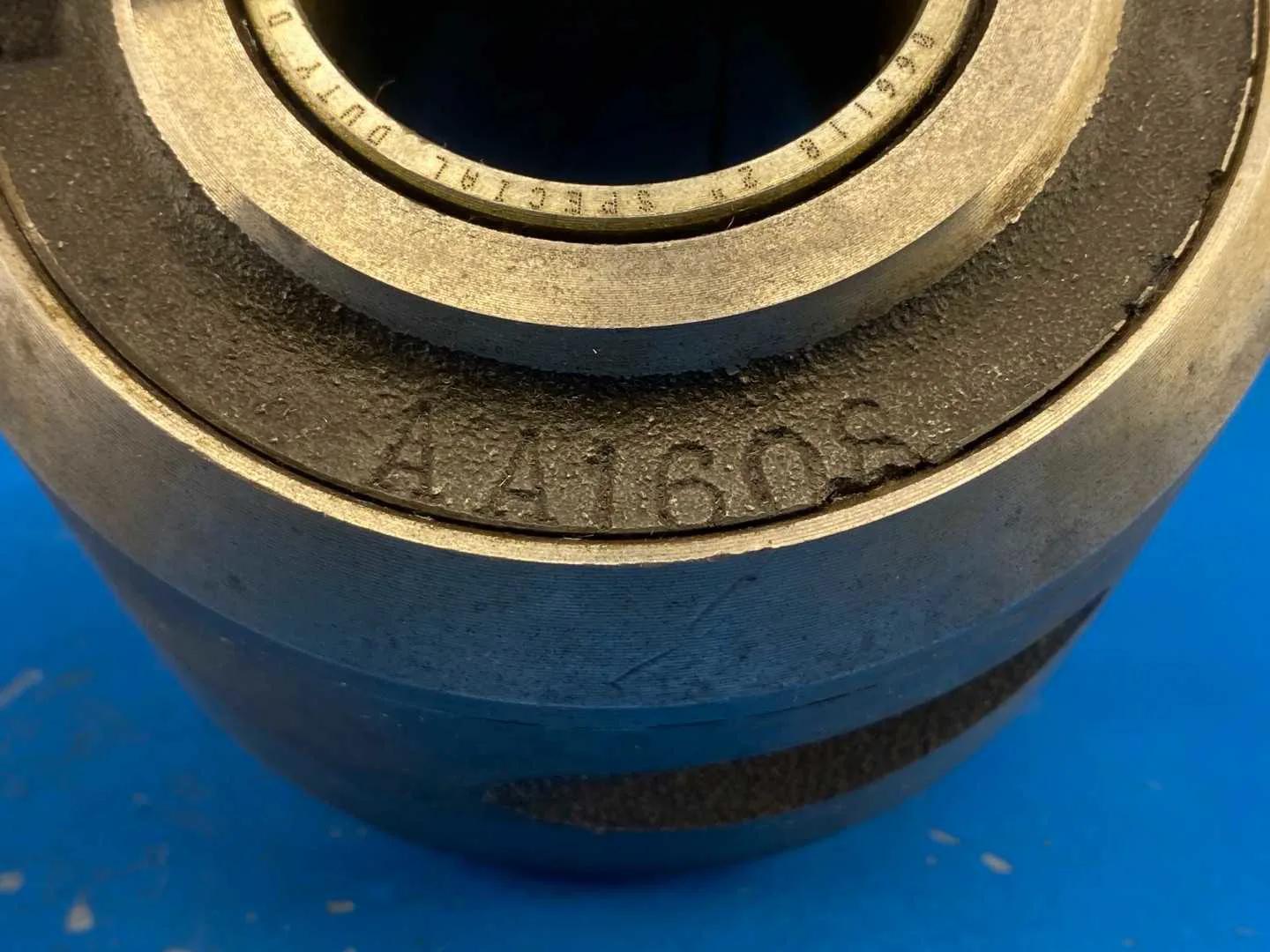

- Part Markings: 2" SPECIAL DUTY, 66118, A41608, MT00 (stamped marks)
- FLAG for review: record part 66113 vs stamped 66118 on the part, and neither matches current catalog 066464; photo read also describes a locking collar and set screw, while the catalog describes adapter sleeve mounting.
- Spec Basis: part photos; Dodge Mounted Roller, Hydrodynamic, and Plain Bearings catalog, Special Duty inner unit inch table and Special Duty description https://assets.dodgeindustrial.com/m/59ba1568b291f998/original/Mounted-Roller-and-Plain-Bearings.pdf
Specifications
Dodge
DU-SD-200
N/A
N/A
N/A
N/A
6
5
5
N/A
2
14
KSC1290 / 2179
Packaging fees
1.6 6x10 CH $3.00
