Electron 2AC124 2-Groove V-Belt Sheave, 1-3/16" Bore

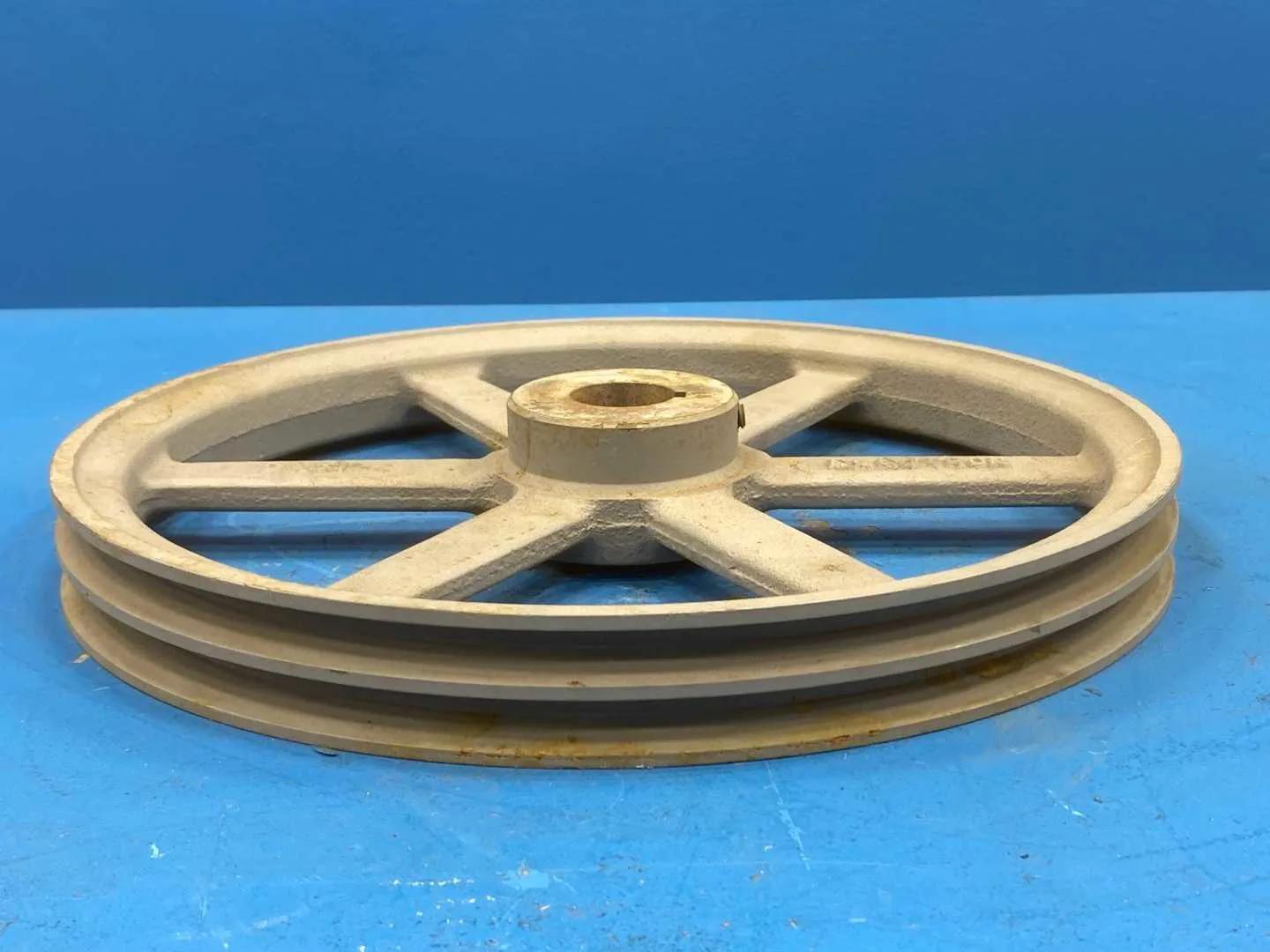

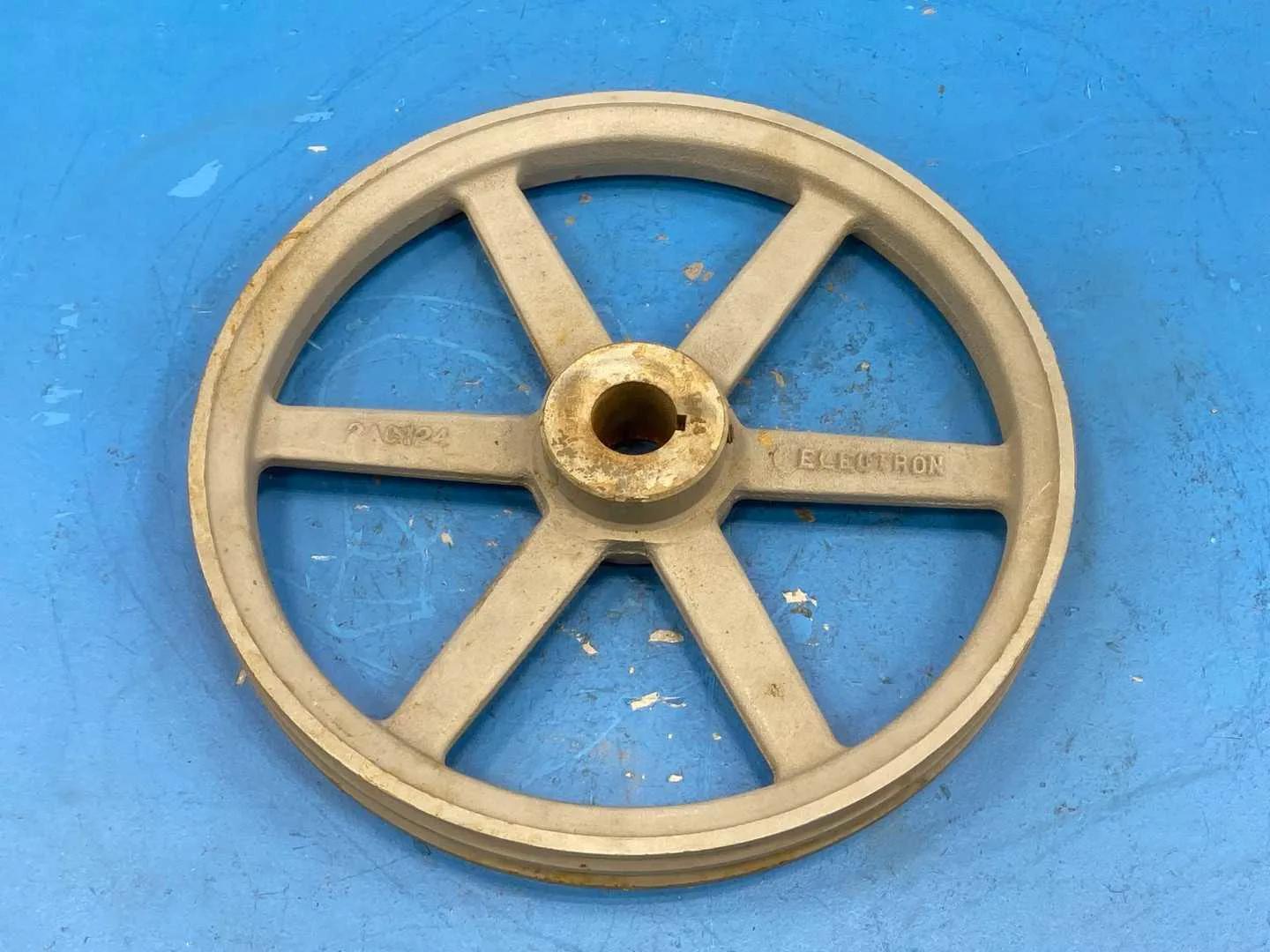

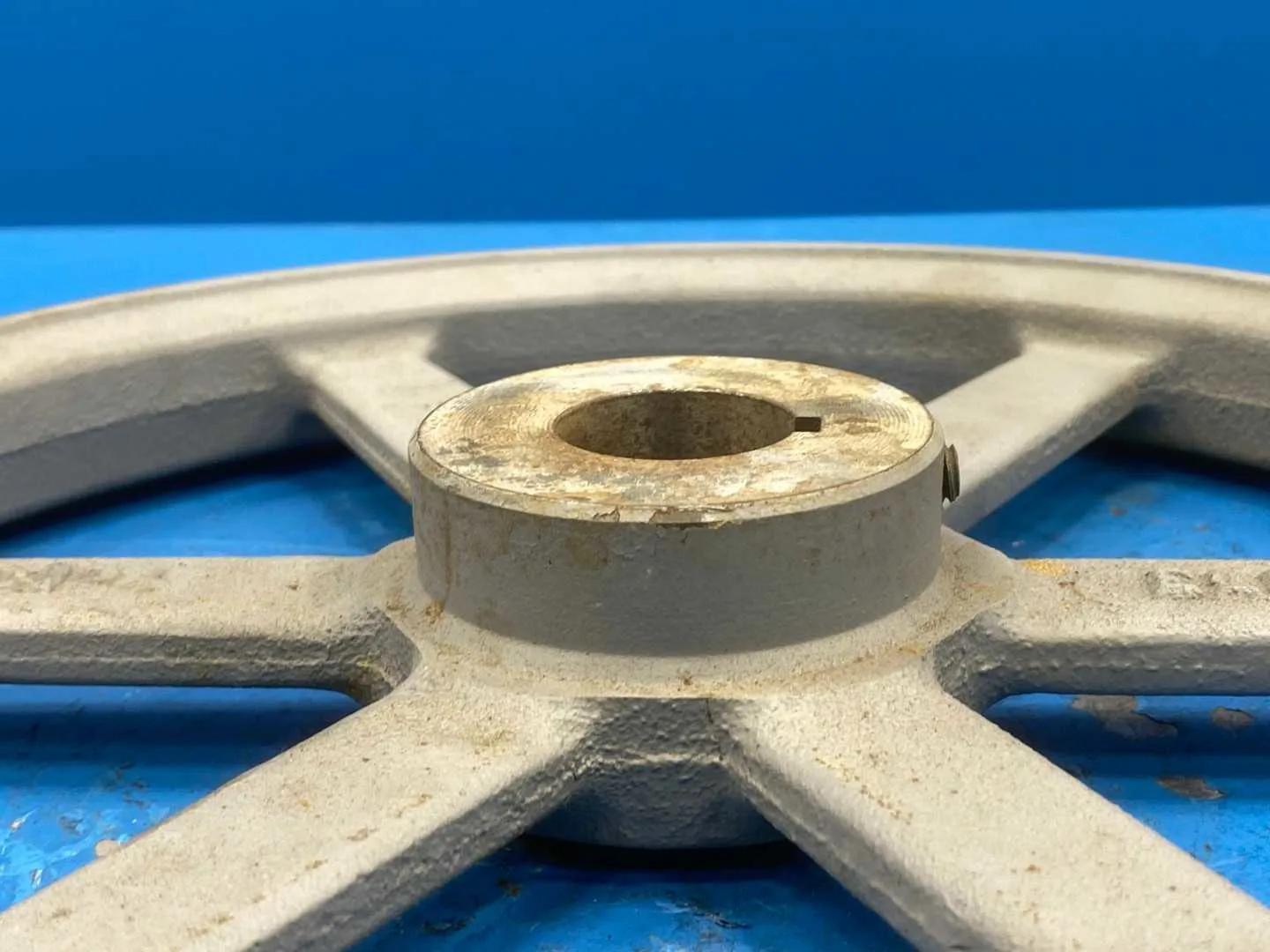

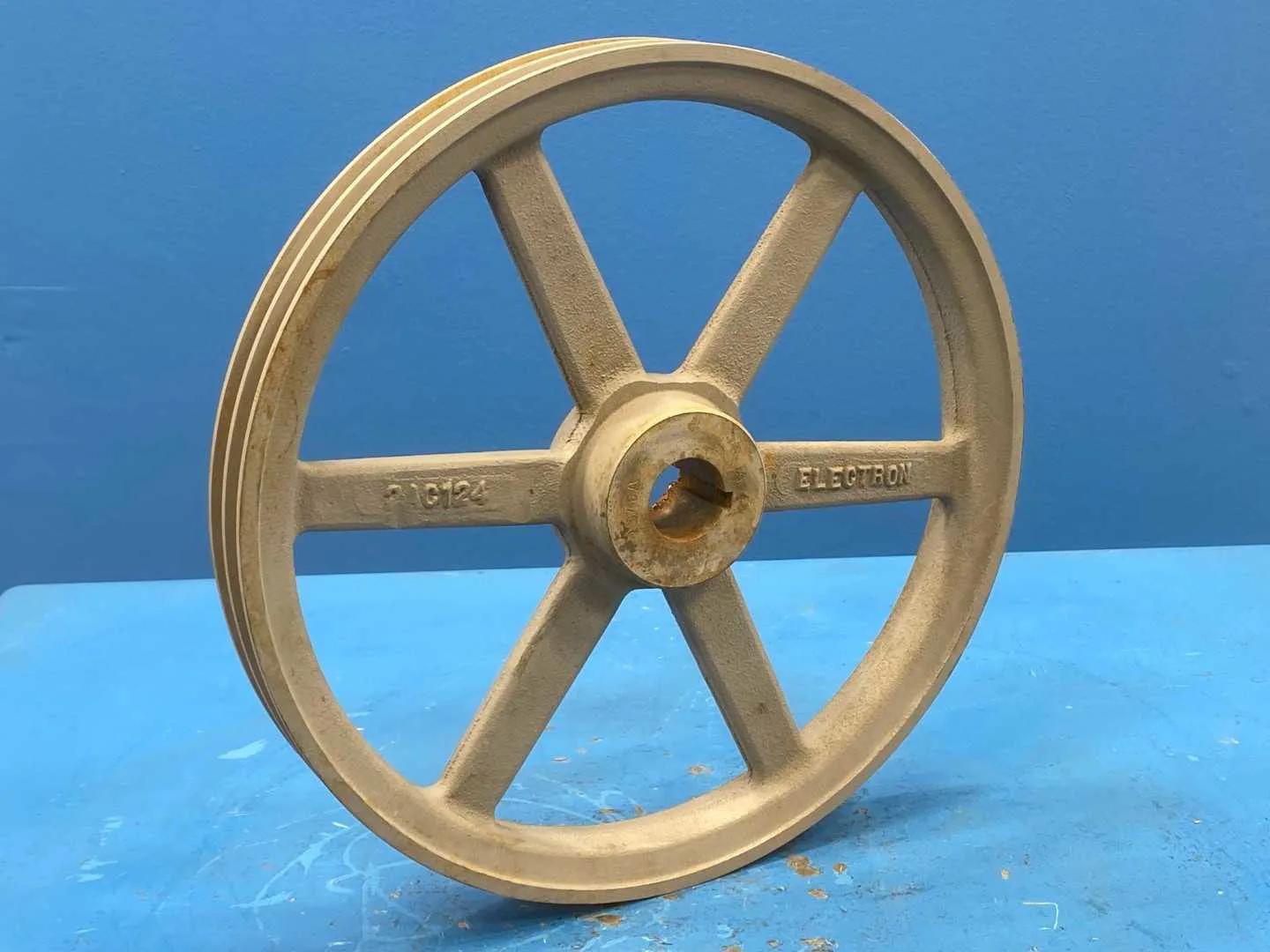

This is a cast V-groove sheave marked ELECTRON, with a cast part mark read as AC124 and a stamped 1-3/16 inch bore. The record carries it as model 2AC124. A sheave of this kind is keyed to a shaft and carries V-belts to transmit power between an electric motor and driven equipment.

In common industry sheave numbering, the leading digit is the number of grooves, the letters give the groove type and belt section, and the last digits give the nominal outside diameter; for example a 2AK124 is a two groove sheave of about 12-1/4 inch OD for A or 4L belts. The marks on this part have not been matched to a published catalog, so groove count, groove section and outside diameter should be measured before ordering belts or matching it to a drive.

Maintenance mechanics, HVAC and air handler service technicians, farm equipment repairers and machine builders use cast finished-bore sheaves of this size on blowers, fans, pumps, compressors and other belt driven equipment running on a 1-3/16 inch shaft.

Available from King Surplus inventory in Del Rio, Texas.

• Product: Cast V-groove sheave (pulley)

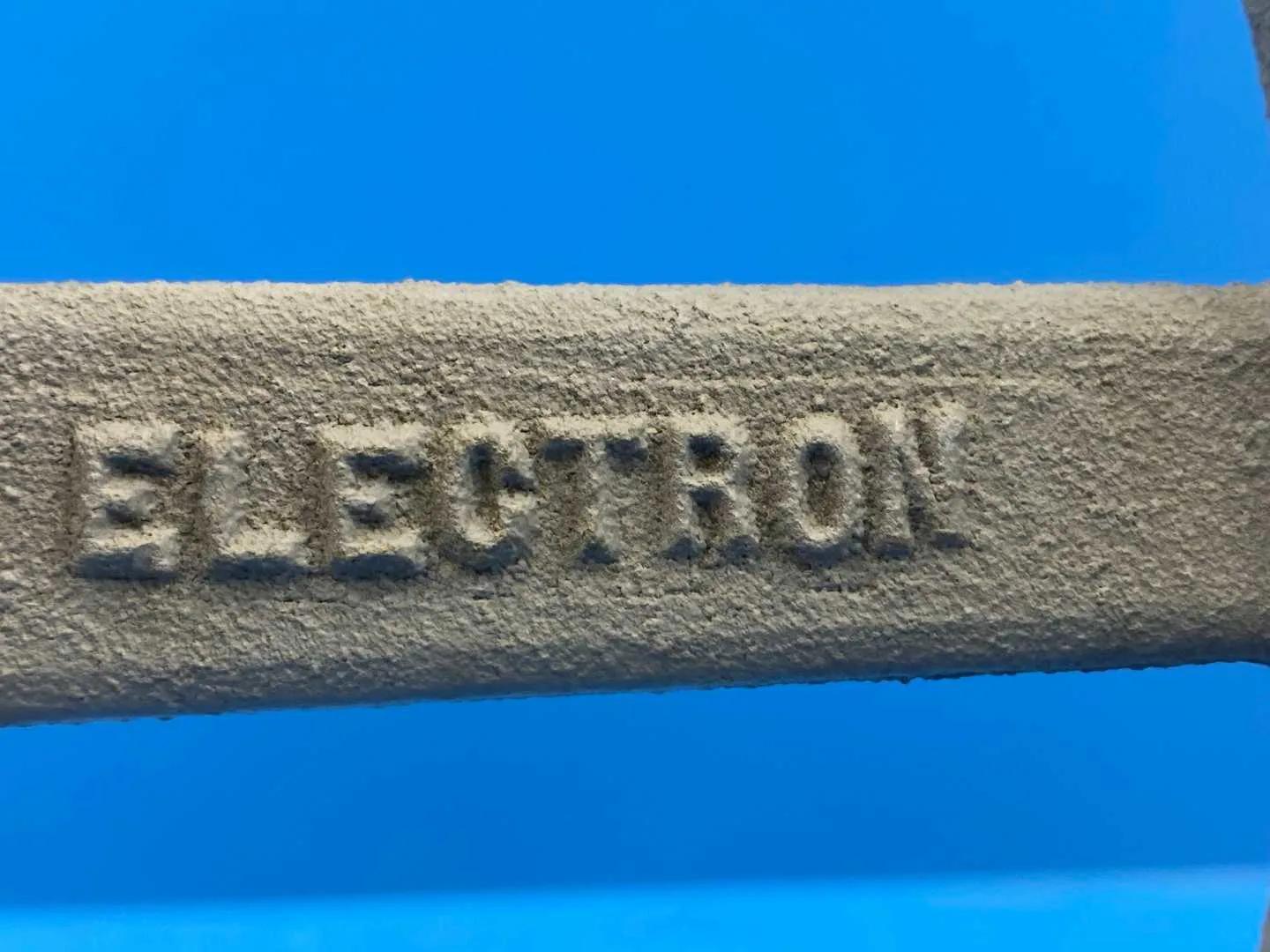

• Maker Mark: ELECTRON (cast mark on part)

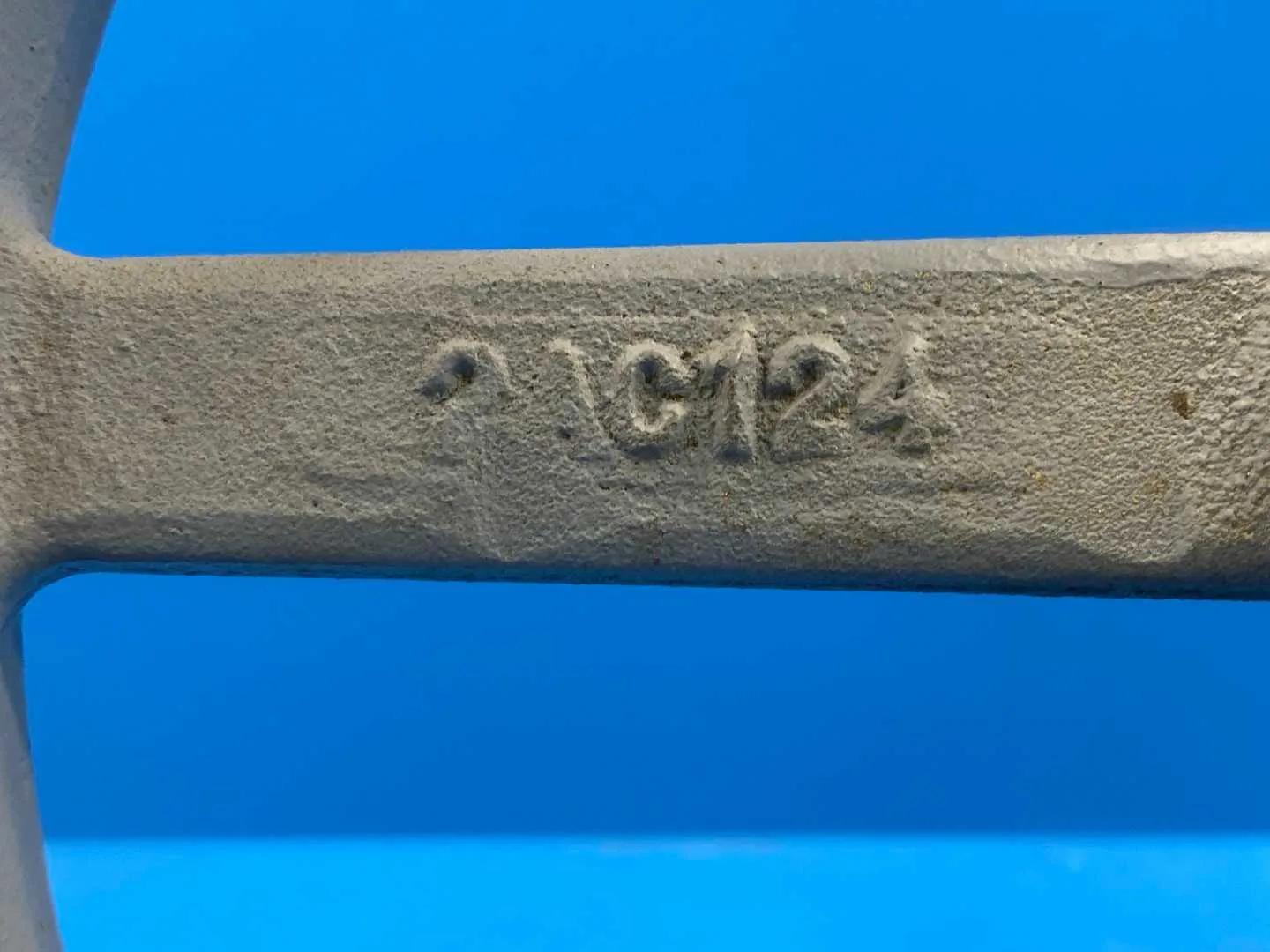

• Cast Part Mark: AC124, leading character worn (record: 2AC124)

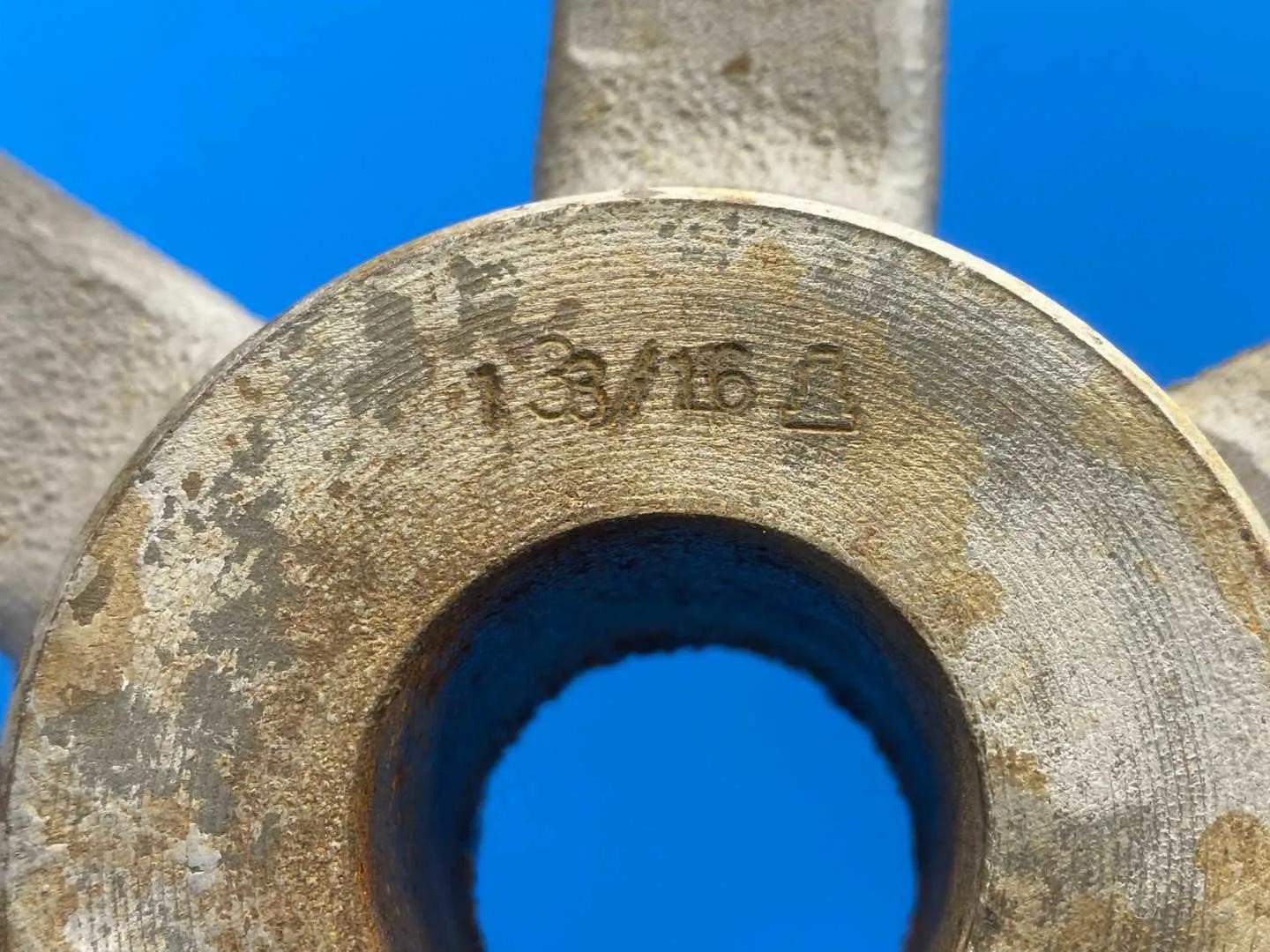

• Bore Stamp: 1-3/16 in
• Construction: Cast body with machined grooves and bore
• FLAG for review: 2AC124 was not found in any published catalog. The standard industry designation 2AK124 (2 groove AK type, 12.25 in OD, for A / 4L / 3L belts, offered in 1-3/16 in bore by Gates) is a lead only; count the grooves and measure OD and groove width before relying on it.
• Spec Basis: Cast and stamped marks read from photos (ELECTRON, AC124, 1 3/16). Gates 2AK124 listing checked for comparison only (https://www.amazon.com/Gates-2AK124-Light-Sheaves-Groove/dp/B0049892PI). No manufacturer datasheet found.
