Fike E70-0028 Baffle Plate for 5 & 10 Liter Containers
E70-0028 Specifications: Response & Function
System Compatibility for Fike E70-0028
| Description | Details |
|---|---|
| Available Quantity | 7 |
| Model | E70-0028 |
| Condition | New |
| Manufacturer | Fike |
| Asset Number | KSC1250 / 023 |
| Guarantee or ASIS | 2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return |
| Inspections - Yellow Tag | 1.1 Appears Unused no box |
| Packaging Cost | 1.6 6x10 CH $3.00 |
$29.95
Basic Information
Asset #
KSC1250 / 023
Available Quantity
7
Inspections - Yellow Tag
1.1 Appears Unused no box
Condition
New
Guarantee or ASIS
2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return
Item Description

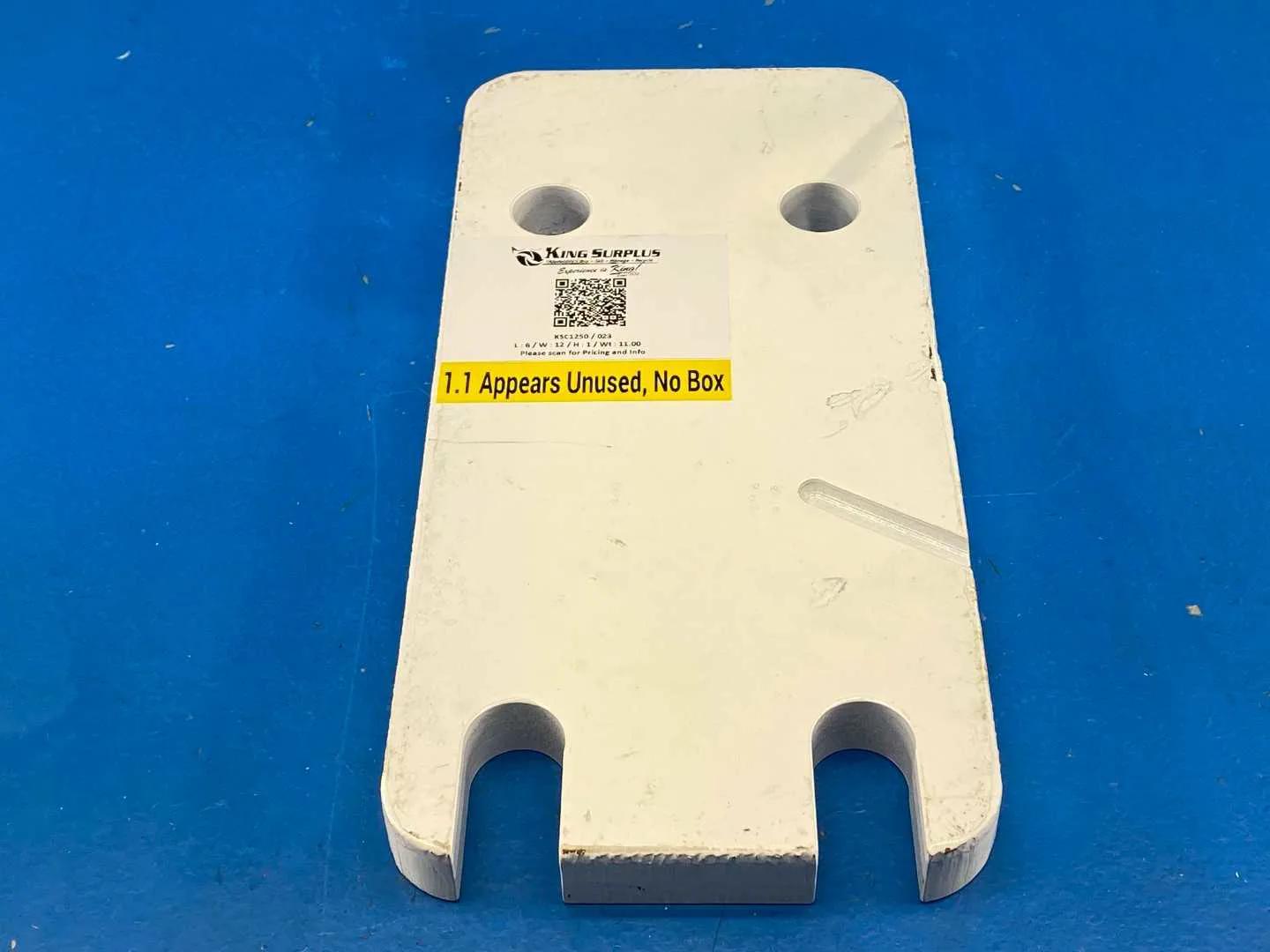

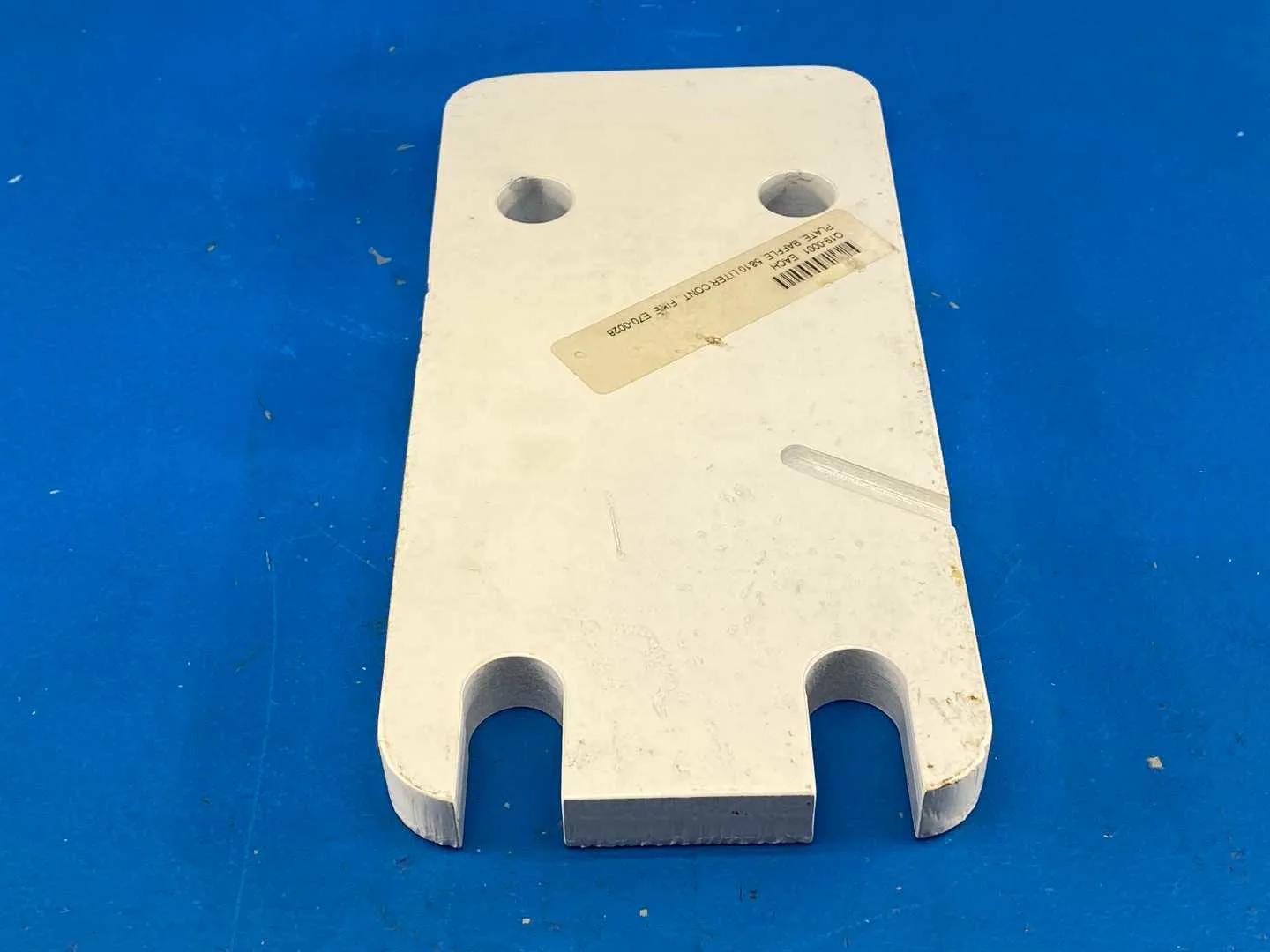

This is a Fike E70-0028 baffle plate for 5 and 10 liter HRD suppression containers. Fike Corporation builds chemical explosion suppression systems in which High Rate Discharge (HRD) containers, pressurized with nitrogen and filled with suppressant agent, are mounted on process equipment such as vessels, ducts and collectors. When a sensor detects the start of an explosion, the container opens and floods the vessel with agent.
Because the containers stay pressurized, Fike requires a pressure isolation device before personnel enter or work near the protected equipment. The baffle plate is one of those devices. Per the Fike installation and operation manual, it slides in between the container flange and the mounting flange and blocks the discharge path, so an accidental rupture disc burst vents slowly through a groove in the plate instead of discharging at full rate.
The part is used by plant maintenance staff and fire protection service technicians who inspect, service or relocate Fike HRD containers, and it is sized for the 5 and 10 liter container flanges.
Available from King Surplus inventory in Del Rio, Texas.
Factory Information

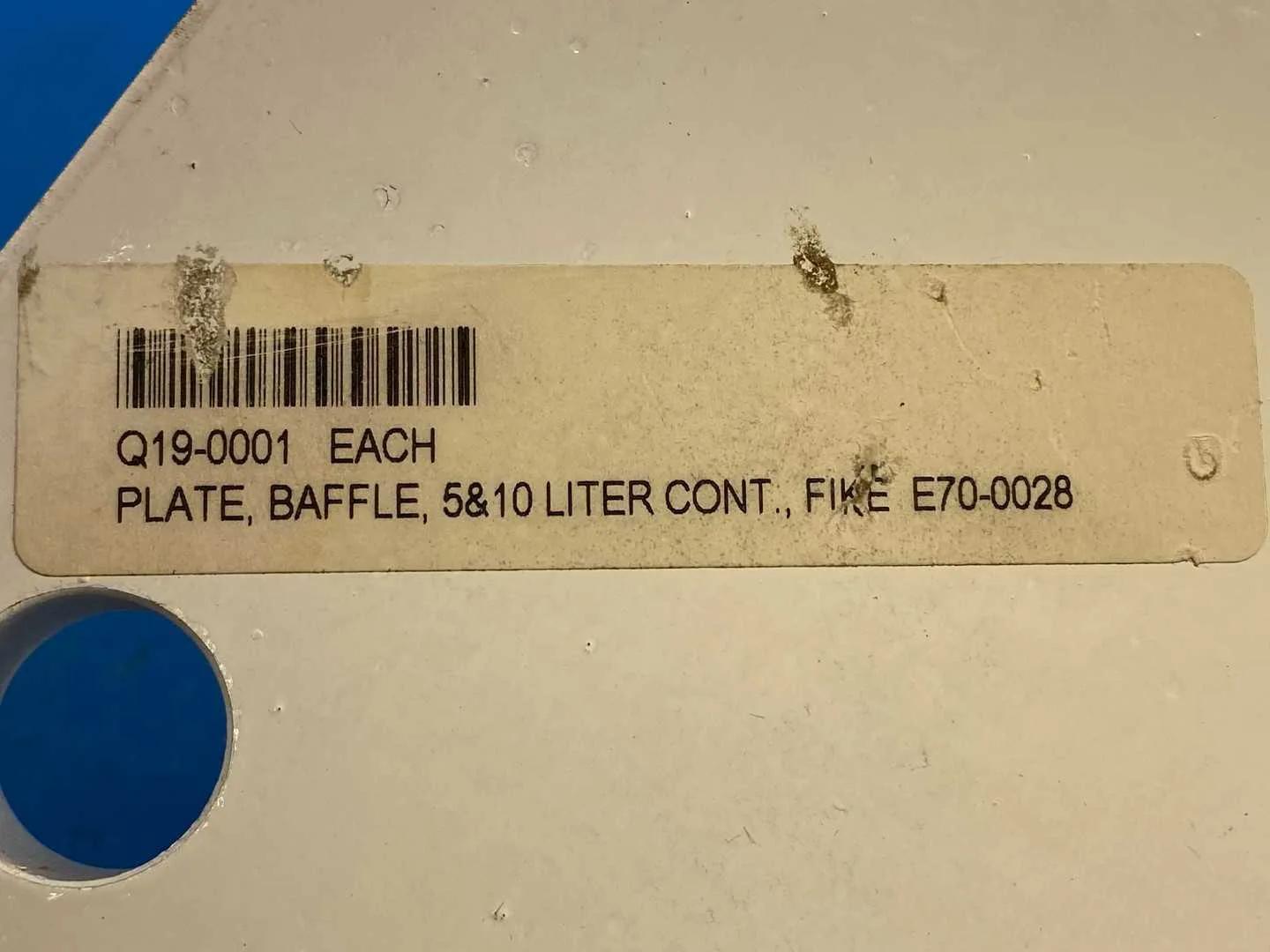

- Label description: PLATE, BAFFLE, 5&10 LITER CONT. (part label)
- Application: Fike HRD (High Rate Discharge) explosion suppression containers, 5 and 10 liter (part label, Fike manual E06-018-1)
- Function: pressure isolation; blocks the discharge of a pressurized HRD container during maintenance or when the container is taken off the process (Fike manual E06-018-1, section 2.7)
- Mounting: slides between the container flange and the mounting flange, which uses 3/4"-10UNC studs and nuts (Fike manual E06-018-1, section 2.7.1)
- Venting: should the rupture disc burst with the plate installed, nitrogen and suppressant discharge slowly through the baffle plate groove (Fike manual E06-018-1, section 2.7)
- Spec Basis: part label photo; Fike Installation and Operation Manual P/N E06-018-1 Rev 8, May 2017, https://my.fike.com/_fike_docs/Explosion_Protection/Chemical_Suppressors/HRD/Manuals/E06-018-1_EP_Container_IO_Manual.pdf. No published dimension or material data found for E70-0028.
Specifications
Fike
E70-0028
N/A
N/A
N/A
N/A
6
12
1
N/A
2
13
KSC1250 / 023
Packaging fees
1.6 6x10 CH $3.00
