Humphrey 590AE1-3-11 Air Pilot Solenoid Valve, 3-Way, 24VDC, 6.7W, 0-125 PSI
590AE1-3-11 Valve Specifications: Ports, Pressure & Actuation
Air Circuit Fitment for Humphrey 590AE1-3-11
| Description | Details |
|---|---|
| Available Quantity | 3 |
| Model | 590AE1-3-11 |
| Condition | New |
| Manufacturer | Humphrey |
| Asset Number | KSC1290 / 1210 |
| Guarantee or ASIS | 2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return |
| Inspections - Yellow Tag | 1.1 Appears Unused no box |
| Packaging Cost | 1.6 6x10 CH $3.00 |
$79.95
Basic Information
Asset #
KSC1290 / 1210
Available Quantity
3
Inspections - Yellow Tag
1.1 Appears Unused no box
Condition
New
Guarantee or ASIS
2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return
Item Description

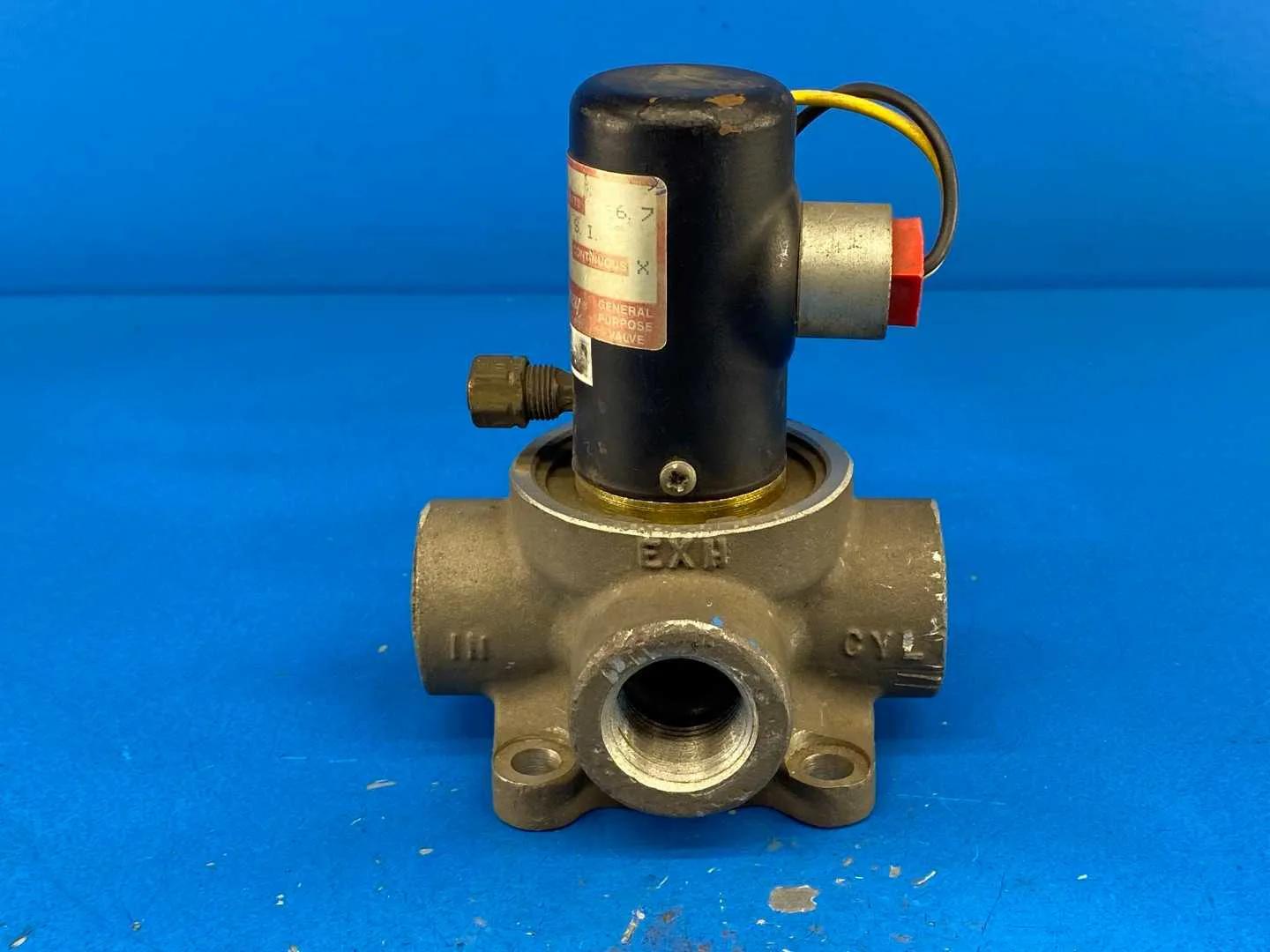

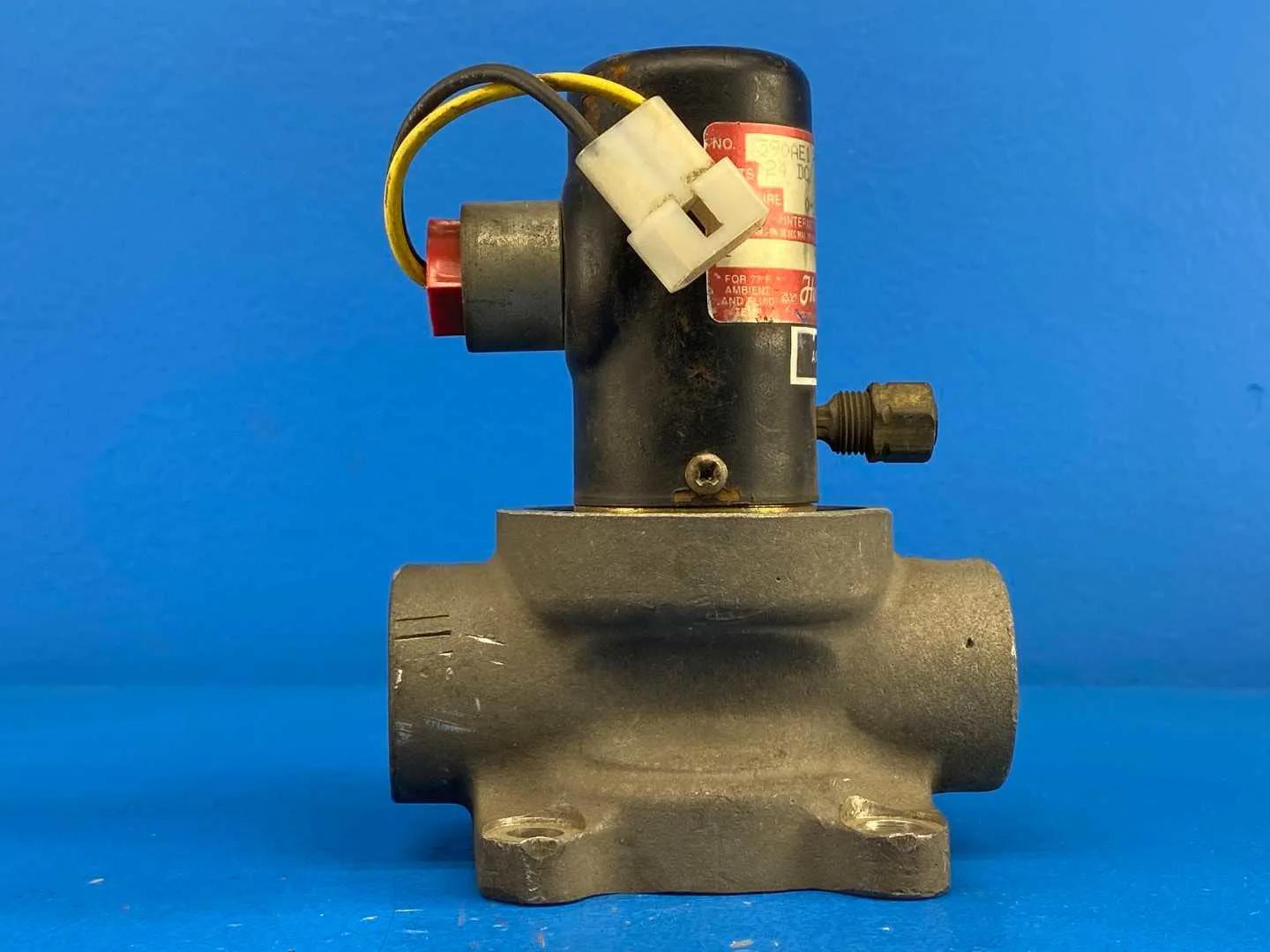

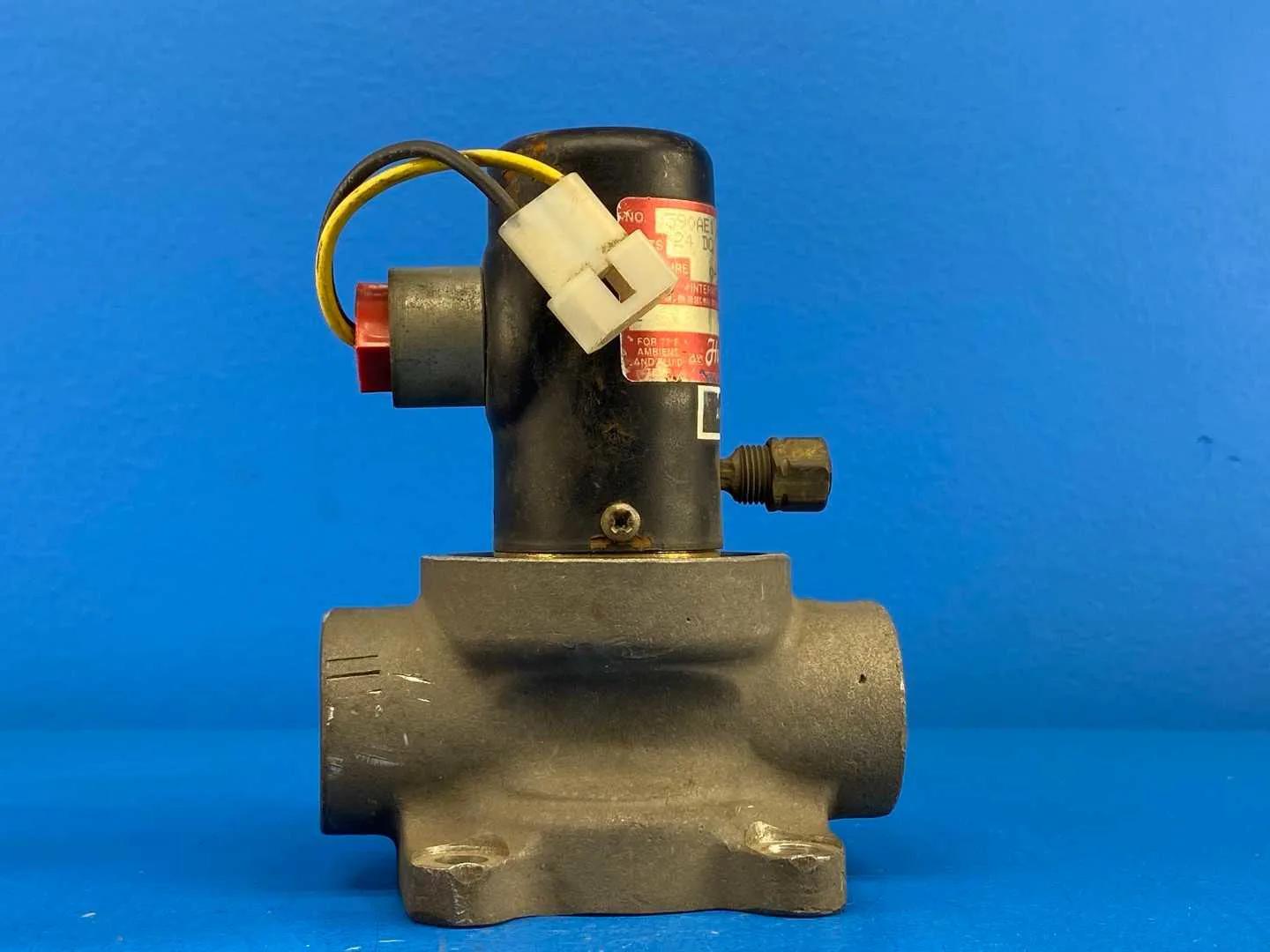

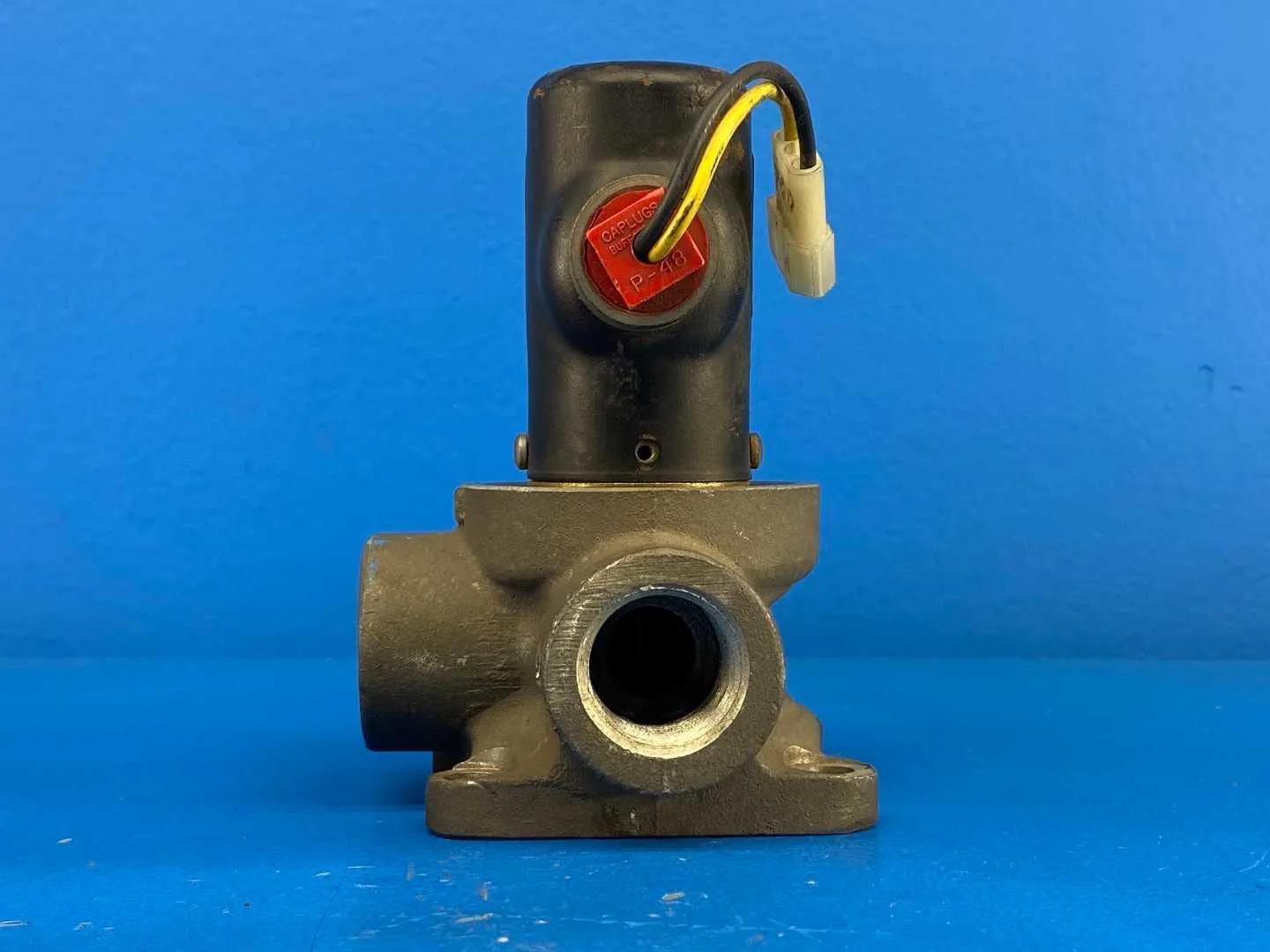

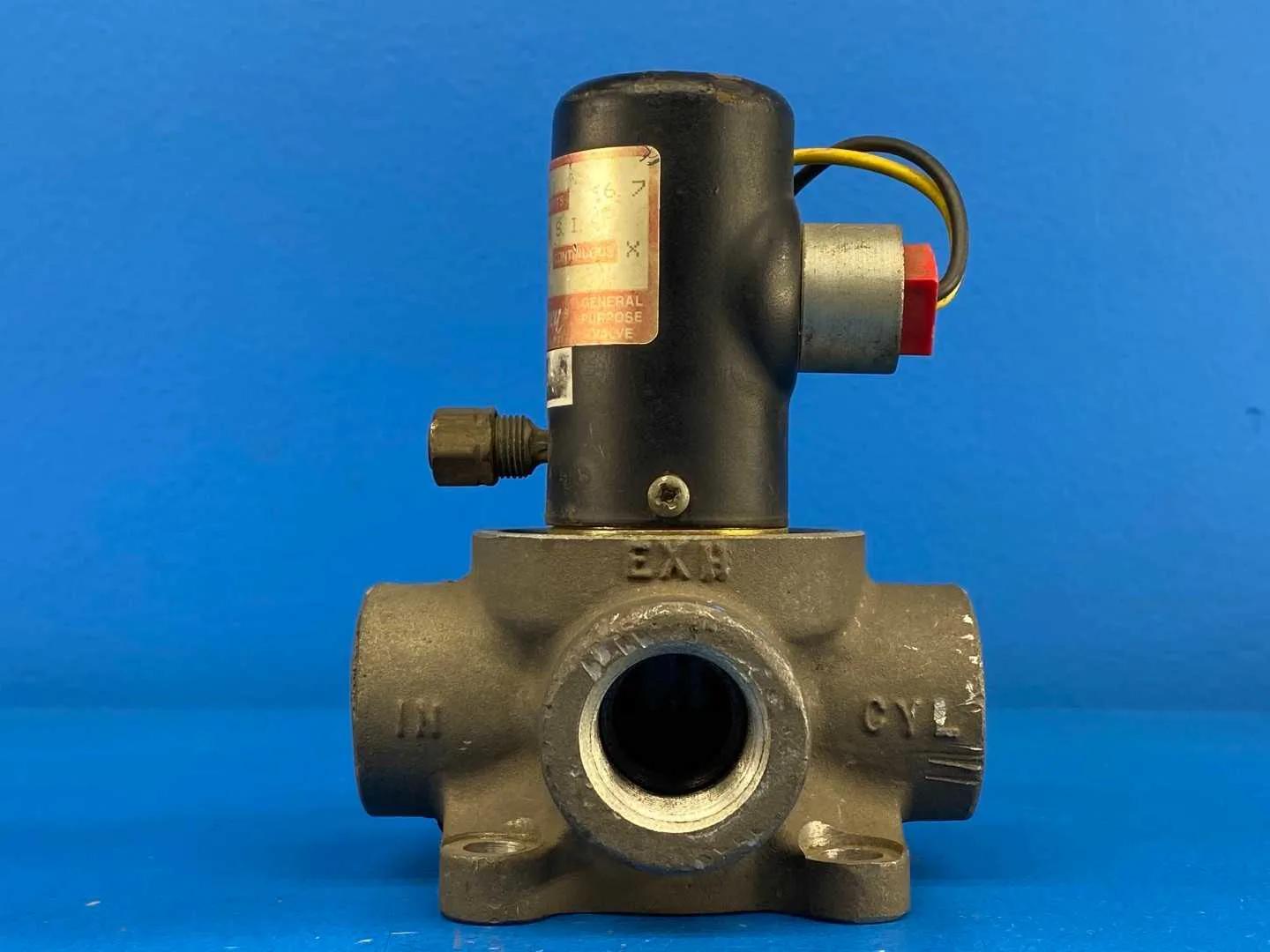

The Humphrey 590AE1-3-11 is a 3-way solenoid air pilot valve from the 590 series built by Humphrey Products of Kalamazoo, Michigan. The 590 series are 3/4 pipe size valves using Humphrey's diaphragm poppet design, which has no sliding spool seals, so the valve shifts reliably and seals tightly in dirty or poorly lubricated air.

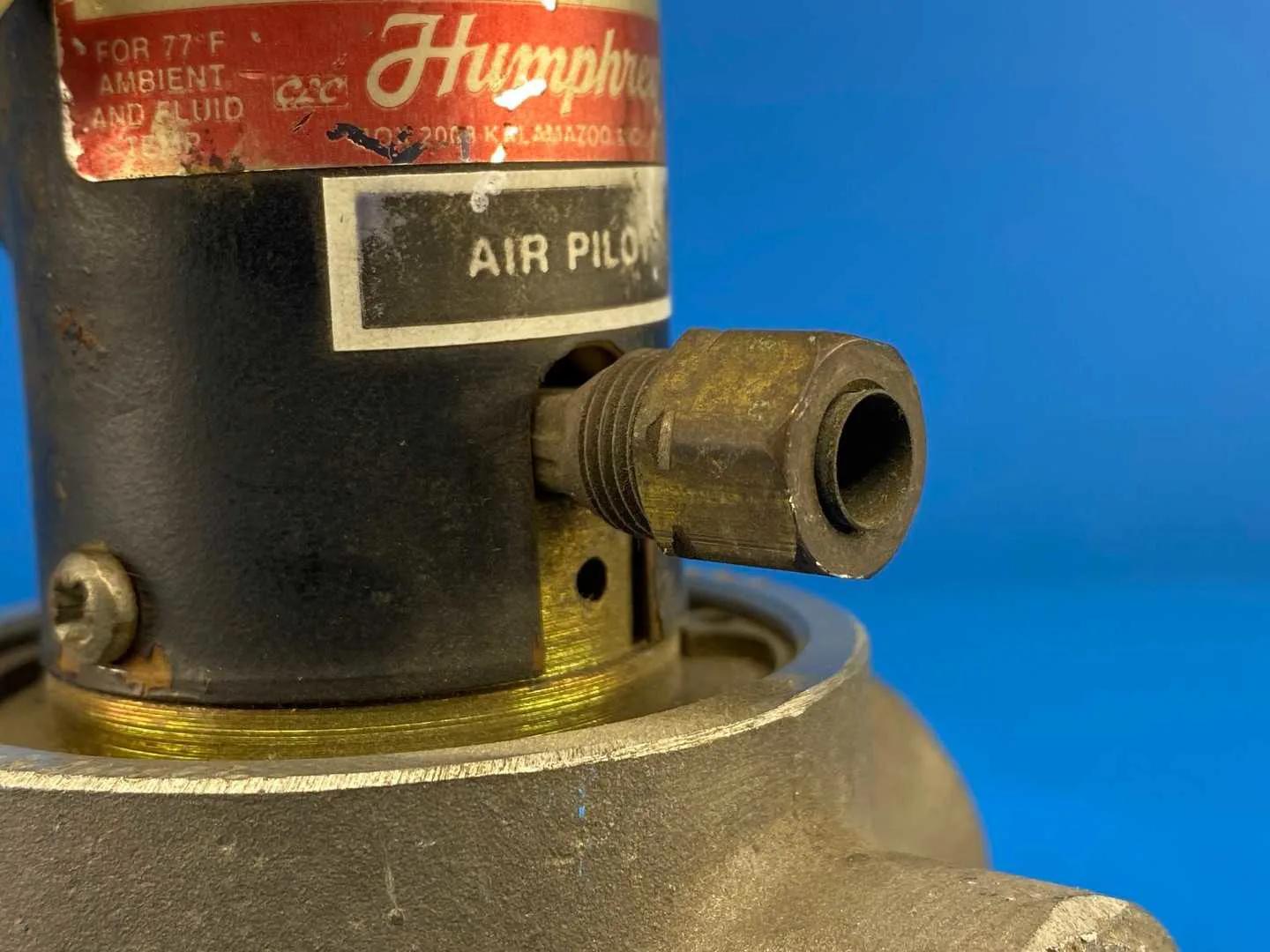

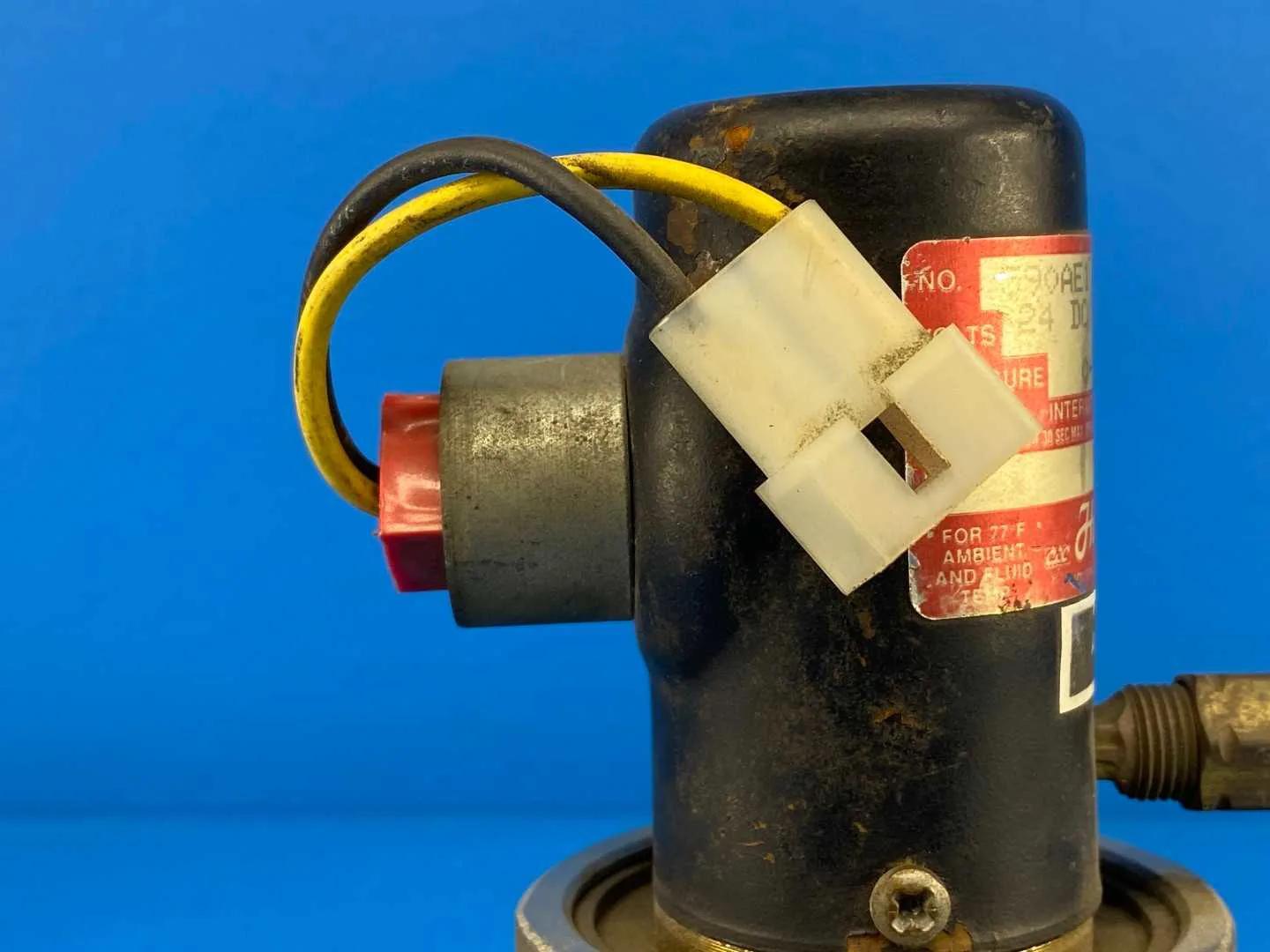

In this version a 24 VDC coil drawing 6.7 watts operates an internal pilot that shifts the main diaphragm poppet, letting a PLC or low voltage control circuit switch a large volume of compressed air. The nameplate rates it for 0-125 psi general purpose service with continuous duty coil operation. The 590 series main valve has a 0.490 inch orifice and passes about 250 SCFM at 100 psig.
Valves of this type are used to operate air cylinders, blow-off circuits, air motors, and pneumatic clamps on packaging, assembly and process machinery. It suits maintenance crews replacing a matching Humphrey 590 series valve on existing equipment.
Available from King Surplus inventory in Del Rio, Texas.
Factory Information
- Valve Type: Solenoid operated, air pilot, 3-way (Humphrey 590 series diaphragm poppet)
- Coil Voltage: 24 VDC (nameplate)
- Coil Power: 6.7 W (nameplate)
- Duty: Continuous (nameplate), rated for 77 F ambient and fluid temperature
- Pressure Range: 0-125 psi (nameplate)
- Service: General purpose (nameplate)
- Main Ports: 3/4 NPT (590 series)
- Orifice: 0.490 in (12.46 mm) (590 series)
- Flow: 250 SCFM at 100 psig (590 series)

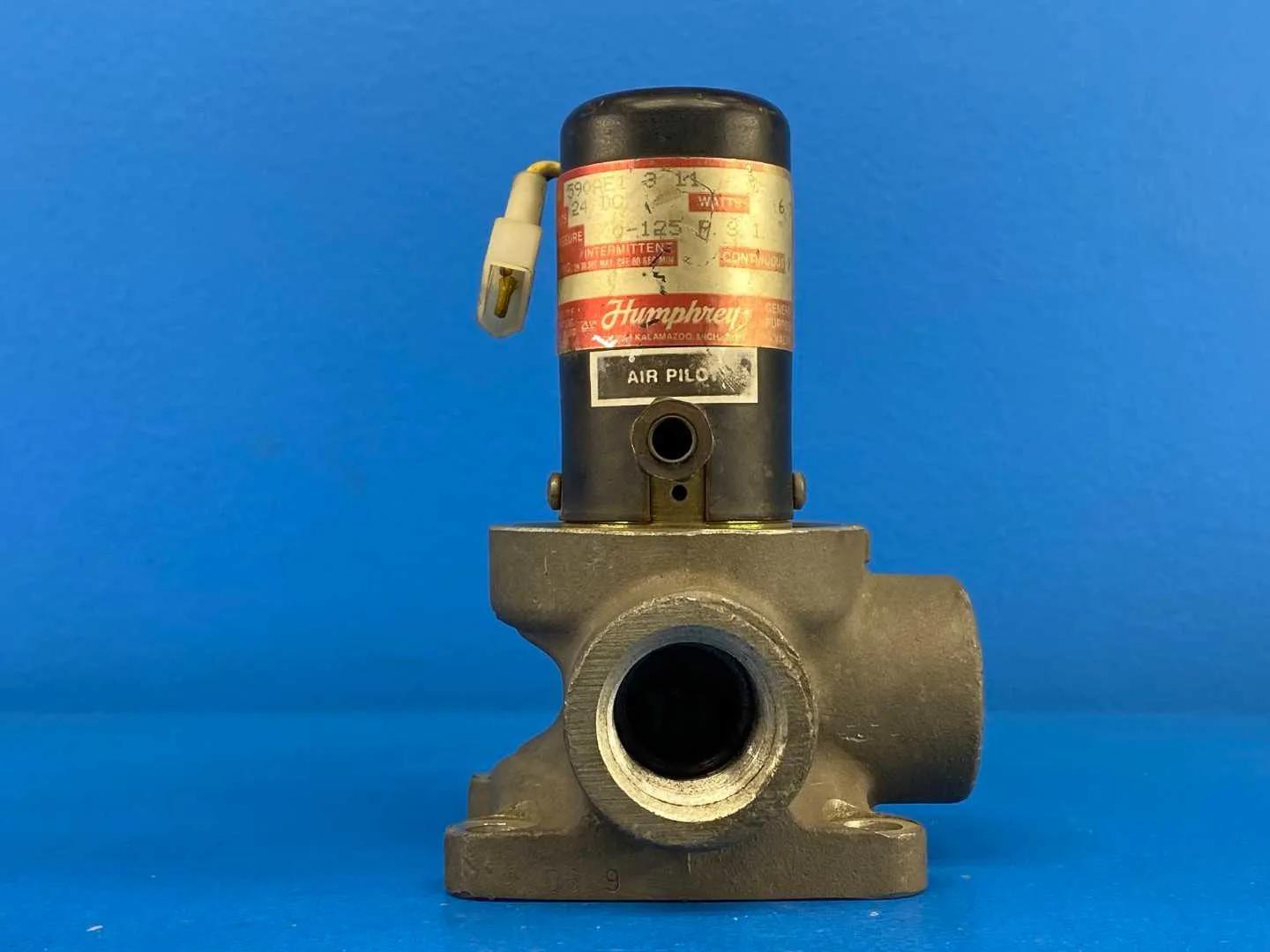

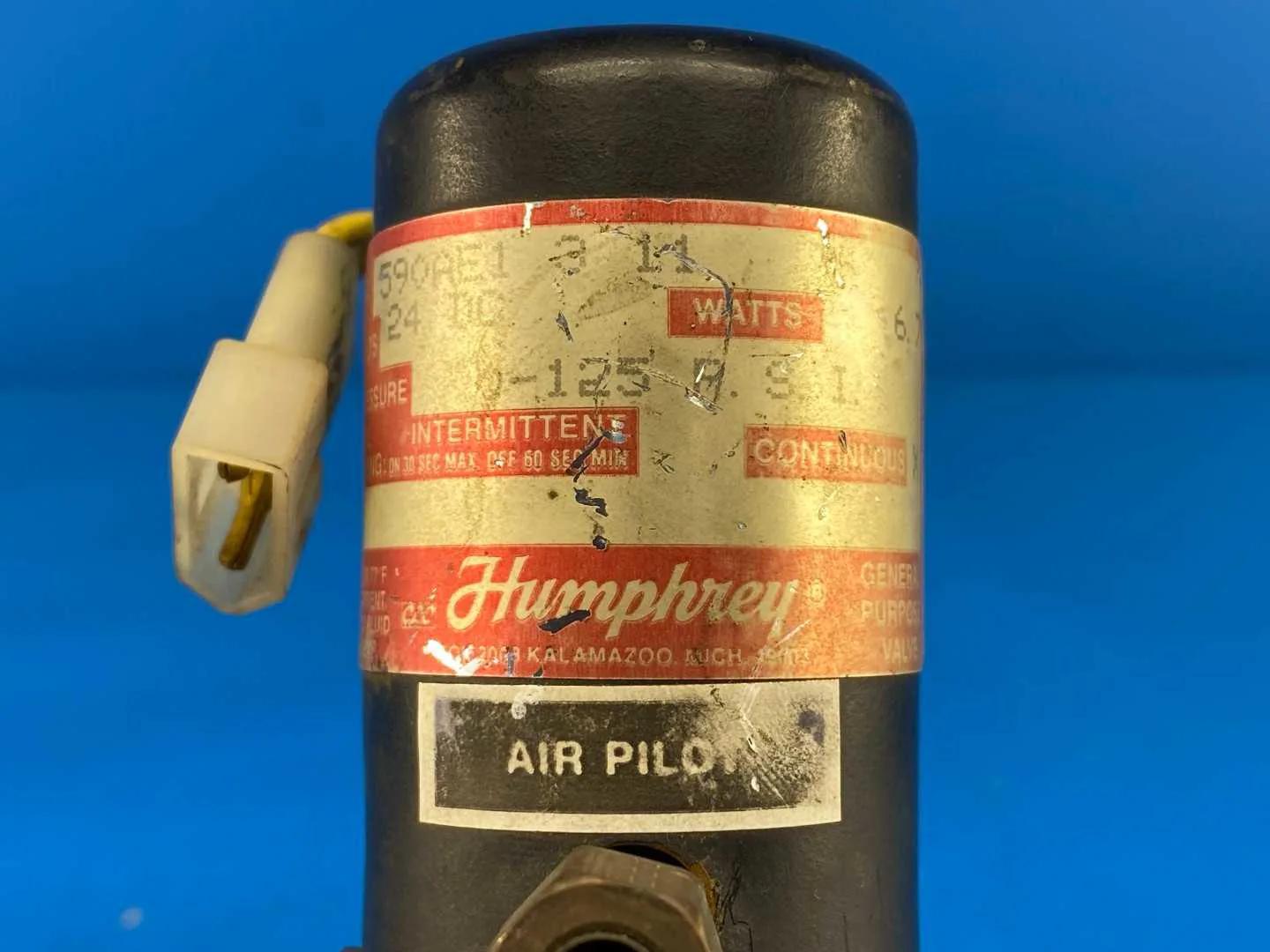

- Spec Basis: nameplate photo (Humphrey 590AE1-3-11, 24 DC, 6.7 WATTS, PRESSURE 0-125 P.S.I., CONTINUOUS, AIR PILOT, GENERAL PURPOSE VALVE, KALAMAZOO, MICH.); Humphrey Products 590A210BRB page (humphrey-products.com/products/large-2-way-3-way-air-pilot-operated/590A210BRB) and VAB590AE124VDC page (humphrey-products.com/products/solenoid-valves/VAB590AE124VDC) for 590 series port, orifice and flow
