Description | Details |
---|---|
Available Quantity | 3 |
Model | 19311104L |
Condition | New |
Manufacturer | Moline |
Asset Number | KSC1290 / 1712 |
Guarantee or ASIS | 1. HIGH CONFIDENCE ITEM: We will offer a 100% 14 Day money back less S&H. |
Inspections - Yellow Tag | 1. New in Box |
Packaging Cost | 1.6 6x10 CH $3.00 |
Asset #
KSC1290 / 1712
Available Quantity
3
Inspections - Yellow Tag
1. New in Box
Condition
New
Guarantee or ASIS
1. HIGH CONFIDENCE ITEM: We will offer a 100% 14 Day money back less S&H.

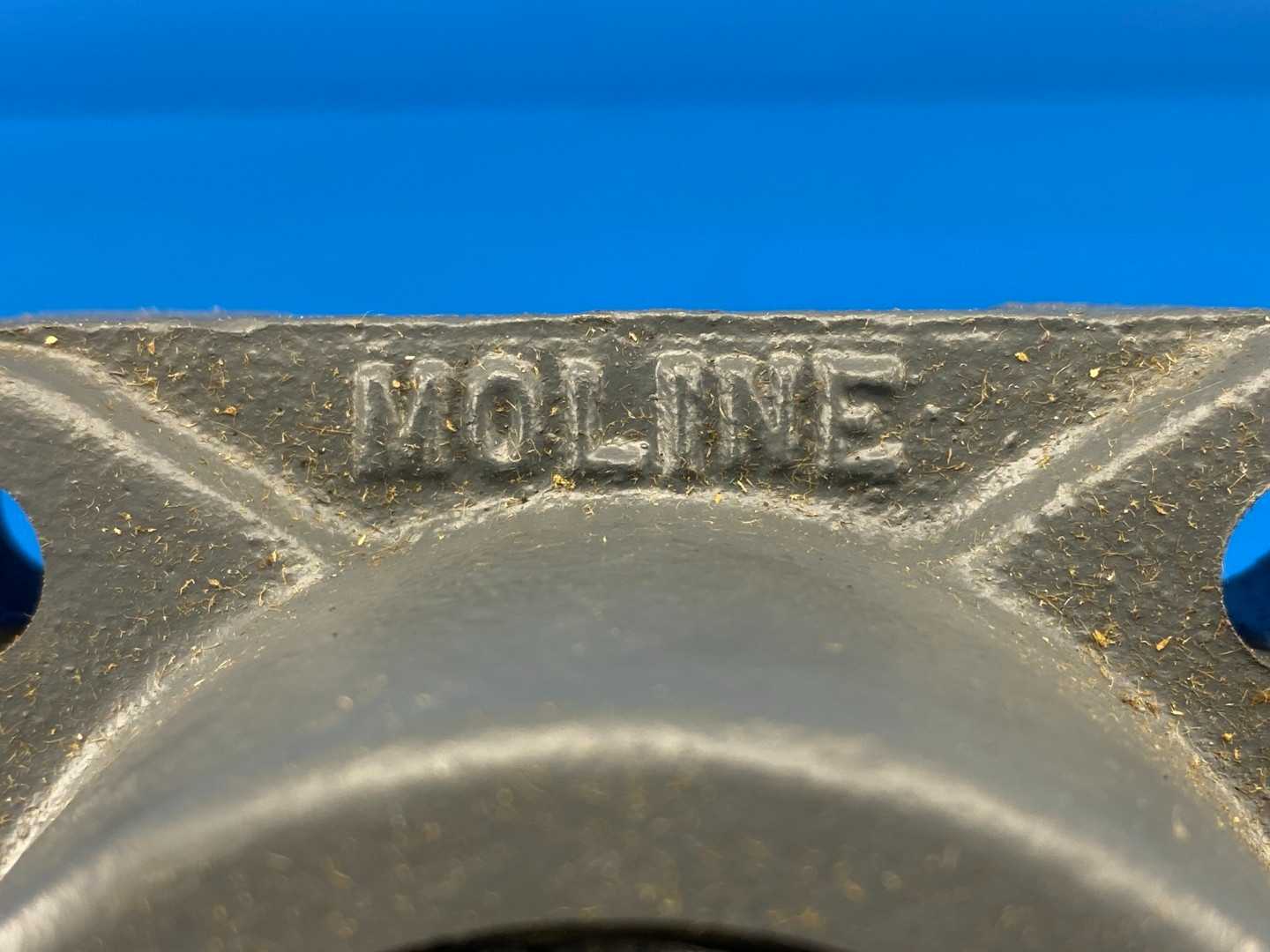

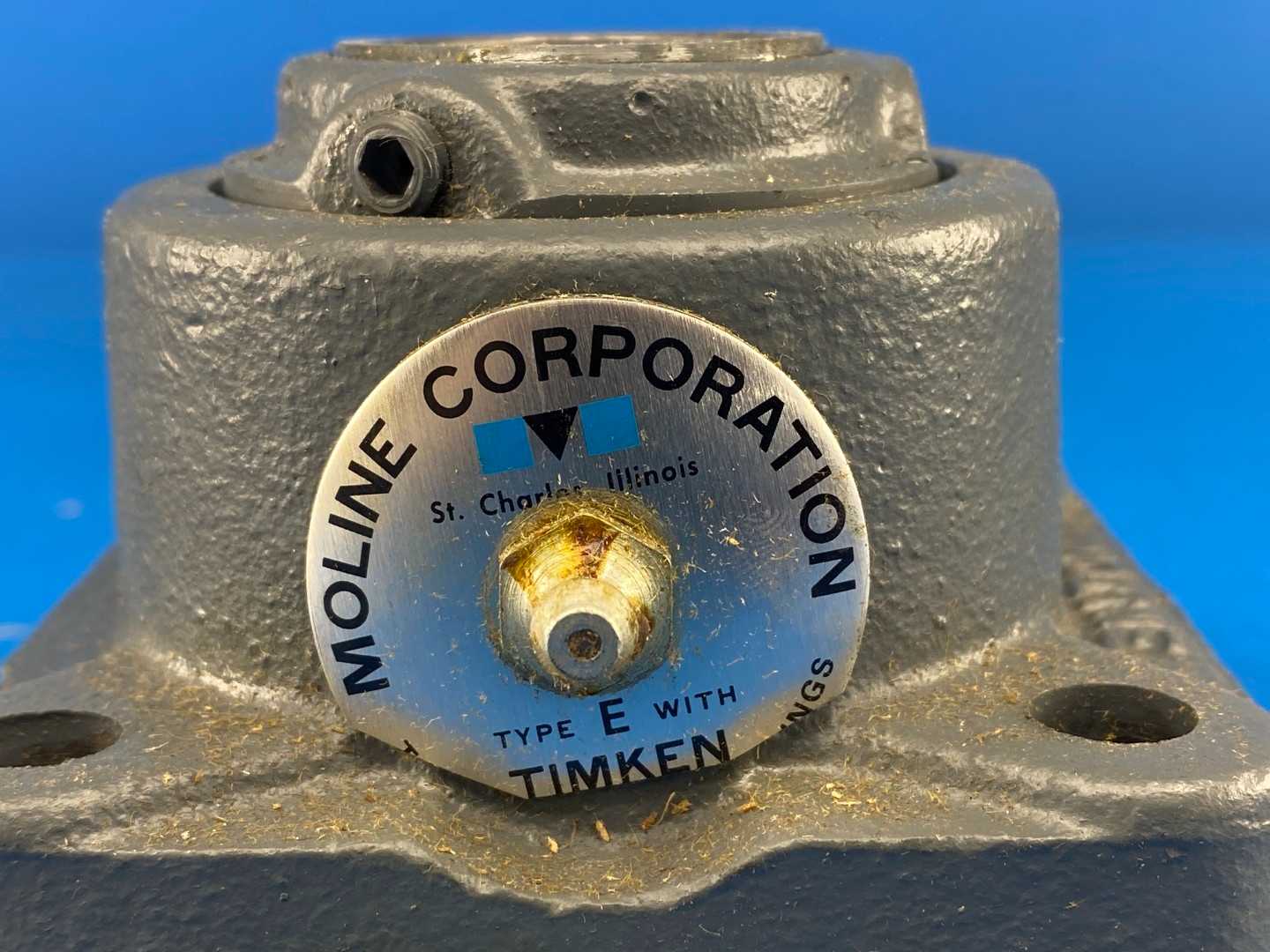

These flange bearings are heavy duty with double taper roller bearings inside for the best performance in radial and thrust loads. Equal to Dodge Type E flange series, these heavy duty flange bearings are made by Moline Bearing Co. in the USA.
Housings are made of high-quality gray iron. The bearings are genuine Timken tapered roller bearings consisting of vacuum degassed steel which gives rollers and races added life and provides superior load and speed characteristics. The drive collar on each end of inner race comes with 2 headless set screws spaced 65 apart, locking the bearing to the shaft. This design allows for radial and thrust load capacities. This bearings comes completely assembled, adjusted, sealed and pre-lubricated at the factory. The bearings come standard with V-Guard™nitrile and teflon contact seal for extreme dirt and wet environments.

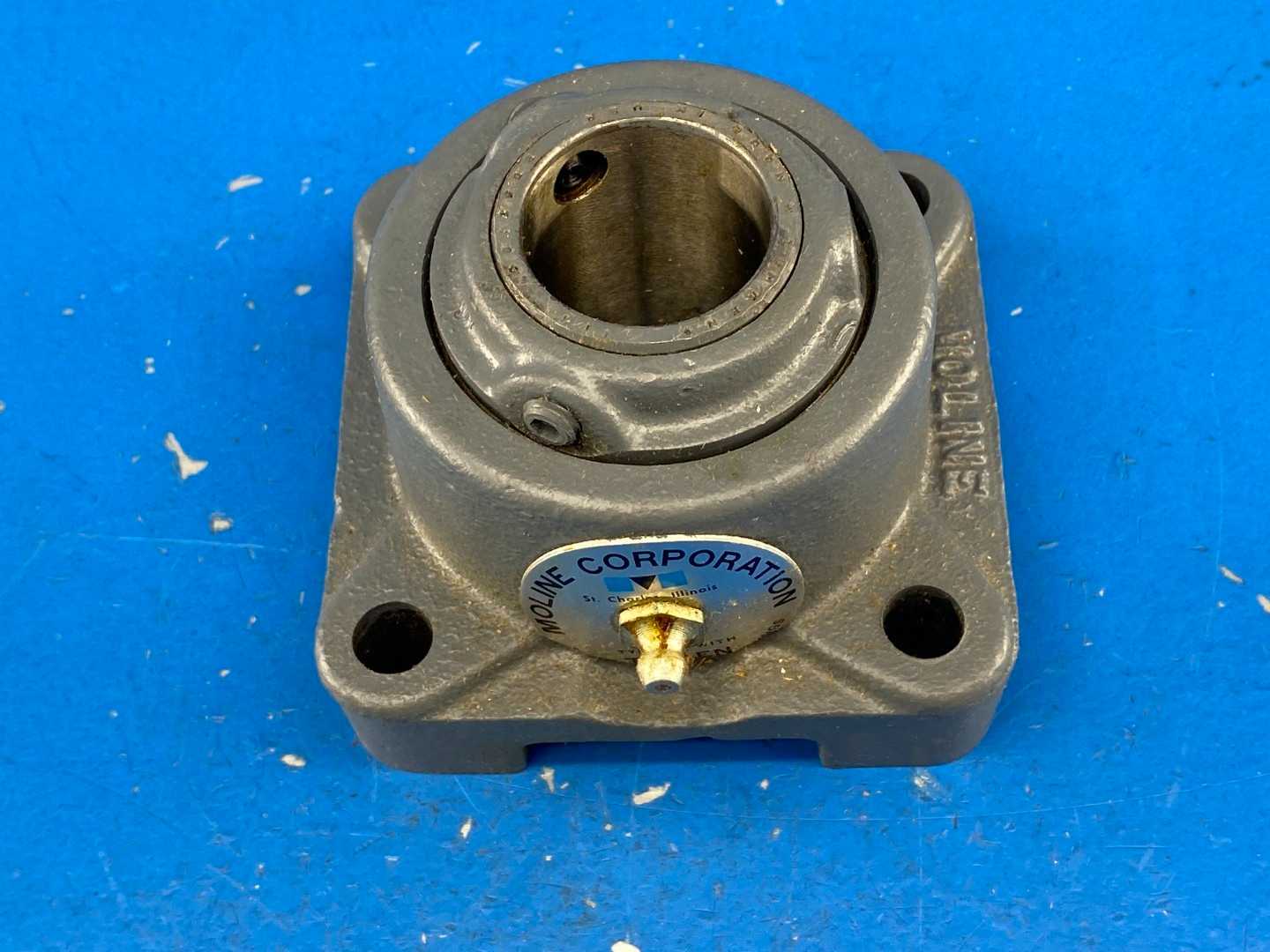

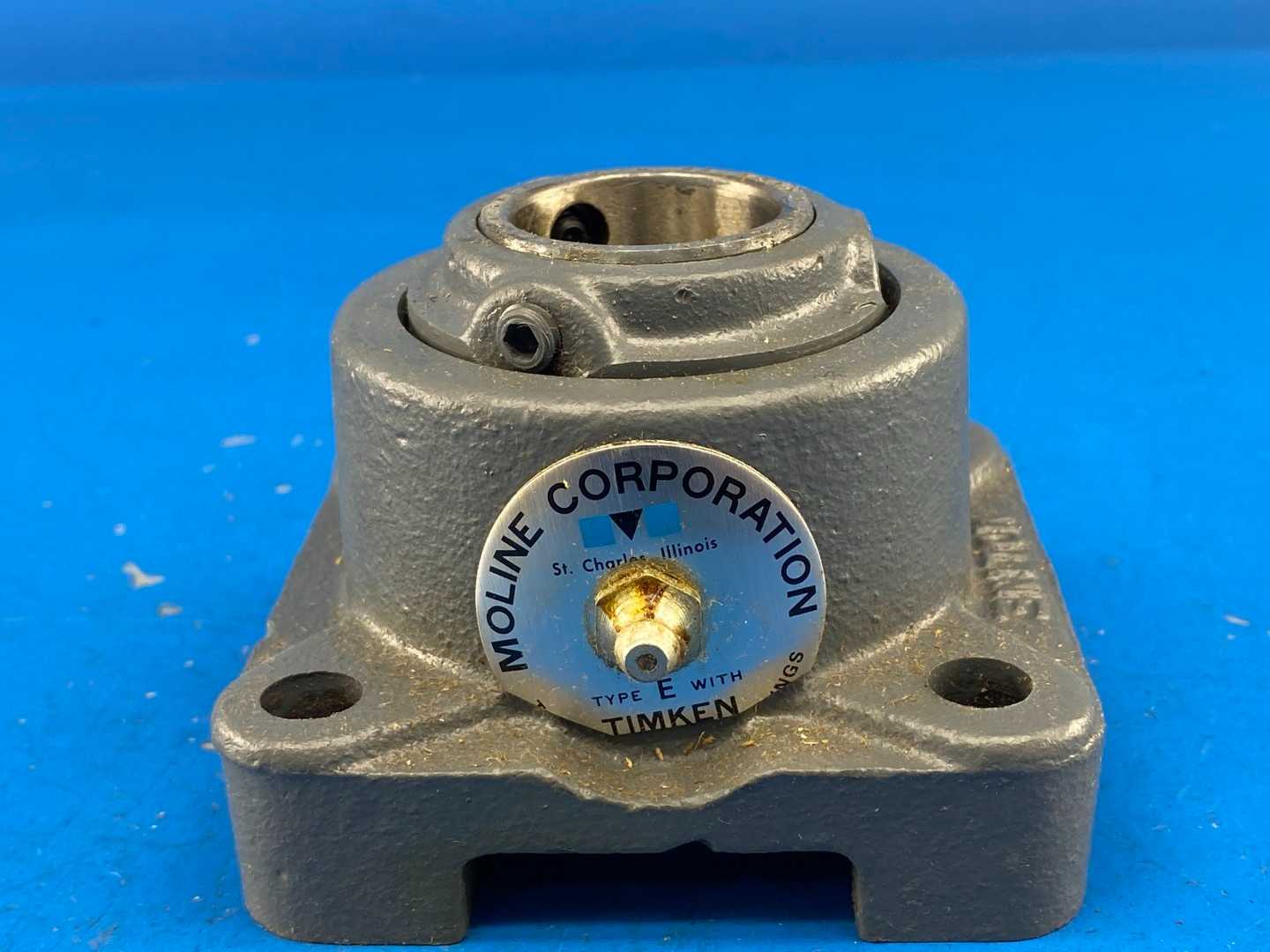

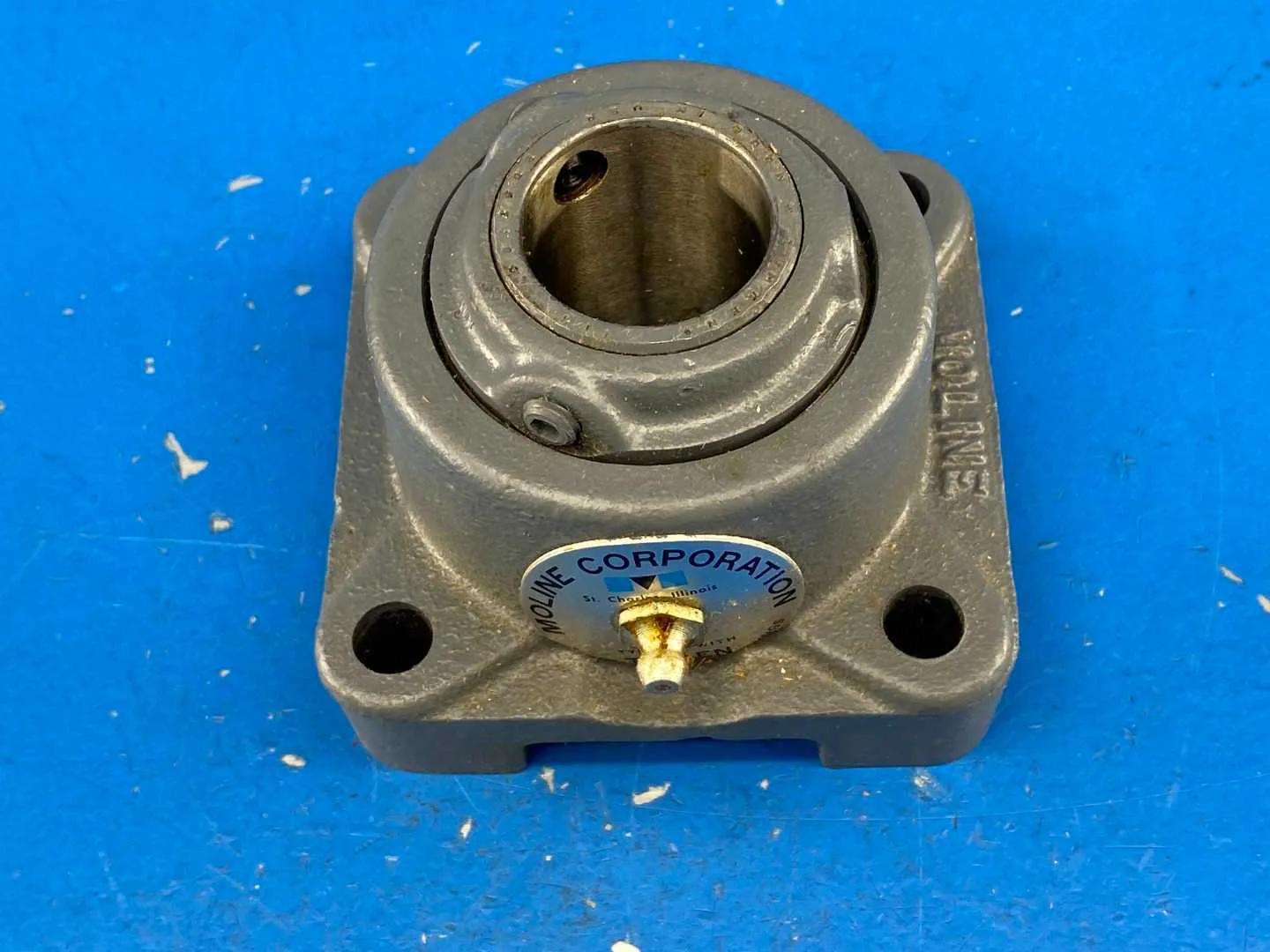

This Type E bearing features a 1-1/4 inch bore diameter and a 4-bolt flange mounting design with a bolt center-to-center length of 2-7/8 inches. It is equipped with a set screw locking device and a labyrinth seal for reliable performance in demanding environments. The unit has an overall length/diameter of 3-3/4 inches and an overall depth of 4-1/2 inches, offering a static load capacity of 15,760 lbs and supporting a maximum speed of 3,800 rpm. The finish is
water-based painted for durability and corrosion resistance.
Interchangeable with:
Timken: E-4BF-TRB-1-1/4
Dodge: 023094 F4B-E-104R
Sealmaster: RPB-104
Browning: FBE-920-1-1/4
Royersford: 20-05-0104
Moline: 19311104
Packaging Cost
1.6 6x10 CH $3.00
Appraised Value
$174.40
