Pangborn P000189-1 Pneumatic Cylinder Assembly w/ Clippard 070-24-2 5/8 Cylinder & MME-41PES 110VAC Valve
P000189-1 Cylinder Specifications: Bore, Stroke & Mounting
Air System Fitment for Pangborn P000189-1
| Description | Details |
|---|---|
| Available Quantity | 1 |
| Model | P000189-1 |
| Condition | New |
| Manufacturer | Pangborn |

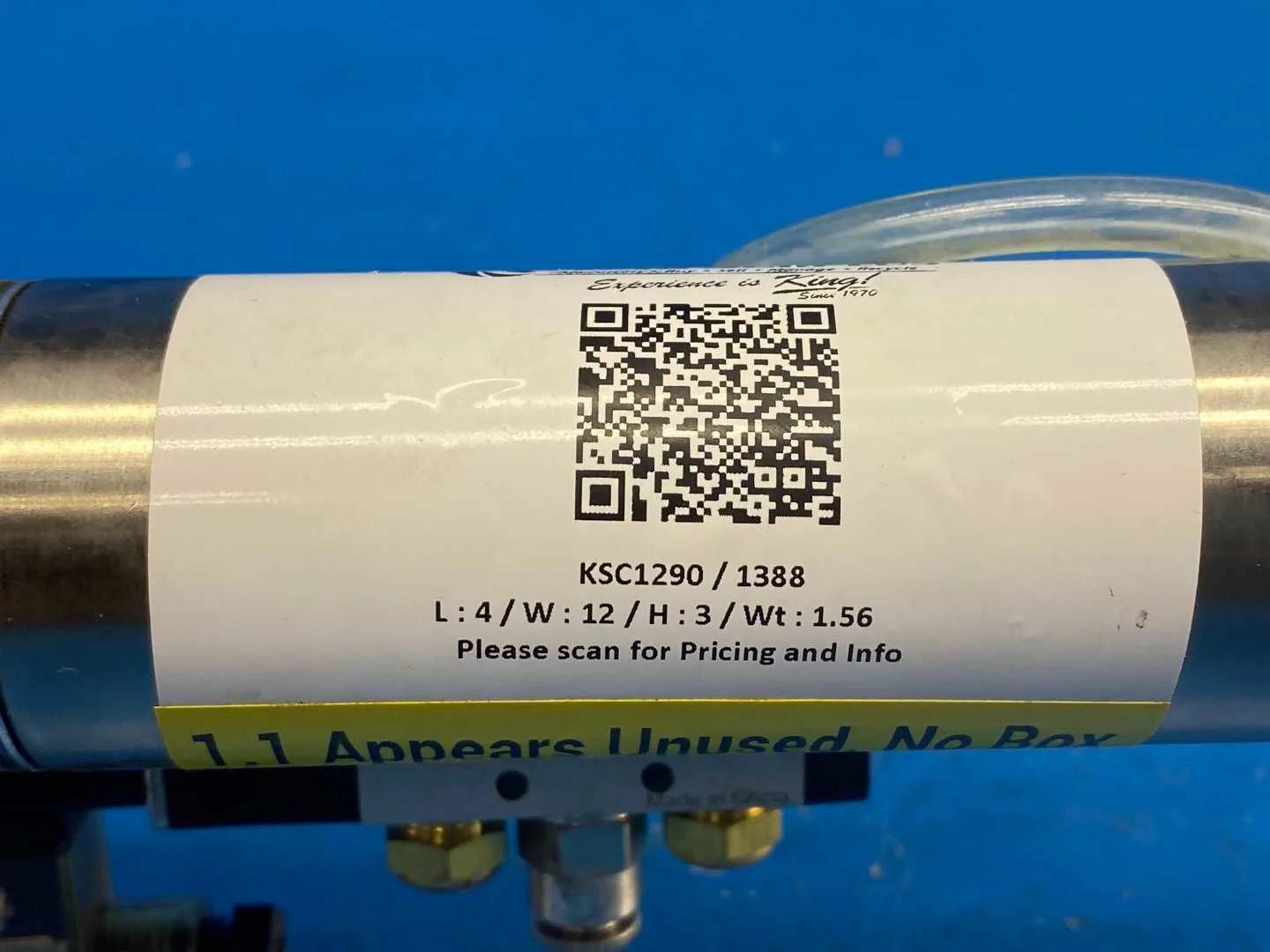

| Asset Number | KSC1290 / 1388 |
| Guarantee or ASIS | 2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return |
| Inspections - Yellow Tag | 1.1 Appears Unused no box |
| Packaging Cost | 1.6 6x10 CH $3.00 |
$39.95
Basic Information
Asset #
KSC1290 / 1388
Available Quantity
1
Inspections - Yellow Tag
1.1 Appears Unused no box
Condition
New
Guarantee or ASIS
2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return
Item Description

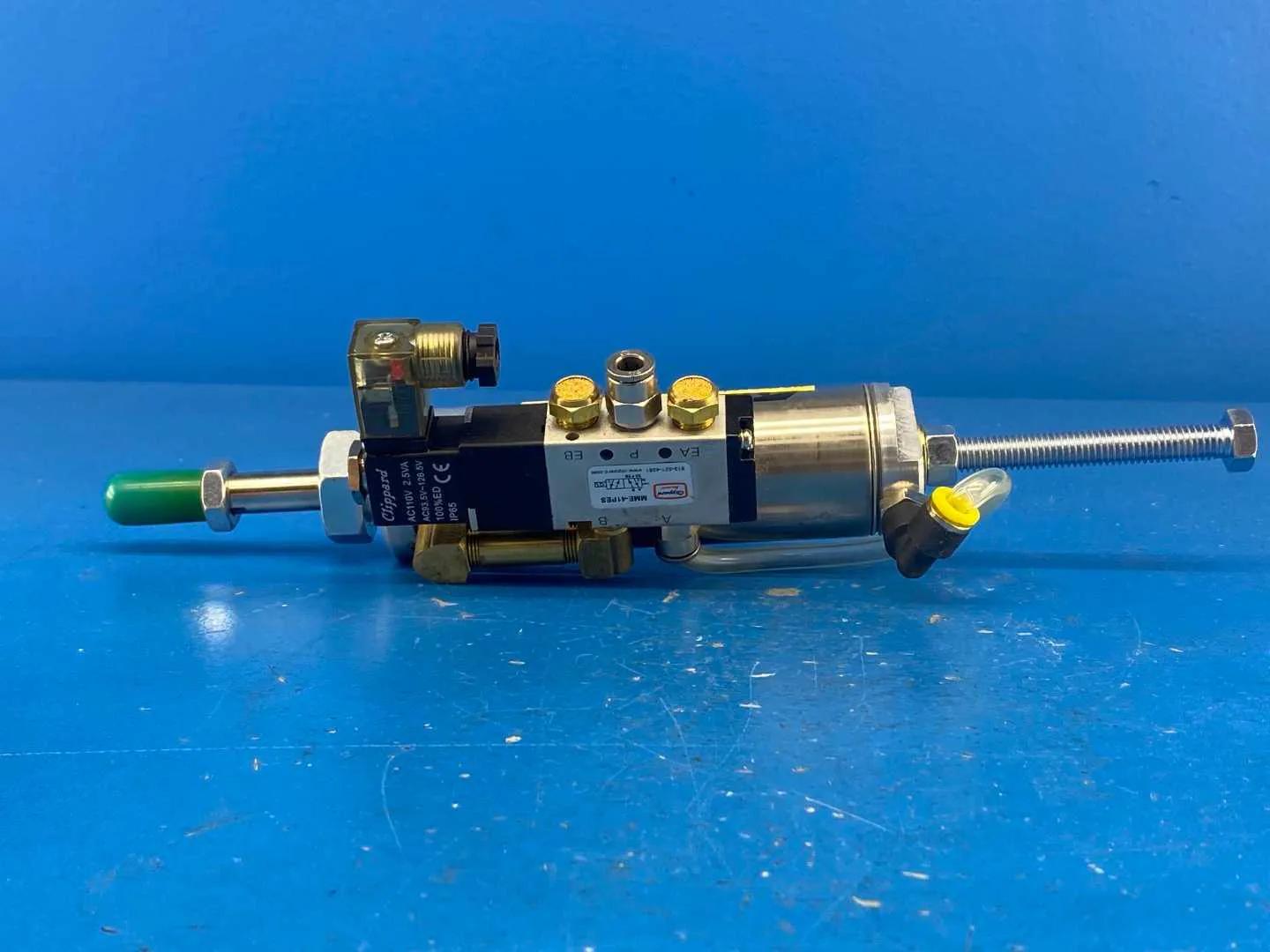

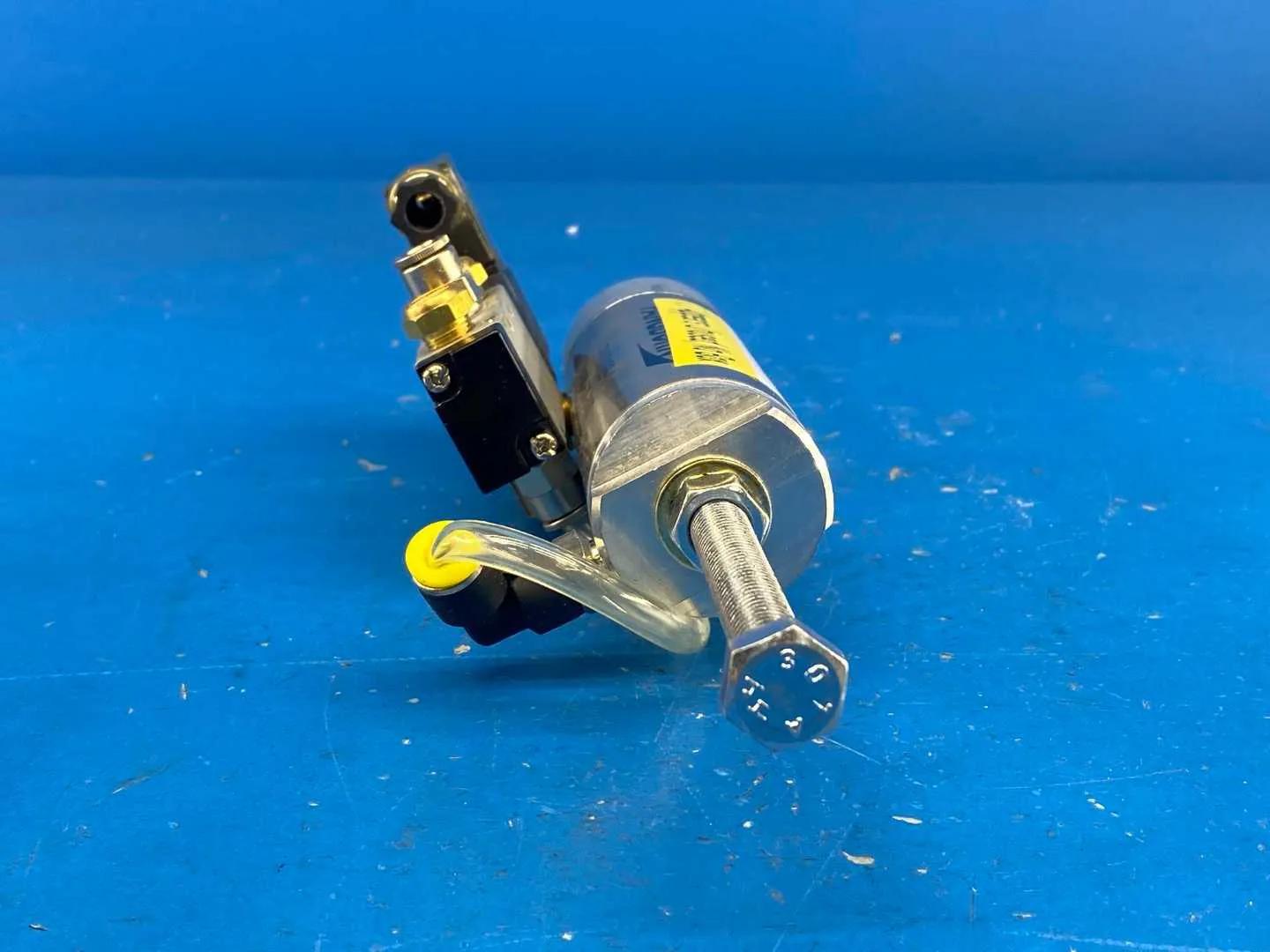

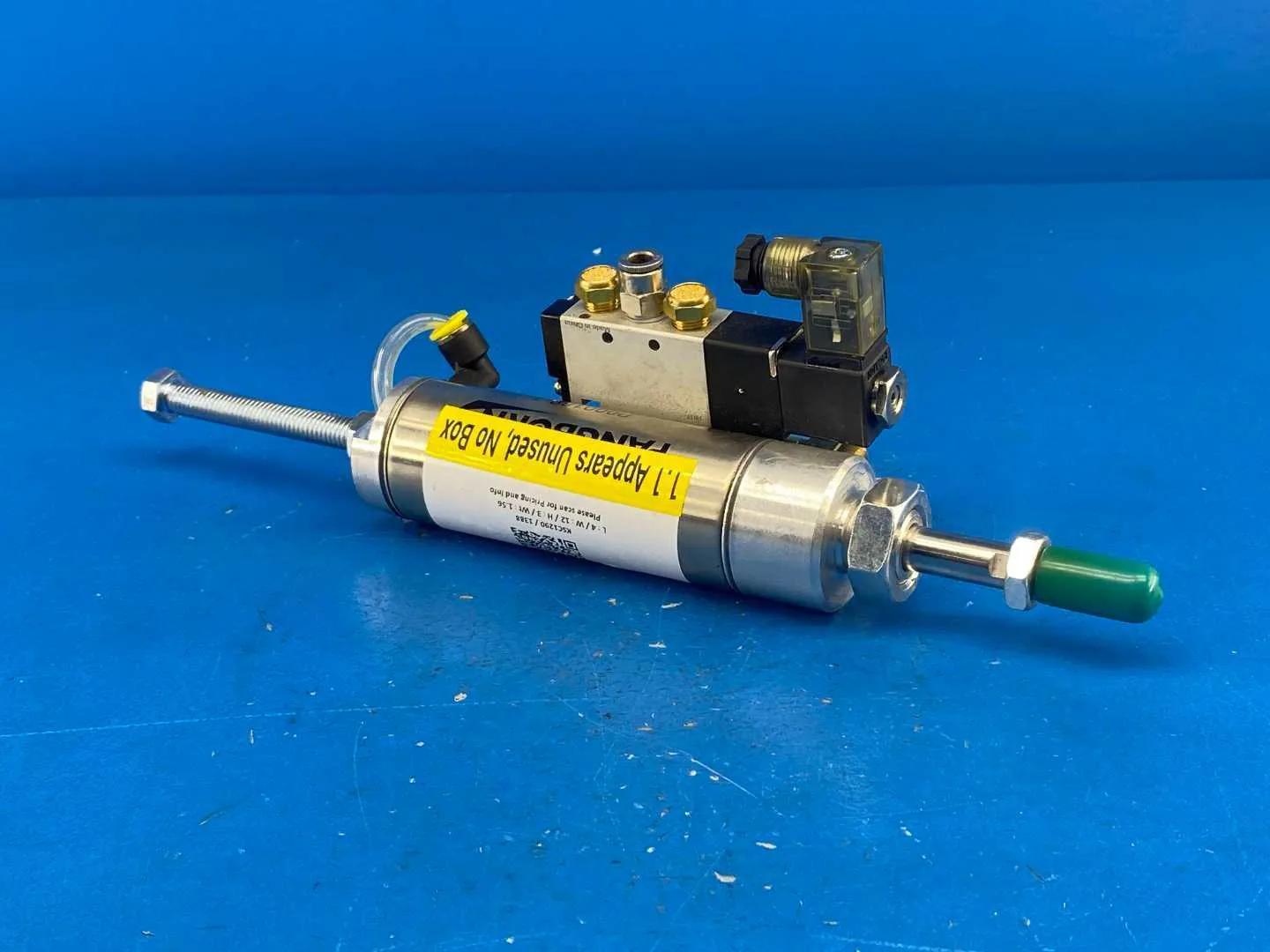

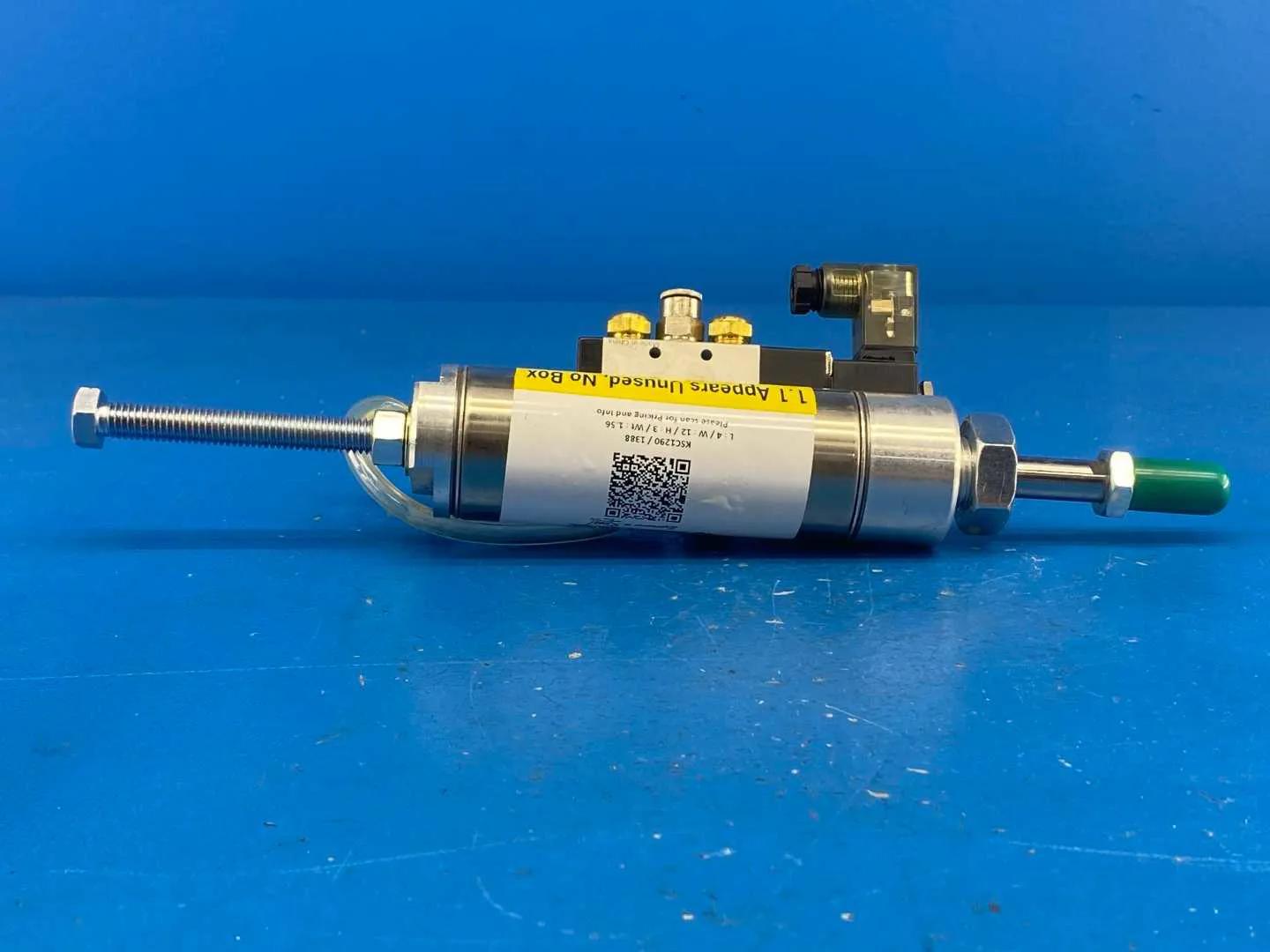

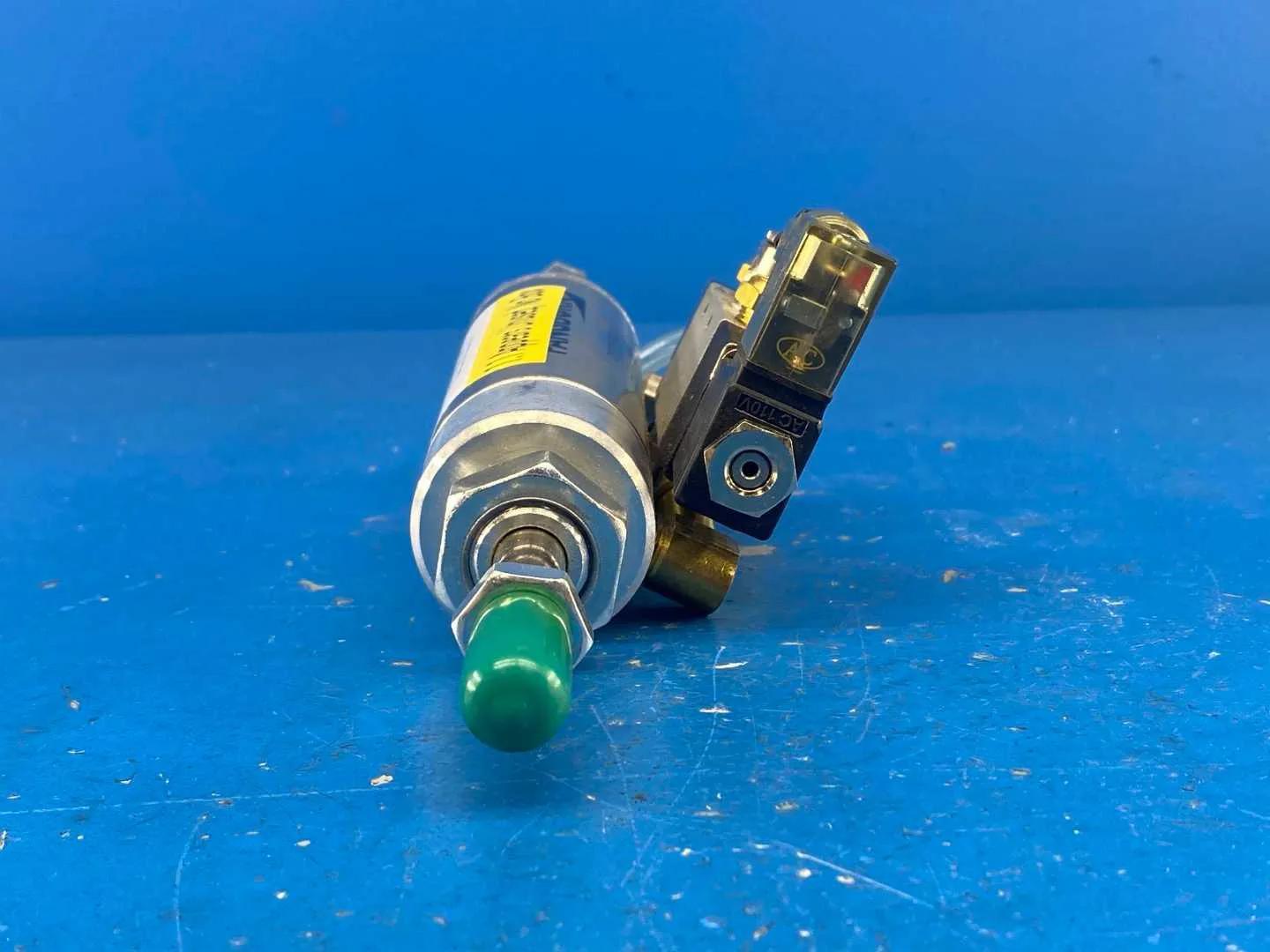

This is a pneumatic actuator assembly recorded as Pangborn part P000189-1, built from a Clippard miniature air cylinder marked 070-24-2 5/8 with a Clippard Maximatic MME-41PES solenoid valve mounted to it. Pangborn is a builder of abrasive blast cleaning and shot peening machines, and assemblies like this are used on those machines to open and close gates, dampers and media valves.

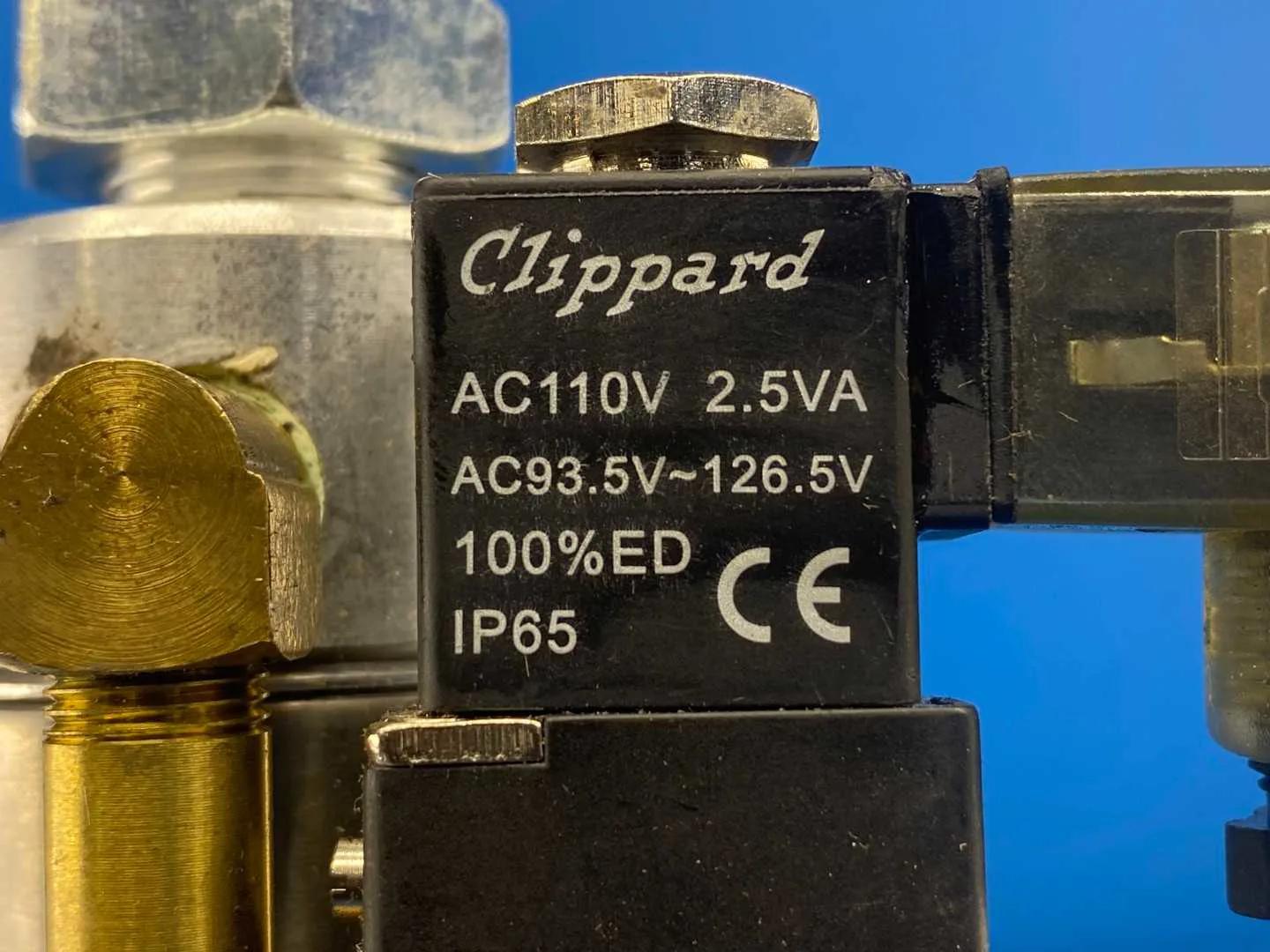

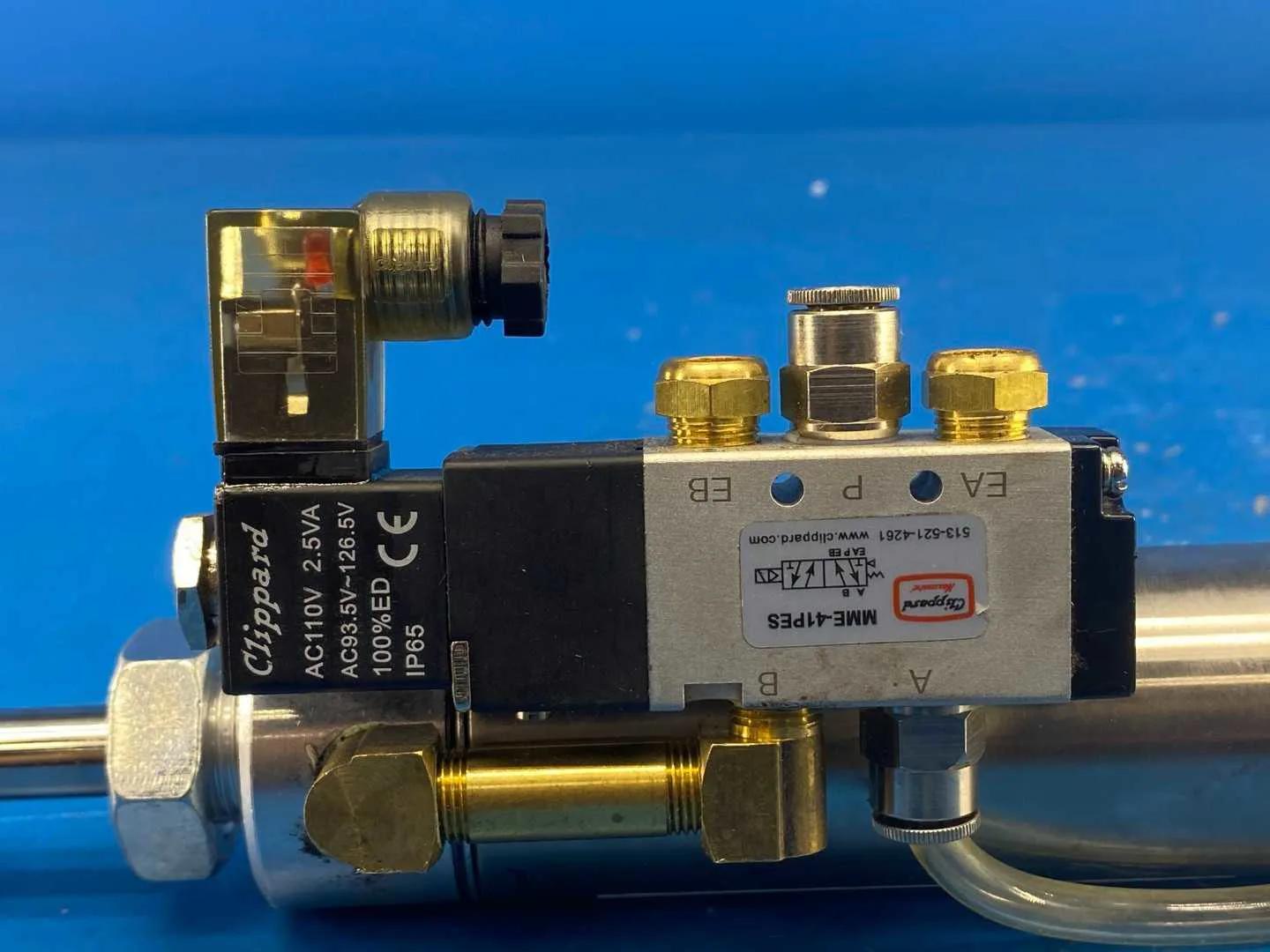

The MME-41PES is a 4-way, 5 port, single solenoid valve with 1/8 in NPT ports. Energizing the coil shifts the valve and directs air to one side of the cylinder, and de-energizing it returns the valve to its normal position so the cylinder reverses. The nameplate on this valve reads AC110V with an operating range of 93.5 to 126.5 volts, 2.5 VA coil power, 100% duty cycle and IP65 protection. Clippard lists replacement coil 27001-D110 for the 110 VAC DIN connector version.
Maintenance technicians servicing Pangborn blast equipment, and builders of small automated machinery needing a compact valve and cylinder package, are the usual buyers. Match the Pangborn part number to your machine parts list.
Available from King Surplus inventory in Del Rio, Texas.
Factory Information
- Assembly (per record): Pangborn P000189-1 integrated pneumatic cylinder assembly

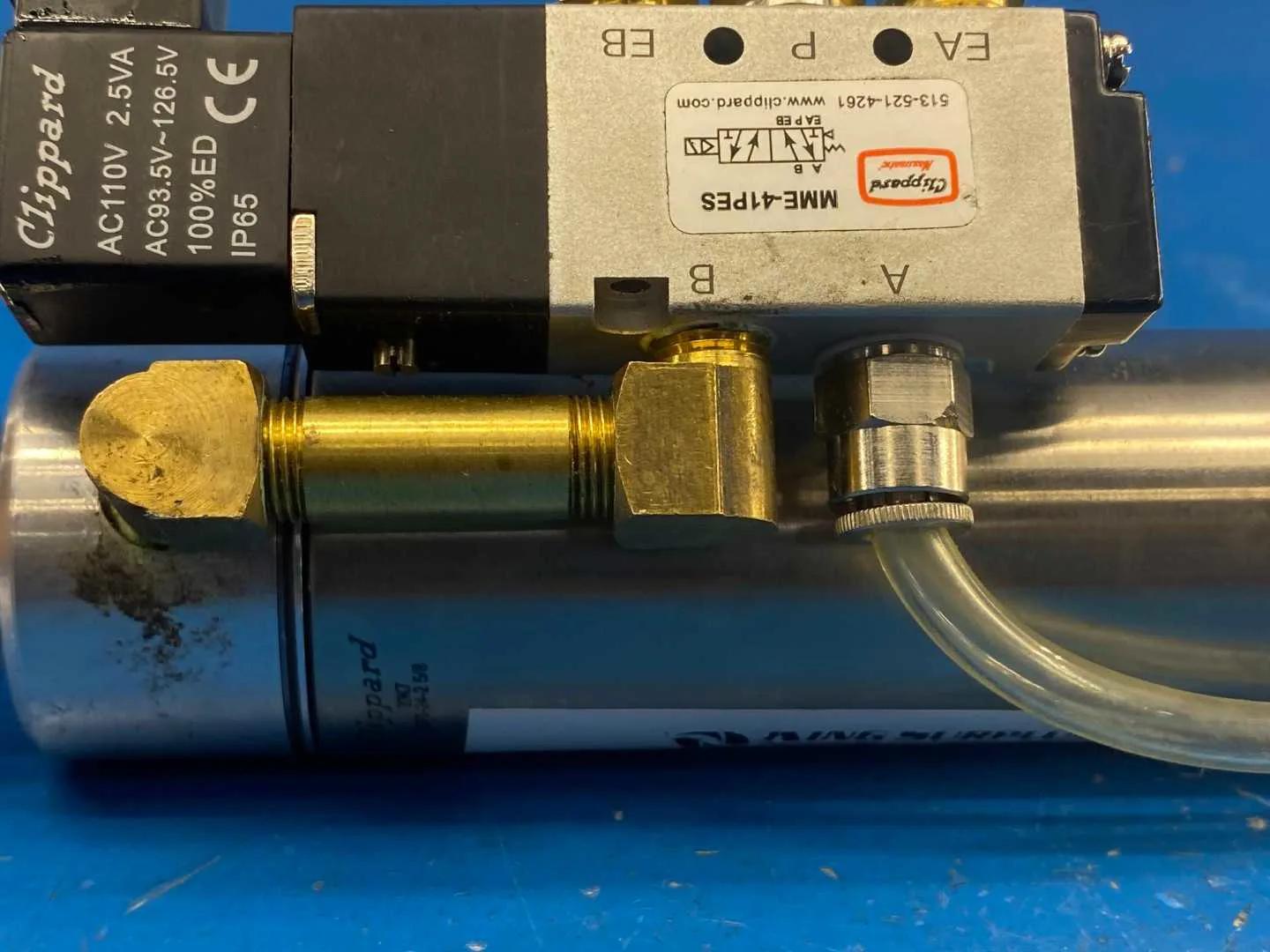

- Valve: Clippard Maximatic MME-41PES solenoid valve

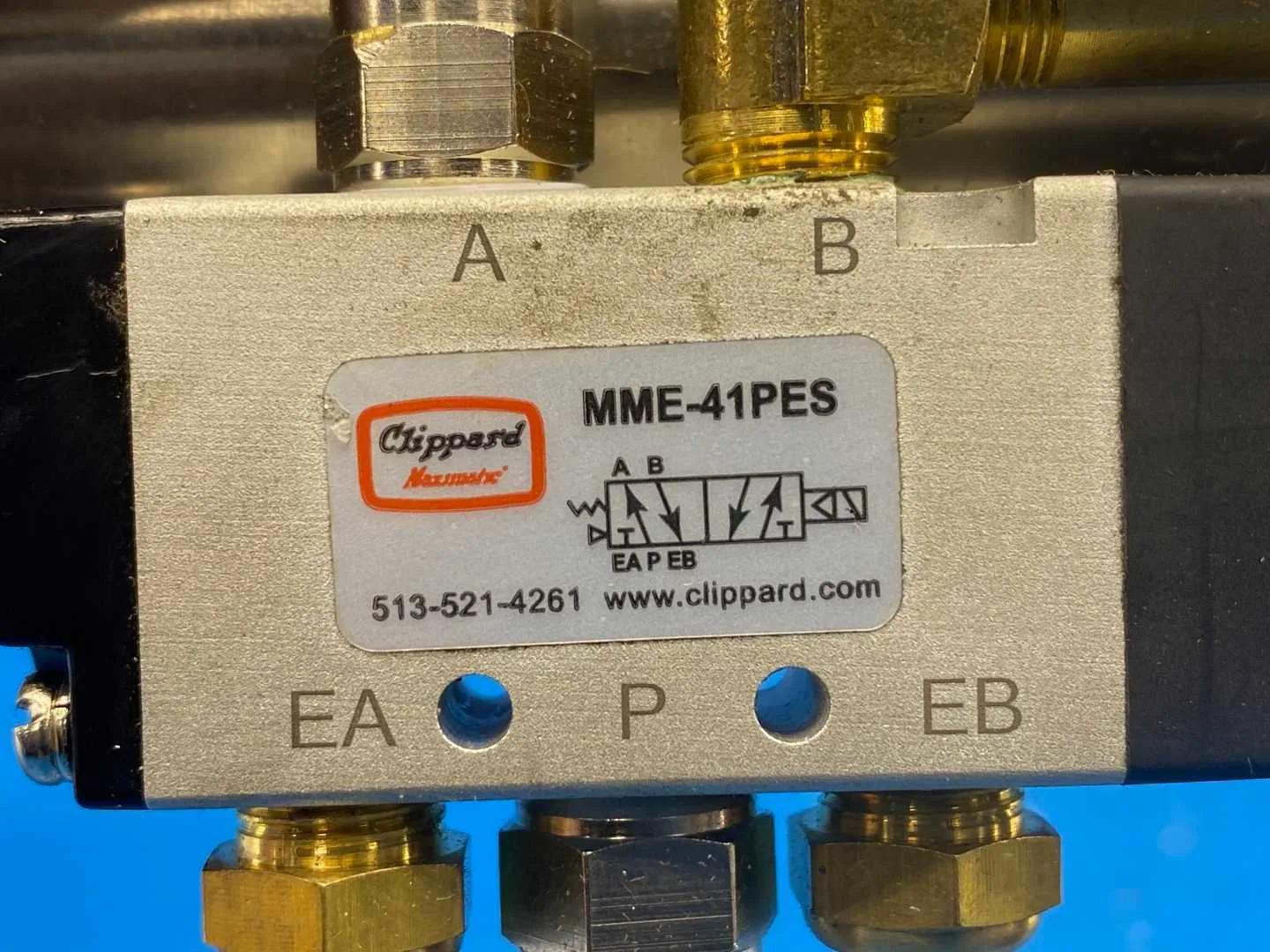

- Valve Function: 4-way, single solenoid, 5 port
- Valve Ports: 1/8 in NPT
- Coil Voltage (nameplate): AC110V, operating range AC93.5V to 126.5V
- Coil Power (nameplate): 2.5 VA
- Duty Cycle (nameplate): 100% ED
- Ingress Protection (nameplate): IP65
- Marking (nameplate): CE
- Replacement Coil (Clippard, 110 VAC DIN version): 27001-D110

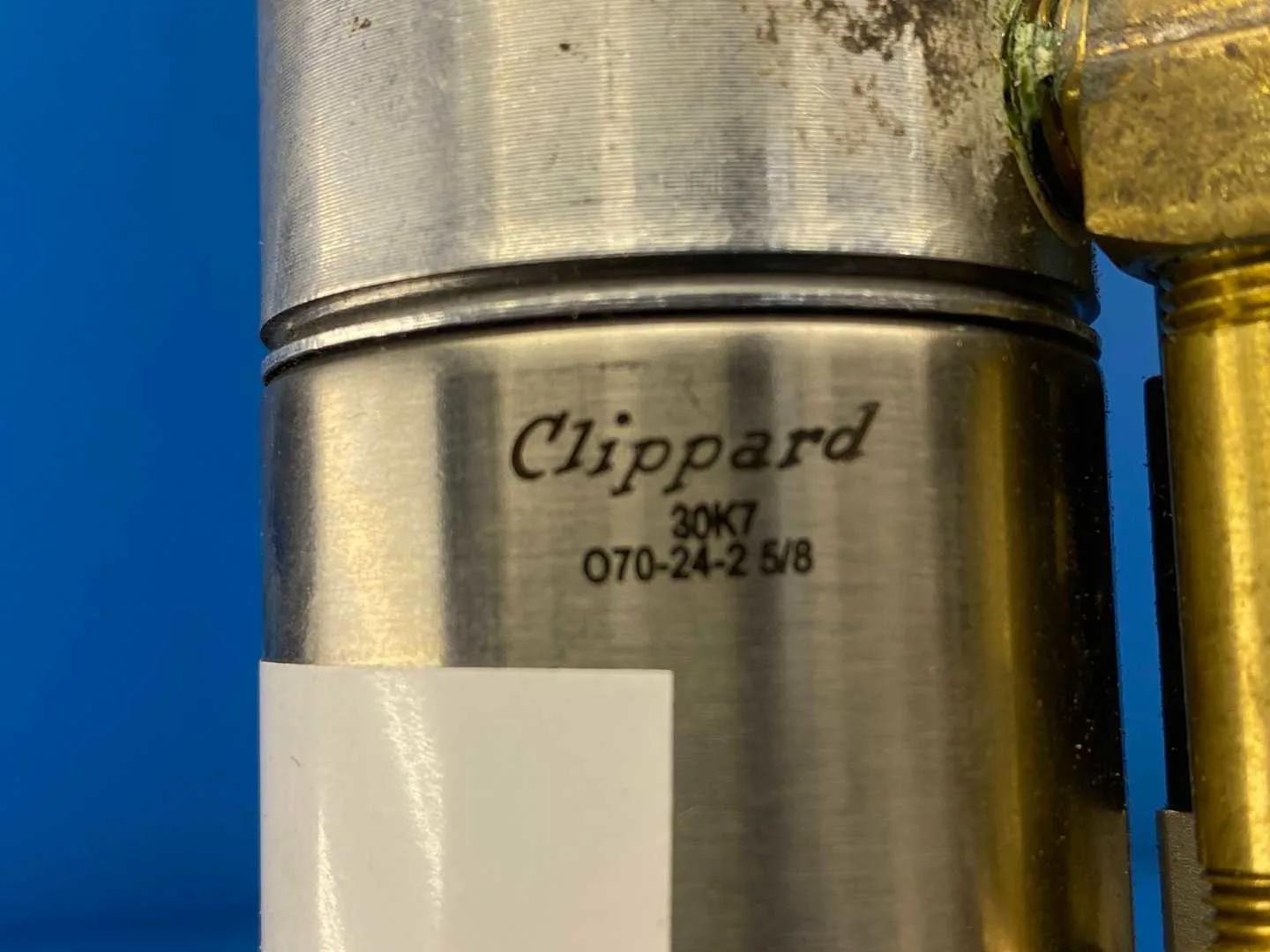

- Cylinder Marking: Clippard 30K7, 070-24-2 5/8
- Valve Country of Origin (nameplate): China

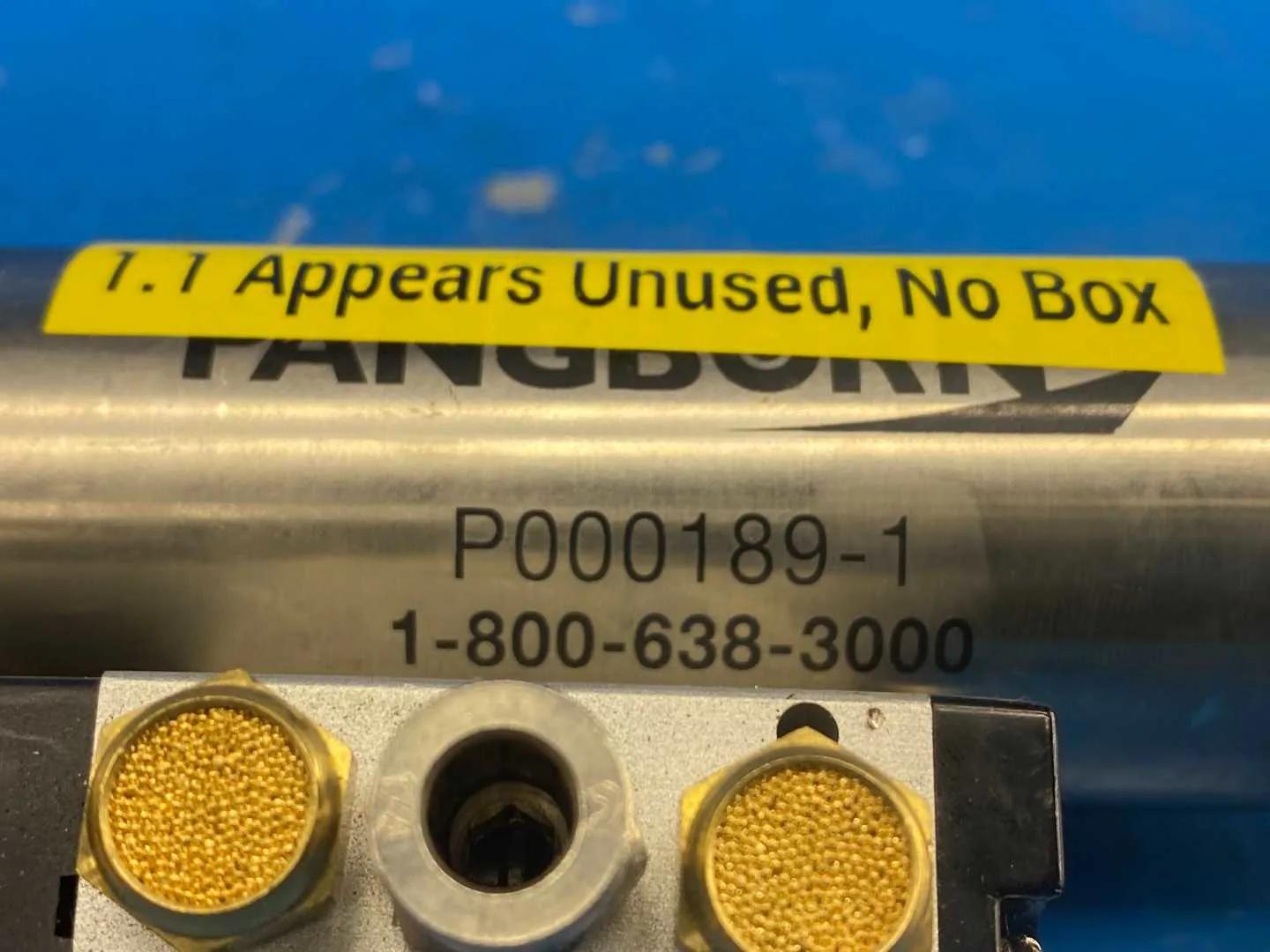

- Marking: PANGBORN P000189-1 printed on the cylinder
- Spec Basis: nameplate photo (Clippard valve and cylinder markings); Clippard MME-41PES-D110 part page https://www.clippard.com/part/MME-41PES-D110; Clippard MME-41PES-W110 part page https://www.clippard.com/part/MME-41PES-W110
Specifications
Pangborn
P000189-1
N/A
N/A
N/A
0.023
4
12
3
1
2
3.56
KSC1290 / 1388
Packaging fees
1.6 6x10 CH $3.00
