Parker 30 Series 3/8" x 2-Wire No-Skive Field Attachable Hydraulic Hose Fitting Socket
PH-30 2W3/8 Specifications: Pressure Rating, Size & Ends
Hydraulic System Fitment for Parker Hannifin PH-30 2W3/8
| Description | Details |
|---|---|
| Available Quantity | 4 |
| Model | PH-30 2W3/8 |
| Condition | New |
| Manufacturer | Parker Hannifin |
| Asset Number | KSC1290 / 2147 |
| Guarantee or ASIS | 2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return |
| Inspections - Yellow Tag | 1.1 Appears Unused no box |
| Packaging Cost | 1.6 6x10 CH $3.00 |
$19.95
Basic Information
Asset #
KSC1290 / 2147
Available Quantity
4
Inspections - Yellow Tag
1.1 Appears Unused no box
Condition
New
Guarantee or ASIS
2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return
Item Description

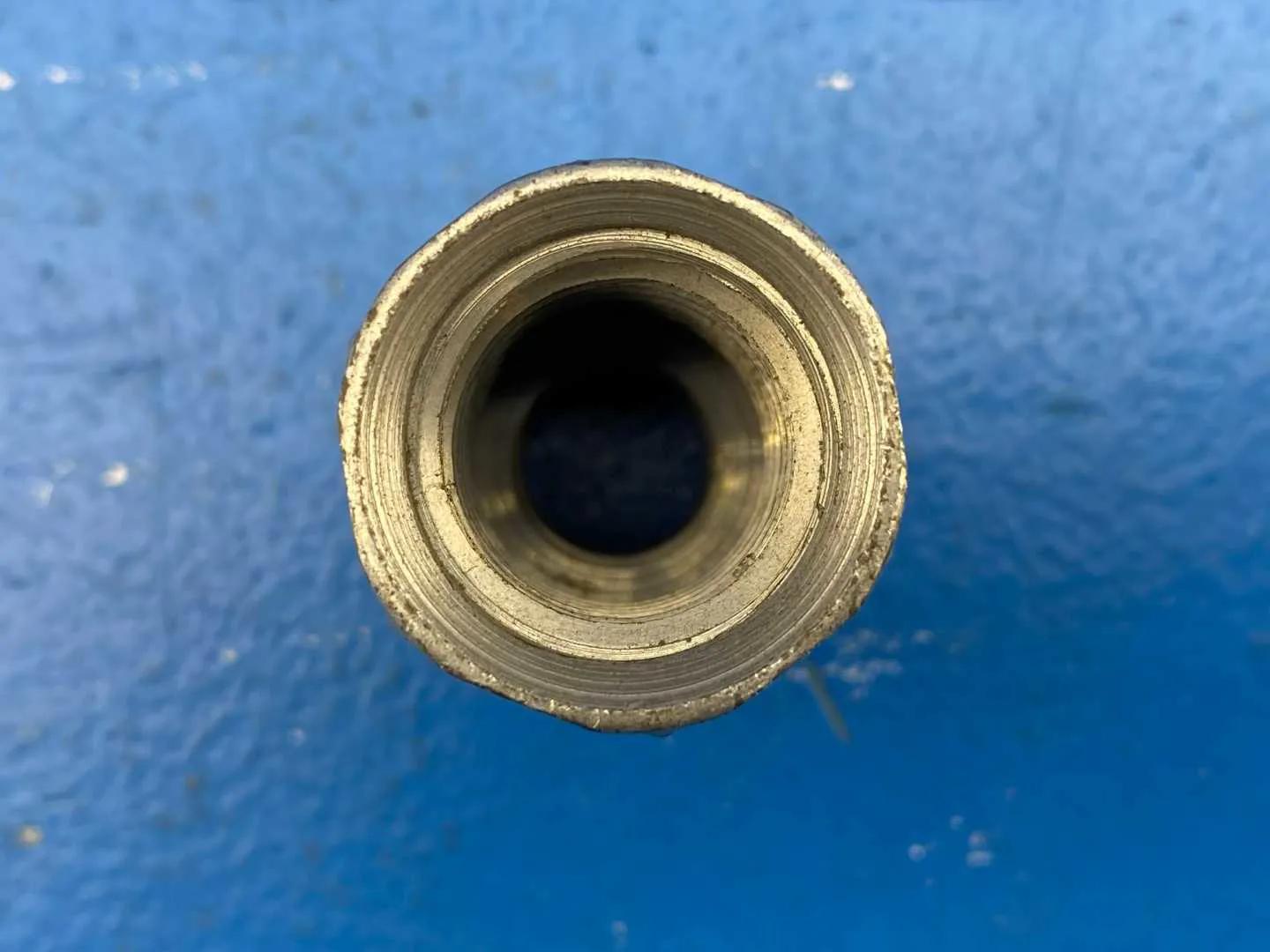

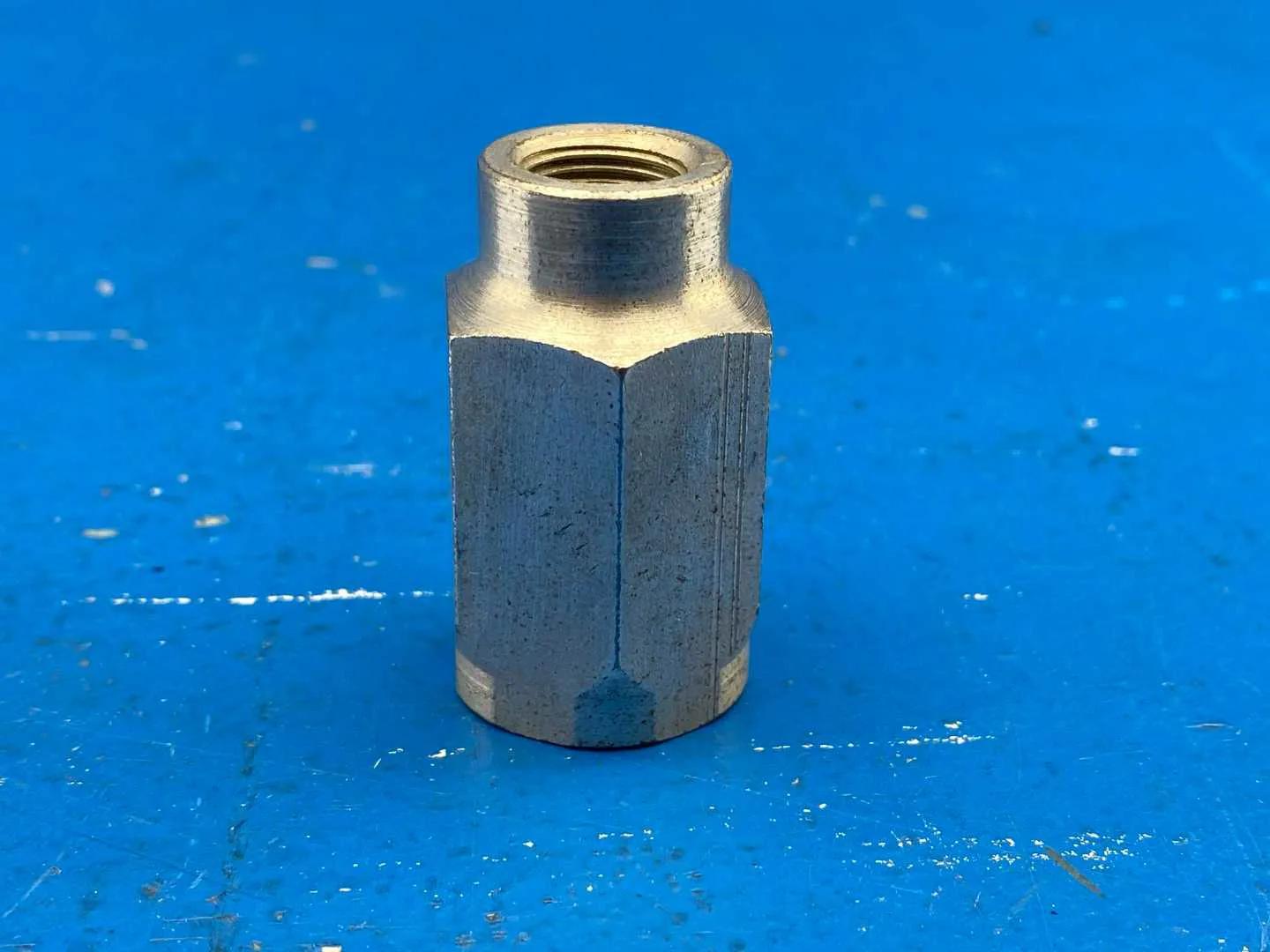

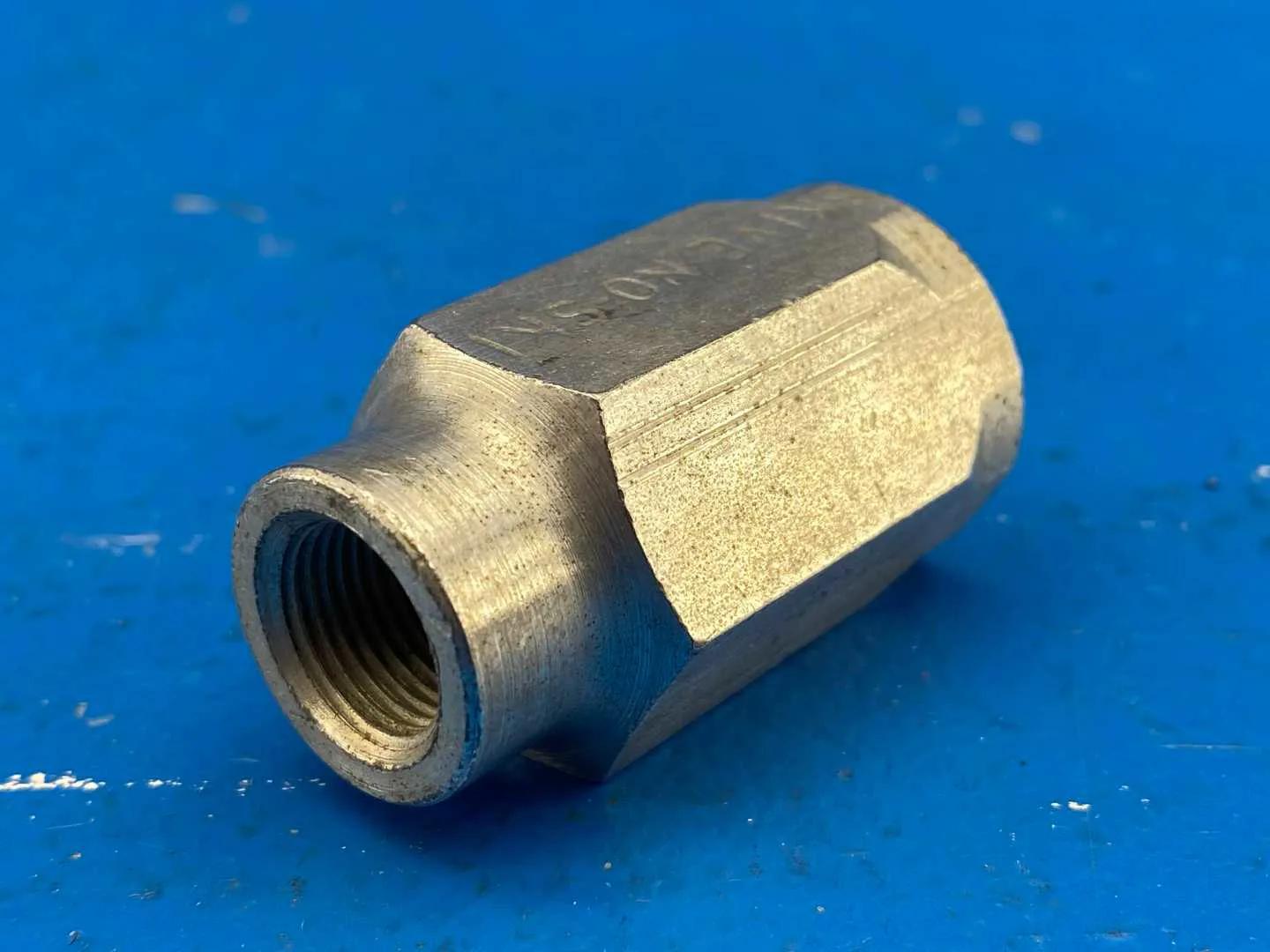

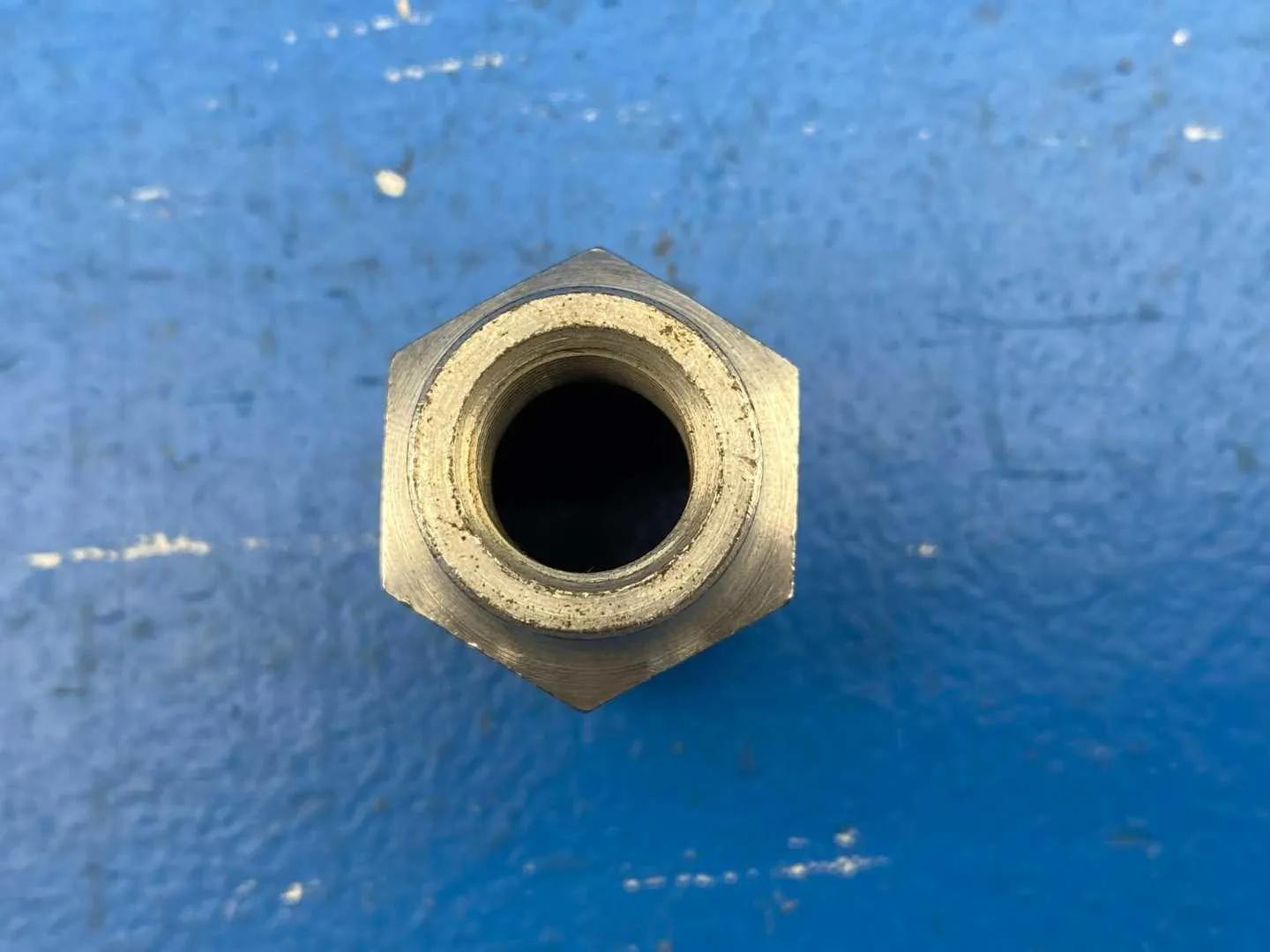

This lot is Parker Hannifin 30 Series field attachable hydraulic hose fitting hardware, stamped PH-30 and 2W 3/8 with a No-Skive marking. Parker Hannifin makes hydraulic hose, fittings and fluid connectors, and its 30 Series is a line of reusable style fittings for use with Parker No-Skive hose.
A field attachable fitting is a two piece fitting, a socket and a nipple, that threads onto the hose with ordinary wrenches instead of being crimped in a hydraulic crimping machine. Because No-Skive hose does not need the outer cover cut back before assembly, the fitting can be installed quickly without the risk of skiving the cover too long or too short. Parker offers 30 Series fittings from 3/16 inch to 2 inch in many end configurations.
The 3/8 marking gives the hose inside diameter, and the 2W marking is the hose type designation the fitting is matched to, commonly a two wire braid hose. Mobile equipment mechanics, farm and construction service crews and plant maintenance technicians use field attachable fittings to make emergency hose repairs on site where a crimper is not available.
Available from King Surplus inventory in Del Rio, Texas.
Factory Information

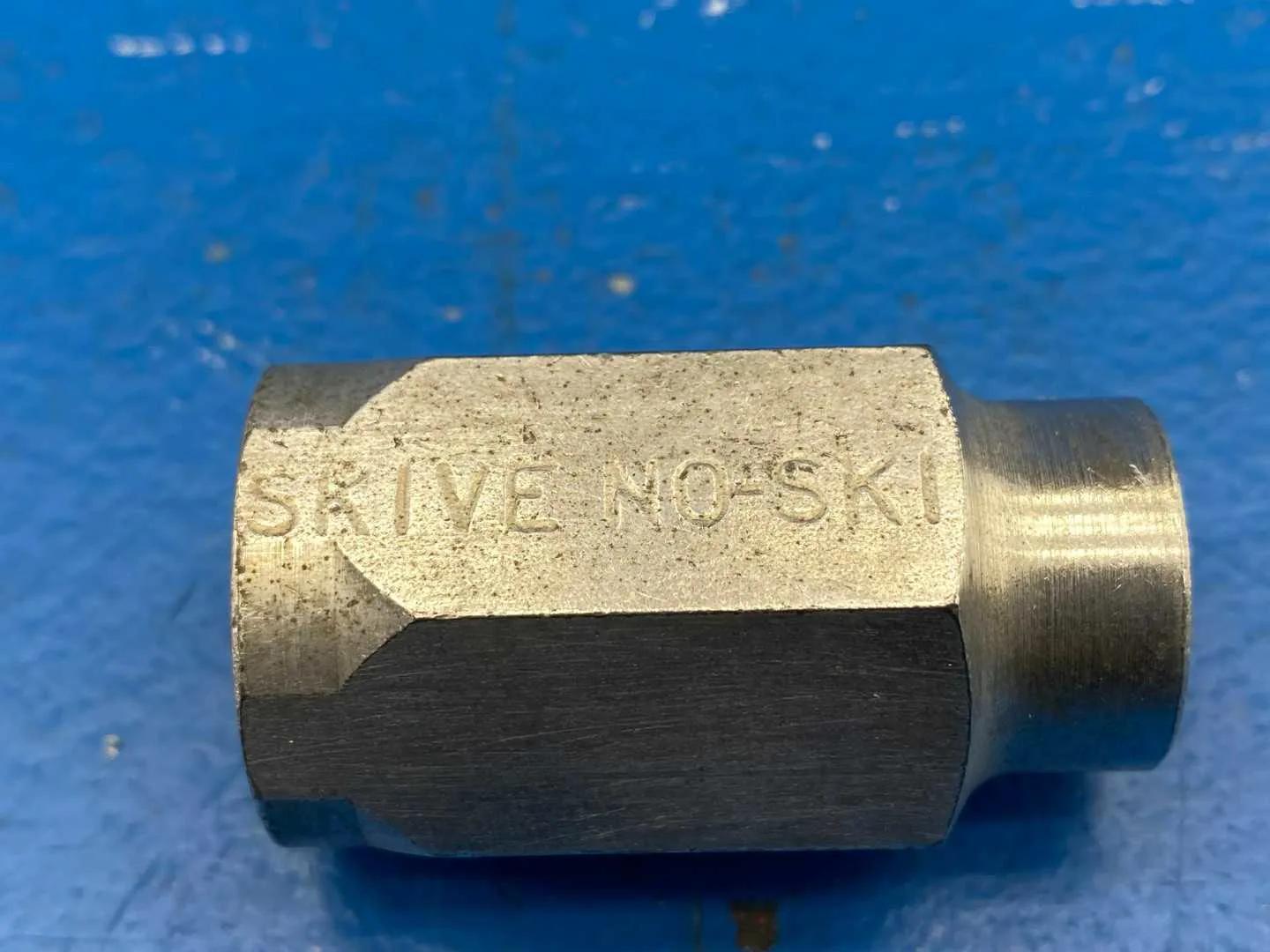

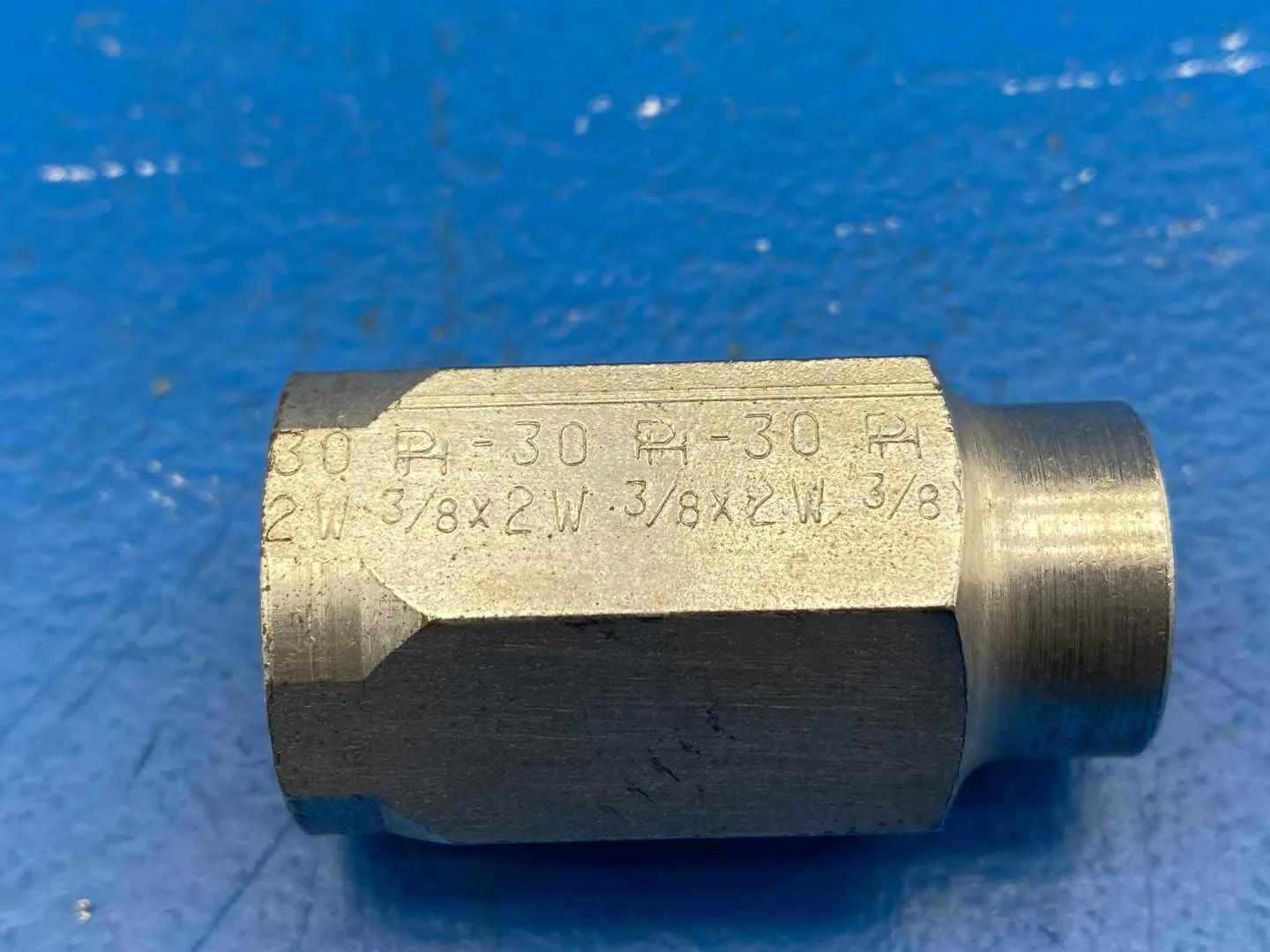

- Stamped marks: PH-30, 2W 3/8, NO-SKIVE, partial PARKER (stamped marks on fitting, photos)
- Series: Parker 30 Series field attachable hydraulic hose fitting
- Assembly: two piece fitting, assembled in the field with wrenches
- Hose compatibility: Parker No-Skive hose; assembly does not require skiving the hose cover
- Series size range: 3/16 in to 2 in
- Size marking: 3/8 in, 2W (stamped mark)
- Spec Basis: stamped marks read from photos (flagged as stamped marks, not a label); Parker 30 Series fittings product pages, https://ph.parker.com/us/en/product-list/30-series-fittings (search excerpt). No exact Parker part number or end configuration identified, so pressure rating and end type are left out.
Specifications
Parker Hannifin
PH-30 2W3/8
N/A
N/A
N/A
N/A
1
2
1
N/A
2
2.14
KSC1290 / 2147
Packaging fees
1.6 6x10 CH $3.00
