Buehler UniClip 20-5100-100 Transparent Plastic Specimen Mounting Support Clips (100 Pcs)

This is a pack of Buehler UniClip specimen support clips, catalog number 20-5100-100, in the transparent version. Buehler, part of Illinois Tool Works, makes metallographic sample preparation equipment and consumables. The label also carries the German description for mounting aids used in cold mounting.

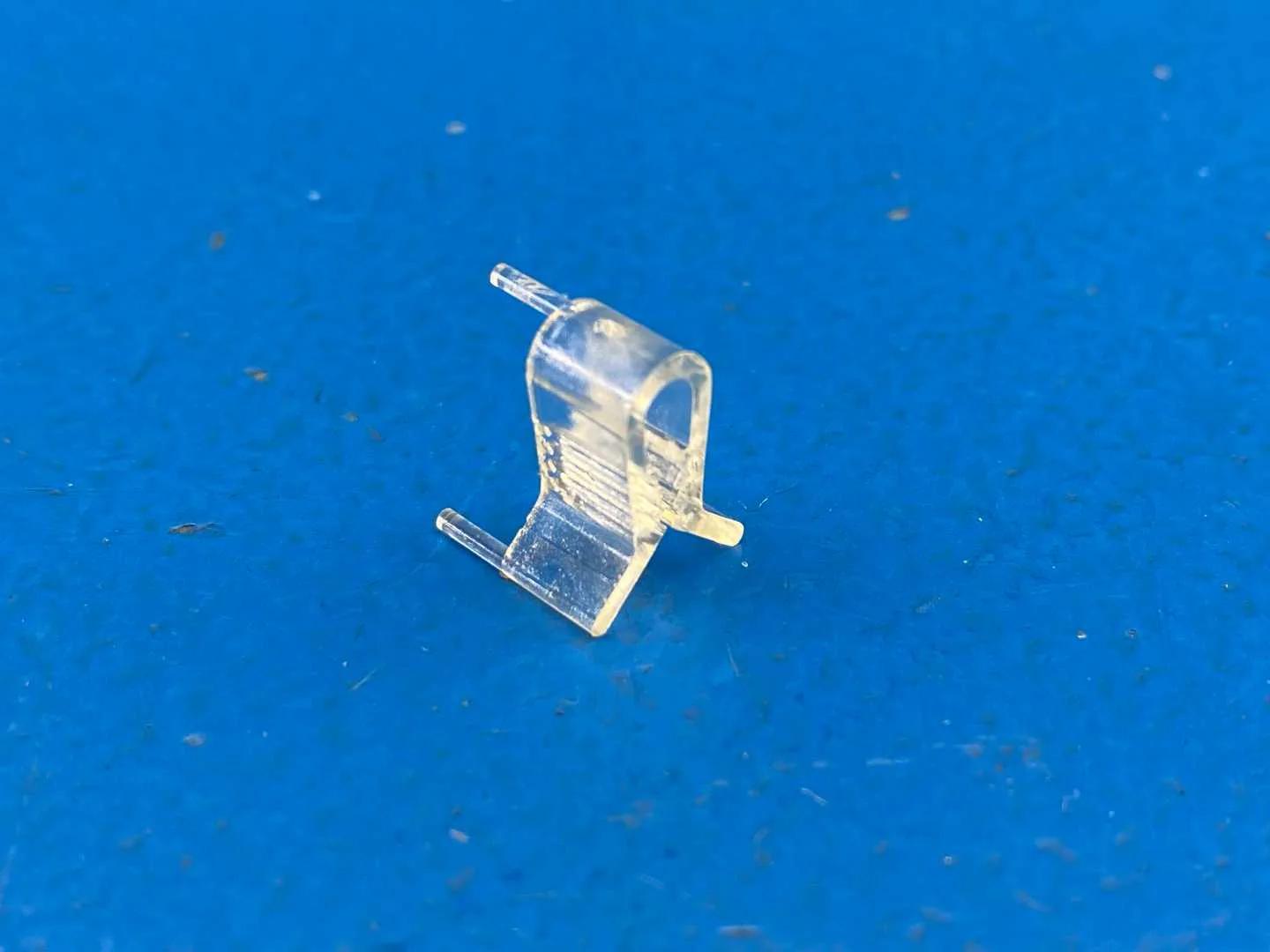

In metallography, a specimen is set in a mount of acrylic, epoxy or phenolic resin so it can be ground and polished for microscope examination. A UniClip is a small plastic spring clip that holds a thin or irregular specimen upright in the mold, so the cross section or edge of interest faces the polishing surface. Buehler states UniClips are suitable for both compression and castable mounting systems, with the legs oriented upward for compression mounting. Each clip measures about 10 x 9 x 13 mm and weighs about 0.29 g.

Metallurgical laboratories, failure analysis groups, quality control labs, electronics cross section labs and university materials labs use these clips when preparing sheet, wire, coatings and small parts. The 20-5100-100 number designates the clear clip in a 100 piece package.

Available from King Surplus inventory in Del Rio, Texas.

• Catalog number: 20-5100-100 (Best.-Nr.)
• Product: UniClip specimen support clip
• Color: Transparent (clear)
• Material: Plastic

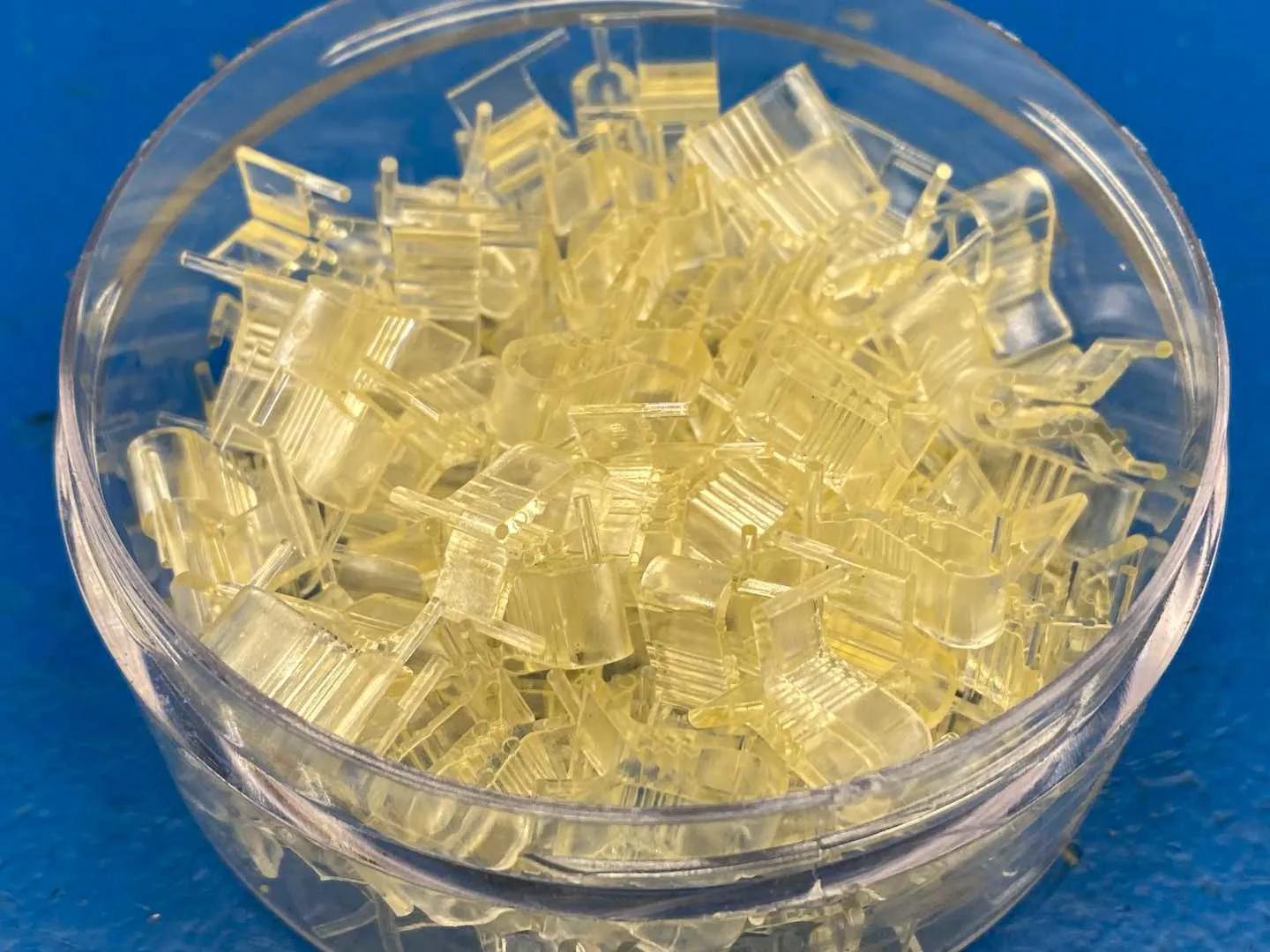

• Package size: 100 clips (100 Stuck)
• Clip dimensions: 0.4 H x 0.360 W x 0.500 L in (10 x 9 x 13 mm) per Buehler shop page
• Clip weight: 0.290 g per Buehler shop page
• Compatible mounting: compression and castable mounting systems
• Compression mounting orientation: legs upward

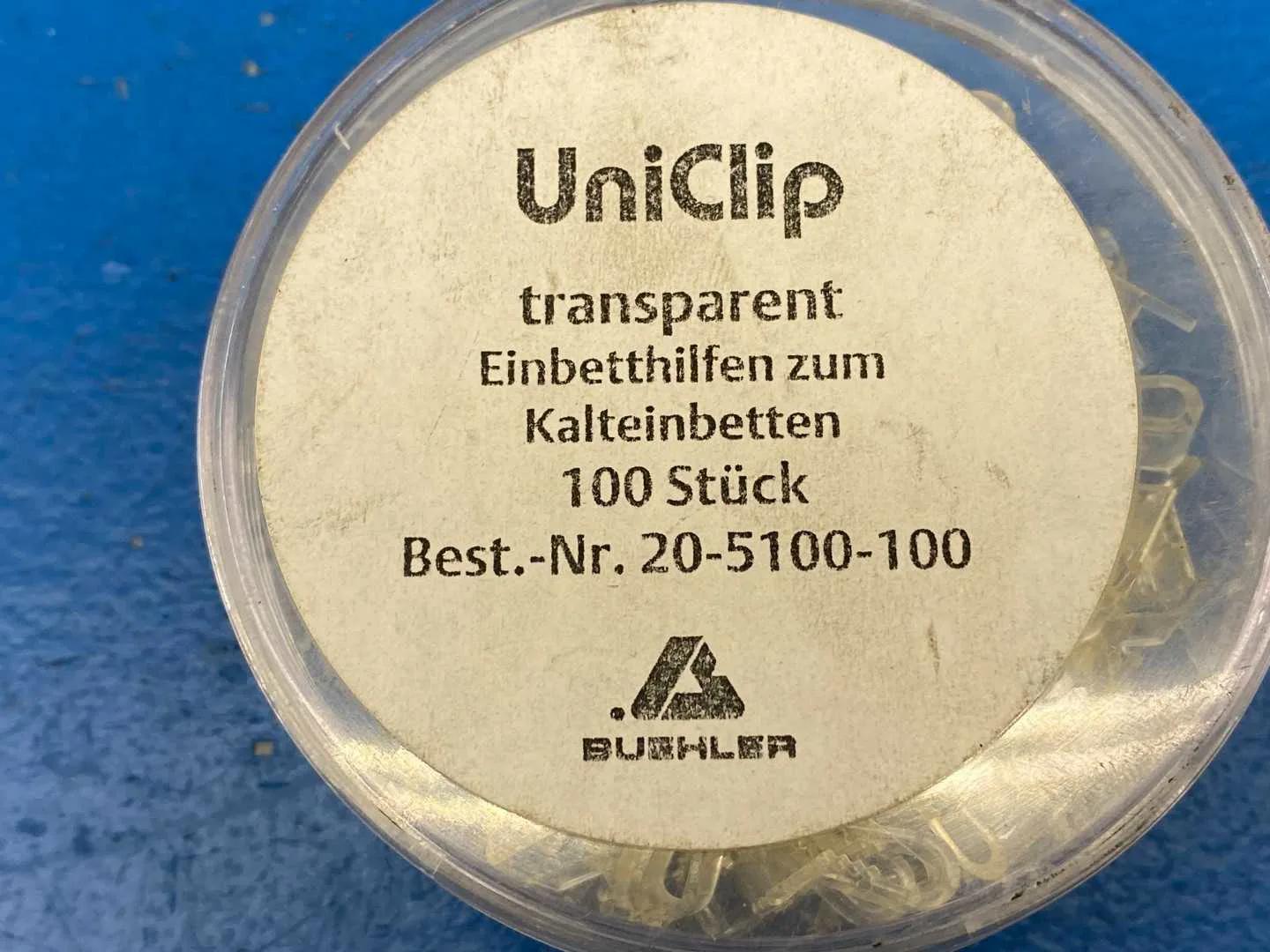

• Label description (German): Einbetthilfen zum Kalteinbetten (mounting aids for cold mounting)
• Spec Basis: Buehler package label (nameplate photo); https://shop.buehler.com/uniclip-plastic-holder-100
