Baldor 34-1800-884 1/3 HP 3-Phase Industrial Motor, 1725 RPM, 208-230/460V, 48YZ Frame, TE
34-1800-884 Motor Specifications: HP, RPM, Frame & Voltage
Frame Interchange & Applications for Baldor 34-1800-884
| Description | Details |
|---|---|
| Available Quantity | 1 |
| Model | 34-1800-884 |
| Condition | Used |
| Manufacturer | Baldor |
| Asset Number | KSC1290 / 1954 |
| Guarantee or ASIS | 2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return |
| Inspections - Yellow Tag | 4. Used: Powered up in our shop and appears to be functional |
| Packaging Cost | 1.1 Cardboard $10 |
$119.95
Basic Information
Asset #
KSC1290 / 1954
Available Quantity
1
Inspections - Yellow Tag
4. Used: Powered up in our shop and appears to be functional
Condition
Used
Guarantee or ASIS
2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return
Item Description

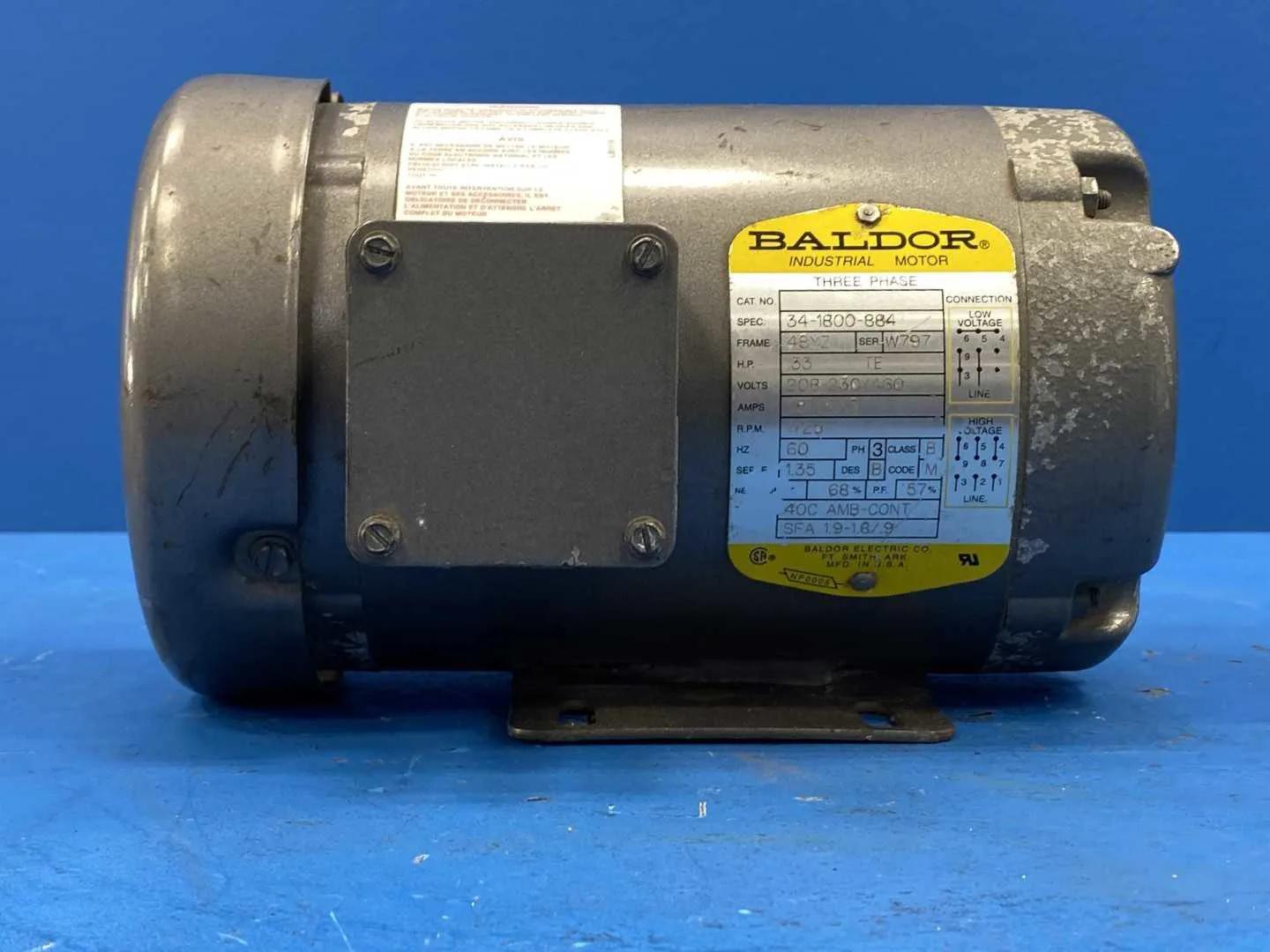

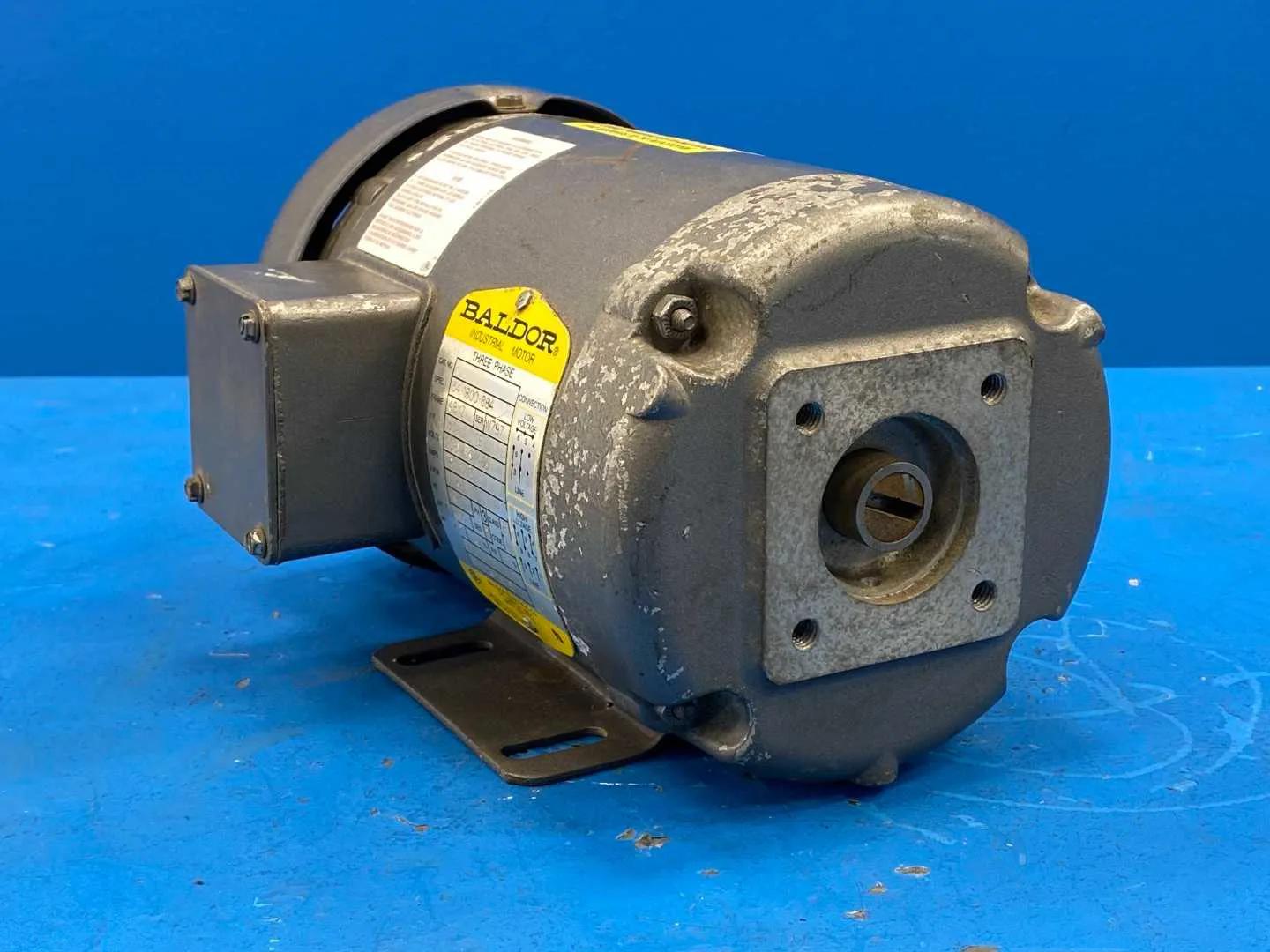

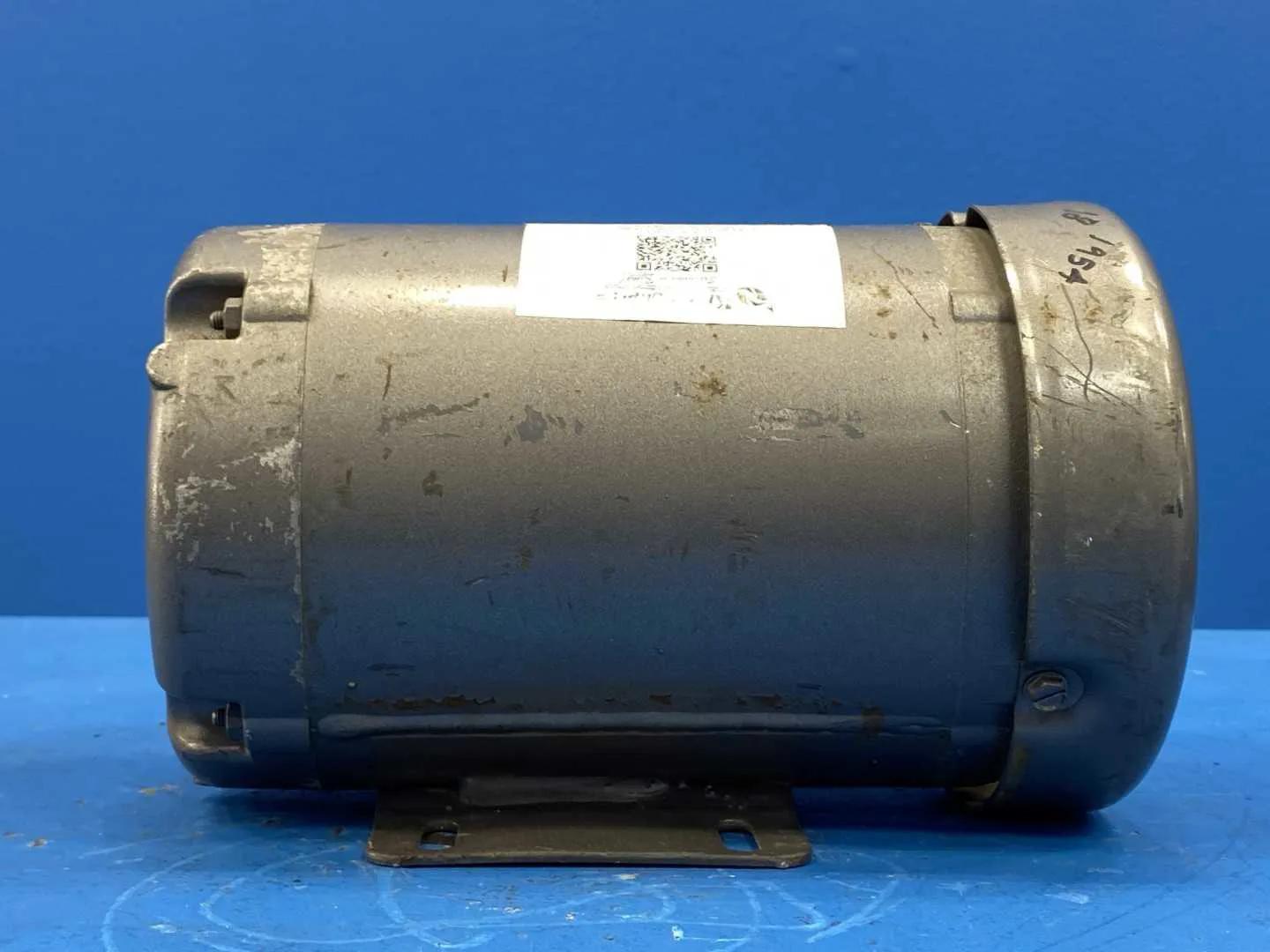

This is a Baldor industrial three phase AC motor, spec number 34-1800-884, rated 1/3 HP at 1725 RPM on 60 Hz power. The nameplate lists 208-230/460 volt dual voltage operation with full load current of 1.8-1.6/.8 amps, a totally enclosed (TE) housing on a 48YZ frame, Class B insulation, NEMA Design B, service factor 1.35 and continuous duty at 40C ambient. It was built by Baldor Electric Co. in Fort Smith, Arkansas. Baldor spec numbers such as 34-1800-884 identify a specific build rather than a stock catalog number, which is common for motors supplied to equipment manufacturers.
A 1/3 HP four pole motor of this type drives small pumps, fans and blowers, conveyors, mixers, gear reducers and machine tool accessories wherever three phase power is available. The dual voltage winding lets it be connected for 208-230 V or 460 V supply. Maintenance technicians and equipment builders match the frame, speed, enclosure and voltage when sourcing a replacement for an original Baldor motor.
Available from King Surplus inventory in Del Rio, Texas.
Factory Information
- Manufacturer: Baldor Electric Co., Ft. Smith, Ark.
- Spec / Model No.: 34-1800-884
- Type: industrial motor, three phase
- Horsepower: .33 HP (1/3 HP)
- Voltage: 208-230/460 V
- Full Load Amps: 1.8-1.6/.8 A
- Service Factor Amps: 1.9-1.8/.9 A
- Phase / Frequency: 3 phase, 60 Hz
- Speed: 1725 RPM
- Frame: 48YZ
- Enclosure: TE (totally enclosed)
- Insulation Class: B
- Service Factor: 1.35
- NEMA Design: B
- KVA Code: M
- Nameplate Efficiency: 68%
- Power Factor: 57%
- Ambient / Duty: 40C ambient, continuous
- Nameplate No.: NP0005
- Country of Origin (nameplate): Mfd. in U.S.A.

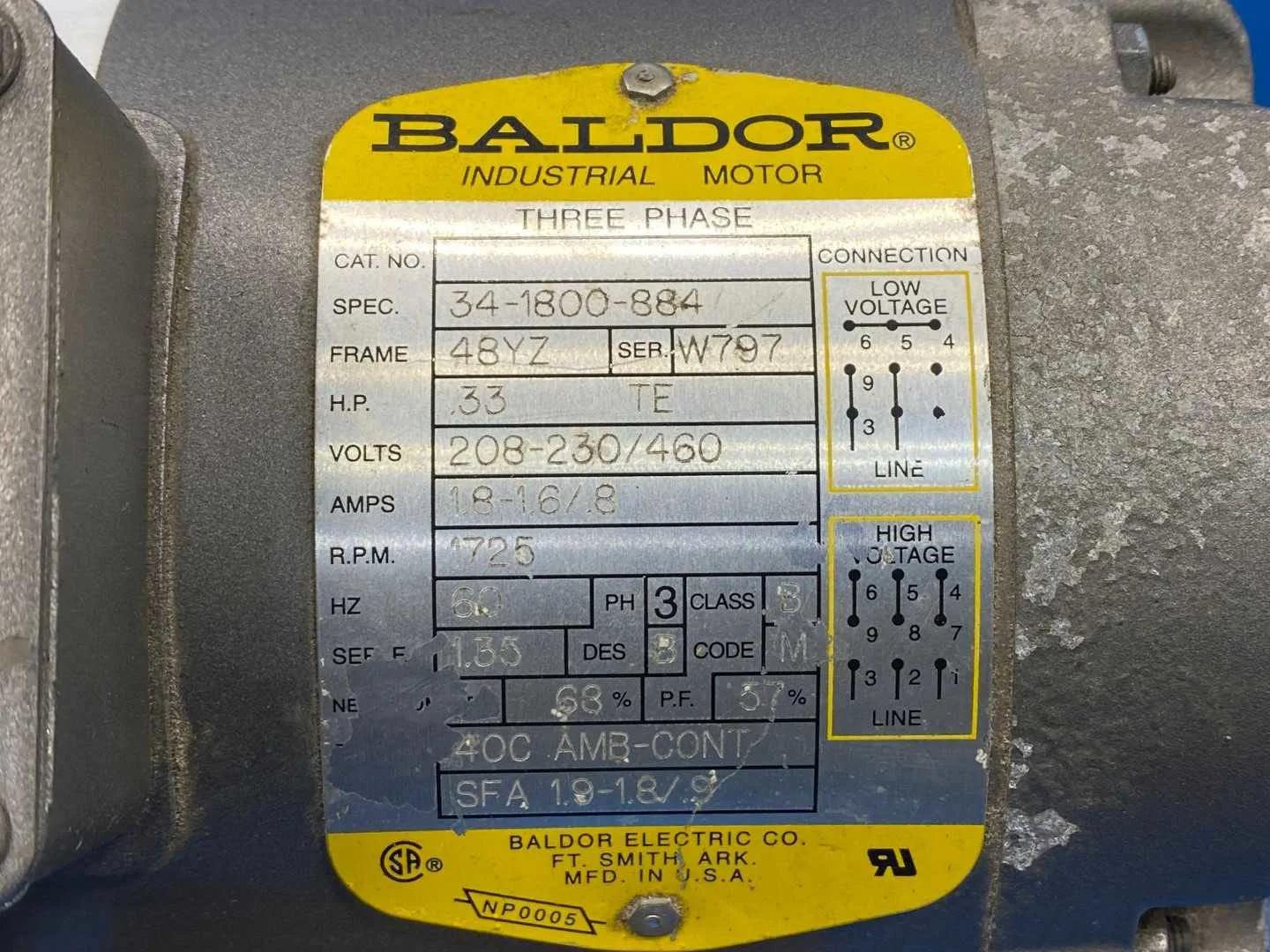

- Spec Basis: nameplate photo (Baldor nameplate, S/N W797); no Baldor catalog page found for spec 34-1800-884
Specifications
Baldor
34-1800-884
N/A
N/A
Fractional (Enter in Description)
1.8
8
10
6
3
4
22
KSC1290 / 1954
Packaging fees
1.1 Cardboard $10
