Custom Control Sensors 6710P20 Dual-Snap Pressure Switch, 7500 PSIG Proof, 500 PSI Deadband, 11A 125/250VAC
6710P20 Pressure Switch Specifications: Range & Contacts
Process Fitment for Custom Control Sensors 6710P20
| Description | Details |
|---|---|
| Available Quantity | 3 |
| Model | 6710P20 |
| Condition | Used |
| Manufacturer | Custom Control Sensors |
| Asset Number | KSC988 / 001 / 12 |
| Guarantee or ASIS | 2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return |
| Inspections - Yellow Tag | 5.3 Used: ASIS |
| Packaging Cost | 1.1 Cardboard $10 |
$54.95
Basic Information
Asset #
KSC988 / 001 / 12
Available Quantity
3
Inspections - Yellow Tag
5.3 Used: ASIS
Condition
Used
Guarantee or ASIS
2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return
Item Description
The Custom Control Sensors 6710P20 is a Dual-Snap gauge pressure switch built by CCS of Chatsworth, California, a maker of pressure, temperature and flow switches for aerospace, defense, industrial and energy markets since 1958. CCS switches use the company's Dual-Snap disc spring mechanism, which gives a positive snap action and repeatable switching.

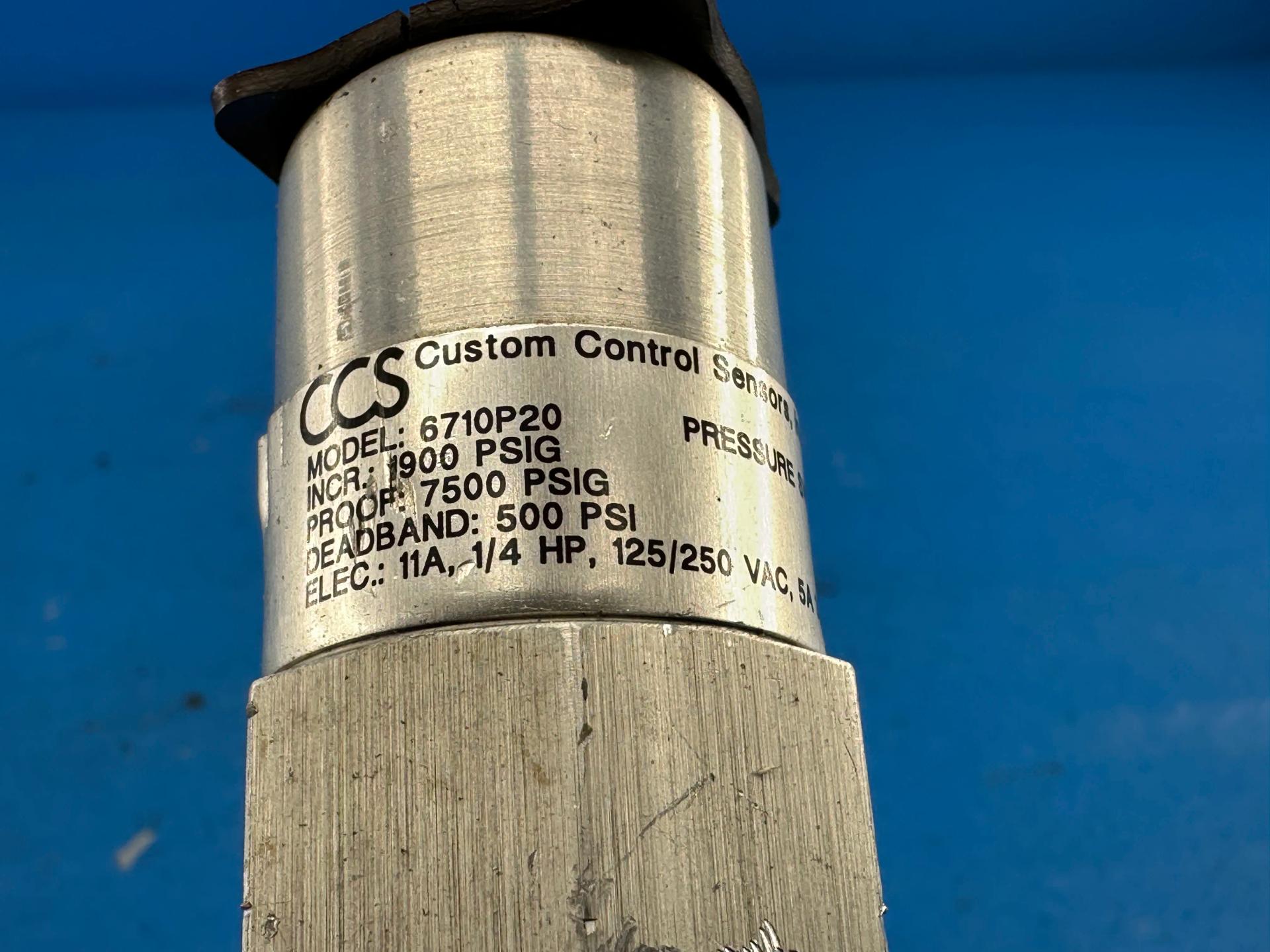

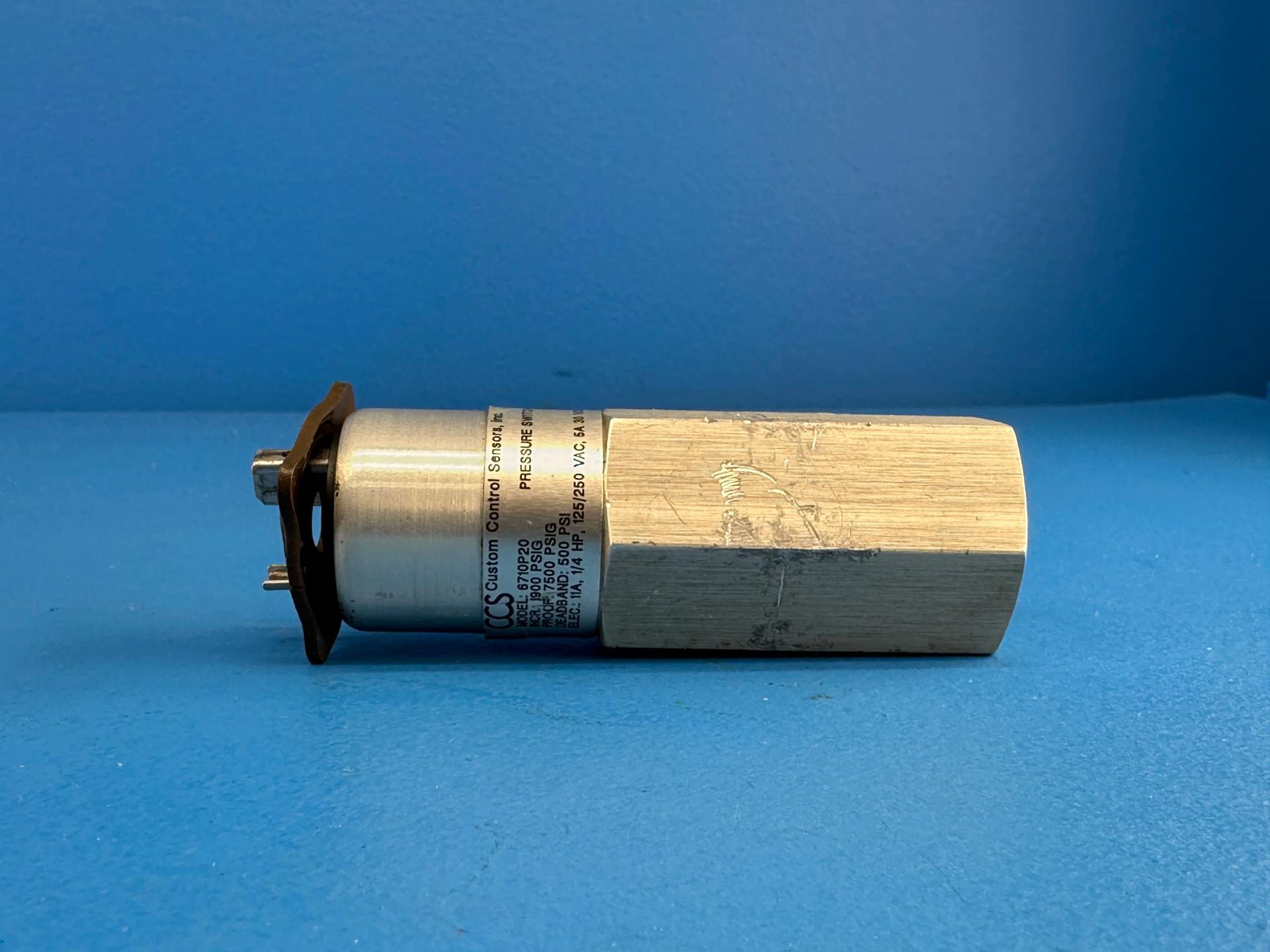

The nameplate on this unit lists an increasing pressure set point of 1900 psig, a 500 psi deadband and a 7500 psig proof pressure, which places it in high pressure hydraulic, gas or process service. The switch contacts are rated 11 amps and 1/4 horsepower at 125 or 250 VAC, 5 amps at 30 VDC and 0.5 amp at 125 VDC, so it can switch a pilot relay, alarm or small motor circuit directly. The FSCM 09049 marking is the federal supply code assigned to CCS for military and government parts.
Switches of this type are used on hydraulic power units, test stands, compressors, ground support equipment and oil and gas skids to signal high pressure alarms, start and stop pumps, or interlock equipment.
Available from King Surplus inventory in Del Rio, Texas.
Factory Information
- Product: Gauge pressure switch, Dual-Snap disc spring type
- Set Point, Increasing: 1900 psig (nameplate, partly worn, may read 900)
- Proof Pressure: 7500 psig (nameplate)
- Deadband: 500 psi (nameplate)
- Electrical Rating AC: 11 A, 1/4 HP, 125/250 VAC (nameplate)
- Electrical Rating DC: 5 A at 30 VDC; 0.5 A at 125 VDC (nameplate)
- FSCM (CAGE) Code: 09049 (nameplate)
- FLAG for review: set point digits on the nameplate are worn; confirm 1900 vs 900 psig before listing

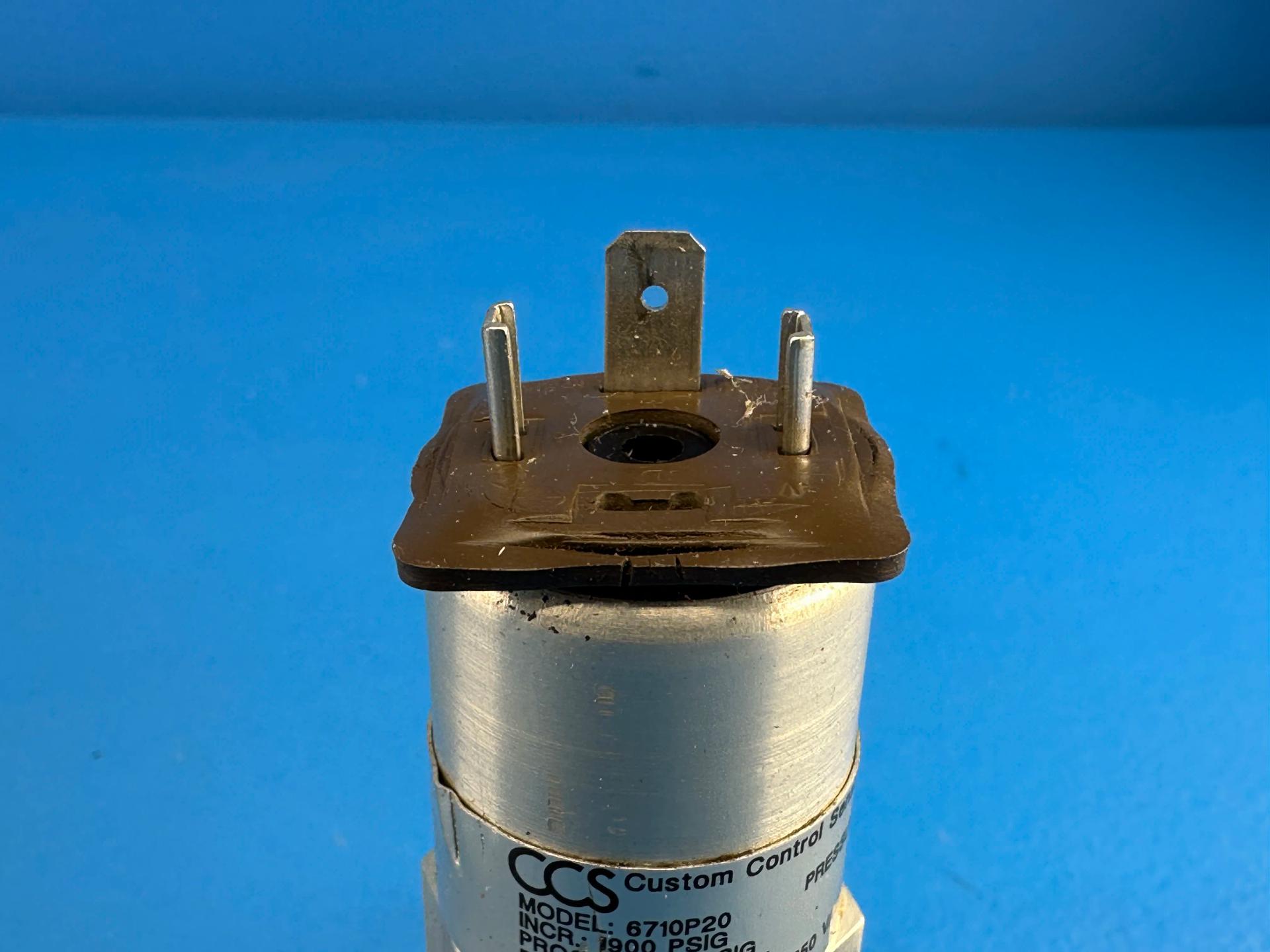

- Spec Basis: nameplate photo (CCS Custom Control Sensors, Inc., PRESSURE SWITCH, 6710P20, INCR: 1900 PSIG, PROOF: 7500 PSIG, DEADBAND: 500 PSI, ELEC.: 11A, 1/4 HP, 125/250 VAC, 5A 30 VDC, 0.5A, 125 VDC, FSCM 09049); CCS company background from ccsdualsnap.com; CAGE 09049 assigned to Custom Control Sensors Inc, Chatsworth CA, per CAGE lookup oneclickpurchasing.com/cage-code/09049
Specifications
Custom Control Sensors
6710P20
N/A
N/A
N/A
11
2
4
2
1
4
5
KSC988 / 001 / 12
