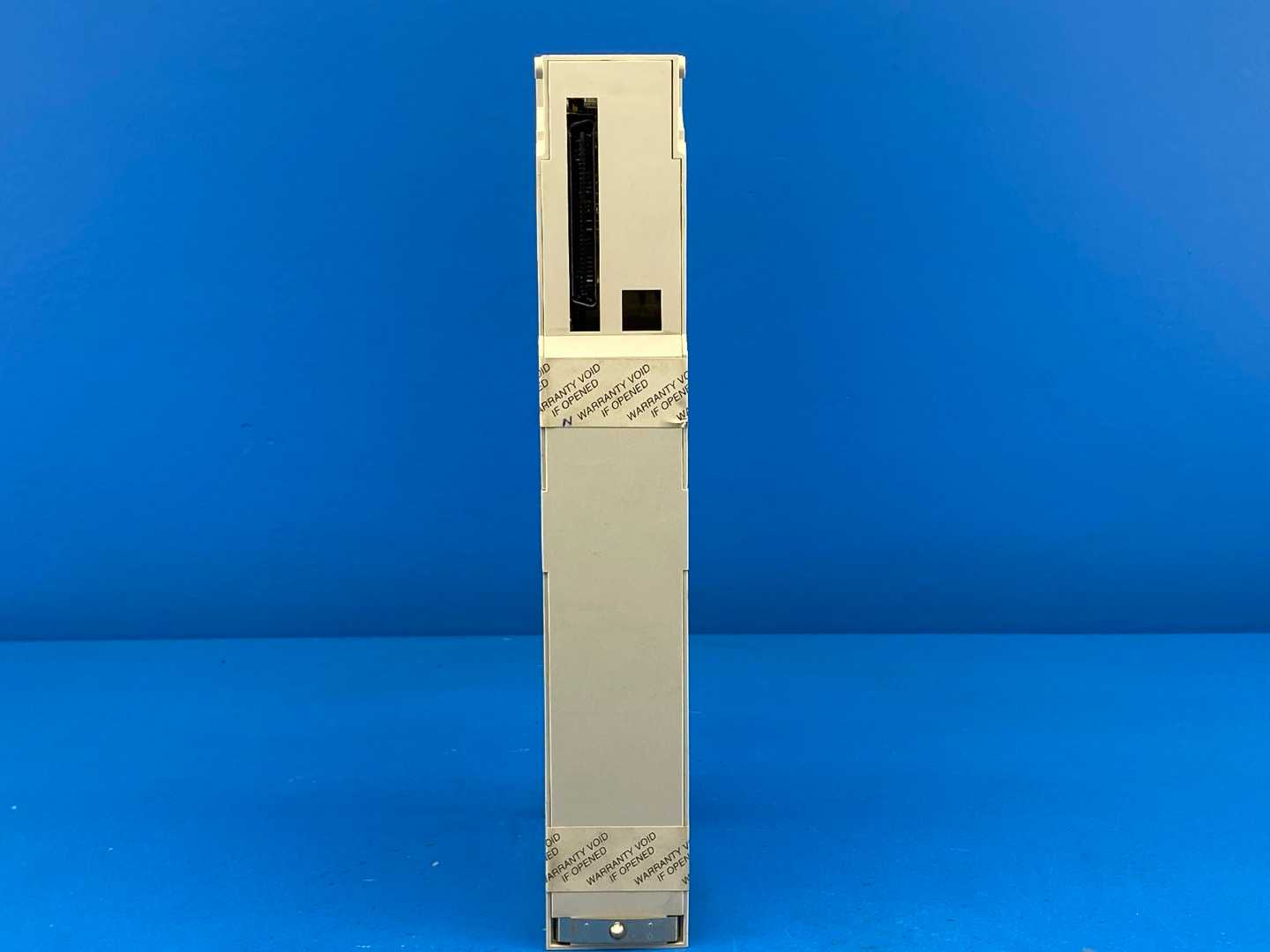

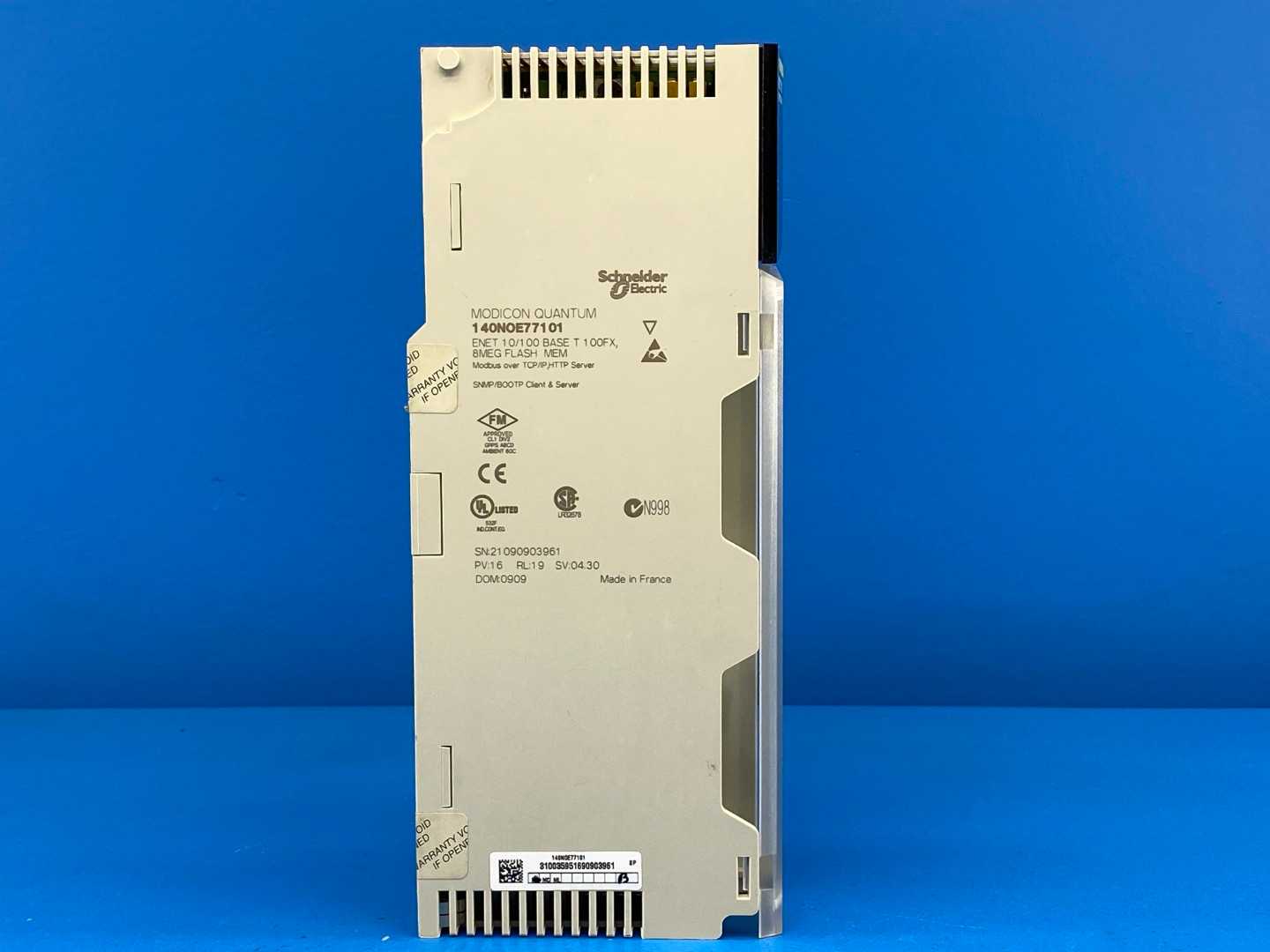

Schneider Electric Modicon 140NOE77101 Ethernet Module Overview

The 140NOE77101 from Schneider Electric is part of the Modicon Quantum series, focusing on providing robust communication solutions. This module utilizes Ethernet Modbus TCP/IP as its primary communication protocol, effectively facilitating data exchange in industrial applications. It is built with the Transparent Ready concept, which streamlines integration within existing systems.

With a transmission capability of 10 or 100 Mbit/s, this unit ensures high-speed communication within the network. It operates efficiently in temperatures ranging from 0°C to 60°C, while its storage temperature tolerance extends from -40°C to 85°C, providing flexibility in various operational environments. The device also has an IP20 rating, rendering it suitable for appropriate indoor applications, and can handle a maximum relative humidity of 95% without condensation, which is crucial for reliability when deployed in variable climate conditions.

The module comes equipped with essential features including support for I/O scanning, ModBus TCP messaging, and an FDR server, enhancing its performance. It also offers a web server functionality classified as B30, along with a rack viewer web service, allowing for easy monitoring and configuration over a network. To further optimize performance, it supports bandwidth management and enables effective SNMP network management capabilities. With global data support, users can efficiently manage and analyze collected data, ensuring that the 140NOE77101 serves as a critical component in a dynamic industrial communication setup.
