Asset # :
KSC1230 / 42
Available Qty :
80
Inspections - Yellow Tag :
1. New in Box
Packaging Cost :
1.2 Cardboard $15

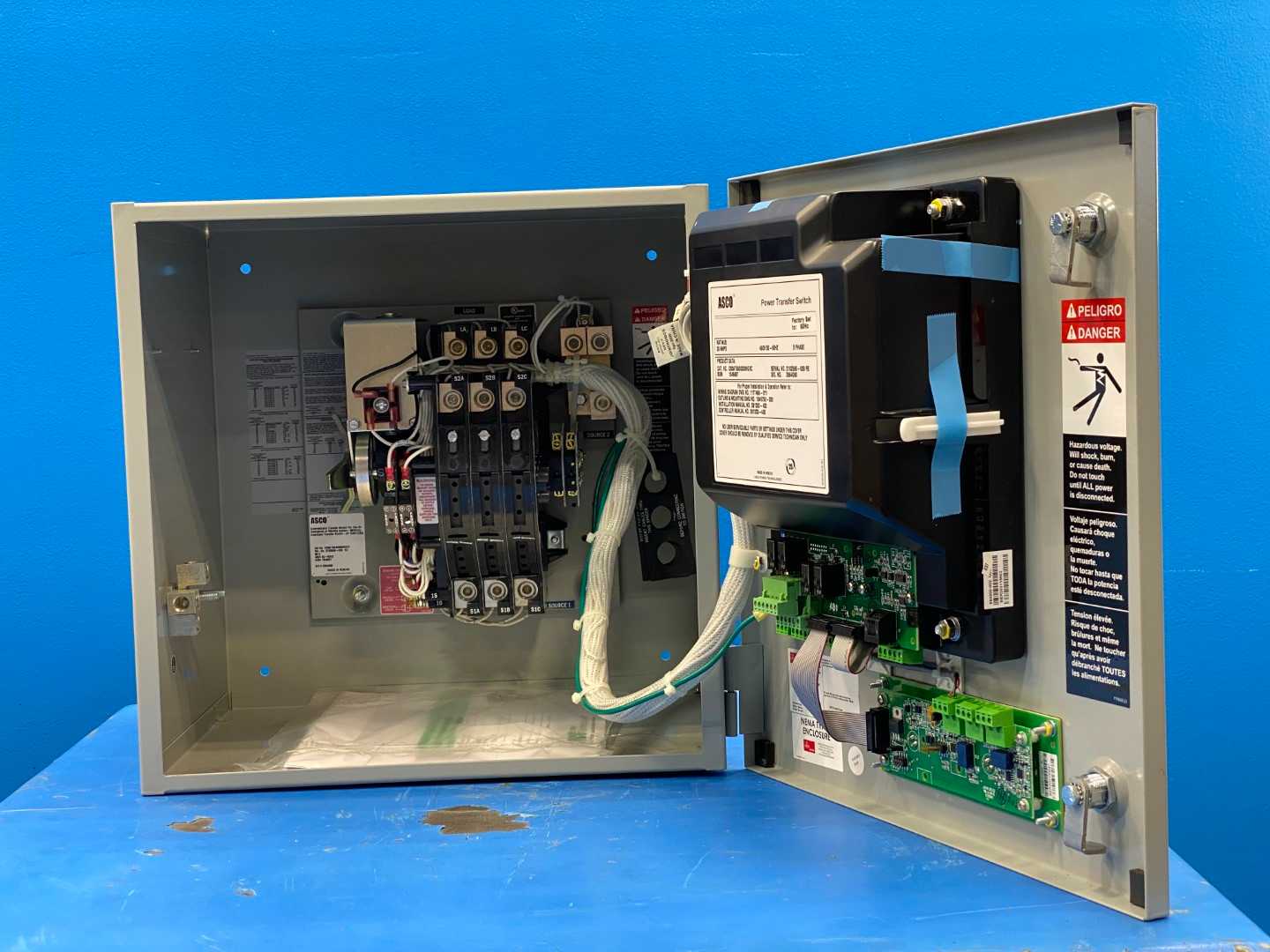

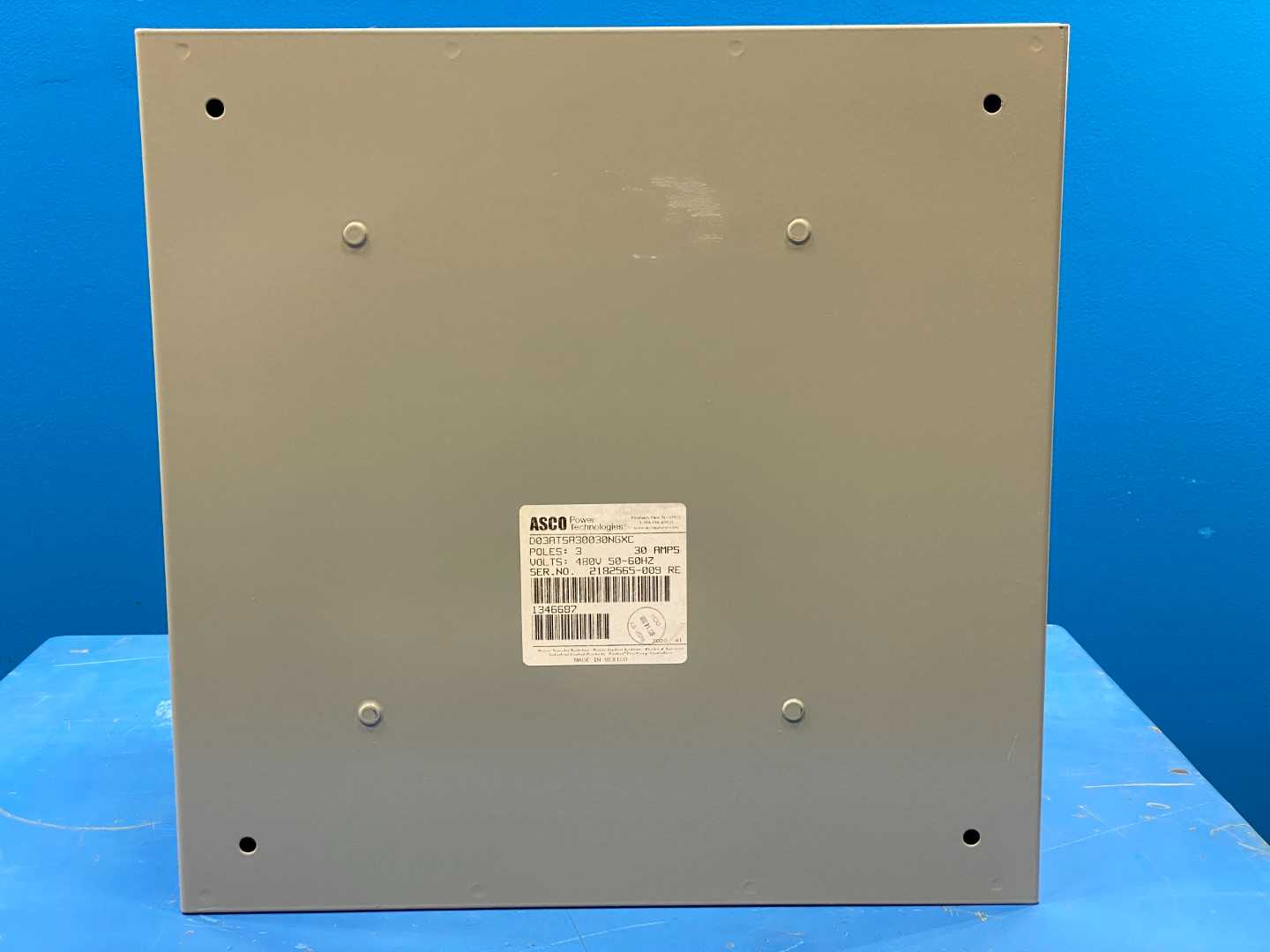

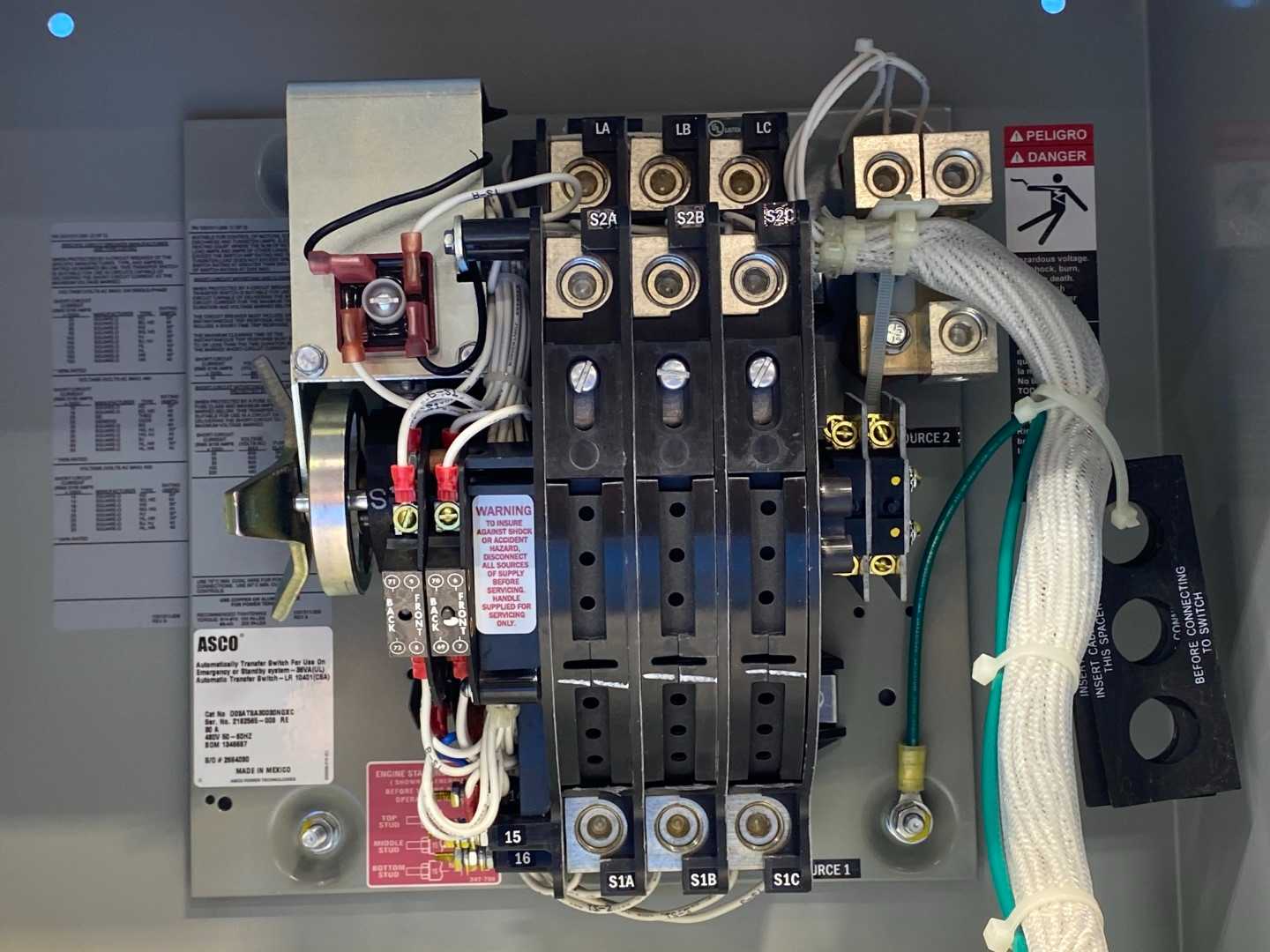

he ASCO Transfer Switch Model D03ATSA30030NGXC is part of the ASCO SERIES 300 Group G Power Transfer Switch range, designed for commercial or light industrial use. Here are the key specifications and features:
General Specifications

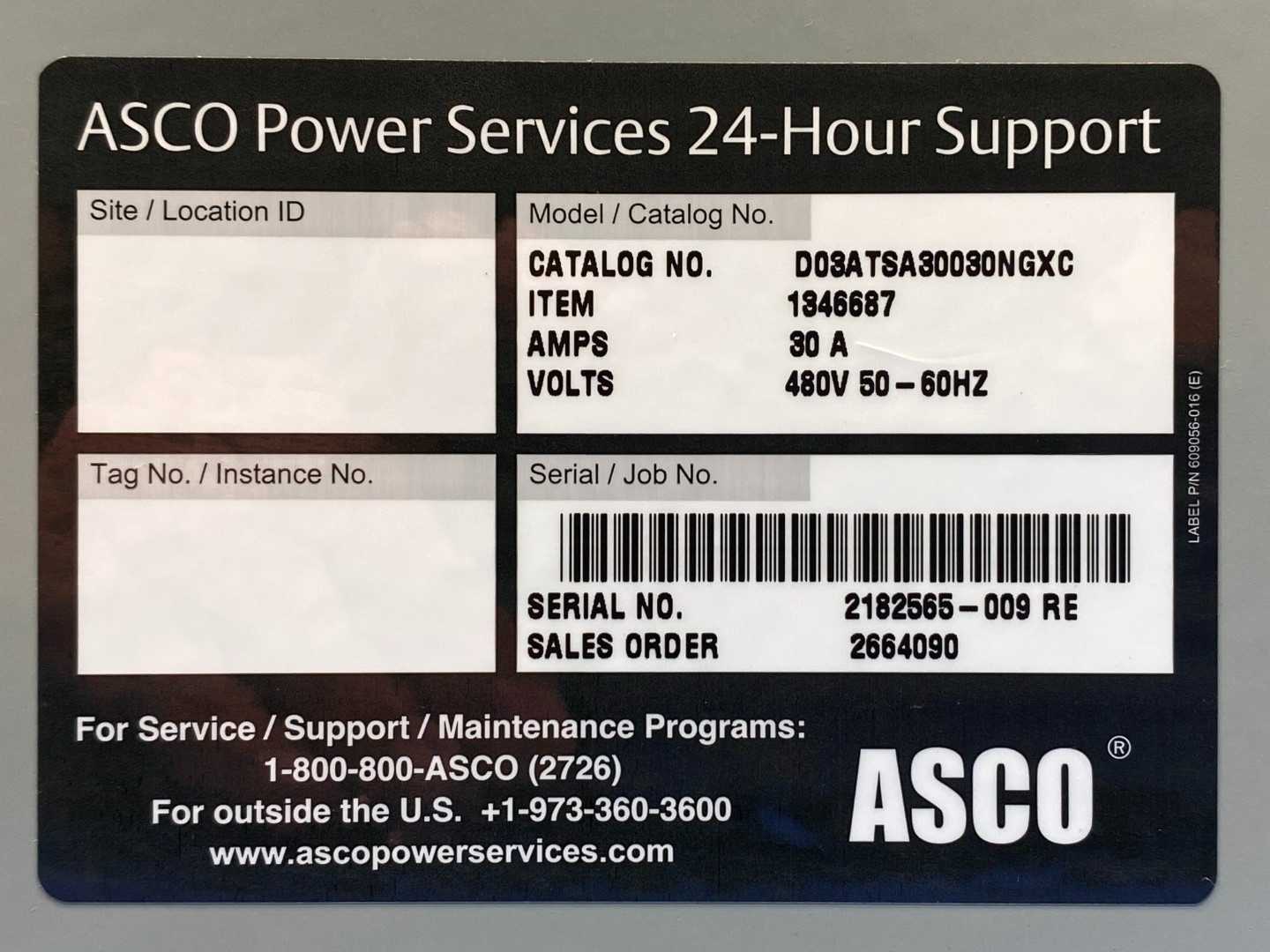

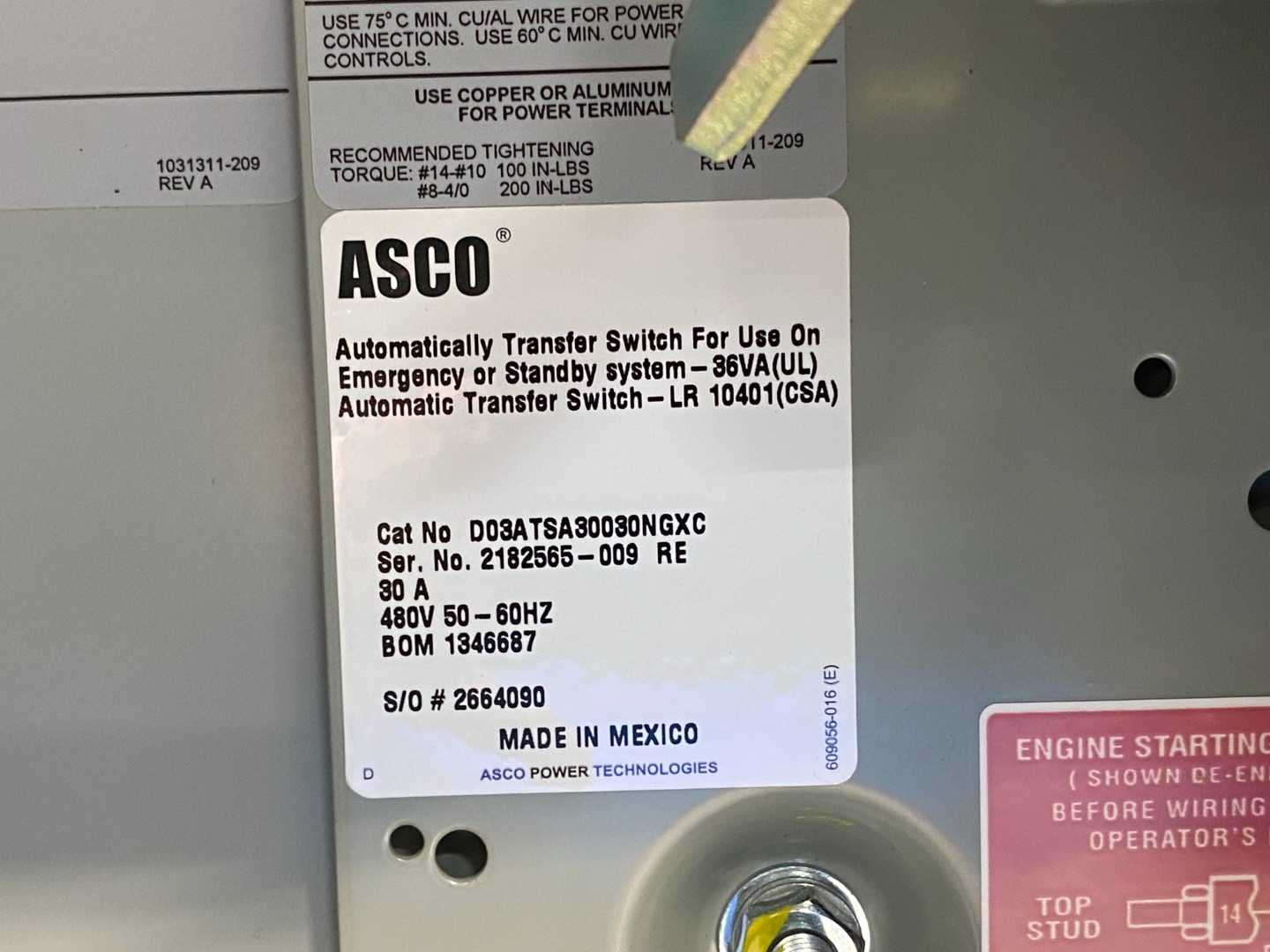

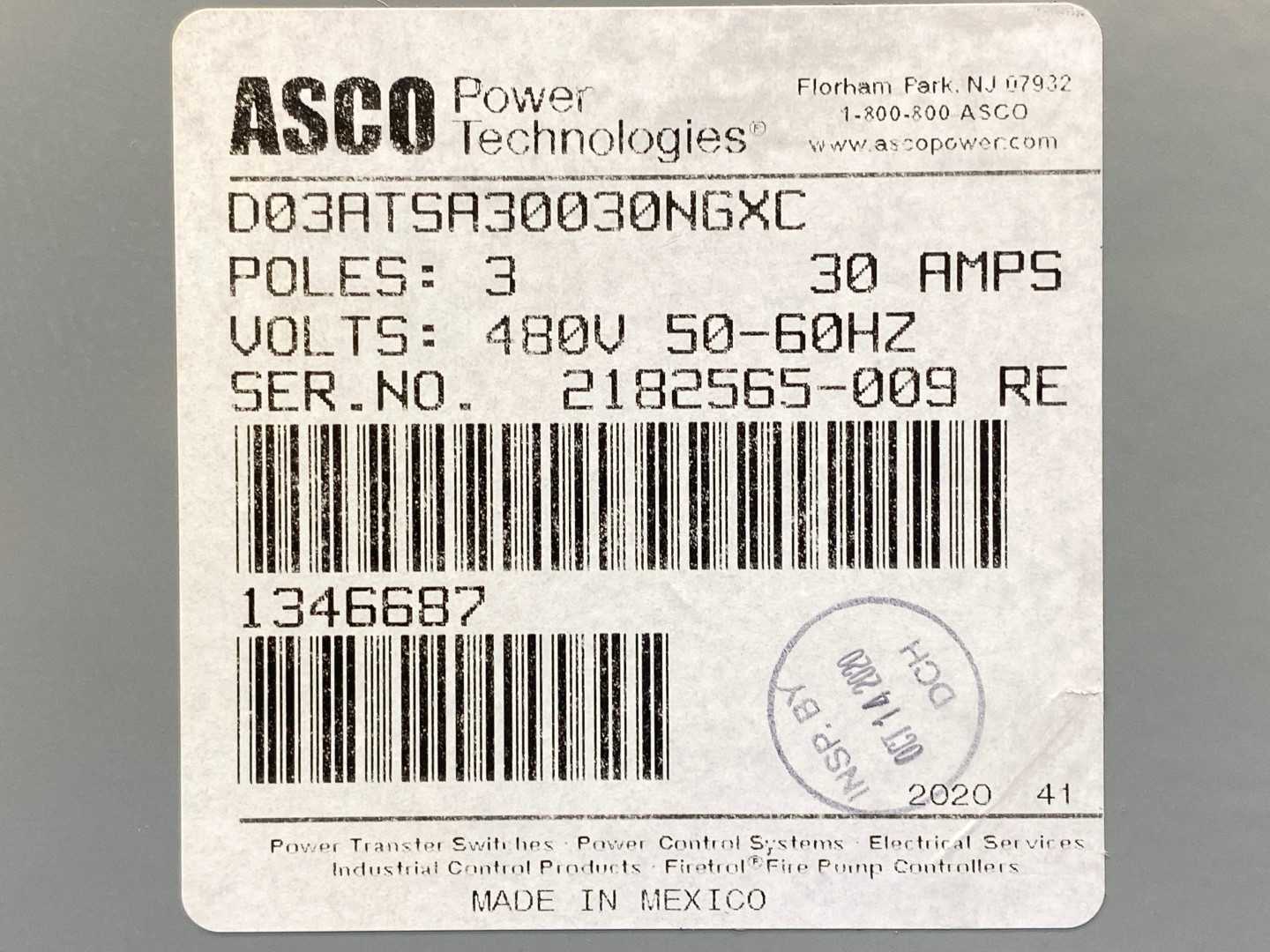

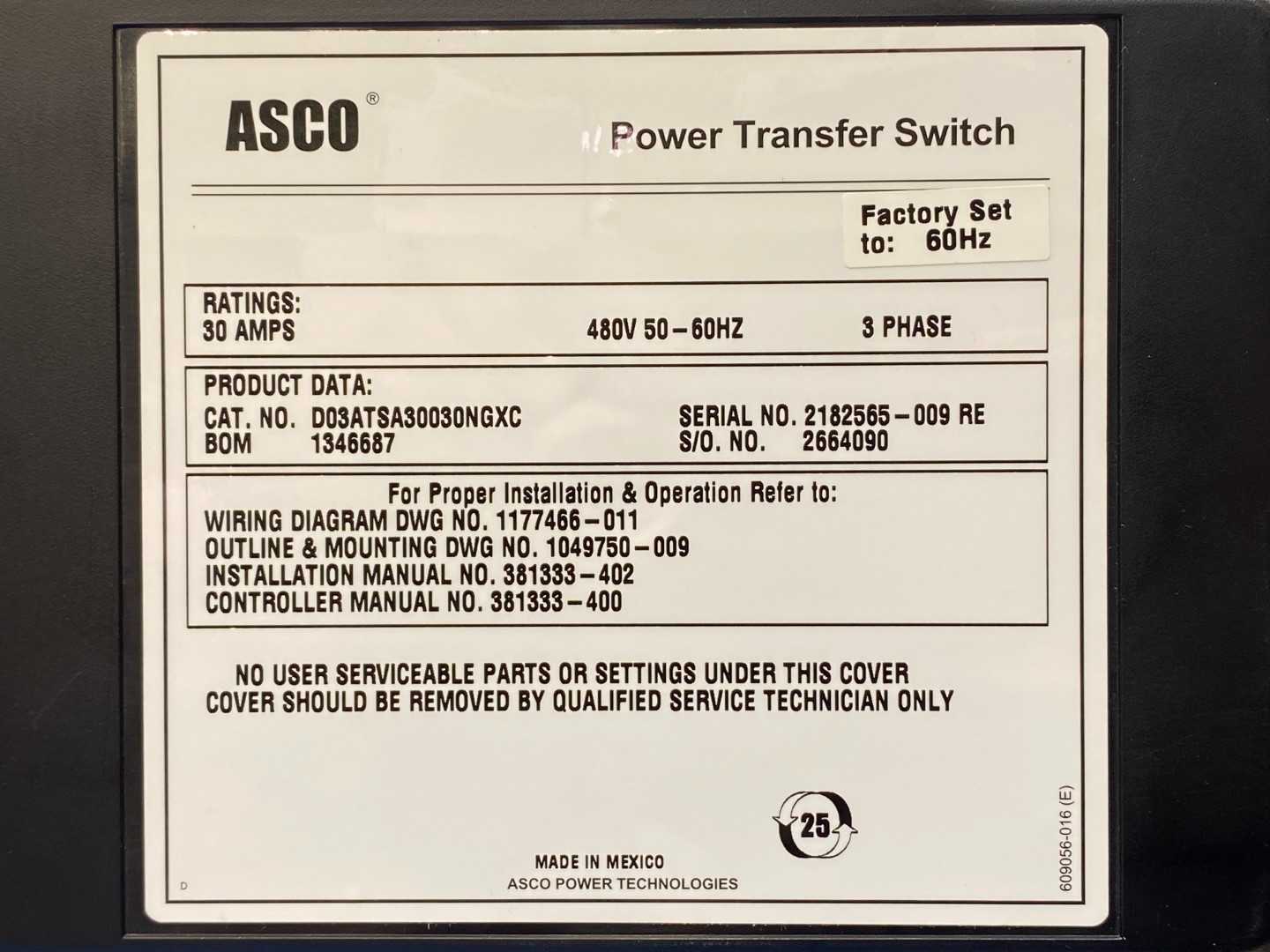

• Model Number: D03ATSA30030NGXC
• Type: Automatic Transfer Switch (ATS)
• Amperage: 30 Amps
• Voltage: 480 Volts
• Poles: 3

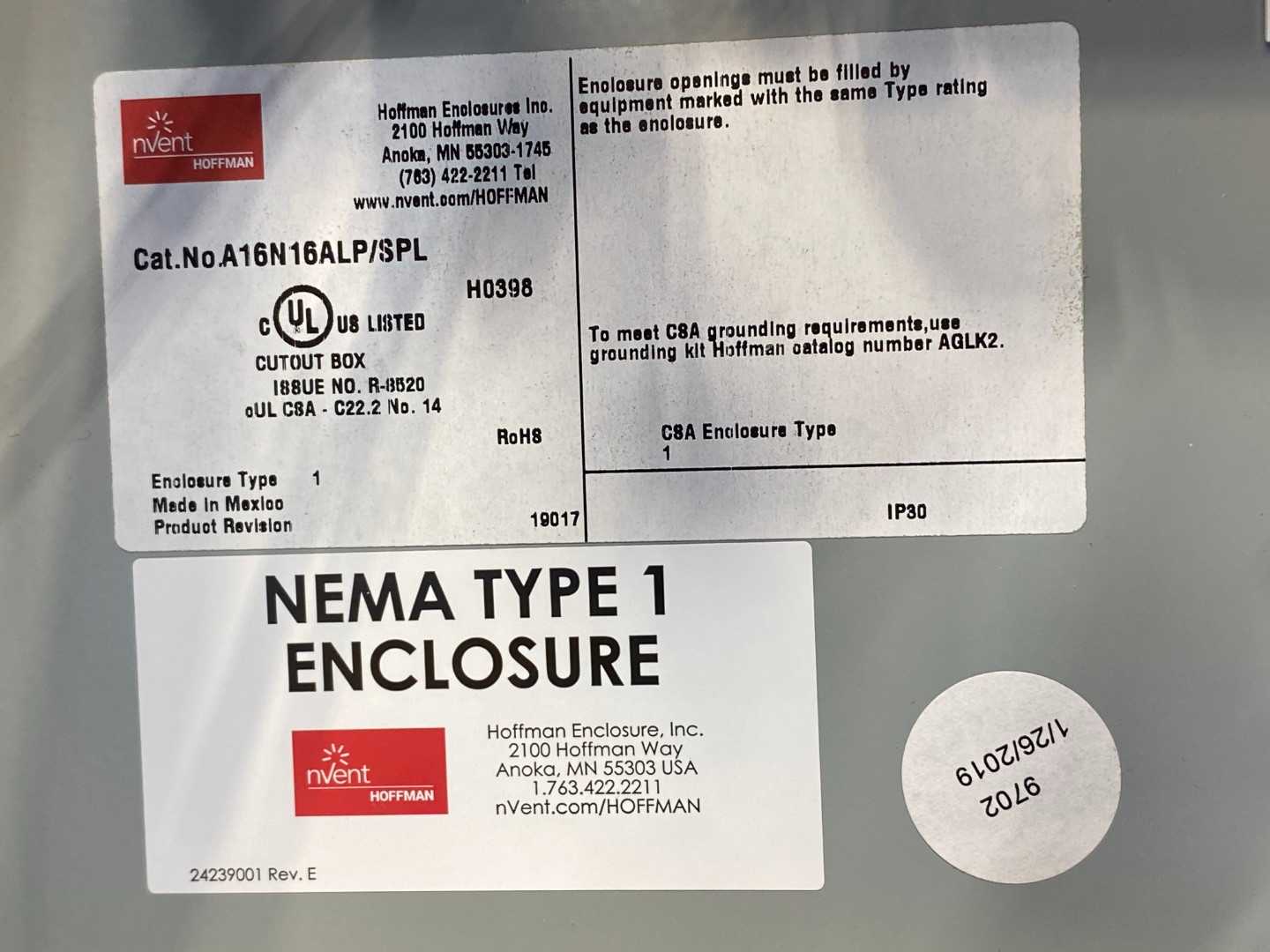

• Enclosure Type: NEMA 1 (indoor use)
Electrical Features
• Transition Type: Open Transition (break-before-make operation)

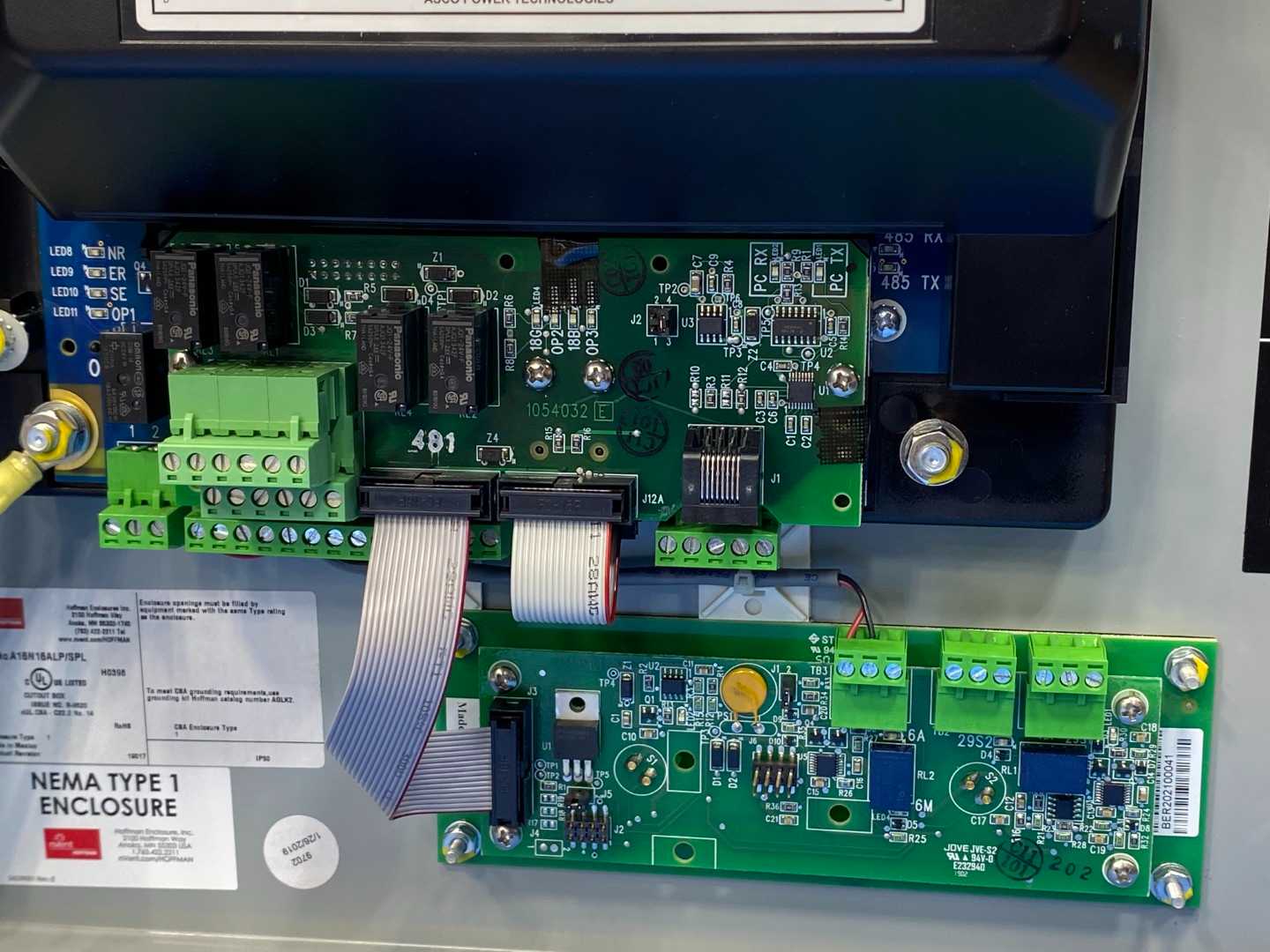

• Control Type: Microprocessor-based controller
• Frequency: 60 Hz
• UL Listed: UL 1008 for transfer switches
Mechanical Features
• Construction: Rugged and reliable, designed for long-term operation
• Mounting: Wall-mounted or floor-mounted options
• Operating Temperature: -20°C to +40°C (-4°F to +104°F)
Control and Interface

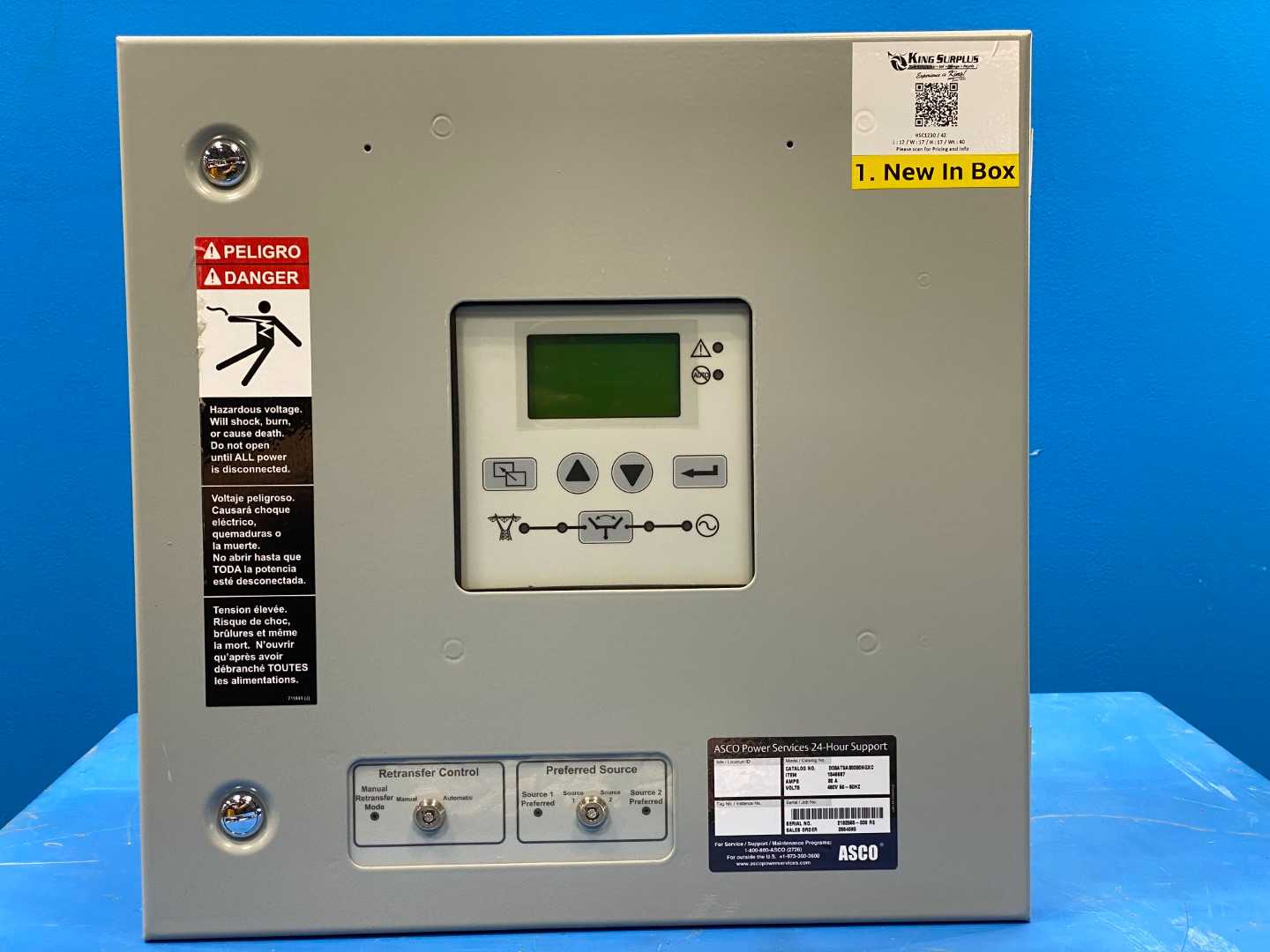

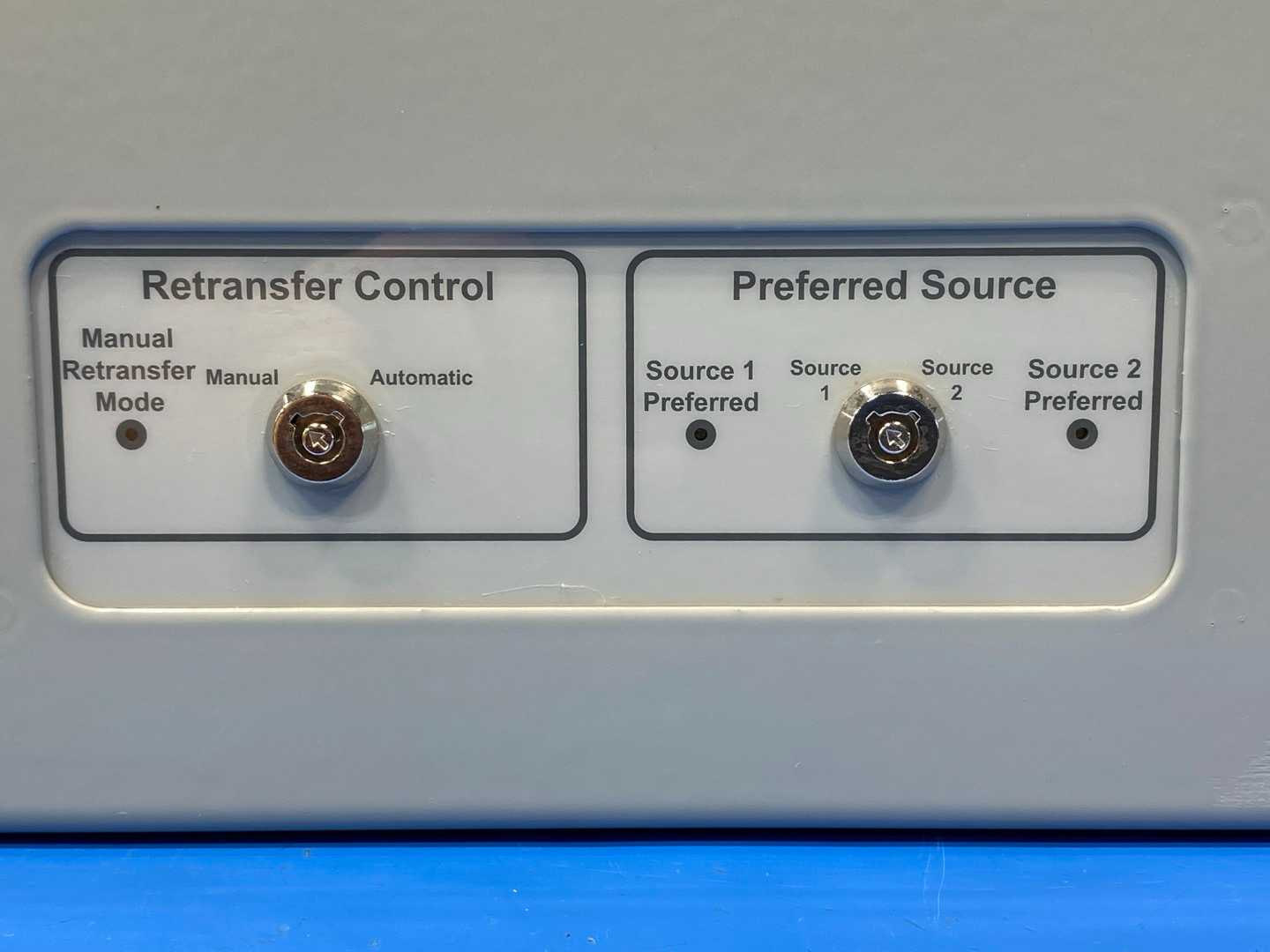

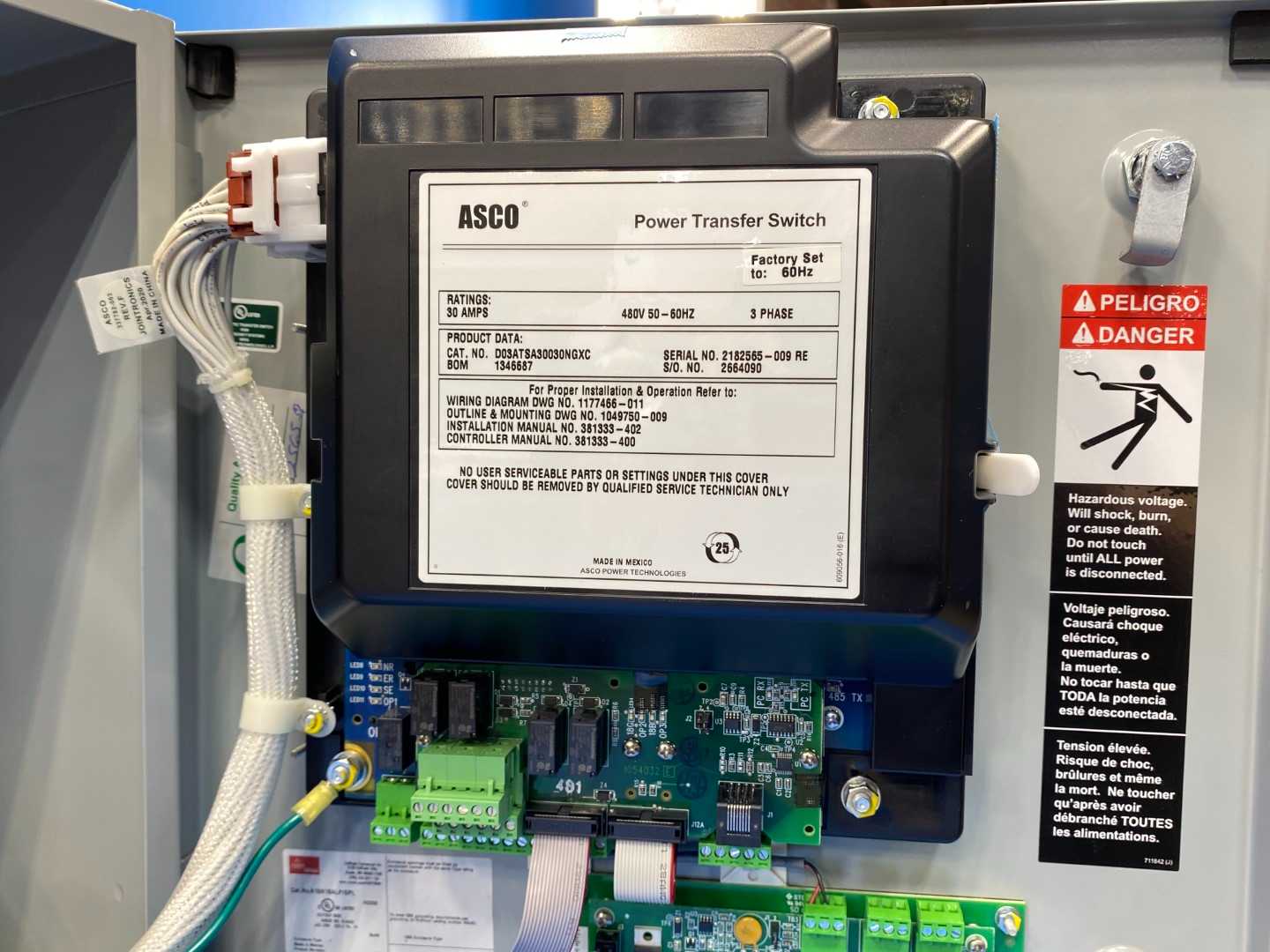

• Operator Interface: Includes LED indicators for switch position and source availability
• Test Functions: Built-in test functions for regular maintenance checks
• Communication: Optional communication interfaces for remote monitoring and control
Safety and Compliance
• Certifications: Meets or exceeds IEEE, NEMA, and NFPA standards
• Safety Features: Built-in safety interlocks and protective devices to ensure safe operation
Applications
The ASCO SERIES 300 Group G ATS is suitable for applications where reliable power transfer is critical, such as in small businesses, commercial buildings, and light industrial environments. It ensures a seamless transition between utility and backup power sources, minimizing downtime during power outages.
For more detailed information, you can refer to the ASCO Power Technologies specification guide and the technical data ordering information
