GE LLWB-LC2-120 LED Wall Washer Leader Cable, 120 in, 120-277V, Order Code 10902

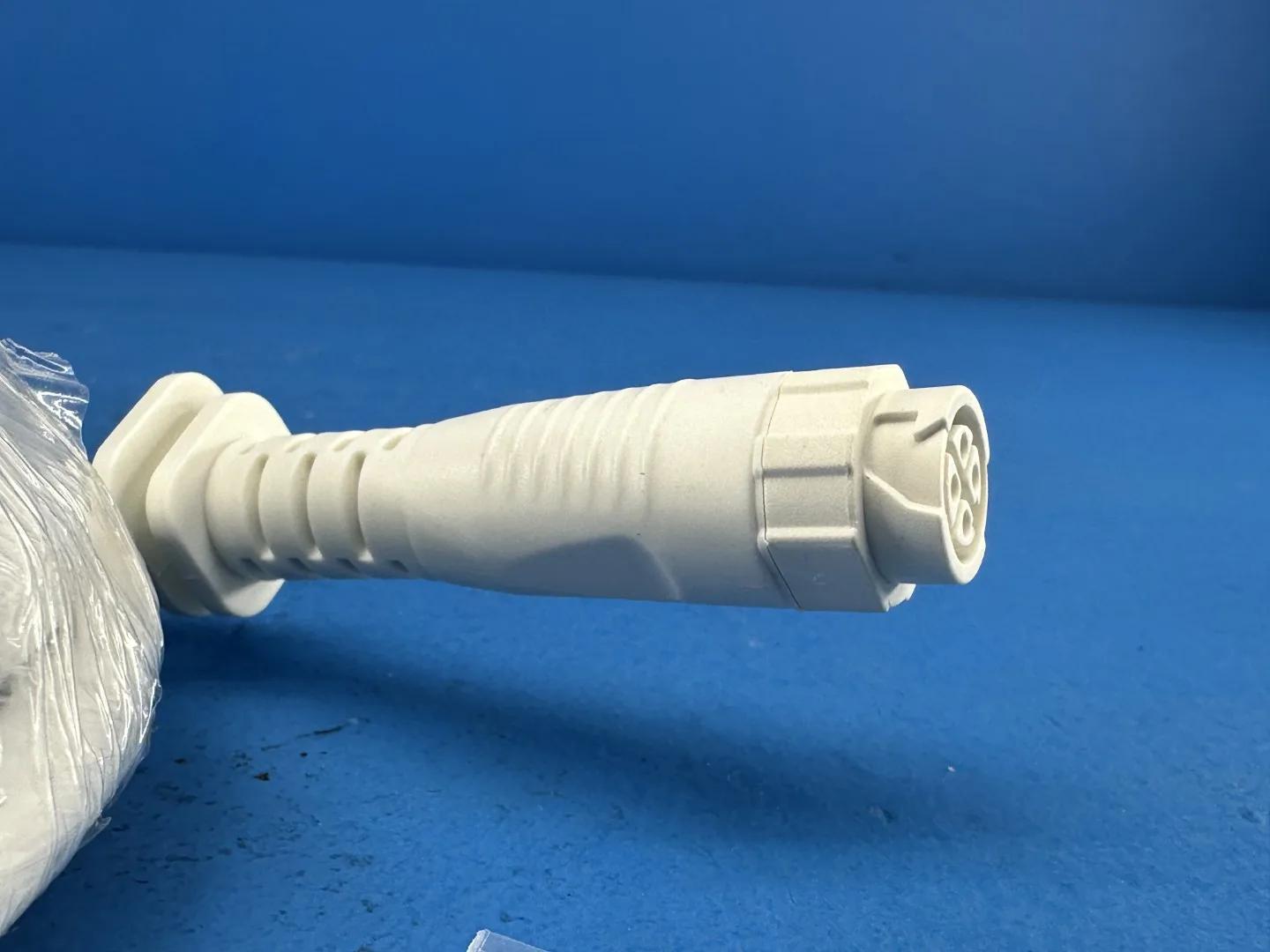

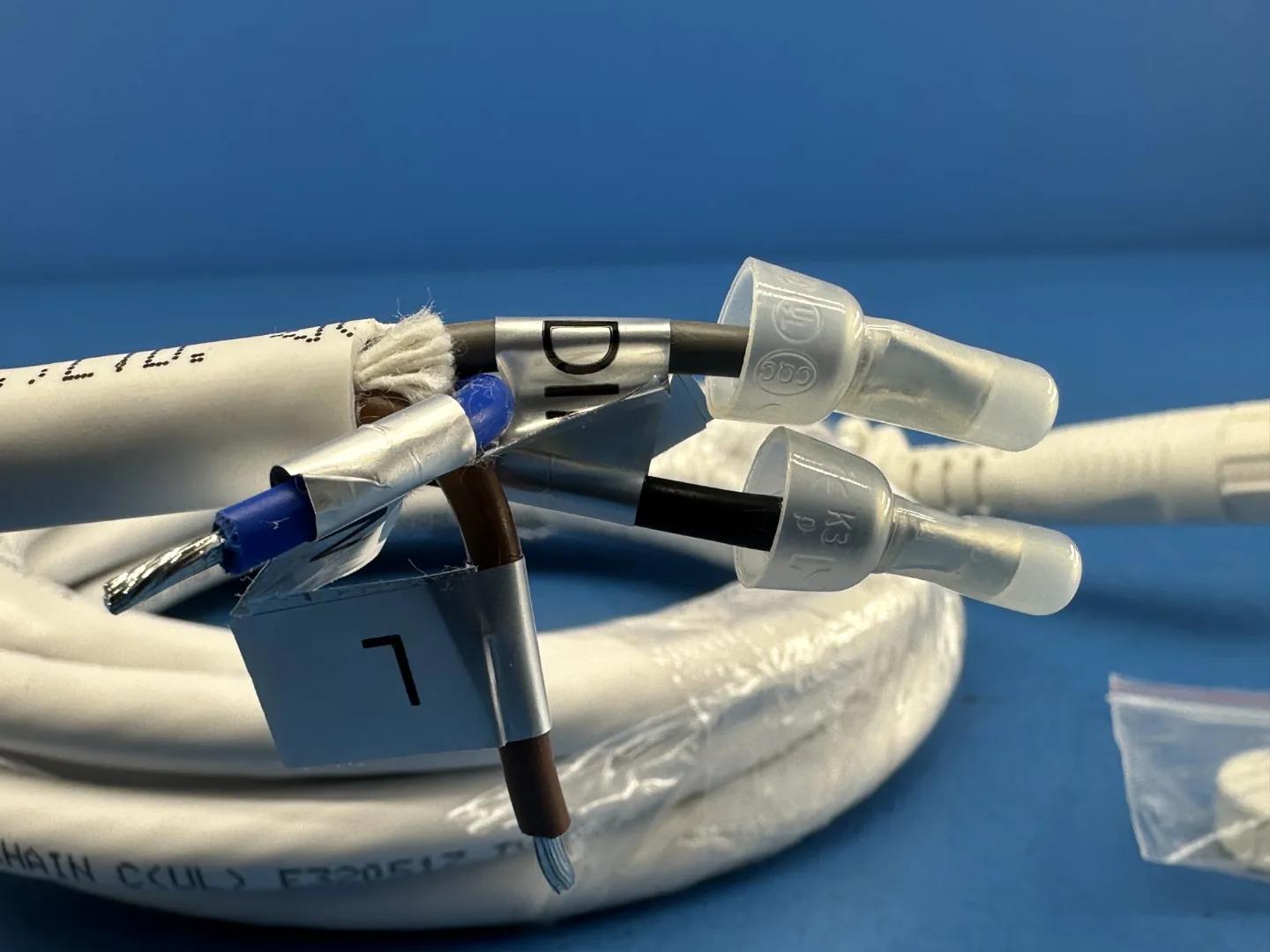

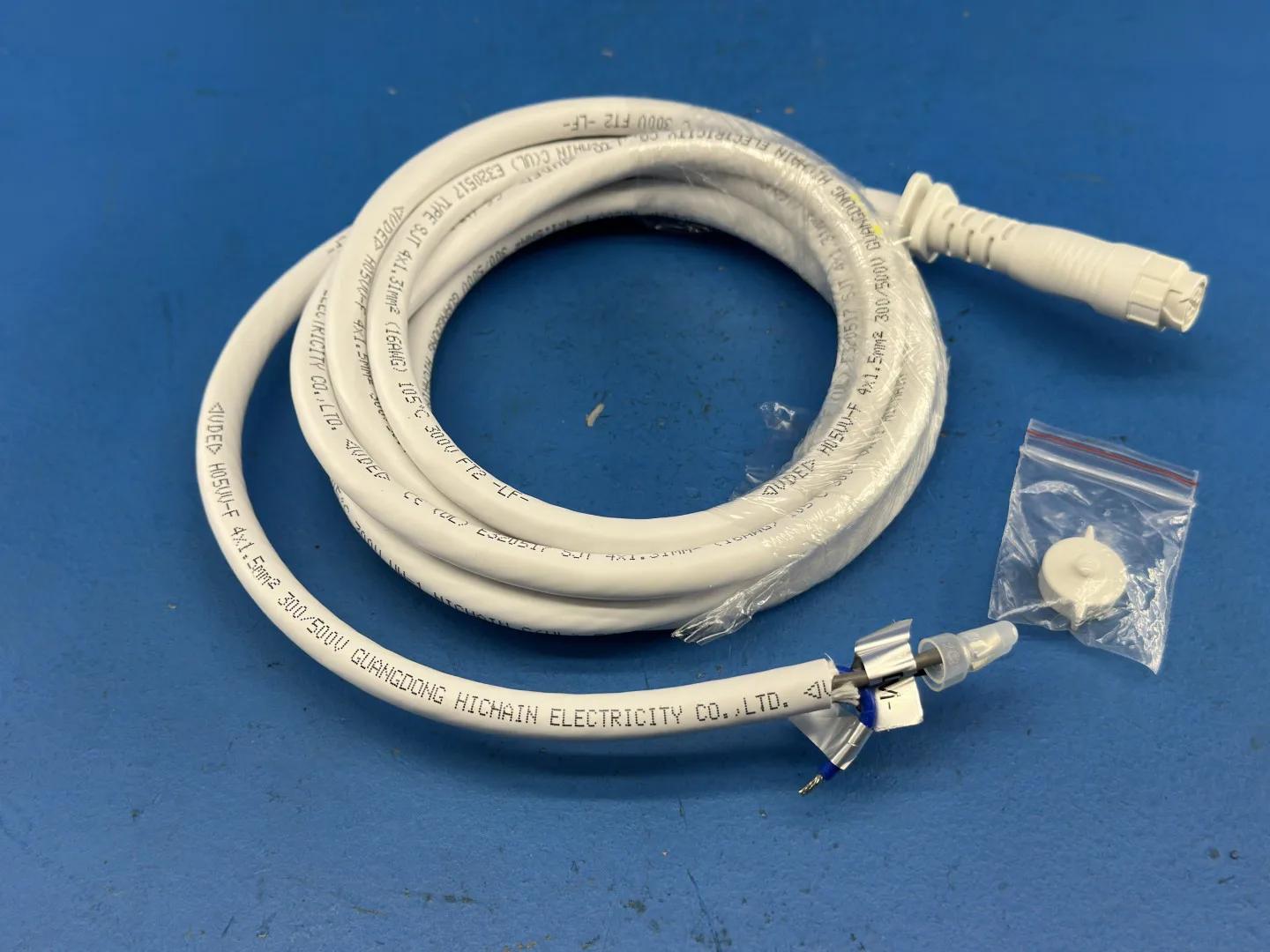

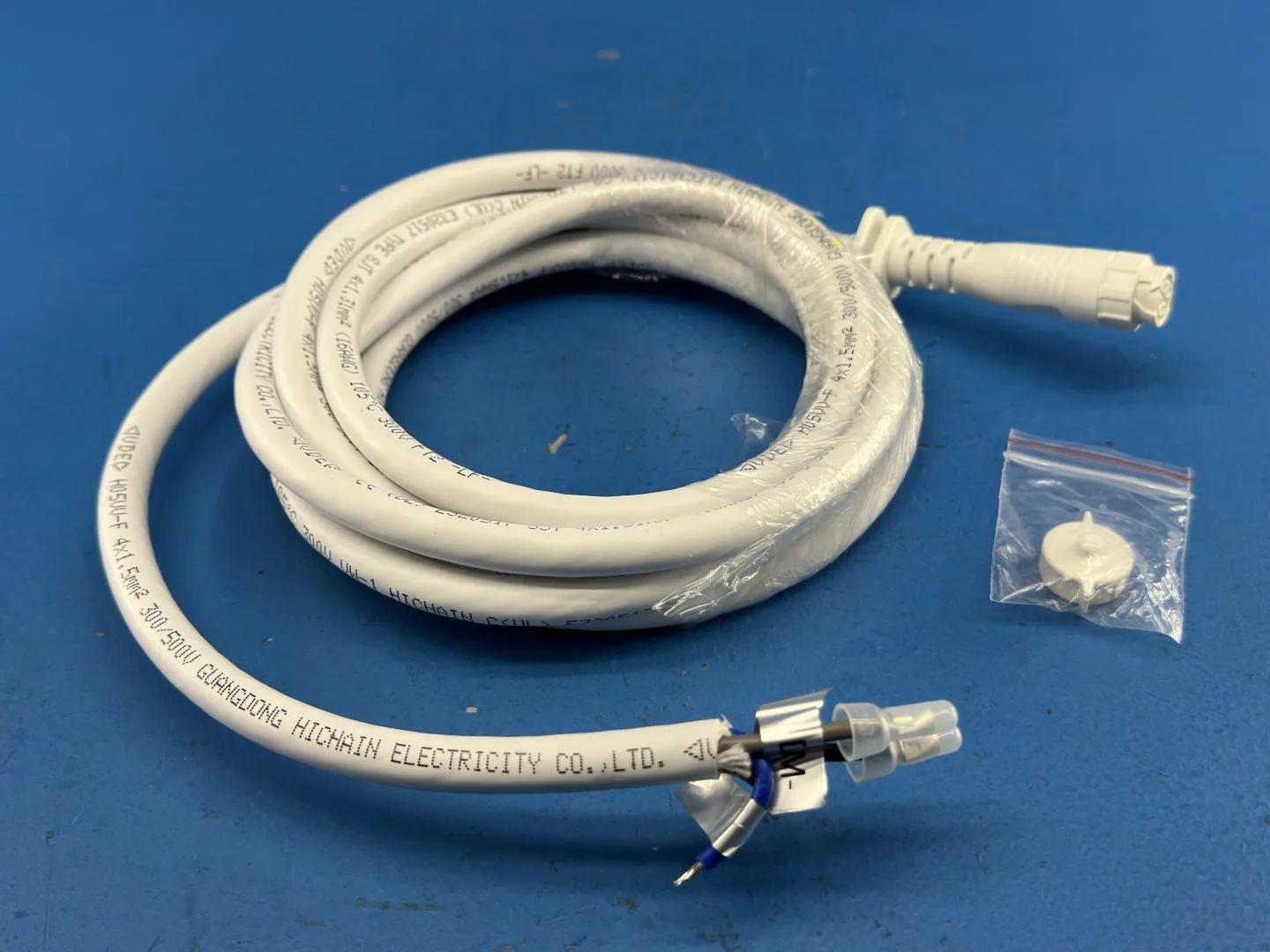

The GE LLWB-LC2-120, order code 10902, is a 120 inch (3048 mm) leader cable with one end cap for the GE LED Wall Washer, the Lumination LWW / LLW linear wall wash lighting system from GE Lighting Solutions, now Current. The cable has a molded connector at one end to plug into the first fixture in a run and pigtail leads at the other end for connection to line power in a junction box.

The label rates the system for 120-277V, 50/60 Hz, and the cable is cUL US listed and CE marked. The jacket is printed as a four conductor 16 AWG SJT flexible cord rated 105 C and 300V, with an FT2 flame rating.

Linear LED wall washers are mounted along a wall, cove or facade to spread even light across vertical surfaces in retail stores, hotel lobbies, museums, restaurants and building exteriors. Lighting contractors use leader cables to feed power into the start of a fixture run, with jumper cables linking fixtures further along the run, and the end cap closes the unused connection.

Available from King Surplus inventory in Del Rio, Texas.

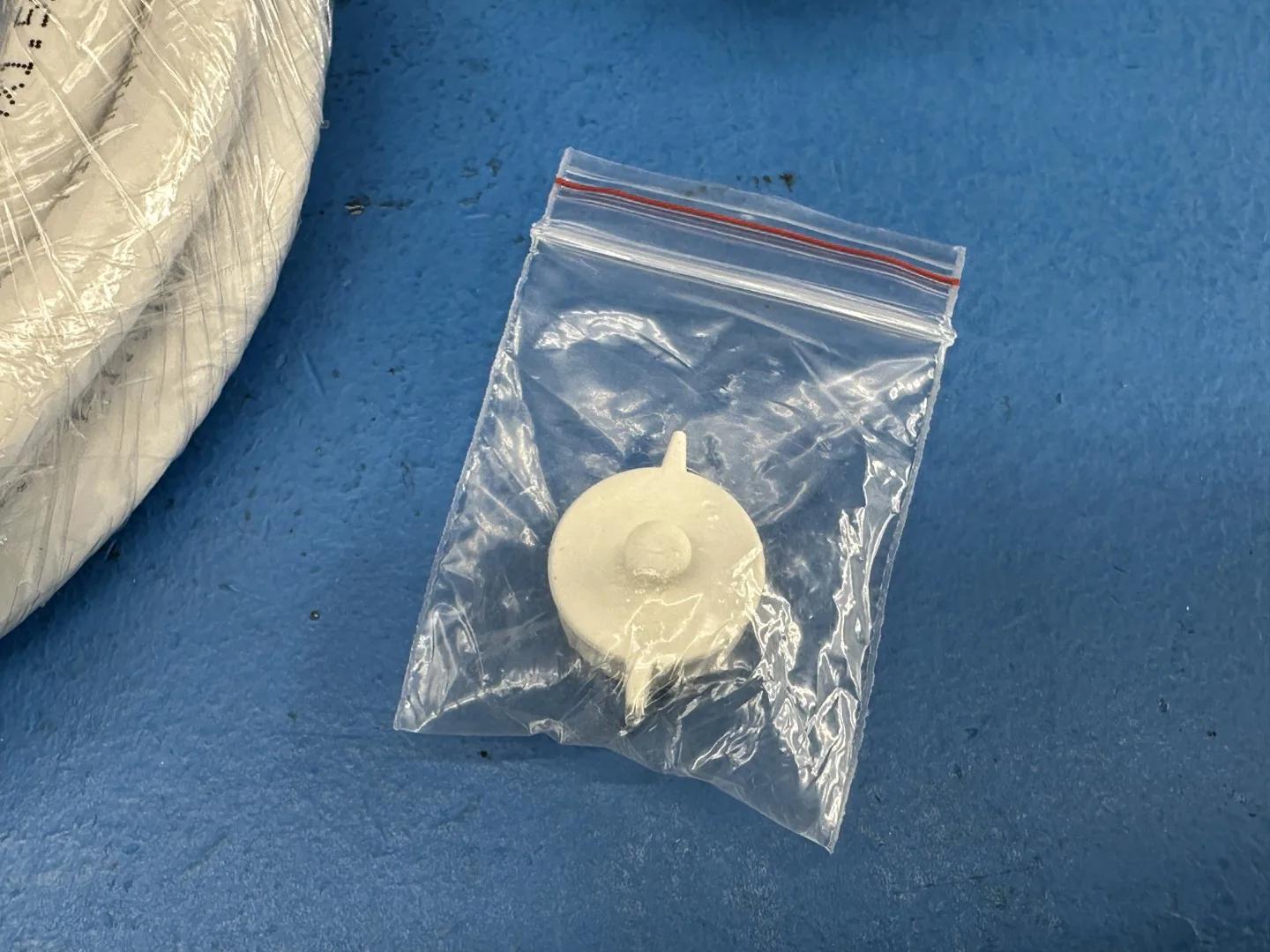

• Product: LED Wall Washer leader cable with one end cap
• Order Code: 10902 (label)
• Length: 120 in (3048 mm) (label)
• System Voltage: 120-277V, 50/60 Hz (label)
• Compatibility: GE LED Wall Washer, Lumination LWW / LLW series (label: For use with GE Wall Washer)
• Cable Jacket (label print): AVDE Type SJT 4 x 1.31 mm2 (16 AWG), 105 C, 300V, FT2; also marked H05VV-F 4 x 1.5 mm2 300/500V
• Listings: cUL US Listed, CE (label)
• Country of Manufacture: China (label)
• Spec Basis: package label and cable jacket photo (GE LED Wall Washer, Leader Cable, 120in. (3048mm) With One End Cap, Order Code 10902, LLWB-LC2-120, 120-277V 50/60Hz, cUL US LISTED, CE, Made in China, SJT 4x1.31mm2 (16AWG) 105C 300V FT2, H05VV-F 4x1.5mm2 300/500V); FSG storefront GE Current 10902 LED Wall Washer Leader Cable listing; Graybar Current LLWB-LC2-120 Leader Cable 120 in listing
