Basic Information


Asset #

KSC1290 / 1120

Available Quantity

2

Inspections - Yellow Tag

1.1 Appears Unused no box

Condition

New

Guarantee or ASIS

1. HIGH CONFIDENCE ITEM: We will offer a 100% 14 Day money back less S&H.

Item Description

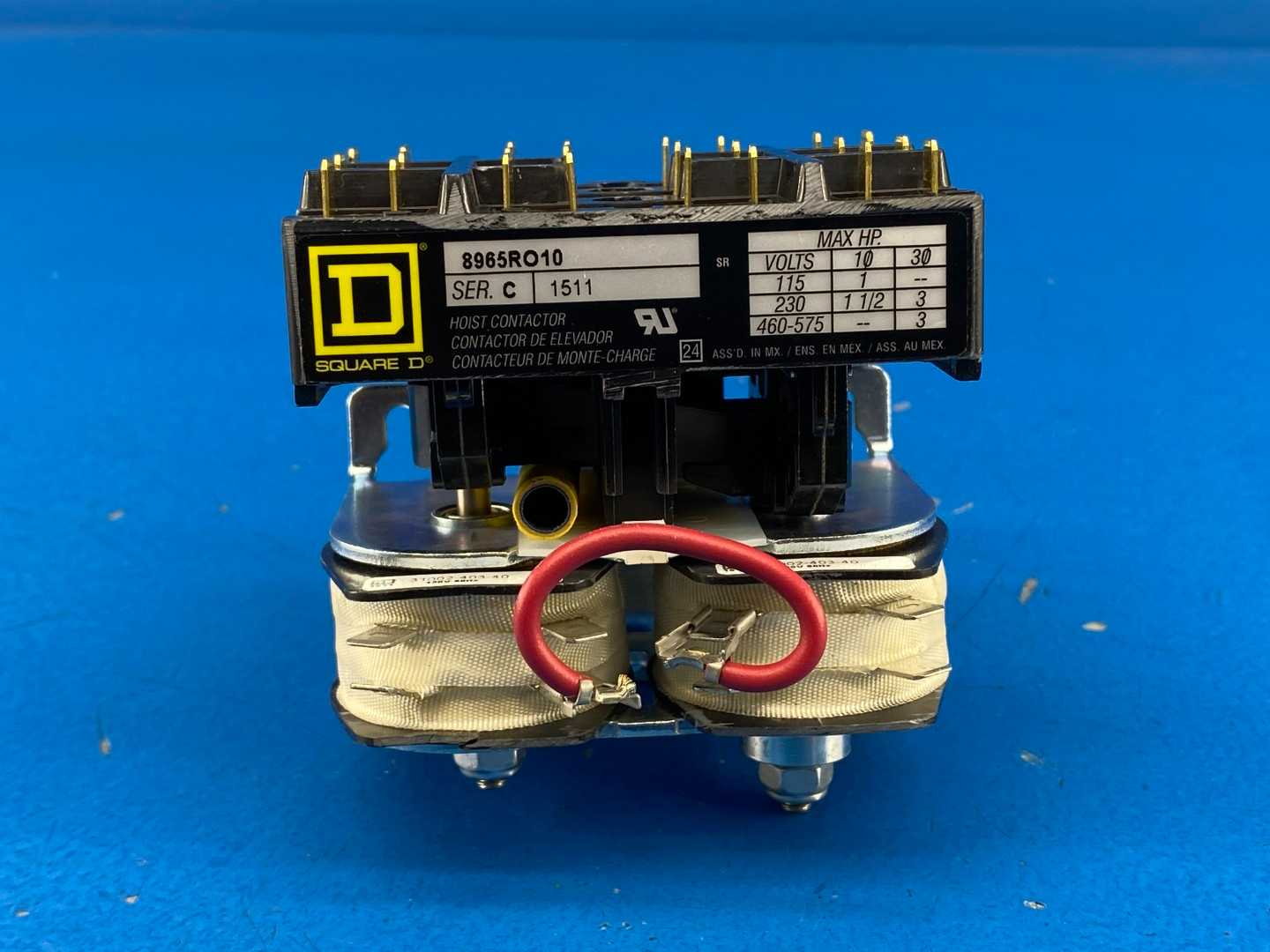

Class 8965 Type DPR reversing/hoist contactors are designed for the control of motors in hoists, overhead doors, small elevators, commercial laundry equipment, and other related products that use reversing motors. They are rated to perform in the short periods of jogging experienced in hoist service.

The coils are designed to operate on line voltages of 85–110% of rated voltage, at 50 or 60 Hz only. Coils are easily replaced by removing the external base.

Auxiliary contacts can be field-installed on any Class 8965 reversing contactor. Type DPR contactors accept one auxiliary contact module with up to two isolated circuits per side (two modules per device). Typically, when separate auxiliary contacts are ordered, two modules are used for each device—one for forward and one for reverse.

Specifications

Manufacturer
Square D
Model
8965RO10 / 8965RO10V02
Serial
N/A
Year
N/A
HP / AMP / KW / KVA
N/A
Amps
N/A
Length (Inches)
4
Width (Inches)
3
Height (Inches)
4
Phase
3ph
Estimated Packaging Weight
0
Estimated Total Weight
1.55625
Asset Number
KSC1290 / 1120

Packaging fees

Packaging Cost

1.6 6x10 CH $3.00
