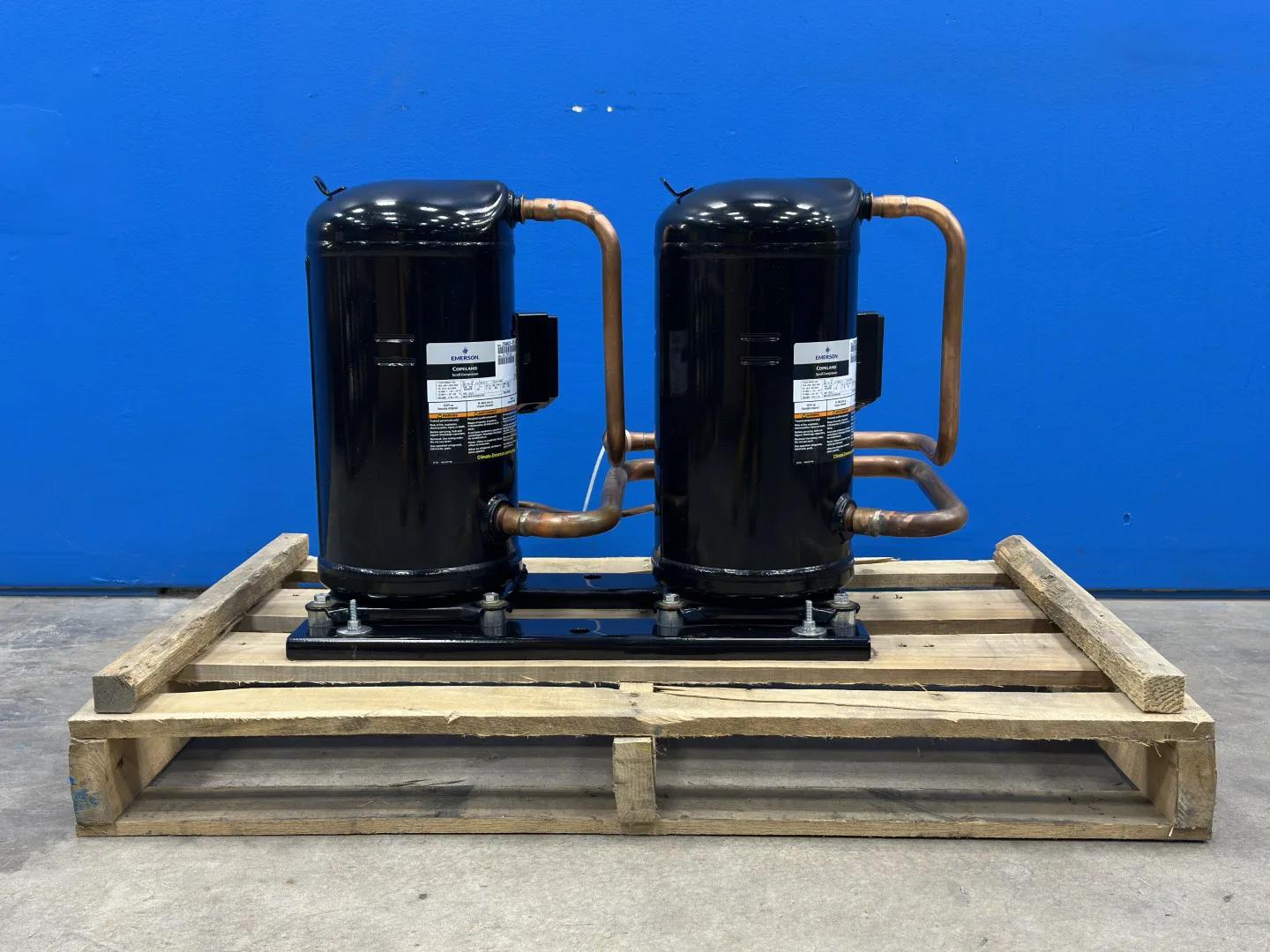

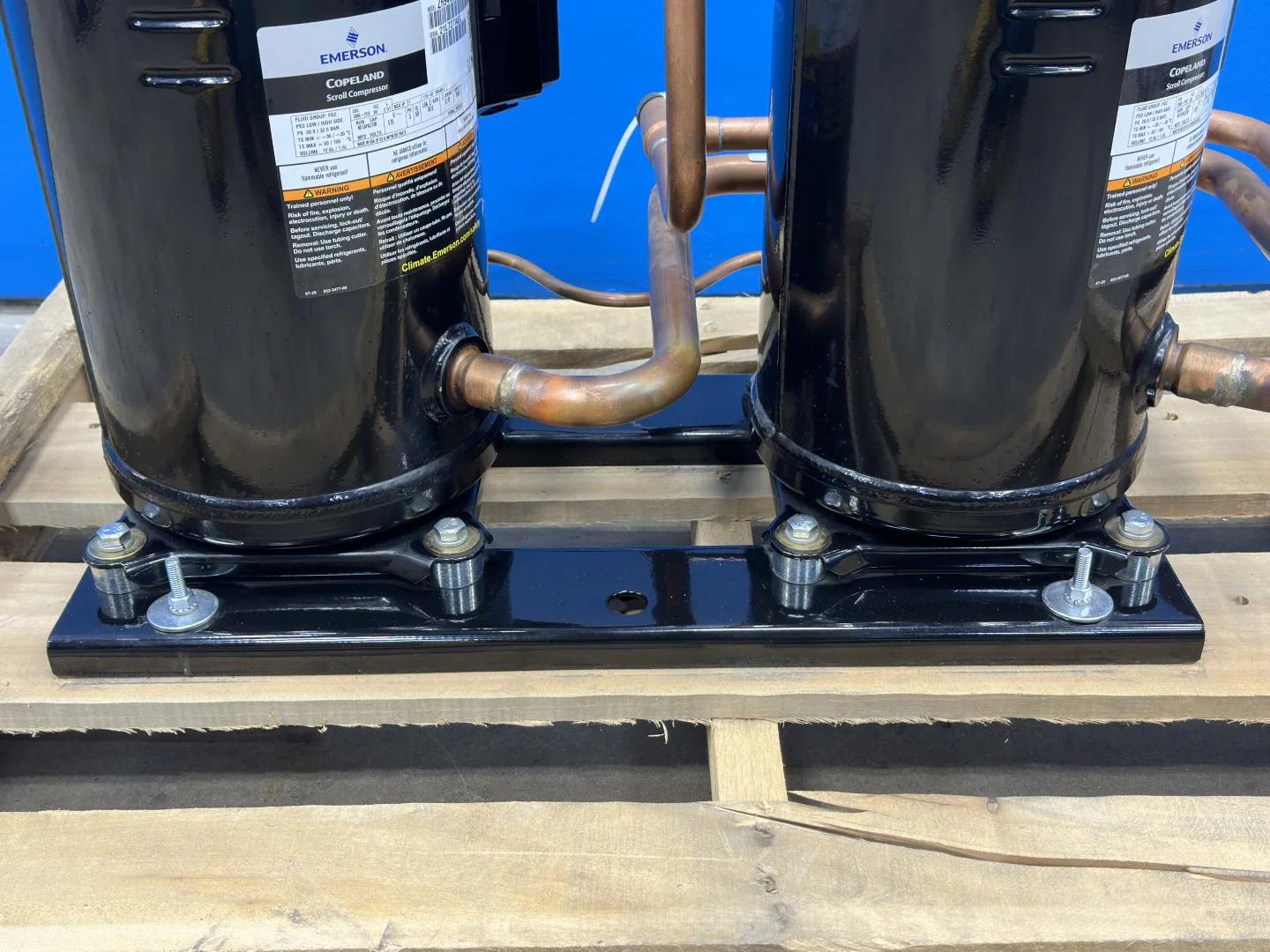

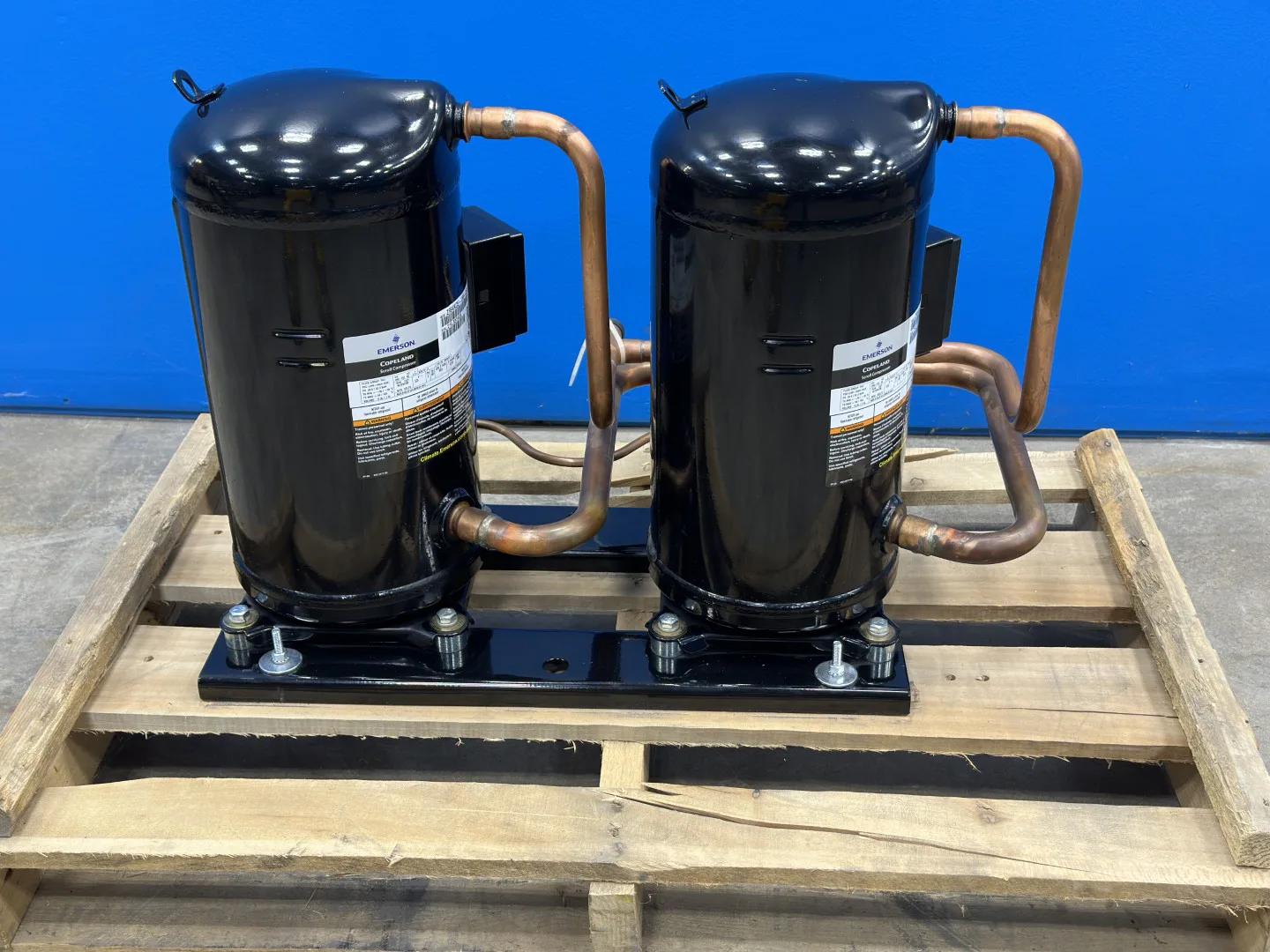

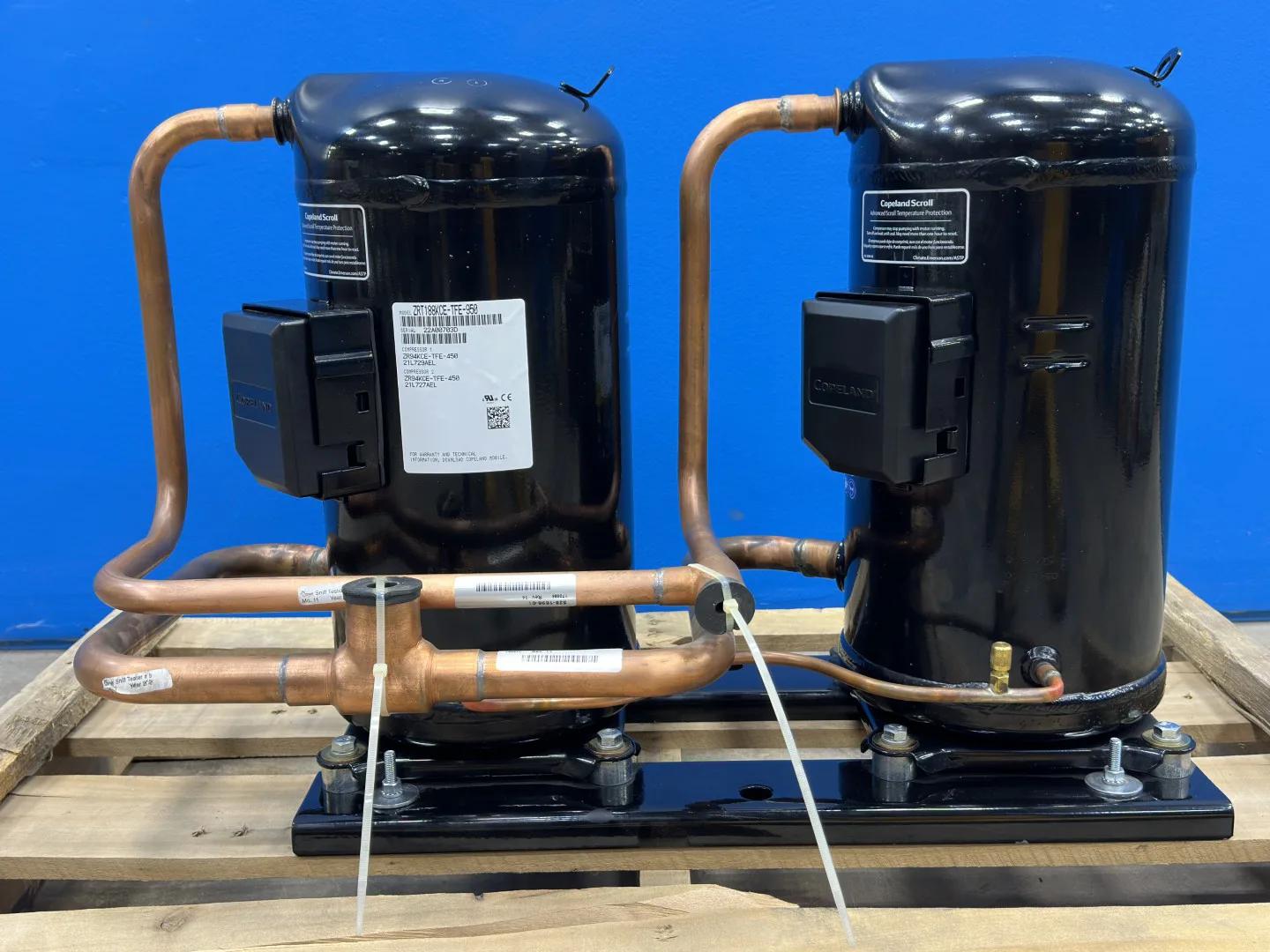

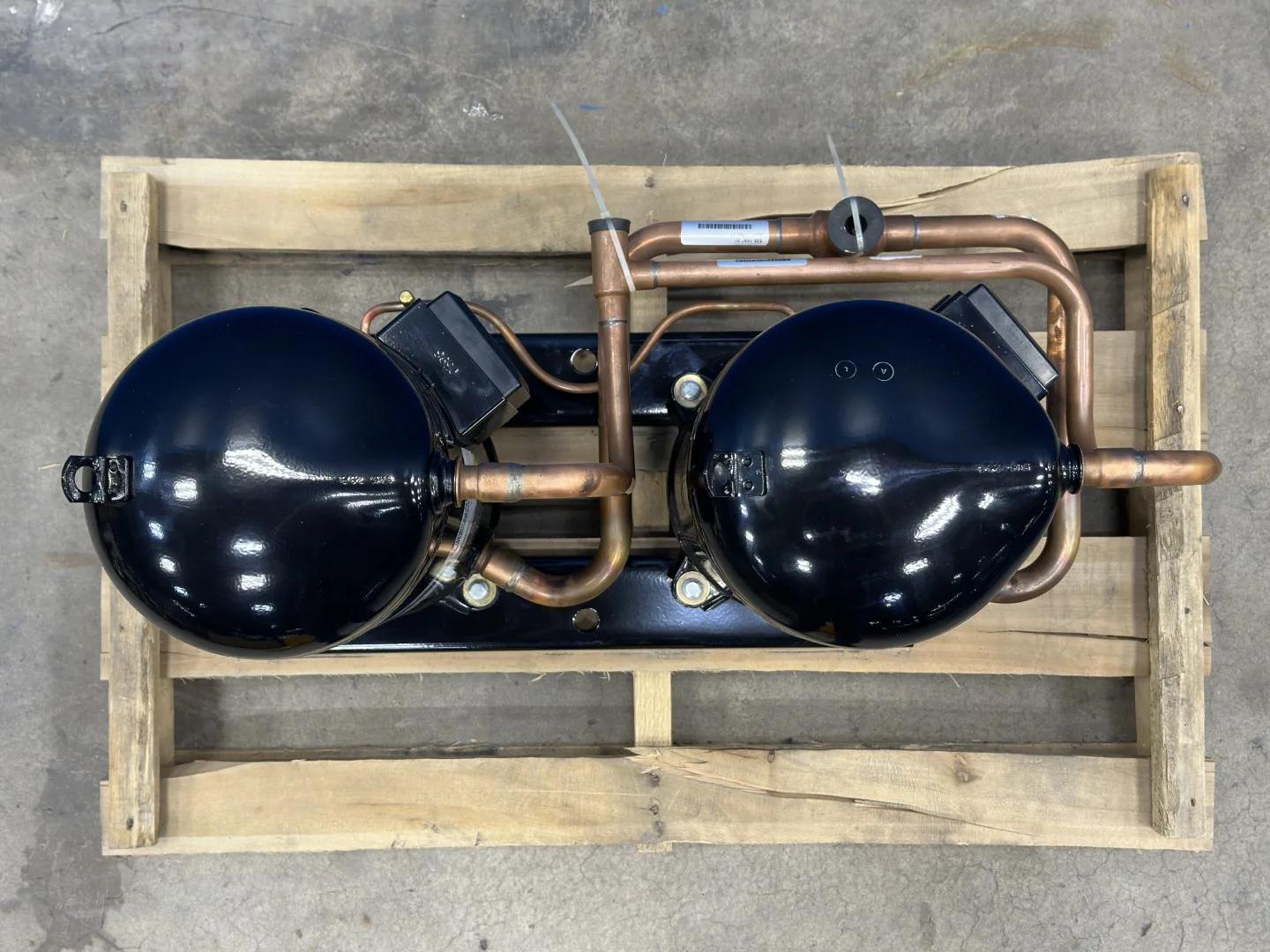

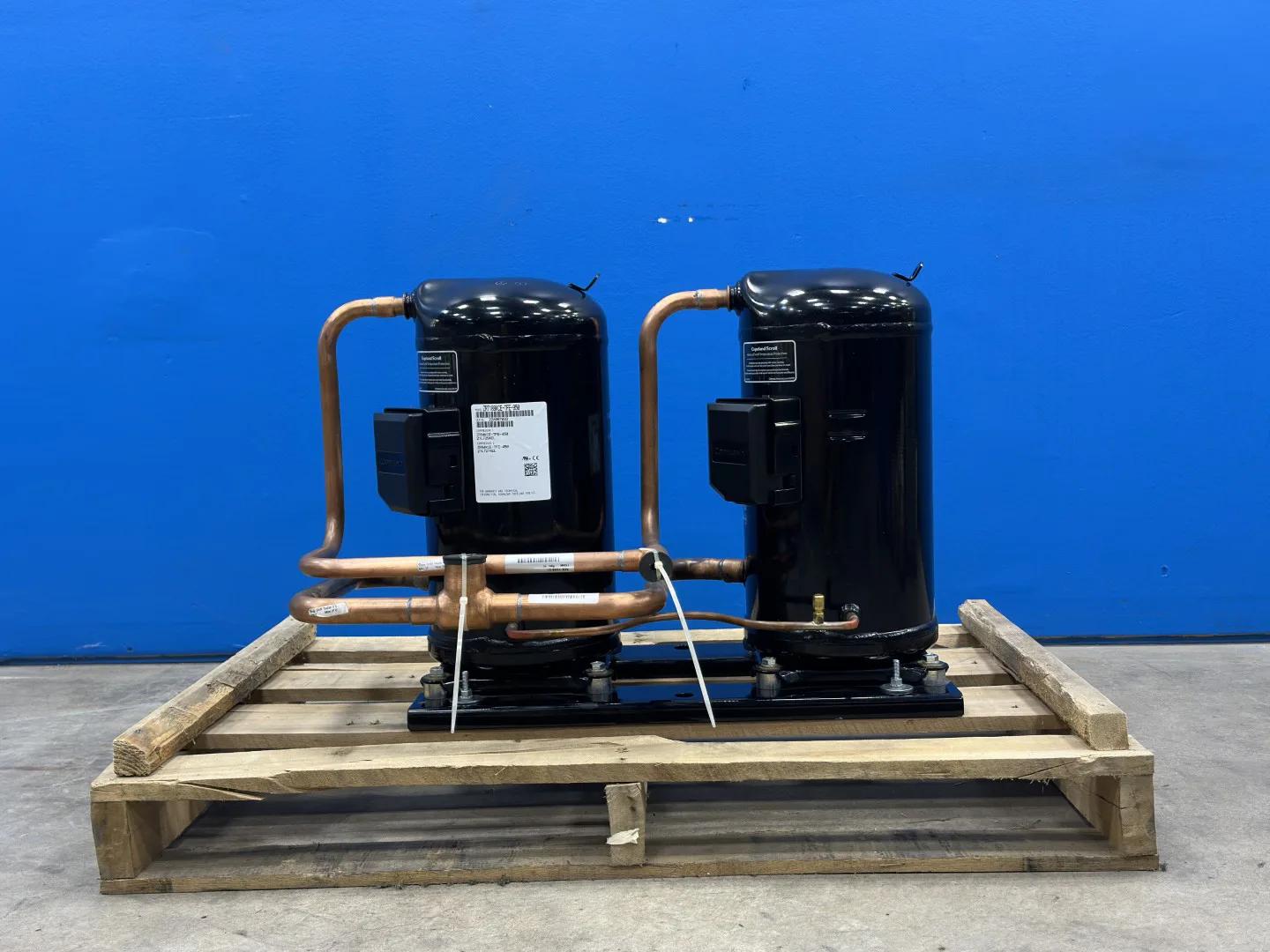

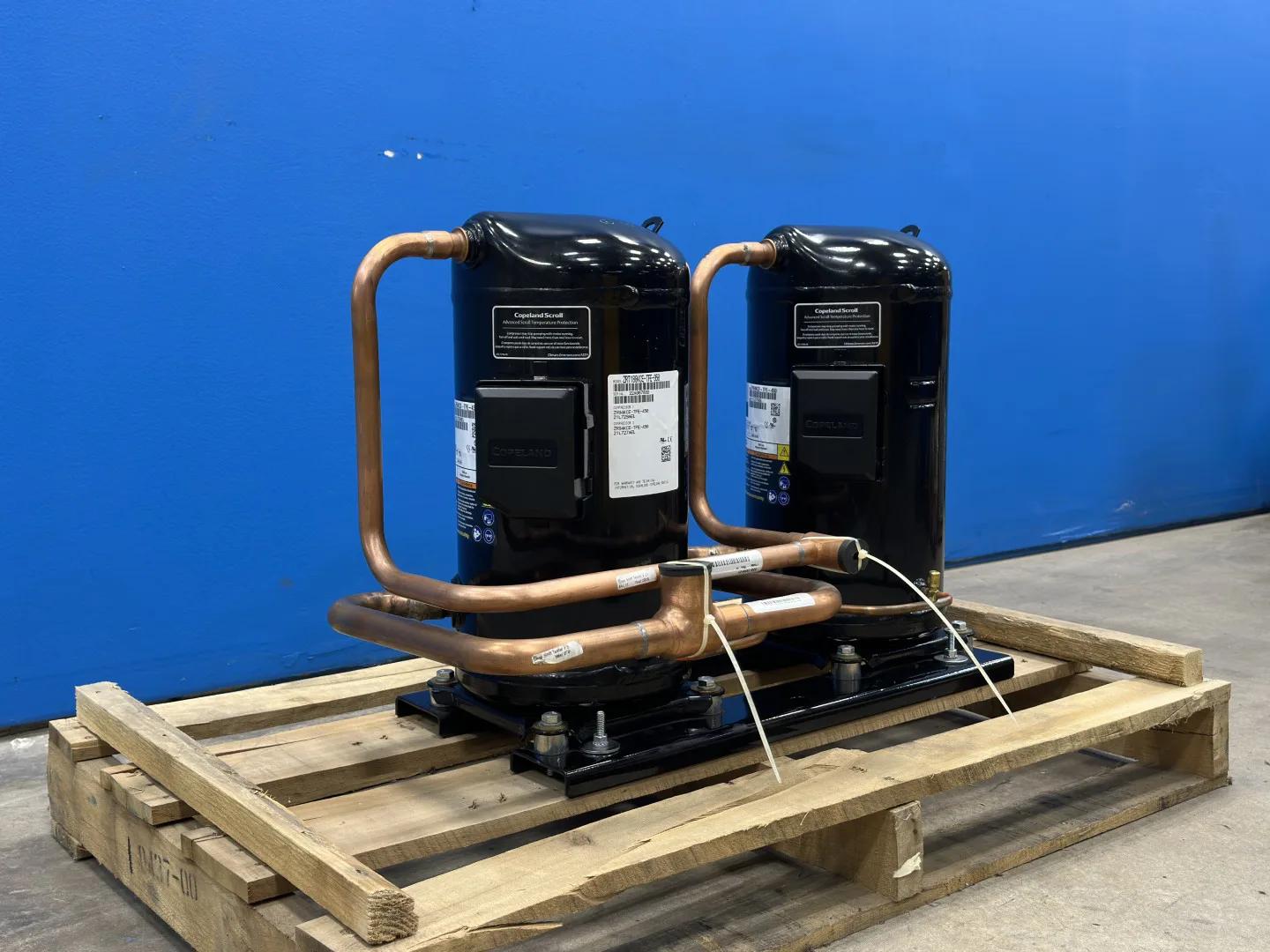

Copeland ZRT188KCE-TFE-950 commercial tandem scroll compressor assembly, rated 191,500 BTU/hr and built from two ZR94KCE-TFE-450 scroll compressors manifolded on a common base. From Emerson's commercial ZRKC Copeland Scroll family, it is a 575V 3-phase, 60 Hz unit nominally rated at 16 HP, charged with POE oil and originally an R-22 design that also carries forward as a service compressor for R-407C and R-134a systems. Tandem construction allows staged capacity control, switching between one and both compressors to match part-load demand for smoother, more efficient operation than a single fixed-capacity unit.

Used in commercial rooftop units, packaged air conditioners, chiller plants, and process cooling where staged high-tonnage capacity is required. Being 3-phase, the compressors require no start or run capacitor. Each scroll uses axial and radial compliance for efficient compression and good liquid-handling tolerance, with Advanced Scroll Temperature Protection on the family.

• Tandem of two ZR94KCE-TFE-450 Copeland Scroll compressors
• 191,500 BTU/hr nominal, 16 HP nominal class
• 575V / 3-Phase / 60 Hz, no capacitor required
• R-22 design, compatible with R-407C and R-134a
• POE oil; suction 1-5/8 in ODF, discharge 1-3/8 in ODF

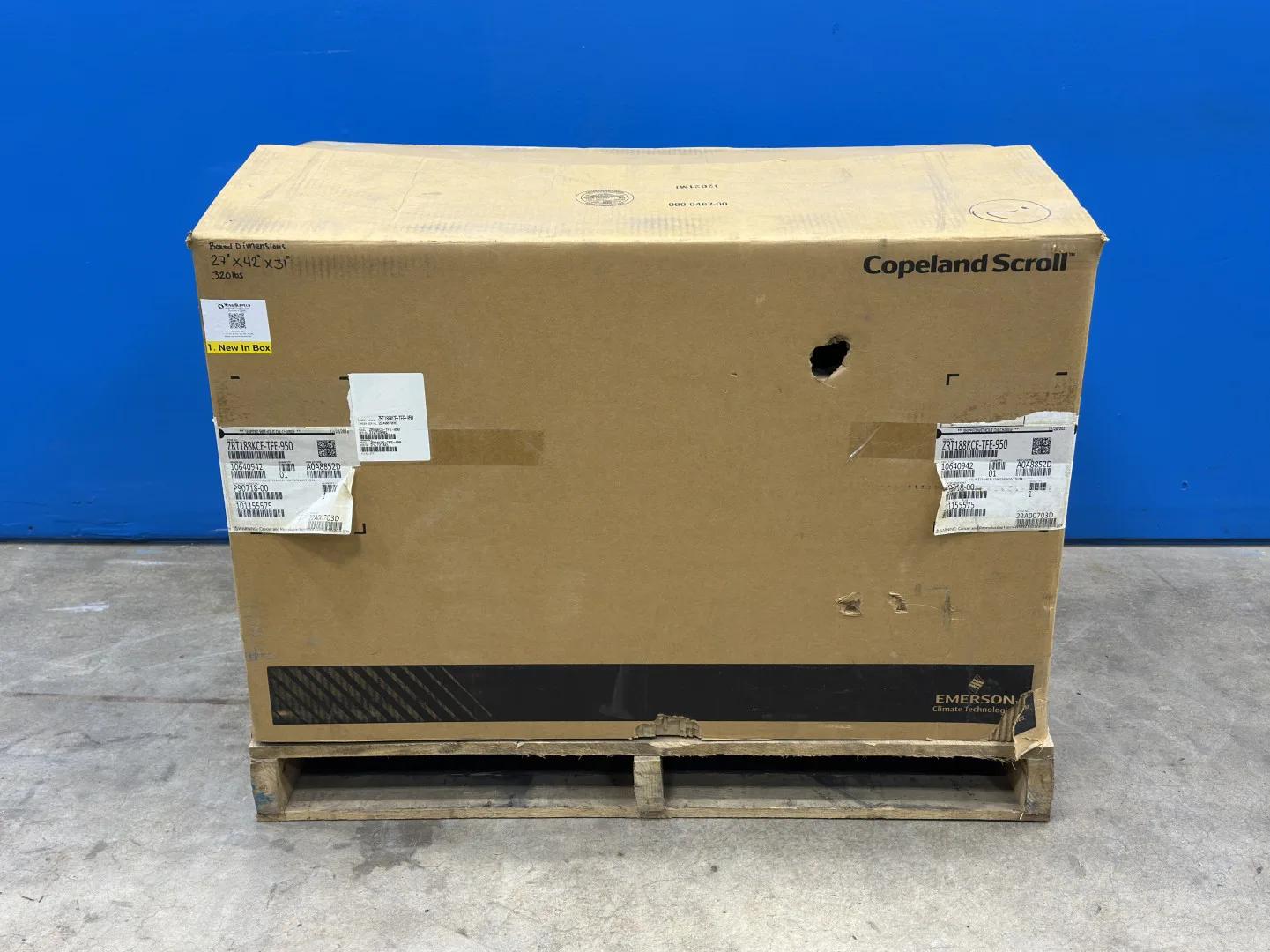

New surplus, available from King Surplus inventory in Del Rio, Texas.

Manufacturer: Copeland (Emerson)

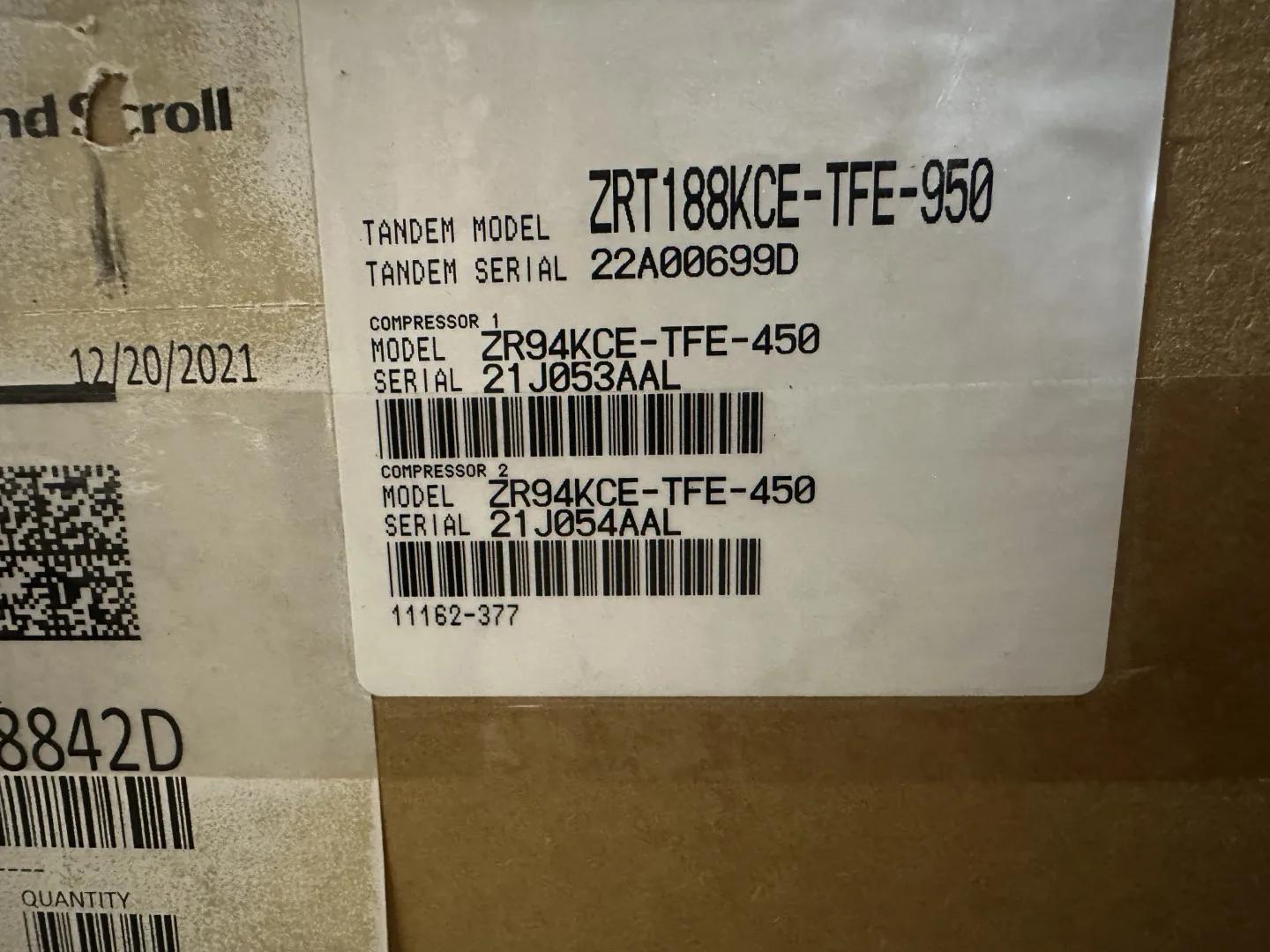

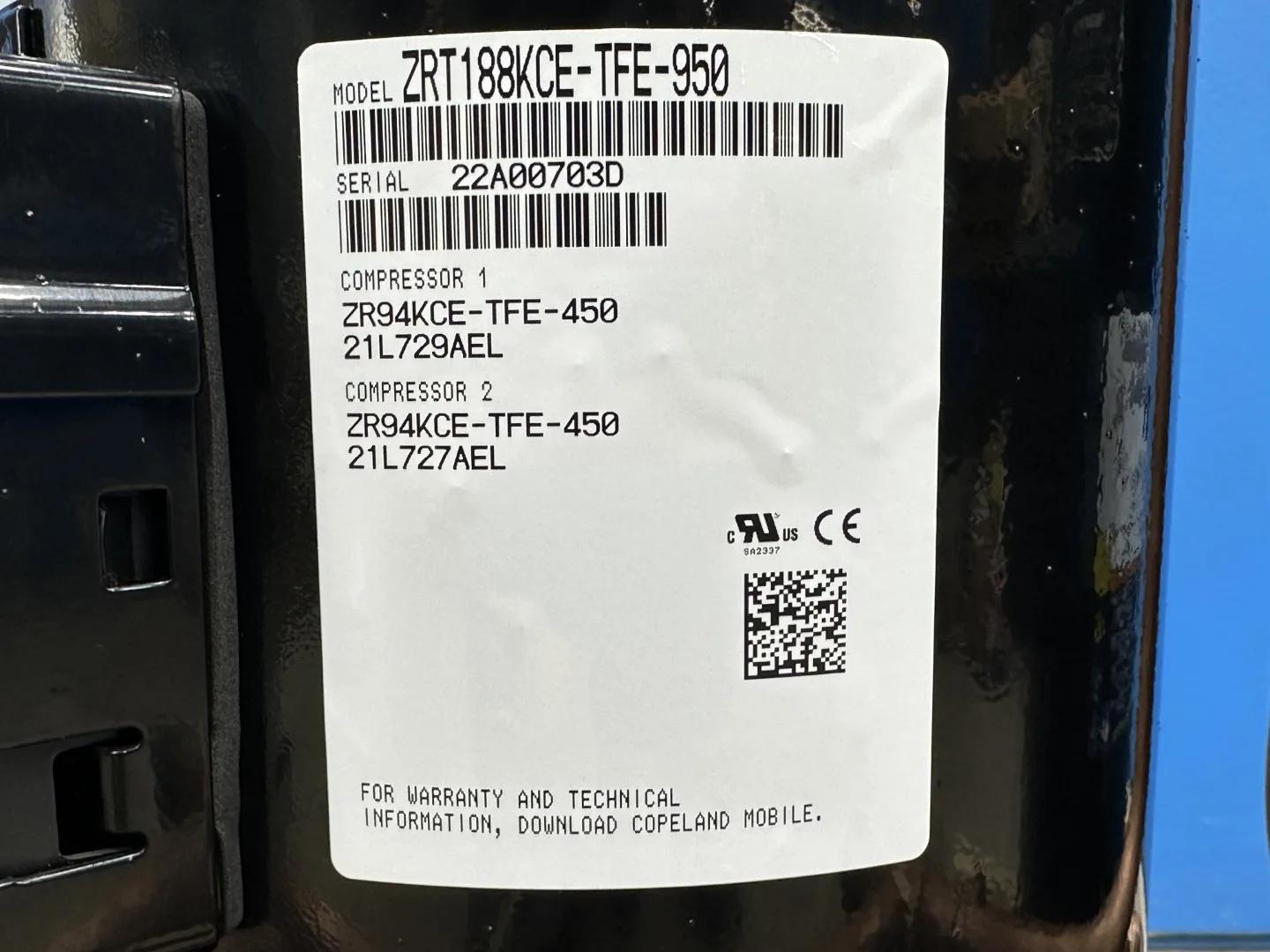

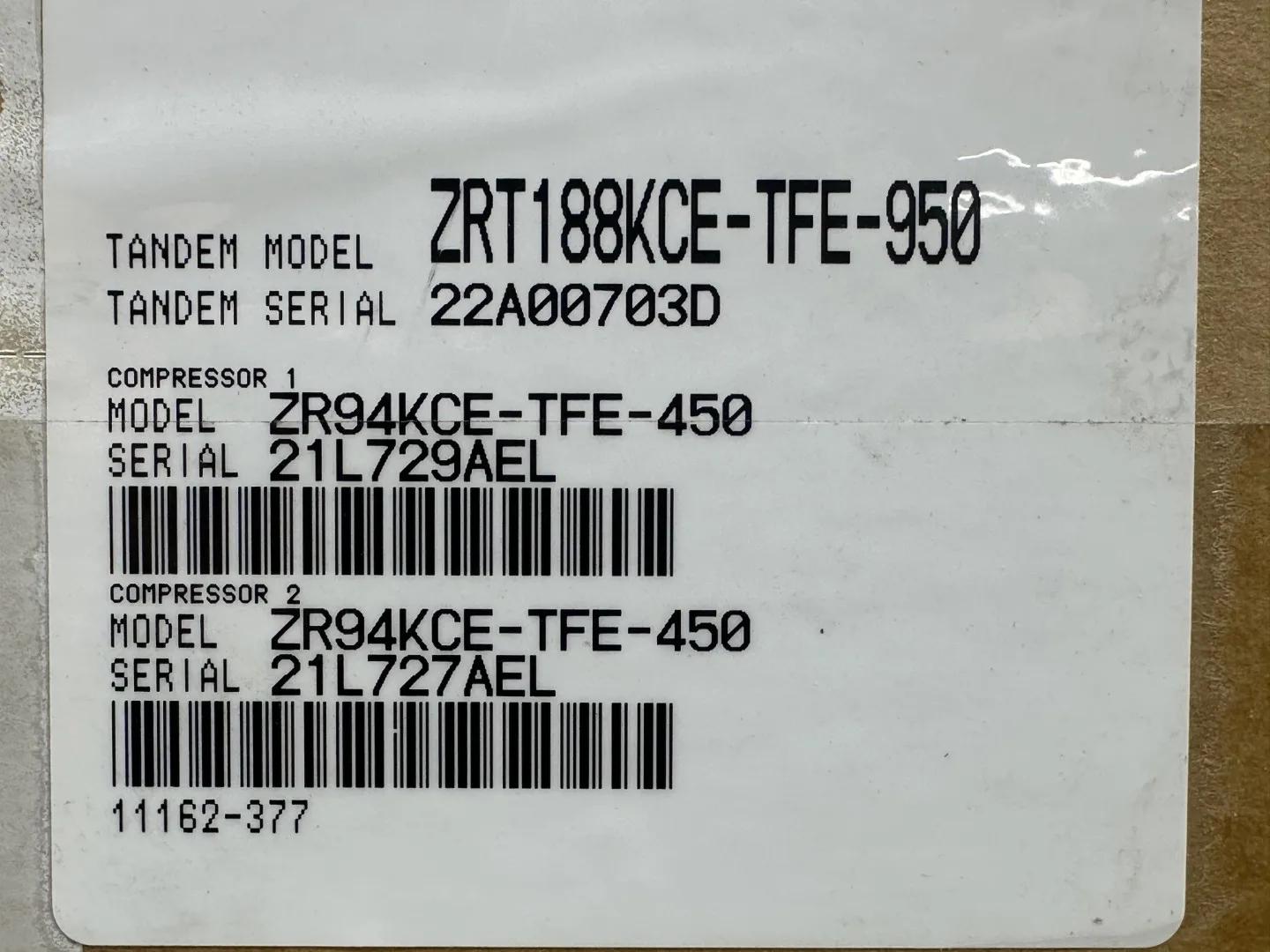

Tandem Model: ZRT188KCE-TFE-950

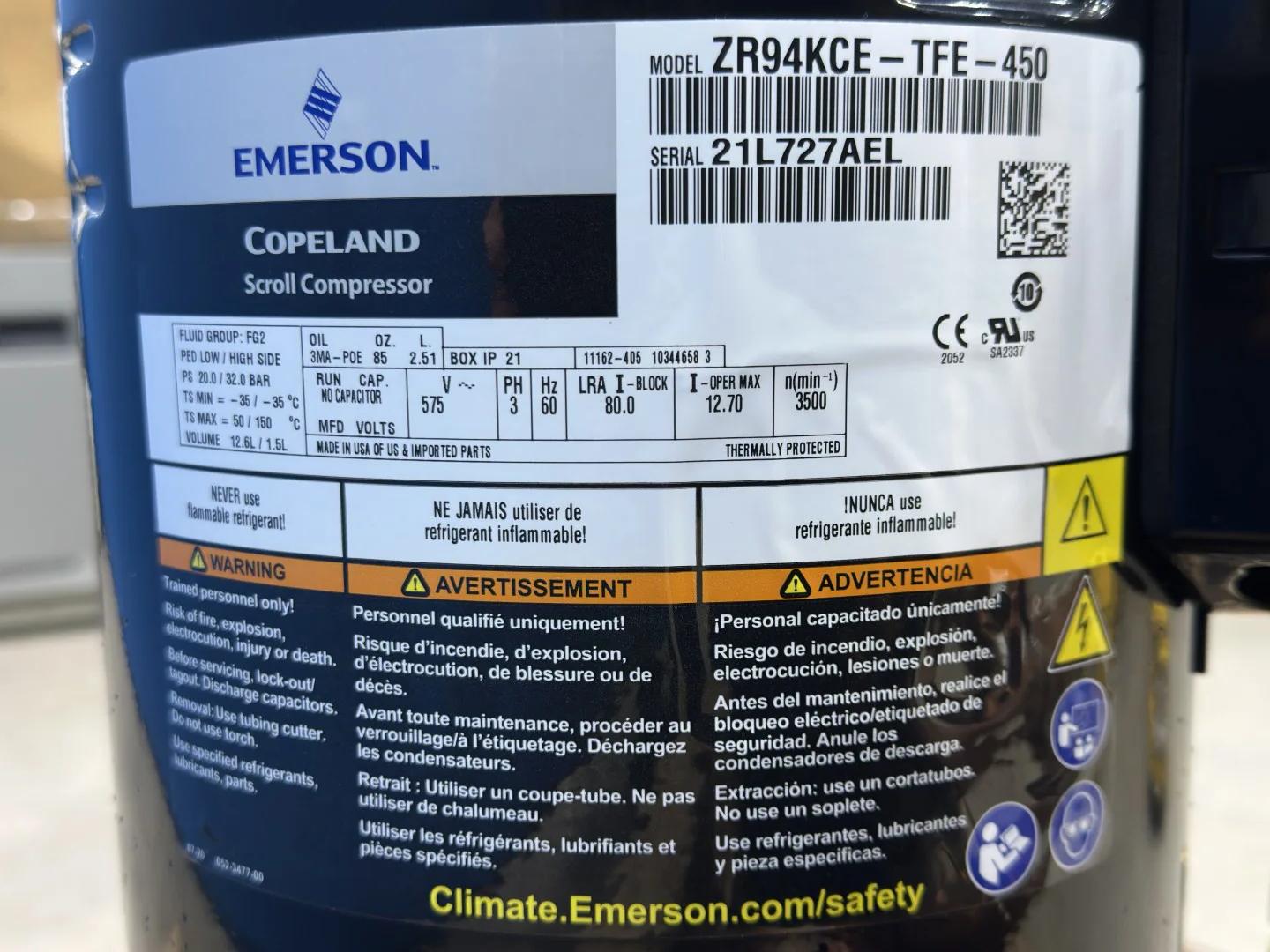

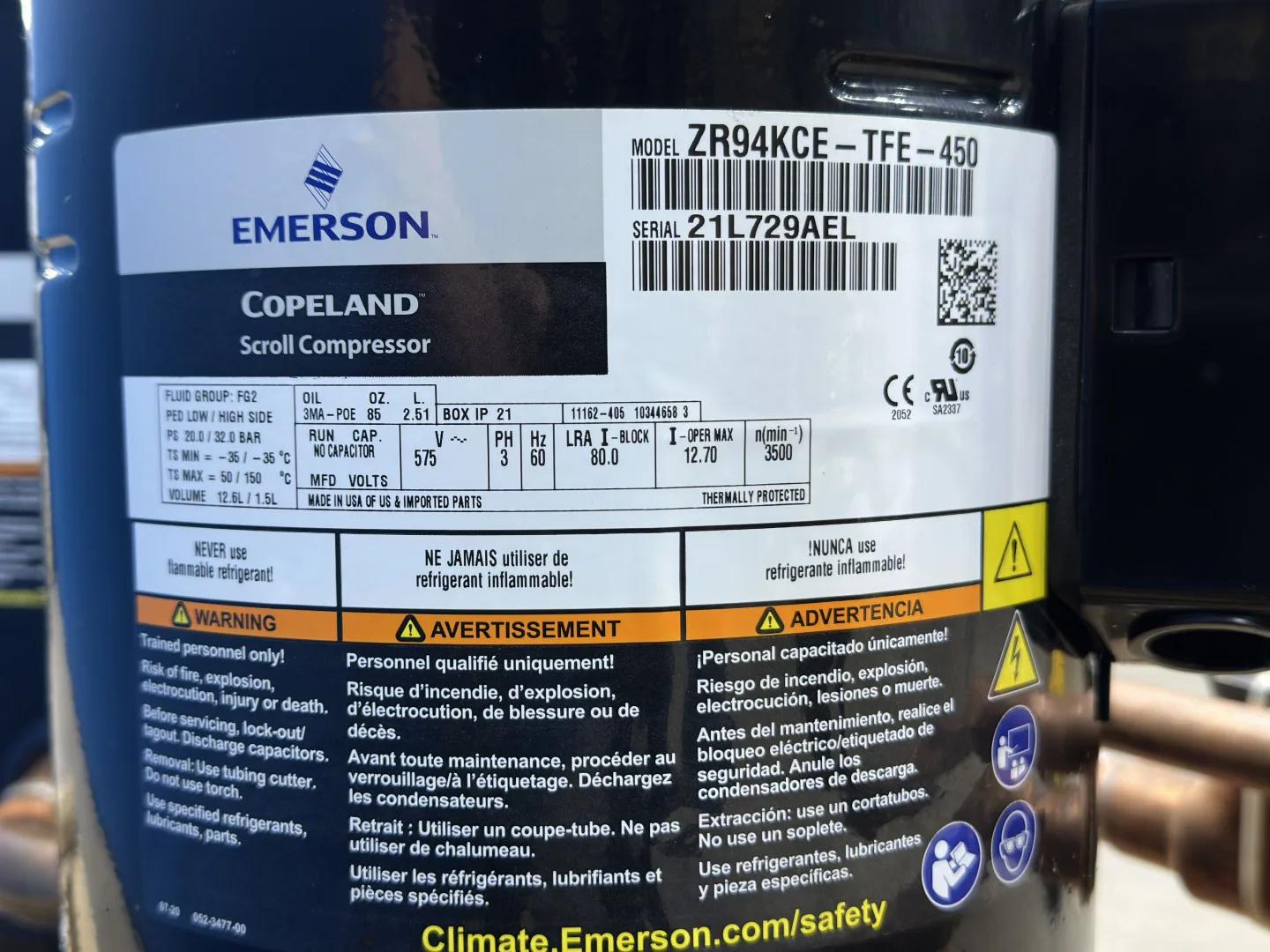

Compressor Configuration: 2x ZR94KCE-TFE-450 scroll
Type: Tandem Scroll Compressor
Capacity: 191,500 BTU/hr nominal
Nominal HP: 16 HP (ZRT188KCE family)
Refrigerant: R-22 (compatible R-407C / R-134a)
Voltage / Phase / Hz: 575V / 3-Phase / 60 Hz
LRA (per compressor): 80.0 - 90.0 A
Speed: 3,500 RPM
Oil Type: POE (FG2)
Capacitor: None required (3-phase)

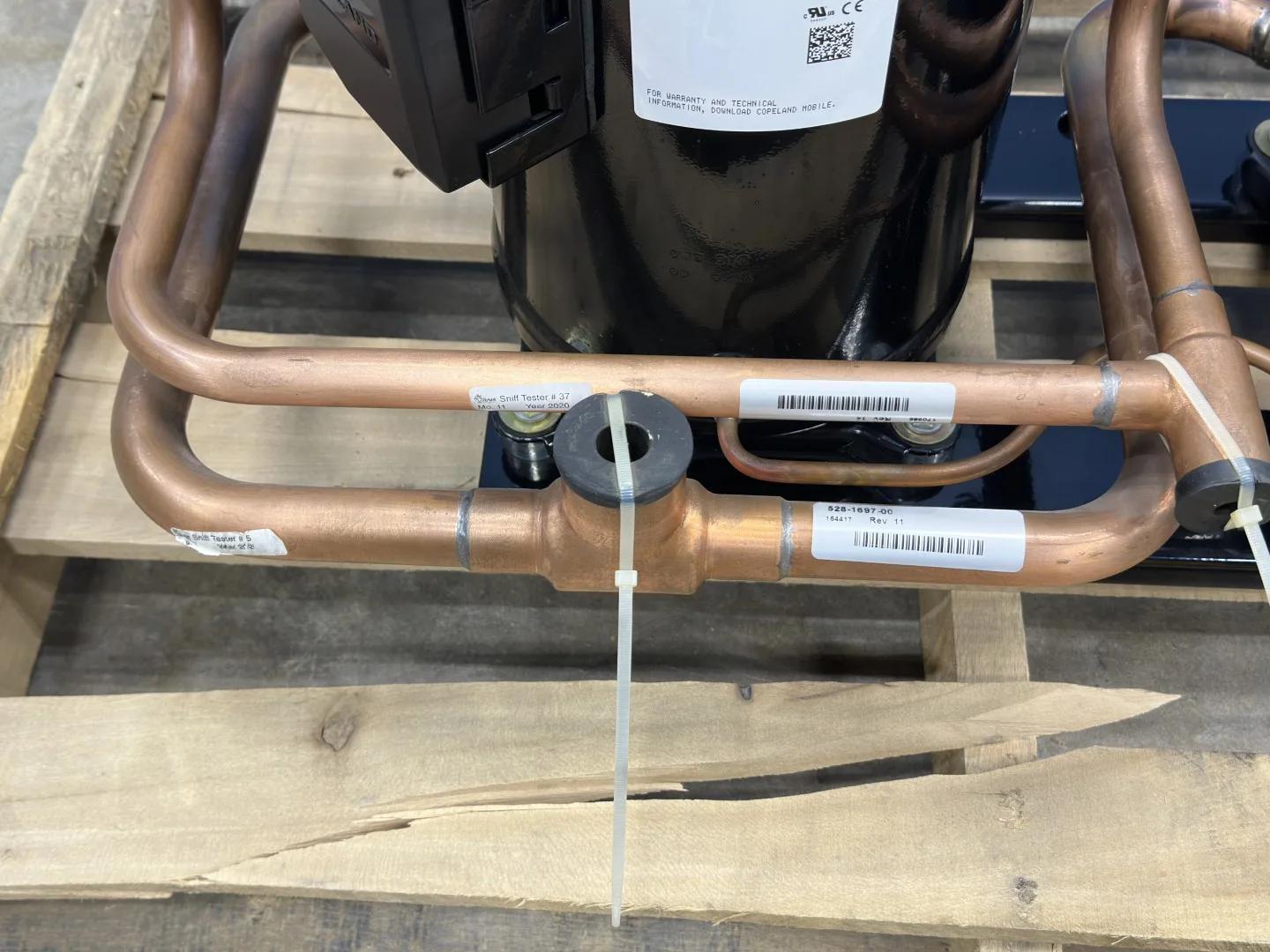

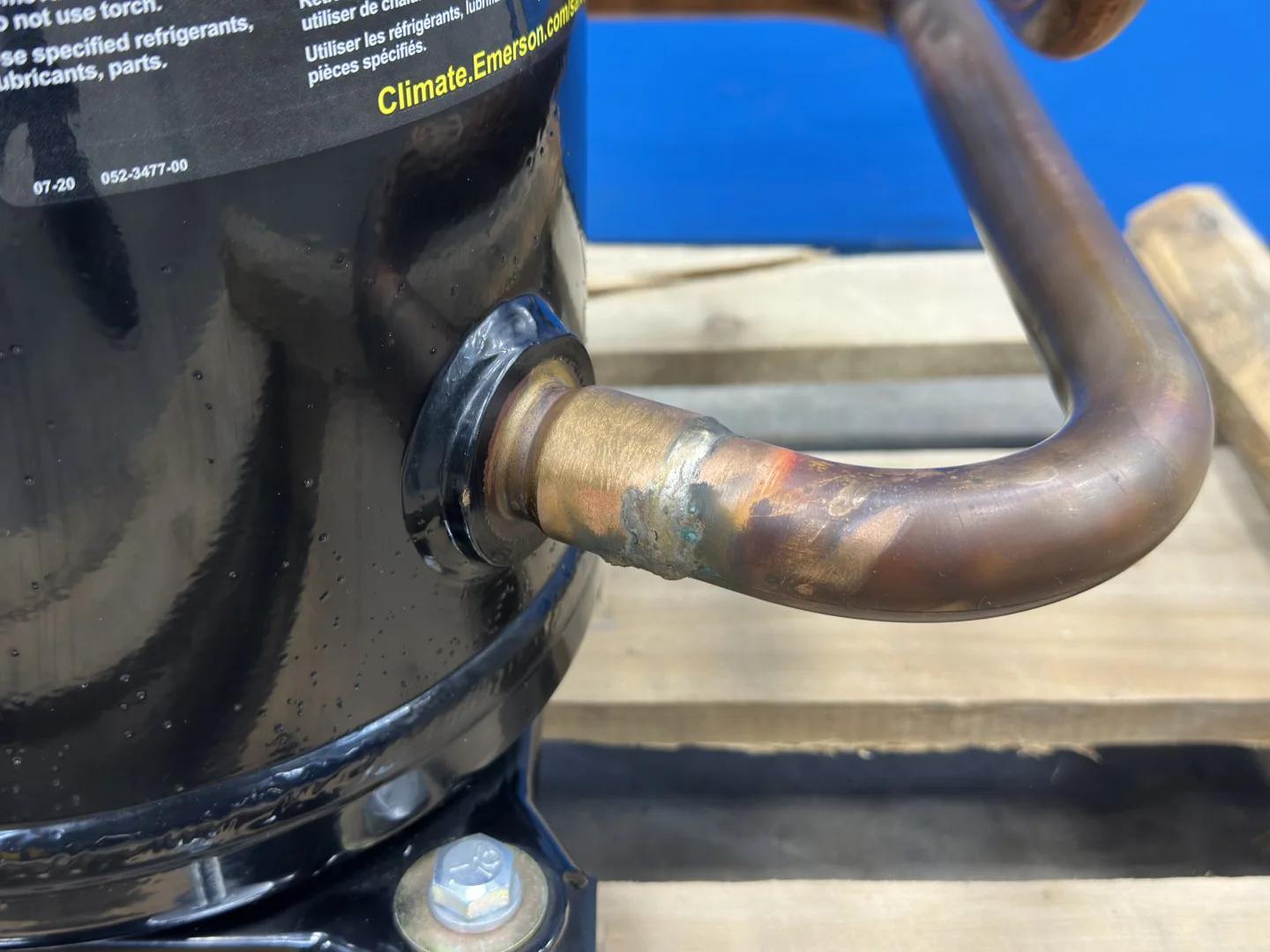

Suction Line: 1-5/8 in ODF

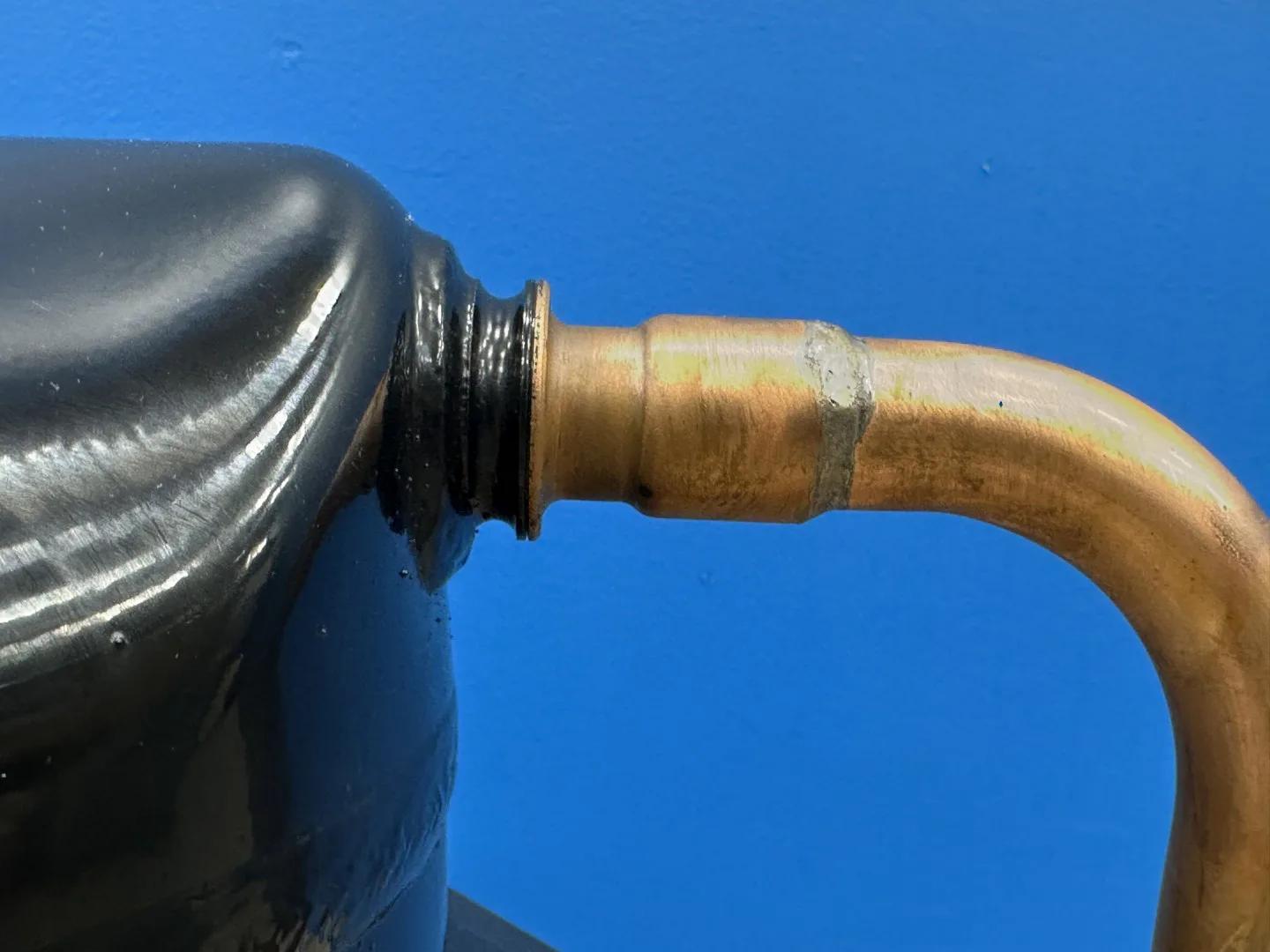

Discharge Line: 1-3/8 in ODF
Country of Origin: USA (US & imported parts)
