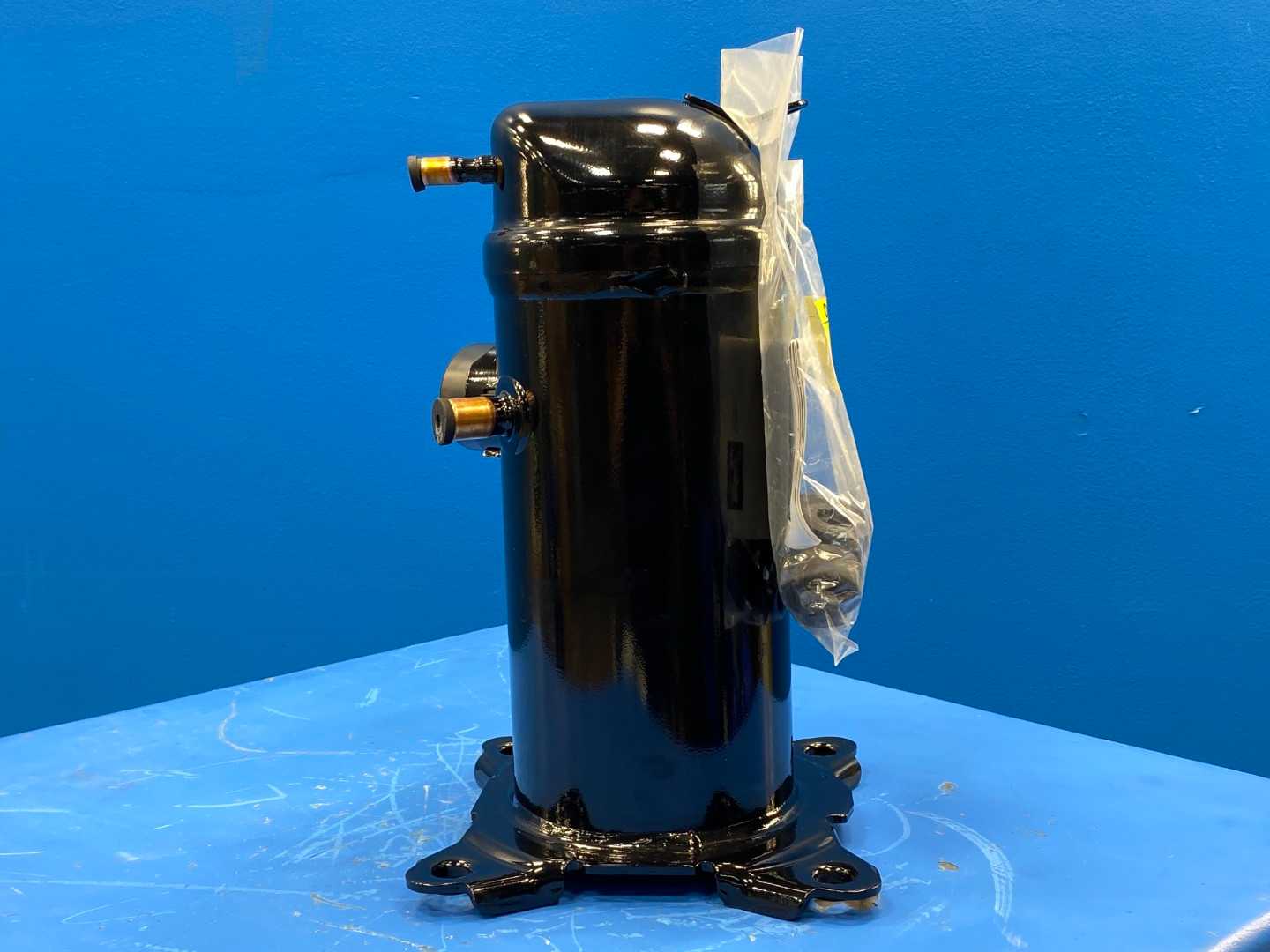

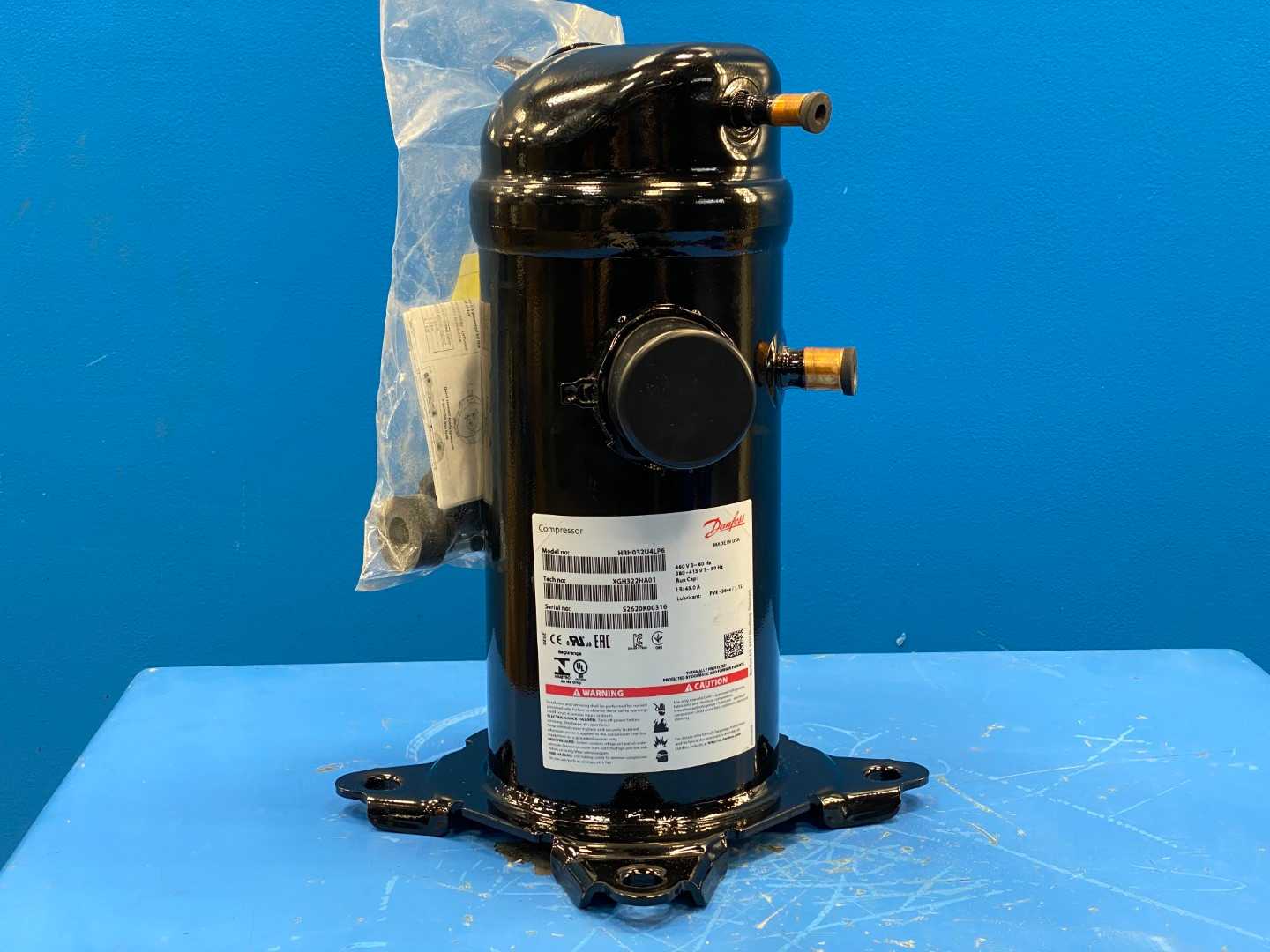

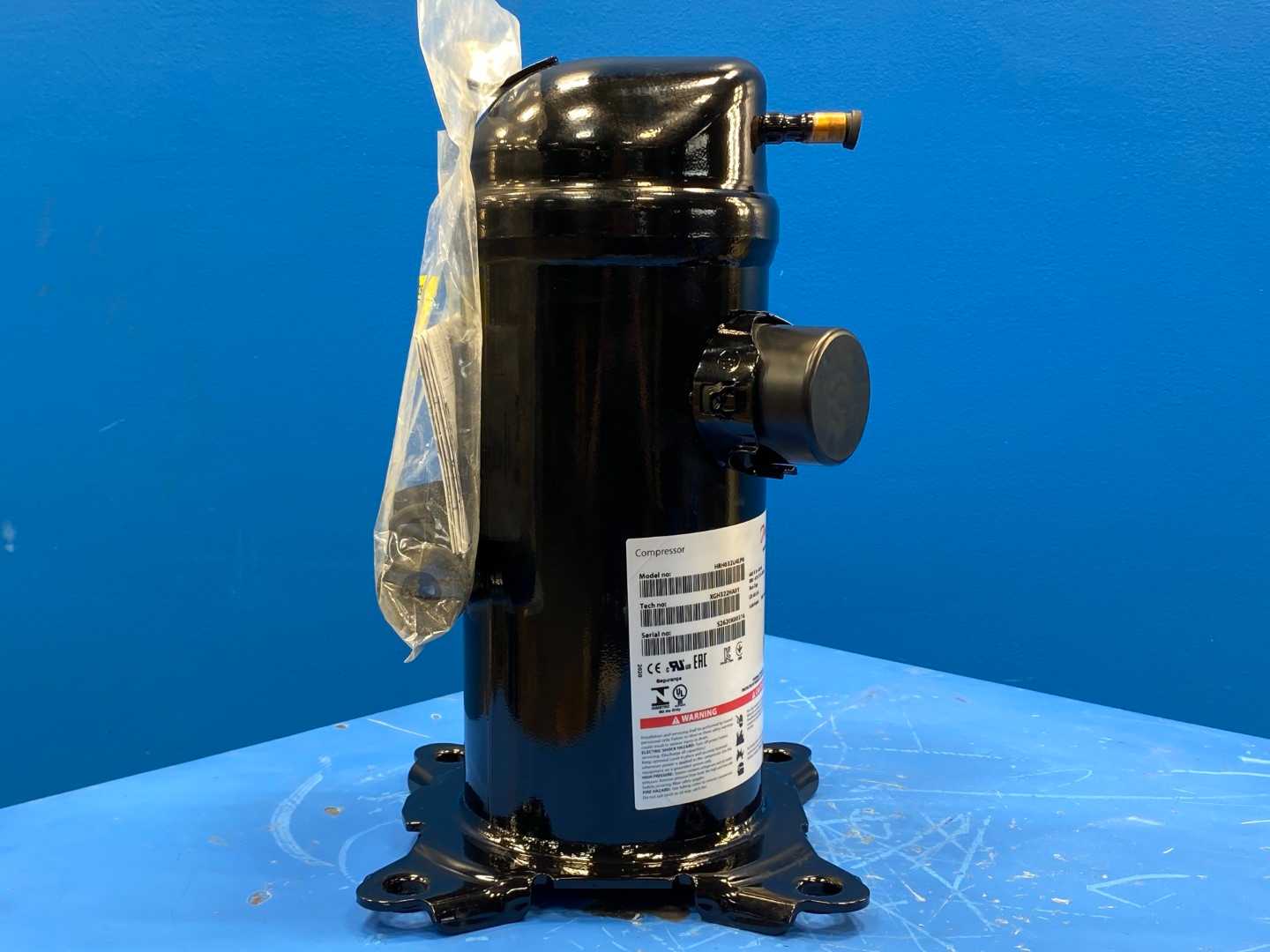

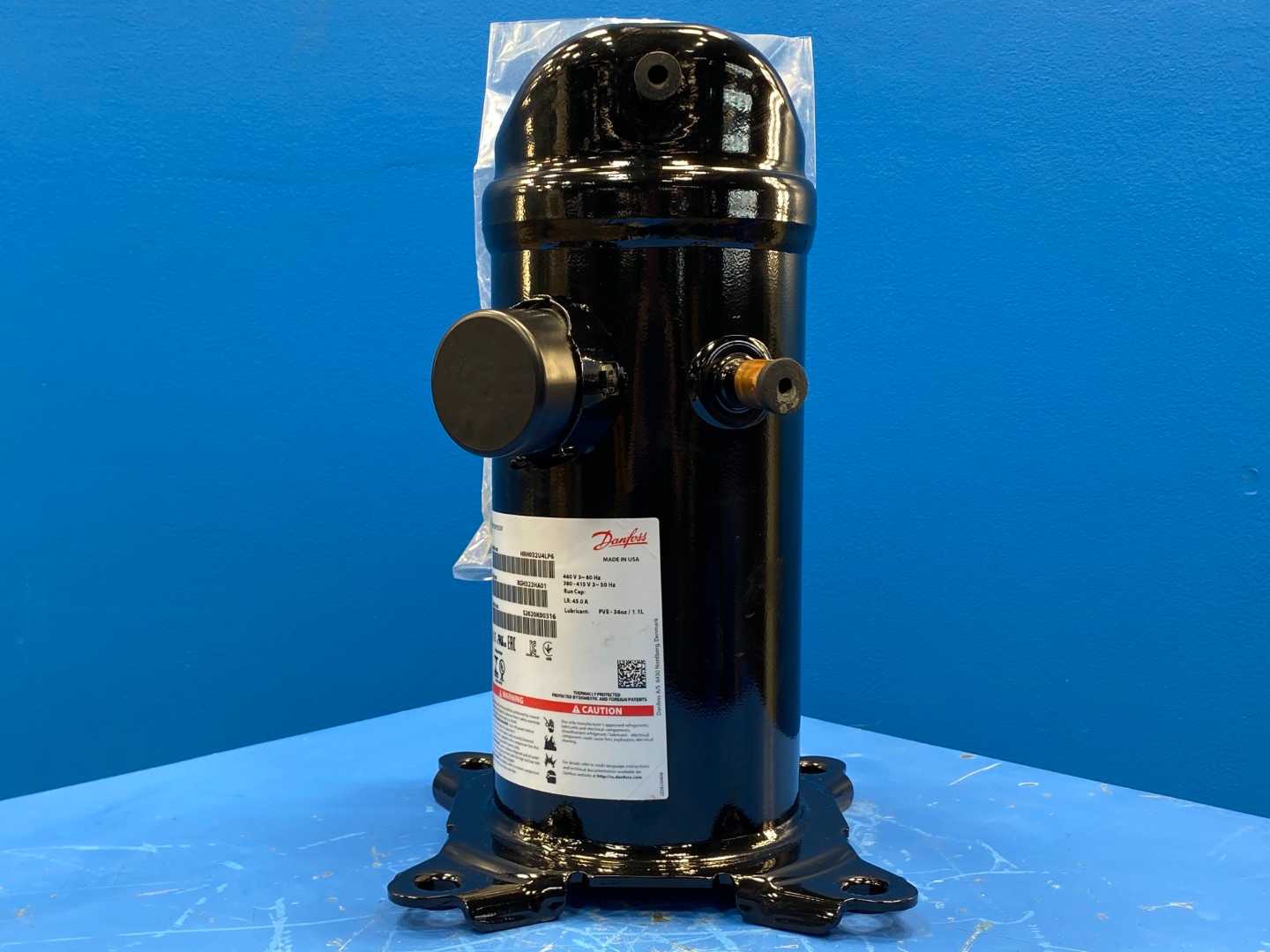

Danfoss Inverter Scroll Compressor HRH032U4LP6 121L1196 (2.67 Tons / 32K BTU)
$495.00
Save for later
Basic Information
Asset # : KSC1230 / 16
Available Qty: 24
Inspections - Yellow Tag : 1. New in Box
Condition : New
Guarantee or ASIS : 1. HIGH CONFIDENCE ITEM: We will offer a 100% 14 Day money back less S&H.
Payment Details
Appraised Value: $495.00
Payment Types Accepted : Visa , Mastercard , Check (14 Day Hold Before Release) , Cash
Shipping Options
Packaging Cost : 1.1 Cardboard $10
ITEM DESCRIPTION
Introducing the Danfoss Inverter Scroll Compressor HRH032U4LP6 121L1196 - a true game changer in the HVAC industry! This compressor is not only compact but it also boasts an impressive cooling capacity of 2.67 Tons or 32K BTU, making it a phenomenal choice for both residential and commercial applications. But what truly sets this model apart is its Inverter technology - a feature that delivers precise cooling while reducing energy consumption dramatically. This feature allows the compressor to operate at varying speeds instead of constantly turning off and on, leading to a significant reduction in energy costs. In addition to energy efficiency, this compressor is built with the superior craftsmanship and durability that you expect from a brand like Danfoss - ensuring a long, hassle-free service life. Imagine the peace of mind you'll have knowing that your compressor won't give out during the hot summer months! With its perfect blend of power, efficiency and reliability, the Danfoss HRH032U4LP6 is a worthwhile investment, providing not just superb cooling performance but also unbeatable value for your money. Get your hands on this industry-leading compressor today and experience remarkable cooling solutions like never before!
Read More ▼
INSPECTION REPORT
Specifications
DESCRIPTION
DETAILS
Manufacturer :
Danfoss
Serial #:
S2620K00316
HP / AMP / KW / KVA :
60Hz
Length (Inches):
10
Estimated Packaging Weight:
N/A
Estimated Total Weight:
77
DESCRIPTION
DETAILS
Model :
HRH032U4LP6
Year :
2020
Amps :
N/A
Phase :
3
Width (Inches):
10
Height (Inches):
14
Factory Information
Product details
| Gross weight | 35 Kilogram |
| Net weight | 31 Kilogram |
| Volume | 0.1 Cubic meter |
| EAN | 5702424064204 |
| Approval | CE UL UKCA |
| Brand technique | Scroll compressor |
| Capacity control | Fixed speed |
| China RoHS compliance | Out of scope |
| Colour | Blue |
| Compressor power supply [V] | 380-415/3/50 460/3/60 |
| Configuration code | Single |
| Connection type | Brazed |
| Description | HRH032U4 |
| Diameter [mm] | 165 mm |
| Discharge connection height [mm] | 379 mm |
| Discharge connection pipe size [in] | 1/2 in |
| Discharge connection size [in] | 1/2 in |
| Drawing number | 0XC6301B-2 |
| Economizer | No |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(a), 6(a)-I, 7(a), 7(c)-I, 8(b), 9(b) |
| Family | HRH |
| Fitting standard | ODF |
| Frequency [Hz] | 50/60 |
| Gauge port HP | None |
| Gauge port LP | None |
| Gaz equalization | None |
| Glass mounting | None |
| High value of nominal voltage at 50Hz [V] | 415 V |
| High value of nominal voltage at 60Hz [V] | 460 V |
| High value of voltage range at 50Hz [V] | 457 V |
| High value of voltage range at 60Hz [V] | 506 V |
| In scope of WEEE and contain batteries | No |
| IP protection class | IP22 |
| Length [mm] | 239 mm |
| Low value of nominal voltage at 50Hz [V] | 380 V |
| Low value of nominal voltage at 60Hz [V] | 460 V |
| Low value of voltage range at 50Hz [V] | 342 V |
| Low value of voltage range at 60Hz [V] | 414 V |
| LRA | 45 A |
| Max pressure (PS) - high side | 46.1 bar |
| Max pressure (PS) - low side | 31.1 bar |
| MCC | 10 A |
| Model number | HRH032U4LP6 |
| Motor protection | Internal overload protector |
| Network power supply [V/Ph/Hz] | 380-415/3/50 460/3/60 |
| Number of starts per hour [Max] | 12 |
| Oil charge [L] | 1.06 L |
| Oil equalization | None |
| Oil reference | 320HV |
| Oil type | PVE |
| Packing format | Single pack |
| Packing quantity | 1 |
| Phase | 3 |
| Power connections | Spade |
| Product group | Hermetic compressors |
| Product Name Description | Scroll compressor HRH |
| Refrigerant charge [kg] [Max] | 3.63 kg |
| Refrigerants | R410A |
| RLA | 6.4 A |
| Rotational speed at 50Hz [rpm] | 2900 rpm |
| Rotational speed at 60Hz [rpm] | 3500 rpm |
| Segment usage | Air conditioning |
| Shipped instructions | Installation instructions |

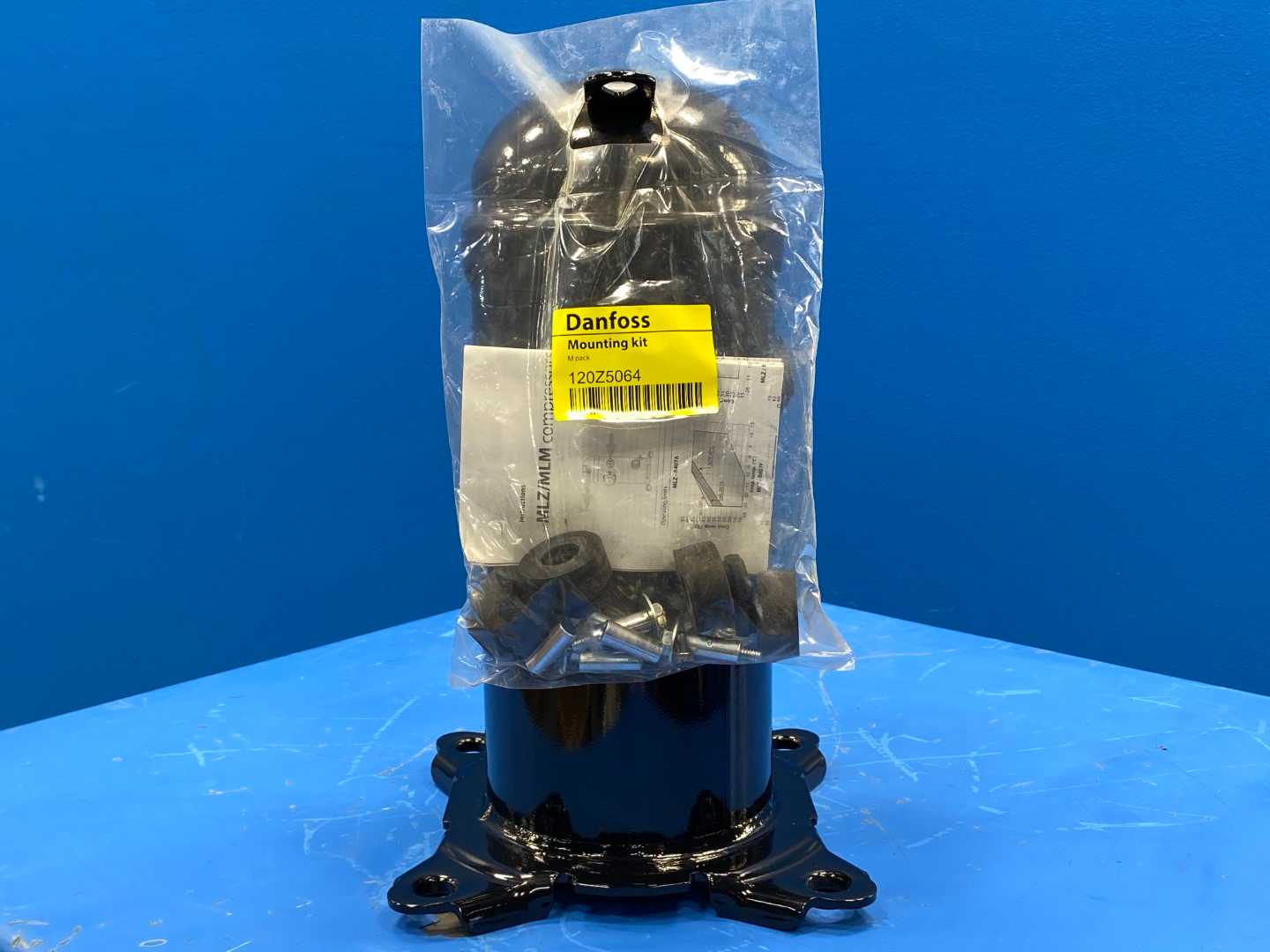

| Shipped mounting | Mounting kit with grommets and sleeves |
| Shipped oil | Initial oil charge |
| Suction connection height [mm] | 250 mm |
| Suction connection material | - |
| Suction connection pipe size [in] | 3/4 in |
| Suction connection size [in] | 3/4 in |
| Swept volume [cm3] | 30.64 cm³ |
| Technology | Scroll |
| Total height [mm] | 413 mm |
| Type | HRH032 |
| UK RoHS compliance | Out of scope |
| Viscosity [cP] | 68 cP |
| Width [mm] | 239 mm |
| Winding resistance 1-2 [Ohm] | 4.66 |
| Winding resistance 1-3 [Ohm] | 4.66 |
| Winding resistance 2-3 [Ohm] | 3.42 |
