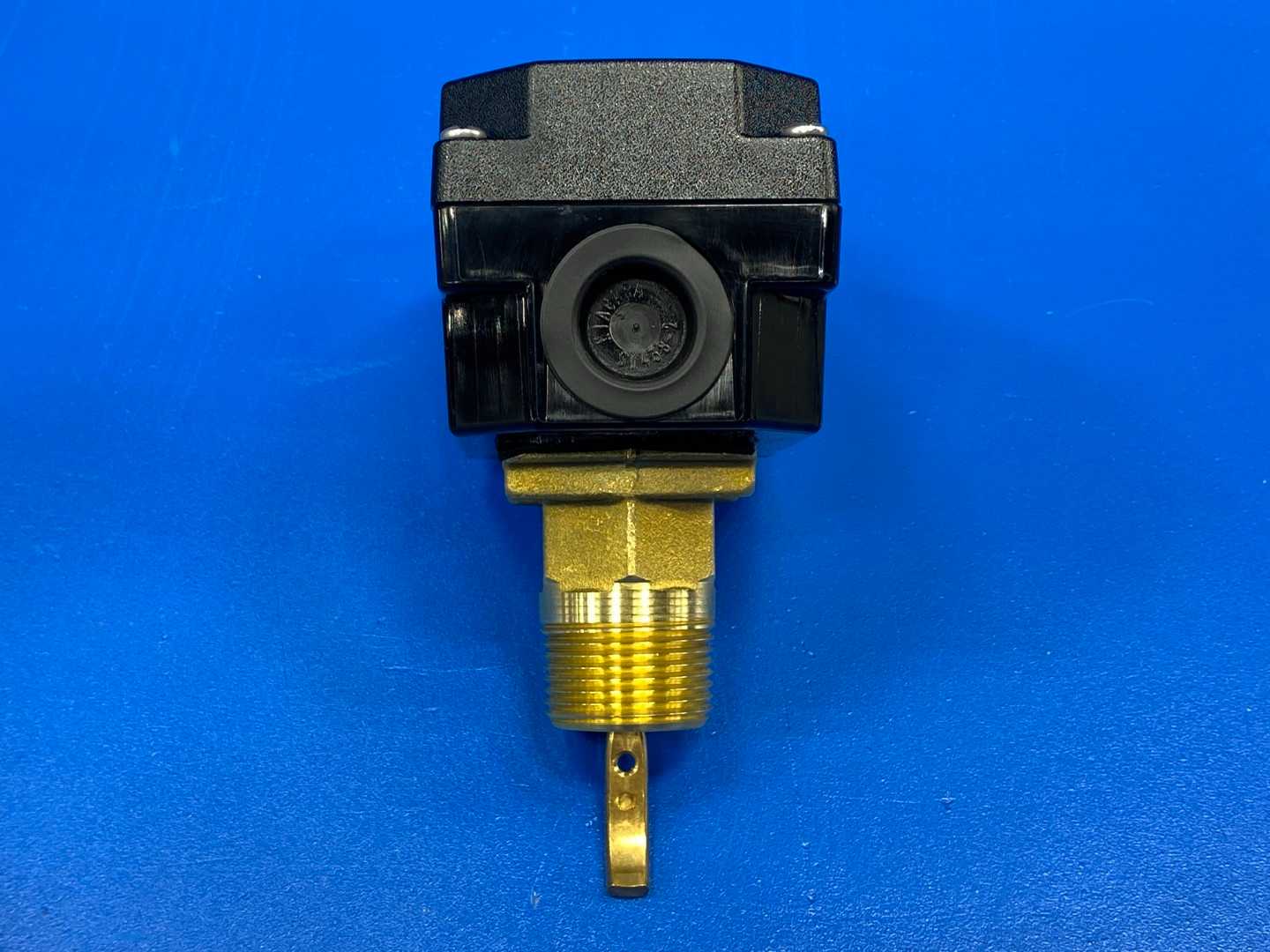

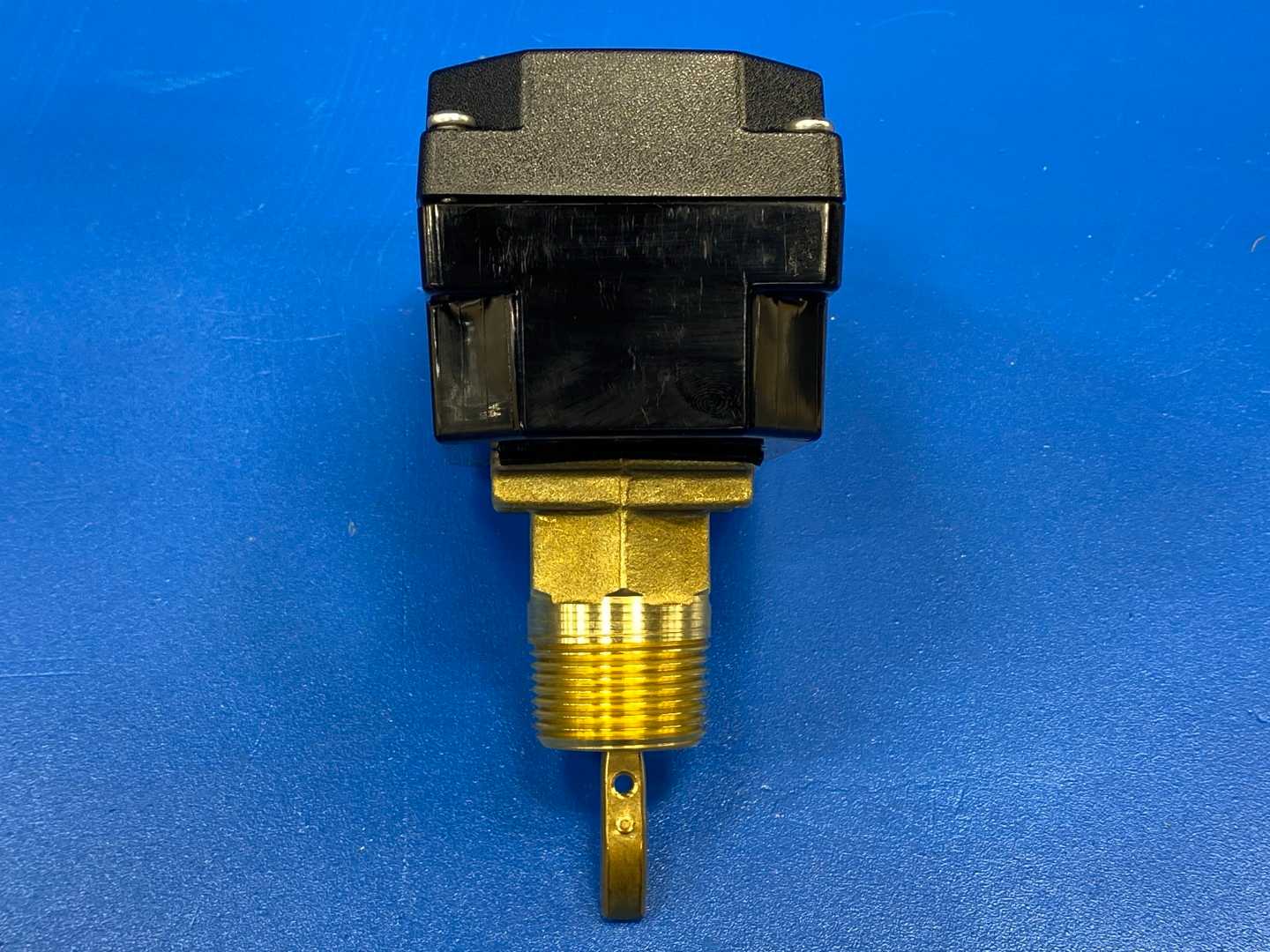

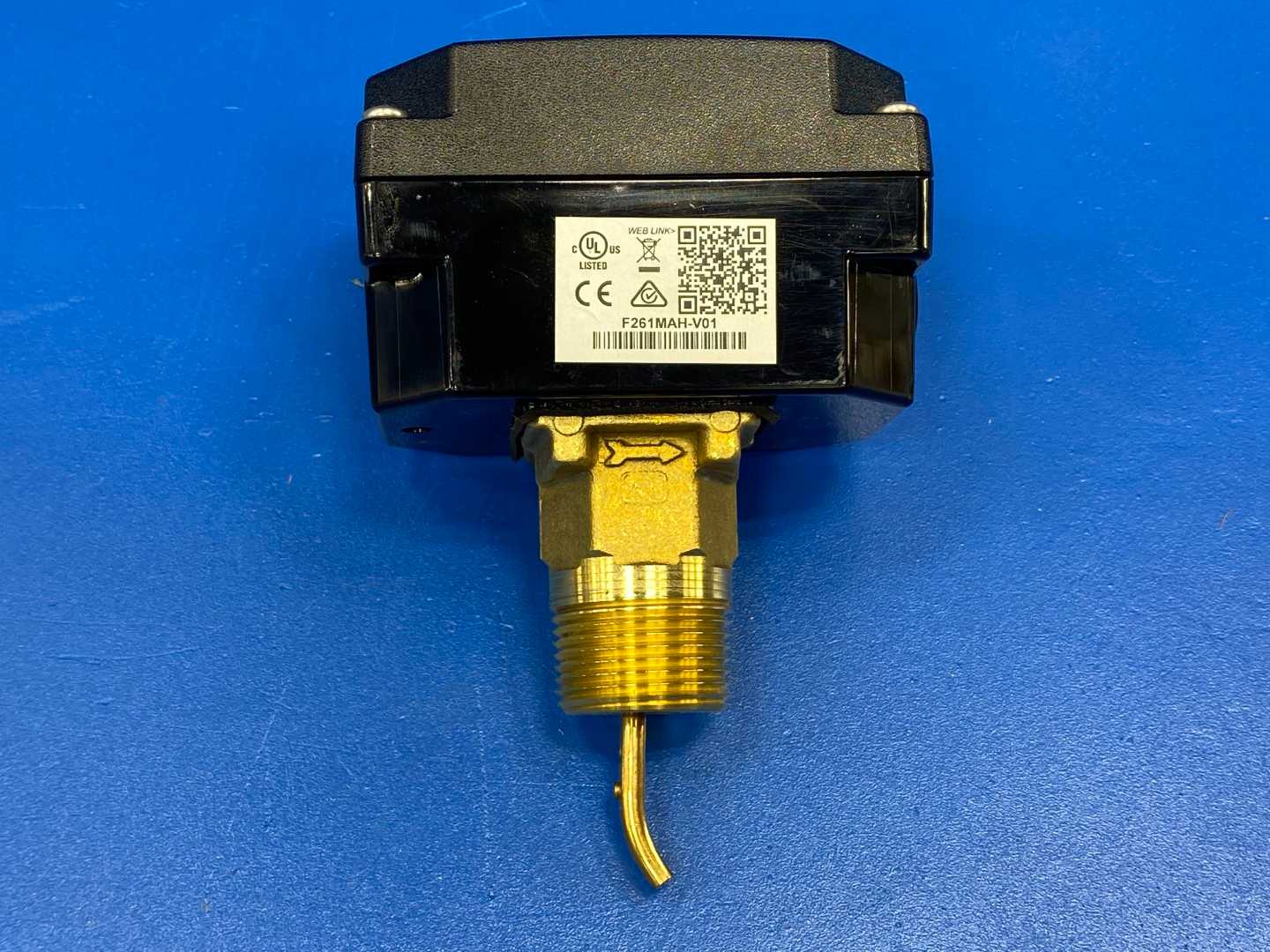

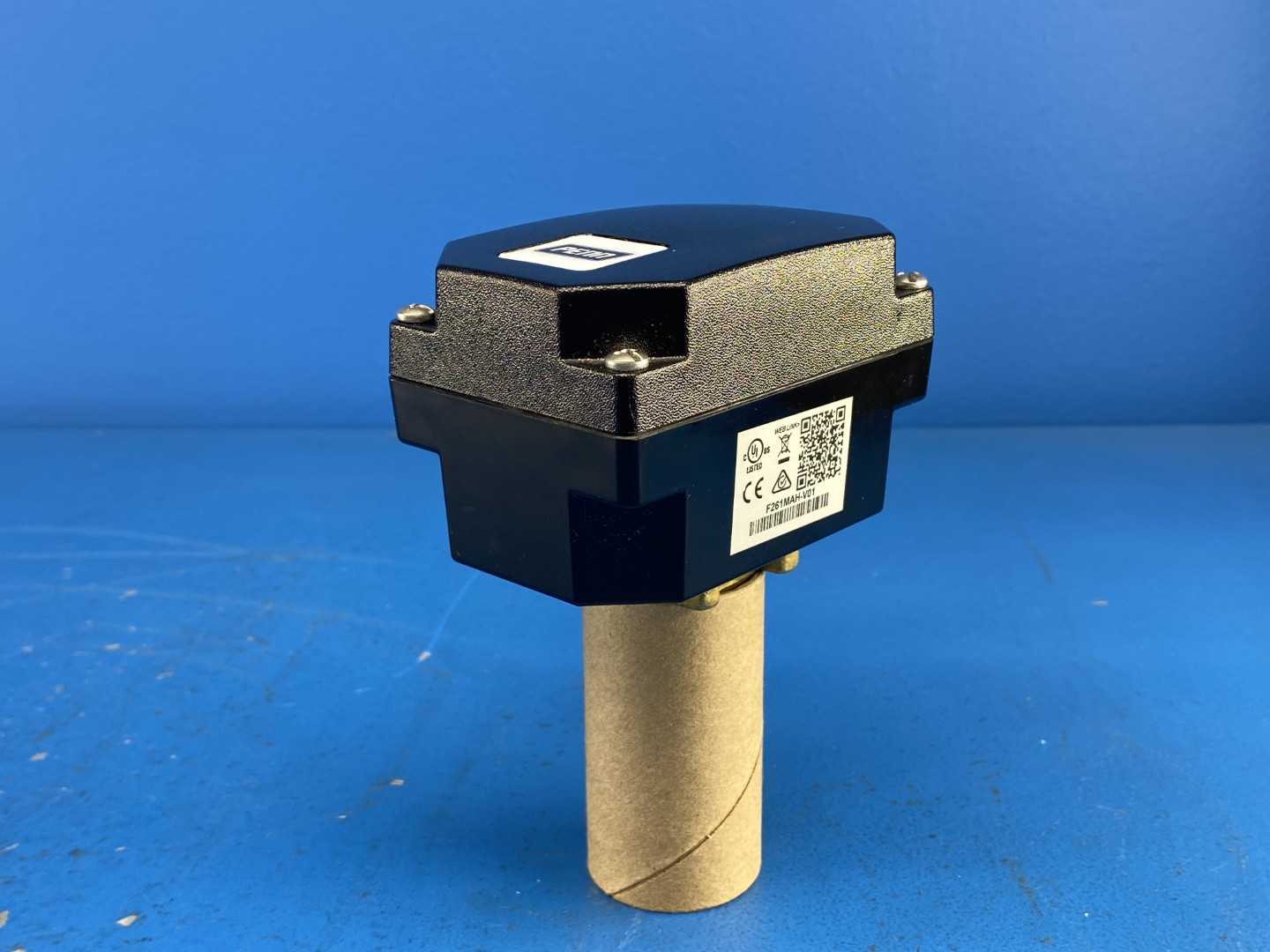

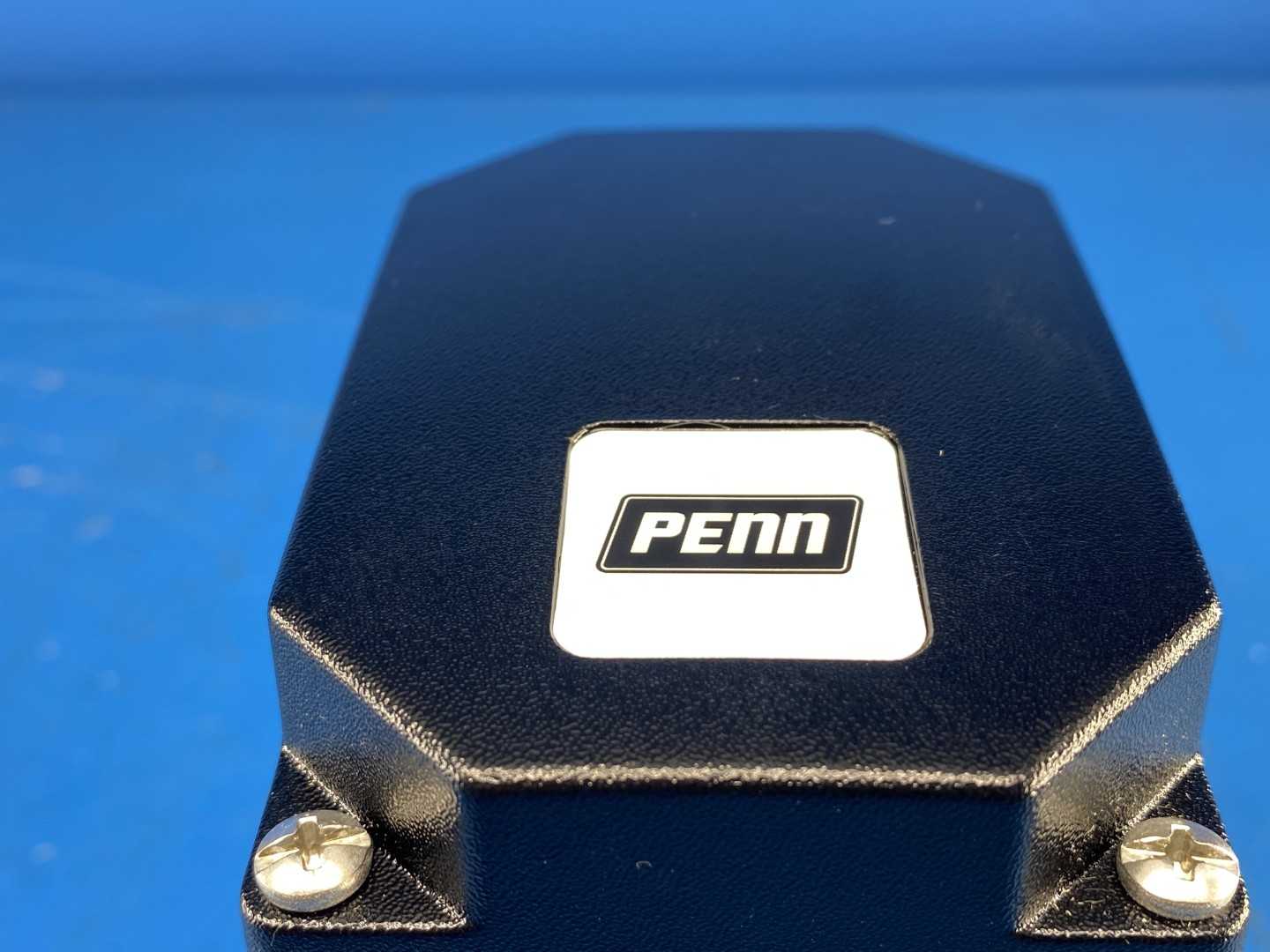

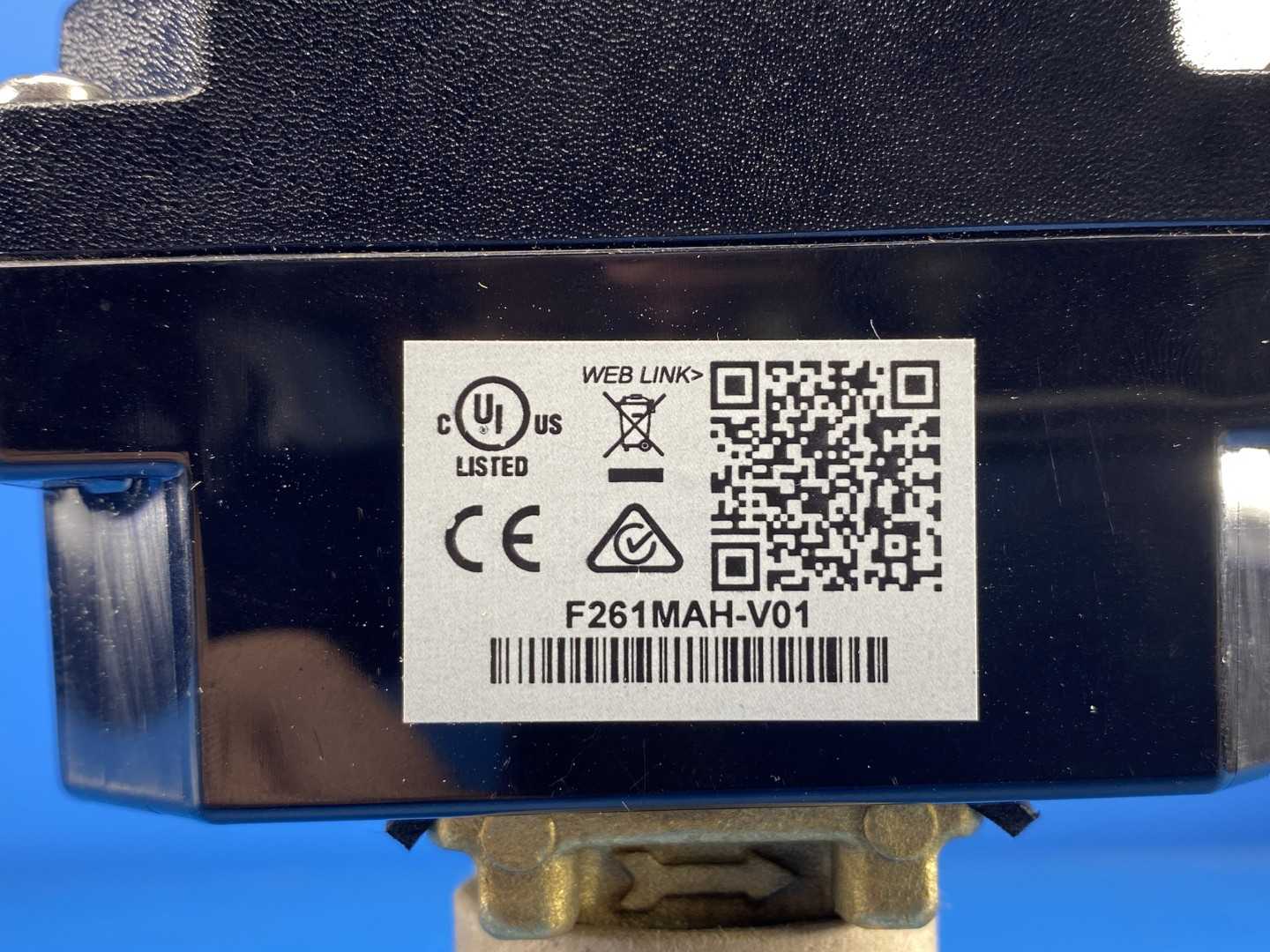

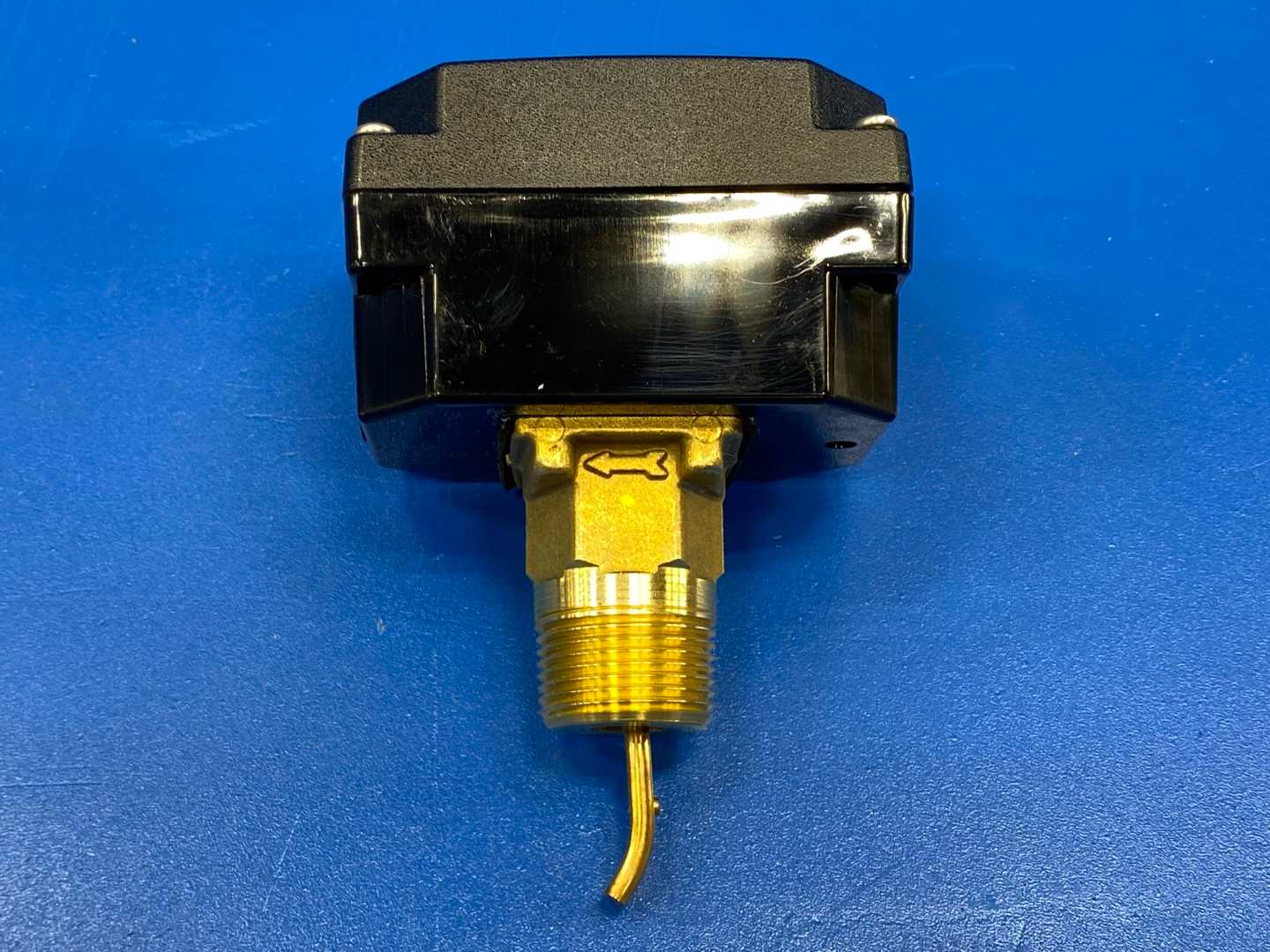

Johnson Controls F261MAH-V01C Penn Liquid Flow Switch
Key Features of the F261MAH-V01C Liquid Flow Switch
Specifications and Applications of the Johnson Controls Flow Switch
$159.95
| Description | Details |
|---|---|
| Available Quantity | 126 |
| Model | F261MAH-V01C |
| Condition | New |
| Manufacturer | Johnson Controls |
| Asset Number | KSC1230 / 68 |
| Guarantee or ASIS | 1. HIGH CONFIDENCE ITEM: We will offer a 100% 14 Day money back less S&H. |
| Inspections - Yellow Tag | 1. New in Box |
| Packaging Cost | 1.6 6x10 CH $3.00 |
$159.95
Basic Information
Asset #
KSC1230 / 68
Available Quantity
126
Inspections - Yellow Tag
1. New in Box
Condition
New
Guarantee or ASIS
1. HIGH CONFIDENCE ITEM: We will offer a 100% 14 Day money back less S&H.
Item Description
This item is available in two enclosure colors: gray and black. Color varies by manufacturing run. Both are the same part number (F261MAH-V01C) with identical specifications and NEMA 4 rating. Buyer may receive either color. The F261MAH-V01C is the current-production replacement for the discontinued F61LB-1C, F61MB-1C, and F61MB-5C models. All units are new, unused, in original packaging with stainless steel paddle kit (1 in., 2 in., 3 in., and 6 in. paddles), lock-tooth washer, and paddle screw included uninstalled.
Factory Information
Product Type: Liquid Flow Switch. Manufacturer: Johnson Controls (PENN). Model: F261MAH-V01C. Switch Type: SPDT. Voltage: 24-240 VAC. Flow Rate Range: 4-760 GPM (varies by pipe size and paddle configuration). Body Material: Brass. Temperature Range: -20 to 250 deg F (-29 to 121 deg C). Maximum Fluid Pressure: 290 psi (20 bar). Connection Size: 1 in. NPT (1-11 1/2 in. pipe size). Enclosure: NEMA 4 / IP67. Actuation Type: Paddle. Wiring: Three color-coded screw terminals, one ground terminal. Conduit Connection: One 7/8 in. hole for 1/2 in. trade size. Paddles Included: 1 in., 2 in., 3 in., and 6 in. stainless steel (uninstalled). Diaphragm: Viton. Contacts: Gold-plated. Replaces: F61LB-1C, F61MB-1C, F61MB-5C. Approvals: cULus Listed (UL 60730, File E6688), FCC Part 15 Class B. UPC: 662011537403.
Specifications
Packaging fees
Packaging Cost
1.6 6x10 CH $3.00
