Performer 57 10 062 P06 ASM Scroll SH090 to 161 Brazed Mounting Hardware Kit
57 10 062 P06 Compressor Specifications: HP, CFM & Pressure
Applications & Compatible Systems for Performer 57 10 062 P06
| Description | Details |
|---|---|
| Available Quantity | 3 |
| Model | 57 10 062 P06 |
| Condition | New |
| Manufacturer | Performer |
| Asset Number | KSC1230 / 878 |
| Guarantee or ASIS | 1. HIGH CONFIDENCE ITEM: We will offer a 100% 14 Day money back less S&H. |
| Inspections - Yellow Tag | 1. New in Box |
| Packaging Cost | 1.6 6x10 CH $3.00 |
$19.95
Basic Information
Asset #
KSC1230 / 878
Available Quantity
3
Inspections - Yellow Tag
1. New in Box
Condition
New
Guarantee or ASIS
1. HIGH CONFIDENCE ITEM: We will offer a 100% 14 Day money back less S&H.
Item Description

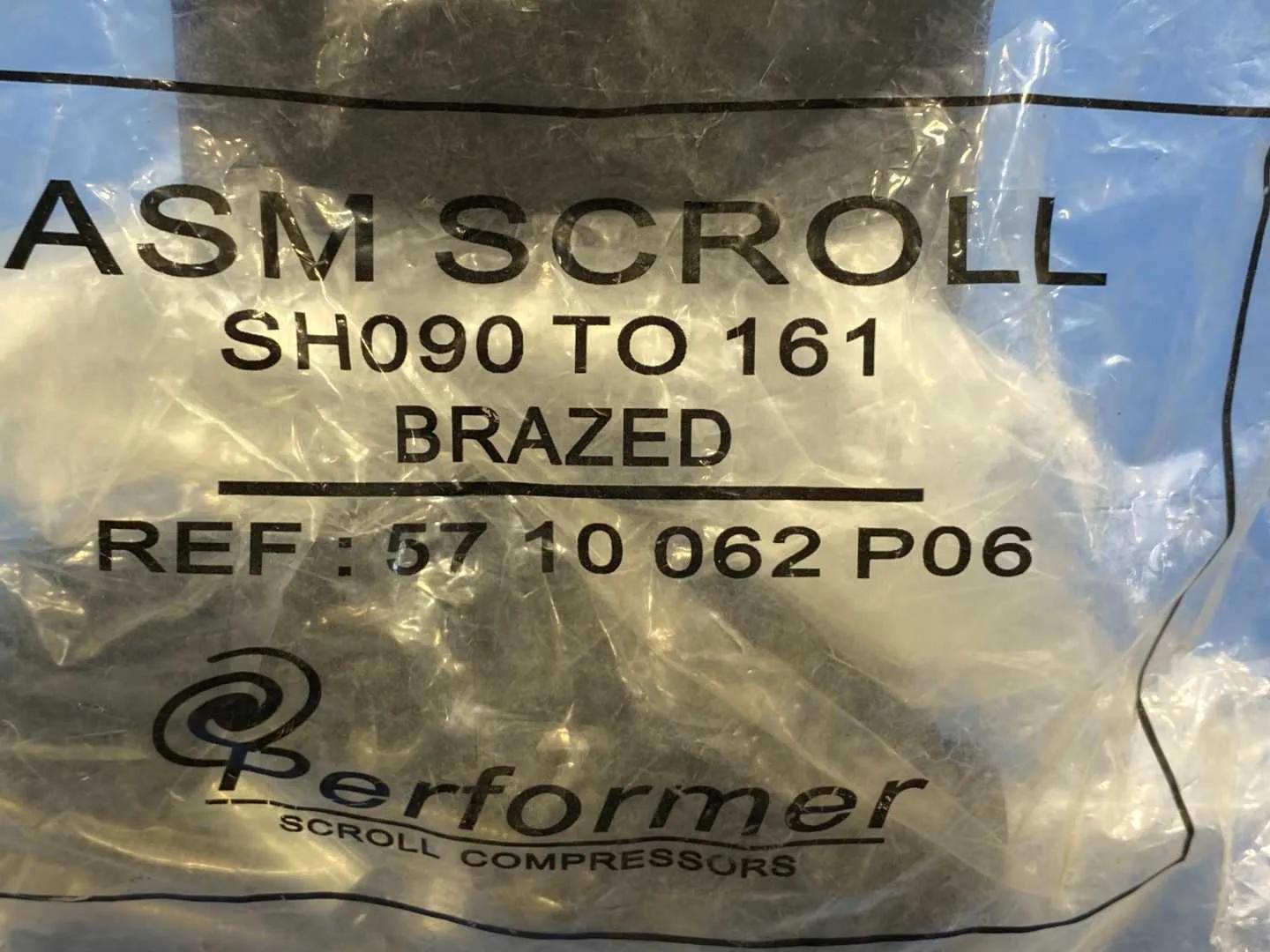

This is a factory mounting hardware kit for Performer scroll compressors, the scroll line produced under the Danfoss commercial compressors group. The package label reads REF 57 10 062 P06 and identifies it for SH series compressors from the SH090 to the SH161 with brazed connections, the R410A tandem-capable scroll family used in commercial air conditioning, chillers and heat pumps.

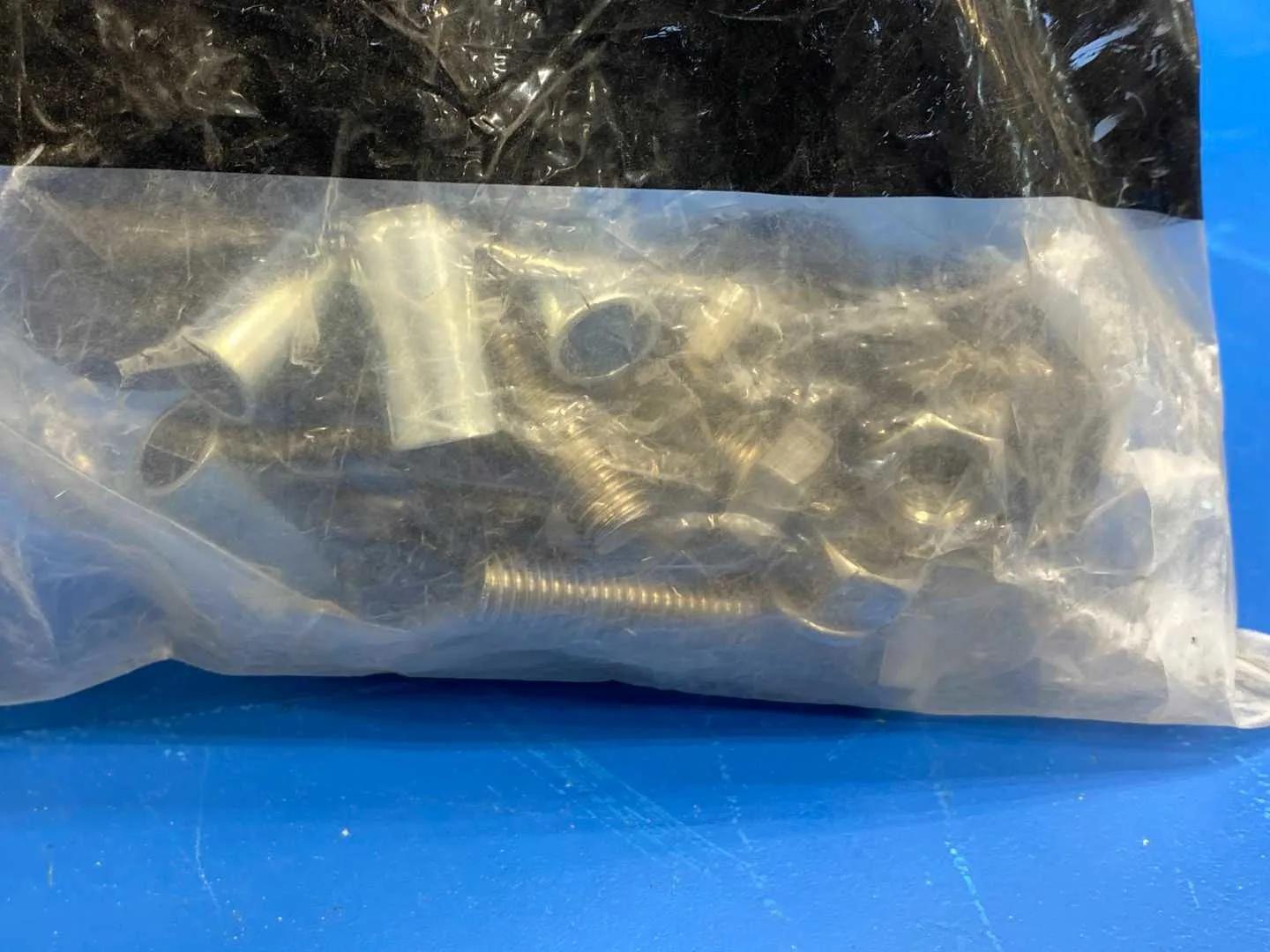

Danfoss application guidelines for the SH series state that SH090 through SH184 compressors are mounted on four rubber grommets with steel sleeve liners that isolate the compressor from the base frame, using HM8-40 bolts tightened to 15 Nm. The grommets are compressed until the flat washer meets the steel sleeve, which limits the vibration passed to the frame. The kit photographed here holds the bolts, nuts and spacers for that mounting arrangement.
HVAC and refrigeration technicians, rooftop unit and chiller service crews, and OEM equipment builders use a kit like this when a compressor is replaced or reset on its base, so the compressor sits on the correct hardware at the specified torque.
Available from King Surplus inventory in Del Rio, Texas.
Factory Information
- Product: Mounting hardware kit for Performer (Danfoss) scroll compressors
- Label Reference: REF 57 10 062 P06
- Label Text: ASM SCROLL, SH090 TO 161, BRAZED
- Compressor Fit (per label): SH series SH090 through SH161, brazed connection versions
- Contents Visible in Photos: Bolts, nuts and spacers in sealed bag
- Danfoss Bolt Size for SH090-SH184 Mounting: HM8-40
- Danfoss Bolt Tightening Torque for SH090-SH184: 15 Nm
- Danfoss Mounting Method for SH090-SH184: Rubber grommets with steel sleeve liners, compressed until the flat washer contacts the sleeve
- Spec Basis: Package label photo (Performer SCROLL COMPRESSORS, REF 57 10 062 P06, ASM SCROLL SH090 TO 161 BRAZED); Danfoss scroll compressors SH090 to SH380 application guidelines AB243586442172, Compressor mounting section (https://assets.danfoss.com/documents/latest/468662/AB243586442172en-001702.pdf). The REF code itself is not listed in the Danfoss guide.
Specifications
Performer
57 10 062 P06
N/A
N/A
N/A
N/A
3
8
2
N/A
2
2.5
KSC1230 / 878
Packaging fees
1.6 6x10 CH $3.00
