Flexline JIC-06 304 Stainless Steel Braided Hose Assembly, 3/8" Female Swivel Ends, 90 Degree Elbow
JIC-06 304 Hose Specifications: Diameter & Pressure
System Fitment for Flexline JIC-06 304
| Description | Details |
|---|---|
| Available Quantity | 2 |
| Model | JIC-06 304 |
| Condition | New |
| Manufacturer | Flexline |
| Asset Number | KSC1290 / 1958 |
| Guarantee or ASIS | 2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return |
| Inspections - Yellow Tag | 1.1 Appears Unused no box |
| Packaging Cost | 1.6 6x10 CH $3.00 |
$14.95
Basic Information
Asset #
KSC1290 / 1958
Available Quantity
2
Inspections - Yellow Tag
1.1 Appears Unused no box
Condition
New
Guarantee or ASIS
2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return
Item Description

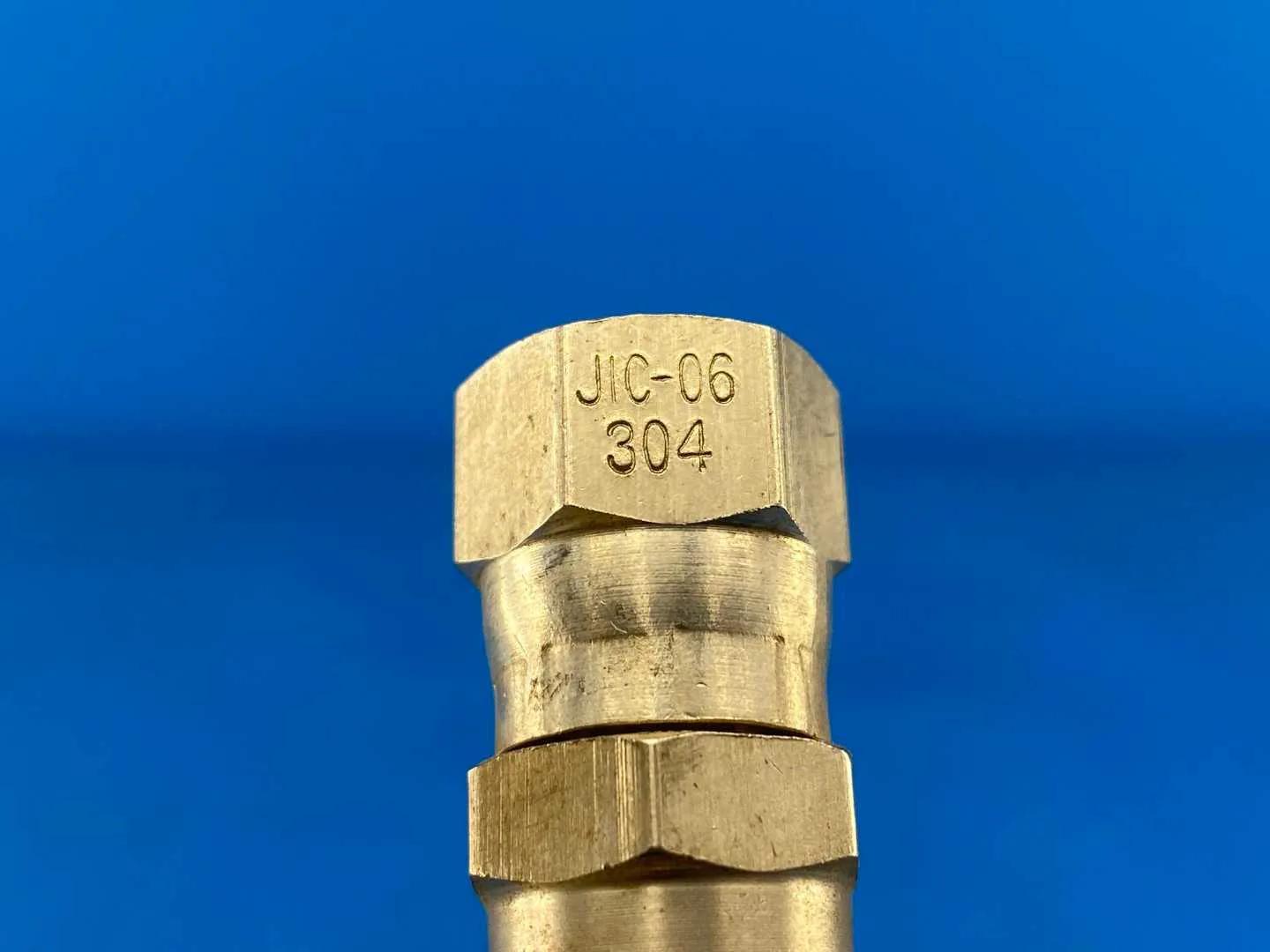

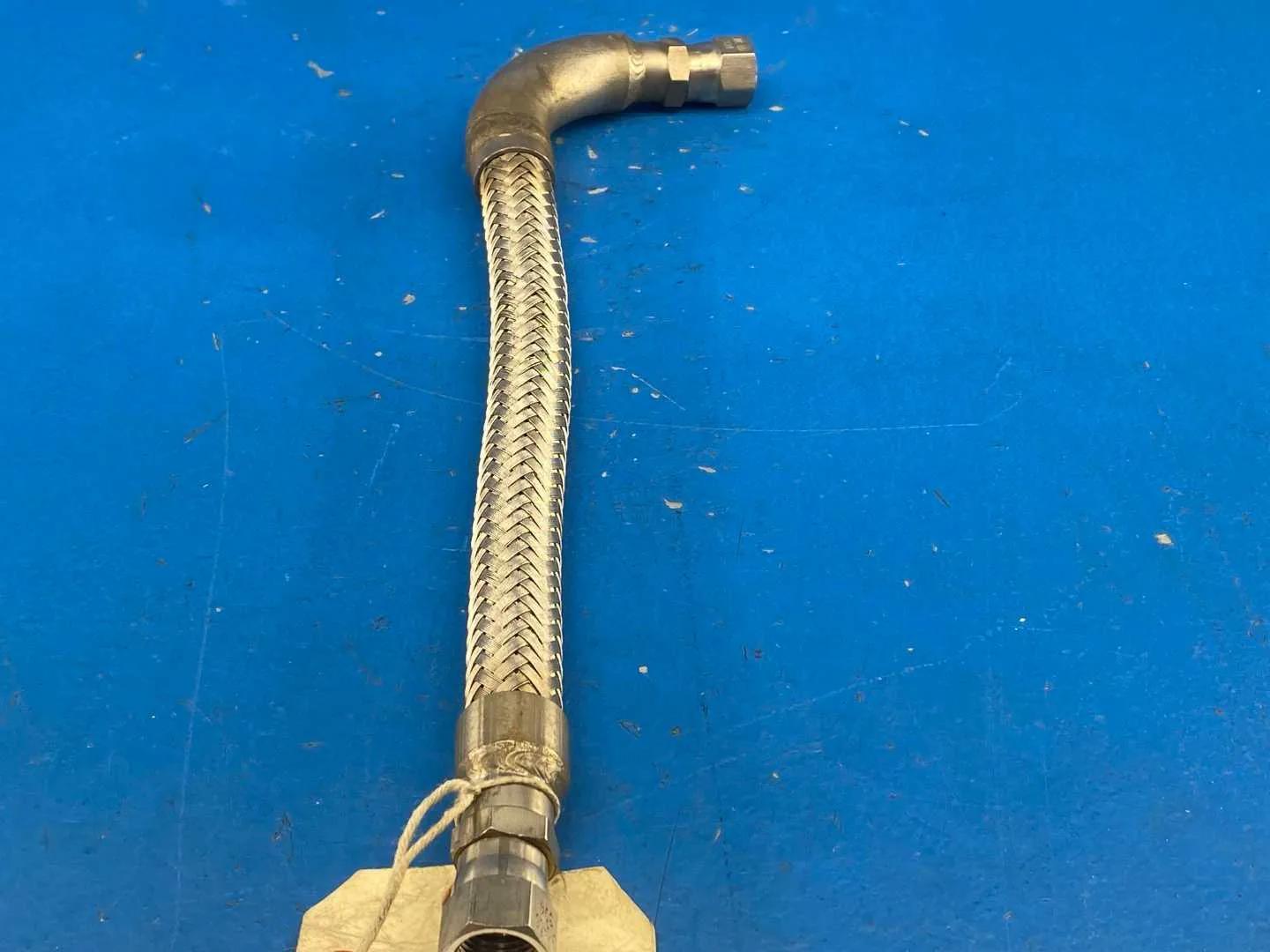

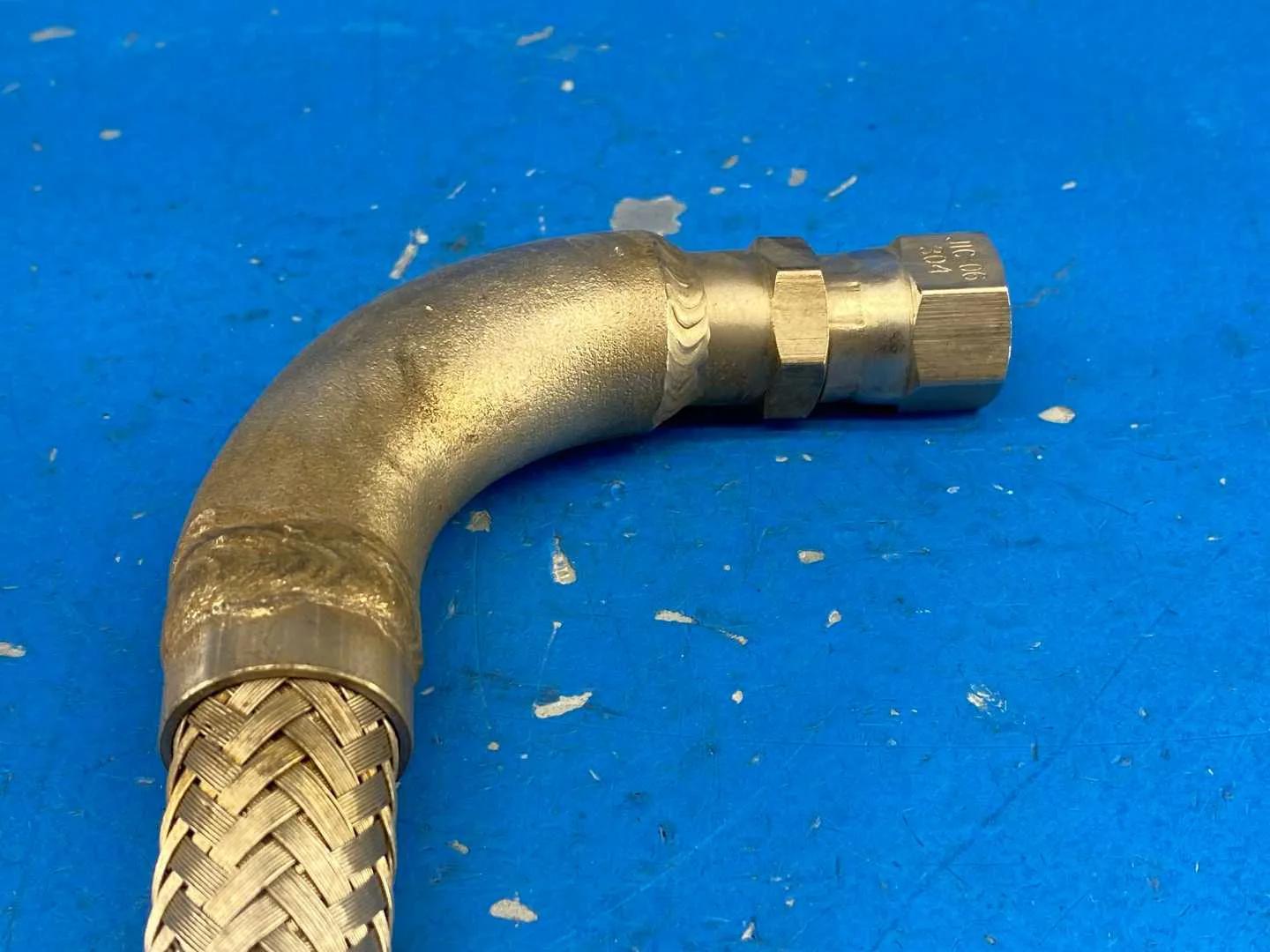

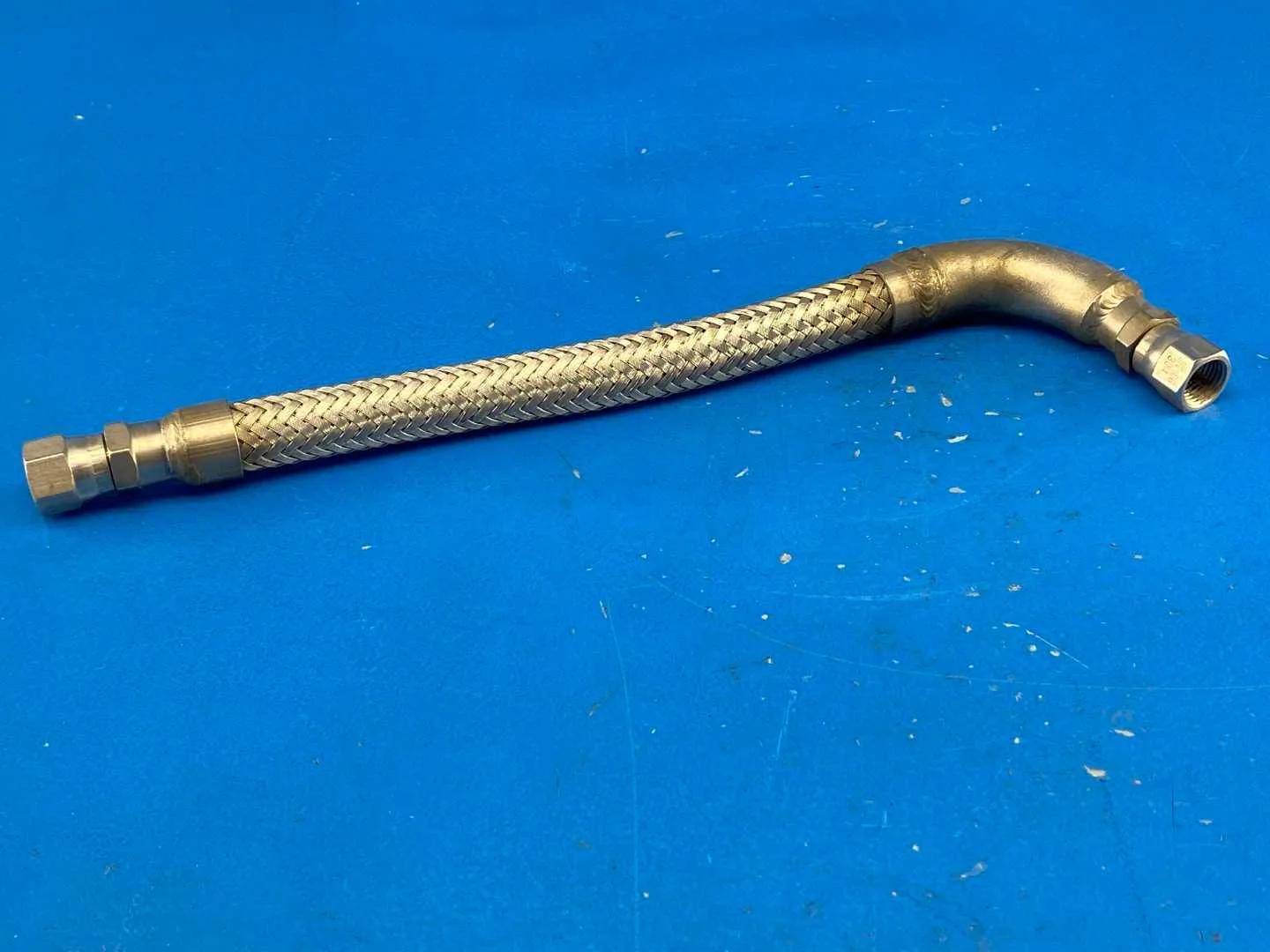

This is a stainless steel braided flexible hose assembly with brass angled end fittings. The fitting is marked JIC-06 and the assembly is marked 304.

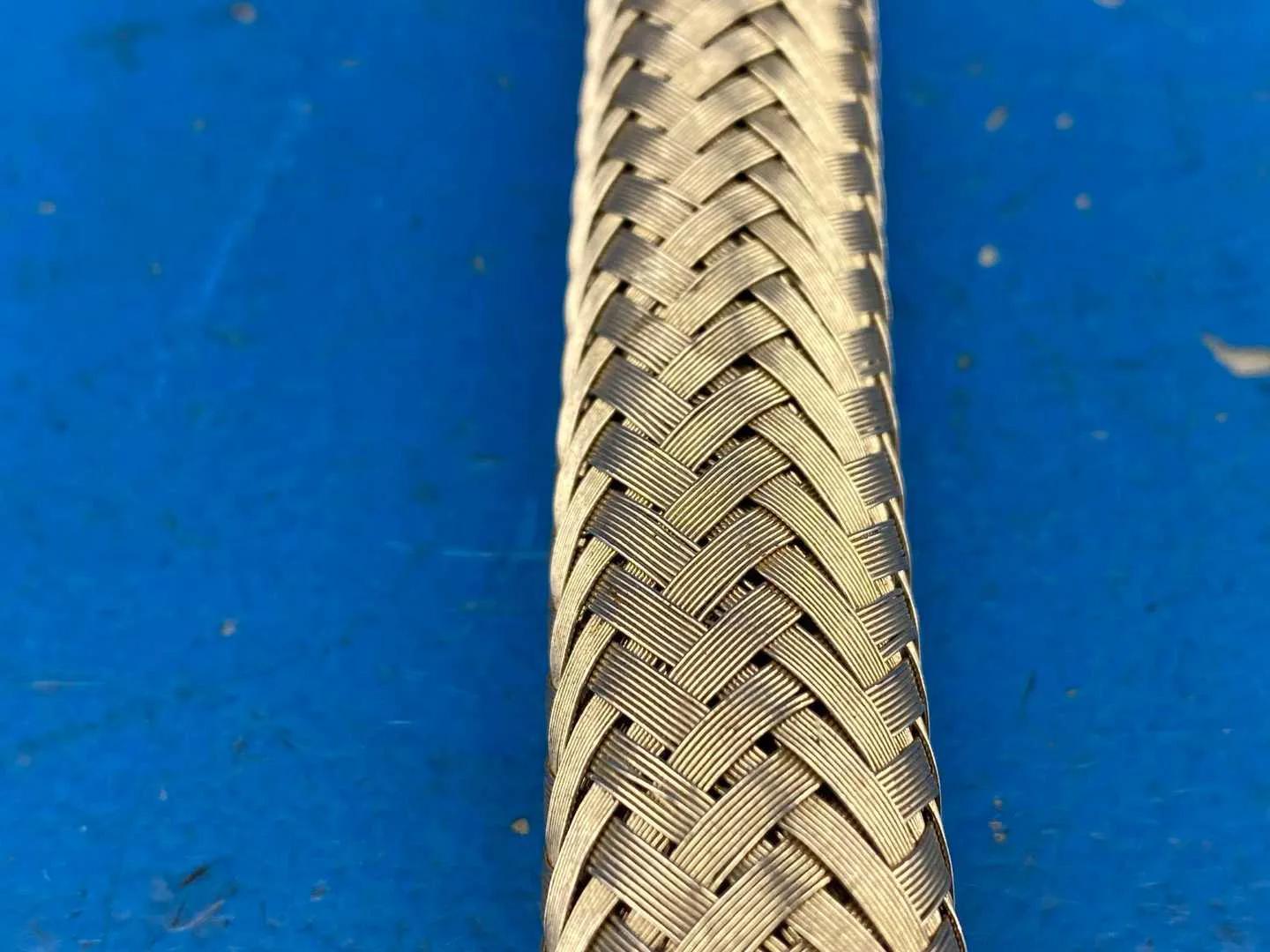

JIC refers to the SAE J514 37 degree flare connection used widely on hydraulic, fuel and instrument lines. The dash size -06 is the 3/8 inch size, which uses a 9/16-18 thread. JIC fittings seal metal to metal on the flare, so they connect without thread sealant and can be taken apart and reassembled. The 304 marking refers to type 304 stainless steel, the common grade used for hose braid, which protects the inner hose against abrasion and holds it against internal pressure.
A braided hose with an angled end is used where a rigid tube cannot follow the route or where the line must absorb vibration or movement between components, such as between a pump and a machine, on engines, compressors and hydraulic power units. Maintenance technicians use short assemblies like this as replacements or for field repairs. Buyers should confirm the pressure rating and fitting size against their application.
Available from King Surplus inventory in Del Rio, Texas.
Factory Information
- Fitting marking: JIC-06
- End connection: JIC (SAE J514) 37 degree flare, -06 dash size (3/8 in), 9/16-18 thread
- Braid marking: 304 (type 304 stainless steel)
- Construction: stainless steel braided flexible hose with brass angled end fittings (photo)
- Spec Basis: stamped marks read in photos; JIC -06 size and thread per https://hoseinahurry.com/products/fjx90l-06-06-3-8-jic-female-long-90-degree-fitting-for-3-8-hydraulic-hose. No maker datasheet found. FLAG for review: no manufacturer name visible, Flexline not confirmed; JIC-06 is a 3/8 in size while the title states 1/2 in; length and pressure rating not marked
Specifications
Flexline
JIC-06 304
N/A
N/A
N/A
N/A
3
6
1
N/A
2
2.54
KSC1290 / 1958
Packaging fees
1.6 6x10 CH $3.00
