Flexline JIC-08 304 Stainless Steel Braided Hose Assembly 51", 37 Degree Female Swivel Ends (3/4-16 Thread)

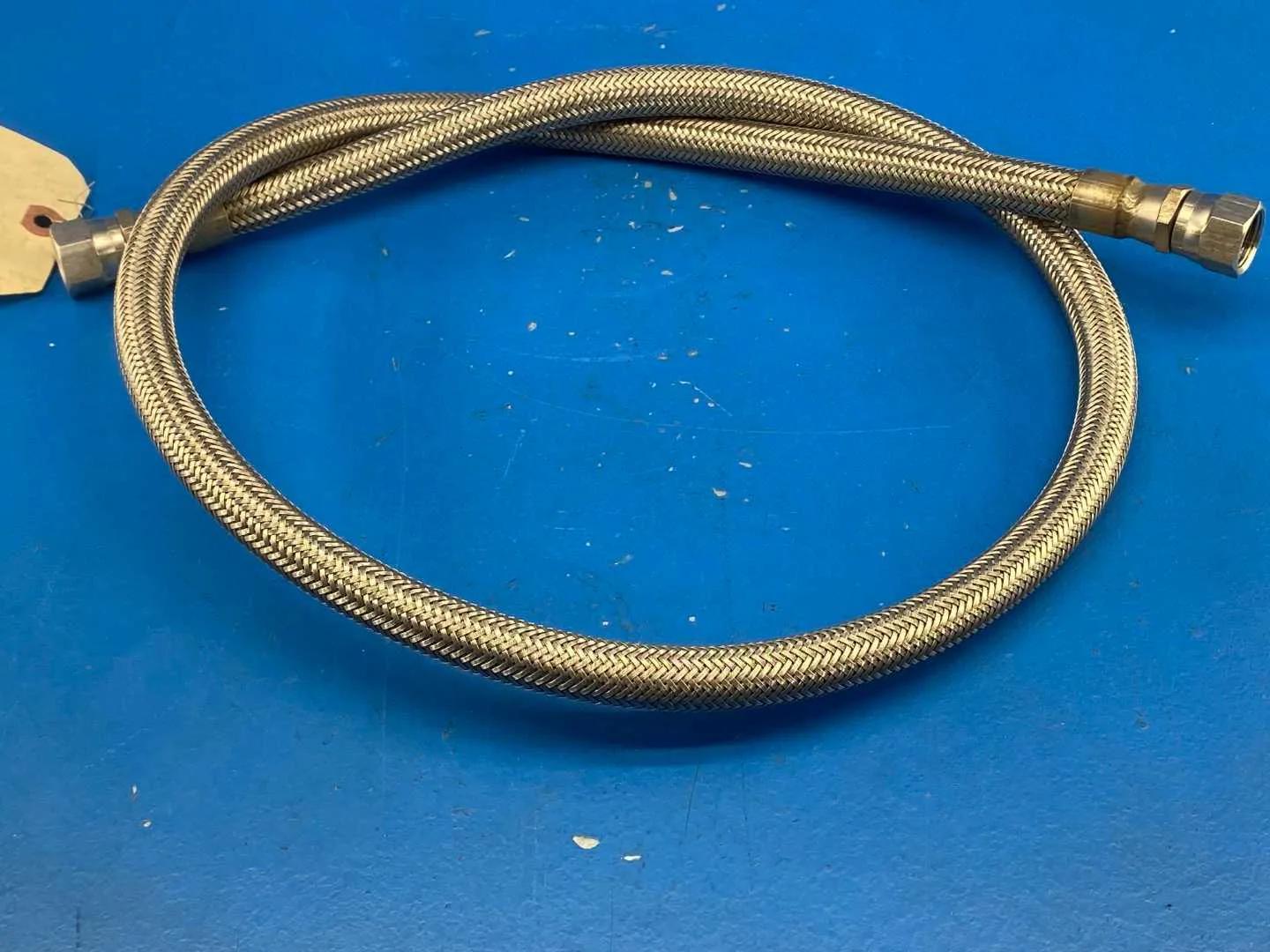

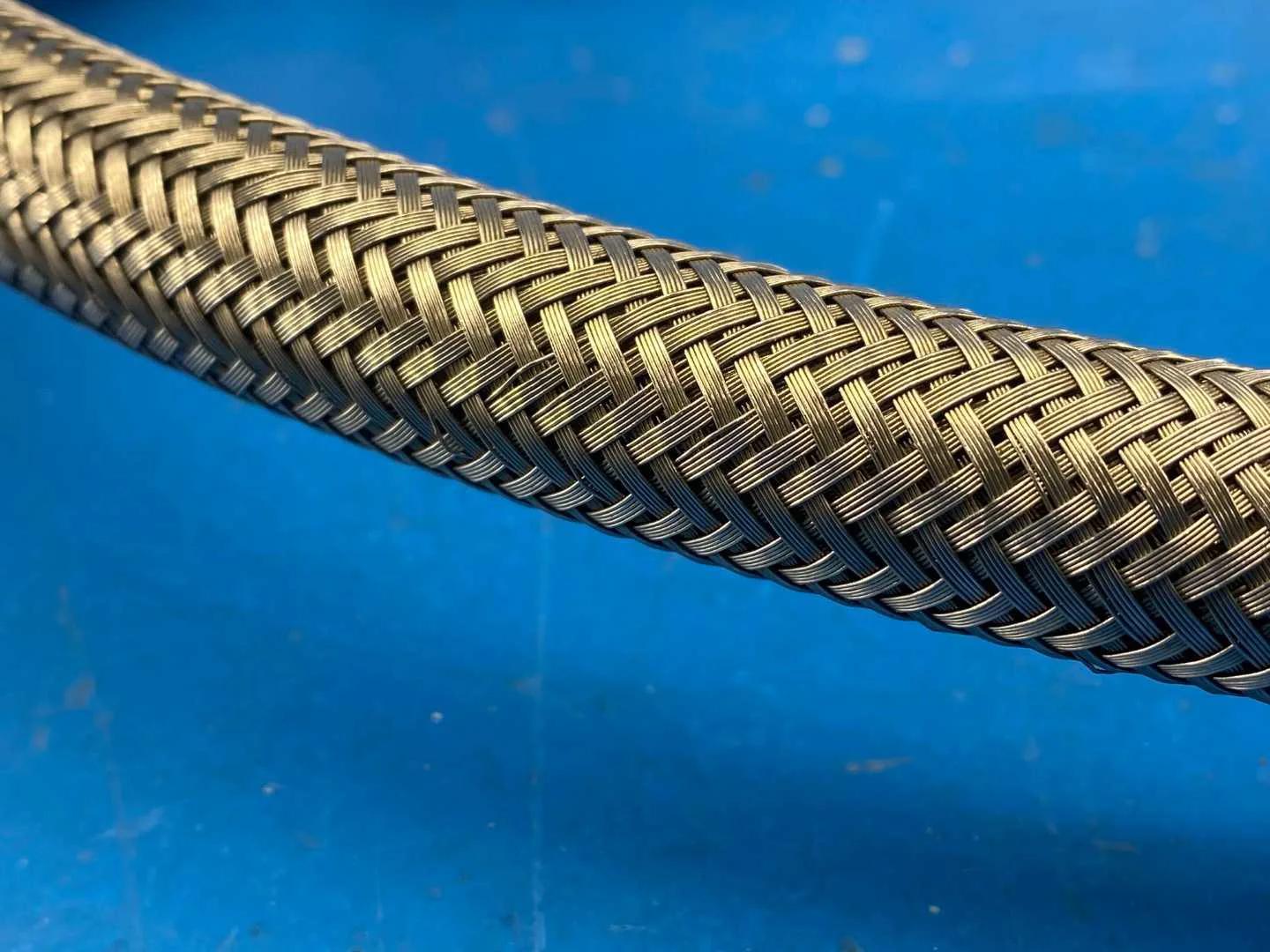

This is a stainless steel braided flexible hose assembly marked JIC-08 and 304, with JIC 37 degree flare end fittings. The record lists it as a Flexline JIC-08 304 hose, 51 inches long. Flexline is a New Jersey maker of specialty metal hose assemblies that offers female JIC / AN 37 degree swivel fittings in 304L and 316L alloys.

In JIC notation the dash size gives the tube OD in sixteenths of an inch, so -08 corresponds to a 1/2 inch tube size with a 3/4-16 thread; that 3/4 inch thread is the size shown in the listing title. The 304 marking identifies the stainless steel alloy. JIC fittings seal metal to metal on the 37 degree flare, which lets the hose be connected and reconnected to mating male JIC ports and adapters without thread sealant.

Braided stainless hose assemblies like this are used by maintenance and process technicians on hydraulic and lubrication lines, compressed gas and instrument connections, pump and compressor hookups, and anywhere a flexible connection must tolerate vibration, movement or misalignment between two fixed ports.

Available from King Surplus inventory in Del Rio, Texas.

• Product: Stainless steel braided flexible hose assembly

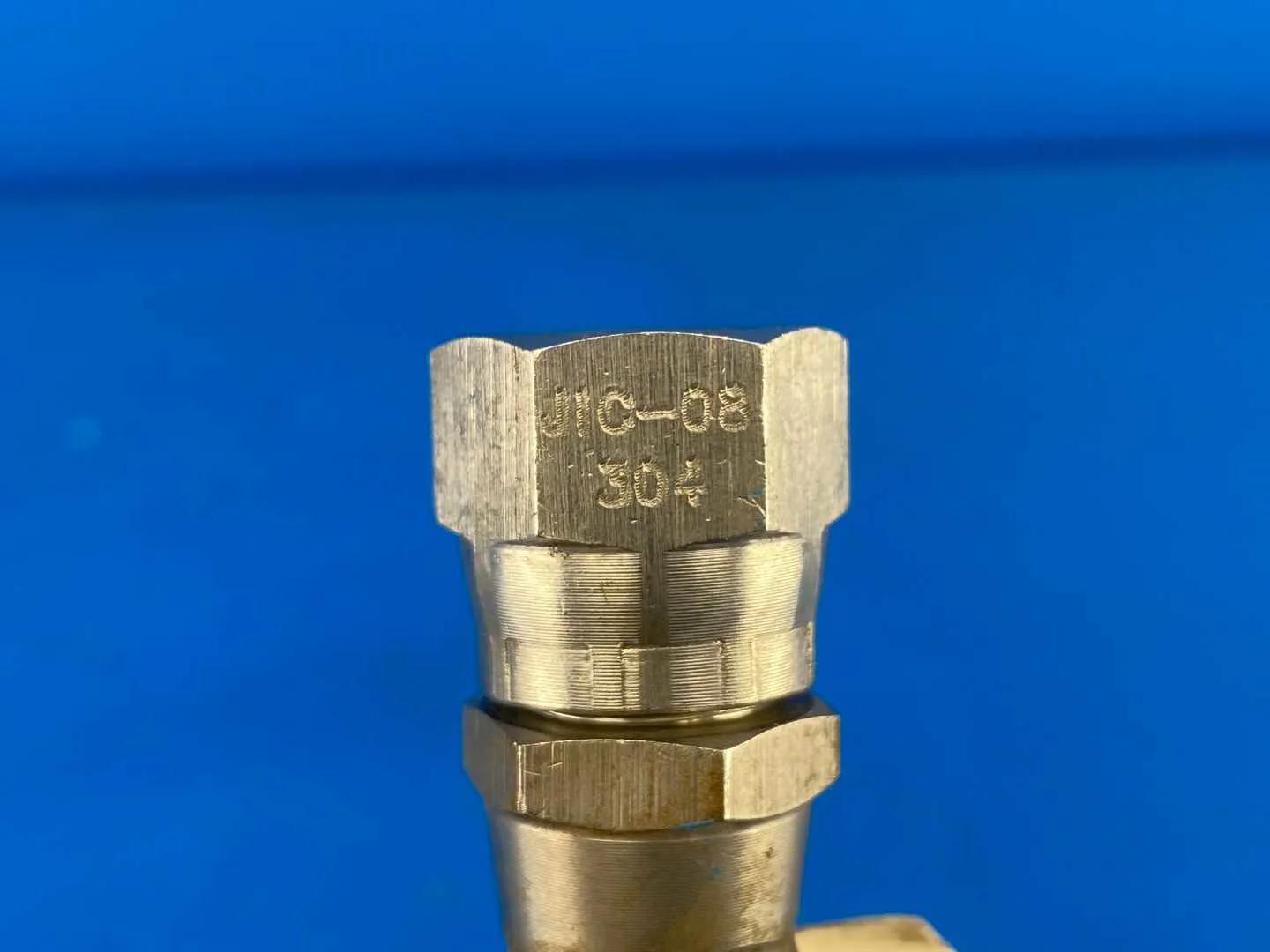

• Marking on Hose: JIC-08, 304
• End Fittings: JIC 37 degree flare, dash size -08
• JIC -08 Thread: 3/4-16 (3/4 in thread, nominal 1/2 in tube OD)
• Alloy Marking: 304 (stainless steel)
• Overall Length: 51 in per record title (not stated on a datasheet)
• FLAG for review: no manufacturer name is visible in the photos; Flexline is not confirmed. Title "3/4 in" matches the -08 JIC thread size, not a 3/4 in hose ID.
• Spec Basis: Hose marking read from photos (JIC-08, 304); Brennan Industries JIC thread chart for dash size -8 (https://brennaninc.com/content/pdf/BrennanThreadChart.pdf); Flexline metal hose fittings page, female JIC swivel 37 deg in 304L / 316L (https://flexline.com/metal-hose/metal-hose-fittings/)
