Flexline S Series 316 72" Steel Braided Hose
S Series 316 Hose Specifications: Diameter & Pressure
System Fitment for Flexline S Series 316
| Description | Details |
|---|---|
| Available Quantity | 1 |
| Model | S Series 316 |
| Condition | New |
| Manufacturer | Flexline |
| Asset Number | KSC1290 / 2197 |
| Guarantee or ASIS | 2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return |
| Inspections - Yellow Tag | 1.1 Appears Unused no box |
| Packaging Cost | 1.6 6x10 CH $3.00 |
$29.95
Basic Information
Asset #
KSC1290 / 2197
Available Quantity
1
Inspections - Yellow Tag
1.1 Appears Unused no box
Condition
New
Guarantee or ASIS
2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return
Item Description

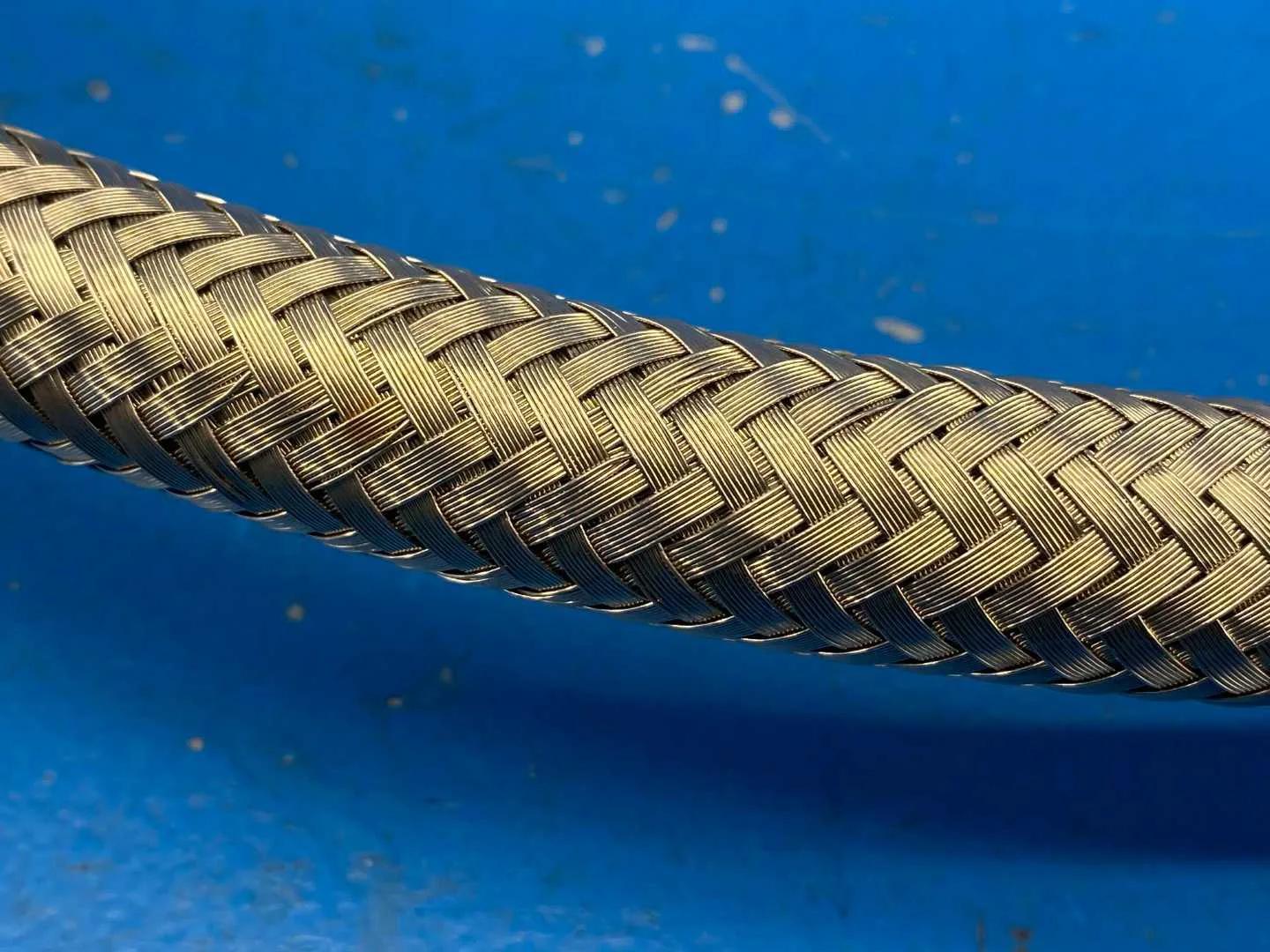

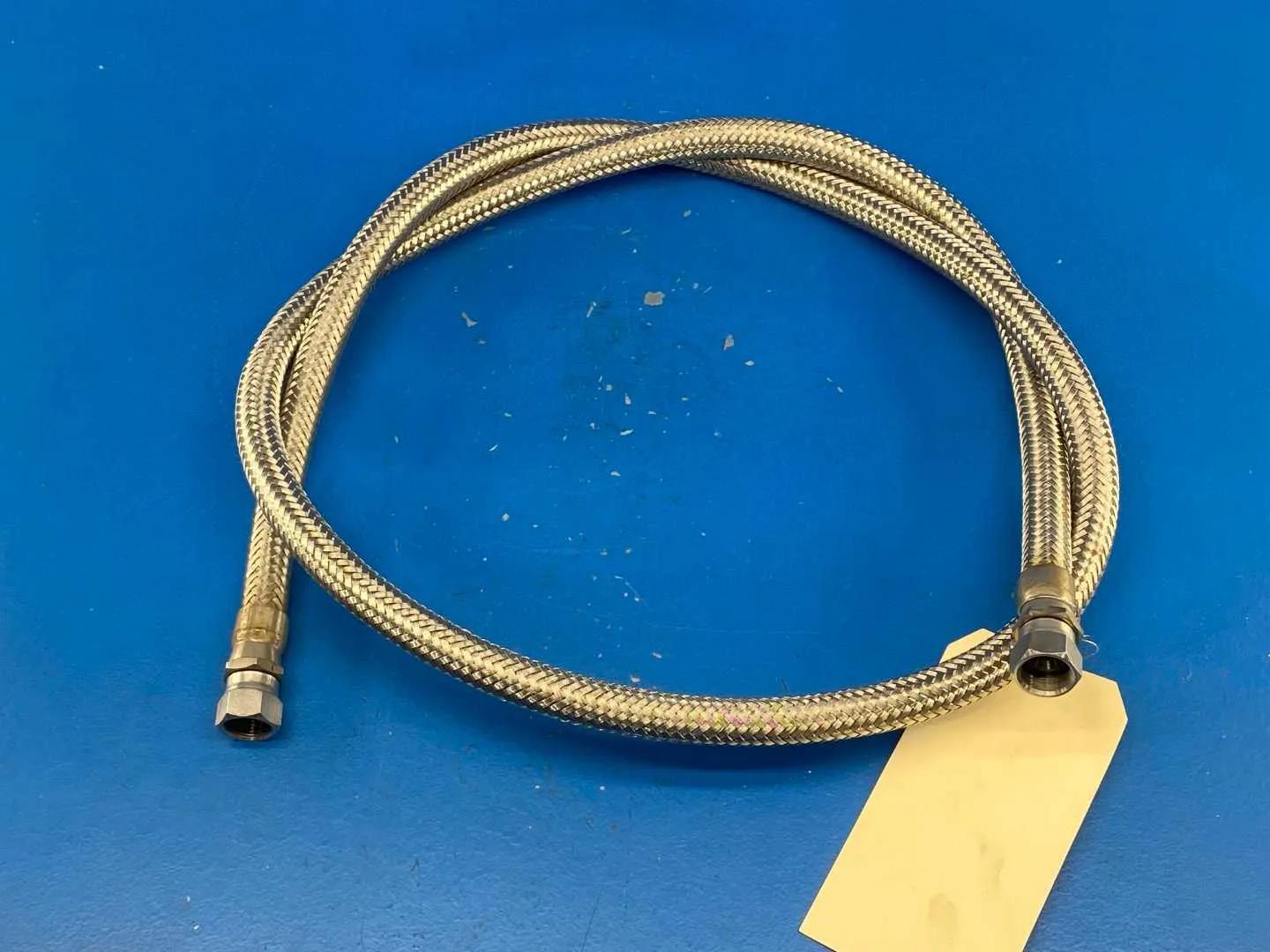

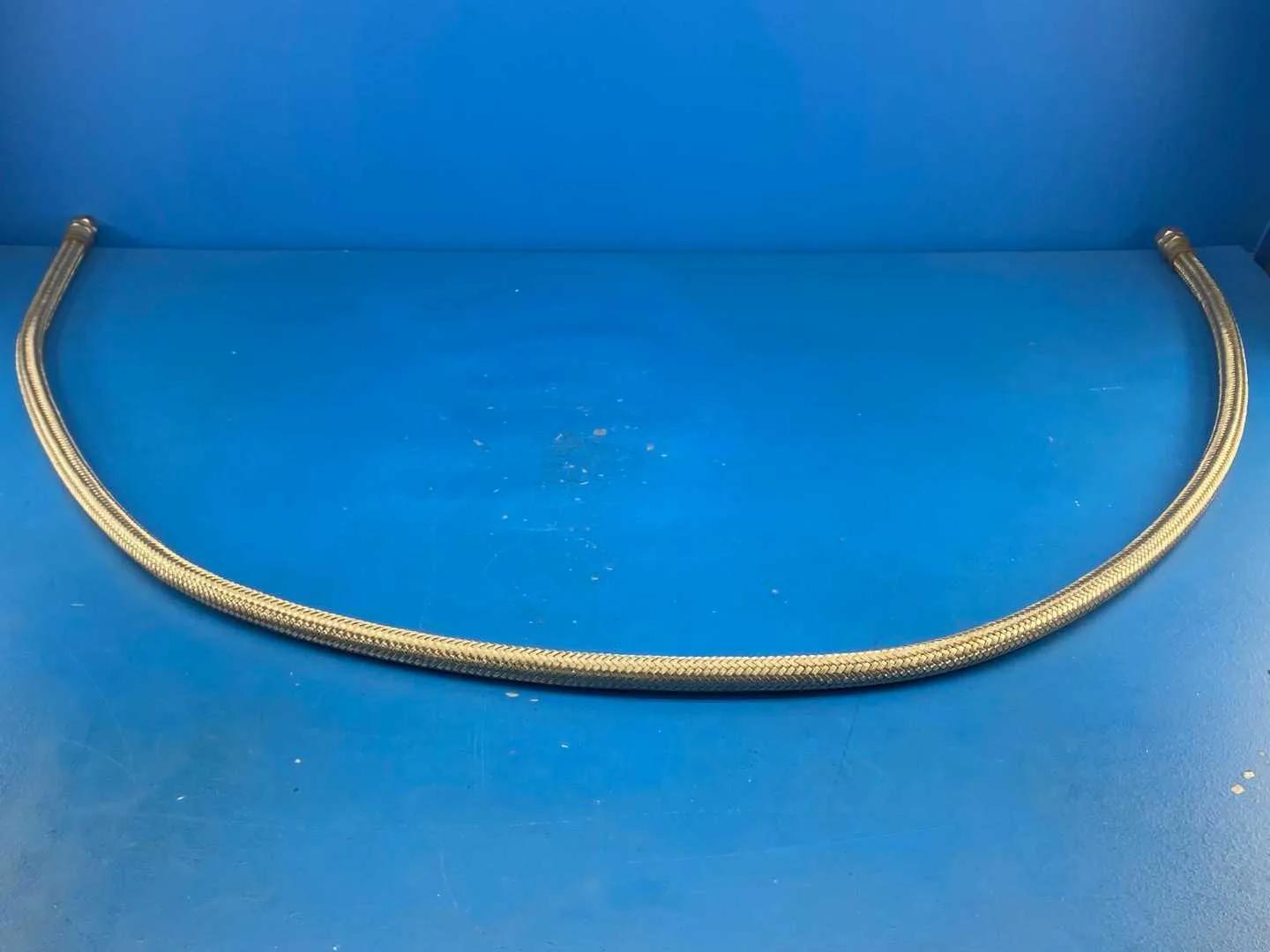

This is a braided stainless steel flexible metal hose assembly, 72 inches long per the record, marked 316 and listed as a Flexline S Series hose. Flexline is a manufacturer of specialty metal hose assemblies, and its S Series is an ISO 10380 qualified construction of closed pitch corrugated 321 or 316L stainless steel hose covered with a 304 stainless steel braid.
In the S Series, the 316L hose is coded 60 with no braid, 61 with a single braid and 62 with a double braid, and the line covers nominal sizes from 1/4 inch to 20 inches. Flexline states that the S Series withstands full vacuum as well as its listed working pressure, which falls as the diameter increases. The corrugated core gives flexibility and absorbs movement, while the braid carries the pressure load and keeps the corrugations from stretching.
Pipefitters, process engineers and maintenance crews install braided metal hose on steam and condensate lines, chemical and gas transfer, pump and compressor connections, vacuum systems and equipment that needs a flexible connector to take up vibration, thermal growth or misalignment.
Available from King Surplus inventory in Del Rio, Texas.
Factory Information
- Product: Braided corrugated stainless steel hose assembly

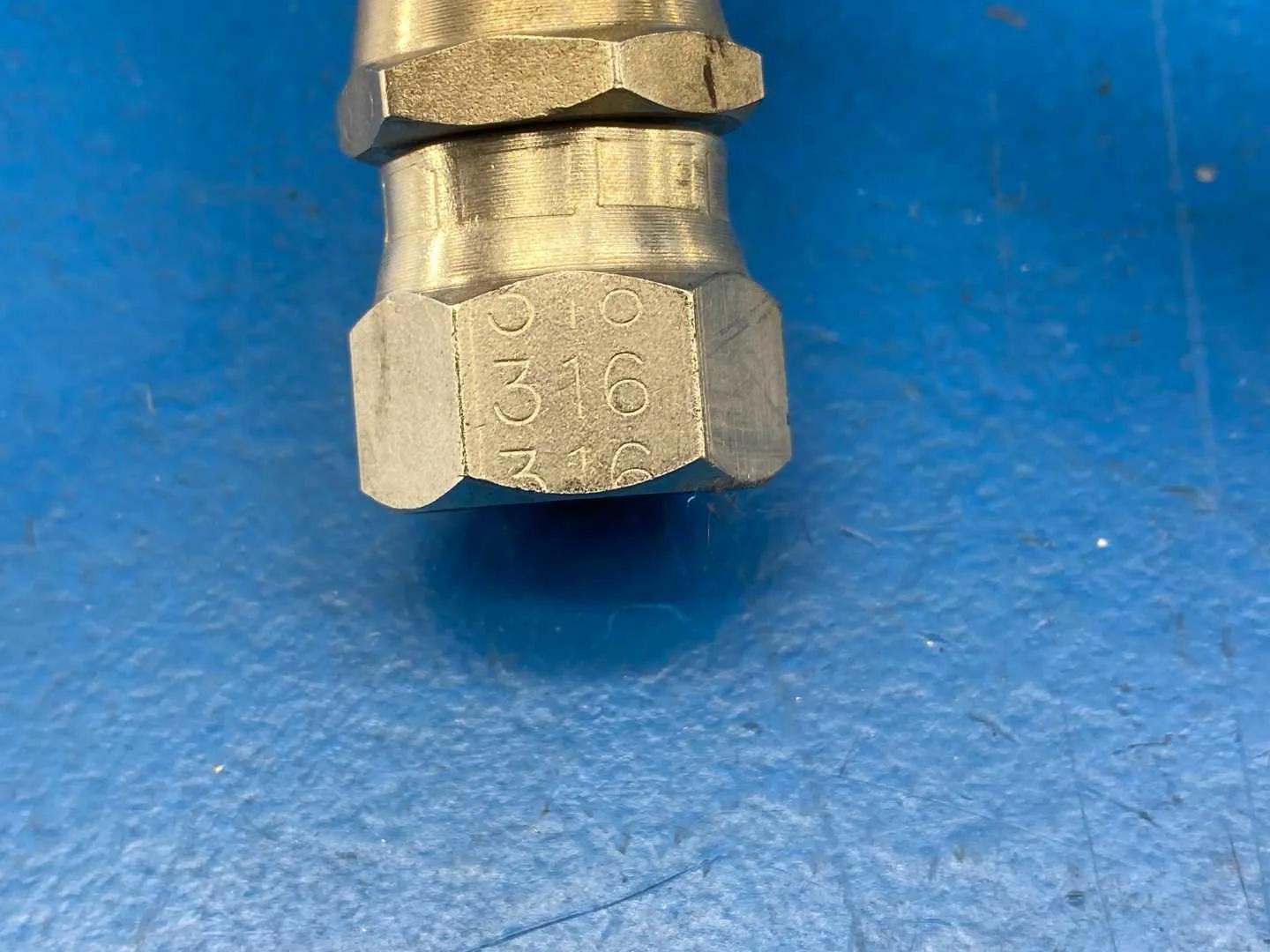

- Marking on Assembly: 316

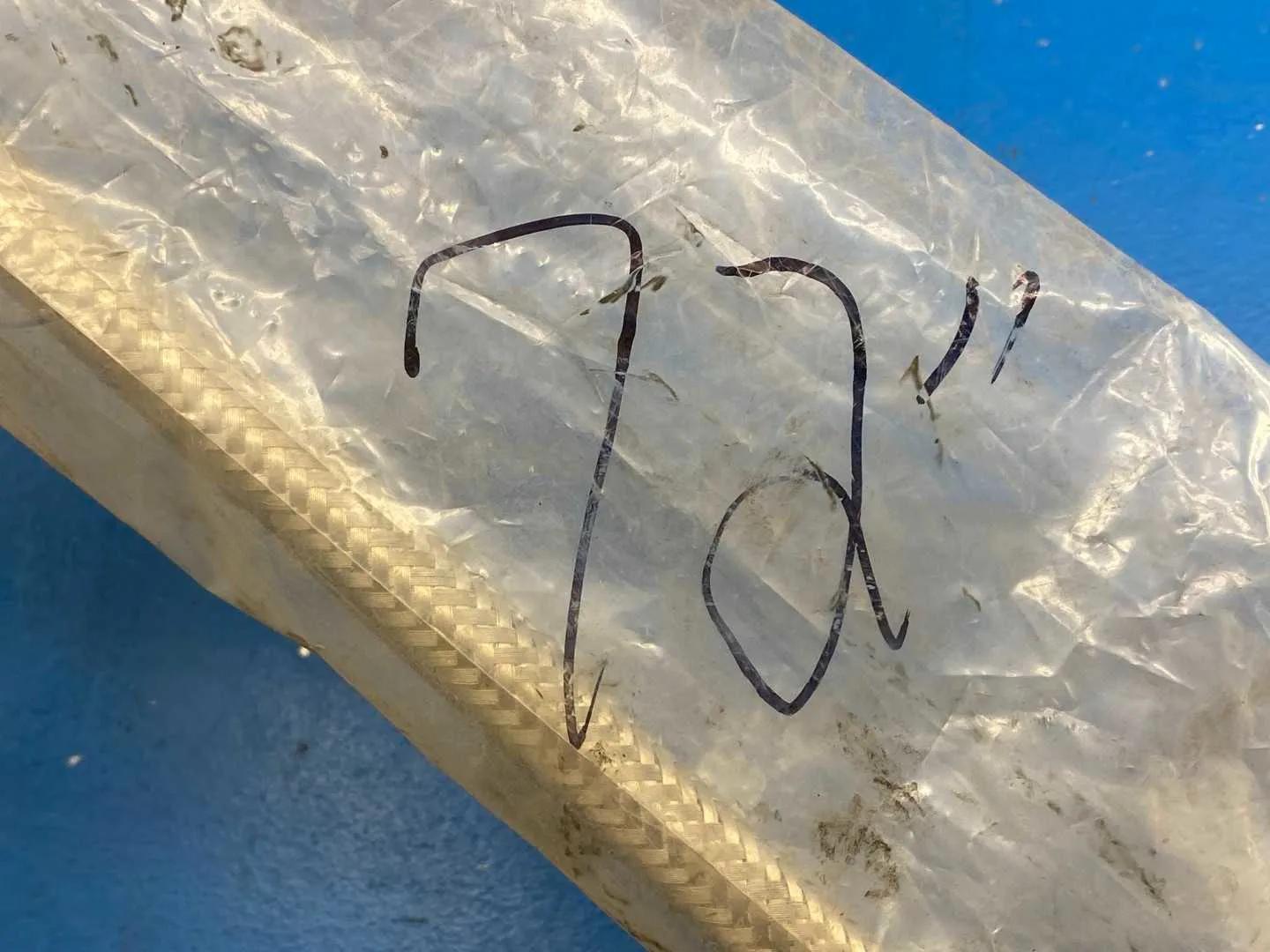

- Overall Length: 72 in per record title (not stated on a datasheet)
- Flexline S Series Construction: Closed pitch corrugated 321 or 316L stainless steel hose with 304 stainless braid, ISO 10380 qualified
- Flexline S Series 316L Codes: 60-316L no braid, 61-316L single braid, 62-316L double braid
- Flexline S Series Service: Withstands full vacuum and pressure as listed per size
- Flexline S Series Size Range: 1/4 in through 20 in nominal ID
- FLAG for review: no Flexline name, series code, hose size or fitting type is legible in the photos; only "316" was read. Nominal ID, braid count and end fittings must be checked on the part.
- Spec Basis: Marking read from photos (316); Flexline corrugated stainless steel hose page, S Series (https://flexline.com/metal-hose/corrugated-stainless-steel-hose/)
Specifications
Flexline
S Series 316
N/A
N/A
N/A
N/A
1
2
1
N/A
2
2.33
KSC1290 / 2197
Packaging fees
1.6 6x10 CH $3.00
