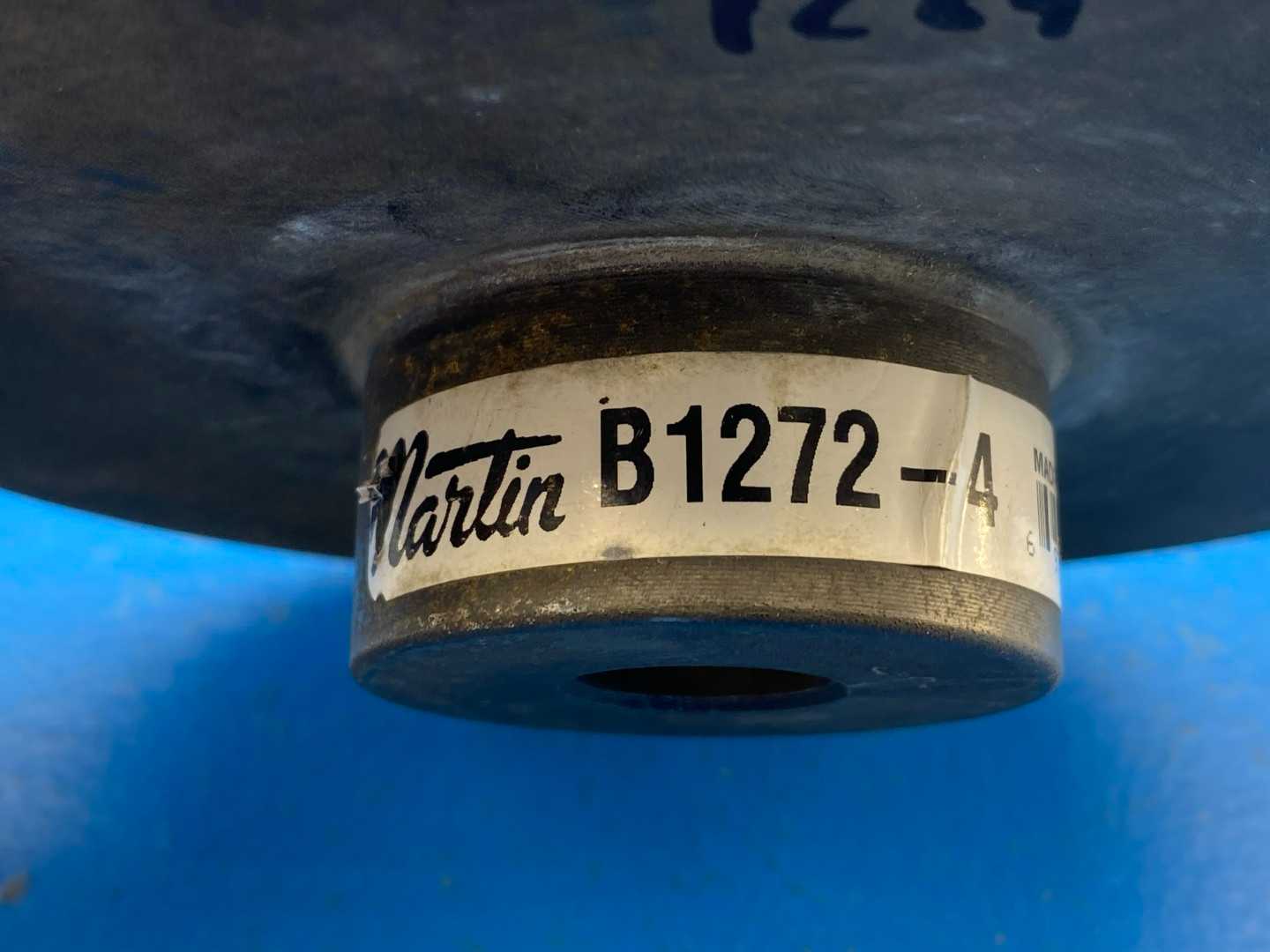

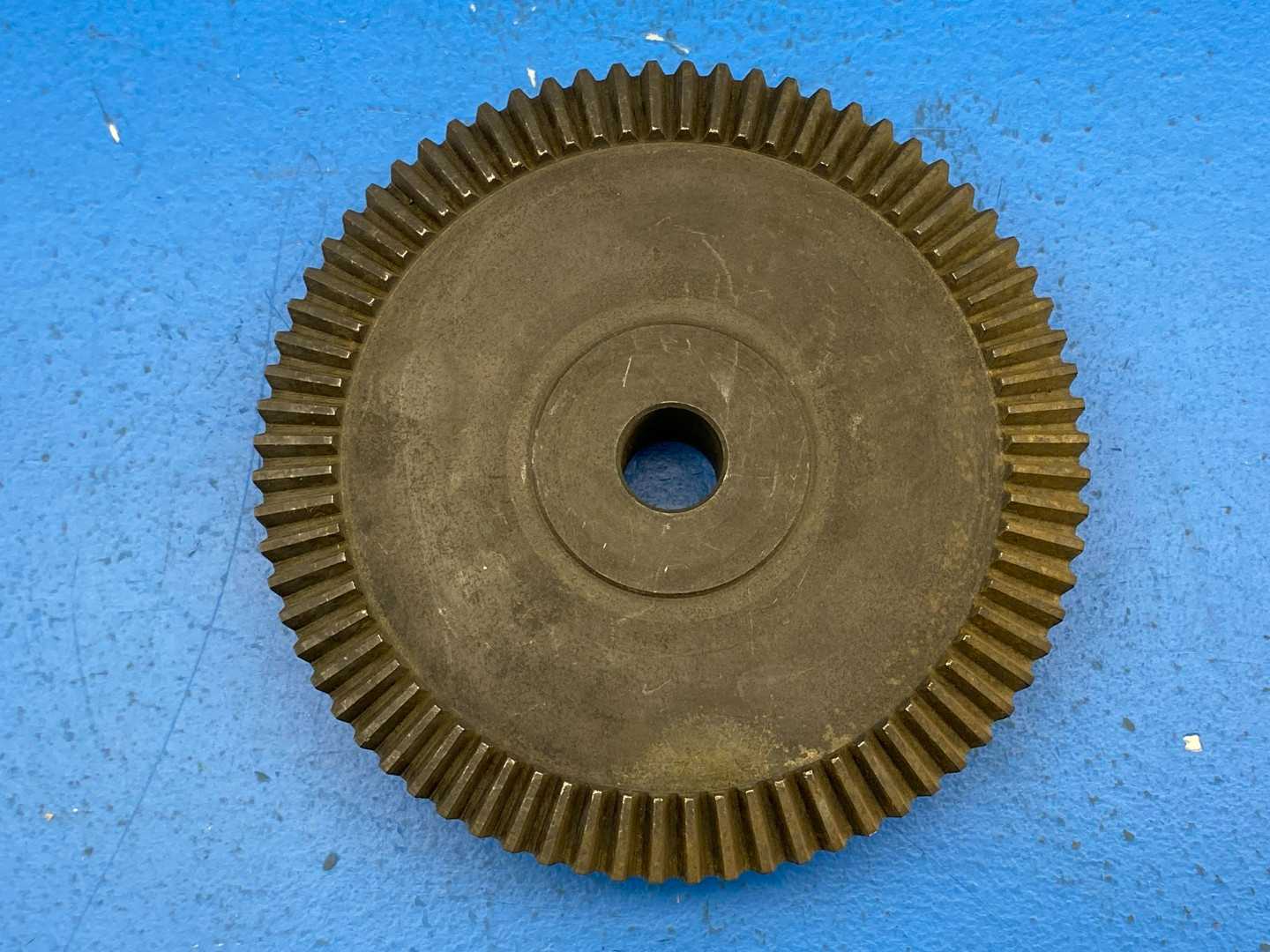

Martin B1272-4 Bevel Gear with 72 Teeth
Features of the Martin B1272-4 Bevel Gear
Applications of the Martin B1272-4 Bevel Gear
$135.40
| Description | Details |
|---|---|
| Available Quantity | 1 |
| Model | B1272-4 |
| Condition | New |
| Manufacturer | Martin |
| Asset Number | KSC1290 / 1289 |
| Guarantee or ASIS | 1. HIGH CONFIDENCE ITEM: We will offer a 100% 14 Day money back less S&H. |
| Inspections - Yellow Tag | 1.1 Appears Unused no box |
| Packaging Cost | 1.6 6x10 CH $3.00 |
$135.40
Basic Information
Asset #
KSC1290 / 1289
Available Quantity
1
Inspections - Yellow Tag
1.1 Appears Unused no box
Condition
New
Guarantee or ASIS
1. HIGH CONFIDENCE ITEM: We will offer a 100% 14 Day money back less S&H.
Item Description
Bevel gears are used as a right angle drives where high efficiency is required. They are carried in stock as 1:1 to 6:1 ratios. Bevel gears are cut with long and short addendum system and 20° pressure angle to compensate for tooth undercut in gears
Factory Information
Pitch Diameter 6 in Gear Ratio 4:1 O.D. 6.023 in Diametral Pitch 12 Bore Size [Min] 0.75 in Face Width (in) 0.6 in Tooth Type Straight Bore Size 0.75 in Hub Projection 0.953 in Bore Size [Max] 1.126 in Use With B1218-4 Inch/Metric Inch Pressure Angle 20 ° Hub Dia. 2 in Spiral Direction None Length Through Bore 1.31 in Hardened Teeth Without Hardened Teeth Material Cast Iron Type Gear Bore Type Reborable Hub O.D. 2 in Mounting Distance 2 in No. of Teeth 72 Material External Use Cast Iron Pitch Dia. 6 in Outside Dia. 6.022 in Ratio 4 Size Code 7218 Material Internal Use Cast Iron Mating Gear Part No. B1218-4 Weight 3.3 LB EAN or UPC 697950053110
Specifications
Packaging fees
Packaging Cost
1.6 6x10 CH $3.00
